Run Unit Testing amp Code Coverage Jobs using Services

In this guide, you’ll learn how to configure Docker-based services within a GitLab CI/CD pipeline. Services are Docker containers that provide network-accessible dependencies (e.g., databases, caches) so your jobs can execute tests against them.

Understanding GitLab CI Services

GitLab CI services let your job containers connect to supporting containers on the same network. Common use cases include databases (PostgreSQL, MongoDB), message queues (RabbitMQ), or custom APIs.

What Services Are—and What They Aren’t

You can use any Docker image—public or private—as a service. However, services are not a way to install CLI tools for your job container. For example:

job:
  services:
    - php:7
    - node:latest
    - golang:1.10
  image: alpine:3.7
  script:
    - php -v       # ❌ Error: no PHP binary
    - node -v      # ❌ Error: no Node.js binary
    - go version   # ❌ Error: no Go binary

To run language-specific commands, always specify the language image under image:, not under services:.

Defining & Connecting to Services

A minimal service definition looks like this:

job:
  image: alpine:3.7
  services:
    - name: tutum/wordpress:latest
  script:
    - curl http://tutum-wordpress

By default, each service is reachable via two hostnames:

• Replace / with __ (double underscore): tutum__wordpress
• Replace / with - (single dash): tutum-wordpress

Tags (the part after :) are dropped. Because underscores aren’t valid under RFC 1123, it’s best to assign a custom alias:

job:
  image: alpine:3.7
  services:
    - name: tutum/wordpress:latest
      alias: wordpress
  script:
    - curl http://wordpress

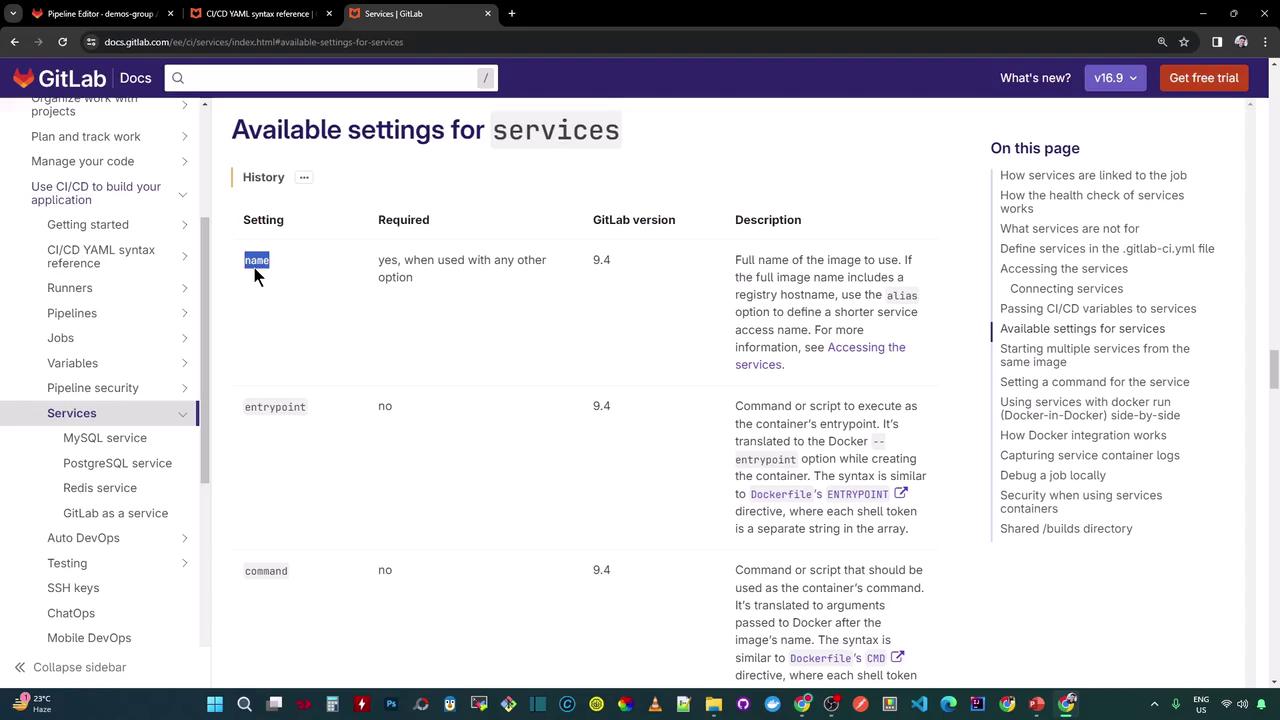

Service Configuration Options

Example: Entrypoint, Command & Variables

default:
  image: ruby:2.6
  entrypoint: ["bash"]

services:
  - name: my-postgres:11.7
    alias: db-postgres
    entrypoint: ["/usr/local/bin/docker-entrypoint.sh"]
    command: ["postgres"]
    variables:
      POSTGRES_DB: test
      POSTGRES_USER: user
      POSTGRES_PASSWORD: secret

Setting Pull Policies

Control when the Runner pulls service images:

job1:
  script: echo "Using if-not-present pull policy"
  services:
    - name: postgres:11.6
      pull_policy: if-not-present

job2:
  script: echo "Using always pull policy"
  services:
    - name: postgres:11.6
      pull_policy: [always, if-not-present]

CI/CD Jobs: Unit Testing & Code Coverage with MongoDB Service

The example below shows two jobs—unit_testing and code_coverage—both using a MongoDB service from siddharth67/mongo-db:non-prod. We set an alias mongo and always pull the image on self-managed runners.

variables:
  # Define CI/CD variables in Settings → CI/CD
  MONGO_PASSWORD: $M_DB_PASSWORD

unit_testing:
  stage: test
  image: node:17-alpine3.14
  services:
    - name: siddharth67/mongo-db:non-prod
      alias: mongo
      pull_policy: always
  variables:
    MONGO_URI: 'mongodb://mongo:27017/superData'
    MONGO_USERNAME: non-prod-user
    MONGO_PASSWORD: $M_DB_PASSWORD
  cache:
    key:
      files:
        - package-lock.json
      prefix: node_modules
    policy: pull-push
    when: on_success
    paths:
      - node_modules
  before_script:
    - npm install
  script:
    - npm test
  artifacts:
    when: always
    expire_in: 3 days
    name: Moca-Test-Result
    paths:
      - test-results.xml
    reports:
      junit: test-results.xml

code_coverage:
  stage: test
  image: node:17-alpine3.14
  services:
    - name: siddharth67/mongo-db:non-prod
      alias: mongo
      pull_policy: always
  variables:
    MONGO_URI: 'mongodb://mongo:27017/superData'
    MONGO_USERNAME: non-prod-user
    MONGO_PASSWORD: $M_DB_PASSWORD
  cache:
    key:
      files:
        - package-lock.json
      prefix: node_modules
    policy: pull-push
    when: on_success
    paths:
      - node_modules
  before_script:
    - npm install
  script:
    - npm run coverage

How It Works

1. Service Startup
   The GitLab Runner pulls and starts the MongoDB container (siddharth67/mongo-db:non-prod), then waits for it to become healthy.
2. Job Container Launch
   The Runner pulls the Node.js image and initializes the job container.
3. Networking
   Both containers share a Docker network. The job container connects to MongoDB via mongo:27017.
4. Caching & Artifacts
   Node modules and test reports are cached/restored and archived, speeding up subsequent pipelines.

Sample Job Logs

Running with gitlab-runner 16.6.0...
Using Docker executor with image node:17-alpine3.14 ...
Starting service siddharth67/mongo-db:non-prod ...
Pulling docker image siddharth67/mongo-db:non-prod ...
Waiting for services to be up and running (timeout 30 seconds)...
Pulling docker image node:17-alpine3.14 ...
Preparing environment
Running on runner-xyz...
Getting source from Git repository
Restoring cache
Executing "step_script" stage of the job script
$ npm test
  ✓ should connect to MongoDB at mongo:27017
...
Saving cache for successful job
Uploading artifacts for successful job
Job succeeded

References

• GitLab CI/CD Services Documentation
• CI/CD Variables | GitLab
• Docker Pull Policy Options
