In this guide, you’ll learn how to build Docker images inside a GitLab CI/CD pipeline using Docker-in-Docker (DinD). We’ll extend an existing CI configuration to include a containerization stage that compiles and inspects your Docker image.

Prerequisites

Note

A GitLab Runner with Docker-in-Docker support enabled
CI/CD variables set for DOCKER_USERNAME, M_DB_PASSWORD, and any other secrets
A Docker Hub account configured to push images

CI/CD Pipeline Configuration

Add a containerization stage to your existing .gitlab-ci.yml. The new docker_build job will build and list your Docker image:

stages:
  - test
  - containerization

variables:
  DOCKER_USERNAME: siddharth67
  IMAGE_VERSION: $CI_PIPELINE_ID
  MONGO_URI: mongodb+srv://supercluster.d83jj.mongodb.net/superData
  MONGO_USERNAME: superuser
  MONGO_PASSWORD: $M_DB_PASSWORD

unit_testing:
  # (previous configuration)

code_coverage:
  # (previous configuration)

docker_build:
  stage: containerization
  image: docker:24.0.5
  services:
    - docker:24.0.5-dind
  dependencies: []
  rules:
    - if: $CI_COMMIT_BRANCH == "main" || $CI_COMMIT_BRANCH =~ /^feature/
      when: always
    - if: $CI_MERGE_REQUEST_SOURCE_BRANCH_NAME =~ /^feature/ && $CI_PIPELINE_SOURCE == "merge_request_event"
      when: always
  script:
    - docker build -t $DOCKER_USERNAME/solar-system:$IMAGE_VERSION .
    - docker images $DOCKER_USERNAME/solar-system:$IMAGE_VERSION

Variable Definitions

Variable	Description	Example
DOCKER_USERNAME	Docker Hub username used to tag and push the image	`siddharth67`
IMAGE_VERSION	Unique image tag based on the GitLab pipeline ID	`$CI_PIPELINE_ID`
MONGO_URI	MongoDB connection string (optional in this job)	`mongodb+srv://.../superData`
MONGO_USERNAME	MongoDB username	`superuser`
MONGO_PASSWORD	MongoDB password stored as a CI/CD masked variable	`$M_DB_PASSWORD`

Warning

Make sure sensitive values like MONGO_PASSWORD are stored as masked CI/CD variables to avoid exposure in job logs.

Sample Dockerfile

Place this Dockerfile at the root of your repository to containerize a Node.js application:

FROM node:18-alpine3.17

WORKDIR /usr/app

COPY package*.json /usr/app/
RUN npm install

COPY . .

ENV MONGO_URI=uriPlaceholder
ENV MONGO_USERNAME=usernamePlaceholder
ENV MONGO_PASSWORD=passwordPlaceholder

EXPOSE 3000
CMD ["npm", "start"]

Pipeline Execution Flow

When you push to main or open a feature merge request, GitLab:

Launches the docker:24.0.5 image for the job.
Starts the Docker-in-Docker service (docker:24.0.5-dind).
Runs the script section to build and list the image:

$ docker build -t $DOCKER_USERNAME/solar-system:$IMAGE_VERSION .
Sending build context to Docker daemon  2.05MB
Step 1/7 : FROM node:18-alpine3.17
 ---> 6239c8a63890
Step 2/7 : WORKDIR /usr/app
 ---> Using cache
 ---> a1b2c3d4e5f6
...
Step 7/7 : CMD ["npm", "start"]
 ---> Using cache
 ---> z9y8x7w6v5u4
Successfully built z9y8x7w6v5u4
Successfully tagged siddharth67/solar-system:123

$ docker images $DOCKER_USERNAME/solar-system:$IMAGE_VERSION
REPOSITORY                TAG   IMAGE ID       CREATED          SIZE
siddharth67/solar-system  123   z9y8x7w6v5u4   5 seconds ago    181MB

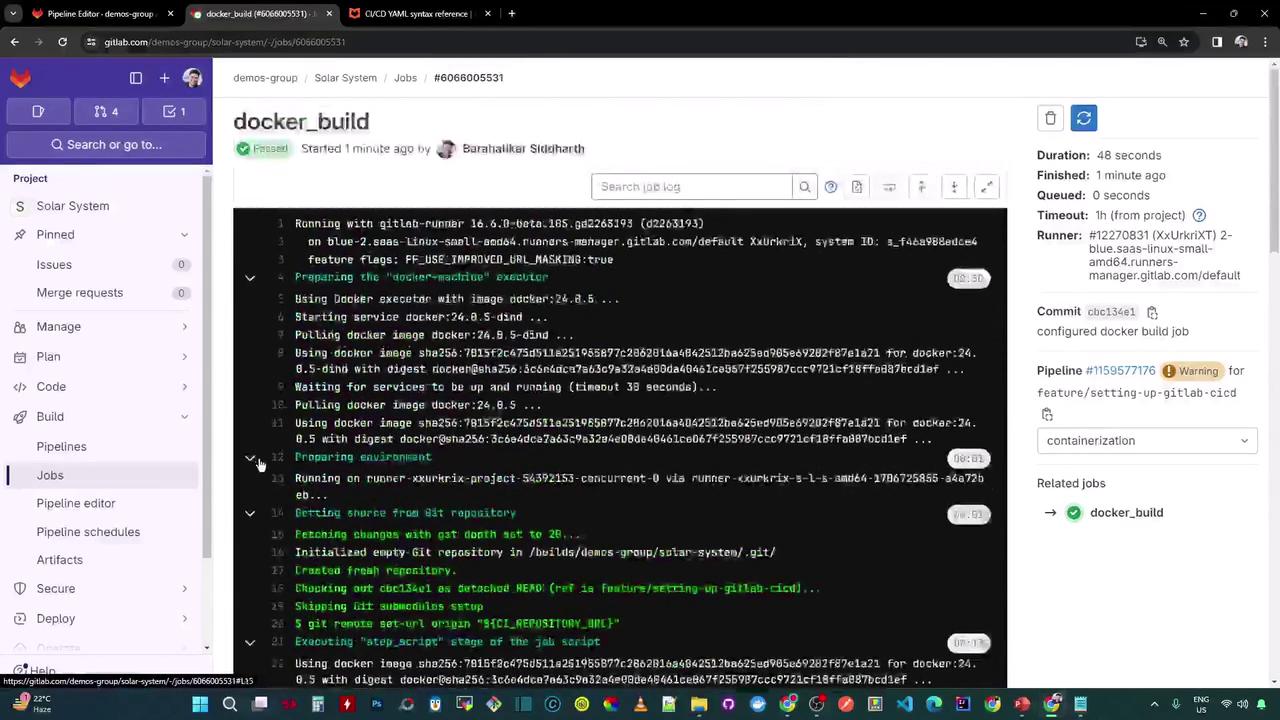

The image shows a GitLab CI/CD pipeline interface with a job log for a Docker build process. The log details various steps of the build, including pulling Docker images and preparing the environment.

With this setup, your pipeline now builds a Docker image automatically. The next step is to add a job that runs container-based tests before pushing to Docker Hub.
