Optimize CICD configuration files

When setting up an application pipeline, it’s easy to copy-paste previous CI/CD snippets. While this speeds up the initial setup, it makes maintenance and scaling a headache. By modularizing your GitLab CI/CD pipelines, you can:

Eliminate duplicated code
Standardize workflows
Simplify updates as your project grows

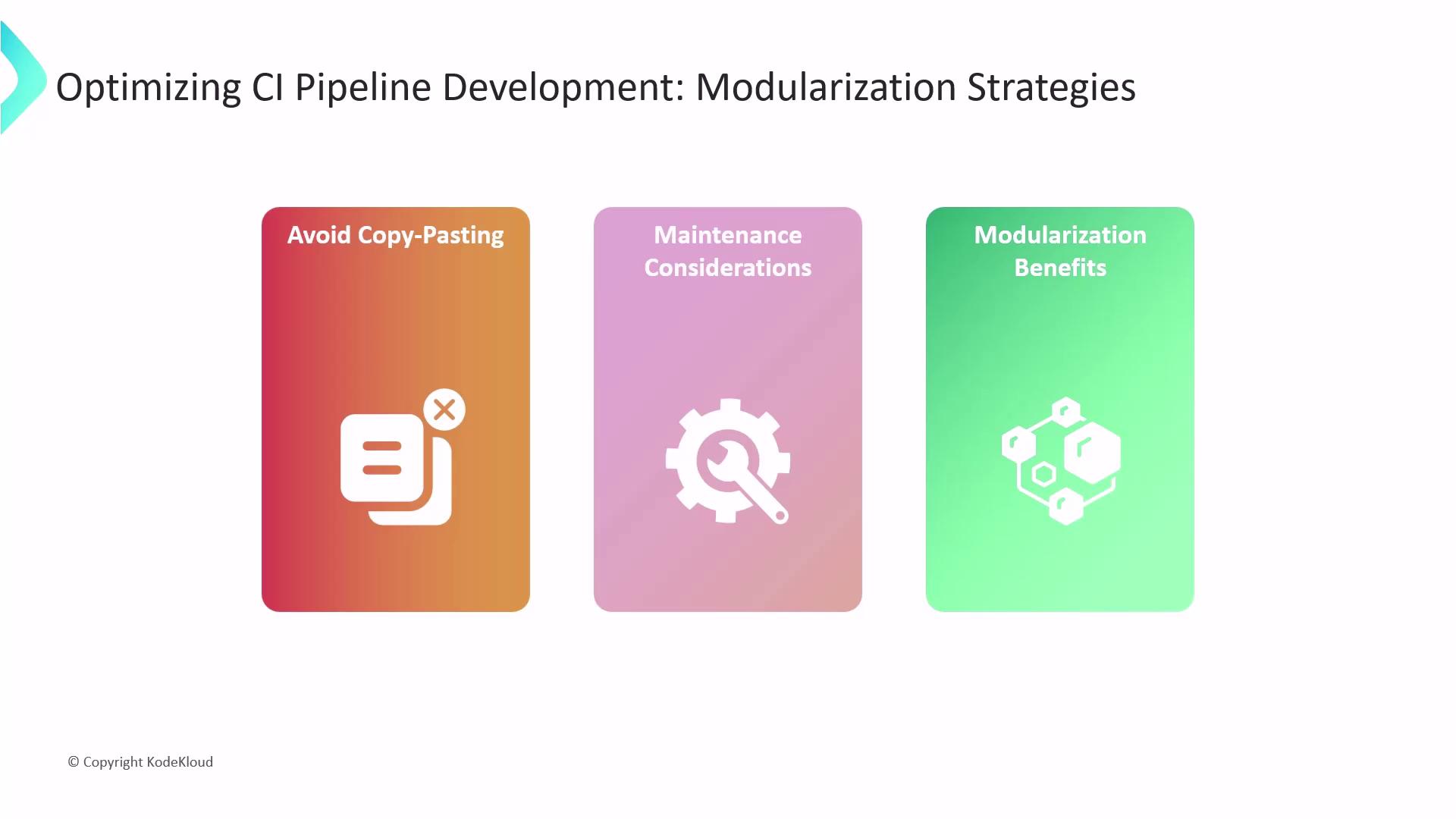

The image outlines strategies for optimizing CI pipeline development, focusing on avoiding copy-pasting, maintenance considerations, and modularization benefits. Each strategy is represented with an icon and a colored background.

GitLab CI/CD provides three powerful mechanisms for DRY pipelines:

Feature	Purpose	Scope	Cross-File Support	Syntax
Extends	Inherit and override job definitions	Multi-file	Yes	`extends: .base_job`
YAML Anchors	Reuse blocks within a single file	Single file	No	`&anchor` / `<<: *anchor`
Reference Tags	Pull snippets across YAML files	Multi-file	Yes	`!reference [job, key]`

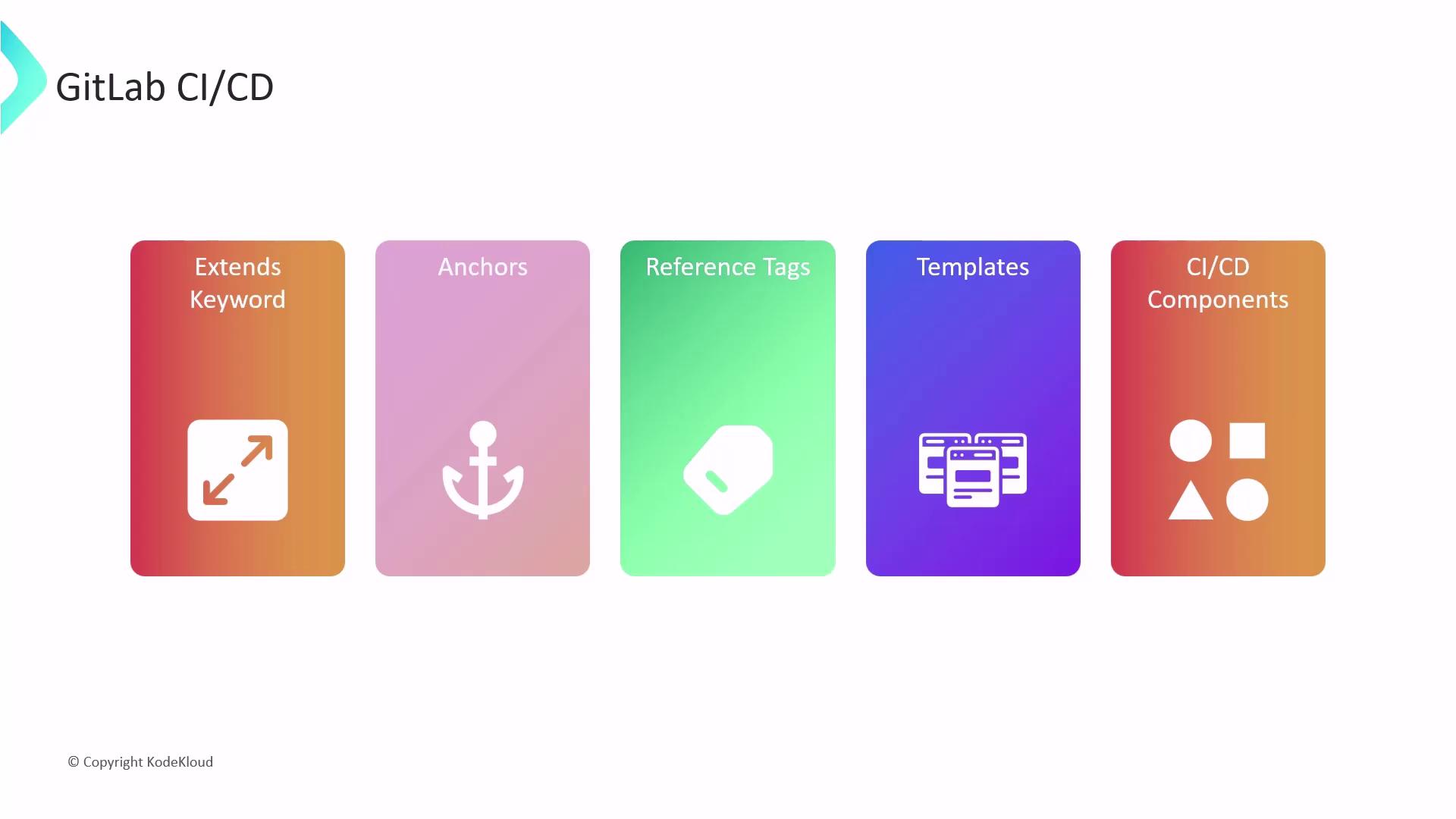

The image is a visual representation of GitLab CI/CD concepts, featuring five colored cards labeled "Extends Keyword," "Anchors," "Reference Tags," "Templates," and "CI/CD Components," each with an icon.

Hidden Jobs

Jobs prefixed with a dot (.) are hidden: they never run on their own but serve as reusable templates.

.hidden_common:
  cache:
    policy: pull-push
    key:
      files: [package.json]
      paths: [node_modules]
  before_script:
    - npm install

Use hidden jobs for:

Common cache rules
Shared before_script steps
Disabling jobs without deleting them

1. The `extends` Keyword

Use extends to inherit from hidden or other jobs—even across multiple files. GitLab merges parent and child definitions, with child values overriding duplicates.

Example: Node.js Jobs

# Define a reusable base job
.base_nodejs_job:
  image: node:17-alpine3.14
  services:
    - name: siddharth67/mongo-db:non-prod
  cache:
    policy: pull-push
    key:
      files: [package.json]
      paths: [node_modules]
  before_script:
    - npm install

# Inherit and add specific scripts
unit_testing:
  extends: .base_nodejs_job
  script:
    - npm test

code_coverage:
  extends: .base_nodejs_job
  script:
    - npm run coverage
  rules:
    - if: $CI_COMMIT_BRANCH == "main"
      when: manual

Any update to .base_nodejs_job automatically applies to all jobs that extend it, keeping your pipeline DRY and consistent.

2. YAML Anchors

YAML anchors (&) and aliases (*) let you reuse blocks within the same file.

# Anchor a base config
.base_node_config: &node_config
  image: node:17-alpine3.14
  services:
    - name: siddharth67/mongo-db:non-prod
  cache:
    policy: pull-push
    key:
      files: [package.json]
      paths: [node_modules]
  before_script:
    - npm install

# Merge the anchor into jobs
unit_testing:
  <<: *node_config
  script:
    - npm test

code_coverage:
  <<: *node_config
  script:
    - npm run coverage
  rules:
    - if: $CI_COMMIT_BRANCH == "main"
      when: manual

YAML anchors do not work across multiple files. Use extends or !reference for cross-file reuse.

3. Reference Tags

GitLab’s custom !reference tag imports specific sections from other jobs even across files.

# In .gitlab-ci-common.yml
.base_nodejs_config:
  cache:
    paths: [node_modules]
  test_script: [npm test]
  code_coverage_script: [npm run coverage]
  rules:
    - if: $CI_COMMIT_BRANCH == "main"
      when: manual

# In .gitlab-ci.yml
unit_testing:
  image: node:17-alpine3.14
  cache: !reference [.base_nodejs_config, cache]
  before_script: [npm install]
  script: !reference [.base_nodejs_config, test_script]

code_coverage:
  image: node:17-alpine3.14
  before_script:
    - npm install
  script: !reference [.base_nodejs_config, code_coverage_script]
  rules: !reference [.base_nodejs_config, rules]

!reference tags require GitLab Runner 12.6+ and allow fine-grained imports of job snippets.
