Pipeline Monitoring with Prometheus and Grafana

In this guide, we’ll architect a centralized monitoring solution for all your GitLab CI/CD pipelines using the GitLab CI Pipelines Exporter, Prometheus, and Grafana. Collect metrics across multiple projects and visualize them in real time.

1. GitLab’s Built-in CI/CD Analytics

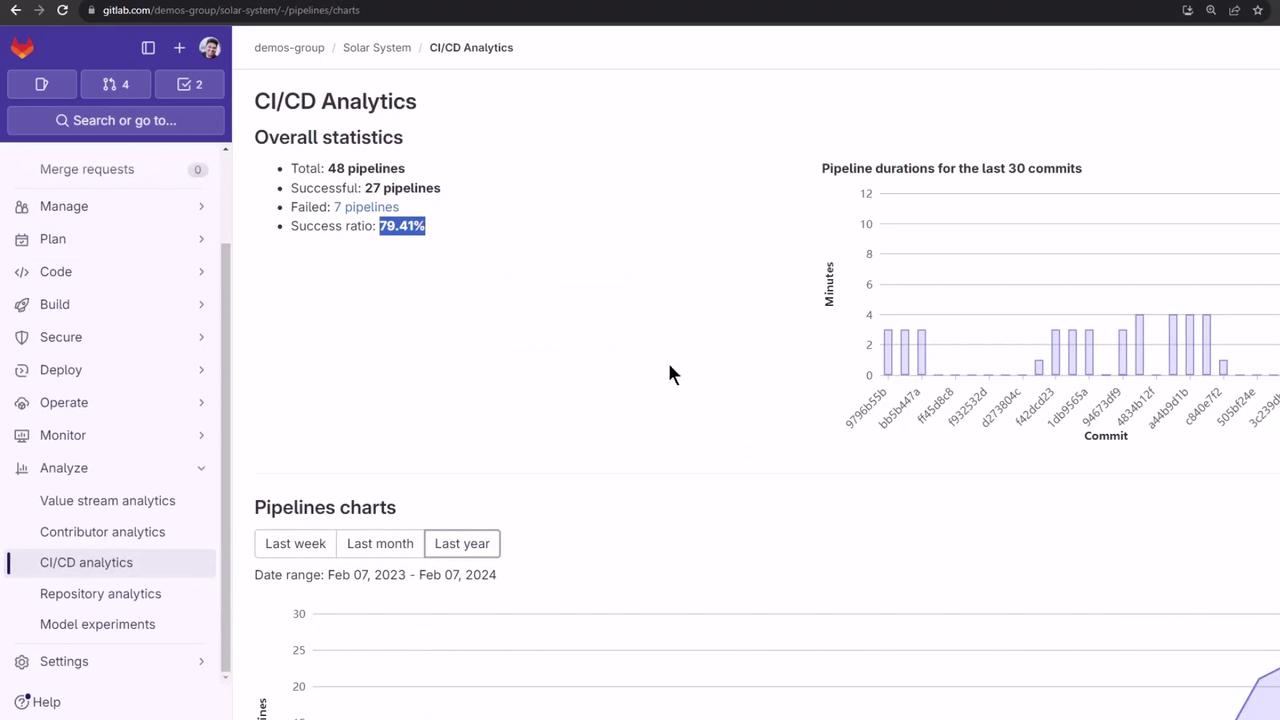

GitLab offers a per-project CI/CD analytics dashboard that displays overall pipeline success rates and duration trends. While convenient for a handful of repositories, it doesn’t scale to dozens of projects:

2. Centralized Pipeline Monitoring

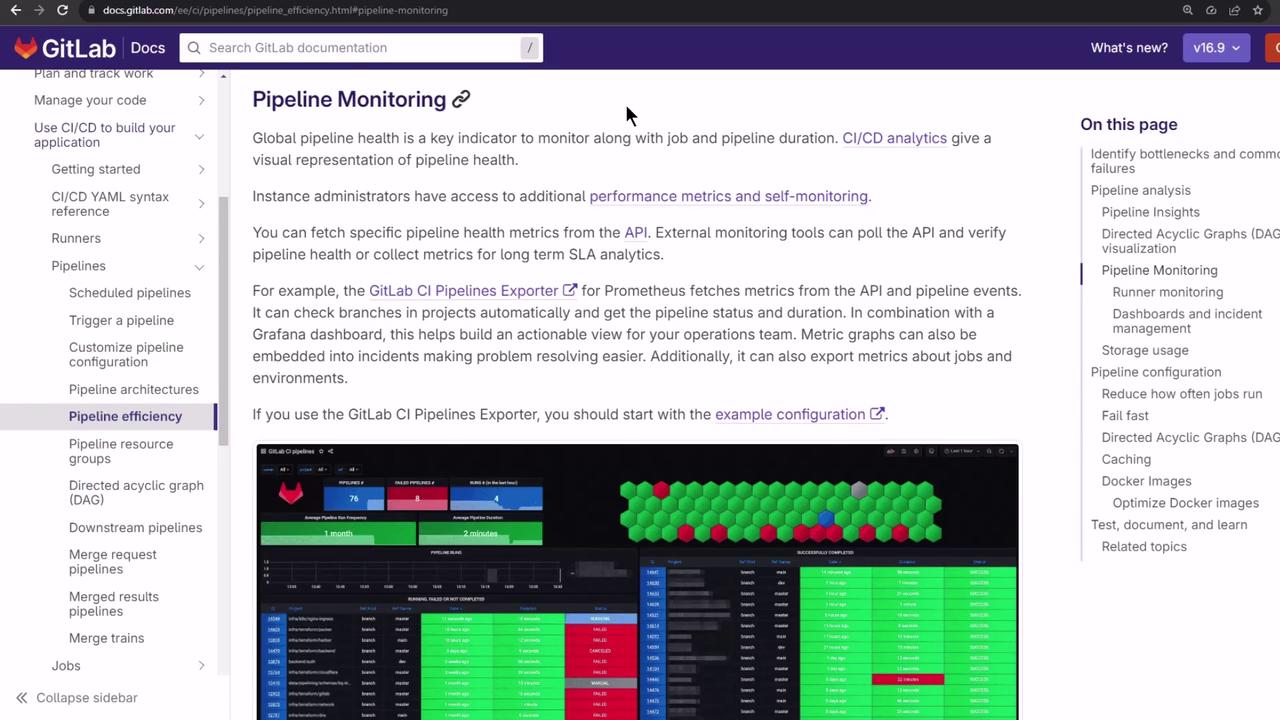

To obtain a global view, pair Prometheus with Grafana and the GitLab CI Pipelines Exporter:

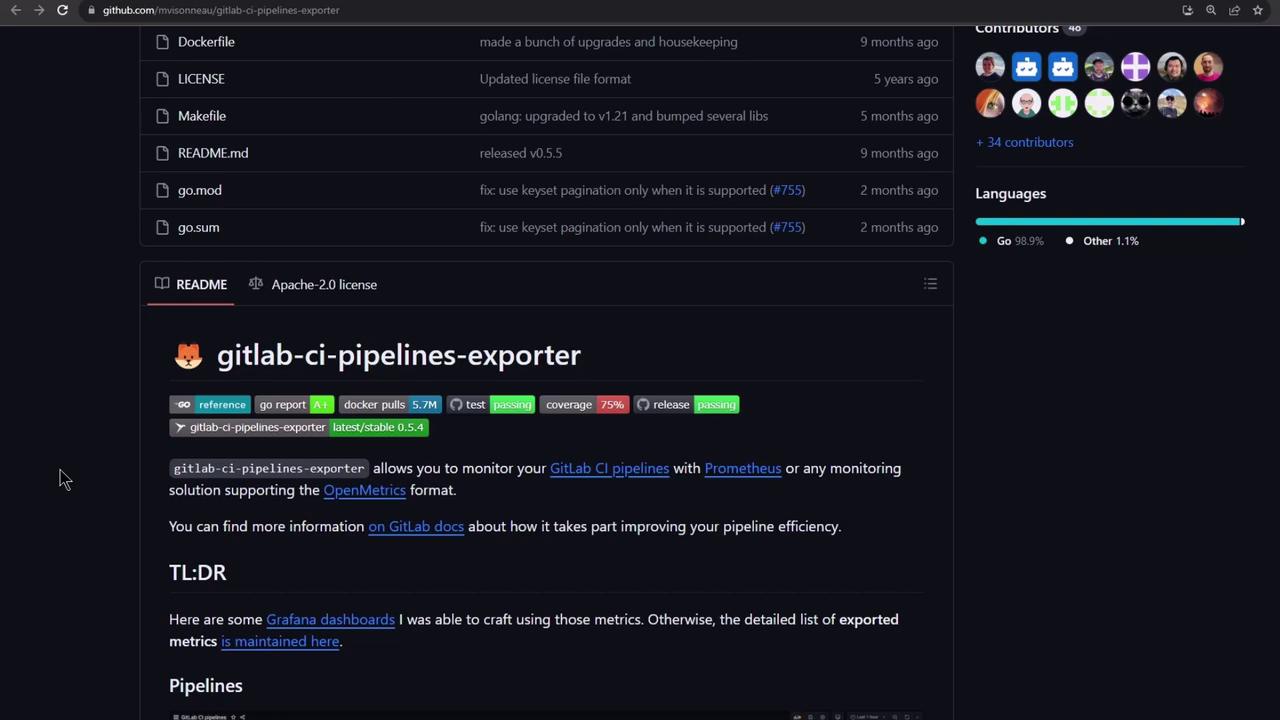

The GitLab CI Pipelines Exporter polls GitLab’s API, translates pipelines, jobs, and environment metrics into Prometheus format, and ships three Grafana dashboards out of the box.

3. GitLab CI Pipelines Exporter

3.1 Installation Options

Choose the installer that matches your environment:

3.2 Quickstart Example

A Docker Compose quickstart brings up the exporter, Prometheus, and Grafana in one go:

git clone https://github.com/mvisonneau/gitlab-ci-pipelines-exporter.git
cd gitlab-ci-pipelines-exporter/examples/quickstart

# Replace <your_token> in config file
sed -i 's/<your_token>/YOUR_TOKEN/' gitlab-ci-pipelines-exporter.yml

docker-compose up -d

Once running, access the stack at:

3.3 Docker Compose Overview

version: '3'
services:
  gitlab-ci-pipelines-exporter:
    image: quay.io/mvisonneau/gitlab-ci-pipelines-exporter:latest
    ports:
      - '8080:8080'
    environment:
      GCPE_GITLAB_TOKEN: ${GCPE_GITLAB_TOKEN}
      GCPE_CONFIG: /etc/gitlab-ci-pipelines-exporter.yml
    volumes:
      - ./gitlab-ci-pipelines-exporter.yml:/etc/gitlab-ci-pipelines-exporter.yml

  prometheus:
    image: prom/prometheus:v2.44.0
    ports:
      - '9090:9090'
    volumes:
      - ./prometheus/config.yml:/etc/prometheus/prometheus.yml

  grafana:
    image: grafana/grafana:9.5.2
    ports:
      - '3000:3000'
    environment:
      GF_AUTH_ANONYMOUS_ENABLED: 'true'
      GF_INSTALL_PLUGINS: grafana-polystat-panel,yesoreyeram-boomtable-panel
    volumes:
      - ./grafana/dashboards.yml:/etc/grafana/provisioning/dashboards/default.yml
      - ./grafana/datasources.yml:/etc/grafana/provisioning/datasources/default.yml

3.4 Prometheus Scraping Config

Configure Prometheus to scrape the exporter:

# prometheus/config.yml
global:
  scrape_interval: 15s

scrape_configs:
  - job_name: 'gitlab-ci-pipelines-exporter'
    scrape_interval: 10s
    static_configs:
      - targets: ['gitlab-ci-pipelines-exporter:8080']

3.5 Exporter Configuration

A minimal gitlab-ci-pipelines-exporter.yml:

---
log:
  level: debug

gitlab:
  url: https://gitlab.com
  token: <your_token>

project_defaults:
  pull:
    pipeline:
      jobs:
        enabled: true

projects:
  - name: gitlab-org/gitlab-runner
    pull:
      environments:
        enabled: true
        name_regexp: '^stable.*'
  - name: gitlab-org/charts/auto-deploy-app

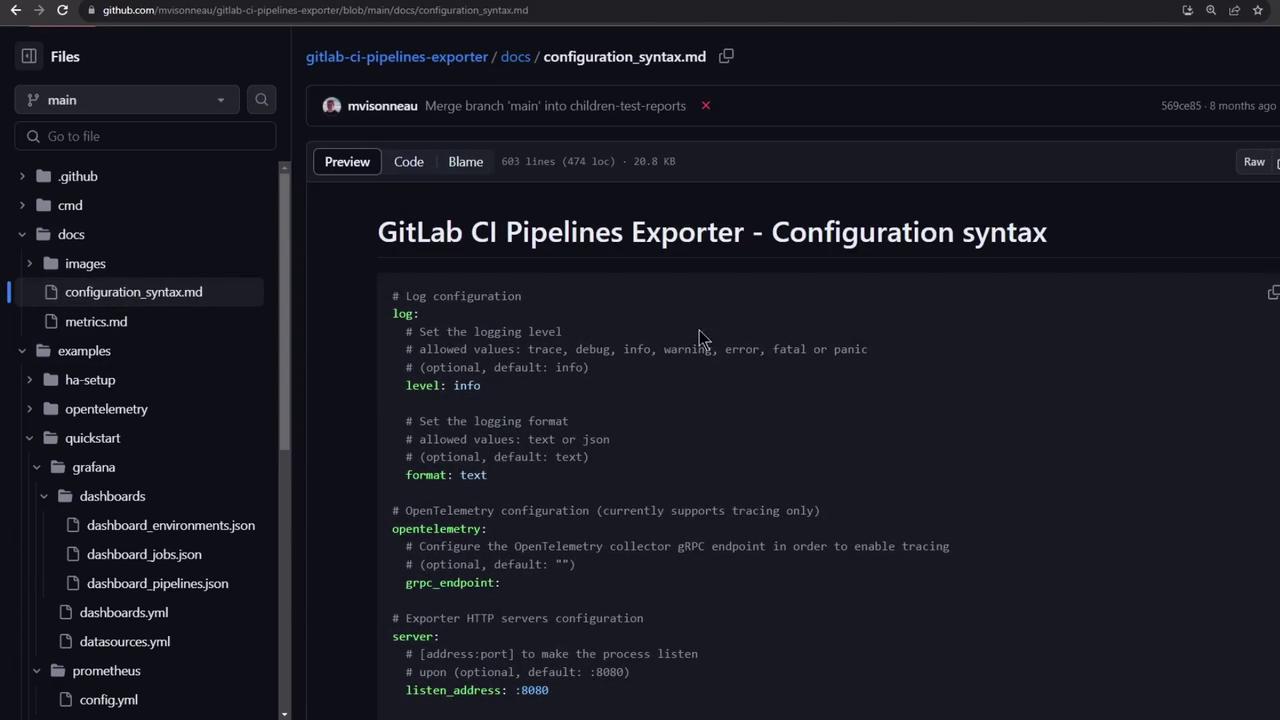

For the full configuration schema, refer to the exporter’s docs:

4. Creating a Personal Access Token

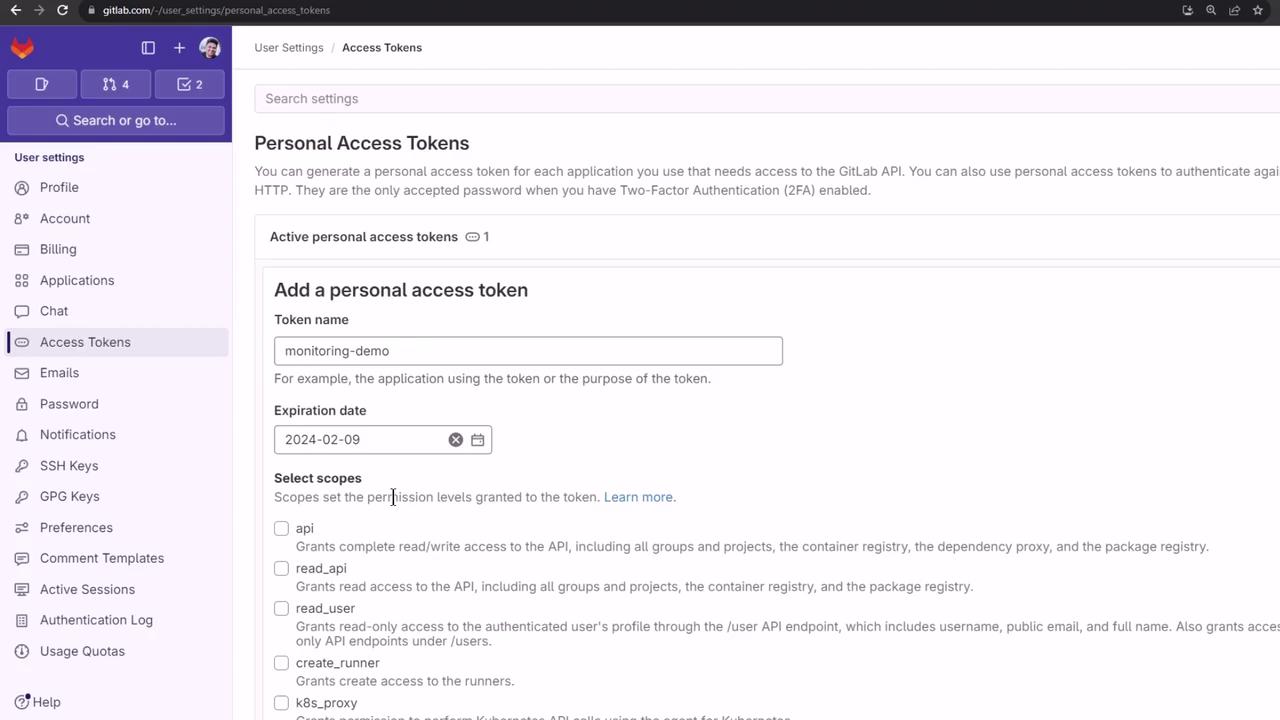

Generate a token under User Settings → Access Tokens with at least read_api scope:

Paste this token into gitlab-ci-pipelines-exporter.yml before launching the stack.

5. Verifying the Exporter

Ensure the exporter is up and exposing metrics:

docker-compose ps
docker logs -f quickstart_gitlab-ci-pipelines-exporter_1
# Check metrics output:
curl -s http://localhost:8080/metrics | grep gcpe_

A sample output might include:

gcpe_projects_count 47
gcpe_gitlab_api_requests_remaining 1997
gcpe_metrics_count 0
...

6. Exploring in Prometheus

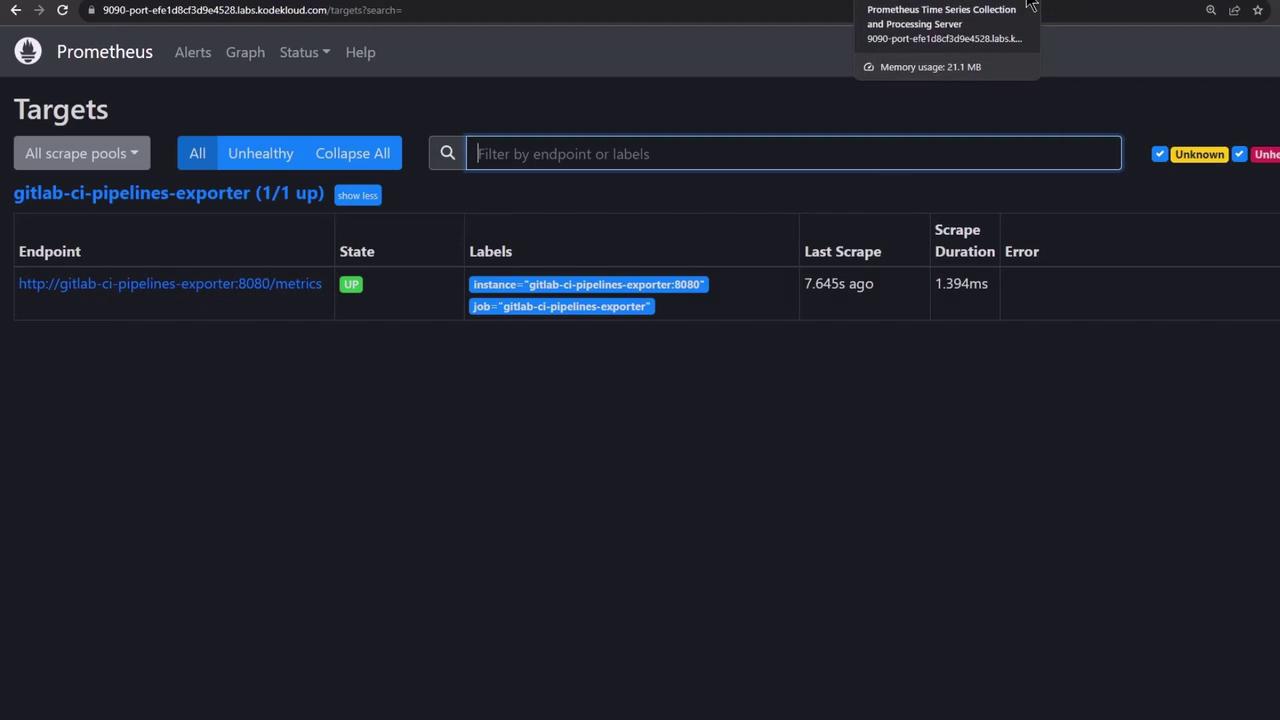

Visit Status → Targets in Prometheus (http://localhost:9090) to confirm the exporter is up:

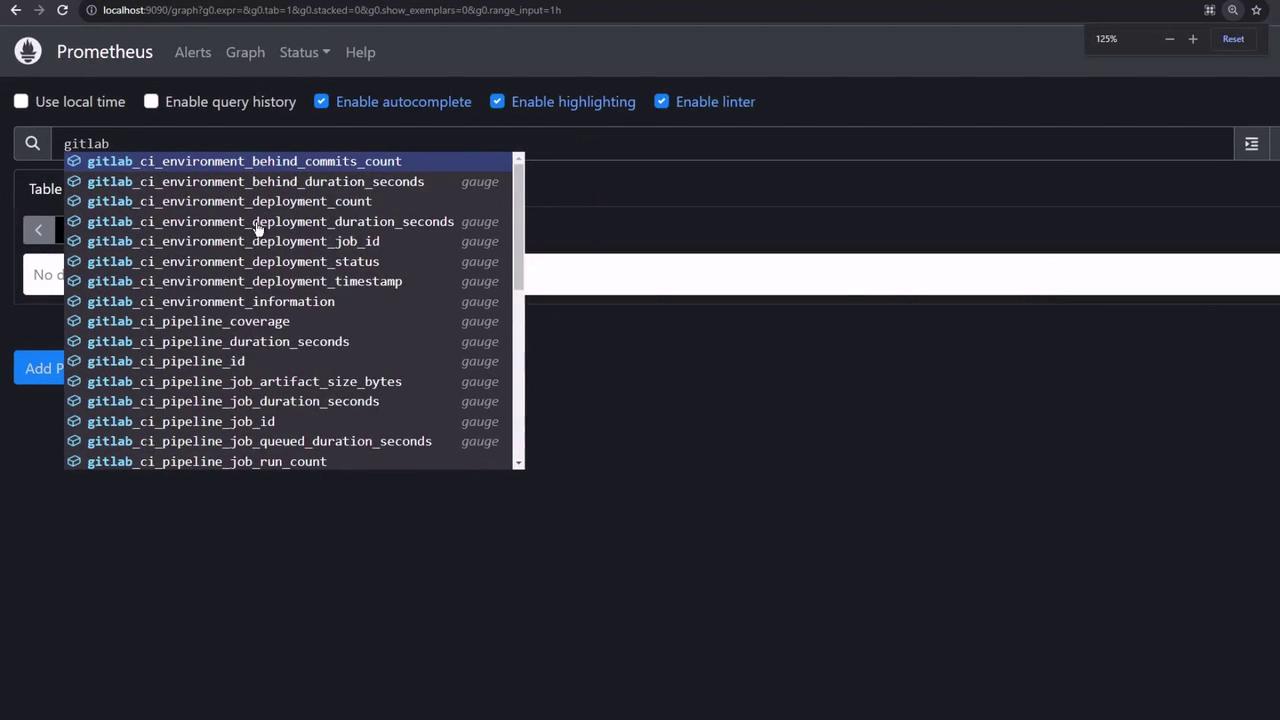

Query your GitLab metrics:

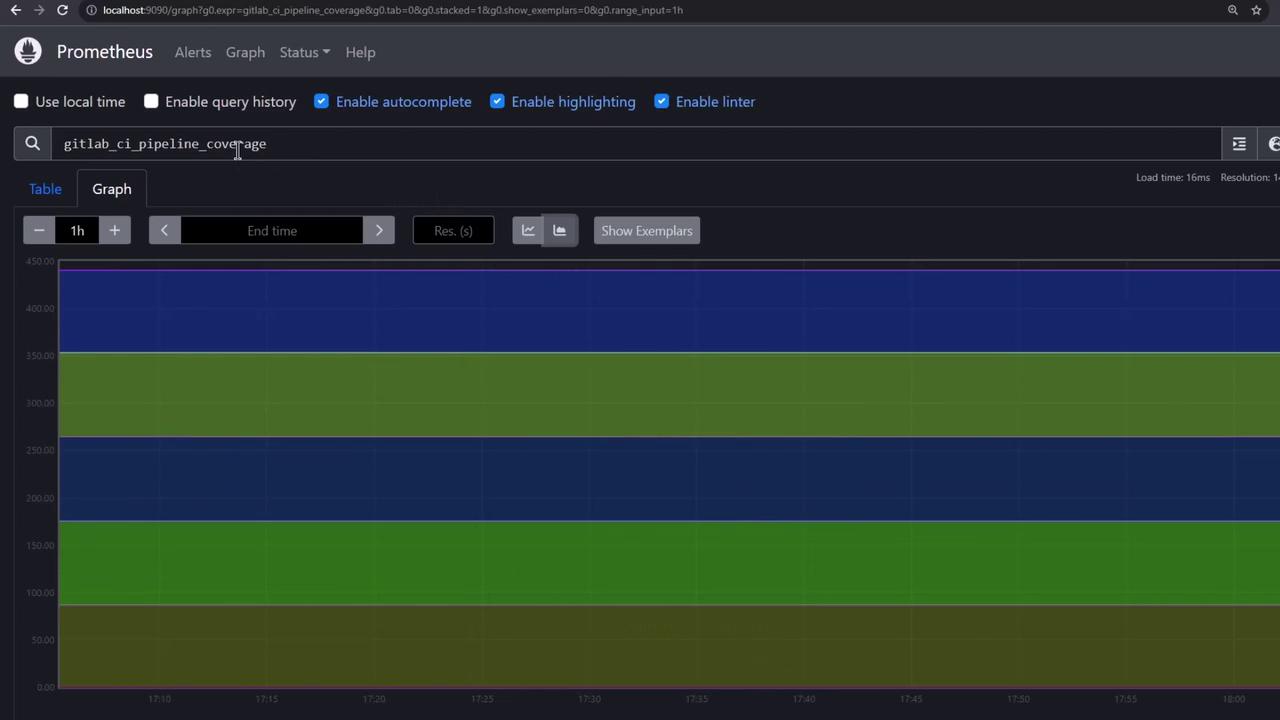

Render a time series graph:

Adjust time ranges and resolution to dig into historical data:

7. Grafana Dashboards

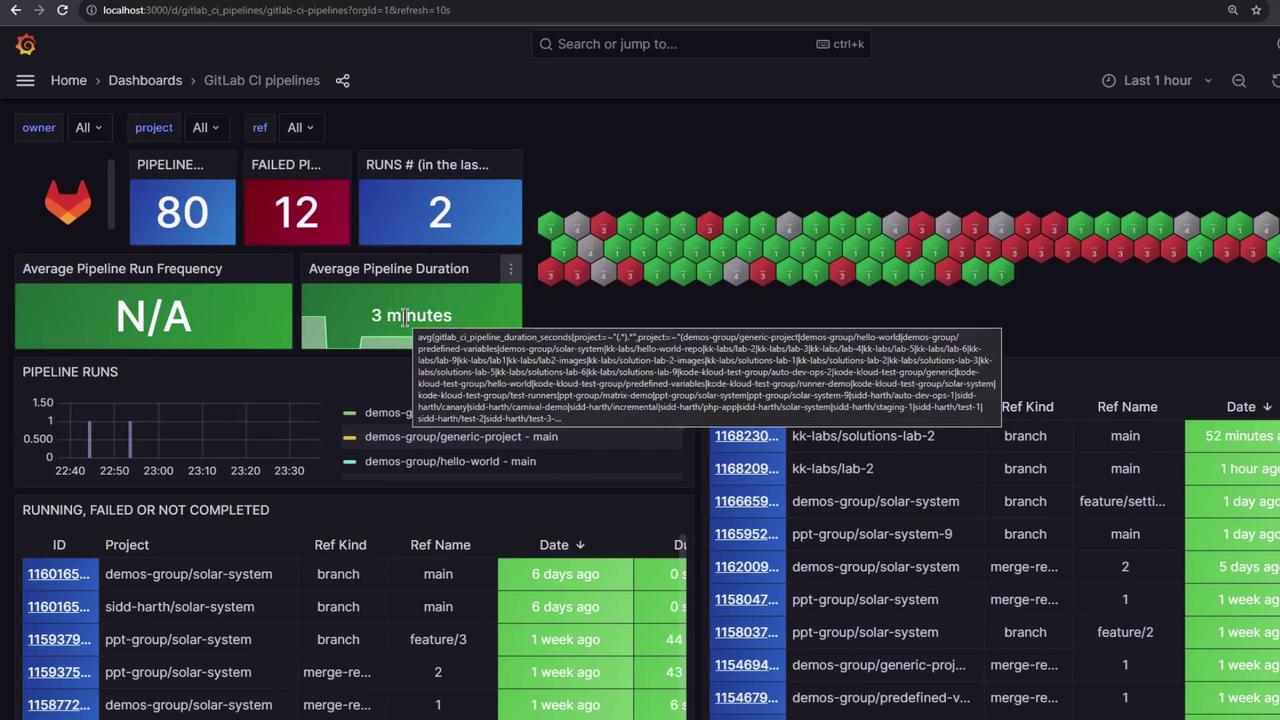

Log in to Grafana (http://localhost:3000, admin/admin). The exporter provides three ready-to-use dashboards:

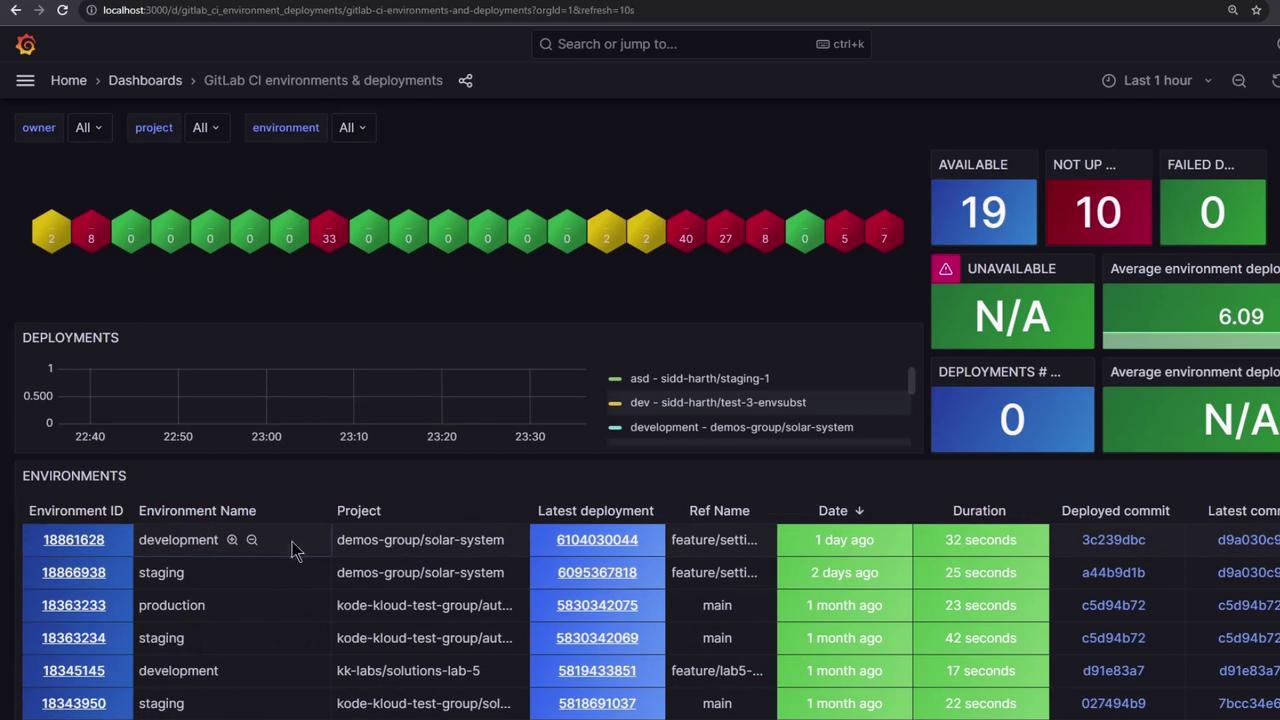

Environments & Deployments

Pipelines Overview

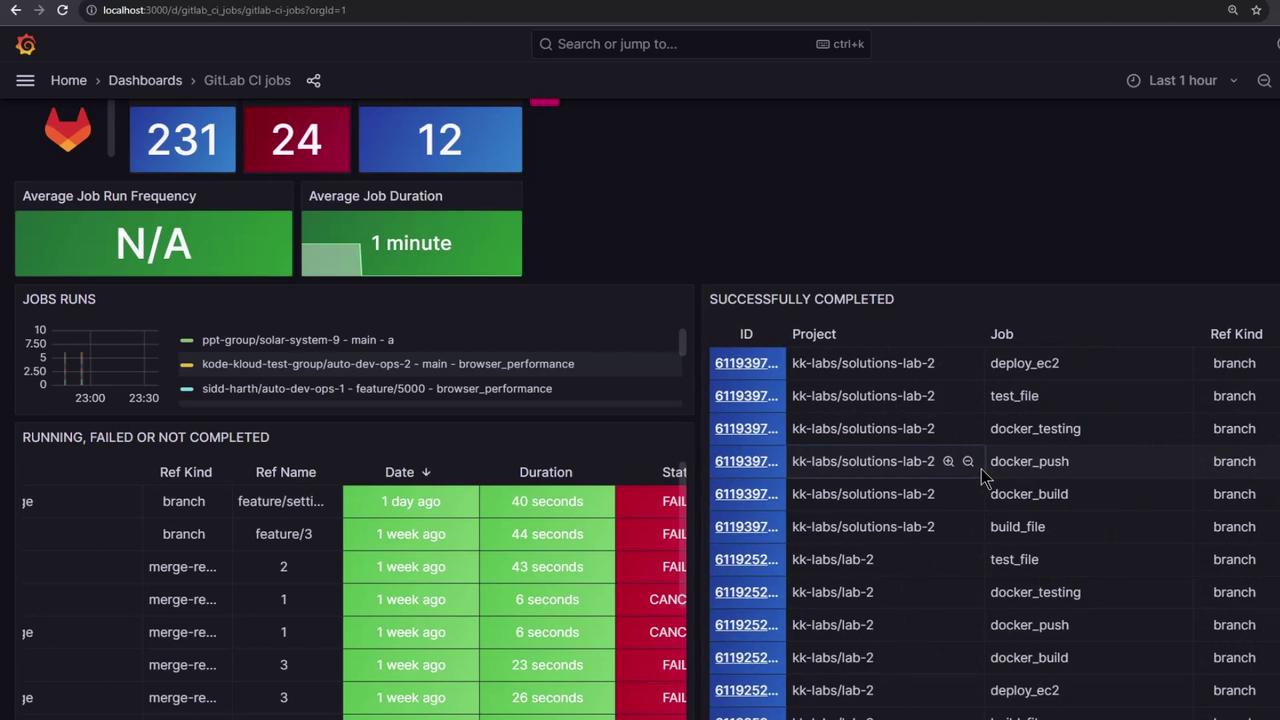

Jobs Statistics

Dive into any metric and click through to GitLab for full context.
