Template Container Scanning

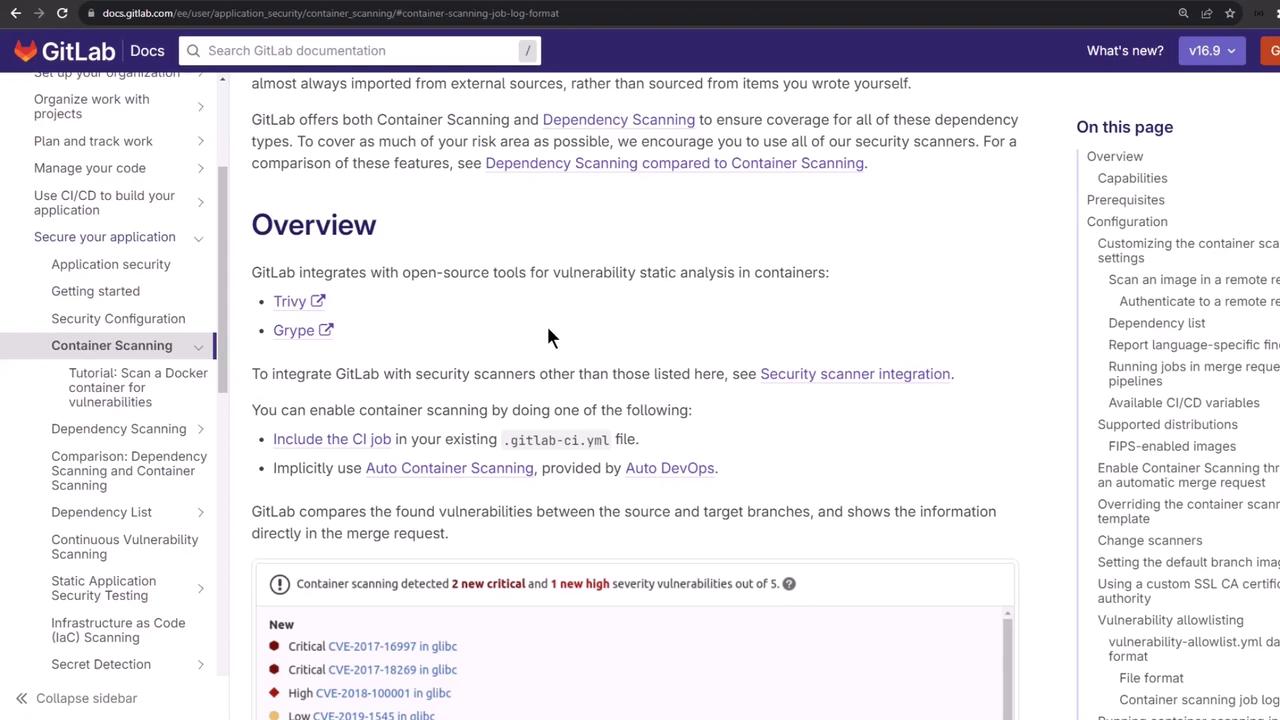

Container Scanning is a critical part of Software Composition Analysis (SCA), inspecting Docker images and their base layers for known vulnerabilities. GitLab CI/CD offers a free Container Scanning template—powered by Trivy by default (or GRype)—to help you keep your images secure.

1. Enabling Container Scanning

Add the built-in Container Scanning template to your .gitlab-ci.yml:

include:
  - template: Jobs/Build.gitlab-ci.yml
  - template: Security/Container-Scanning.gitlab-ci.yml

container_scanning:
  variables:
    CS_DEFAULT_BRANCH_IMAGE: $CI_REGISTRY_IMAGE/$CI_DEFAULT_BRANCH:$CI_COMMIT_SHA

1.1 Scanning Remote Images

Override CS_IMAGE and log level:

include:
  - template: Security/Container-Scanning.gitlab-ci.yml

variables:
  SECURE_LOG_LEVEL: debug

container_scanning:
  variables:
    CS_IMAGE: example.com/user/image:tag

1.2 Authenticating to a Private Registry

If your registry requires authentication, log in during before_script and supply credentials as CI variables:

container_scanning:
  before_script:
    - apk add --no-cache python3 py3-pip
    - pip3 install awscli
    - export AWS_ECR_PASSWORD=$(aws ecr get-login-password --region us-east-1)
    - docker login -u AWS -p "$AWS_ECR_PASSWORD" <aws_account_id>.dkr.ecr.us-east-1.amazonaws.com
  include:
    - template: Security/Container-Scanning.gitlab-ci.yml
  variables:
    CS_IMAGE: <aws_account_id>.dkr.ecr.us-east-1.amazonaws.com/<image>:<tag>
    CS_REGISTRY_USER: AWS
    CS_REGISTRY_PASSWORD: "$AWS_ECR_PASSWORD"
    AWS_DEFAULT_REGION: us-east-1

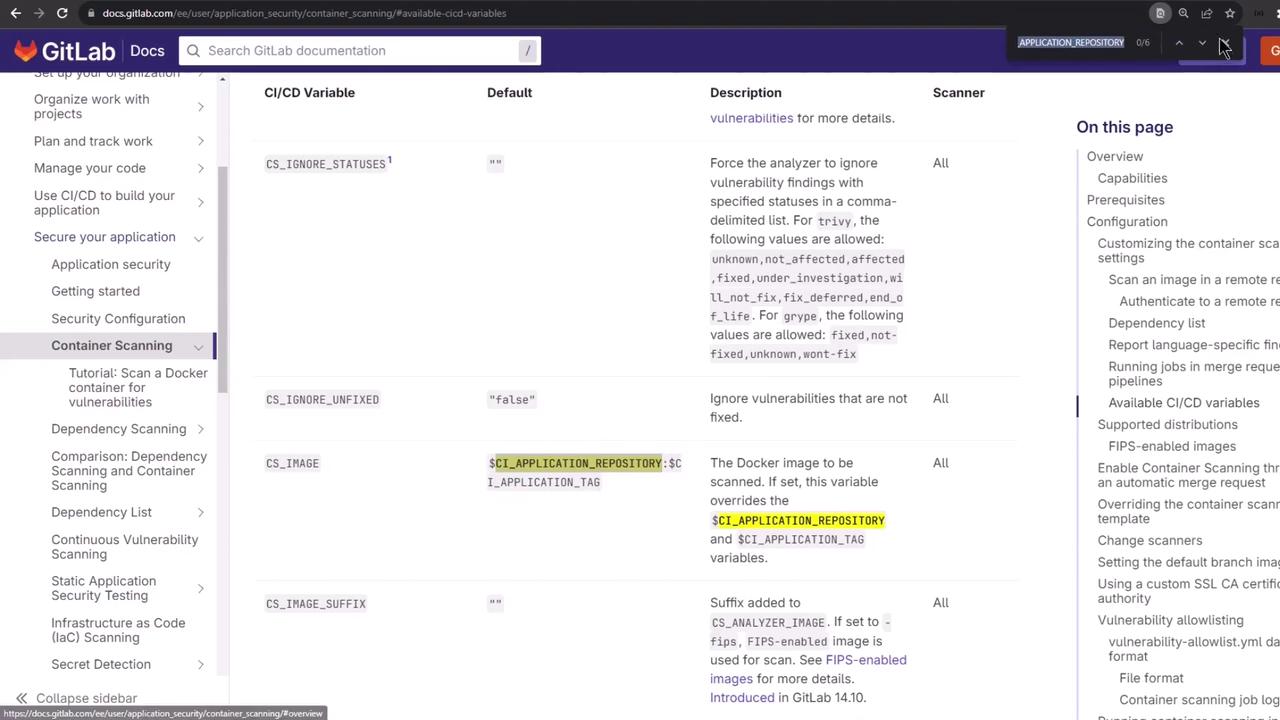

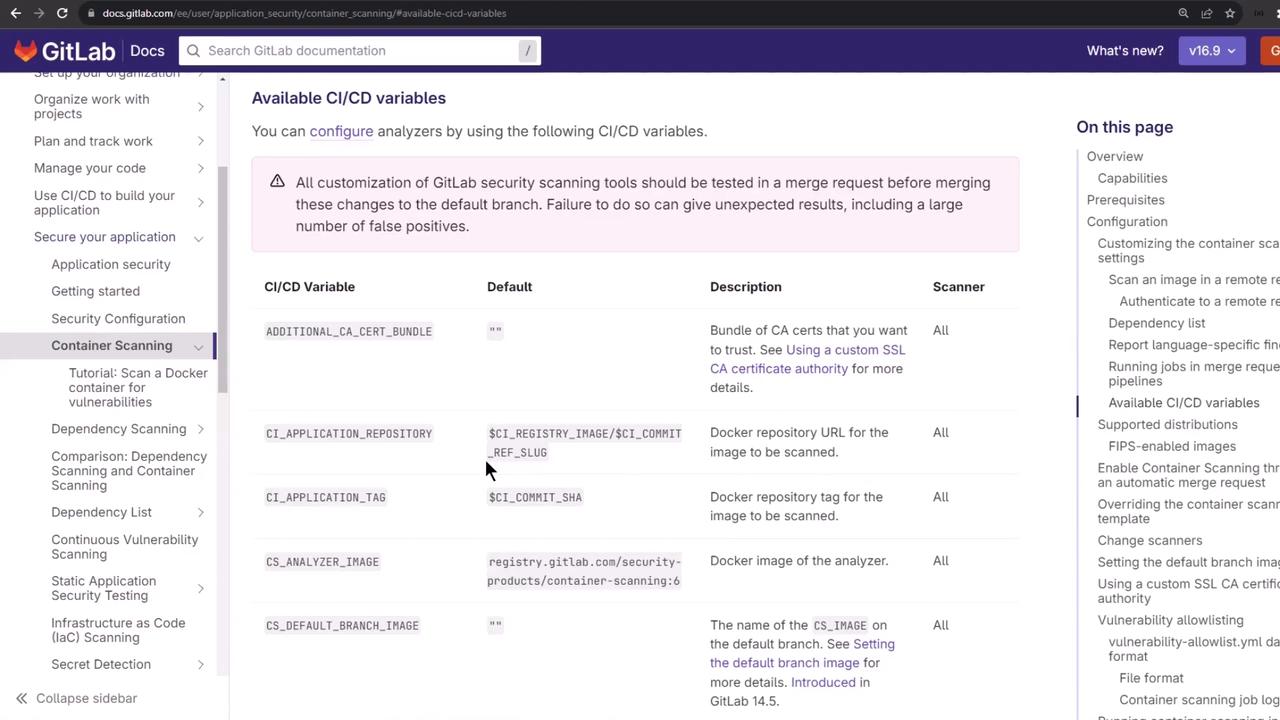

2. Container Scanning CI/CD Variables

These variables control which image is scanned and how verbose the logs are:

3. Allowlisting Vulnerabilities

To ignore specific CVEs, add a vulnerabilities-allowlist.yaml in your repo:

generalAllowlist:
  CVE-2019-8696:
  CVE-2014-8166: cups
  CVE-2017-18248:

images:
  registry.gitlab.com/gitlab-org/security-products/dast/webgoat-8.0@sha256:
    CVE-2018-4180:
  your.private.registry:5000/centos:
    CVE-2015-1419: libxml2
    CVE-2015-1447:

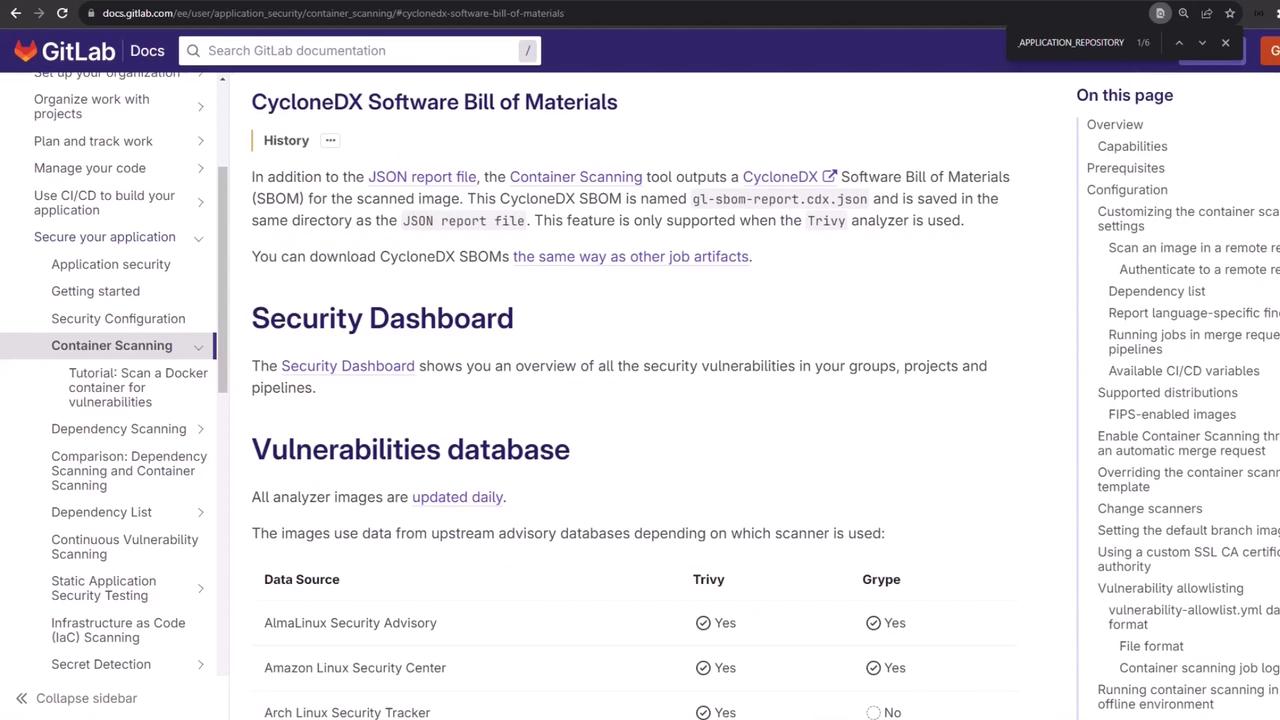

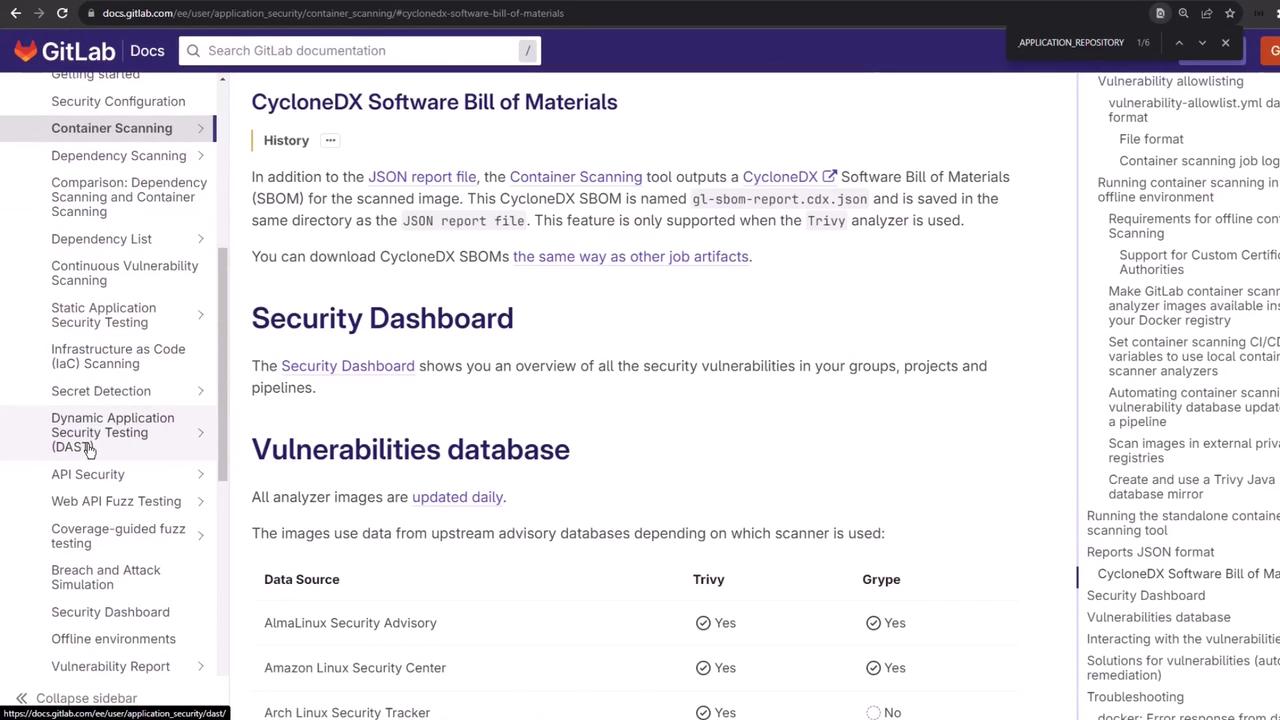

4. CycloneDX SBOM Output

Container Scanning also generates a CycloneDX SBOM artifact (gl-sbom-*.cdx.json), following the OWASP standard for Software Bill of Materials.

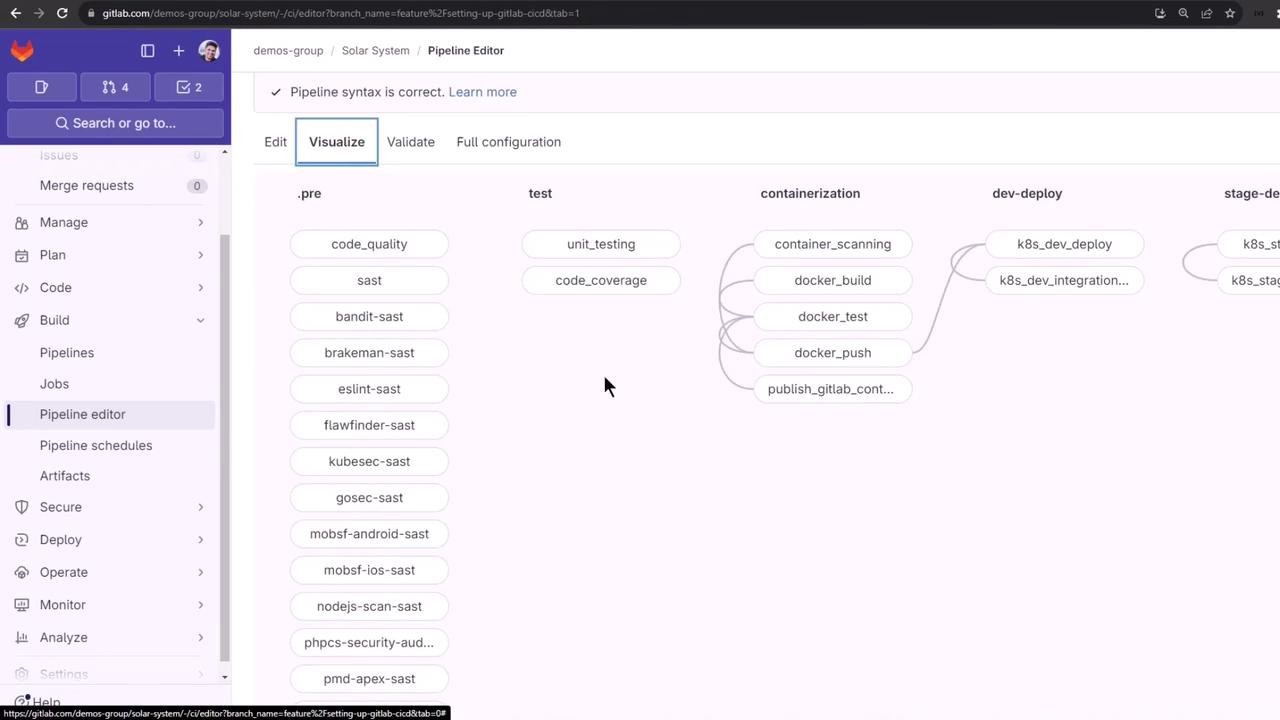

5. Integrating into a Full Pipeline

Below is an example .gitlab-ci.yml snippet that combines build, SAST, secret detection, and container scanning:

stages:
  - .pre
  - test
  - containerization
  - dev-deploy
  - stage-deploy

include:
  - component: gitlab.com/gitlab-components/code-quality/[email protected]
  - template: Jobs/SAST.gitlab-ci.yml
  - component: gitlab.com/gitlab-components/secret-detection/[email protected]
  - template: Security/Container-Scanning.gitlab-ci.yml

variables:
  DOCKER_USERNAME: siddharth67
  IMAGE_VERSION: "$CI_PIPELINE_ID"
  DOCKER_IMAGE: $DOCKER_USERNAME/solar-system:$IMAGE_VERSION
  CS_ANALYZER_IMAGE: "$CI_TEMPLATE_REGISTRY_HOST/security-products/container-scanning:6"
  CS_SCHEMA_MODEL: 15

container_scanning:
  stage: containerization
  needs:
    - docker_push
  image: "$CS_ANALYZER_IMAGE$CS_IMAGE_SUFFIX"
  variables:
    CS_IMAGE: docker.io/$DOCKER_USERNAME/solar-system:$IMAGE_VERSION
    GIT_STRATEGY: none
    allow_failure: true
  artifacts:
    reports:
      container_scanning: gl-container-scanning-report.json
      cyclonedx: "**/gl-sbom-*.cdx.json"

6. Demo: Generating Vulnerabilities

To demonstrate detection, switch your Dockerfile from Alpine to Debian:

# Before: minimal Alpine image
FROM node:18-alpine3.11

# After: standard Debian-based Node.js
FROM node:18

WORKDIR /usr/app
COPY package*.json ./
RUN npm install
COPY . .
ENV MONGO_URI=uriPlaceholder
ENV MONGO_USERNAME=usernamePlaceholder
ENV MONGO_PASSWORD=passwordPlaceholder
EXPOSE 3000
CMD ["npm", "start"]

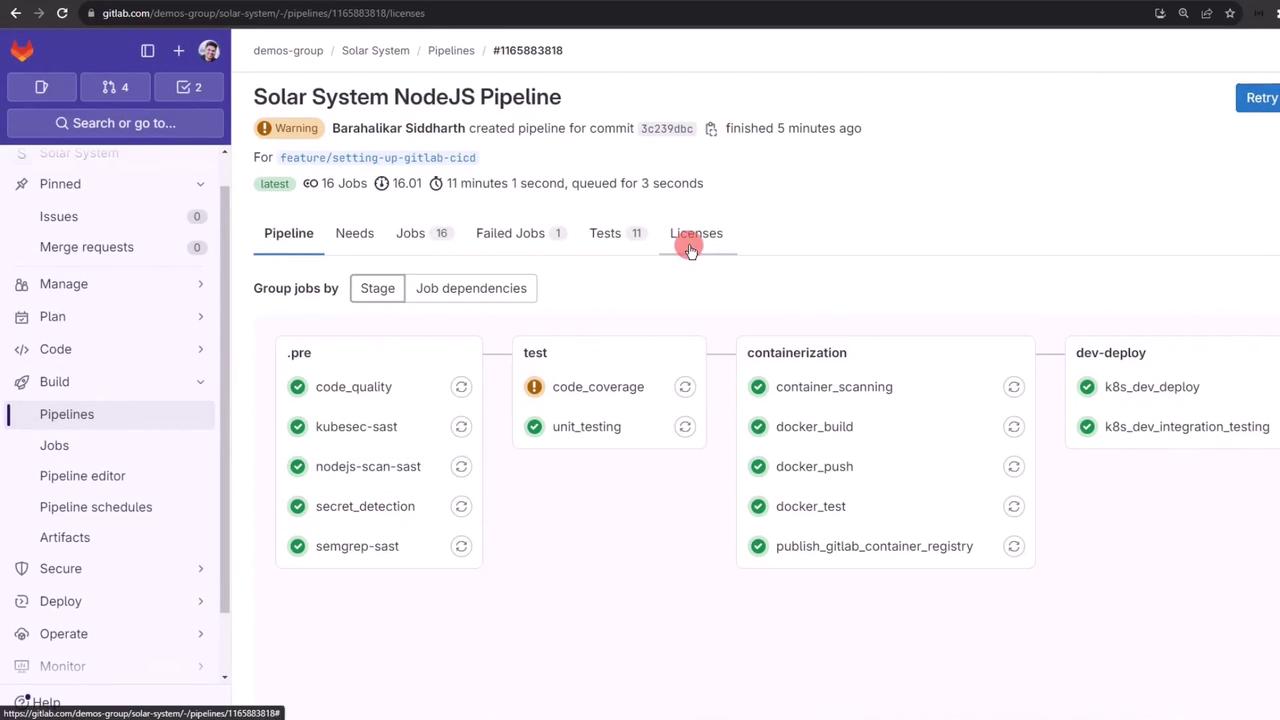

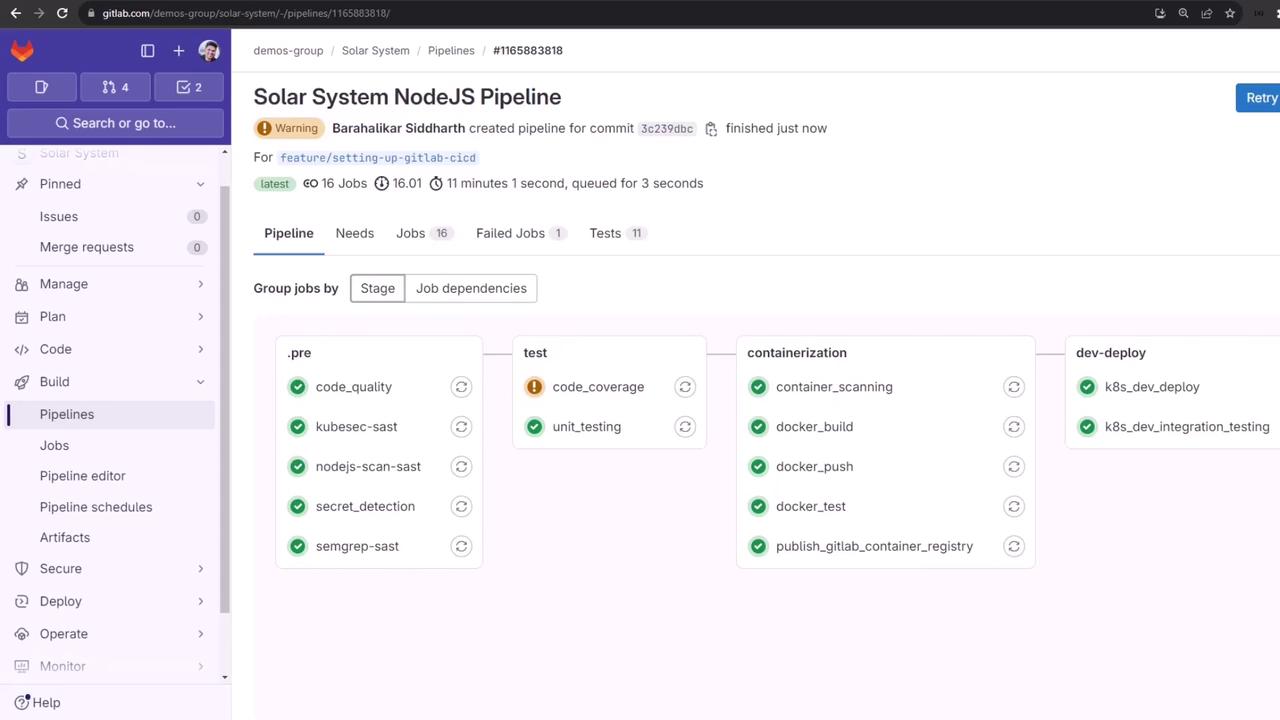

Commit to a feature branch to trigger the pipeline. You’ll see the Container Scanning job in the containerization stage.

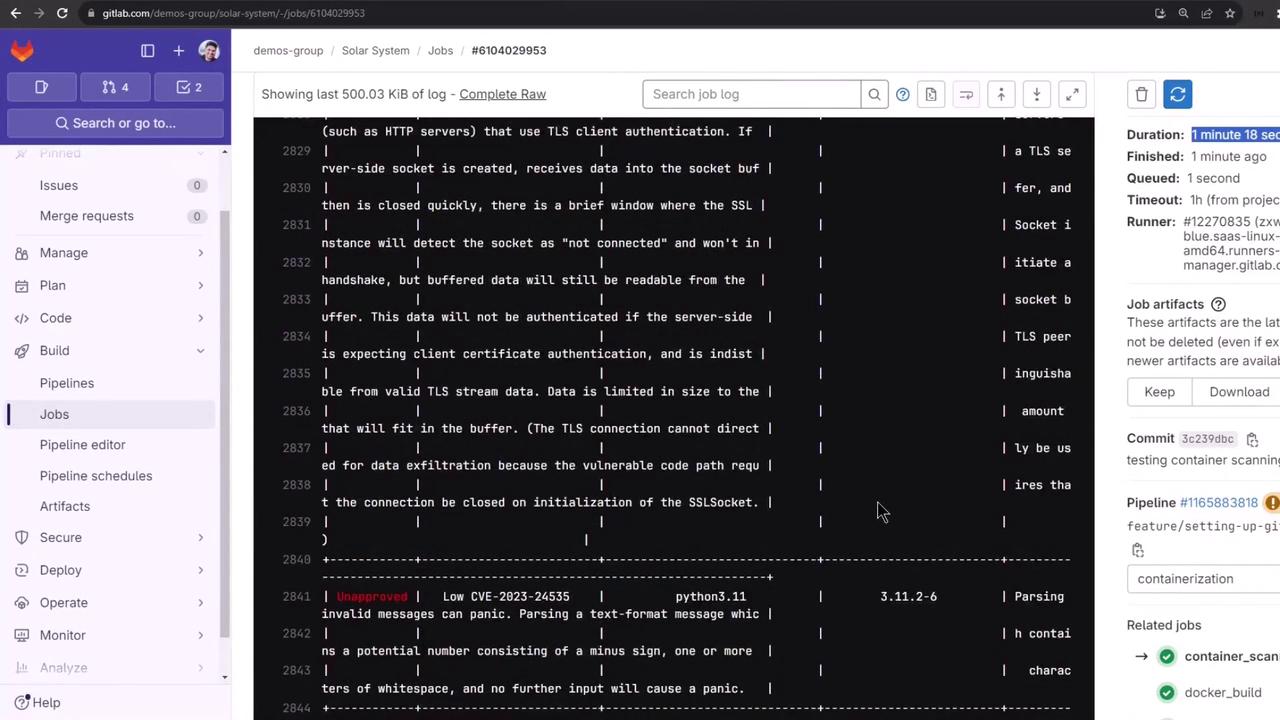

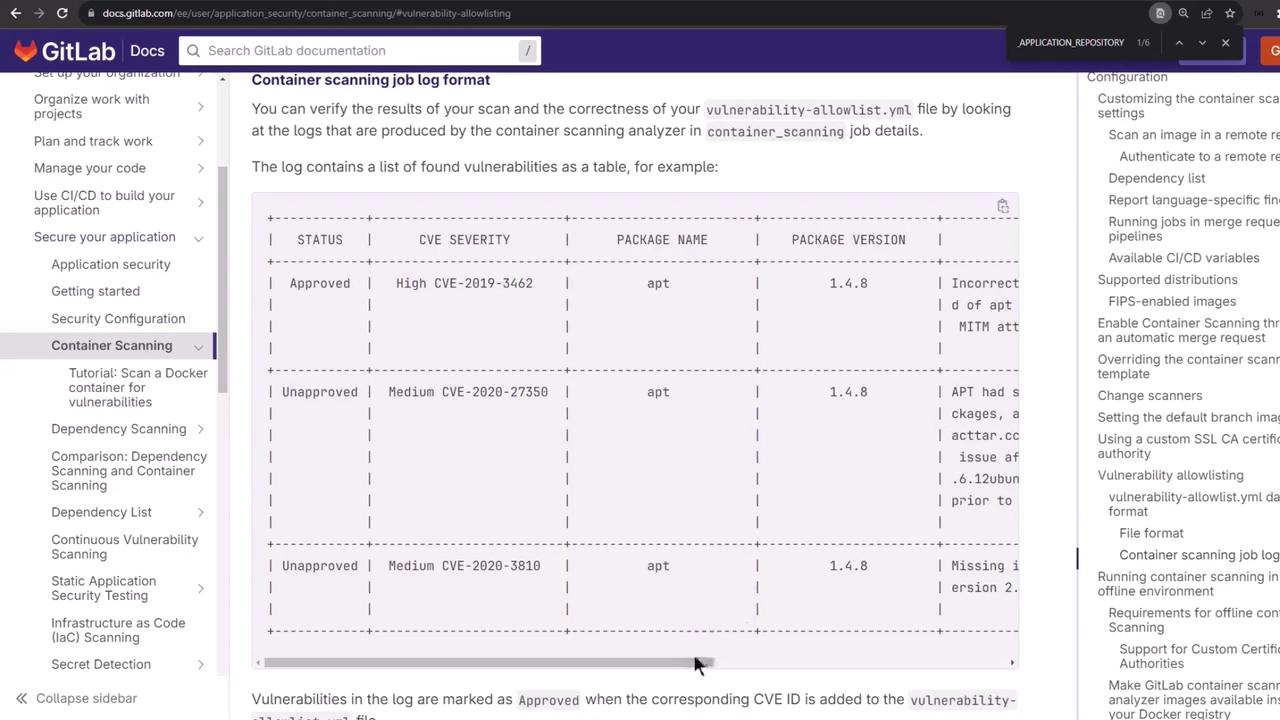

After completion, open the Container Scanning log to view the summary table or raw output.

Additional deployment jobs will follow.

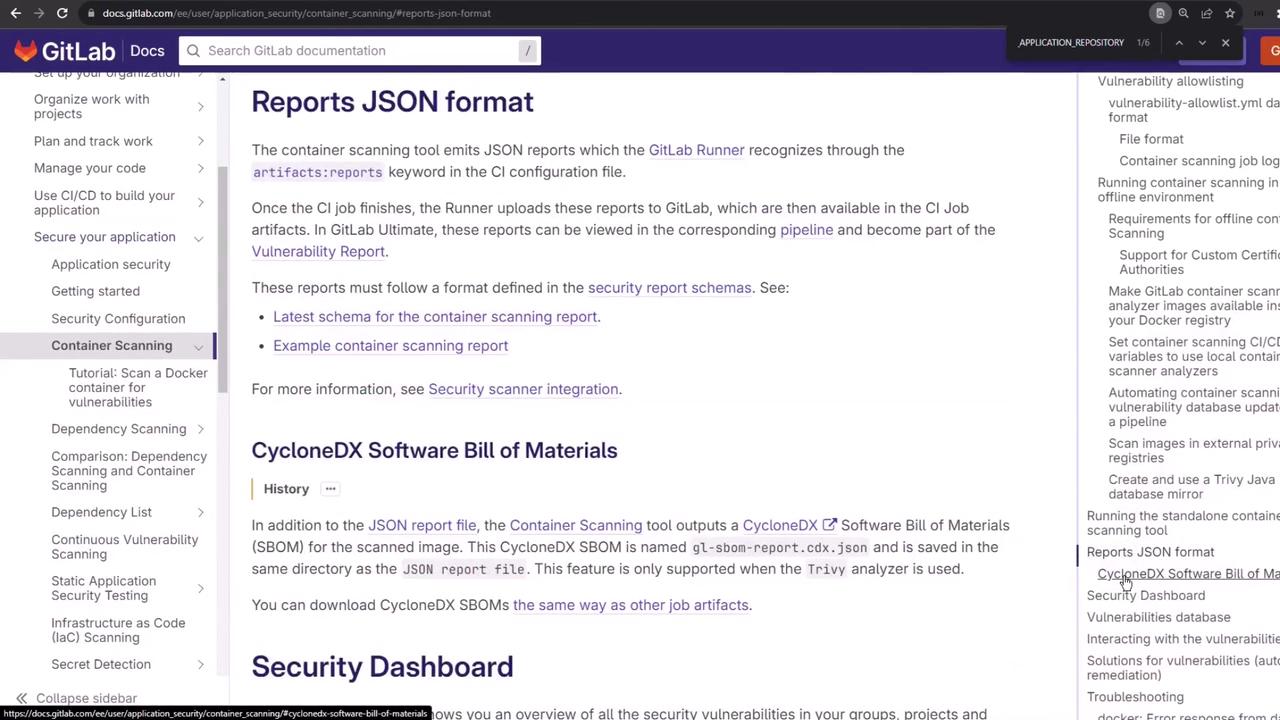

7. Inspecting the Reports

7.1 JSON Vulnerability Report

The gl-container-scanning-report.json artifact lists vulnerabilities in structured JSON:

{
  "vulnerabilities": [
    {
      "id": "de666e5aa0b170e90b8d7018c398ba76c577c",
      "severity": "Low",
      "location": {
        "dependency": {
          "package": {
            "name": "apt",
            "version": "2.6.1"
          },
          "image": "docker.io/siddharth67/solar-system:1165883818"
        }
      },
      "identifiers": [
        { "type": "cve", "name": "CVE-2011-3374" }
      ],
      "description": "apt-key in apt, all versions, do not correctly validate gpg keys, leading to a potential MITM attack."
    }
  ]
}

7.2 CycloneDX SBOM

The SBOM artifact follows the CycloneDX spec:

{
  "bomFormat": "CycloneDX",
  "specVersion": "1.4",
  "component": {
    "type": "container",
    "name": "docker.io/siddharth67/solar-system",
    "version": "1.1.1"
  },
  "tools": [
    { "vendor": "aquasecurity", "name": "trivy", "version": "0.48.3" }
  ]
}

Links and References

• GitLab Container Scanning Documentation
• Trivy Scanner on GitLab
• OWASP CycloneDX Specification
• GitLab CI/CD Variables

You now have a fully configured Container Scanning pipeline with vulnerability reports and SBOM output. Integrate additional scanners (Dependency, SAST, DAST) as needed based on your security requirements.
