Jenkins REST API Install a Plugin

This guide provides detailed instructions on how to leverage the Jenkins REST API for various tasks, including installing a plugin. Jenkins offers a machine-consumable API in multiple formats such as XML, JSON, and even Python, allowing you to retrieve information, trigger builds with parameters, create jobs, and more.

Before diving into plugin installation, let’s explore some common API use cases.

Triggering a Build with Parameters

To trigger a build with parameters, you can use the curl command. When you build with parameters, ensure you use the buildWithParameters endpoint. The following example shows how to initiate a build with specific parameters using authentication via a token or a password:

curl JENKINS_URL/job/JOB_NAME/buildWithParameters \
  --user USER:TOKEN \
  --data id=123 --data verbosity=high

Here are two examples for clarity:

curl JENKINS_URL/job/JOB_NAME/buildWithParameters \
  --user USER:TOKEN \
  --data id=123 --data verbosity=high

curl JENKINS_URL/job/JOB_NAME/buildWithParameters \
  --user USER:PASSWORD \
  --form FILE_LOCATION_AS_SET_IN_JENKINS=@PATH_TO_FILE

For additional API details, visit your Jenkins dashboard and refer to the REST API documentation. You can control the amount of data returned by using query parameters. For instance, accessing the /api/json endpoint returns data in JSON format.

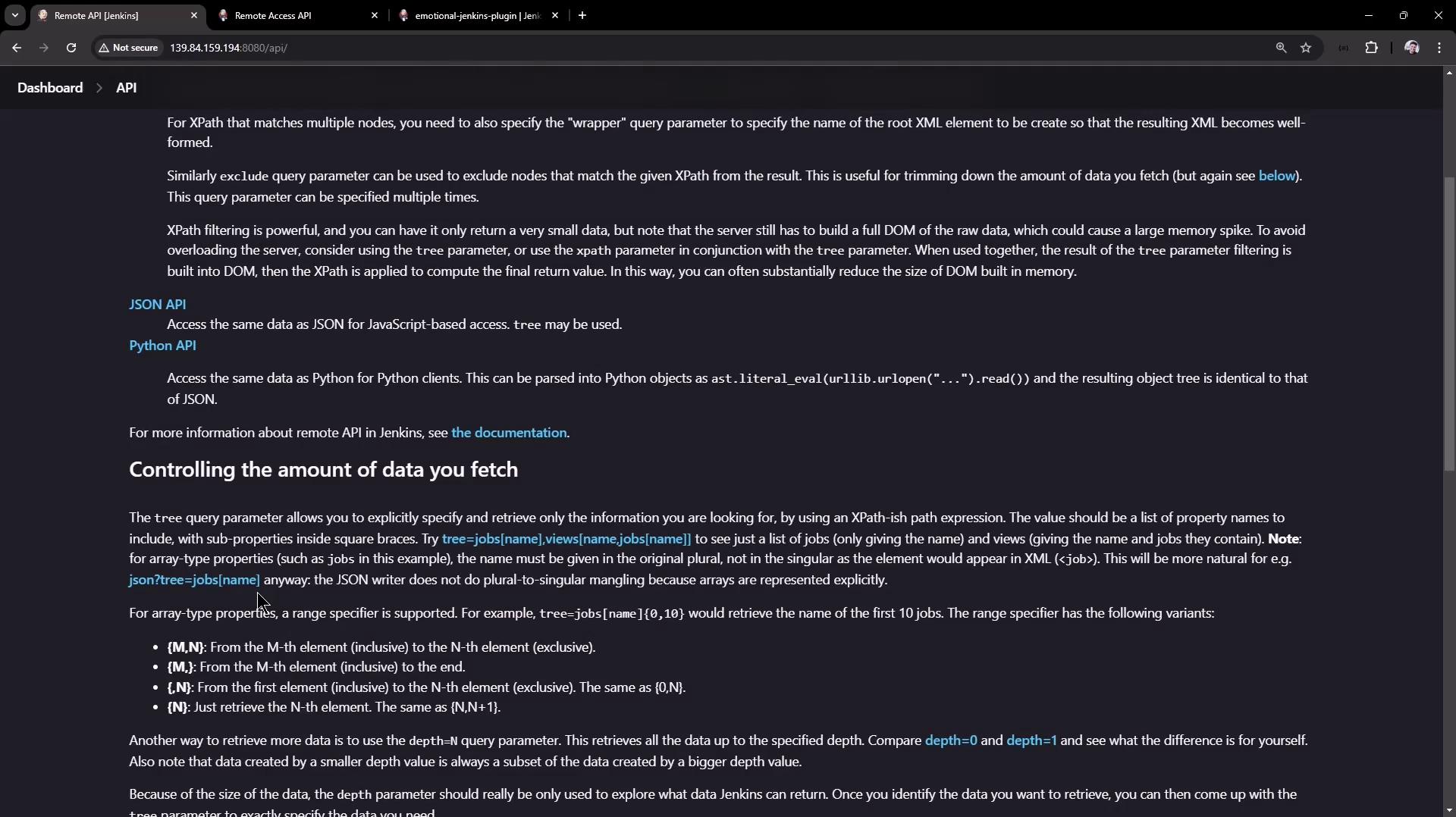

The image shows a webpage with documentation about the Jenkins Remote API, including sections on JSON and Python API access and controlling the amount of data fetched.

Retrieving Job Information via the REST API

Accessing the JSON API endpoint (e.g., JENKINS_URL/api/json?tree=jobs[name]) returns details about all jobs. Below is a sample JSON response displaying various project types:

{
  "_class": "hudson.model.Hudson",
  "jobs": [
    {
      "_class": "hudson.model.FreeStyleProject",
      "name": "ascii-build-job"
    },
    {
      "_class": "hudson.model.FreeStyleProject",
      "name": "ascii-deploy-job"
    },
    {
      "_class": "hudson.model.FreeStyleProject",
      "name": "ascii-test-job"
    },
    {
      "_class": "hudson.model.FreeStyleProject",
      "name": "Generate ASCII Artwork"
    },
    {
      "_class": "org.jenkinsci.plugins.workflow.job.WorkflowJob",
      "name": "hello-world-pipeline"
    },
    {
      "_class": "org.jenkinsci.plugins.workflow.multibranch.WorkflowMultiBranchProject",
      "name": "jenkins-hello-world"
    },
    {
      "_class": "org.jenkinsci.plugins.workflow.job.WorkflowJob",
      "name": "parameterized-pipeline-job"
    }
  ]
}

If you choose to filter the data and display only the job types without job names, the JSON output will appear as follows:

{
  "_class": "hudson.model.Hudson",
  "jobs": [
    {
      "_class": "hudson.model.FreeStyleProject"
    },
    {
      "_class": "hudson.model.FreeStyleProject"
    },
    {
      "_class": "hudson.model.FreeStyleProject"
    },
    {
      "_class": "hudson.model.FreeStyleProject"
    },
    {
      "_class": "org.jenkinsci.plugins.workflow.job.WorkflowJob"
    },
    {
      "_class": "org.jenkinsci.plugins.workflow.multibranch.WorkflowMultiBranchProject"
    },
    {
      "_class": "org.jenkinsci.plugins.workflow.job.WorkflowJob"
    }
  ]
}

Including the job name parameter brings back the names in the output:

{
  "_class": "hudson.model.Hudson",
  "jobs": [
    {
      "_class": "hudson.model.FreeStyleProject",
      "name": "ascii-build-job"
    },
    {
      "_class": "hudson.model.FreeStyleProject",
      "name": "ascii-deploy-job"
    },
    {
      "_class": "hudson.model.FreeStyleProject",
      "name": "ascii-test-job"
    },
    {
      "_class": "hudson.model.FreeStyleProject",
      "name": "Generate ASCII Artwork"
    },
    {
      "_class": "org.jenkinsci.plugins.workflow.job.WorkflowJob",
      "name": "hello-world-pipeline"
    },
    {
      "_class": "org.jenkinsci.plugins.workflow.multibranch.WorkflowMultiBranchProject",
      "name": "jenkins-hello-world"
    },
    {
      "_class": "org.jenkinsci.plugins.workflow.job.WorkflowJob",
      "name": "parameterized-pipeline-job"
    }
  ]
}

To access this data from the shell and pretty-print the JSON output, you can pipe the results to jq:

curl http://139.84.159.194:8080/api/json?tree=jobs[name] | jq

If you aren’t logged into Jenkins via your browser, you will be prompted for authentication. To get detailed information about a specific job, run:

curl -u admin:password http://139.84.159.194:8080/job/parameterized-pipeline-job/api/json | jq

This command returns extensive job details, including display name, full name, buildability, and build information:

{
  "_class": "com.cloudbees.plugins.credentials.ViewCredentialsAction"
},
"description": "",
"displayName": "parameterized-pipeline-job",
"fullDisplayName": "parameterized-pipeline-job",
"fullName": "parameterized-pipeline-job",
"name": "parameterized-pipeline-job",
"url": "http://139.84.159.194:8080/job/parameterized-pipeline-job/",
"buildable": true,
"builds": [
  {
    "_class": "org.jenkinsci.plugins.workflow.job.WorkflowRun",
    "number": 5,
    "url": "http://139.84.159.194:8080/job/parameterized-pipeline-job/5/"
  },
  {
    "_class": "org.jenkinsci.plugins.workflow.job.WorkflowRun",
    "number": 4,
    "url": "http://139.84.159.194:8080/job/parameterized-pipeline-job/4/"
  }
]

If your job contains parameters, you will also see a properties section that lists these. For example:

{
  "nextBuildNumber": 6,
  "property": [
    {
      "_class": "hudson.model.ParametersDefinitionProperty",
      "parameterDefinitions": [
        {
          "_class": "hudson.model.StringParameterDefinition",
          "defaultParameterValue": {
            "_class": "hudson.model.StringParameterValue",
            "name": "BRANCH_NAME",
            "value": "main"
          },
          "description": "The Git Branch on which the build and deployment happens",
          "name": "BRANCH_NAME",
          "type": "StringParameterDefinition"
        },
        {
          "_class": "hudson.model.StringParameterDefinition",
          "defaultParameterValue": {
            "_class": "hudson.model.StringParameterValue",
            "name": "APP_PORT",
            "value": "6767"
          },
          "description": "Select the application port on which integration tests should happen"
        }
      ]
    }
  ]
}

Building a Job via the REST API

To trigger a build for a parameterized job, ensure you are authenticated (using -u admin:password). Here’s a basic example that triggers a build:

curl -u admin:password http://139.84.159.194:8080/job/parameterized-pipeline-job/buildWithParameters -d BRANCH_NAME=test -d APP_PORT=6767

By default, curl uses the GET method. In this case, you need to explicitly use the POST method with the -X POST flag:

curl -u admin:password -X POST http://139.84.159.194:8080/job/parameterized-pipeline-job/buildWithParameters -d BRANCH_NAME=test -d APP_PORT=6767

Authentication Reminder

If you are not logged into Jenkins via your browser, you may receive authentication errors. Ensure you provide valid credentials or use an API token to avoid such issues.

Some builds might require a valid Jenkins crumb (a security token to prevent CSRF attacks) unless you opt to use an API token. To generate or fetch an API token, navigate to your Jenkins user configuration page.

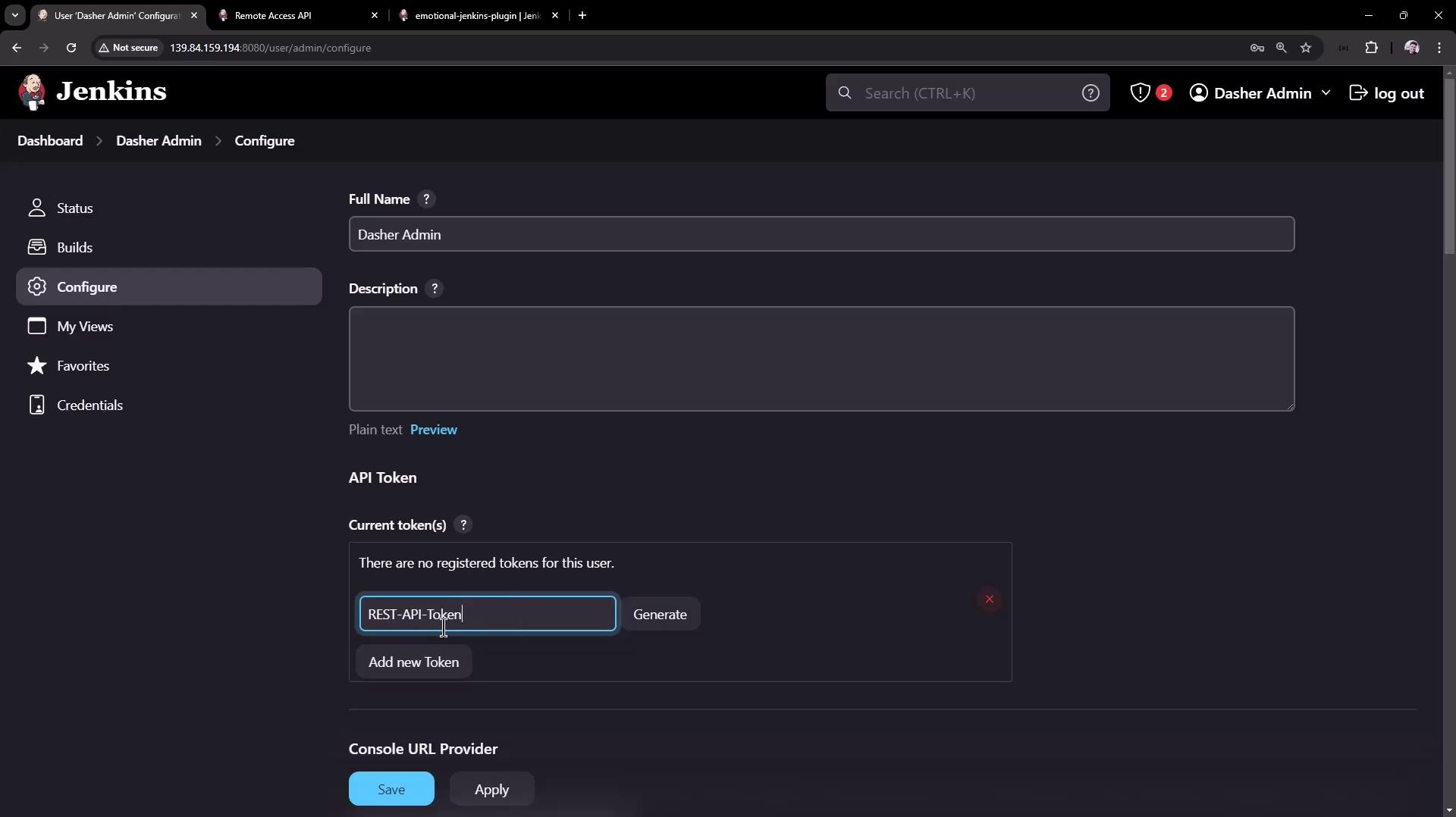

The image shows a Jenkins configuration page for a user named "Dasher Admin," where API tokens can be generated and managed.

Once you have your API token, update your curl command as follows:

curl -u admin:110116b9f4f3f2698451306fd8fa7f26d6 -X POST http://139.84.159.194:8080/job/parameterized-pipeline-job/buildWithParameters -d BRANCH_NAME=test -d APP_PORT=6767

When you trigger the build successfully, you will observe a new build initiated on the Jenkins dashboard. For example, build number six might now be in progress.

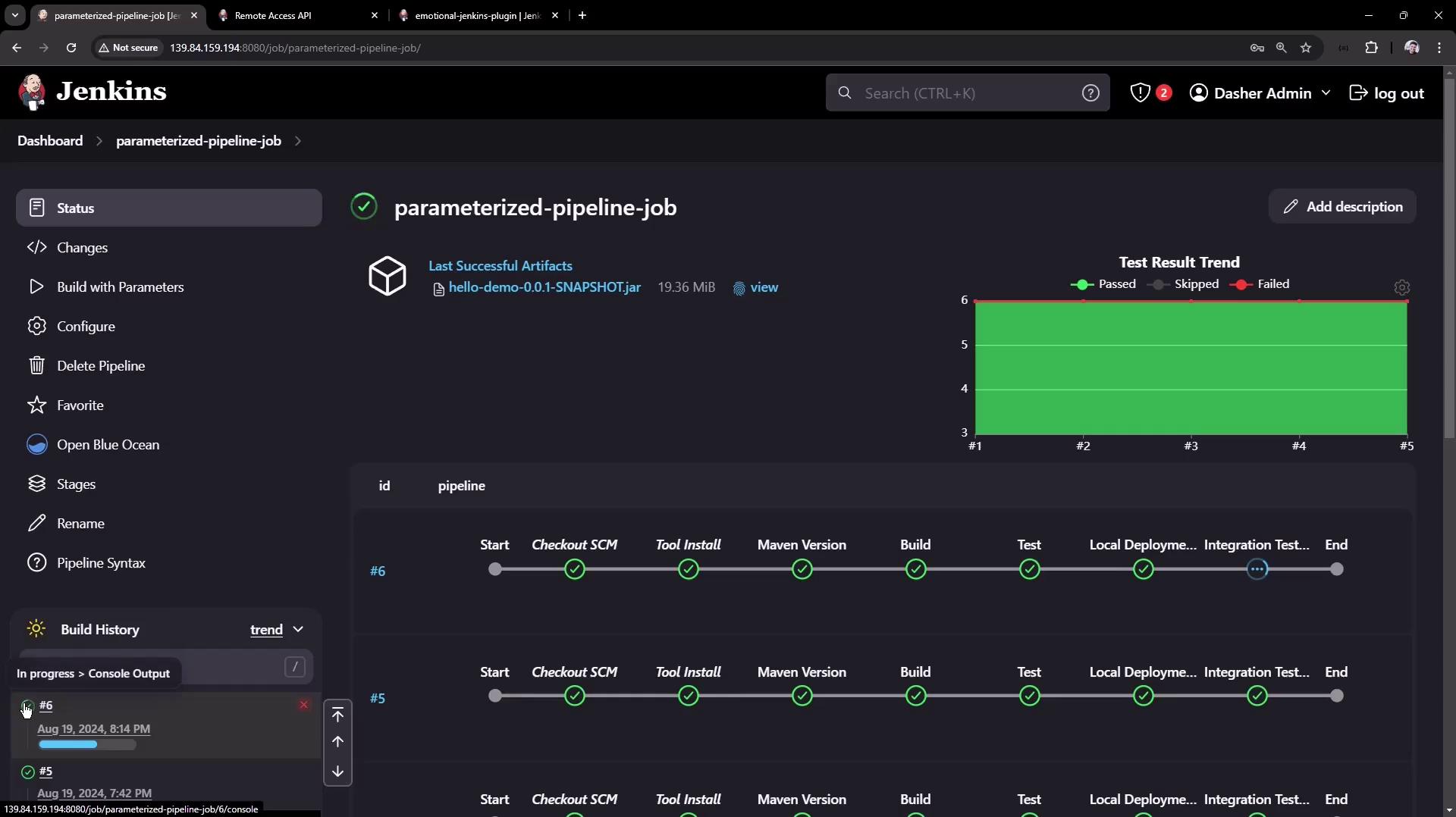

The image shows a Jenkins dashboard for a parameterized pipeline job, displaying a successful build history and a test result trend graph indicating all tests passed.

Build Log Details

A build triggered via the Jenkins CLI might include additional log details (such as fetching Git information) that may not appear when using the REST API.

Installing a Plugin via the REST API

One of the powerful features of the Jenkins REST API is the ability to install plugins automatically. Similar to triggering a build, this action requires authentication and uses the POST method. The endpoint for installing necessary plugins is:

/pluginManager/installNecessaryPlugins

When calling this endpoint, provide an XML payload and set the proper content type. The following example demonstrates how to install a plugin named "emotional-jenkins-plugin" with version 1.2. Note that the IP address has been replaced with localhost because the command runs on the Jenkins server:

curl -u admin:1101616b94f4f3f2698451306fd8f8a7f26d6 \
-X POST http://localhost:8080/pluginManager/installNecessaryPlugins \
-H 'Content-Type: text/xml' \
-d '<jenkins><install plugin="[email protected]" /></jenkins>'

To automate the installation of multiple plugins, list them within the XML payload. After execution, verify the installation by reviewing the "Manage Jenkins Plugins" section within the Jenkins UI.

This article demonstrated how to interact with the Jenkins REST API to:

Retrieve job details
Trigger builds with parameters
Install plugins

Utilizing API tokens, the correct HTTP methods, and proper payload formats (JSON or XML) ensures your API calls are secure and effective.

For further information on Jenkins API usage:

Happy automating!
