Cert Manager and Lets Encrypt Overview

In this guide, you’ll learn how to use cert-manager and Let’s Encrypt together to automate SSL/TLS certificate management in Kubernetes. We’ll cover:

  1. What cert-manager is and how to install it.
  2. An introduction to Let’s Encrypt and its ACME workflow.
  3. How to integrate cert-manager with Let’s Encrypt for automatic certificate issuance and renewal.

The image shows an agenda with two items: discussing Cert-Manager and its installation in the cluster, and an overview of Let's Encrypt and how to begin using it.


What Is cert-manager?

cert-manager is an open-source Kubernetes add-on that automates the issuance, renewal, and management of TLS certificates. It supports multiple issuers—such as Let’s Encrypt, HashiCorp Vault, and self-signed certificates—and integrates seamlessly with Kubernetes resources like Ingress.

Key features include:

  • Automated certificate requests & renewals
  • Support for standard, wildcard, and self-signed certificates
  • Kubernetes-native CRDs: Issuer, ClusterIssuer, and Certificate
  • Secrets storage for TLS key/cert pairs

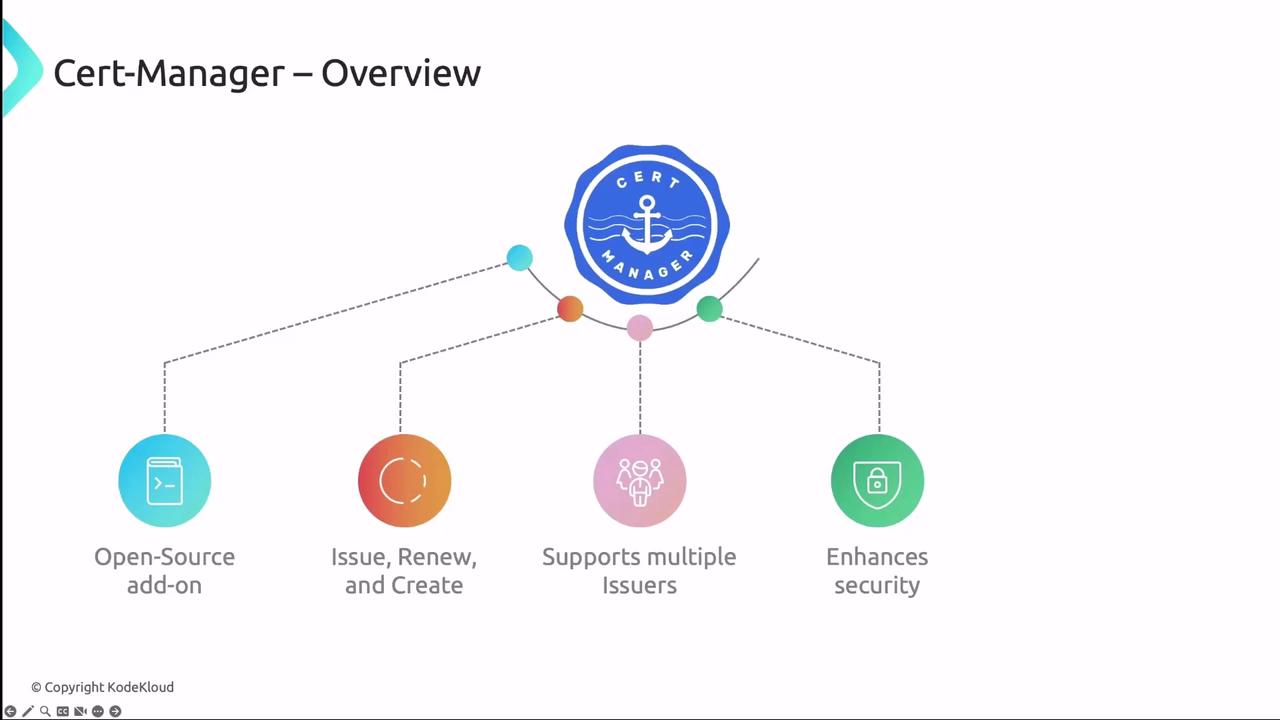

The image is an overview of Cert-Manager, highlighting its features: it's an open-source add-on, can issue, renew, and create certificates, supports multiple issuers, and enhances security.

cert-manager Architecture

cert-manager runs as a set of controllers that watch CRDs and reconcile the desired certificate state. Each controller interacts with the Kubernetes API to request, store, and renew certificates.

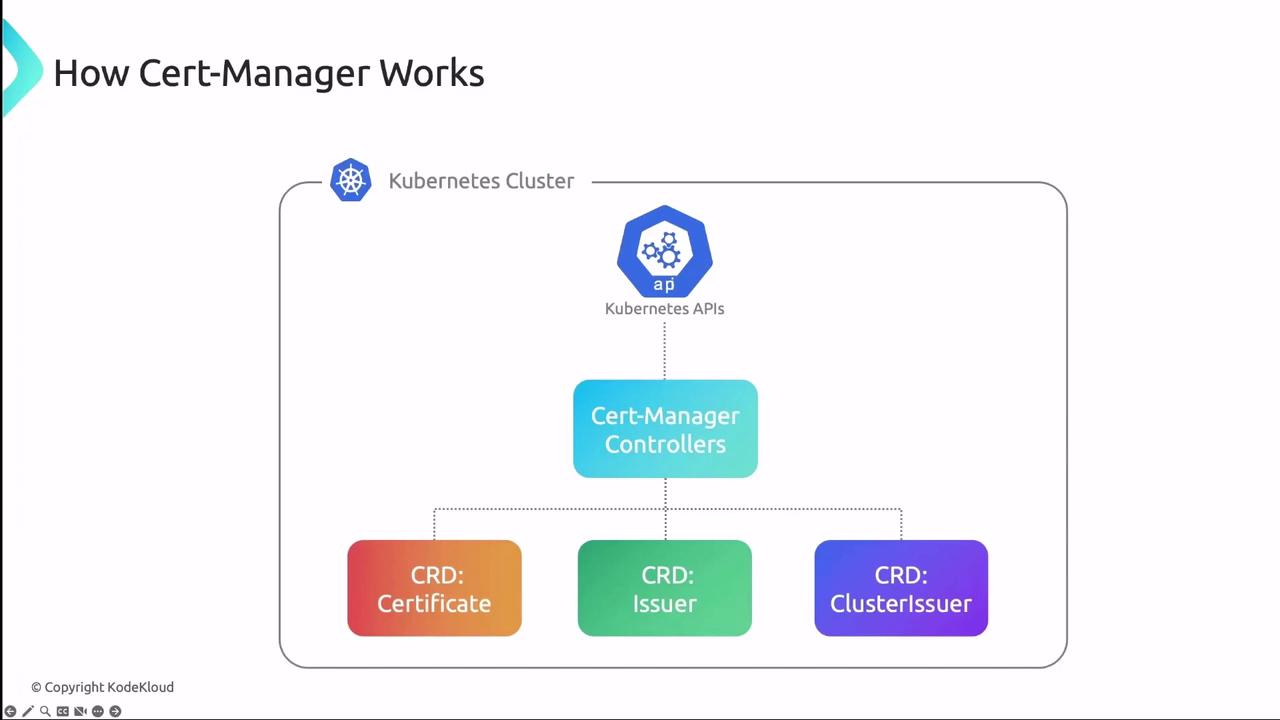

The image is a diagram explaining how Cert-Manager works within a Kubernetes cluster, showing the relationship between Kubernetes APIs, Cert-Manager Controllers, and CRDs (Certificate, Issuer, ClusterIssuer).

Table: cert-manager CRDs at a Glance

CRDScopePurpose
IssuerNamespacedDefines how to request certificates within a namespace
ClusterIssuerClusterDefines certificate requests at the cluster level
CertificateNamespacedSpecifies desired certificate, secret name, and DNS

When an Issuer or ClusterIssuer is created, cert-manager requests a certificate from the configured CA, then stores the key and certificate in a Kubernetes Secret. Controllers monitor expiry dates and perform automatic renewals.

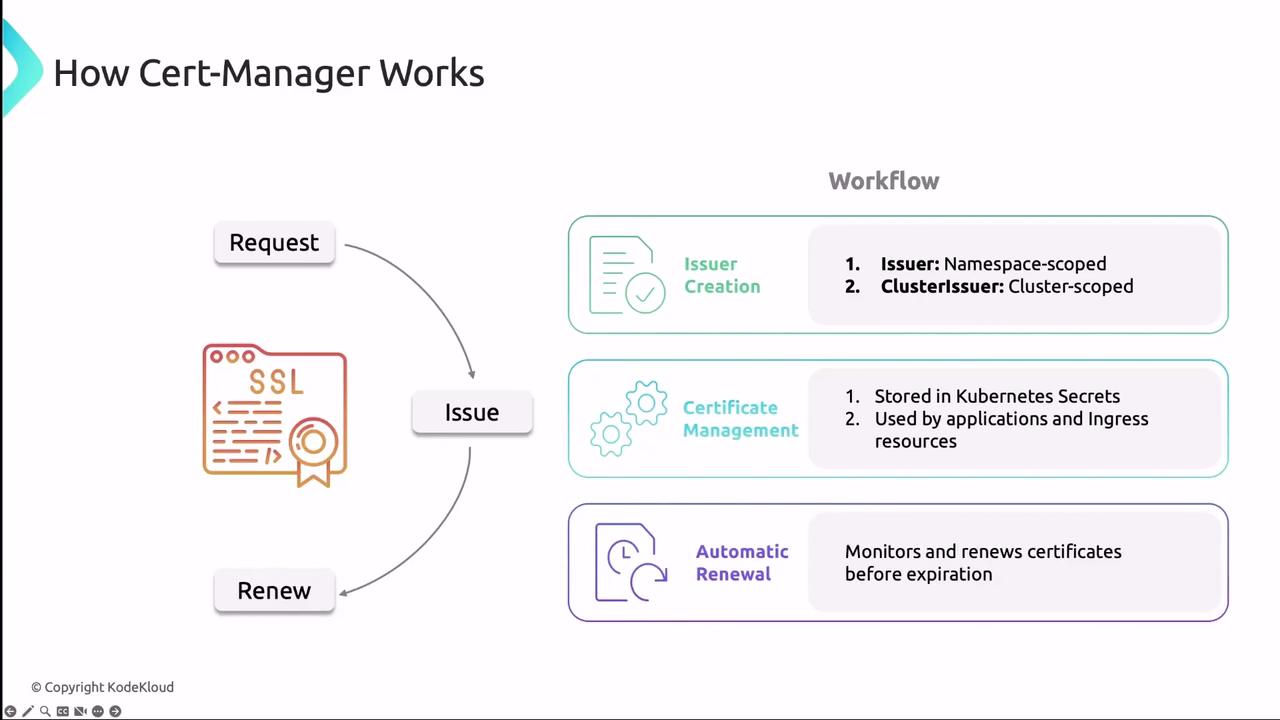

The image explains how Cert-Manager works, detailing the process of requesting, issuing, and renewing SSL certificates, along with a workflow for issuer creation, certificate management, and automatic renewal.

Note

cert-manager can issue both standard and wildcard certificates. Use wildcard certificates to secure multiple subdomains with a single certificate.


Installing cert-manager

The easiest way to install cert-manager and its CRDs is with Helm:

helm repo add jetstack https://charts.jetstack.io
helm repo update
helm install cert-manager jetstack/cert-manager \
  --namespace cert-manager \
  --create-namespace \
  --version <VERSION> \
  --set installCRDs=true

Alternatively, install via kubectl:

kubectl apply -f https://github.com/jetstack/cert-manager/releases/download/<VERSION>/cert-manager.yaml

Warning

Always match the <VERSION> placeholder with the latest stable release from the cert-manager GitHub releases.

For diagnostics and manual operations, use cmctl:

# Verify installation
cmctl check api

# Inspect Issuer or Certificate resources
cmctl inspect issuer <name>

# Trigger a certificate renewal
cmctl renew <certificate-name>

Let’s Encrypt Overview

Let’s Encrypt is a free, automated, and open certificate authority (CA) that uses the ACME protocol to issue SSL/TLS certificates. It empowers Kubernetes users to secure applications without manual certificate provisioning.

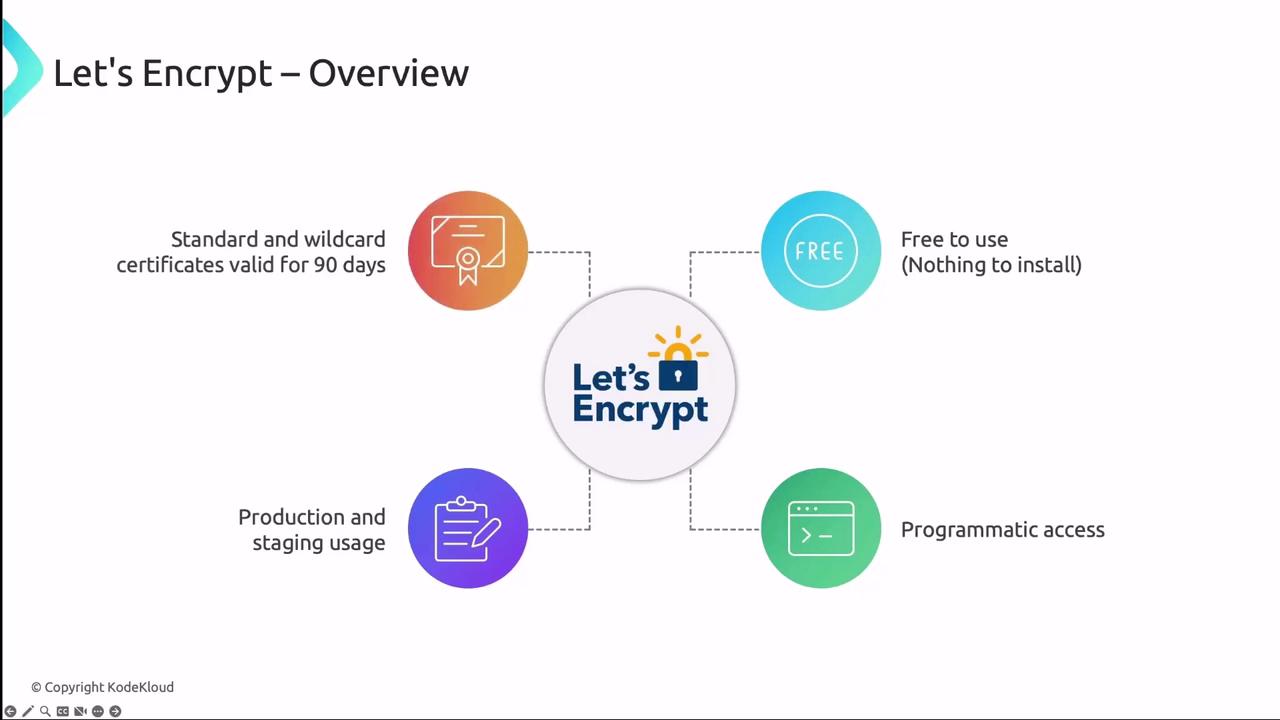

The image is an overview of Let's Encrypt, highlighting features such as free usage, standard and wildcard certificates valid for 90 days, production and staging usage, and programmatic access.

Key points about Let’s Encrypt:

  • Certificates are valid for 90 days.
  • Offers Production and Staging endpoints.
  • ACME challenges: HTTP-01 or DNS-01.
  • Publicly logged for transparency.

Table: Let’s Encrypt Endpoints

EnvironmentACME EndpointUse Case
Staginghttps://acme-staging-v02.api.letsencrypt.org/directoryTesting automation workflows
Productionhttps://acme-v02.api.letsencrypt.org/directoryLive environments

The ACME flow:

  1. Client generates a key pair and creates a CertificateRequest.
  2. Let’s Encrypt returns an HTTP-01 or DNS-01 challenge.
  3. Client fulfills the challenge by serving a token or adding a DNS record.
  4. After validation, Let’s Encrypt issues the certificate.
  5. Client fetches and stores the certificate in Kubernetes.

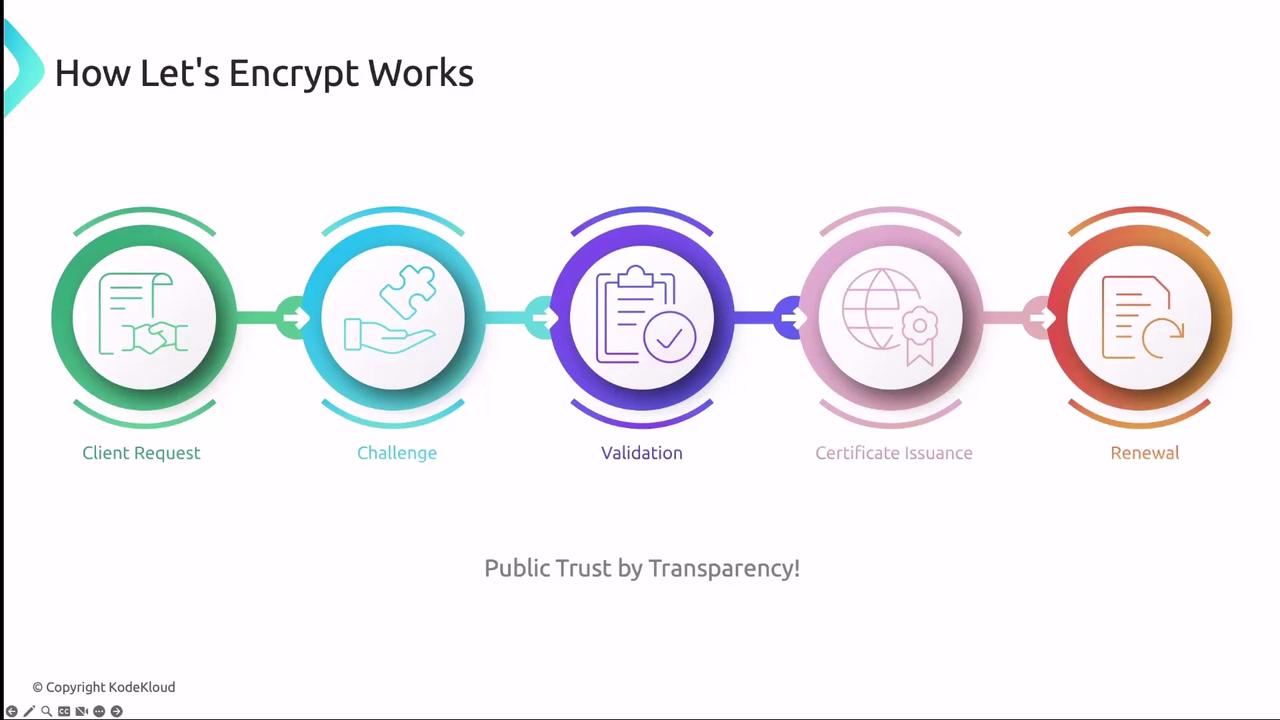

The image is a flowchart illustrating the process of how Let's Encrypt works, including steps like client request, challenge, validation, certificate issuance, and renewal. It emphasizes "Public Trust by Transparency."


Integrating cert-manager with Let’s Encrypt

To use Let’s Encrypt as your certificate authority, define an Issuer or ClusterIssuer in cert-manager:

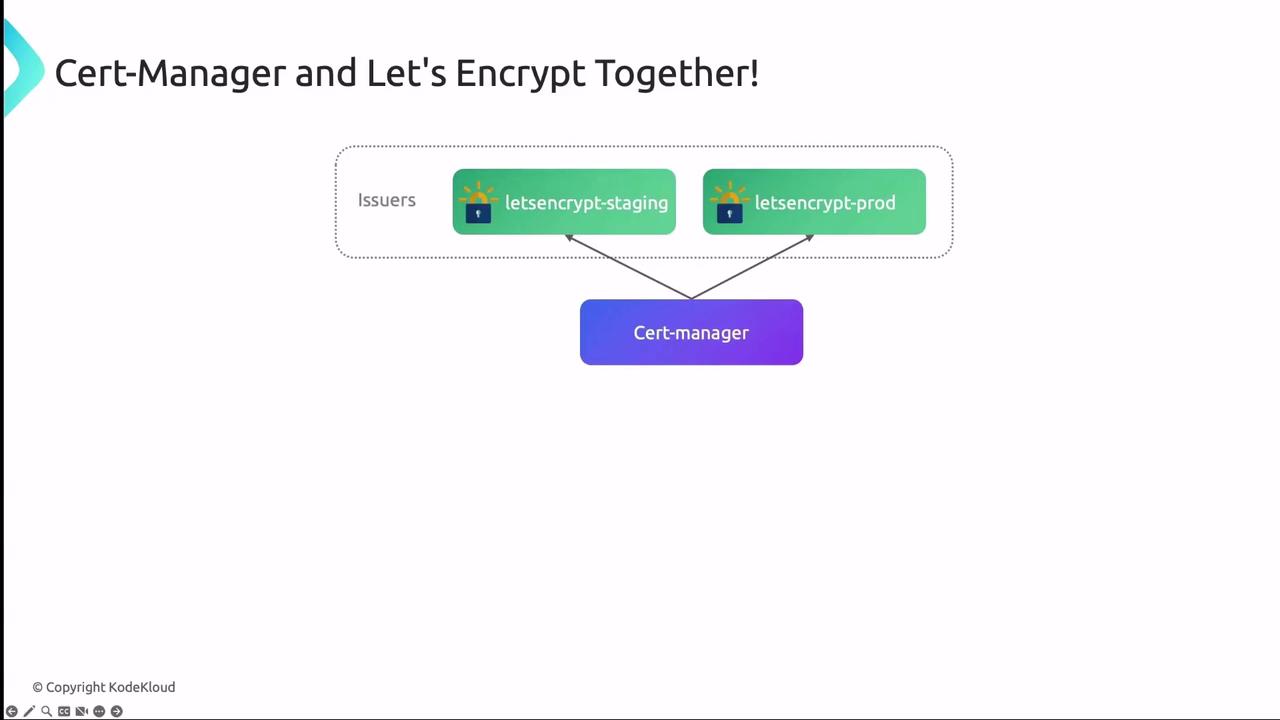

The image is a diagram showing the relationship between Cert-Manager and Let's Encrypt, with two issuers: "letsencrypt-staging" and "letsencrypt-prod," connected to Cert-Manager.

Example: Staging Issuer

apiVersion: cert-manager.io/v1
kind: Issuer
metadata:
  name: letsencrypt-staging
spec:
  acme:
    server: https://acme-staging-v02.api.letsencrypt.org/directory
    email: your-email@example.com
    privateKeySecretRef:
      name: letsencrypt-staging
    solvers:
    - http01:
        ingress:
          class: nginx

Note

When moving to production, update the server URL to the production ACME endpoint and rename secrets accordingly.


Configuring Kubernetes Ingress

Annotate your Ingress resource to reference the Issuer and specify TLS settings:

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: web-ingress
  annotations:
    cert-manager.io/issuer: letsencrypt-staging
spec:
  tls:
    - hosts:
        - example.com
      secretName: web-tls
  rules:
    - host: example.com
      http:
        paths:
          - path: /
            pathType: Prefix
            backend:
              service:
                name: web
                port:
                  number: 80

When this Ingress is applied, cert-manager handles ACME challenges, retrieves the certificate, and stores it in the web-tls Secret. Certificates are renewed automatically before expiration.
