IAM Demo Roles for EC2 instances

In this lesson, you’ll learn how to use IAM roles to provide your EC2 instance with the permissions it needs to interact with other AWS services, such as Amazon S3. We’ll start with a simple application that uses the AWS SDK to programmatically create an S3 bucket.

Creating an S3 Bucket with Explicit Credentials

The code snippet below demonstrates how to configure an S3 client using explicit credentials. The application conditionally adds credentials if a secret access key is provided. It retrieves the bucket name from a command-line argument and then creates the bucket using the S3 API.

const accessKeyId = "";
const secretAccessKey = "";

const s3Config = { region: "us-east-1" };

if (secretAccessKey != "" || null) {
    s3Config.credentials = {
        accessKeyId,
        secretAccessKey,
    };
}

const s3Client = new S3Client(s3Config);

// Create the parameters for calling createBucket
var bucketName = process.argv[2];

// Call S3 to create the bucket
const main = async () => {
    try {
        const response = await s3Client.send(
            new CreateBucketCommand({ Bucket: bucketName })
        );
    }
};

To run the application and create a bucket (for example, named "bucket123"), execute:

node index.js bucket123

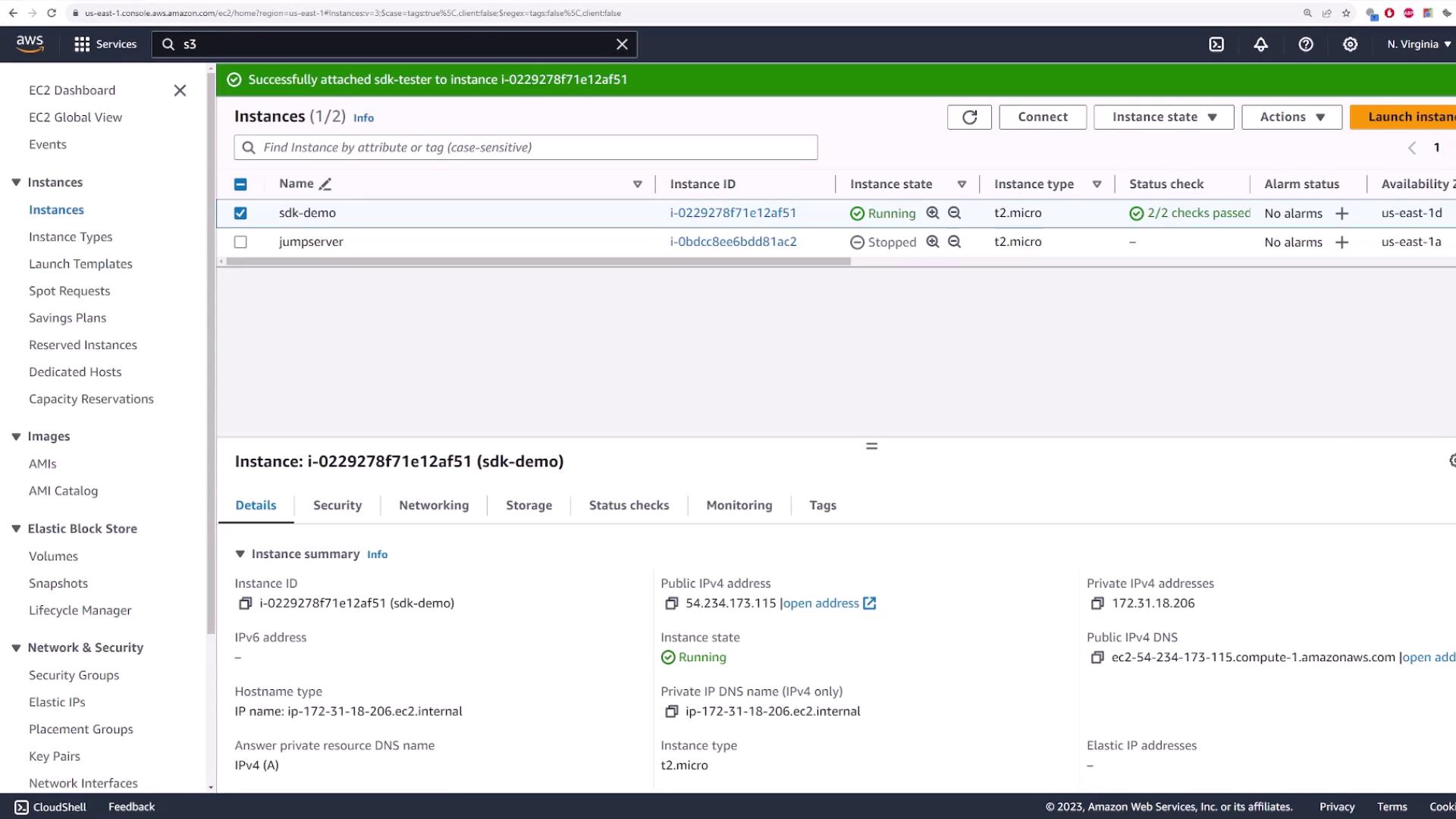

After uploading the code to an EC2 instance (named “SDK demo”), you can verify its contents by running commands such as ls and cat index.js on the instance.

When you execute the application with:

node index.js iam-role-kodekloud-demo

you might see output similar to:

123, then that's going to create a bucket called bucket123.
[ec2-user@ip-172-31-18-206 app]$ node index.js bucket123

This confirms that the instance is running the code and creating the bucket, assuming the provided credentials are valid.

Handling Authentication Errors

When you first run the application with provided (but incorrect) credentials, you might see an error like:

[ec2-user@ip-172-31-18-206 app]$ node index.js iam-role-kodekloud-demo
Error: Code invalid access key ID. The AWS access key ID you provided does not exist in our records.

Creating an IAM User and Generating Credentials

To generate valid credentials, follow these steps:

1. Navigate to the IAM console and create a new user named “SDK demo.”

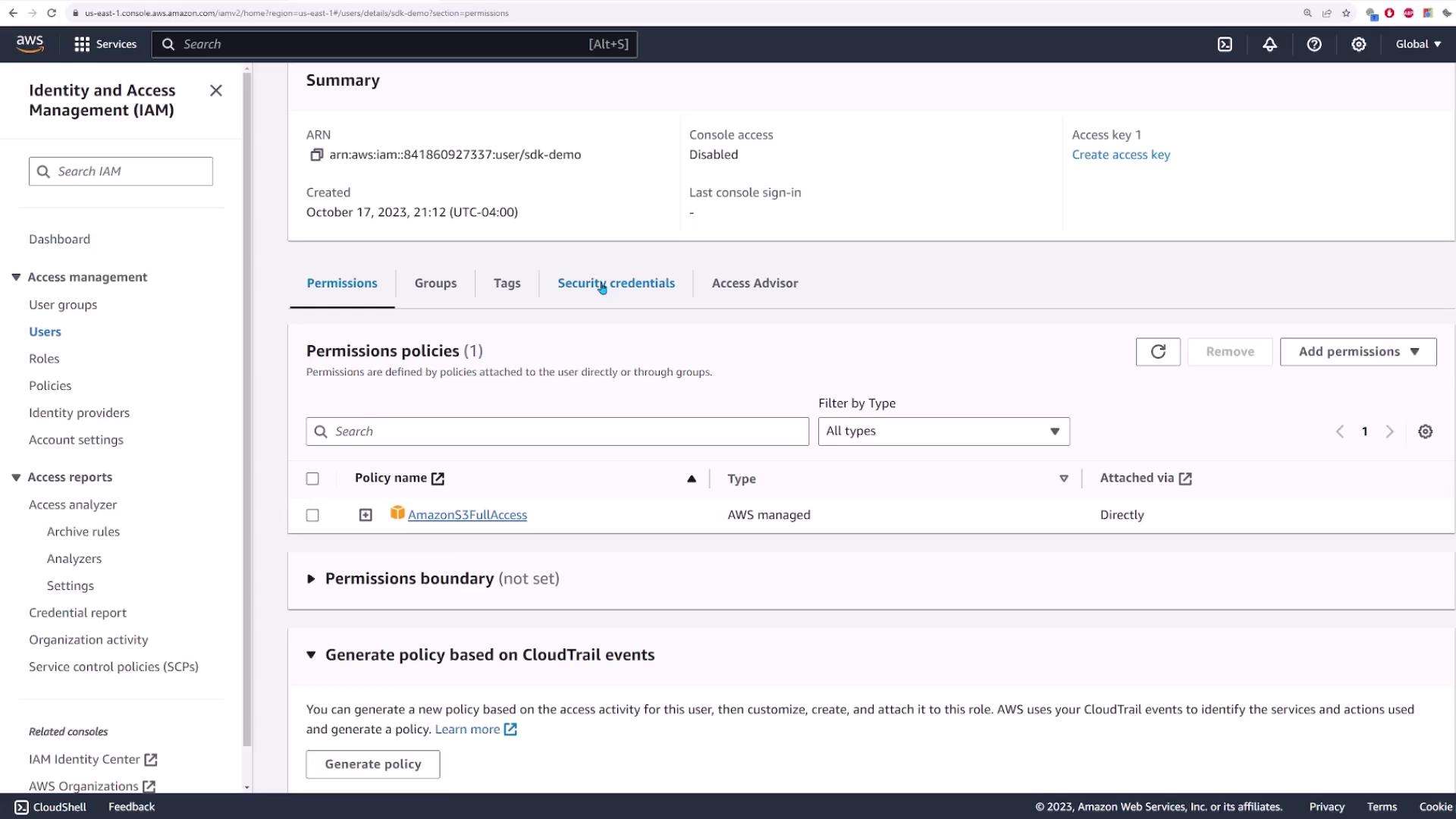

2. Attach policies directly by searching for and selecting Amazon S3 Full Access.

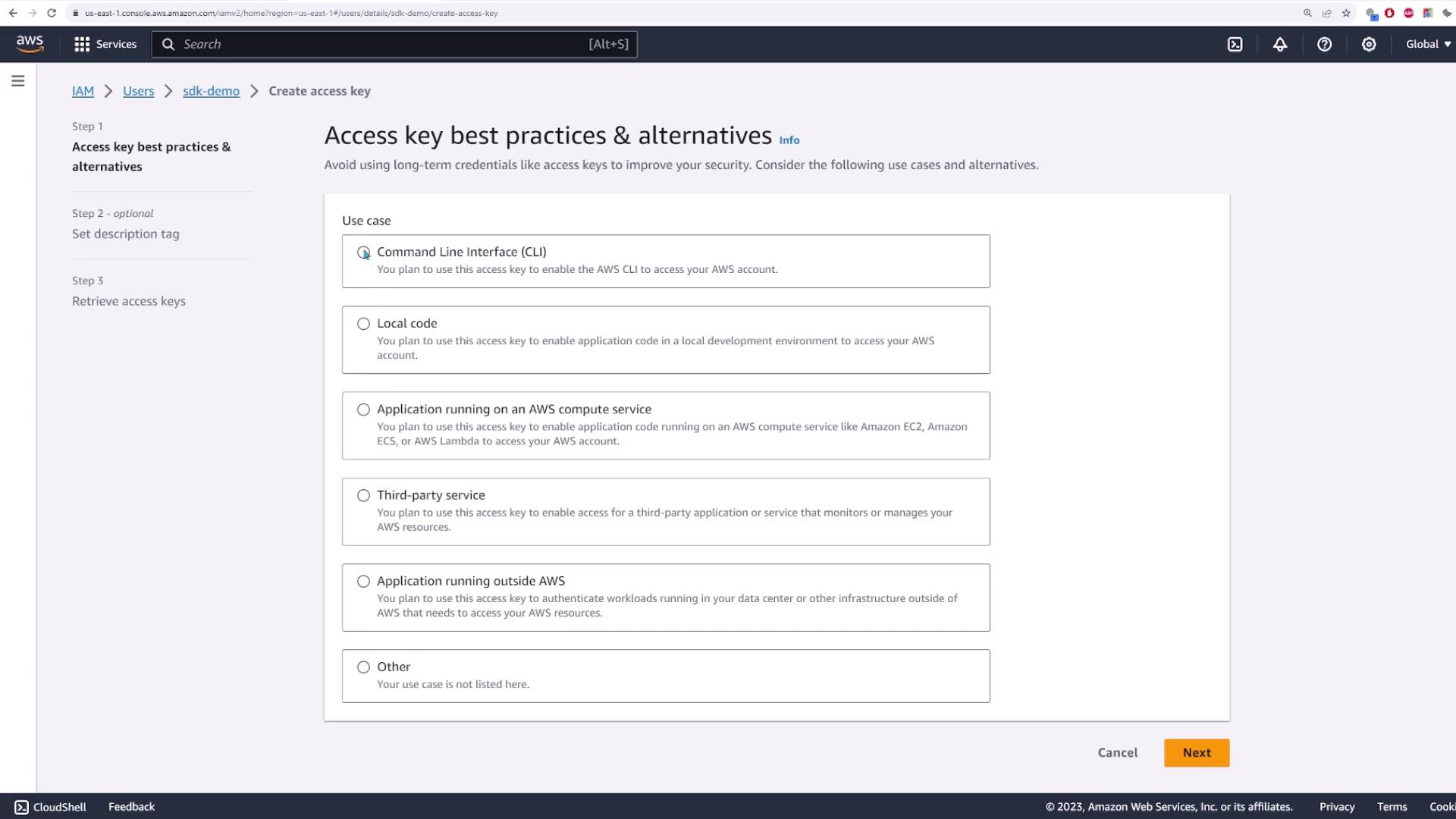

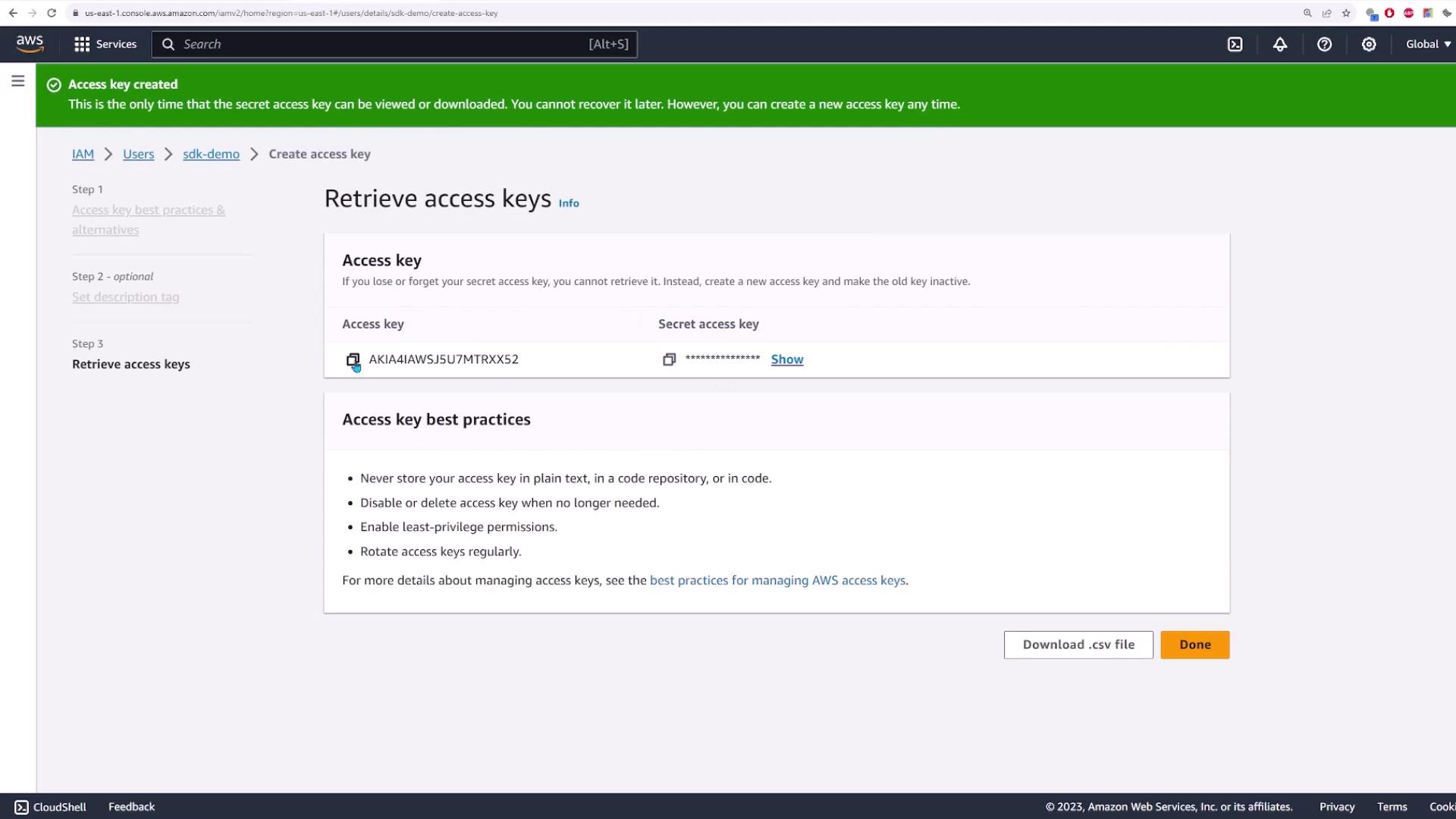

3. In the Security Credentials tab for the new user, create an access key. For this lesson, choose the Command Line Interface (CLI) option, then click "Next" and "Create Access Key."

After copying the correct Access Key and Secret Access Key into your code, update the snippet as follows:

const { S3Client, CreateBucketCommand, GetObjectCommand } = require("@aws-sdk/client-s3");

// Set the region and provide valid credentials
const accessKeyId = "AKIAIAIWSJ5U7MTRXX52";
const secretAccessKey = "WW1UNLSS/bIa+V1qYpXRlC4vQpNb0EQGKrg7D73";

const s3Config = { region: "us-east-1" };

if (secretAccessKey != "" || null) {
    s3Config.credentials = {
        accessKeyId,
        secretAccessKey,
    };
}

const s3Client = new S3Client(s3Config);

// Create the parameters for calling createBucket
var bucketName = process.argv[2];

// Call S3 to create the bucket
const main = async () => {
    try {
        const response = await s3Client.send(
            new CreateBucketCommand({ Bucket: bucketName })
        );
        console.log(response);
    } catch (e) {
        console.log("failed to create bucket");
        console.log(e);
    }
};

main();

Run the updated application with:

node index.js iam-role-kodekloud-demo

This produces an output similar to:

{
    '$metadata': {
        httpStatusCode: 200,
        requestId: '3G32E56RK5V2Z3NH',
        extendedRequestId: 'yb9KufnGSDqX1DoM5/GdVQ+uImphU7RaqxludjBzIMDxsQipmJP8XiTWNZC+C2+x2fk1Gjhfno=',
        cfId: undefined,
        attempts: 1,
        totalRetryDelay: 0
    },
    Location: 'iam-role-kodekloud-demo'
}

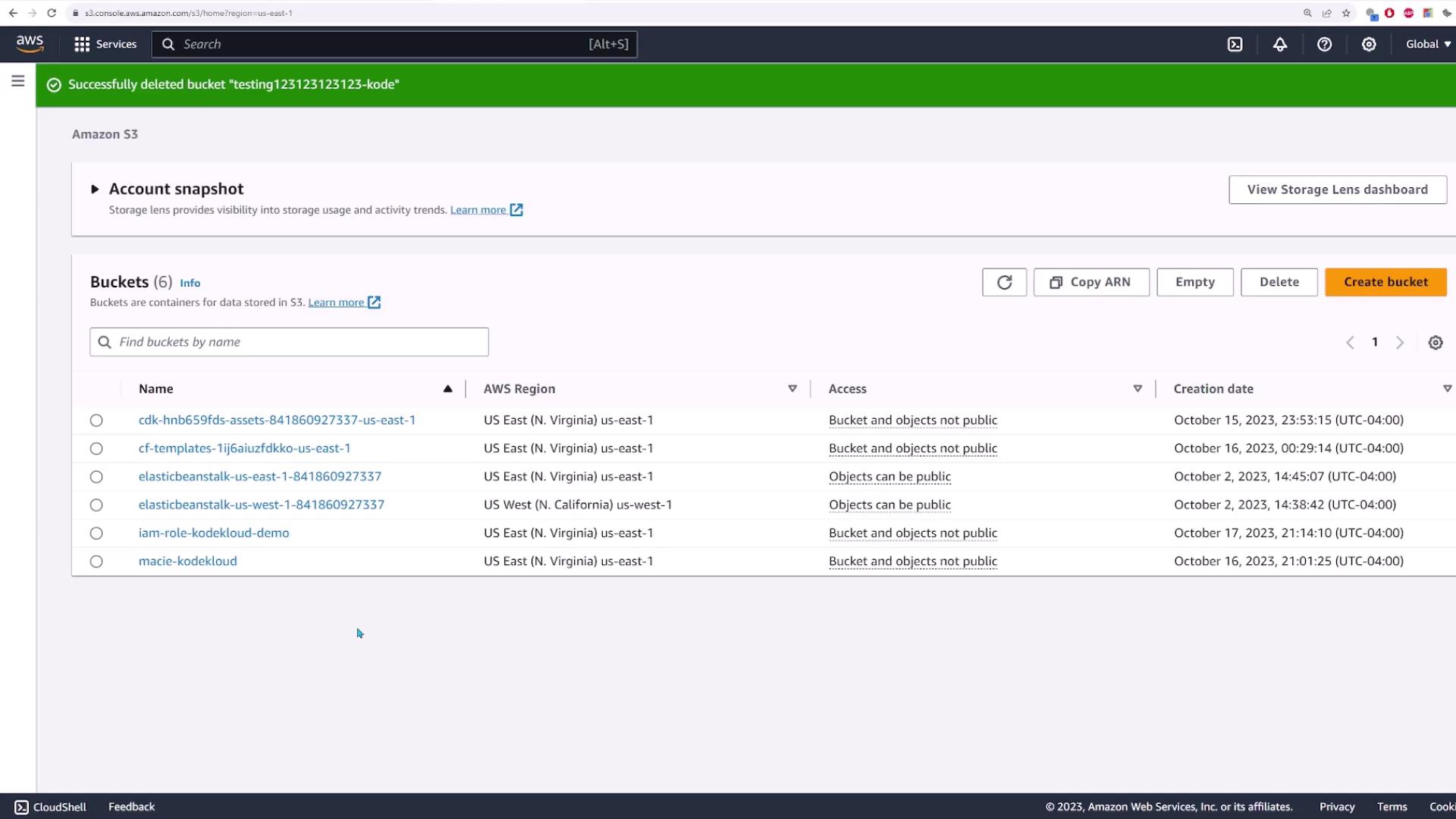

After verifying through the AWS S3 console, you should see the new bucket listed:

Transitioning to IAM Roles

To remove the need for managing access keys manually, we now transition to using IAM roles. When you remove credentials from your code and run the application, you’ll encounter an "InvalidAccessKeyId" error, as expected.

To resolve this, create an IAM role for the EC2 instance by following these steps:

1. In the IAM console, select Roles and click Create Role.

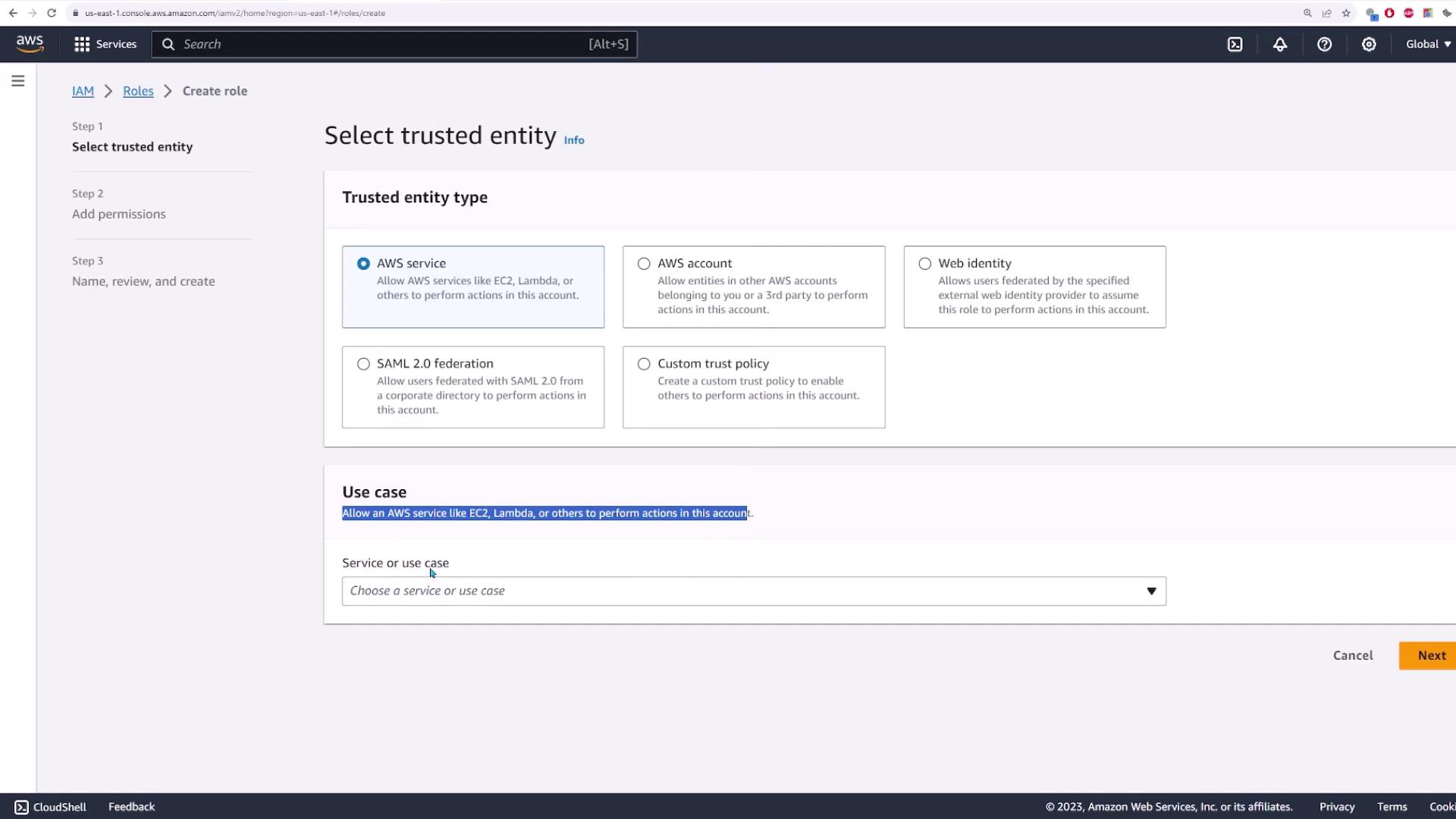

2. Choose AWS service as the trusted entity type, since the role will be used by an EC2 instance.

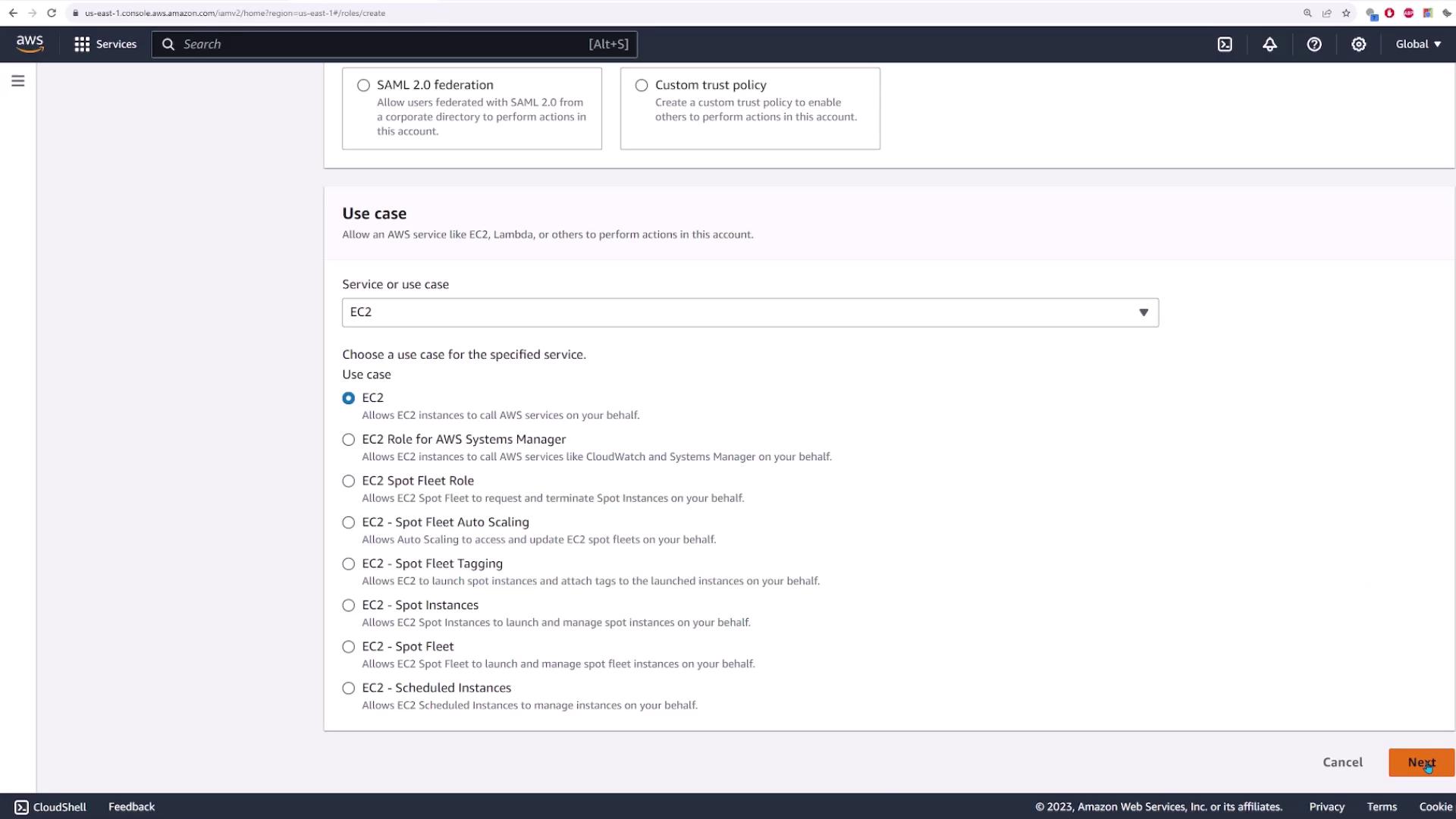

3. For the use case, select EC2 so the instance can perform actions on your behalf—specifically, interacting with S3.

4. Attach the Amazon S3 Full Access policy to the role.

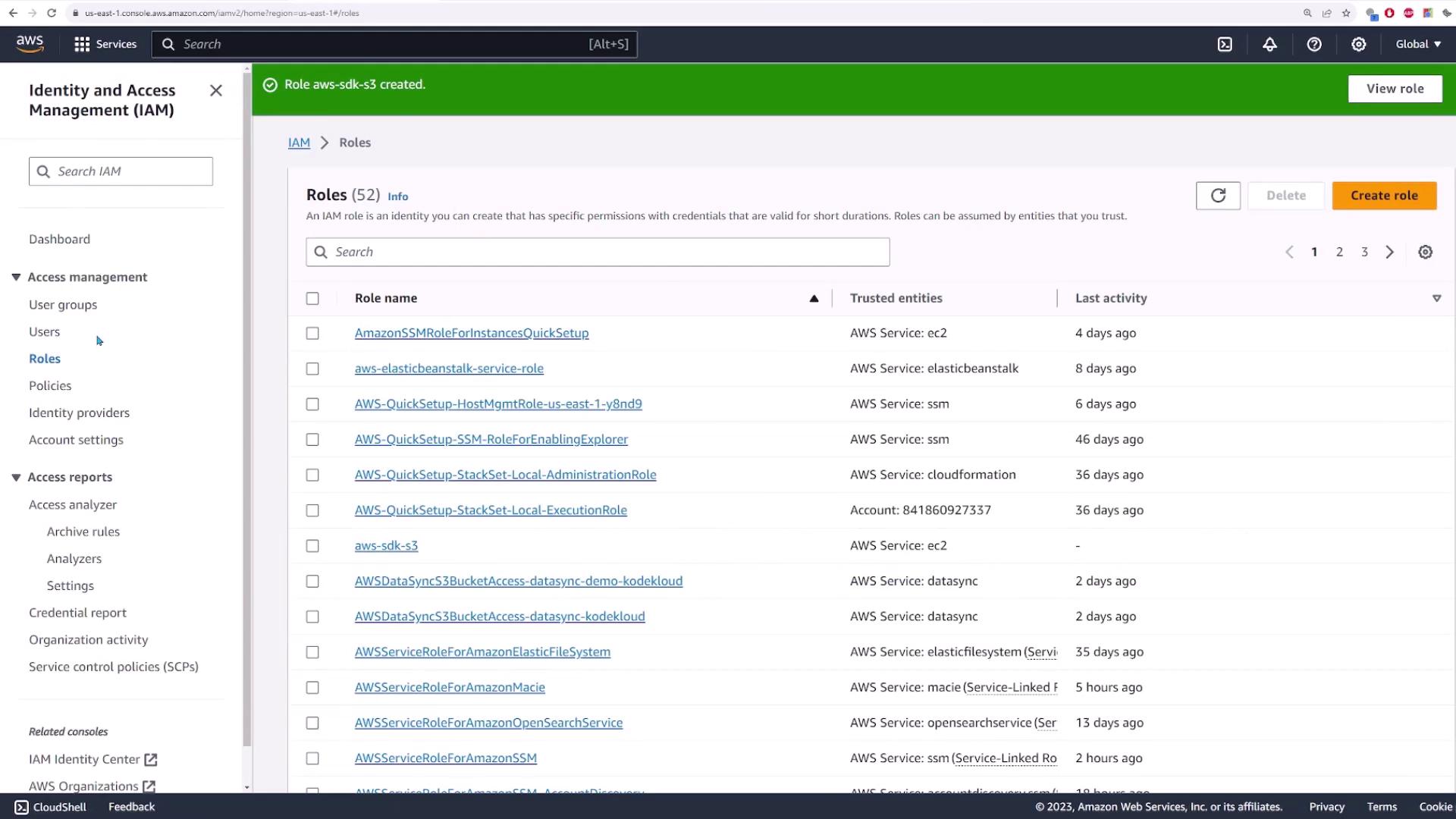

5. Name the role (e.g., "AWS SDK S3") and use the following trust policy:

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Effect": "Allow",
            "Action": [
                "sts:AssumeRole"
            ],
            "Principal": {
                "Service": [
                    "ec2.amazonaws.com"
                ]
            }
        }
    ]
}

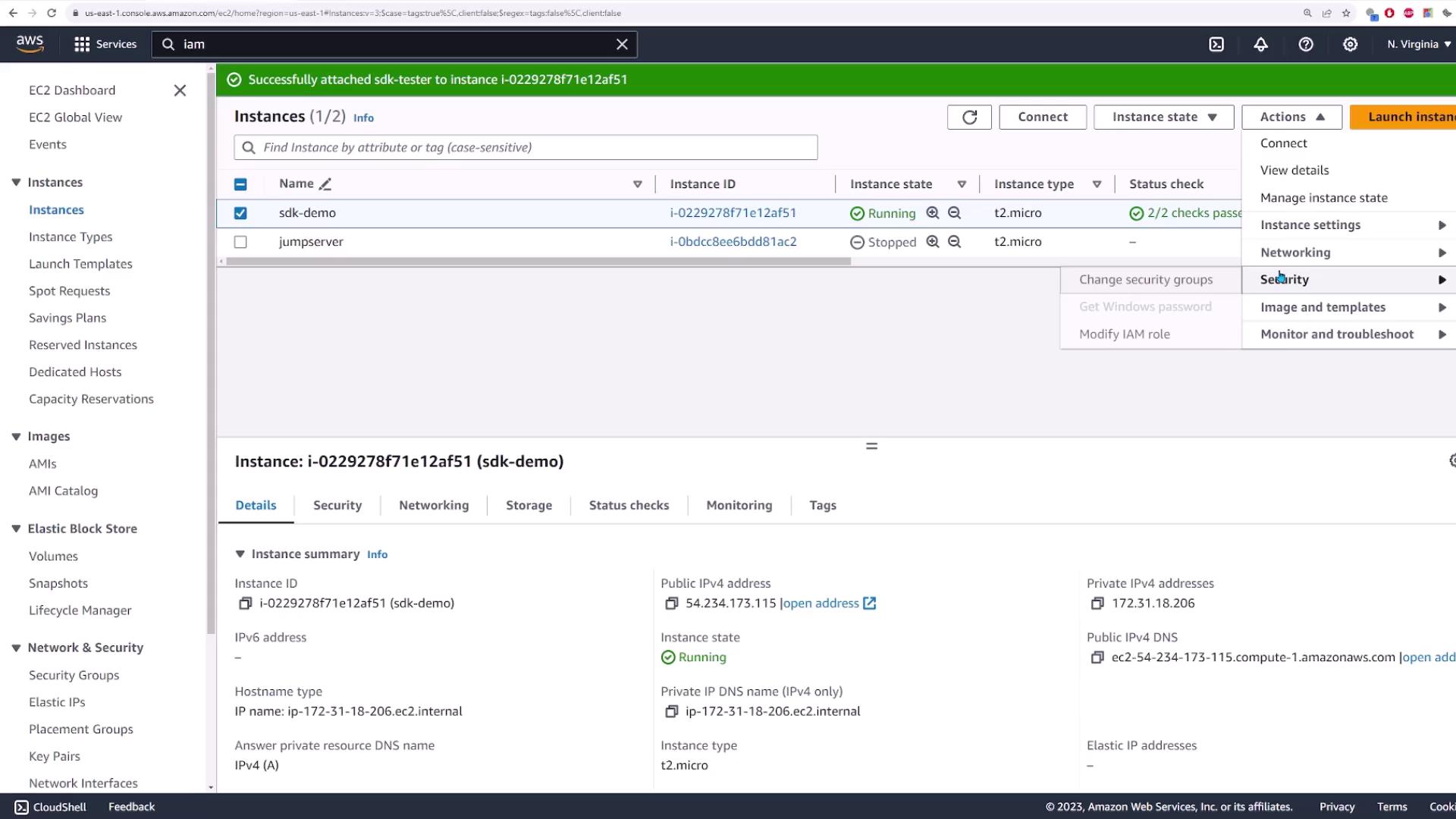

After creating the role, update your EC2 instance to use it. In the AWS EC2 management console:

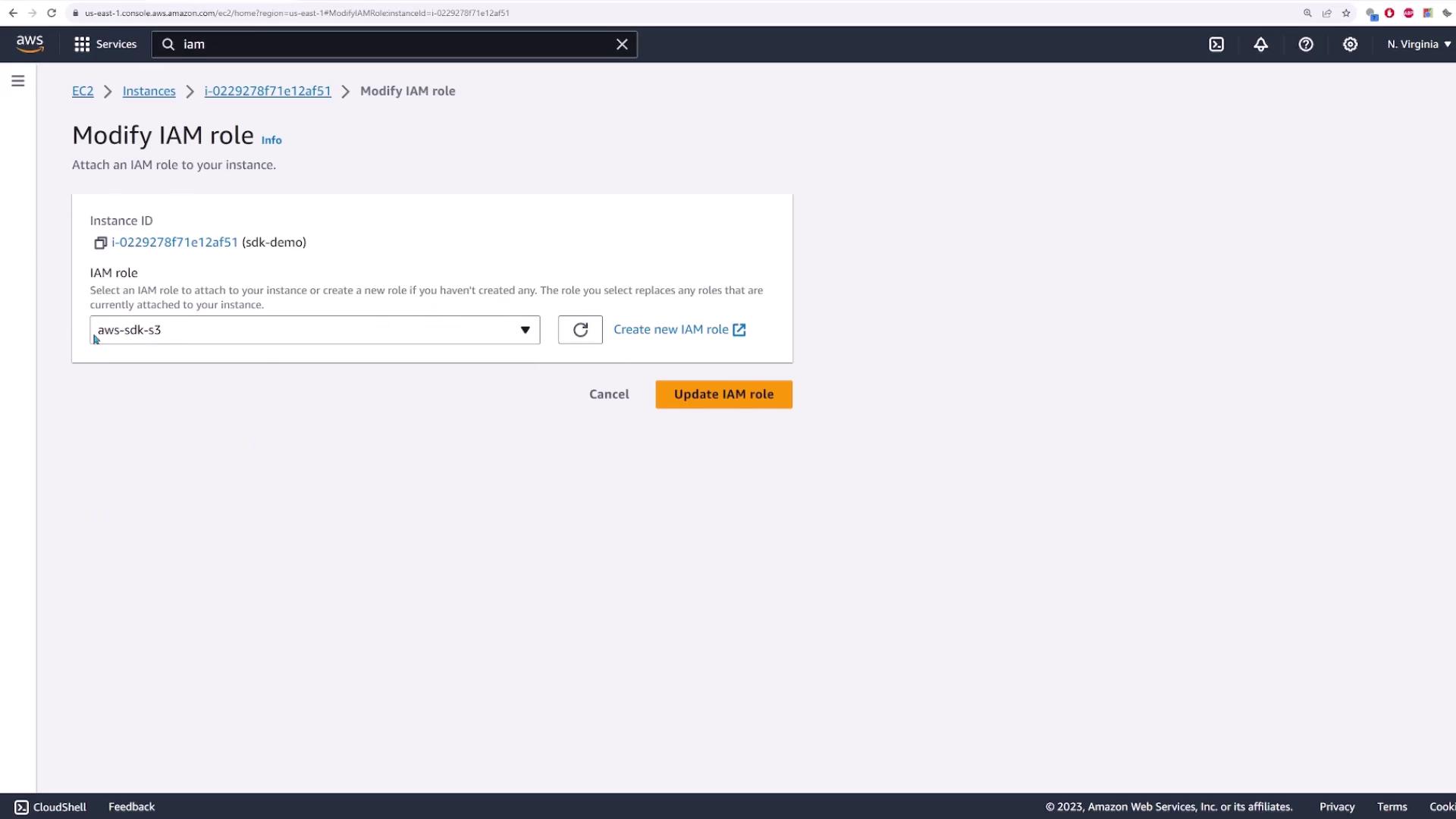

Locate your instance (SDK demo), select Security, then Modify IAM Role, and choose the newly created role “AWS SDK S3.”

Now that the role is attached and your code no longer contains hard-coded credentials, run the application again:

[ec2-user@ip-172-31-18-206 app]$ node index.js iam-role-kodekloud-demo

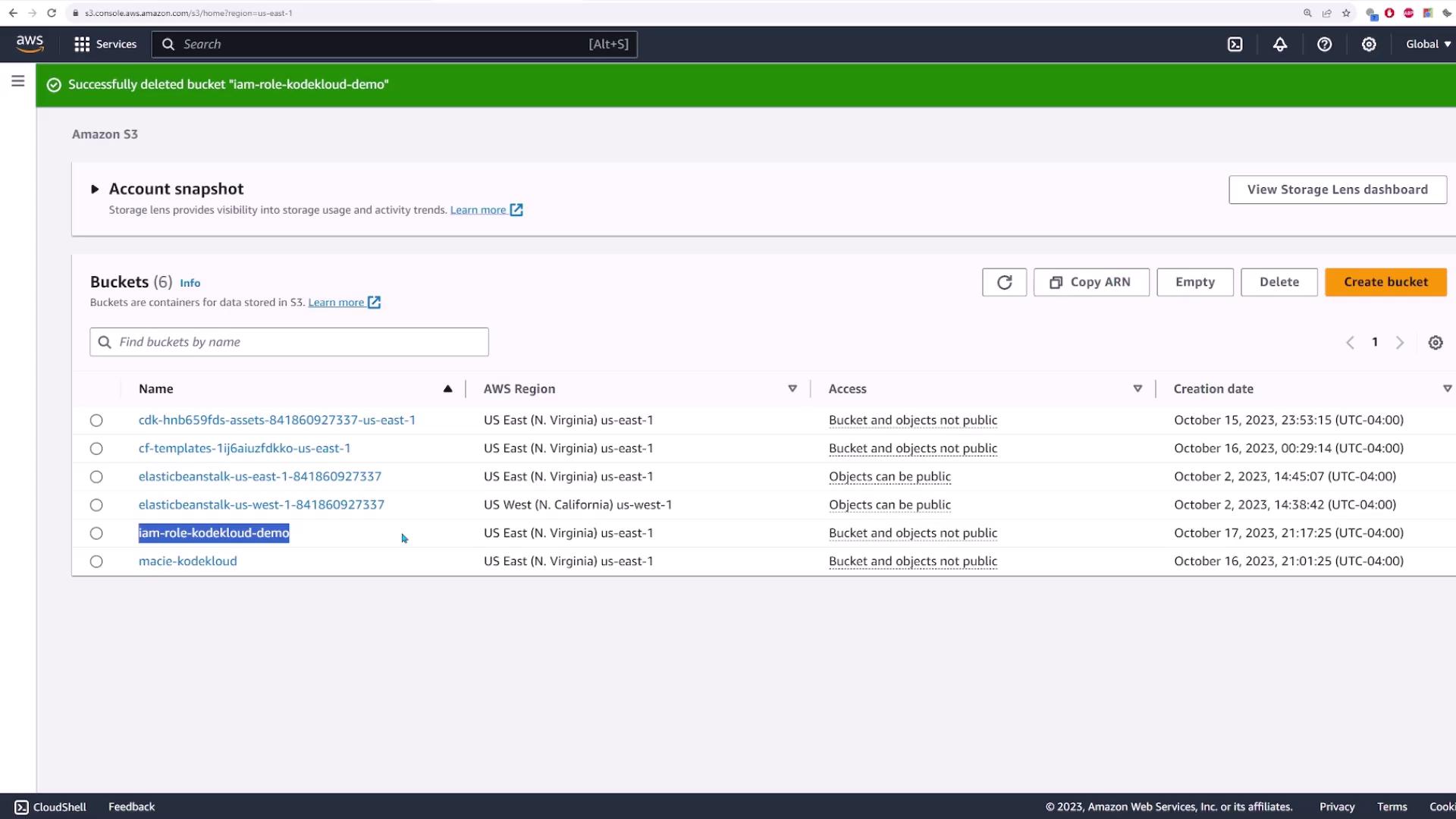

The bucket is now created successfully. Verify its creation in the S3 console:

Summary

There are two primary methods for authenticating an application with AWS services:

Using IAM roles simplifies security management by allowing your EC2 instance to assume a role with the correct permissions—enabling seamless interactions with AWS services like S3.

This concludes our lesson on using IAM roles for EC2 instances. For further reading, visit the AWS Documentation and explore the IAM User Guide.
