S3 Access Points Demo

In this lesson, we explore how to work with AWS S3 Access Points. You will learn how to create a demo bucket named "KodeKloud access point", upload a test file, and configure multiple access points with custom policies to manage access for different users.

Creating the Demo Bucket

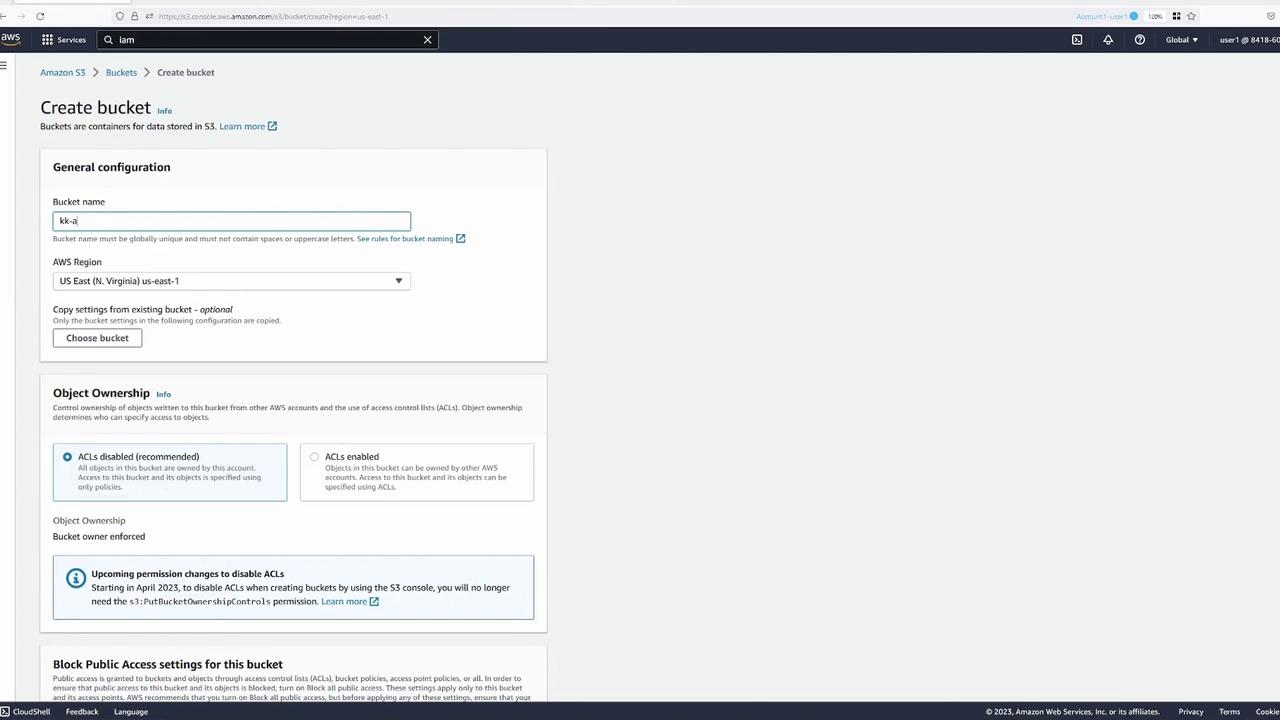

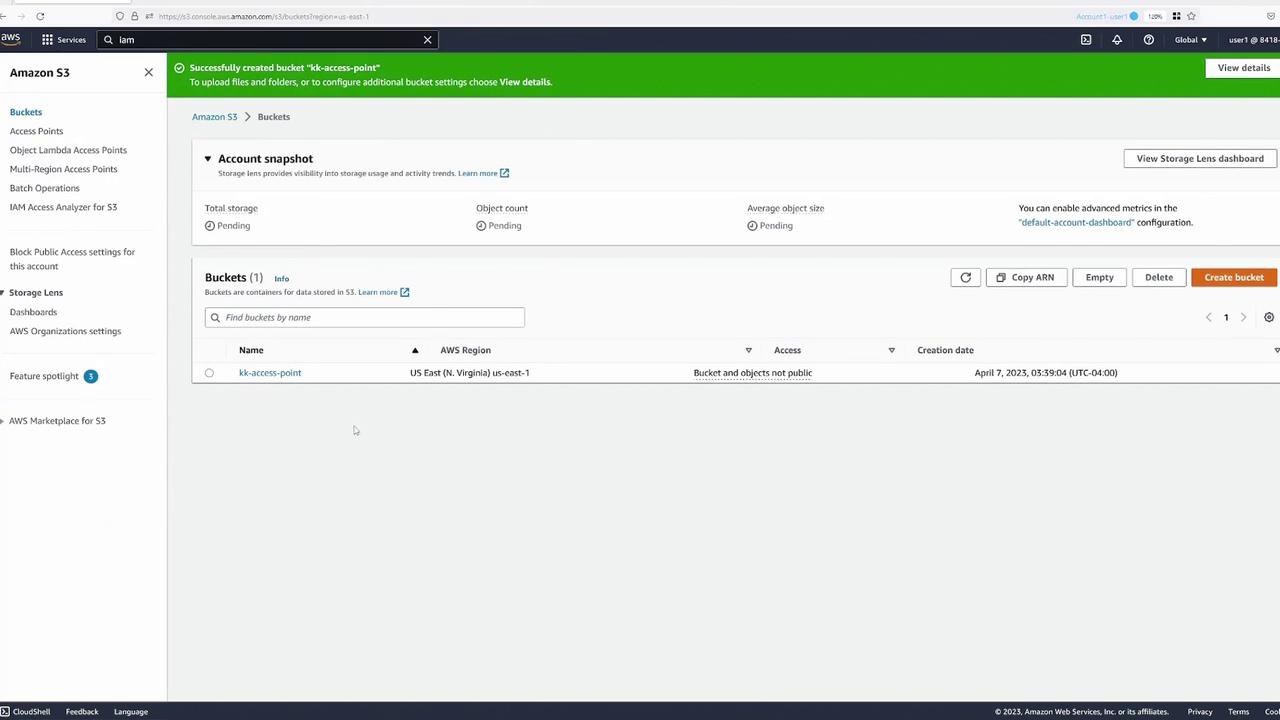

Begin by creating a new bucket in the AWS S3 console and naming it "KodeKloud access point". Retain all the default settings.

After the bucket is created, upload a demo file for testing purposes.

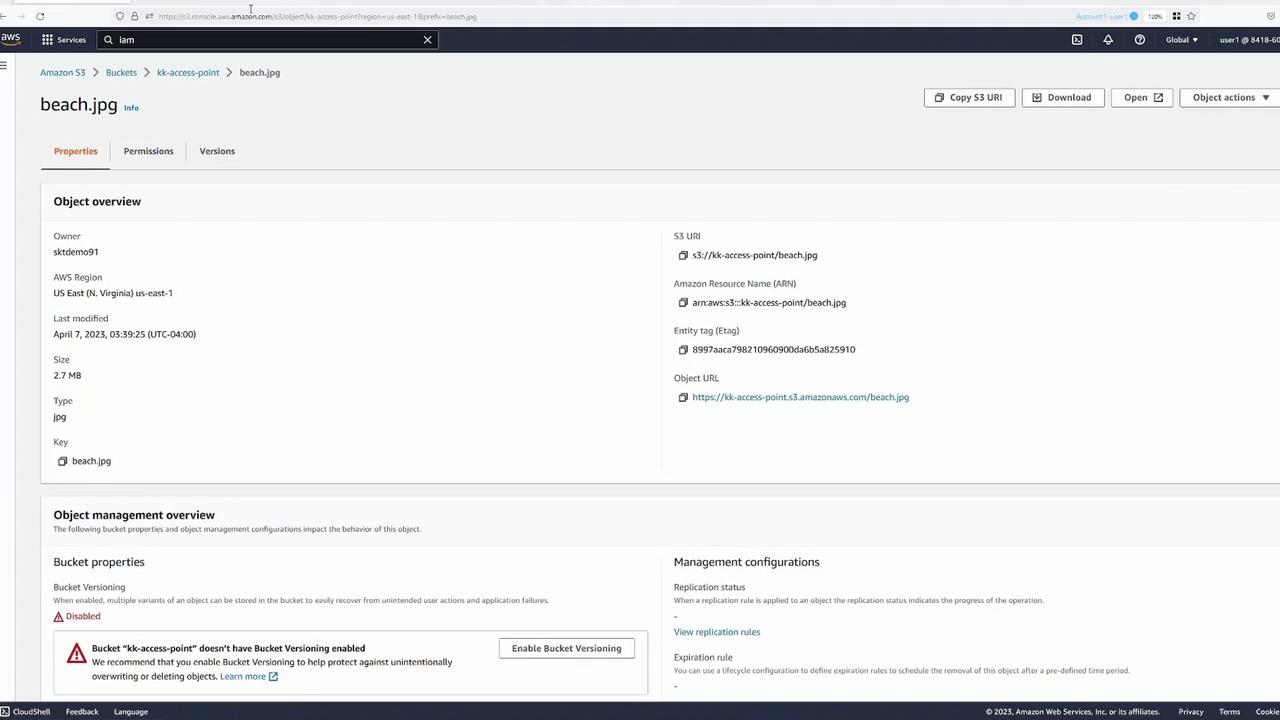

Click the "Open" button within the bucket to view the file as the bucket owner. Next, inspect the details of the object (e.g., "beach.jpg"):

Testing Access with Multiple Users

To simulate different access permissions, open several browser tabs representing different users within the same AWS account. For demonstration purposes:

• Blue Tab: Represents user one (the bucket owner).
• Green Tab: Represents user two.
• Yellow Tab: Represents user three.

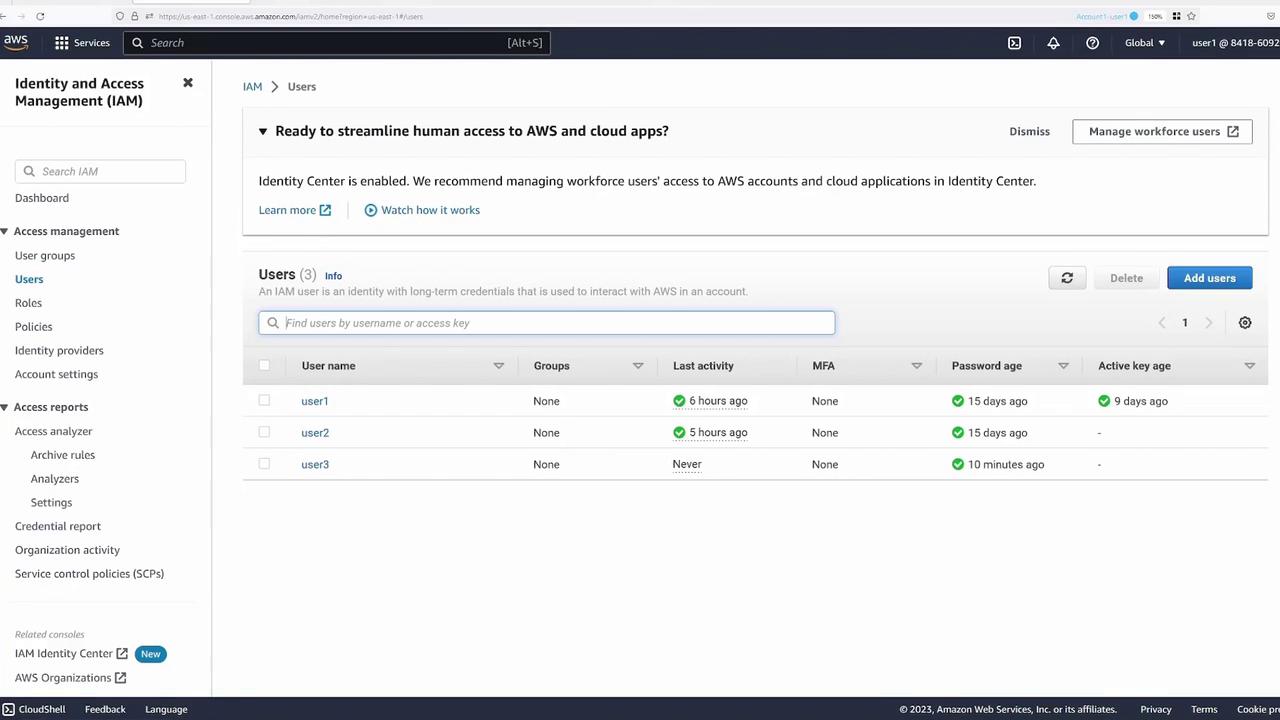

Verify user permissions in the AWS IAM Management Console. You’ll notice that while user one has full S3 access as the bucket owner, user two and user three have limited access (primarily to Cloud Shell) without direct S3 permissions.

Using Cloud Shell (which already includes the AWS CLI), run the following test commands. As a general user (not the bucket owner), attempting to copy the object produces a 403 Forbidden error:

[cloudshell:user@ip-10-2-30-244 ~]$ aws s3 ls
2023-04-07 02:26:33 kk-access-point
[cloudshell:user@ip-10-2-30-244 ~]$ aws s3 cp s3://kk-access-point/beach.jpg .
fatal error: An error occurred (403) when calling the HeadObject operation: Forbidden

Similarly, testing from user two’s Cloud Shell session shows restricted access:

[cloudshell-user@ip-10-2-30-244 ~]$ aws s3 ls
2023-04-07 07:26:13 kk-access-point
[cloudshell-user@ip-10-2-30-244 ~]$ aws s3 cp s3://kk-access-point/beach.jpg .
2023-04-07 07:27:37  2073914 beach.jpg
[cloudshell-user@ip-10-2-30-244 ~]$ aws s3 cp s3://kk-access-point/beach.jpg .
fatal error: An error occurred (403) when calling the HeadObject operation: Forbidden

This confirms that only user one (the bucket owner) currently has full access to the file.

Switch back to the main user (user one) and test again:

[cloudshell-user@ip-10-2-30-244 ~]$ aws s3 ls
2023-04-07 02:36:13 kk-access-point
[cloudshell-user@ip-10-2-30-244 ~]$ aws s3 cp s3://kk-access-point/beach.jpg .
fatal error: An error occurred (403) when calling the HeadObject operation: Forbidden

Creating and Configuring Access Points

Setting Up Access Points

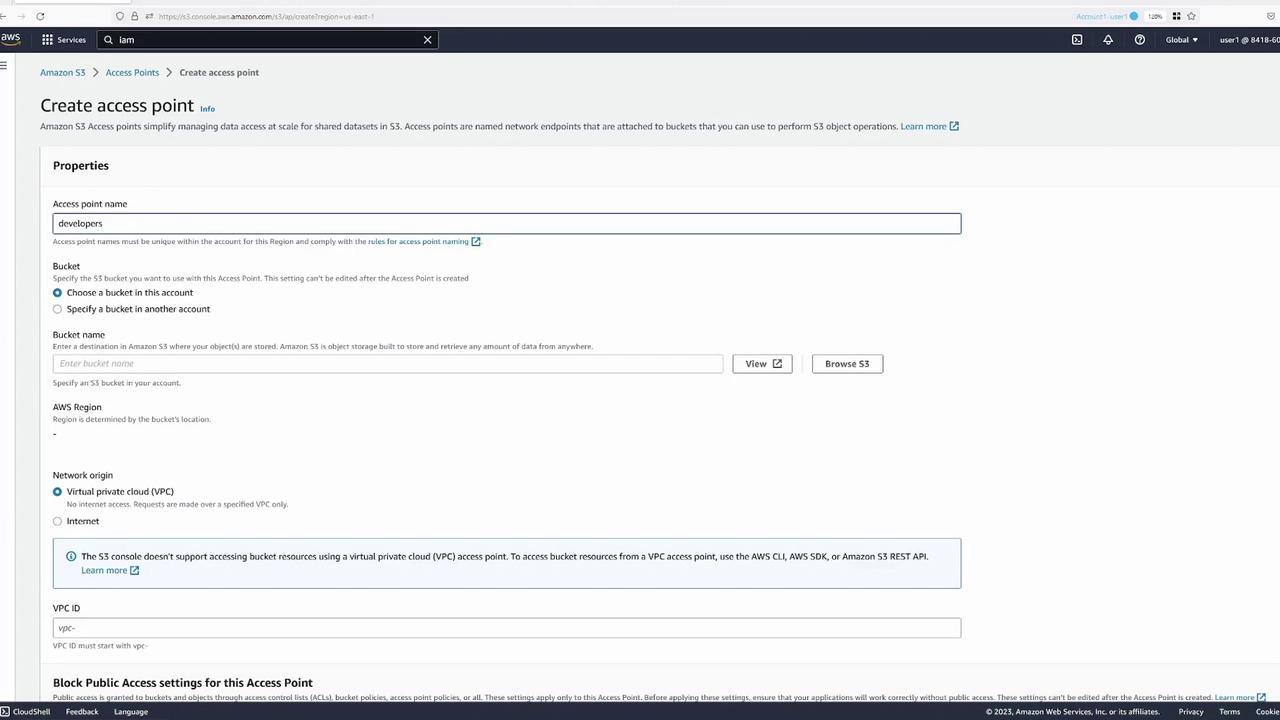

We now create access points to delegate specific access permissions for different groups. First, set up an access point for developers (user two). During creation:

• Assign a name (e.g., "developers").
• Choose the bucket "KodeKloud access point".
• Enable the option to allow requests from the Internet.

For now, skip setting an access point policy; you can modify it later as needed.

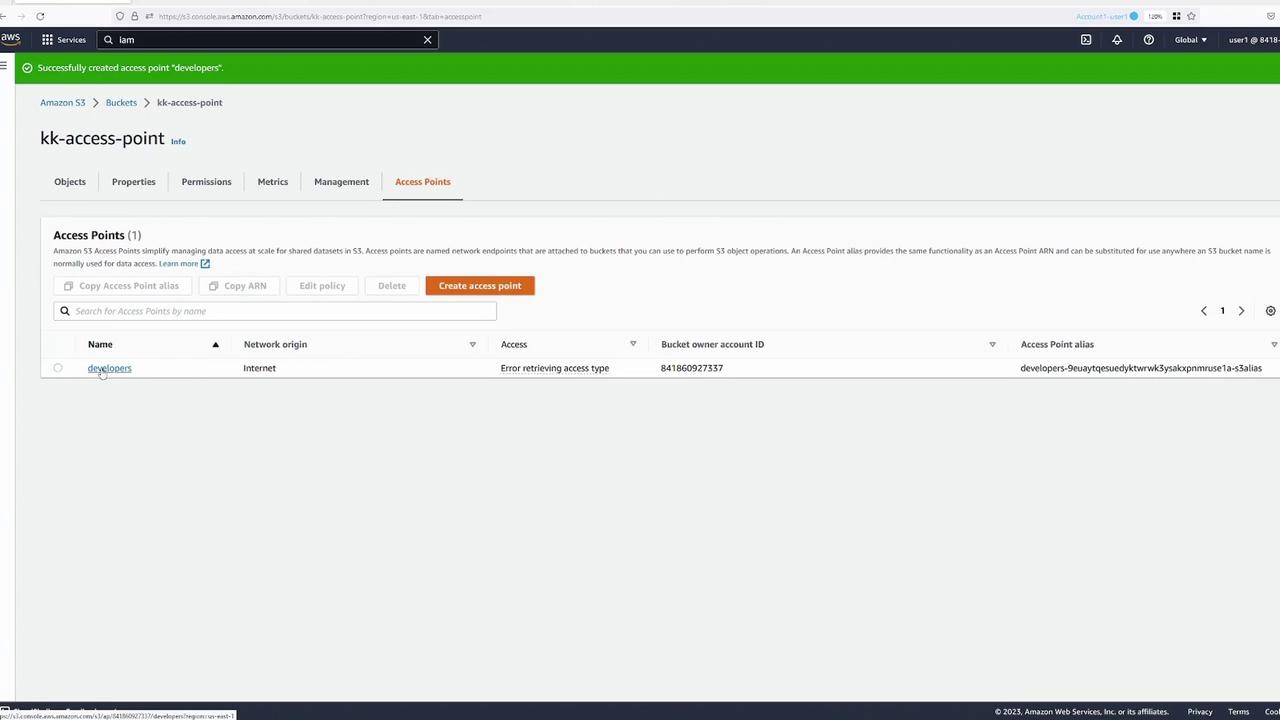

After creation, the developers access point appears alongside the bucket's access points:

Repeat the process to create an additional access point for user three (finance team). Use open Internet access with default policy settings.

Access Point Policies and Bucket Delegation

Access point policies control requests made through an access point. For example, to allow a specific user (Jane) to perform object operations, you might use a policy like this:

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Effect": "Allow",
            "Principal": {
                "AWS": "arn:aws:iam::123456789012:user/Jane"
            },
            "Action": [
                "s3:GetObject",
                "s3:PutObject"
            ],
            "Resource": "arn:aws:s3:::accesspoint:my-access-point/object/Jane/*"
        }
    ]
}

Note that the resource field in the policy references the access point ARN, which functions similarly to a traditional S3 bucket ARN during operations.

To delegate access, adjust the bucket policy to allow access points to manage access control. An example delegation bucket policy is:

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Principal": { "AWS": "*" },
      "Action": [ "Bucket ARN", "Bucket ARN/*" ],
      "Resource": [ "Bucket ARN", "Bucket ARN/*" ],
      "Condition": { "StringEquals": { "s3:DataAccessPointAccount": "Bucket owner's account ID" } }
    }
  ]
}

Replace "Bucket ARN" and "Bucket owner's account ID" with your bucket's specific values. Once updated, save the bucket policy to allow seamless operation of all access points.

A sample bucket policy after replacing placeholders might appear as:

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Effect": "Allow",
            "Principal": {
                "AWS": [
                    "arn:aws:s3:::kk-access-point",
                    "arn:aws:s3:::kk-access-point/*"
                ]
            },
            "Action": "*",
            "Resource": "arn:aws:s3:kk-access-point",
            "Condition": {
                "StringEquals": {
                    "s3:DataAccessPointAccount": "bucket owner's account id"
                }
            }
        }
    ]
}

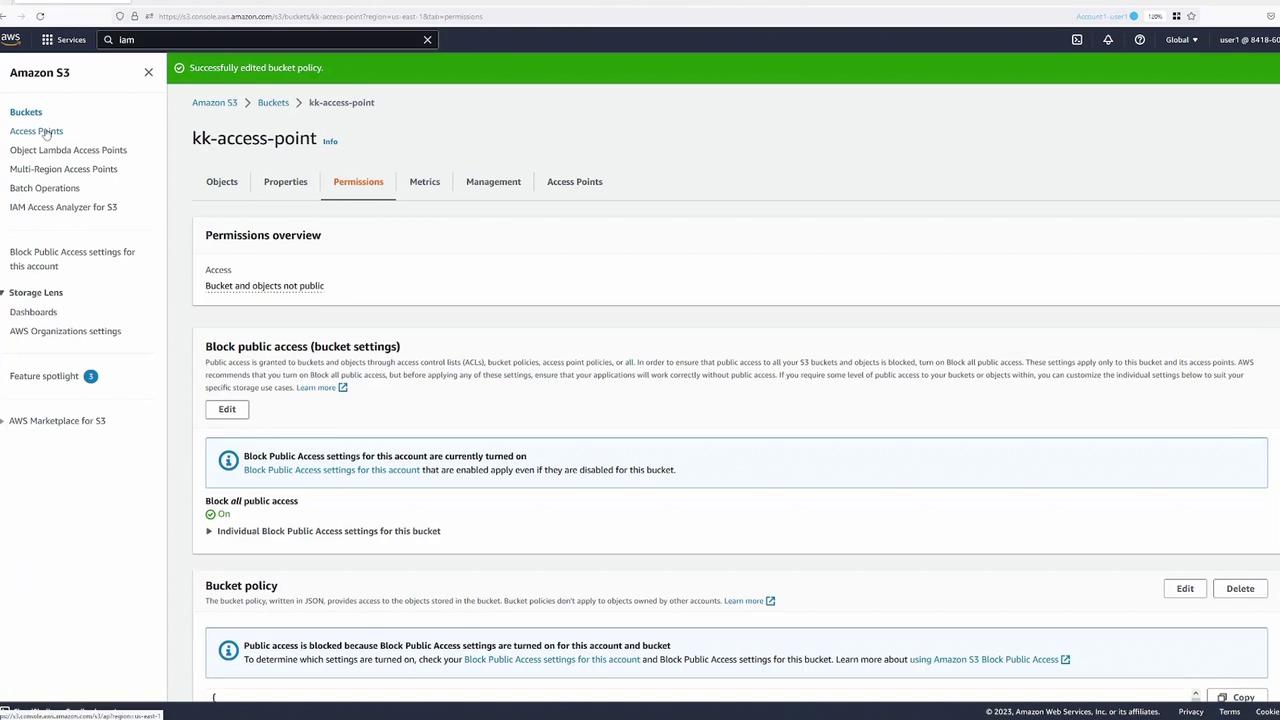

After saving, the bucket now delegates management to its access points. Review the current access point settings for the bucket:

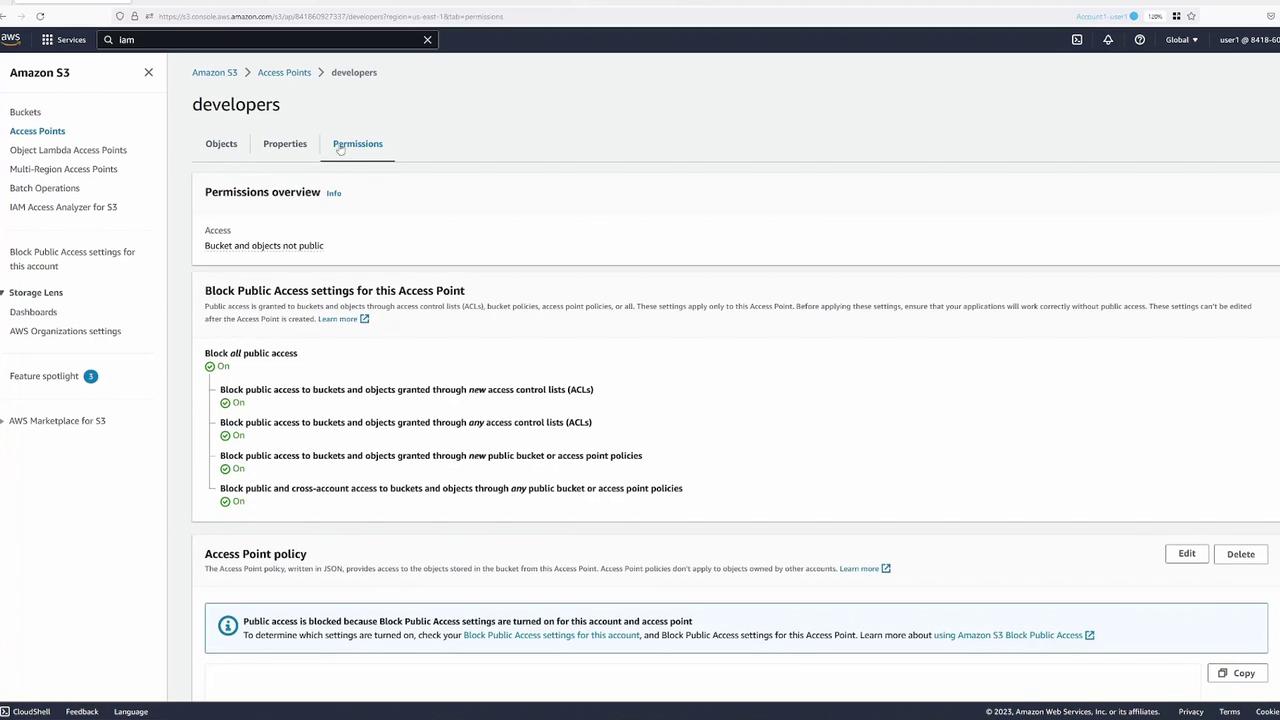

Switch to the "Permissions" tab for the "developers" access point:

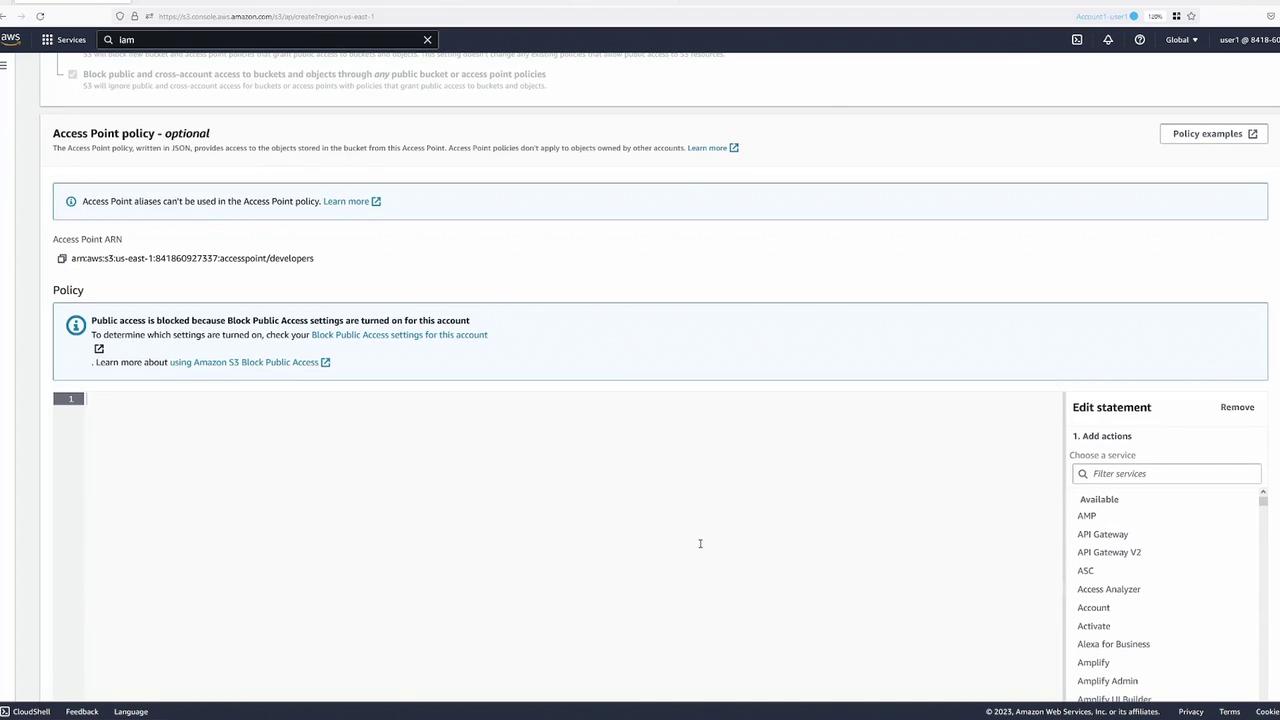

Configuring the Access Point Policy

Next, define and refine an access point policy. Refer to the AWS documentation on S3 Access Points for complete details.

For instance, a sample policy allowing user John to perform GetObject operations through an access point is:

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Principal": {
        "AWS": "arn:aws:iam::123456789012:user/John"
      },
      "Action": "s3:GetObject",
      "Resource": "arn:aws:s3:us-west-2:123456789012:accesspoint/my-access-point/object/John/*"
    }
  ]
}

Similarly, a variant policy allowing user Jane both GetObject and PutObject operations looks like:

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Effect": "Allow",
            "Principal": {
                "AWS": "arn:aws:iam::123456789012:user/jane"
            },
            "Action": [
                "s3:GetObject",
                "s3:PutObject"
            ],
            "Resource": "arn:aws:s3:::us-west-2:access-point:my-access-point:object/jane/*"
        }
    ]
}

For this demo, modify the policy for the developers access point (user two). For example, allowing user two to list, get, and put objects:

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Principal": {
        "AWS": "arn:aws:iam::184186092733:user/user2"
      },
      "Action": [
        "s3:GetObject",
        "s3:PutObject",
        "s3:ListBucket"
      ],
      "Resource": [
        "arn:aws:s3:us-east-1:184186092733:accesspoint/developers/*"
      ]
    }
  ]
}

Remember, the access point ARN format is:

arn:aws:s3:<region>:<account-id>:accesspoint/<access-point-name>

To permit access to all objects, include the object path by appending a slash and a wildcard. For example:

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Effect": "Allow",
            "Principal": {
                "AWS": "arn:aws:iam::841860927337:user/user2"
            },
            "Action": [
                "s3:GetObject",
                "s3:PutObject",
                "s3:ListBucket"
            ],
            "Resource": [
                "arn:aws:s3:us-east-1:841860927337:accesspoint/developers/object/*",
                "arn:aws:s3:us-east-1:841860927337:accesspoint/developers"
            ]
        }
    ]
}

This policy permits user two to list bucket contents and perform object-level operations via the "developers" access point.

Test the configuration by listing contents using the access point ARN:

aws s3 ls s3://arn:aws:s3:us-east-1:841860927337:accesspoint/developers

You should see "beach.jpg" in the listing. To copy the file locally, run:

[cloudshell-user@ip-10-2-30-244 ~]$ aws s3 cp s3://arn:aws:s3:us-east-1:841860927337:accesspoint/developers/beach.jpg .
download: s3://arn:aws:s3:us-east-1:841860927337:accesspoint/developers/beach.jpg to ./beach.jpg

This confirms that operations through the access point work identically to direct bucket operations.

Configuring the Finance Access Point

A similar process applies for the finance team (user three). Start by copying and adjusting the developers' policy for the finance access point. Update the principal for user three accordingly. For example, a sample policy for the finance access point might look like:

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Effect": "Allow",
            "Principal": {
                "AWS": "arn:aws:iam::184186092733:user/users"
            },
            "Action": [
                "s3:GetObject",
                "s3:PutObject"
            ],
            "Resource": [
                "arn:aws:s3:us-east-1:184186092733:accesspoint/developer/objects/*",
                "arn:aws:s3:us-east-1:184186092733:accesspoint/developers"
            ]
        }
    ]
}

After updating the policy to reference the correct access point (e.g., "finance") and account details, save the changes. Test by listing contents and copying the file through the finance access point:

[cloudshell-user@ip-10-14-113-192 ~]$ aws s3 ls s3://arn:aws:s3:us-east-1:841860927337:accesspoint/finance
2023-03-07 07:39:25  2879431 beach.jpg
[cloudshell-user@ip-10-14-113-192 ~]$ aws s3 cp s3://arn:aws:s3:us-east-1:841860927337:accesspoint/finance/beach.jpg .
download: s3://arn:aws:s3:us-east-1:841860927337:accesspoint/finance/beach.jpg to ./beach.jpg

You can also test uploading a new file (e.g., “test1”) to confirm that the permissions are correctly applied through the access point.

Conclusion

This lesson demonstrated how to create and configure S3 Access Points to delegate and manage access policies for different user groups. By assigning separate access point policies rather than relying solely on a bucket policy, you gain granular control of S3 operations. Both the developers (user two) and finance (user three) teams can interact with the same S3 bucket using their dedicated access points, simplifying access management and enhancing security.

Using S3 Access Points not only streamlines policy administration but also provides each team with a tailored “window” into the underlying S3 bucket for optimized and secure data access.
