AZ-400: Designing and Implementing Microsoft DevOps Solutions
Design and Implement Pipeline Automation
Introduction
In this lesson, we’ll begin our journey into implementing an orchestration and automation solution using Azure DevOps. With its rich suite of tools, Azure DevOps helps you build, test, and deploy applications while ensuring security and reliability throughout the pipeline.
We’ll cover:
- Dependency and security scanning
- Testing strategies (unit, integration, load)
- Code coverage analysis
- Integrations with external tools
Let’s dive in!

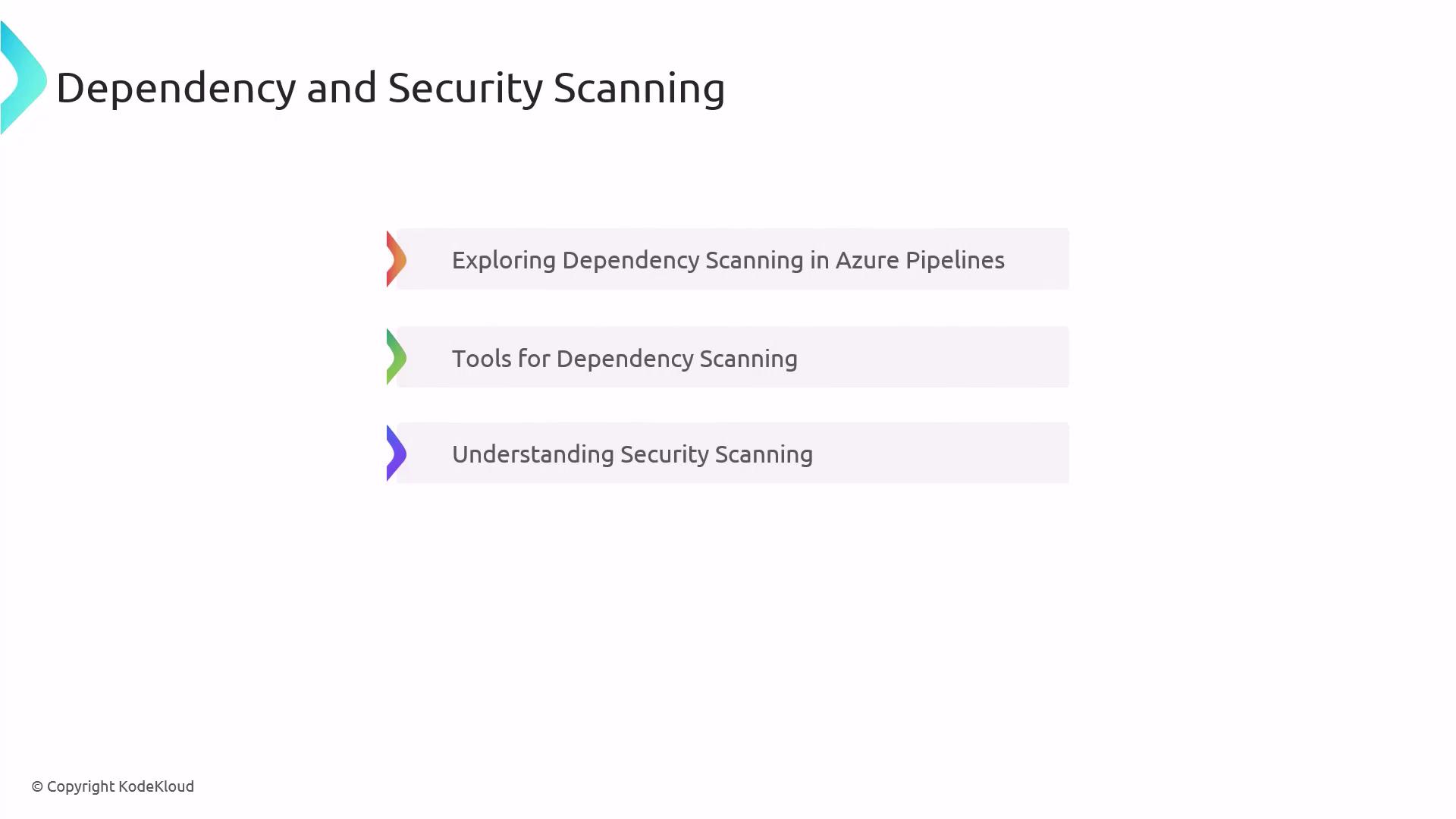

Dependency and Security Scanning
Ensuring that your codebase is free from vulnerable or outdated dependencies is a critical first step. Azure Pipelines supports multiple scanning tools and can block builds on detected risks.
Best Practice
Run dependency scans early in your pipeline to catch issues before they propagate downstream.
Key Steps
- Configure the
dependency-checkornpm audittask in your YAML - Integrate vulnerability reports in Pull Request checks
- Automate patching and updates
Common Tools Comparison
| Tool | Purpose | Documentation |
|---|---|---|
| WhiteSource Bolt | Open-source vulnerability scanning | https://docs.microsoft.com/azure/devops/pipelines/ecosystems/whitesource-bolt |
| SonarCloud | Code quality & security analysis | https://sonarcloud.io/documentation |
| OWASP ZAP | Dynamic application security testing | https://owasp.org/www-project-zap/ |
| Dependabot | Automated dependency updates | https://github.com/dependabot/dependabot-core |

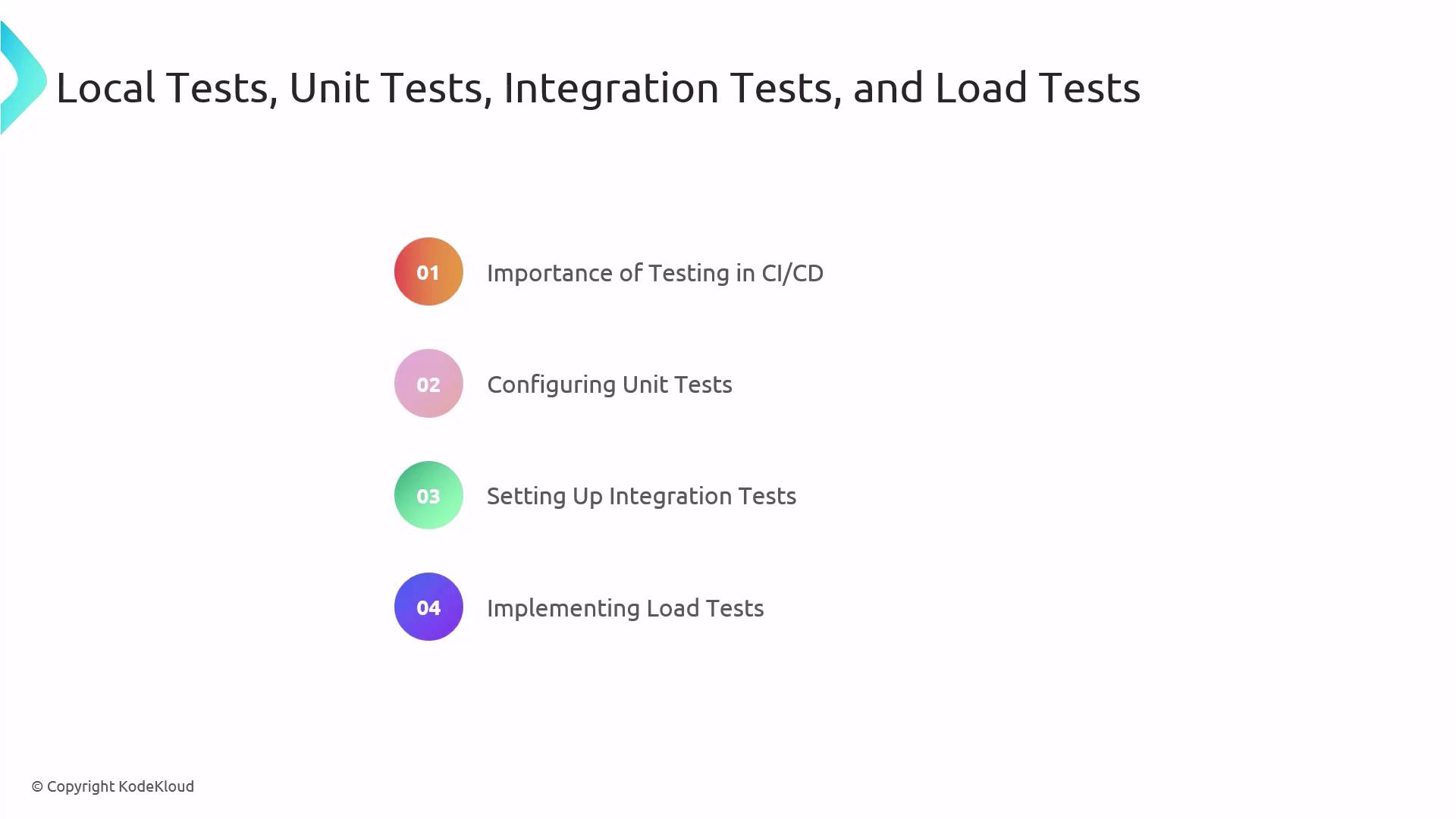

Testing in CI/CD
Testing is the backbone of any reliable pipeline. By running tests automatically, you can catch regressions and performance issues before they reach production.
| Test Type | Goal | Azure Pipeline Task |
|---|---|---|
| Unit Tests | Verify individual components | DotNetCoreCLI@2 / npm test |
| Integration | Validate interactions between modules | VSTest@2 / pytest |
| Load / Performance | Measure application behavior under stress | Apache JMeter task / custom scripts |
| Smoke / Sanity | Quick verification of critical features | Inline PowerShell / Bash scripts |
Best Practices
- Run unit tests on each PR
- Isolate integration tests in a dedicated environment
- Schedule load tests during off-peak hours

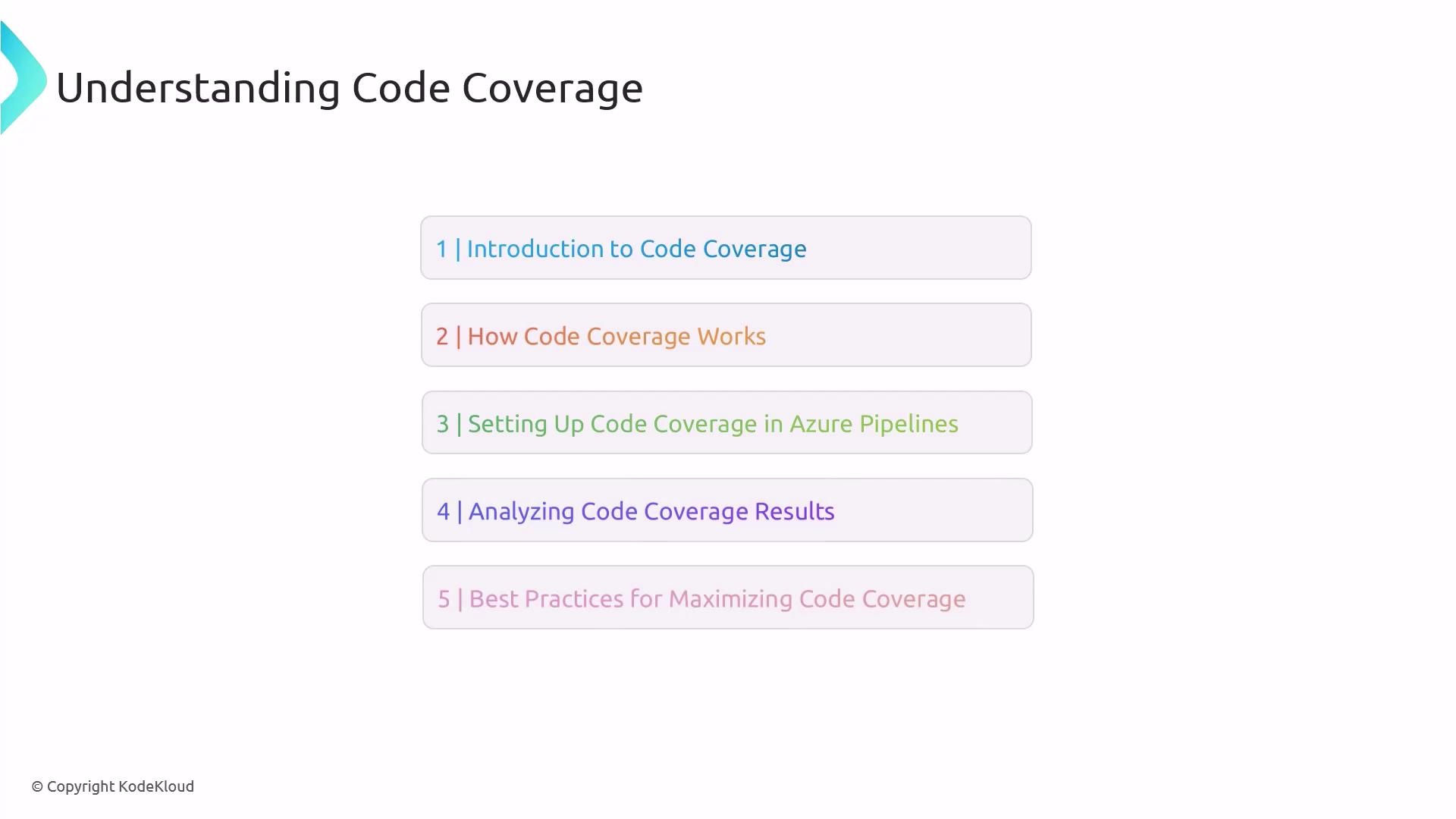

Code Coverage Analysis
Tracking code coverage helps ensure that your tests exercise the most critical parts of your application.
Coverage Workflow
- Instrument your code (e.g.,
coverlet,nyc) - Run tests with coverage flags enabled
- Publish coverage reports via
PublishCodeCoverageResults@1 - Analyze gaps and write additional tests
Note
Aim for at least 80% coverage on critical modules, but prioritize test quality over quantity.
Integrating External Tools
Round out your end-to-end DevOps workflow by connecting pipelines to security scanners, artifact repositories, and alerting systems.
| Integration | Purpose | Azure DevOps Extension |
|---|---|---|
| Azure Container Registry | Store and scan Docker images | Azure Container Registry Task |
| GitHub Advanced Security | Code scanning on PRs | GitHub integration via service connection |
| Artifactory | Universal artifact repository | JFrog Artifactory plugin |
| PagerDuty / Teams | Alert on pipeline failures | Notification settings in Project Services |
Warning
Always secure service connections and protect access tokens using Azure Key Vault.
Next Steps
You now have the framework to:
- Automate dependency and security checks
- Enforce comprehensive testing strategies
- Monitor and improve code coverage
- Integrate with external tools for a seamless DevOps lifecycle
Proceed to the next lesson to build and deploy your first containerized application with Azure Pipelines.
References
- Azure DevOps Documentation
- Azure Pipelines Security Scanning
- Azure Test Plans
- Code Coverage in Azure DevOps
- Azure DevOps Marketplace
