Using Service Connections in Pipeline

Service connections in Azure DevOps enable your CI/CD pipelines to securely authenticate and interact with external systems—such as Azure subscriptions, GitHub repos, and container registries—without exposing secrets in your code. Mastering service connections is essential for both the AZ-400 exam and practical DevOps workflows.

What Are Service Connections?

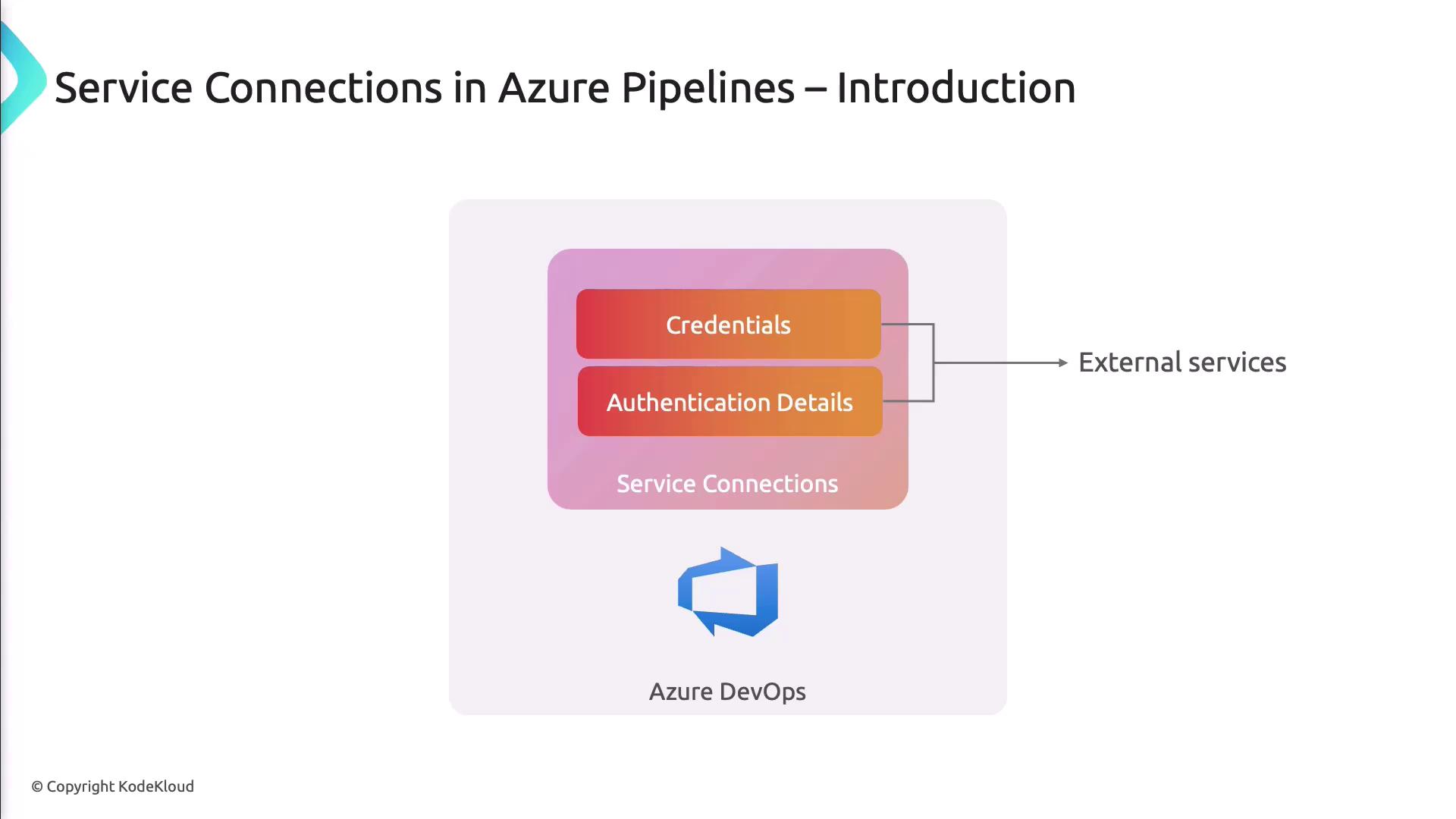

Service connections are configuration entries in Azure DevOps that store authentication details for external resources. Instead of embedding passwords, tokens, or keys in your scripts, you reference a service connection in your pipeline YAML or Classic definitions, and Azure DevOps handles the secure login.

Benefits of Service Connections

• Security: Credentials are encrypted and stored centrally.
• Maintainability: Rotate or update credentials in one place.
• Least Privilege: Grant each connection only the permissions it needs.
• Scalability: Reuse connections across multiple pipelines and projects.

Types of Service Connections

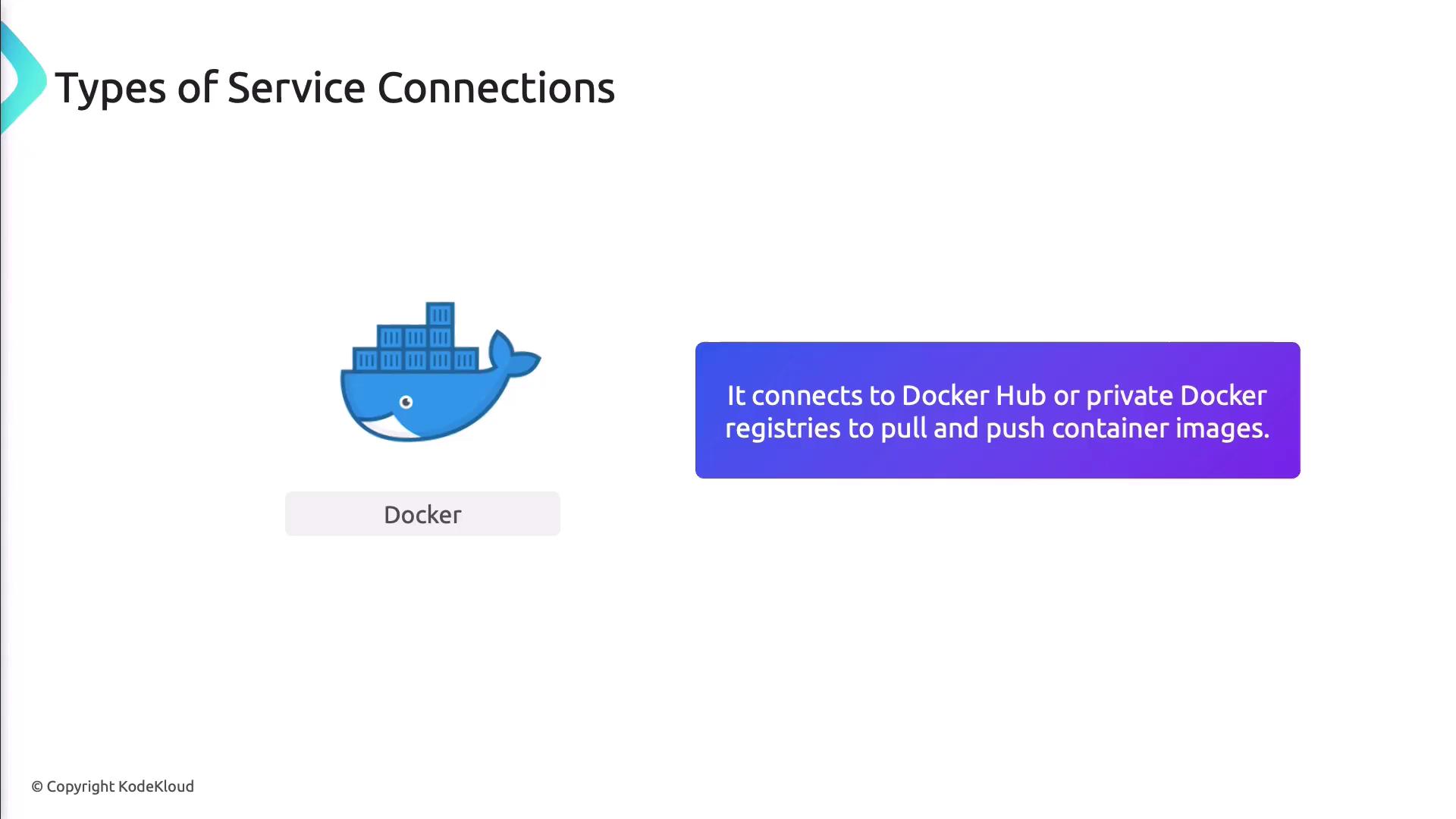

Docker Connection

Enables pipelines to authenticate with Docker Hub or private registries for pulling base images and pushing built artifacts.

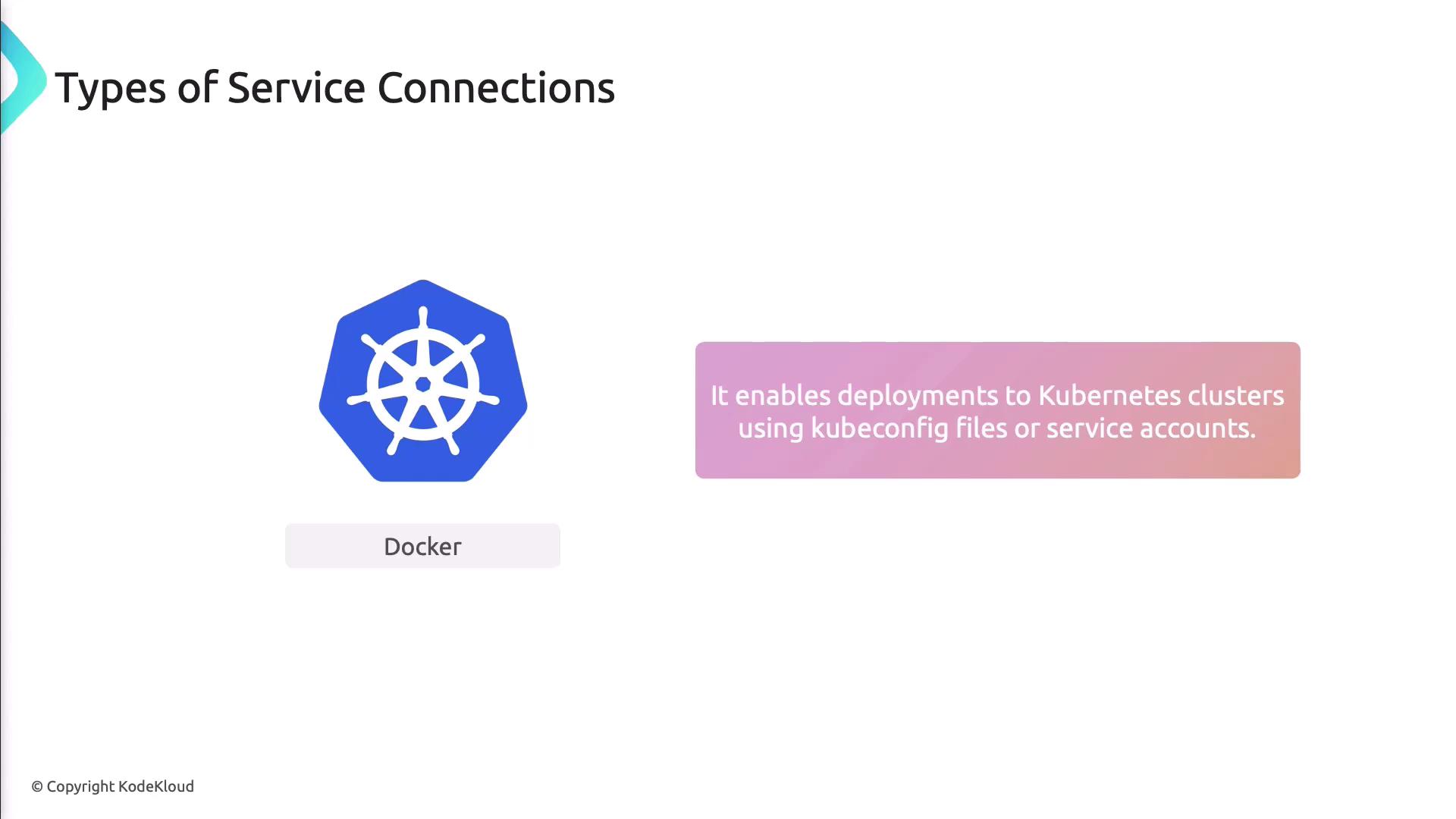

Kubernetes Connection

Lets you deploy applications to Kubernetes clusters by providing a kubeconfig file or a service account token.

Azure DevOps supports many more connection types—always pick the one best aligned with your service.

Creating a Service Connection

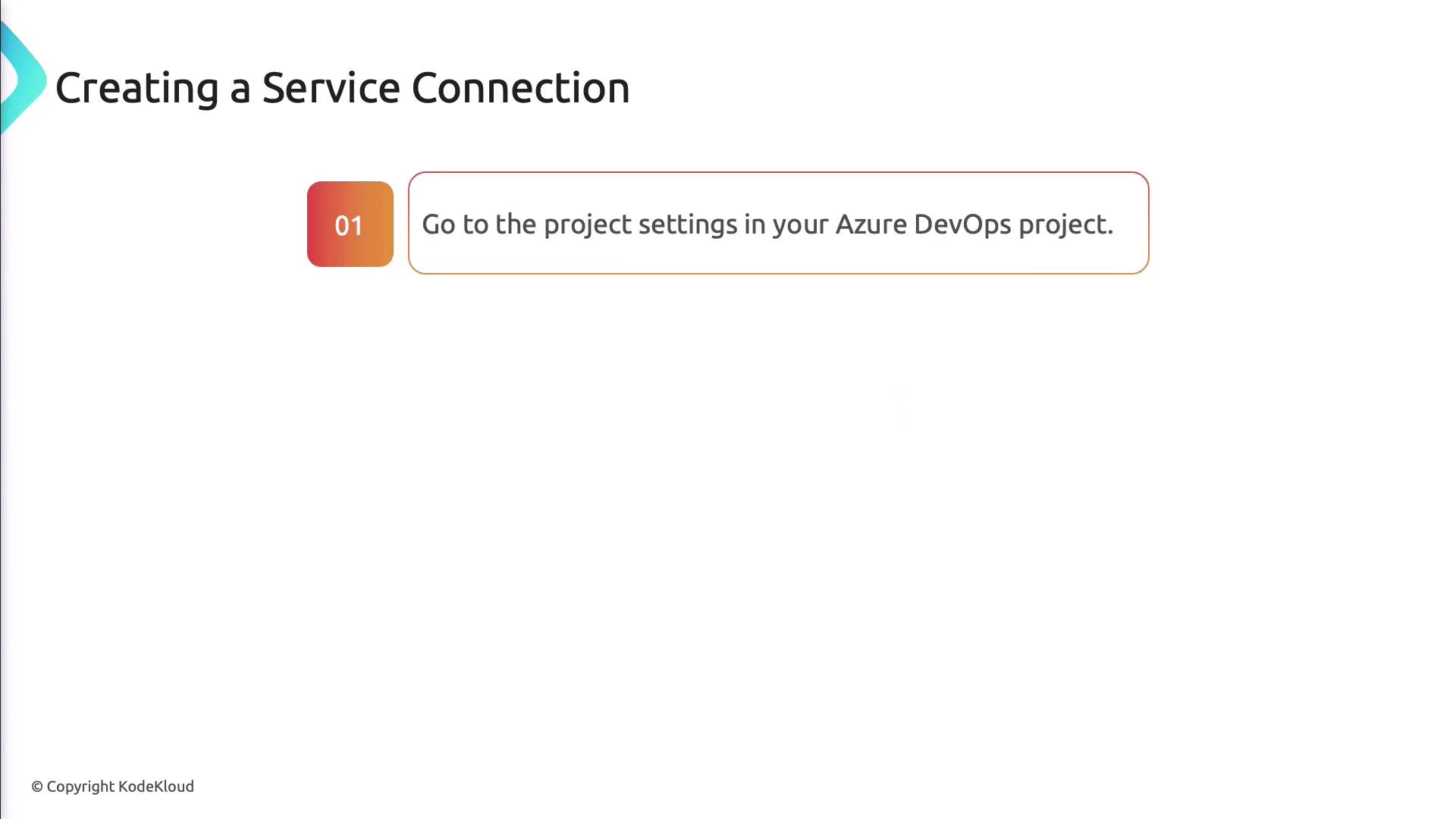

1. In Azure DevOps, select the gear icon (Project Settings) in the lower-left corner.
2. Under Pipelines, click Service Connections.
3. Hit New Service Connection and choose the desired type.

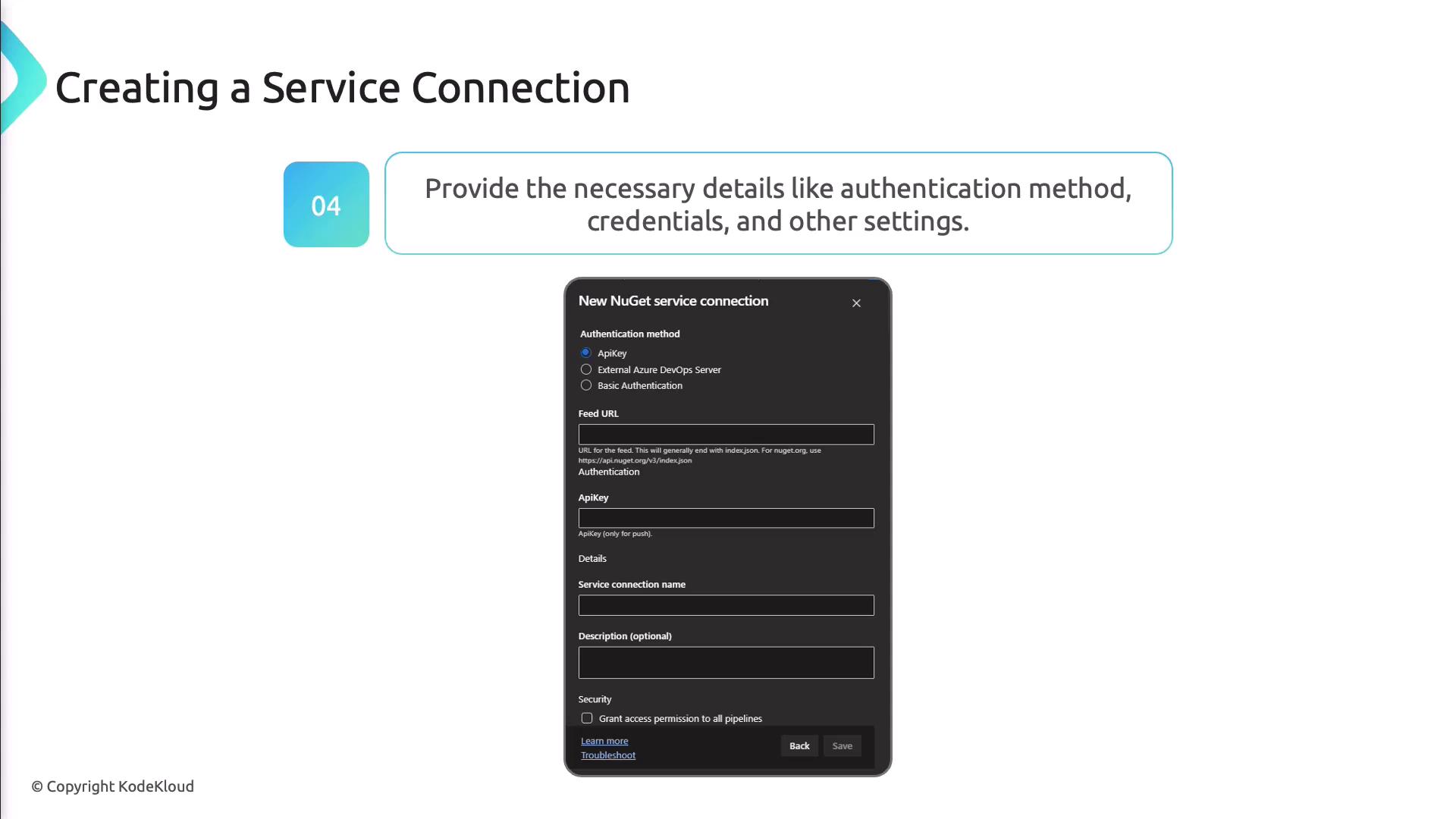

4. Complete the authentication form with credentials or OAuth details.

5. Test the connection and save it under a clear, descriptive name for use in your pipeline definitions.

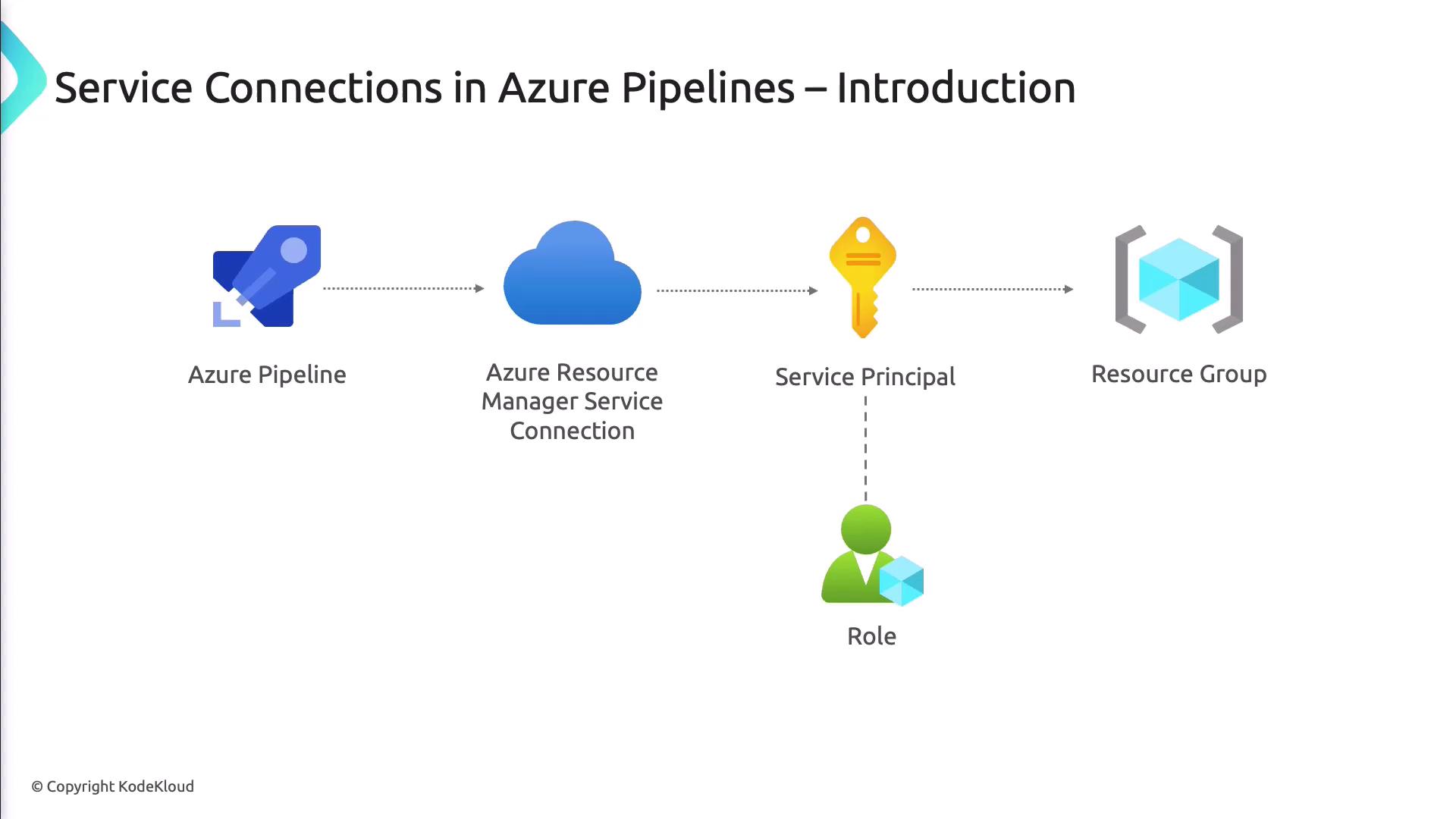

Setting Up an Azure Resource Manager Connection

1. Select Azure Resource Manager as the connection type.

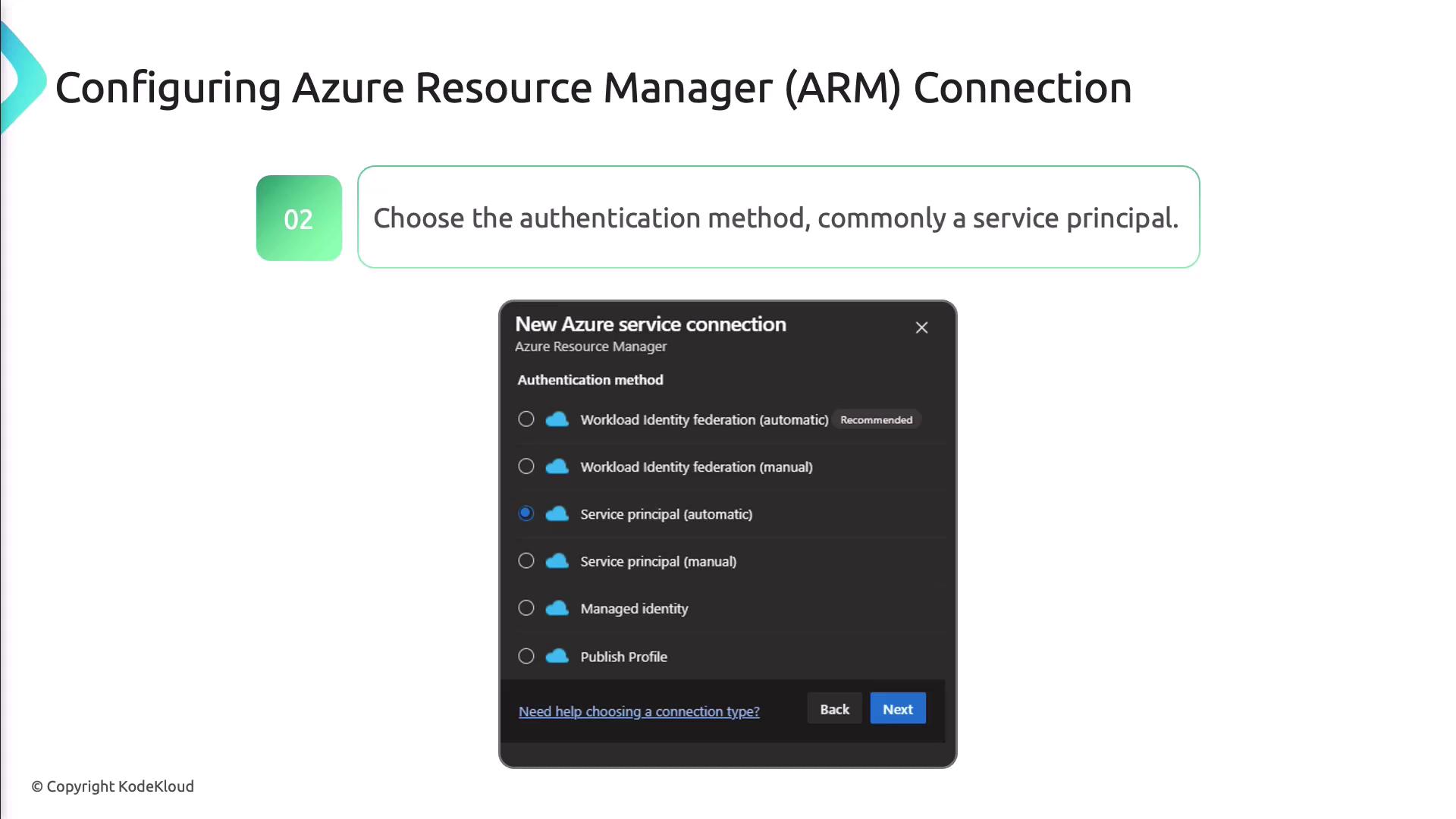

2. Choose Service Principal authentication to enforce least-privilege access.
3. Enter your Service Principal ID, Key, and Tenant ID from Azure AD.

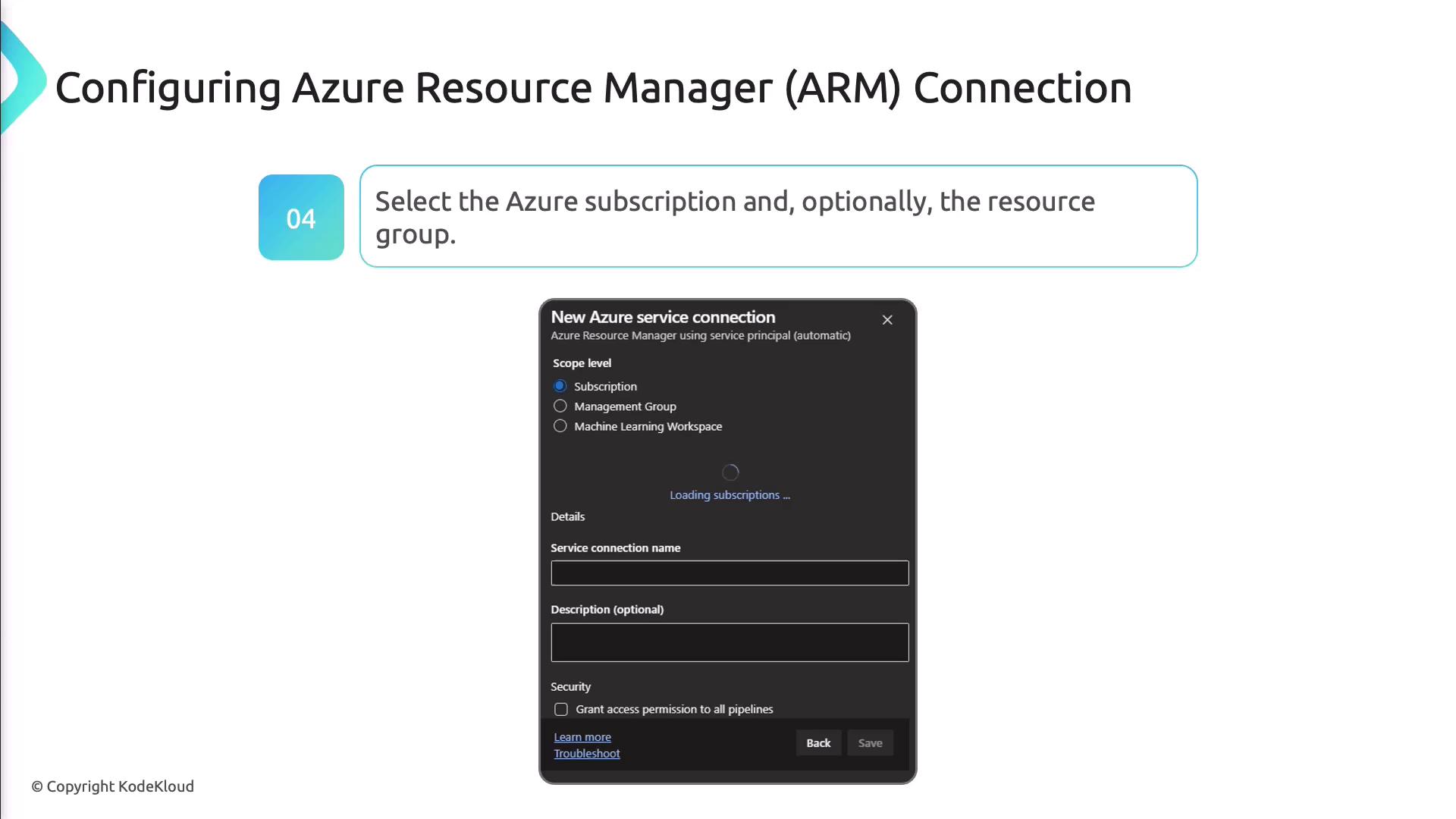

4. Pick the target Azure subscription and optionally scope down to a specific resource group.

5. Confirm that the Service Principal has only the permissions required for your deployment tasks.

Setting Up a GitHub Connection

• Choose GitHub from the service connection list.
• Authenticate via OAuth or Personal Access Token (PAT):
  • OAuth automatically grants permission through a consent screen.
  • PAT lets you configure fine-grained scopes—create it in GitHub and paste the token into Azure DevOps.
• Test and save the integration under a memorable name.

Using Service Connections in Pipelines

Reference service connections in YAML or Classic pipelines. Below is an example using the Azure CLI task in YAML:

jobs:
- job: deploy
  pool:
    vmImage: 'ubuntu-latest'
  steps:
    - task: AzureCLI@2
      inputs:
        azureSubscription: 'My-ARM-Service-Connection'
        scriptType: 'bash'
        scriptLocation: 'inlineScript'
        inlineScript: |
          az login --service-principal \
                   -u $(clientId) \
                   -p $(clientSecret) \
                   --tenant $(tenantId)

Deploying an ARM Template

trigger:
  branches:
    include:
      - main
pool:
  vmImage: 'ubuntu-latest'
steps:
  - task: AzureResourceManagerTemplateDeployment@3
    inputs:
      azureSubscription: 'ARM-Service-Connection'
      resourceGroupName: 'myResourceGroup'
      location: 'West US'
      templateLocation: 'Linked artifact'
      csmFile: 'templates/template.json'
      csmParametersFile: 'templates/parameters.json'

This task uses your ARM service connection to deploy resources defined in your template and parameters files without exposing credentials.

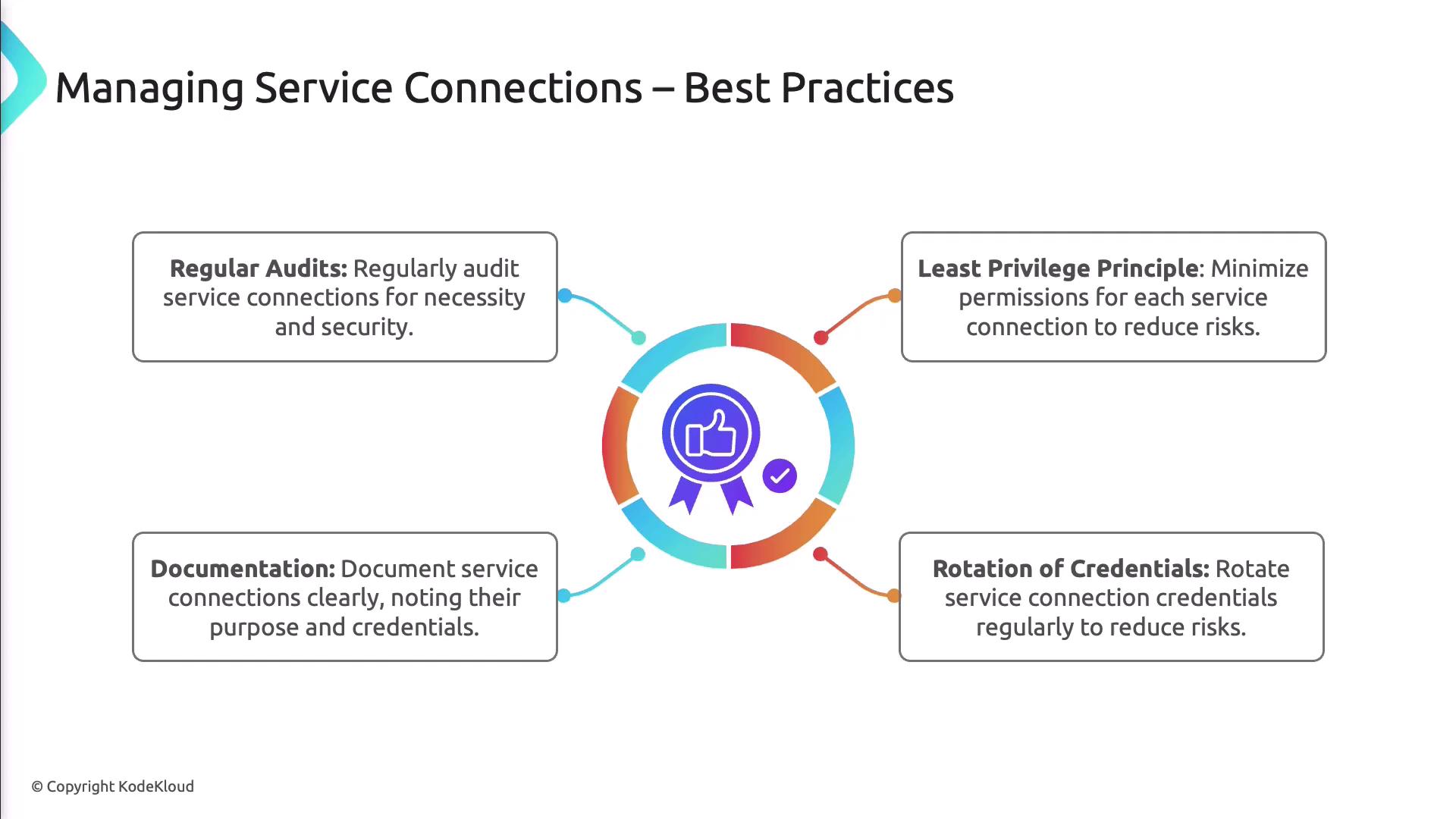

Best Practices for Managing Service Connections

1. Audit connections periodically and remove unused entries.
2. Follow the least privilege principle—grant only necessary permissions.
3. Rotate credentials on a regular schedule.
4. Document each connection’s purpose and scope for team transparency.
