GitHub Actions

Continuous Deployment with GitHub Actions

Workflow Create Secret and Deploy to Kubernetes Dev Environment

Extend your GitHub Actions CI/CD pipeline to securely generate a MongoDB secret and deploy your Kubernetes manifests into a development namespace. This ensures automated, secure credential management and consistent application delivery.

1. Configuring the Dev-Deploy Job

Under jobs: in your workflow YAML, add a dev-deploy job that:

  • Replaces placeholders in your manifest files
  • Creates a Kubernetes secret for MongoDB credentials
  • Applies all manifests to your development namespace
name: Solar System Workflow

on:
  workflow_dispatch:
  push:
    branches:
      - main
      - 'feature/*'

env:
  MONGO_URI: 'mongodb+srv://supercluster.d83jj.mongodb.net/superData'
  MONGO_USERNAME: ${{ vars.MONGO_USERNAME }}
  MONGO_PASSWORD: ${{ secrets.MONGO_PASSWORD }}

jobs:
  unit-testing: …
  code-coverage: …
  docker: …
  dev-deploy:
    name: Deploy to Dev Env
    runs-on: ubuntu-latest
    steps:
      - name: Checkout repository
        uses: actions/checkout@v3

      - name: Replace tokens in manifests
        uses: cschlieden/replace-tokens@v1
        with:
          tokenPrefix: '_{'
          tokenSuffix: '}'
          files:
            - kubernetes/development/*.yaml
        env:
          NAMESPACE: ${{ vars.NAMESPACE }}
          REPLICAS: ${{ vars.REPLICAS }}
          IMAGE: ${{ vars.DOCKERHUB_USERNAME }}/solar-system:${{ github.sha }}
          INGRESS_IP: ${{ env.INGRESS_IP }}

      - name: Show processed manifests
        run: cat kubernetes/development/*.yaml

      - name: Create MongoDB secret
        run: |
          kubectl -n ${{ vars.NAMESPACE }} create secret generic mongo-db-creds \
            --from-literal=MONGO_URI=${{ env.MONGO_URI }} \
            --from-literal=MONGO_USERNAME=${{ env.MONGO_USERNAME }} \
            --from-literal=MONGO_PASSWORD=${{ secrets.MONGO_PASSWORD }} \
            --save-config \
            --dry-run=client \
            -o yaml | kubectl apply -f -

      - name: Deploy manifests
        run: kubectl apply -f kubernetes/development

Note

Ensure that vars.NAMESPACE, vars.REPLICAS, and your Docker Hub credentials are configured in your GitHub repository settings.

Workflow Steps at a Glance

StepActionDescription
Checkoutactions/checkout@v3Clones your repository
Token Replacementreplace-tokens@v1Injects variables into Kubernetes YAML files
Secret Creationkubectl create secretGenerates or updates mongo-db-creds in namespace
Deploymentkubectl applyApplies all manifests in kubernetes/development

2. Kubernetes Deployment Manifest

In kubernetes/development/deployment.yaml, reference the mongo-db-creds secret to populate environment variables for your container:

apiVersion: apps/v1
kind: Deployment
metadata:
  name: solar-system
  namespace: _{NAMESPACE}
  labels:
    app: solar-system
spec:
  replicas: _{REPLICAS}
  selector:
    matchLabels:
      app: solar-system
  template:
    metadata:
      labels:
        app: solar-system
    spec:
      containers:
        - name: solar-system
          image: _{IMAGE}
          imagePullPolicy: Always
          ports:
            - containerPort: 3000
              name: http
              protocol: TCP
      envFrom:
        - secretRef:
            name: mongo-db-creds

For more on Kubernetes secrets, see Kubernetes Secrets.

3. Why Use a Secret?

Your Dockerfile includes placeholder environment variables:

FROM node:18-alpine3.17
WORKDIR /usr/app
COPY package.json /usr/app/
RUN npm install
COPY . .

ENV MONGODB_URI=uriPlaceholder
ENV MONGO_USERNAME=usernamePlaceholder
ENV MONGO_PASSWORD=passwordPlaceholder

EXPOSE 3000
CMD ["npm", "start"]

By leveraging a Kubernetes secret:

  • You avoid hard-coding sensitive data
  • Credentials are injected at runtime
  • Configuration is decoupled from your application image

Warning

Never commit real credentials into source control. Use GitHub Secrets and Kubernetes Secrets to manage sensitive data.

4. Verify a Fresh development Namespace

Before deployment, confirm that the namespace is empty:

kubectl -n development get all
kubectl -n development get secrets
# NAME                 TYPE                                DATA   AGE
# default-token-xxxxx  kubernetes.io/service-account-token  3      47h

5. Watching GitHub Actions in Motion

When you push changes, the dev-deploy job runs alongside other CI tasks:

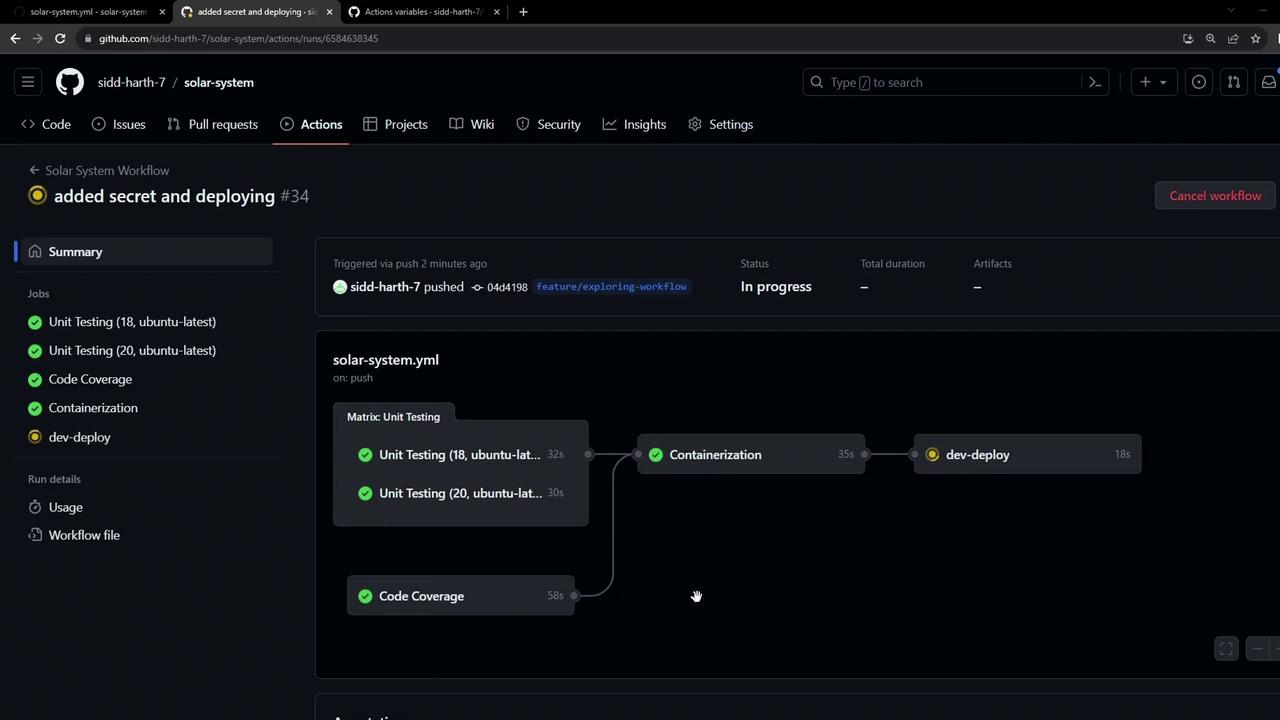

The image shows a GitHub Actions workflow in progress, displaying a series of jobs including unit testing, code coverage, containerization, and deployment.

5.1 Secret Creation Logs

kubectl -n development create secret generic mongo-db-creds \
  --from-literal=MONGO_URI=... \
  --from-literal=MONGO_USERNAME=... \
  --from-literal=MONGO_PASSWORD=...
# Output:
secret/mongo-db-creds created

5.2 Applying Manifests

kubectl apply -f kubernetes/development
# Output:
deployment.apps/solar-system created
ingress.networking.k8s.io/solar-system created
service/solar-system created

6. Validate Resources in the Cluster

Check that your secret and resources are live:

kubectl -n development get secrets
# NAME                 TYPE                                DATA   AGE
# default-token-xxxxx  kubernetes.io/service-account-token  3      47h
kubectl -n development get all
# NAME                                   READY   STATUS    RESTARTS   AGE
# pod/solar-system-xxxxx                 1/1     Running   0          30s
# NAME                  TYPE       CLUSTER-IP      EXTERNAL-IP   PORT(S)         AGE
# NAME                              READY   UP-TO-DATE   AVAILABLE   AGE
# NAME                                         DESIRED   CURRENT   READY   AGE
# replicaset.apps/solar-system-xxxxx           2         2         2       1m

Retrieve your ingress host:

kubectl -n development get ing
# NAME           HOSTS                                             ADDRESS                                           PORTS   AGE
# solar-system   solar-system-development.172.232.87.200.nip.io   <none>                                            80      1m

7. Access the Application

Open the ingress hostname in your browser. You may see a self-signed TLS warning—proceed to view your live Solar System app:

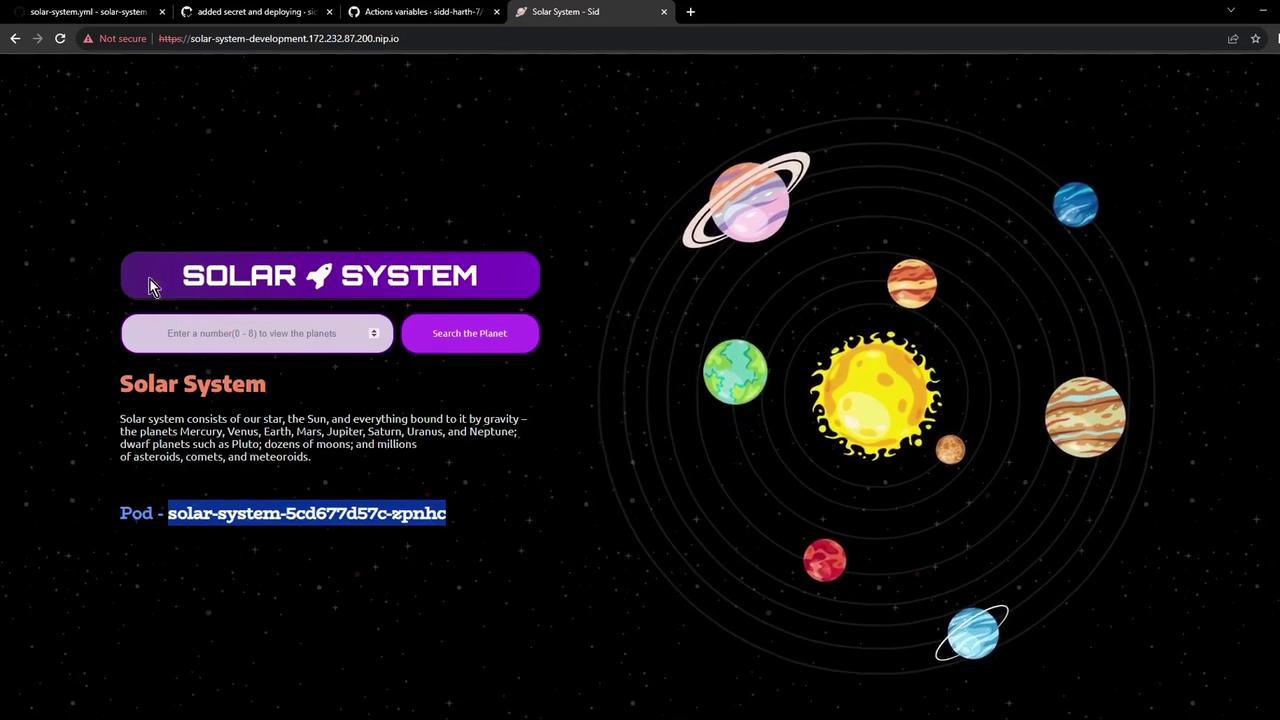

The image shows a stylized representation of the solar system with planets orbiting the sun, alongside a web interface with options to view and search for planets.

Your Solar System application is now running in the development environment, ready for integration testing!
