Component Code Quality

Optimize your CI/CD workflow by integrating GitLab’s Code Quality analysis. This component scans your source code for complexity, duplication, style issues, and maintainability risks—helping your team merge only high-quality changes.

Why Code Quality Matters

• Detects potential bugs and anti-patterns early
• Tracks complexity and duplication over time
• Enforces coding standards and style guidelines
• Integrates seamlessly with merge requests for inline review

How It Works

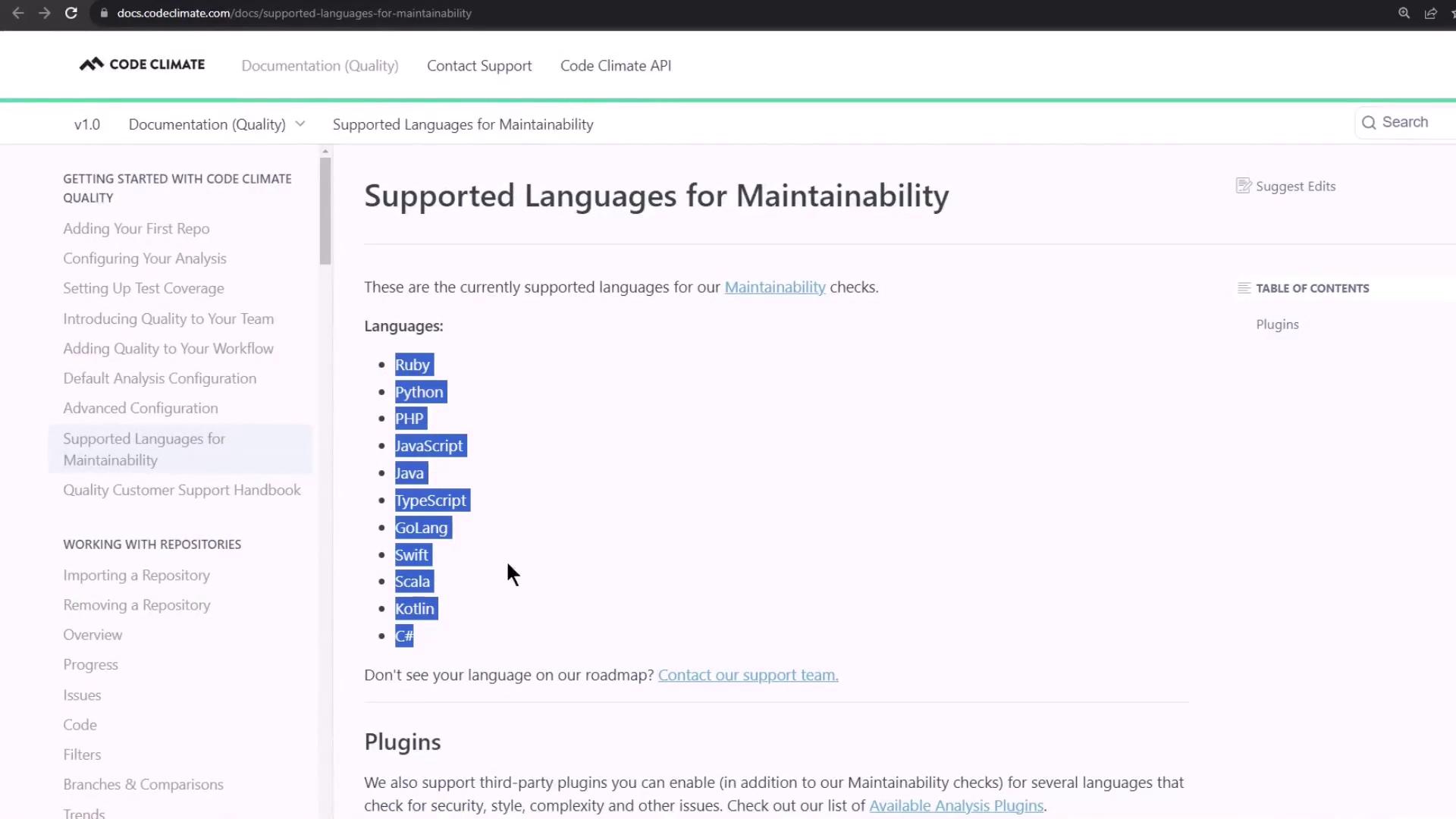

GitLab’s built-in Code Quality template leverages the open-source Code Climate engine plus additional scanners. It produces a JSON (or HTML) report consumed by GitLab to annotate merge requests and pipeline views.

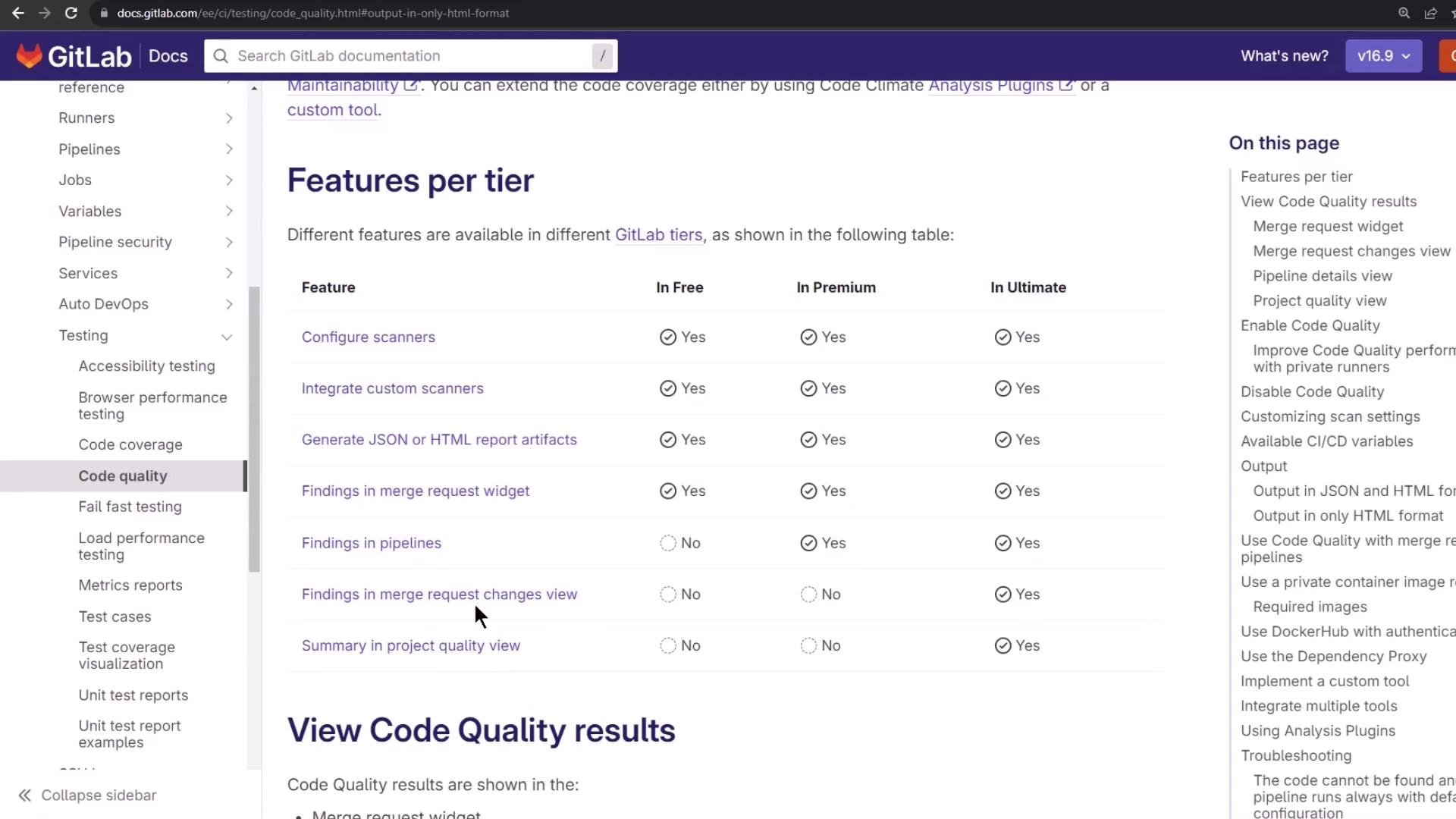

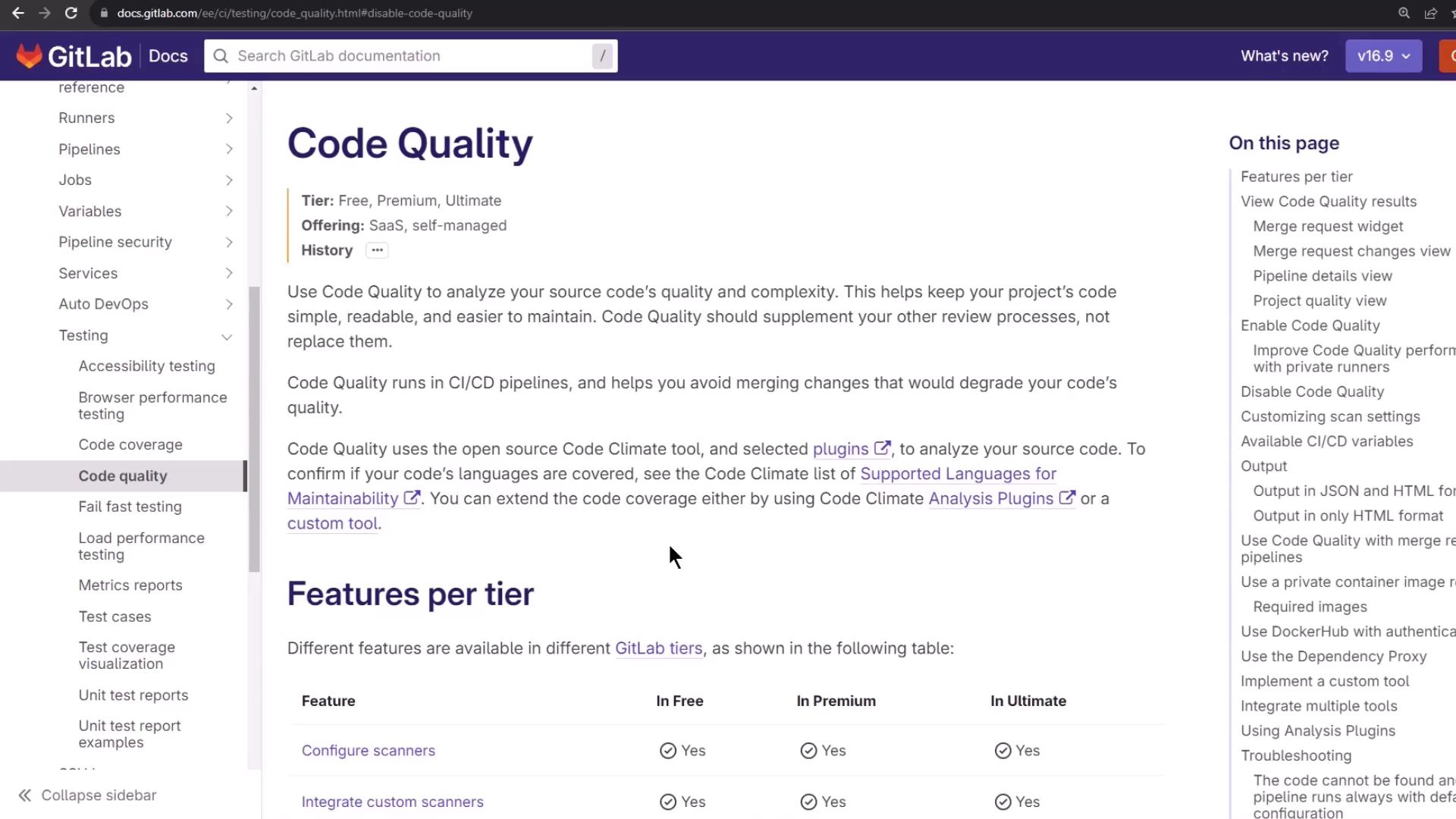

Feature Comparison by GitLab Tier

Different GitLab subscriptions unlock advanced Code Quality capabilities:

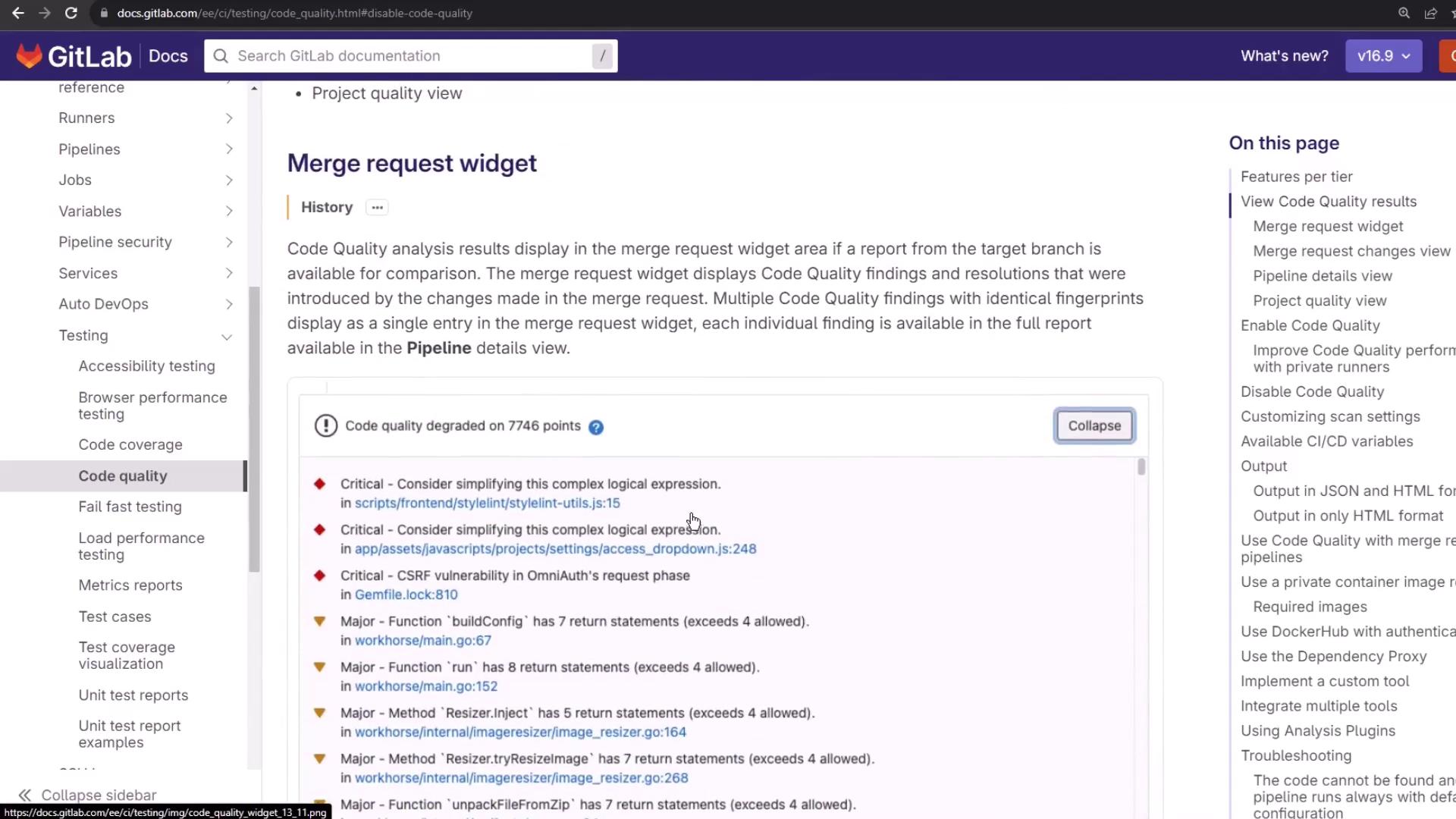

Merge Request Inline Reports

Once enabled, Code Quality issues surface directly in the Merge Request widget—categorized by severity and file location.

For example, a simple JavaScript function:

function init() {
  return 'foo';
  debugger;
}

Code Climate flags the unused debugger; statement as an issue.

1. Enable Code Quality in Your CI Configuration

Add the official GitLab CI/CD component at the top of your .gitlab-ci.yml:

include:
  - component: gitlab.com/gitlab-components/code-quality/[email protected]

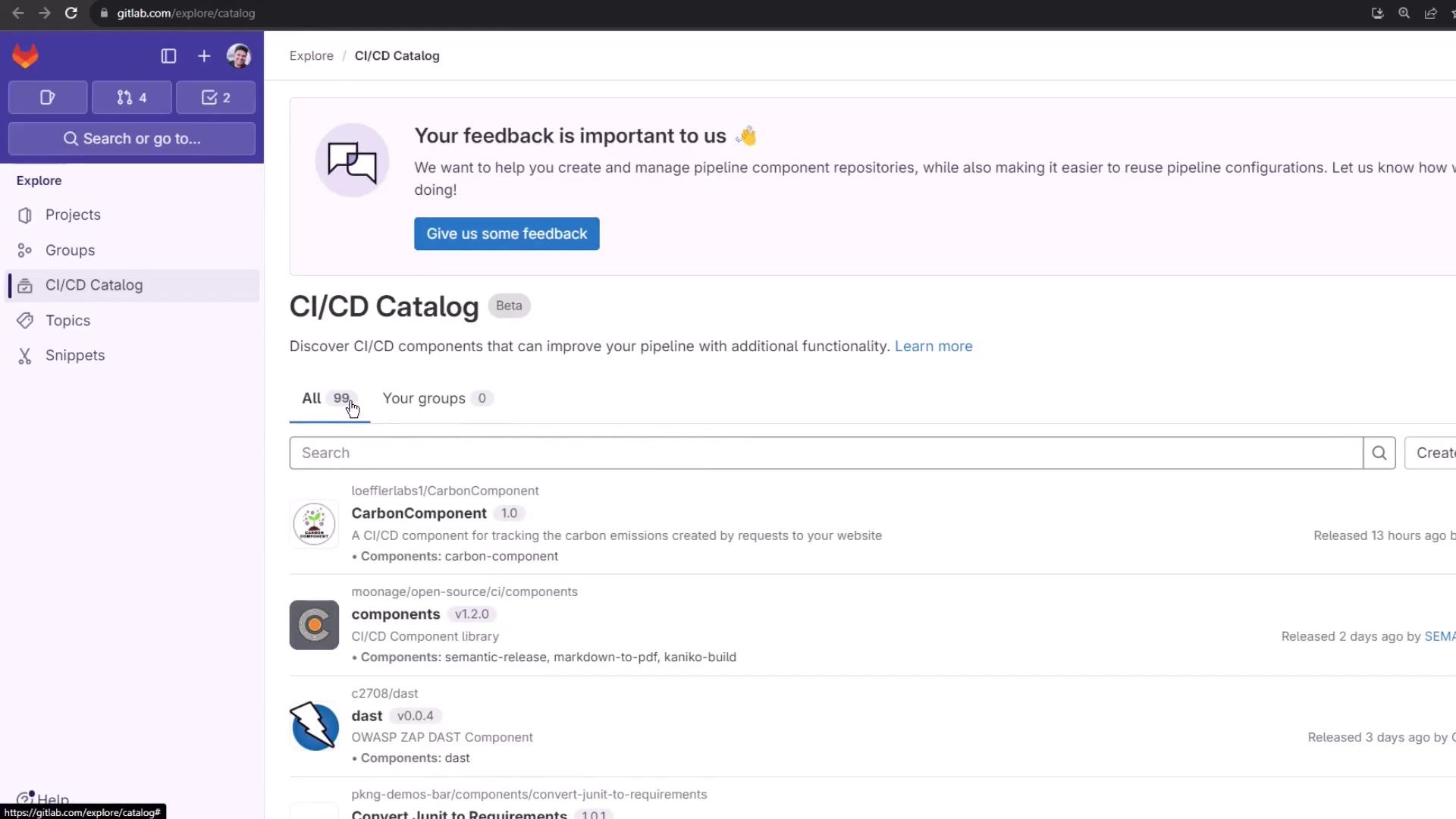

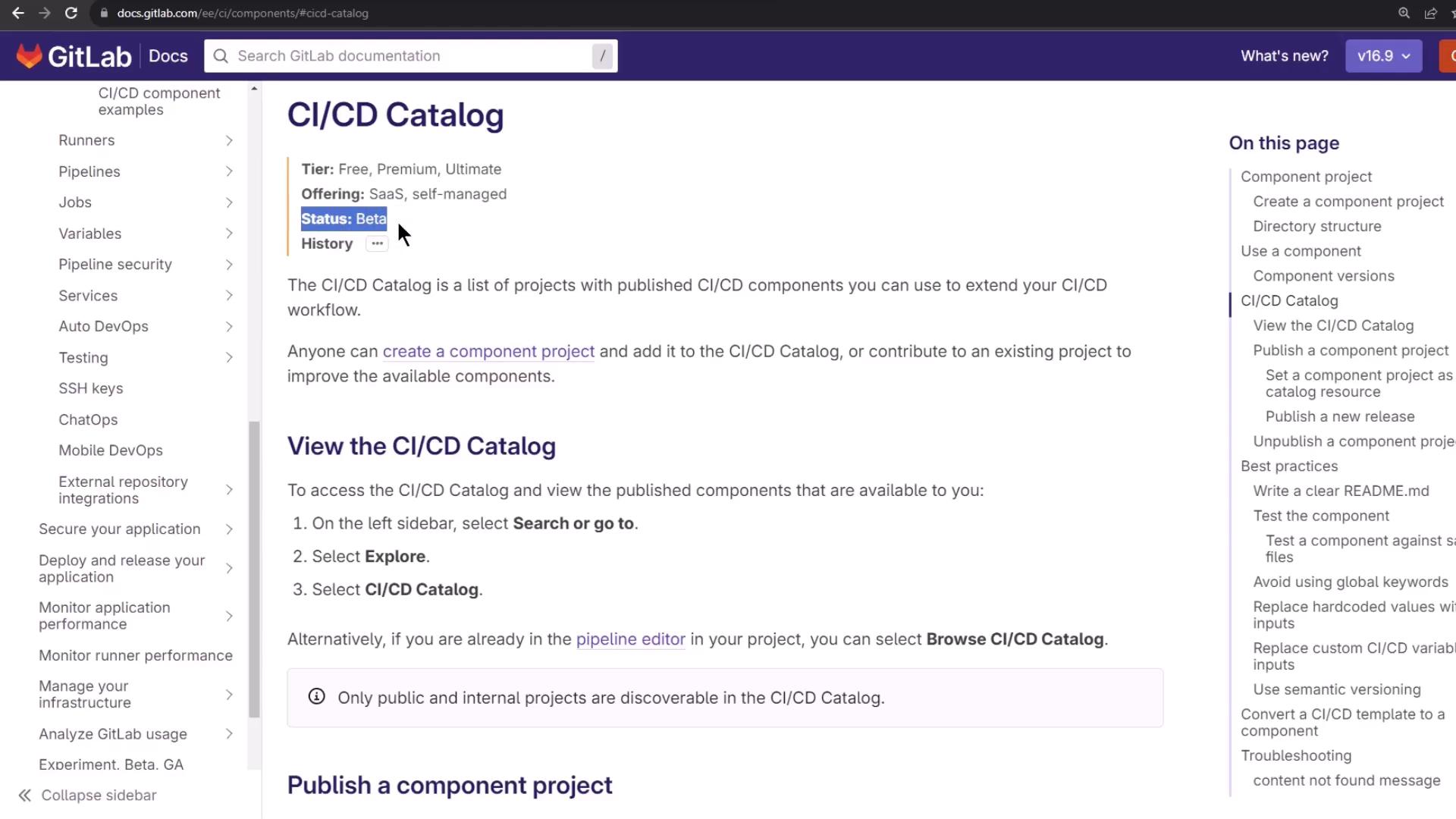

GitLab CI/CD components are reusable jobs and templates. Browse the CI/CD Catalog (beta) to discover 99 components.

In the Pipeline Editor, search for code-quality:

workflow: …
stages: …
variables: …
unit_testing: …
docker_build: …
# … other jobs …

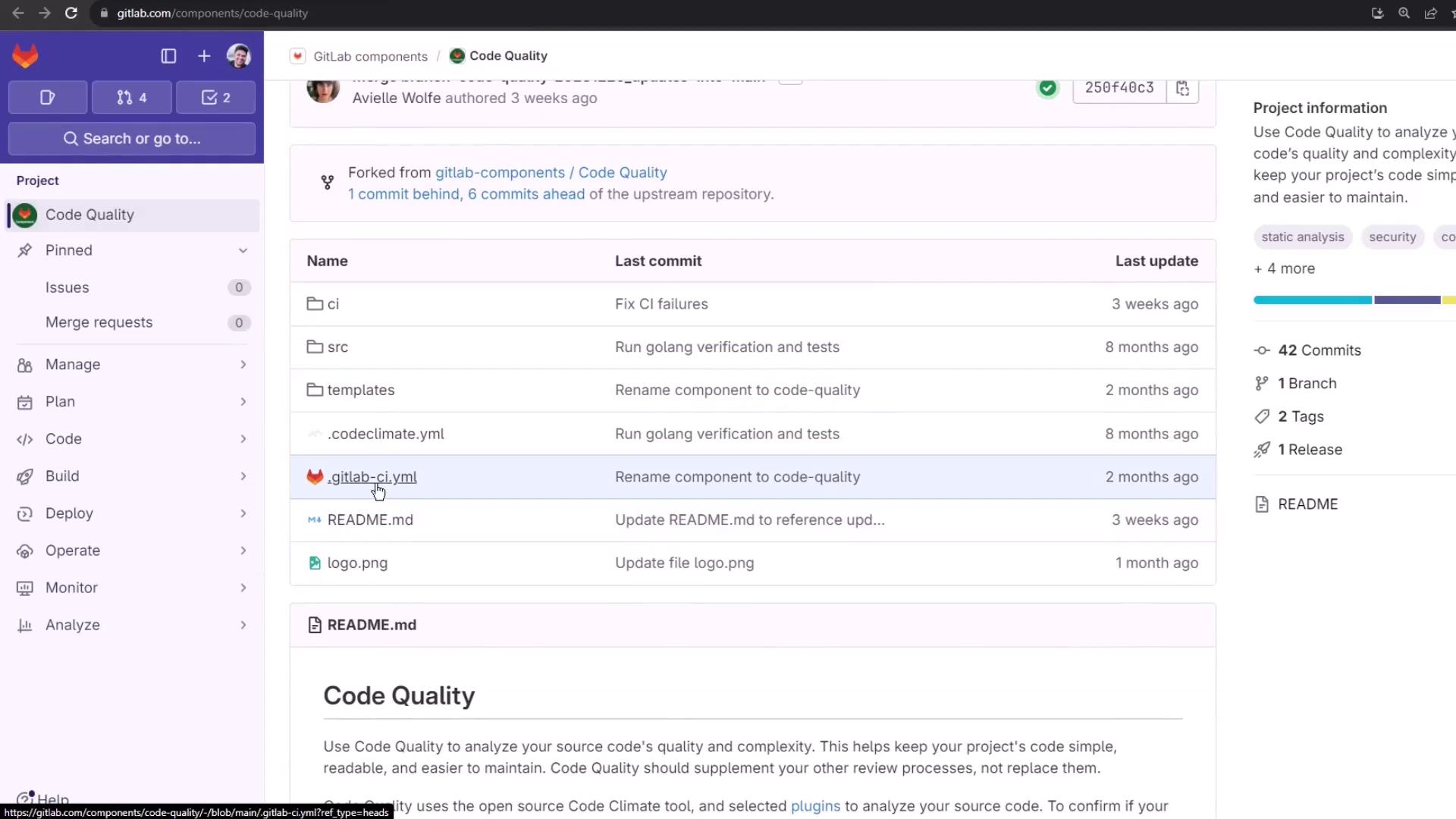

Click code-quality to view usage details and inspect its repository files:

Snippet from the component’s template:

code_quality:
  artifacts:
    paths:
      - gl-code-quality-report.json
  rules:
    - if: $CI_MERGE_REQUEST_ID || $CI_COMMIT_TAG || $CI_COMMIT_BRANCH

2. Add Code Quality to Your Pipeline

Start with a basic Node.js pipeline:

stages:
  - test

.prepare_nodejs_environment: &prepare_nodejs
  image: node:14
  before_script:
    - npm install

unit_testing:
  stage: test
  extends: *prepare_nodejs
  script:
    - npm test
  artifacts:
    when: always
    expire_in: 3 days
    reports:
      coverage_report:
        coverage_format: cobertura
        path: coverage/cobertura-coverage.xml

Include the Code Quality component before defining your jobs:

include:
  - component: gitlab.com/gitlab-components/code-quality/[email protected]

stages:
  - test

# … your existing jobs … #

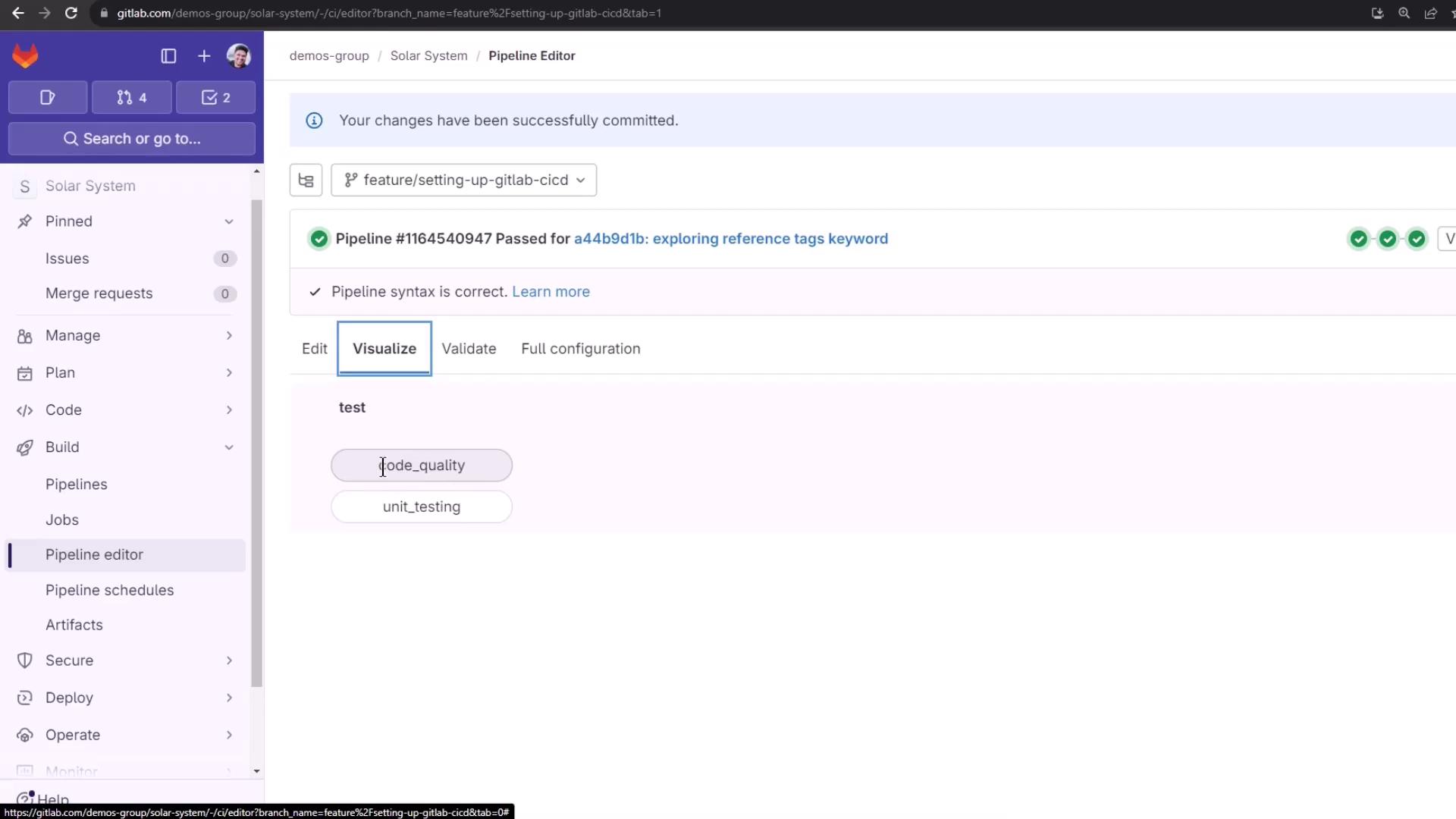

Once committed, the pipeline adds a code_quality job automatically:

View the Merged Configuration

Click View full config in the pipeline editor to see how your .gitlab-ci.yml merges with the Code Quality template:

code_quality:
  stage: test
  image: docker:20.10.12
  allow_failure: true
  services:
    - name: docker:20.10.12-dind
      command: ["--tls=false", "--host=tcp://0.0.0.0:2375"]
  variables:
    DOCKER_DRIVER: overlay2
    DOCKER_TLS_CERTDIR: ""
  script:
    - export SOURCE_CODE=$PWD
    - docker pull -q $CI_TEMPLATE_REGISTRY_HOST/gitlab-org/ci-cd/codequality:0.96.0
    - docker run --rm \
        --volume "$SOURCE_CODE":/code \
        --volume /var/run/docker.sock:/var/run/docker.sock \
        $CI_TEMPLATE_REGISTRY_HOST/gitlab-org/ci-cd/codequality:0.96.0 /code
  artifacts:
    reports:
      codequality:
        - gl-code-quality-report.json
    expire_in: 1 week
  rules:
    - if: '$CI_COMMIT_TAG || $CI_COMMIT_BRANCH'
      when: always

By default, allow_failure: true ensures Code Quality issues don’t block merges.

3. Customize Stages & Report Formats

GitLab supports two special stages: .pre and .post. Assign code_quality to .pre for early feedback:

stages:
  - ".pre"
  - test
  - build
  - deploy
  - ".post"

include:
  - component: gitlab.com/gitlab-components/code-quality/[email protected]

code_quality:
  stage: ".pre"

To generate an HTML report instead of JSON:

code_quality:
  stage: ".pre"
  variables:
    REPORT_FORMAT: html
  artifacts:
    paths:
      - gl-code-quality-report.html
    reports:
      codequality: []

This stores gl-code-quality-report.html as a job artifact.

4. Pipeline Run & Artifacts

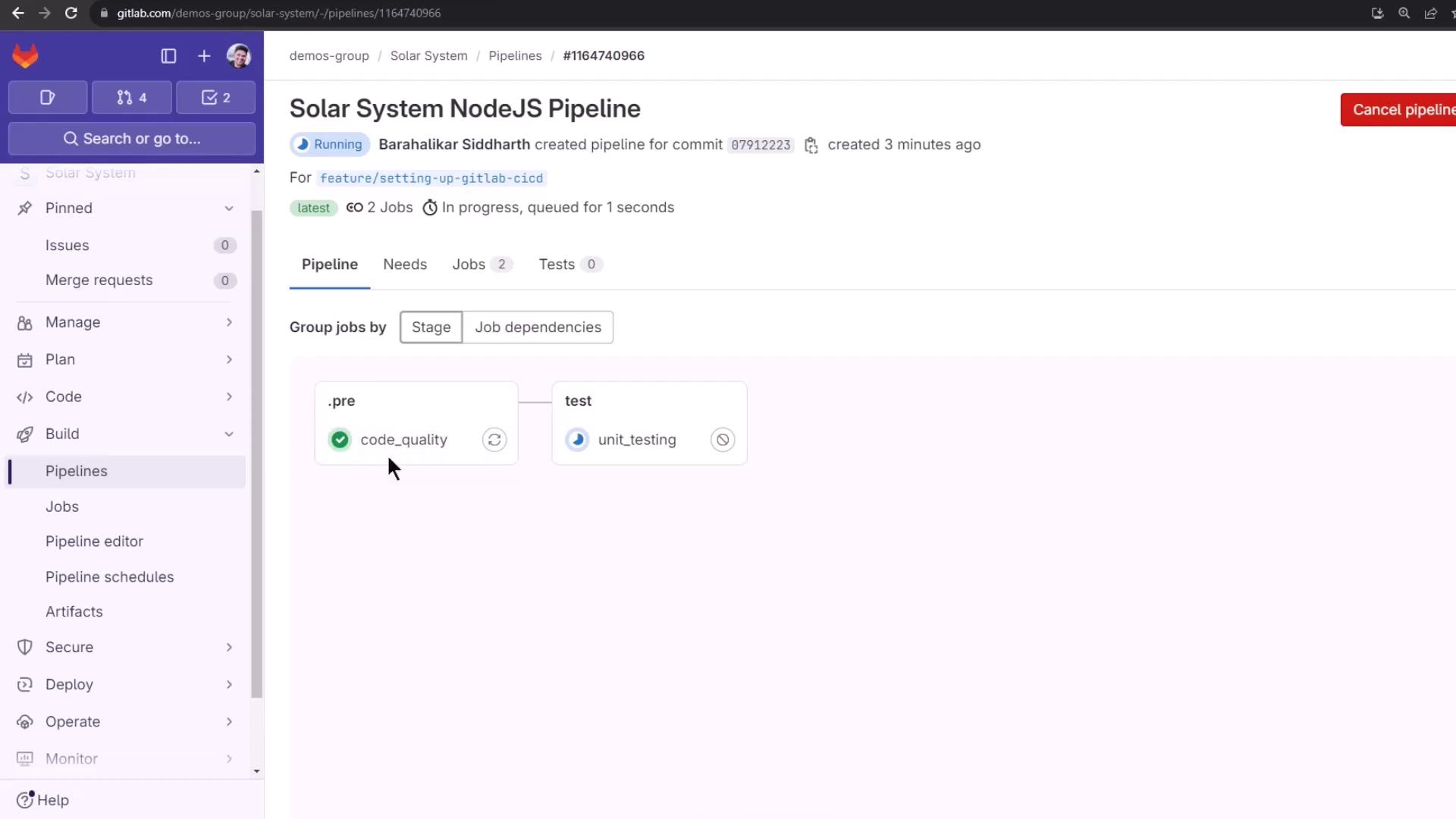

Triggering a commit runs both code_quality and unit_testing jobs:

Inspect logs to see the analysis steps:

$ export SOURCE_CODE=$PWD
$ docker pull -q $CI_TEMPLATE_REGISTRY_HOST/gitlab-org/ci-cd/codequality:0.96.0
$ docker run --rm \
    --volume "$SOURCE_CODE":/code \
    --volume /var/run/docker.sock:/var/run/docker.sock \
    ...

Browse the HTML or JSON report via the job’s Browse link. The report groups findings by:

• Bug Risk
• Complexity
• Duplication
• Style

For inline MR annotations, GitLab uses the JSON report.

Example Findings

Bug Risk

throw new Error('Request failed.');
}).catch(function(error) {
  alert("Ooops, We have 8 planets.\nSelect a number from 0 - 8");
  console.log(error);
})

Duplication

describe('Fetching Planet Details', () => {
  it('should fetch Mercury', (done) => {
    const payload = { id: 1 };
    chai.request(server)
      .post('/planet')
      .send(payload);
      .end((err, res) => {
        res.should.have.status(200);
        res.body.should.have.property('name').eql('Mercury');
        done();
      });
  });
});

Additional Code Quality Features

Top-tier GitLab plans unlock more advanced tools:

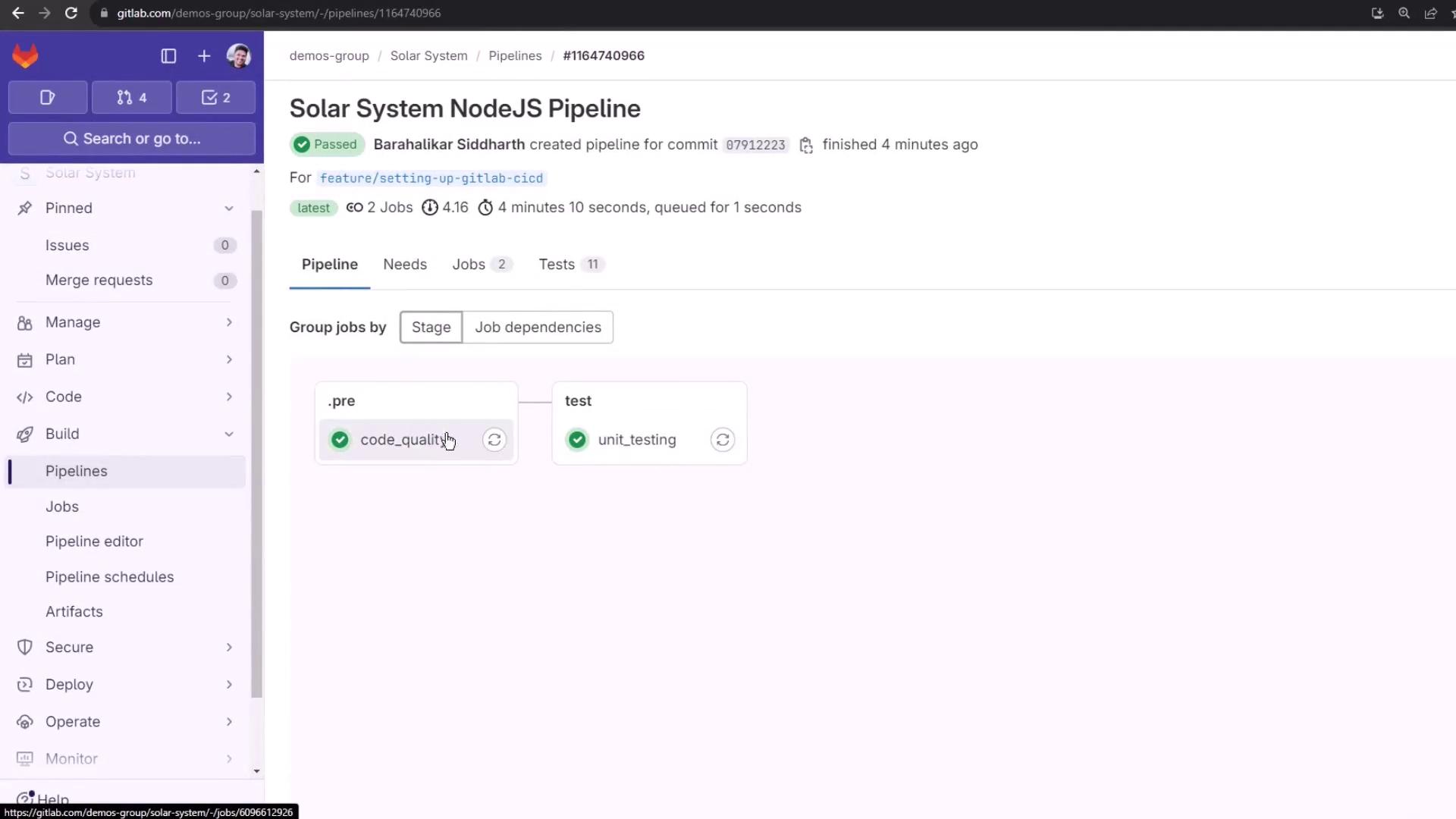

After review, your pipeline completes successfully:

That’s it! You’ve integrated and customized GitLab’s Code Quality component to elevate your CI/CD standards.
