Jenkins Security Overview

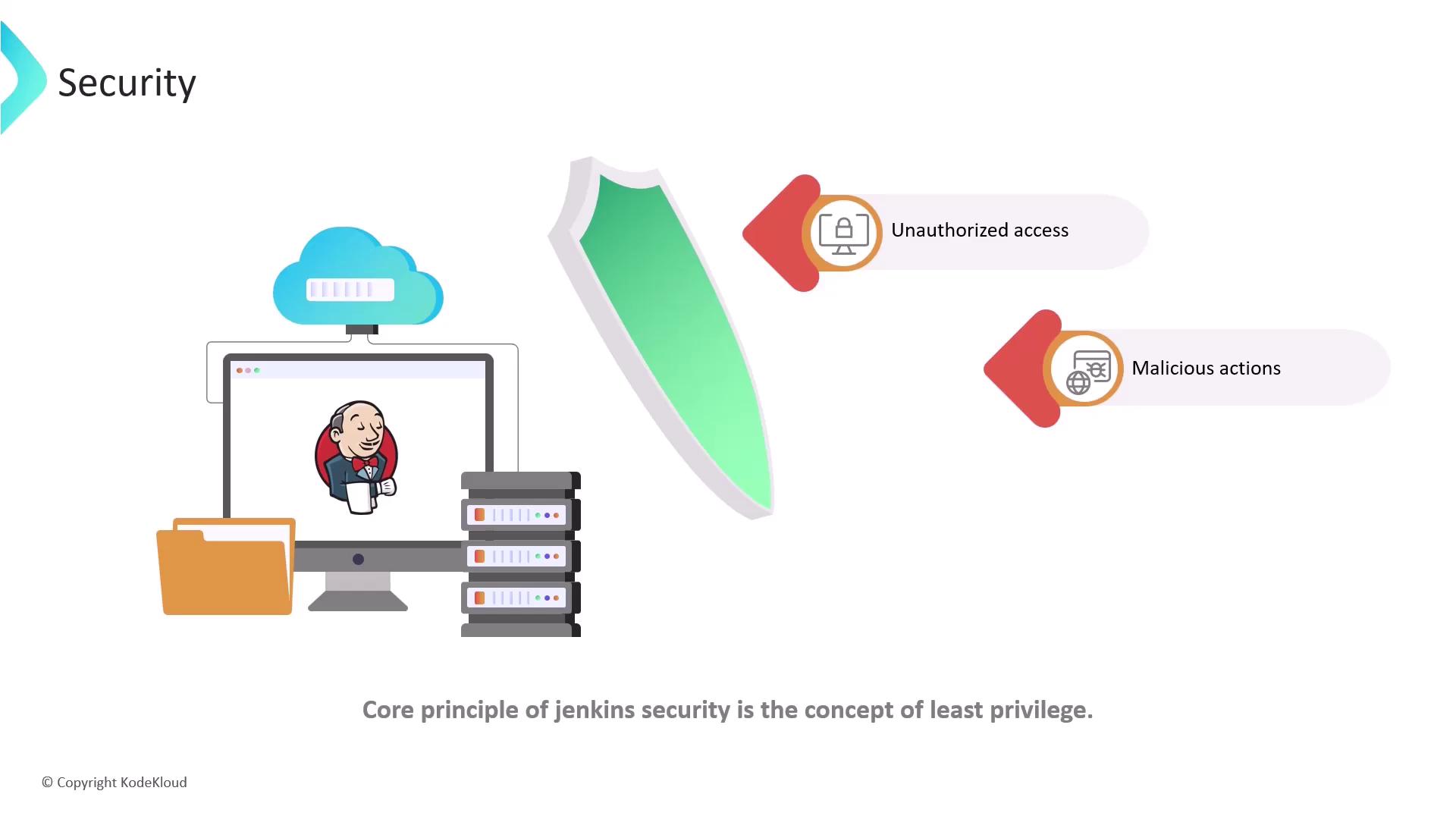

In this article, we provide a concise overview of Jenkins security while explaining its core concepts and best practices. Protecting your Jenkins server is analogous to safeguarding your toolbox—you wouldn't want someone to steal your tools or misuse them. Likewise, Jenkins must be secured against unauthorized access and potential malicious activities.

A key principle in Jenkins security is the concept of least privilege, which means users receive only the permissions they need to perform their designated tasks.

Authentication and Authorization

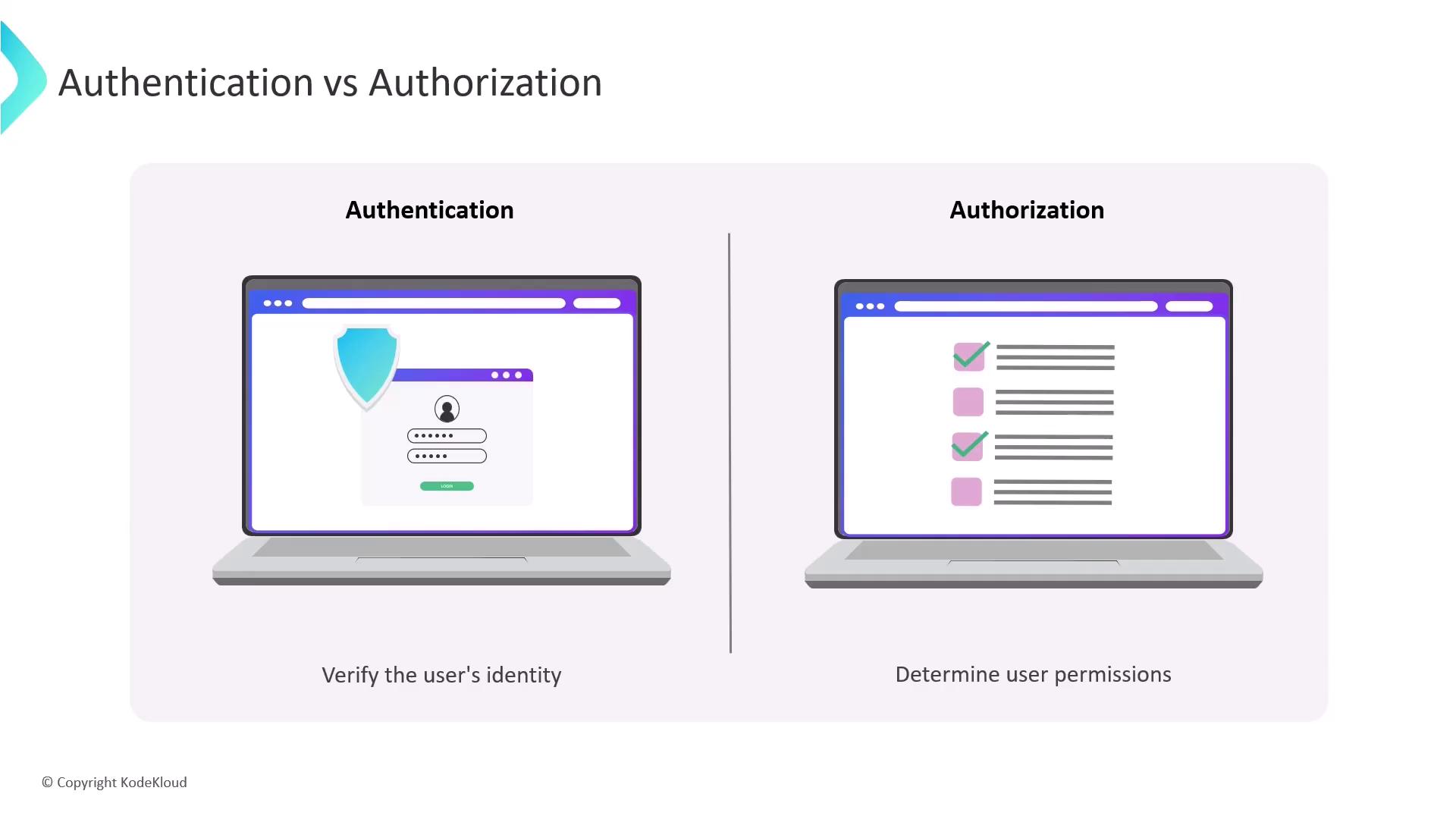

Authentication is the process of verifying a user's identity. When logging in, you provide credentials—such as a username and password or an API token—that the system validates to confirm you are a legitimate user. In contrast, authorization determines what actions an authenticated user is allowed to perform. Based on your identity and assigned privileges, the system decides if you can read, write, delete, or execute other operations.

To illustrate, imagine checking into a hotel. Presenting a government-issued ID, such as a passport or driver's license, verifies your identity (authentication). Once verified, you receive a room key, which grants access to certain areas of the hotel, thereby defining your privileges (authorization).

Managing User Access in Jenkins

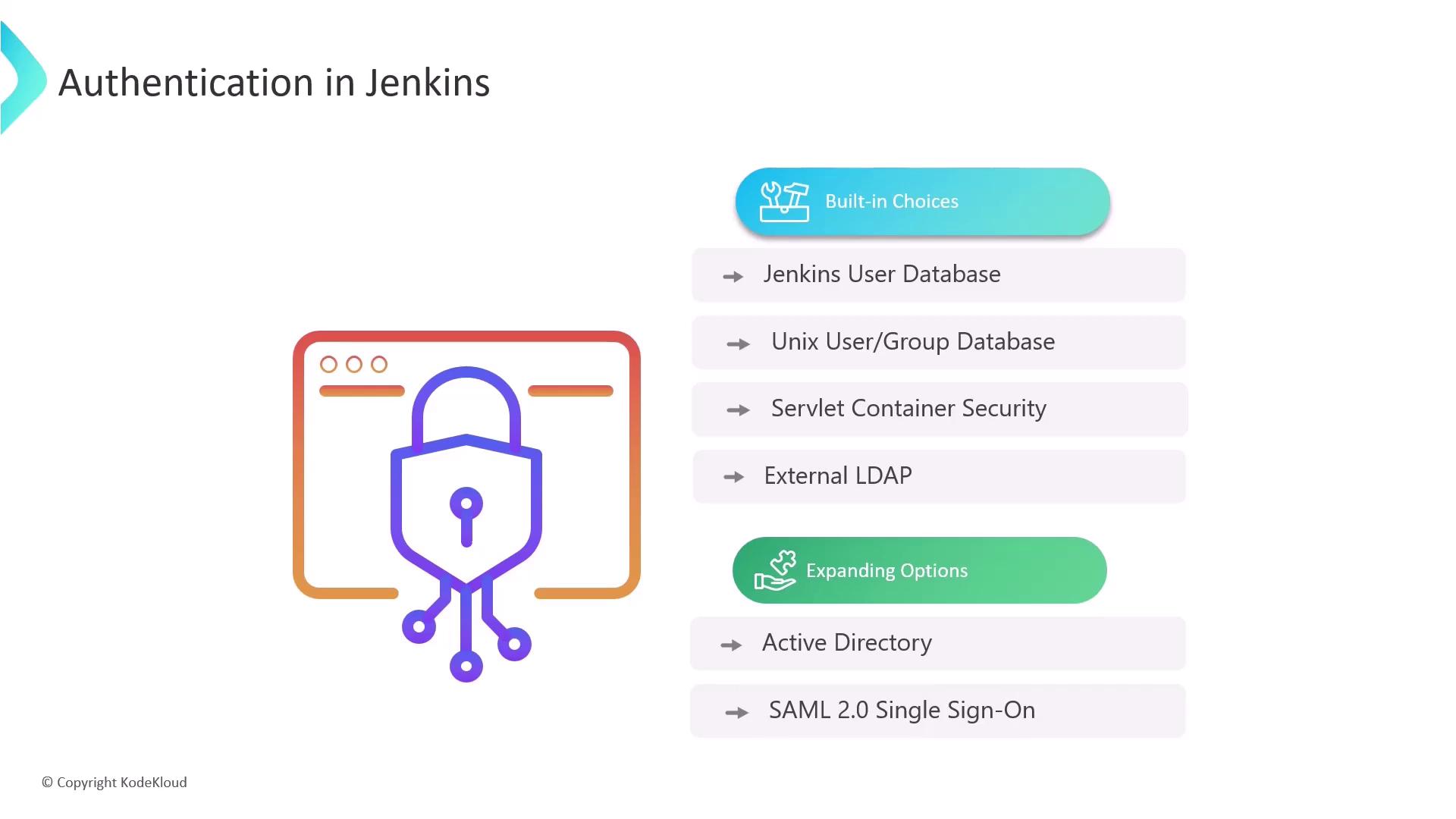

Jenkins offers several methods for managing user access, each providing different levels of flexibility:

• Jenkins User Database: Ideal for small-scale setups, where users are managed directly within Jenkins.
• Unix User Groups: Leverage Unix user accounts or group databases for access control on systems that use Unix-based authentication.
• Servlet-based Security: Uses your web service's built-in security model for handling user authentication.
• External LDAP: Connect Jenkins to directory services such as LDAP, enabling users to log in with their corporate credentials.

Additionally, Jenkins supports several plugins to further extend security options. For instance, integration with Microsoft’s Active Directory or implementation of SAML 2.0 single sign-on (SSO) streamlines access for users by utilizing existing corporate credentials.

Choosing the appropriate method depends on your environment. While an internal database works well for smaller teams, enterprise environments benefit from corporate directory services like LDAP or Active Directory, simplifying user management and reducing the need for multiple credentials.

Authorization in Jenkins

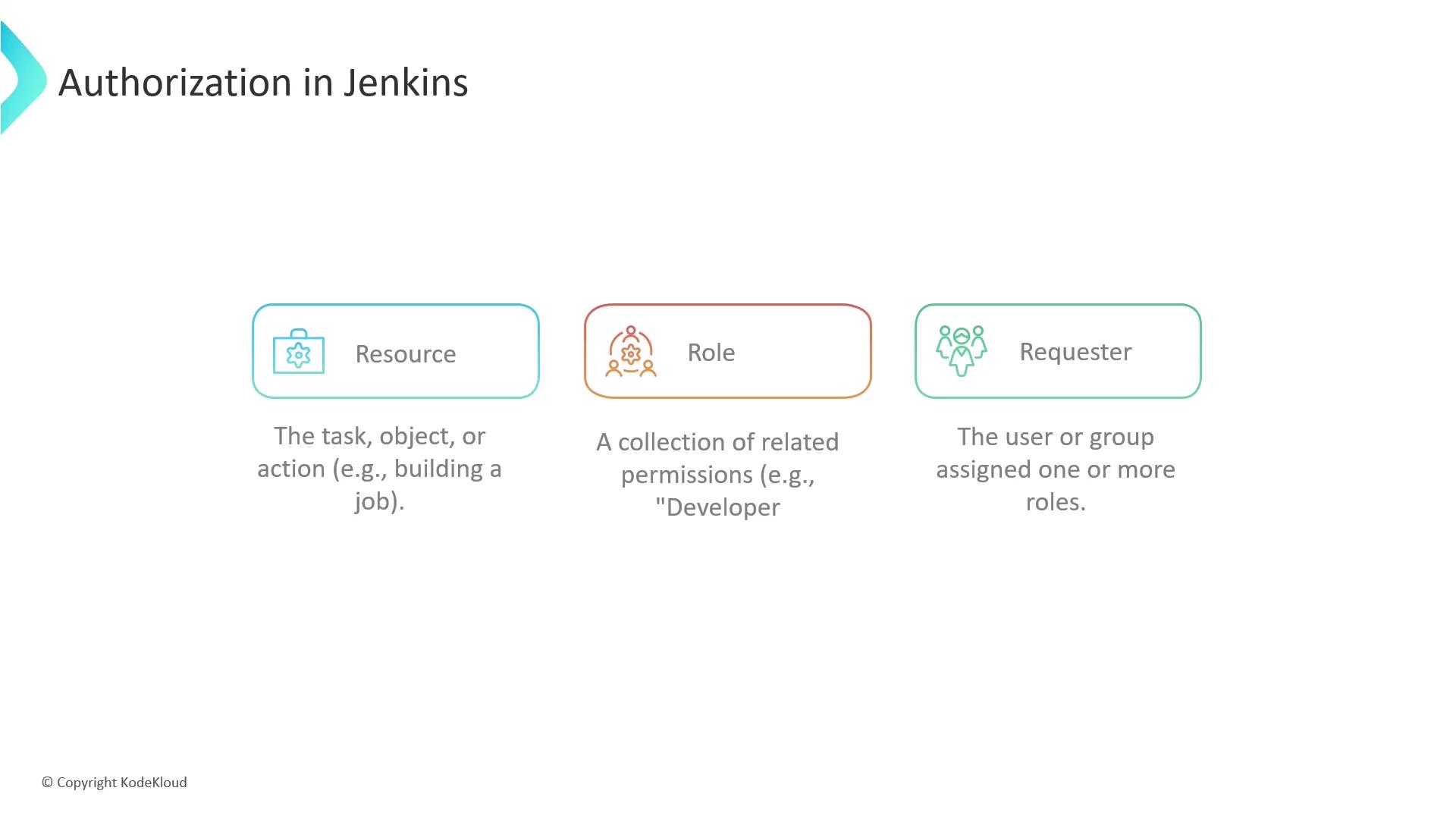

Authorization in Jenkins specifies what actions users can perform. Here are some essential terms:

• Resource: Any task, object, or action a user wishes to manipulate (e.g., triggering a job build or deleting credentials).
• Role: A set of related permissions grouped by function, such as a developer who has permissions to build and view jobs.
• Requester: The user or group attempting to access a resource, typically assigned one or more roles.

Jenkins implements two matrix-based authorization strategies:

1. Matrix-based Security: Grants permissions at a global level across all projects. This method is visualized as a grid, with resources as columns and user/group names as rows.
2. Project-based Matrix Authorization Strategy: Offers granular control by assigning permissions specific to individual projects.

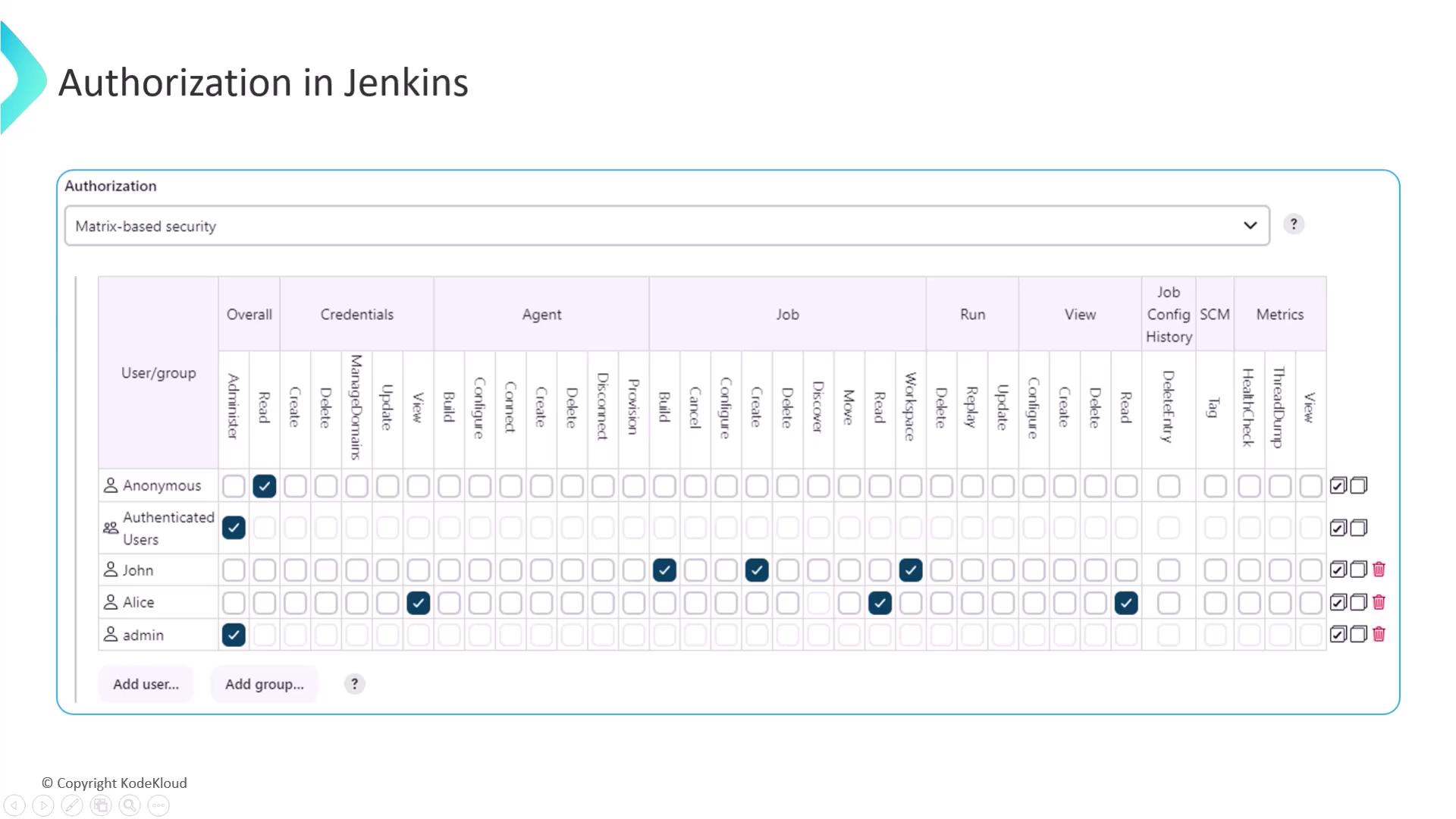

Both strategies display permissions in a grid format. For example, one diagram might illustrate various permissions such as "Read," "Create," and "Delete" applied to groups like "Anonymous," "Authenticated Users," or individual users like "John" and "Alice."

Thank you for reading this comprehensive overview of Jenkins security. For additional details and updates on Jenkins best practices, be sure to consult the official Jenkins documentation and related security resources.
