Network Troubleshooting

Earlier we followed a simple web request as it traveled down the layers, across the network, and back up the stack on the other side.

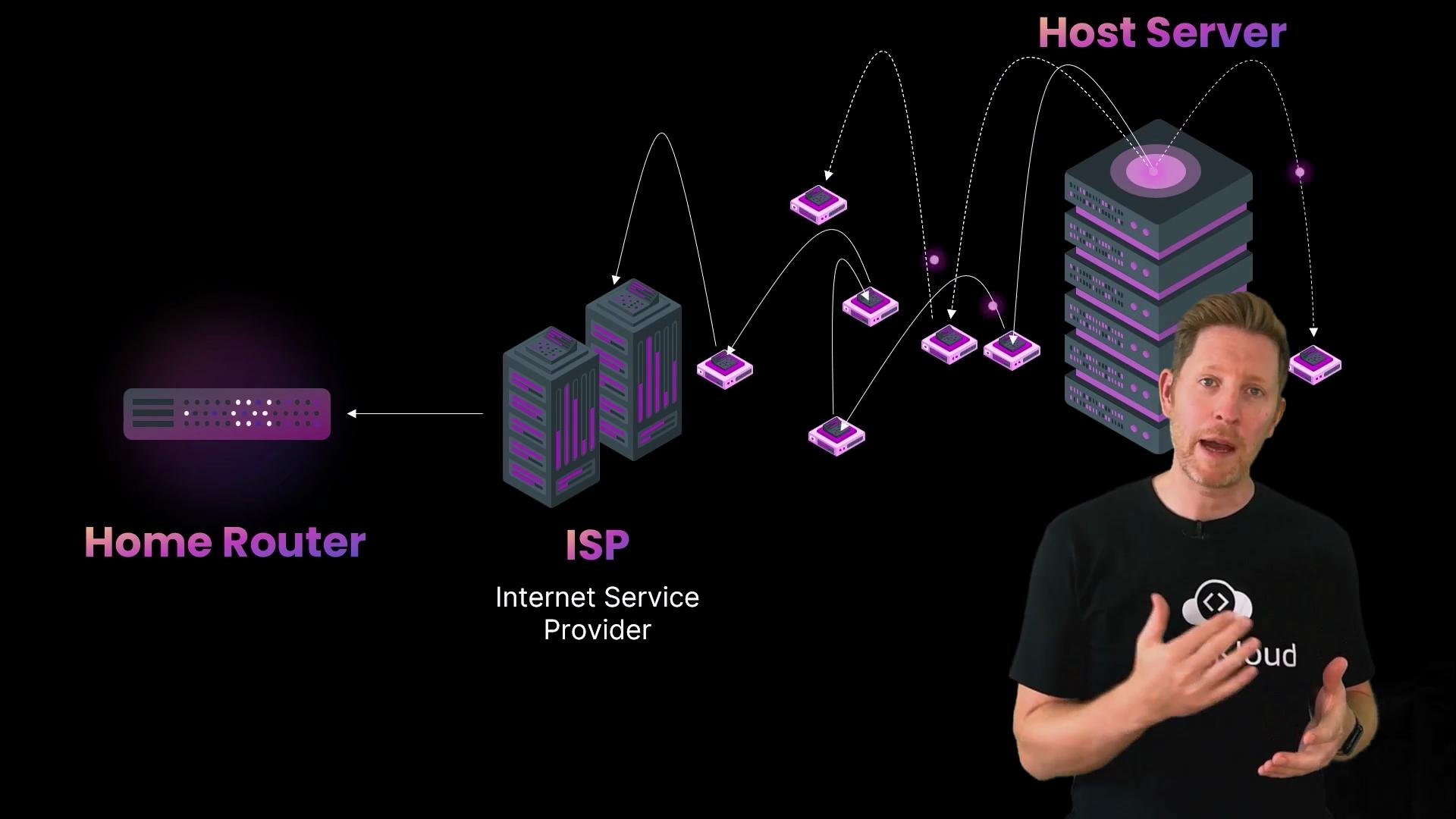

A stylized network diagram showing a home router on the left, an ISP in the middle, and a host server on the right with small devices and dotted arrows indicating data flow. A presenter stands in the foreground at right, gesturing while explaining the graphic.

When the request fails, the same layer-by-layer thinking helps you find the fault quickly. Some issues are obvious — a loose cable or a missing Wi‑Fi icon — while others require command-line investigation. Below is a practical, step-by-step troubleshooting workflow that starts at the physical/link layers and works up to application-level checks.

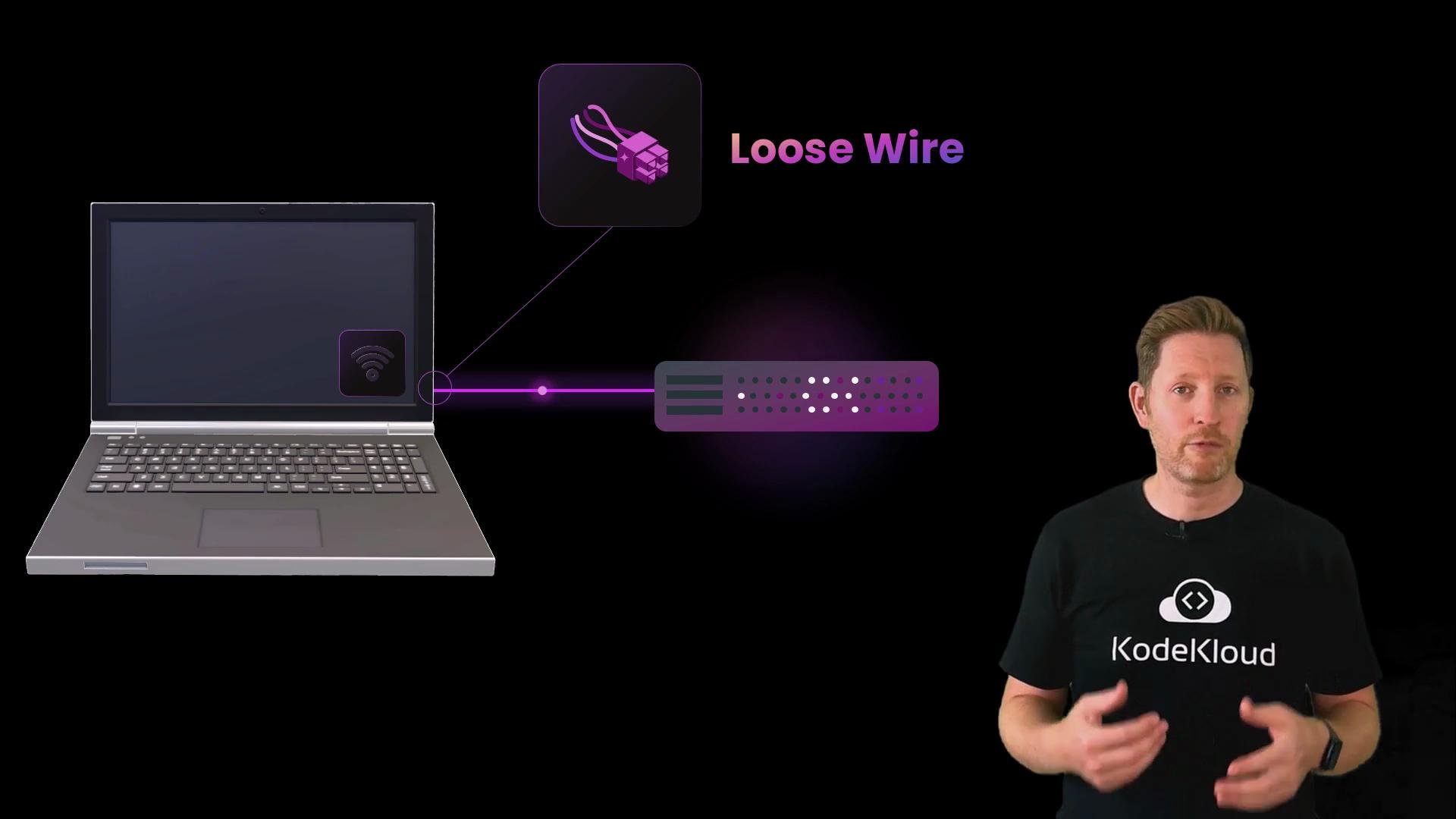

A presenter stands at the right of a slide that shows a laptop connected to a server with a highlighted "Loose Wire" icon and a Wi‑Fi symbol. The graphic appears to illustrate a network or connectivity issue in a tech tutorial.

Getting started: quick physical checks

Is the Wi‑Fi icon visible and indicating a connection?
Is Airplane Mode disabled?
Are cables plugged in and the router powered on?
Are other devices on the same network online?

If other devices work, the issue is likely local to your device. If no devices are online, check the router and ISP connection. Basic restarts help: reboot your computer, then unplug the router for 10 seconds and plug it back in. If the basics don’t fix it, move to the command line and test the link/network layer — your device’s connection to the router. Top-level troubleshooting flow (summary)

Layer	What to check	Useful command(s)
Physical	Power, cables, Wi‑Fi, signal strength	N/A (GUI / hardware)
Link / Local network	Can you reach the router (local connectivity)?	`ping <router_ip>`
Network / Routing	Does routing to the Internet work (by IP)?	`ping 8.8.8.8`
Application / DNS	Are hostnames resolving?	`ping google.com`, `nslookup`, `dig`
Path analysis	Where packets are dropped?	`traceroute` / `tracert`

Link / Network layer — ping the router Send an ICMP echo to your router to verify local connectivity. If you don’t know your router’s IP, look for the “Router” or “Default Gateway” entry in your network GUI. Example: successful ping to the router

$ ping 192.168.0.1
PING 192.168.0.1 (192.168.0.1): 56 data bytes
64 bytes from 192.168.0.1: icmp_seq=0 ttl=64 time=5.447 ms
64 bytes from 192.168.0.1: icmp_seq=1 ttl=64 time=3.351 ms
64 bytes from 192.168.0.1: icmp_seq=2 ttl=64 time=3.245 ms
^C
--- 192.168.0.1 ping statistics ---
3 packets transmitted, 3 received, 0% packet loss
round-trip min/avg/max/stddev = 3.245/4.014/5.447/1.014 ms

Each reply shows round‑trip time for that packet. When you stop the command (Control+C), the summary helps spot packet loss or latency spikes — useful for diagnosing flaky Wi‑Fi or an overloaded local network.

If the router responds, your device’s network interface and local link are working. If it doesn’t, focus on Wi‑Fi settings, physical cables, and your network adapter configuration.

Check the device IP configuration Confirm your device has a valid IP address and a listed gateway/router. In the GUI, check the TCP/IP or network details for:

A private IP (commonly 192.168.x.x, 10.x.x.x, or 172.16.x.x–172.31.x.x).
A router/default gateway IP (e.g., 192.168.0.1).
Whether the IP was obtained via DHCP or set manually.

From the terminal:

Windows: ipconfig
macOS / Linux: ifconfig or ip addr

Example (truncated macOS-style output):

$ ifconfig
en0: flags=8863<UP,BROADCAST,SMART,RUNNING,SIMPLEX,MULTICAST> mtu 1500
    ether ae:4c:5a:5a:d3:88
    inet 192.168.0.147 netmask 0xffffff00 broadcast 192.168.0.255
    media: autoselect
    status: active

If you see an APIPA/169.254.x.x address, your device did not obtain an address from DHCP. Routing / Internet test — ping a public IP If the router is reachable and your IP looks valid, test reachability beyond your router by pinging a known public IP (e.g., Google’s public DNS 8.8.8.8). This checks routing without involving DNS. Example: successful ping to 8.8.8.8

$ ping 8.8.8.8
PING 8.8.8.8 (8.8.8.8): 56 data bytes
64 bytes from 8.8.8.8: icmp_seq=0 ttl=114 time=46.781 ms
64 bytes from 8.8.8.8: icmp_seq=1 ttl=114 time=57.126 ms
64 bytes from 8.8.8.8: icmp_seq=2 ttl=114 time=41.411 ms
^C
--- 8.8.8.8 ping statistics ---
3 packets transmitted, 3 received, 0% packet loss
round-trip min/avg/max/stddev = 41.411/46.781/57.126/7.317 ms

If this succeeds, your router has upstream connectivity.
If it fails, the problem is likely upstream (router → ISP) or the ISP itself.

Application layer — DNS lookups If IP pings work but hostnames do not, DNS is the likely cause. Try resolving a hostname such as google.com. Example: DNS failure when resolving google.com

$ ping google.com
ping: cannot resolve google.com: Unknown host

If DNS fails:

Check the DNS server entries in your network settings.
Try switching to a known resolver, e.g., 8.8.8.8 (Google) or 1.1.1.1 (Cloudflare).
Alternatively, point DNS to your router so it will forward requests to the ISP or public DNS.

After updating DNS, re-run the hostname lookup to confirm resolution. Traceroute — visualize the packet path Use traceroute (macOS/Linux) or tracert (Windows) to view each hop between your device and a destination. This helps locate where packets are dropped or delayed.

Some intermediate routers intentionally do not respond to ICMP or TTL-expired messages; asterisks in a traceroute do not always mean a problem.
Use traceroute output to determine whether the issue is inside your LAN, at the ISP, or beyond.

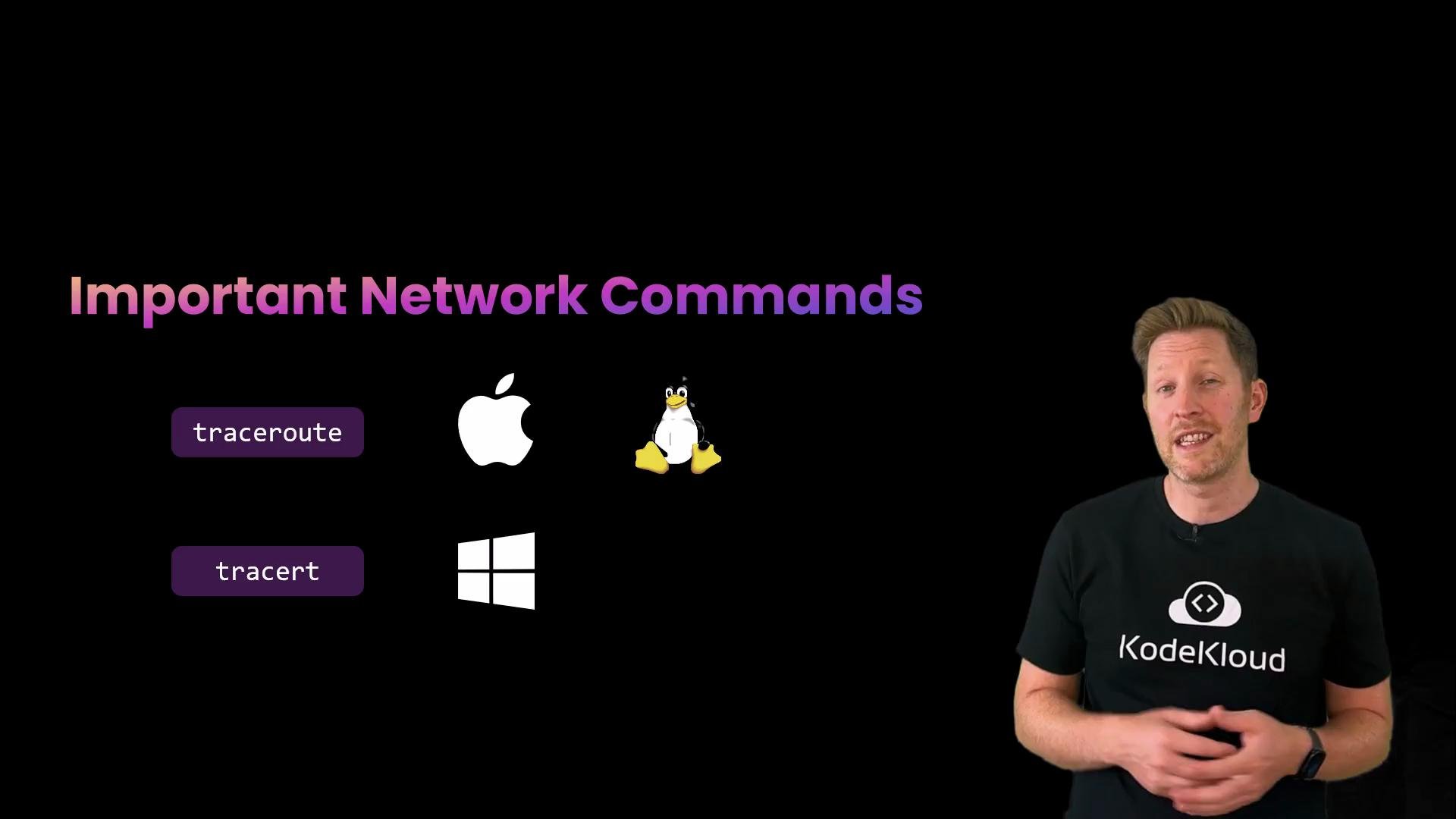

A slide titled "Important Network Commands" showing buttons labeled "traceroute" and "tracert" alongside Apple, Linux (Tux), and Windows icons. A presenter wearing a KodeKloud t-shirt stands on the right side of the image.

Common troubleshooting commands (quick reference)

Command	Platform	Purpose
`ping <ip\|host>`	All	Test IP-level or hostname reachability and measure latency
`ipconfig`	Windows	View interface configuration and default gateway
`ifconfig` / `ip addr`	macOS / Linux	View interface configuration and addresses
`nslookup <host>` / `dig <host>`	All (dig on Linux/macOS)	Test DNS resolution and view which server was queried
`traceroute <dest>` / `tracert <dest>`	macOS/Linux / Windows	Show hop-by-hop path and locate where packets are dropped

Walkthrough 1 — DNS problem (browser won’t load pages) Scenario: Browser shows “no internet” while the Wi‑Fi icon indicates connected. Other devices on the network work. Troubleshooting steps:

Physical: Wi‑Fi is on, signal strength is good, other devices online.
Link/Network: ping to router replies → local connectivity OK.
Network: GUI shows 192.168.0.148 and router 192.168.0.1 → DHCP/addresses are sensible.
Routing/Internet: ping 8.8.8.8 replies → routing to the Internet is OK.
Application: ping google.com fails with “cannot resolve” → DNS issue.

Fix: Change DNS in network settings to a known resolver (e.g., 8.8.8.8) or set DNS to your router so it forwards DNS. After updating DNS, confirm hostnames resolve and the browser should recover.

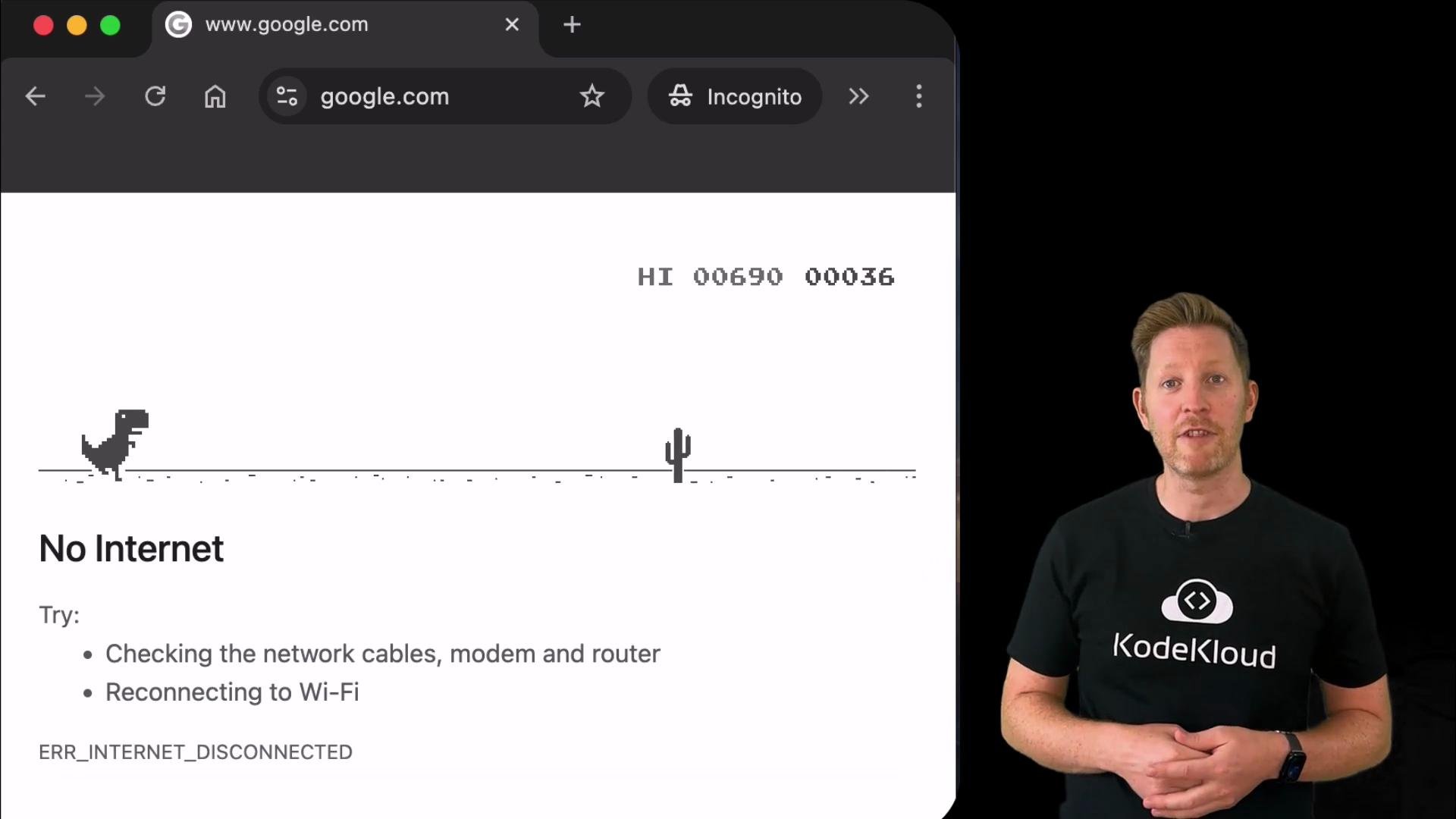

The left side shows a Chrome "No Internet" screen with the pixelated T‑Rex game and an error message. On the right, a man wearing a KodeKloud t‑shirt stands against a black background.

Walkthrough 2 — DHCP / misconfigured IP (device can’t talk to router) Scenario: Wi‑Fi shows connected but the device cannot reach the router. Troubleshooting steps:

Physical: Wi‑Fi on and signal good; other devices online.
Link/Network: ping 192.168.0.1 — no replies:

$ ping 192.168.0.1
PING 192.168.0.1 (192.168.0.1): 56 data bytes
Request timeout for icmp_seq 0
Request timeout for icmp_seq 1
^C
--- 192.168.0.1 ping statistics ---
2 packets transmitted, 0 received, 100% packet loss

Network: Inspect device IP settings — IP or gateway may have been set manually to the wrong network.
Fix: Switch the interface to DHCP (automatic configuration). This requests a valid IP, gateway, and DNS from the router.

After switching back to DHCP, the router responds again:

$ ping 192.168.0.1
PING 192.168.0.1 (192.168.0.1): 56 data bytes
64 bytes from 192.168.0.1: icmp_seq=0 ttl=64 time=4.119 ms
64 bytes from 192.168.0.1: icmp_seq=1 ttl=64 time=3.070 ms
64 bytes from 192.168.0.1: icmp_seq=2 ttl=64 time=4.275 ms
^C
--- 192.168.0.1 ping statistics ---
3 packets transmitted, 3 received, 0% packet loss
round-trip min/avg/max/stddev = 3.070/3.821/4.275/0.535 ms

Recap — a systematic approach

Start at the physical layer: power, cables, Wi‑Fi, signal strength.
Use ping to verify both local (router) and remote (Internet IP) connectivity.
Use ipconfig / ifconfig or the GUI to confirm your IP, netmask, gateway, and whether DHCP is in use.
If local pings fail, it’s likely a LAN issue — check IP/DHCP and adapter settings.
If pings by IP succeed but names fail, it’s a DNS problem.
Use traceroute / tracert to find where packets are being dropped or delayed.

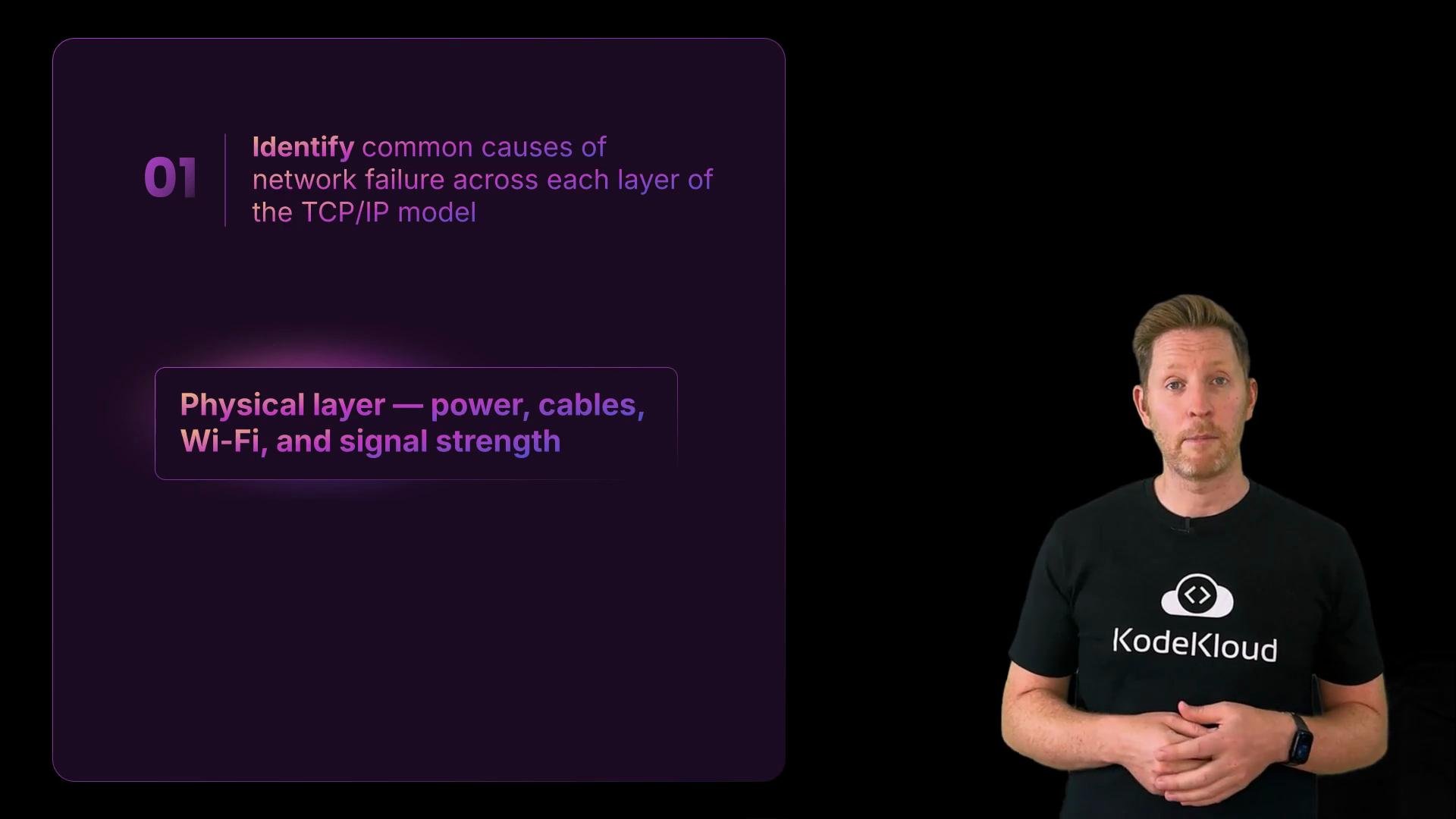

A presenter in a KodeKloud t‑shirt stands to the right of a slide. The slide is titled about identifying TCP/IP network failures and highlights the physical layer (power, cables, Wi‑Fi, and signal strength).

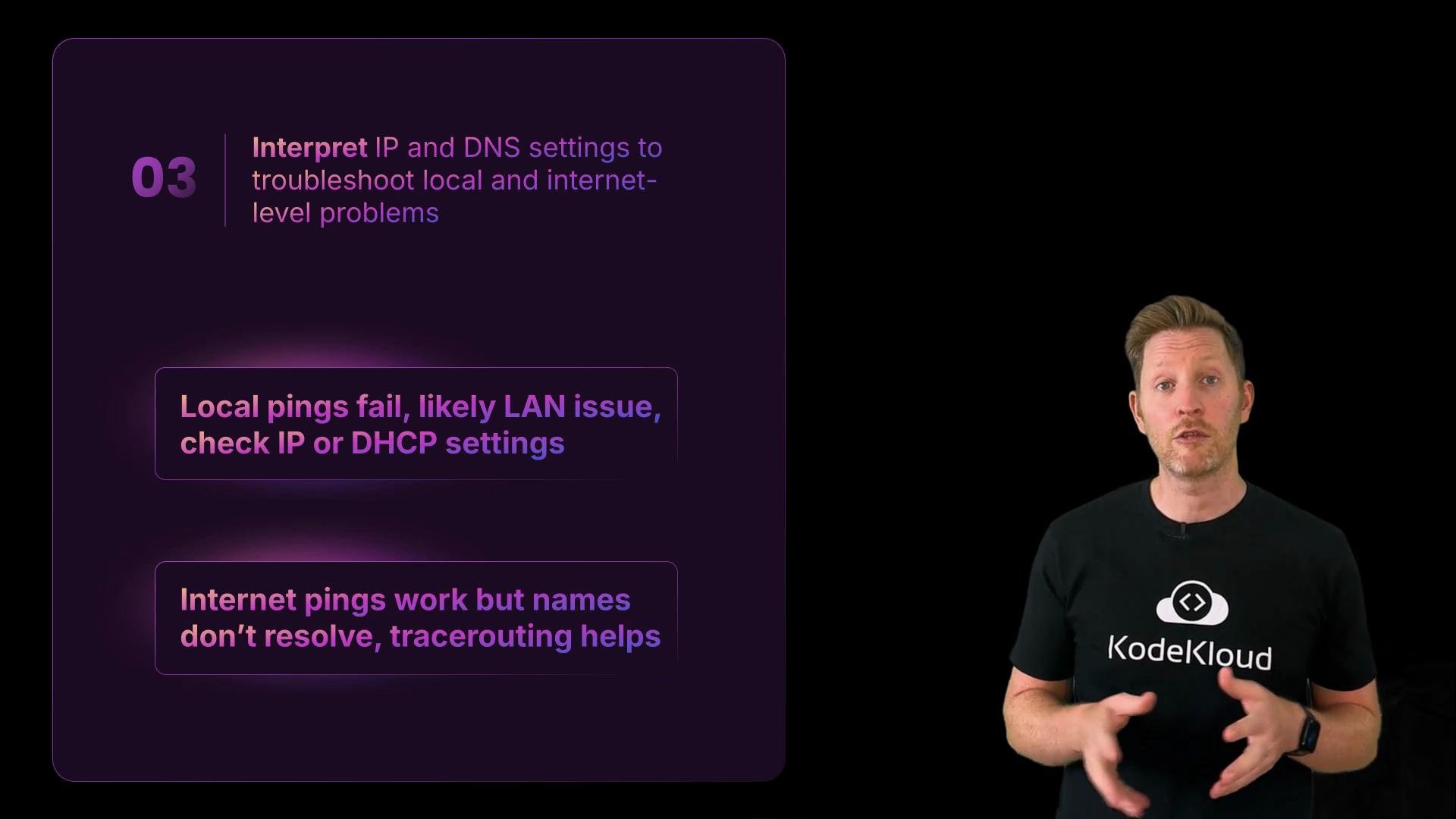

A presenter in a black "KodeKloud" t‑shirt stands on the right while a purple slide on the left explains interpreting IP and DNS settings to troubleshoot network issues. The slide includes boxes reading tips like "Local pings fail, likely LAN issue, check IP or DHCP settings" and notes about internet pings and name resolution.

Pop quiz Which of the following statements is true? A. A successful ping google.com proves your DNS server is faulty.
B. If pinging your router fails, the problem is definitely with your ISP.
C. traceroute shows how your packets travel across the network, hop by hop.
D. If your IP address starts with 169.254, it means your router is not connected properly. Answer: C is correct. traceroute reveals the hop-by-hop path packets take and helps identify where problems occur. Notes on the false options:

A is false — a successful ping by name shows DNS resolution works for that lookup; it does not alone prove DNS is faulty in all cases.
B is false — if pinging the router fails, the issue is likely local (device or router), not necessarily the ISP.
D is false — an APIPA/169.254.x.x address indicates the device couldn’t obtain an IP via DHCP; this often points to DHCP or local connectivity issues between the device and the DHCP server (router).

That’s the end of this article.
