Security Token ServiceSTS

AWS Security Token Service (STS) is a managed web service that issues temporary, limited-privilege credentials for IAM users, IAM roles, or federated identities. By leveraging STS, you can enforce the principle of least privilege, avoid long-term credentials, and securely grant short-term access to AWS resources.

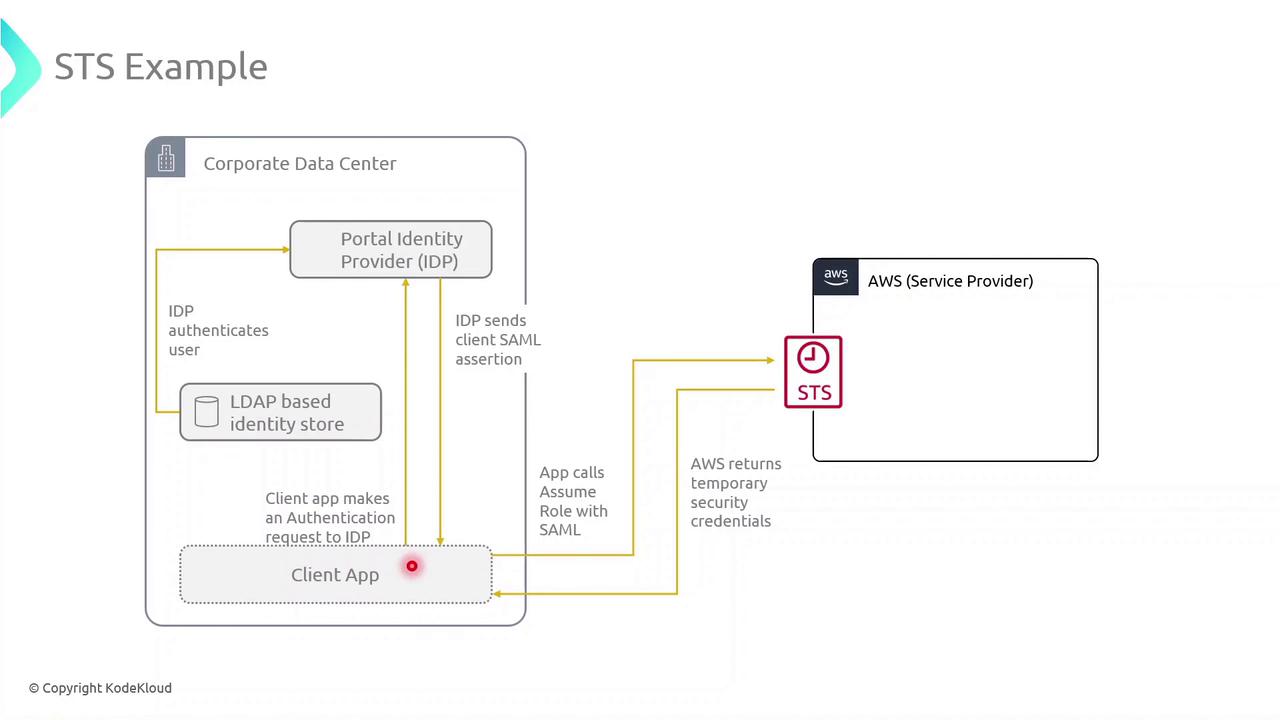

Use Case: External Application Access to Amazon S3

Consider an application running on-premises in your corporate data center. To retrieve objects from an S3 bucket without embedding long-term AWS keys, you can integrate STS with your identity provider (IdP) and SAML federation.

Step 1: Authenticate with Your Identity Provider

1. The client application prompts the user for corporate credentials.
2. These credentials are sent to an external LDAP-based IdP for verification.
3. Upon successful login, the IdP issues a SAML assertion to the client.

Step 2: Call AssumeRoleWithSAML to Obtain Temporary Credentials

With the SAML assertion in hand, the application calls the STS endpoint:

aws sts assume-role-with-saml \
  --role-arn arn:aws:iam::123456789012:role/S3AccessRole \
  --principal-arn arn:aws:iam::123456789012:saml-provider/CorpIdP \
  --saml-assertion file://assertion-response.xml

STS validates the SAML assertion, then returns these temporary credentials:

These credentials inherit the permissions defined in the assumed role’s policy and expire automatically (up to 12 hours).

Step 3: Use the Temporary Credentials to Access S3

Export the returned credentials into your environment:

export AWS_ACCESS_KEY_ID=ASIAXXXXXXXXXXXXXXXX
export AWS_SECRET_ACCESS_KEY=XXXXXXXXXXXXXXXXXXXXXXXXXXXX
export AWS_SESSION_TOKEN=XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX

Now you can run S3 operations with least-privilege access:

aws s3 ls s3://your-bucket-name/path/

References

• AWS STS API Reference
• AWS IAM Roles and Permissions
• Amazon S3 Documentation
