ECS

In this lesson, you'll learn how to containerize applications, the benefits and challenges of using containers, and how AWS Elastic Container Service (ECS) addresses these challenges. For more detailed AWS ECS training, visit AWS Elastic Container Service (ECS).

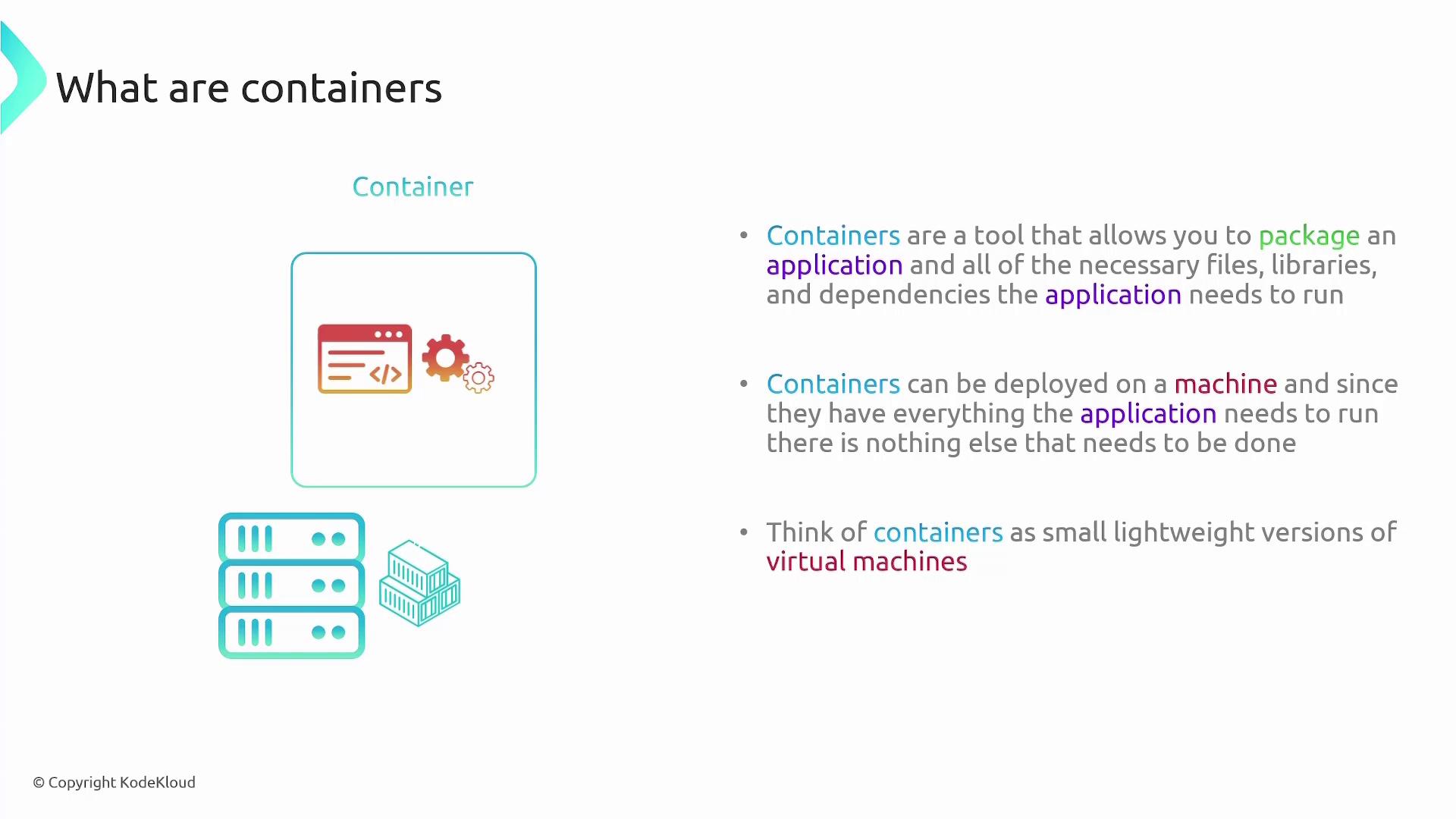

What Are Containers?

Containers package an application with all its necessary files, libraries, and dependencies into a portable and lightweight environment. This makes it easy to deploy your application anywhere—whether on your local machine or in production—without any additional installation steps.

Think of containers as lightweight virtual machines that include only what is needed to run your application.

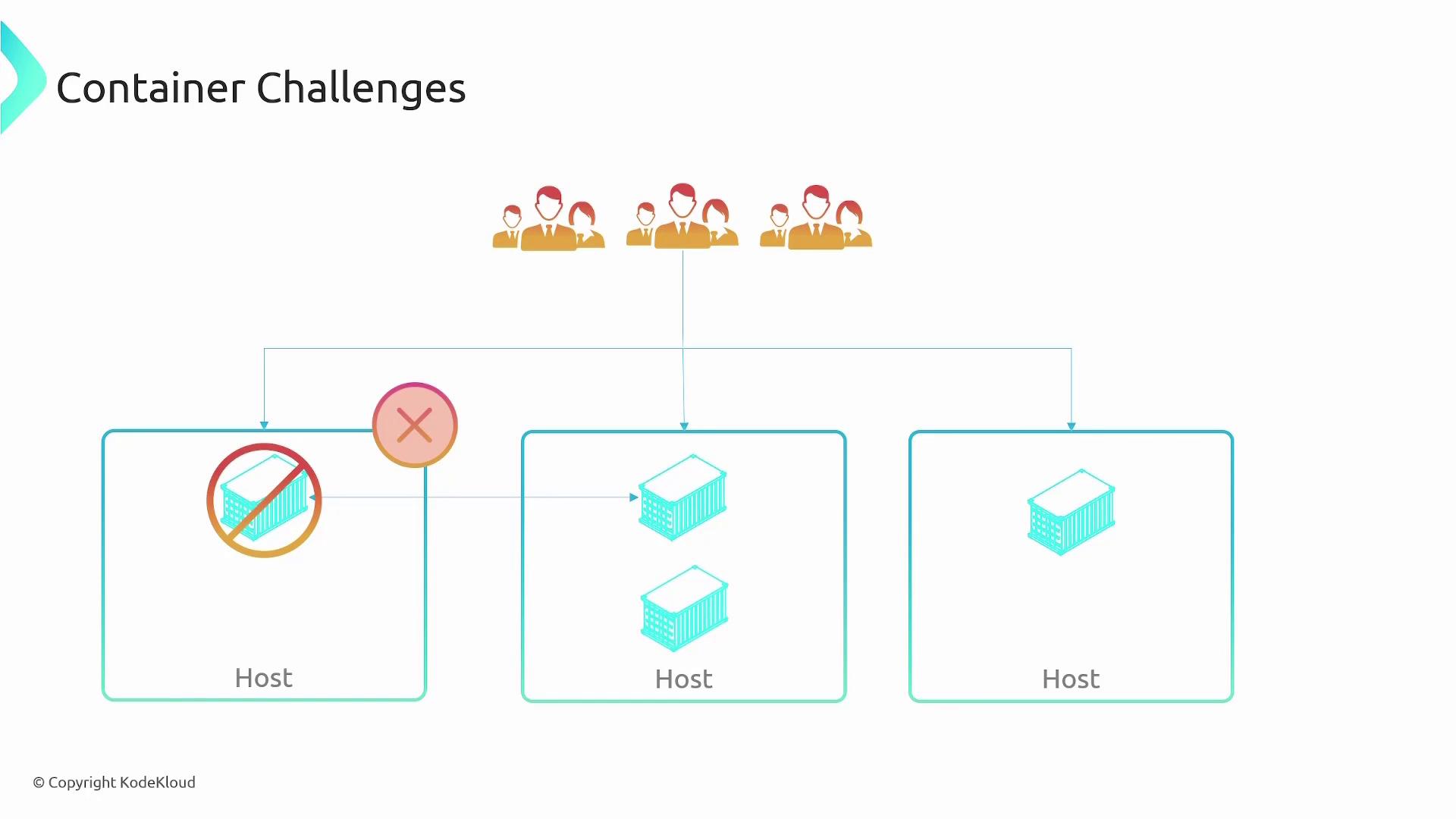

Challenges with Containers

When working with containers, be aware of the following challenges:

• Deploying a single container on one server creates a single point of failure. If that server goes down, your application is affected.
• For redundancy and high availability, you need to deploy multiple container instances across multiple hosts.
• Load balancing is essential to ensure even distribution of incoming requests.
• Containers often need to communicate across different networks or subnets.
• Automated monitoring is crucial to automatically redeploy containers if one fails.
• Scaling out as traffic increases (and scaling in when it decreases) is necessary for efficient resource usage.

To address these challenges, container orchestrators are employed.

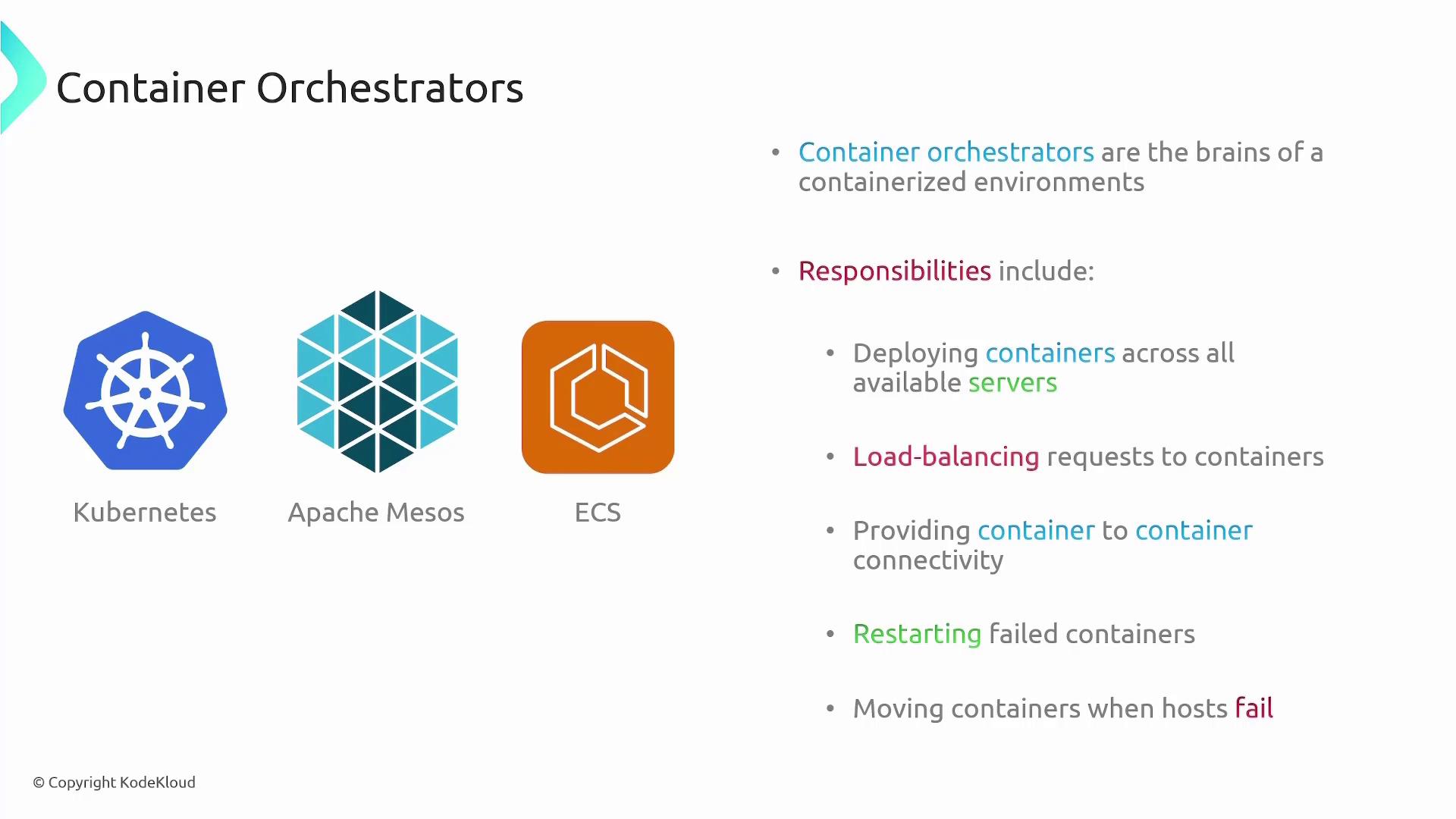

Container Orchestrators

Container orchestrators provide a management layer for containerized environments. They handle tasks such as:

• Deploying containers across multiple servers
• Load balancing requests
• Facilitating container-to-container communication
• Restarting failed containers automatically
• Relocating containers when hosts fail

These orchestrators act like managers ensuring that your containers (think of them as employees) perform efficiently. Popular orchestrators include Kubernetes, Apache Mesos, and AWS ECS.

ECS is AWS's proprietary solution for container orchestration challenges.

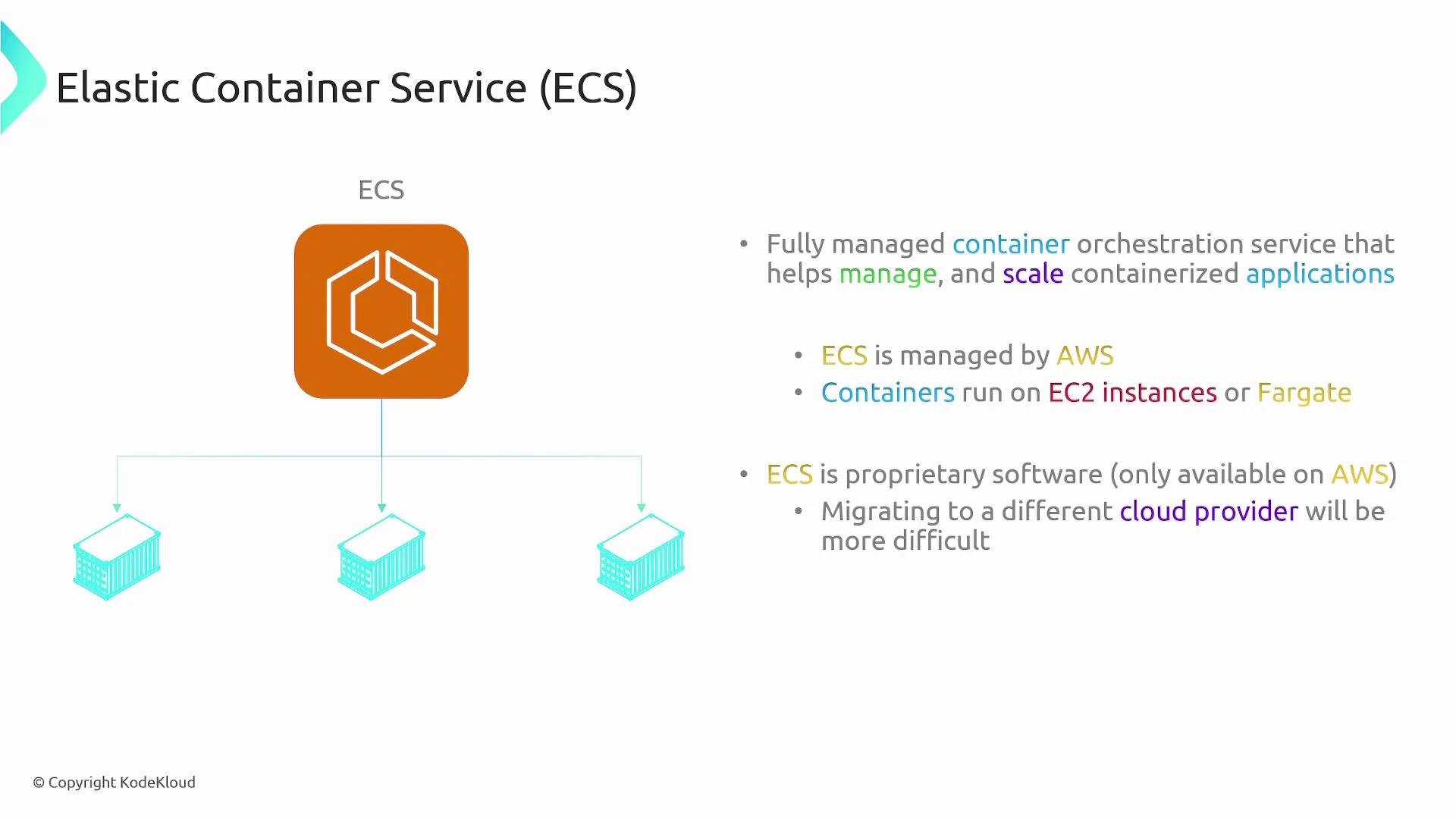

Introducing Elastic Container Service (ECS)

ECS is a fully managed container orchestration service designed to help you manage and scale containerized applications. With ECS, AWS manages the control plane—the "brains" of the operation—while you provide the compute resources.

There are two primary launch options with ECS:

• EC2 Launch Type: You manage your own EC2 instances as a cluster, giving you complete control over the underlying servers.
• Fargate Launch Type: AWS handles the compute infrastructure using a serverless model. You only need to specify the required configurations, and AWS provisions the compute resources automatically.

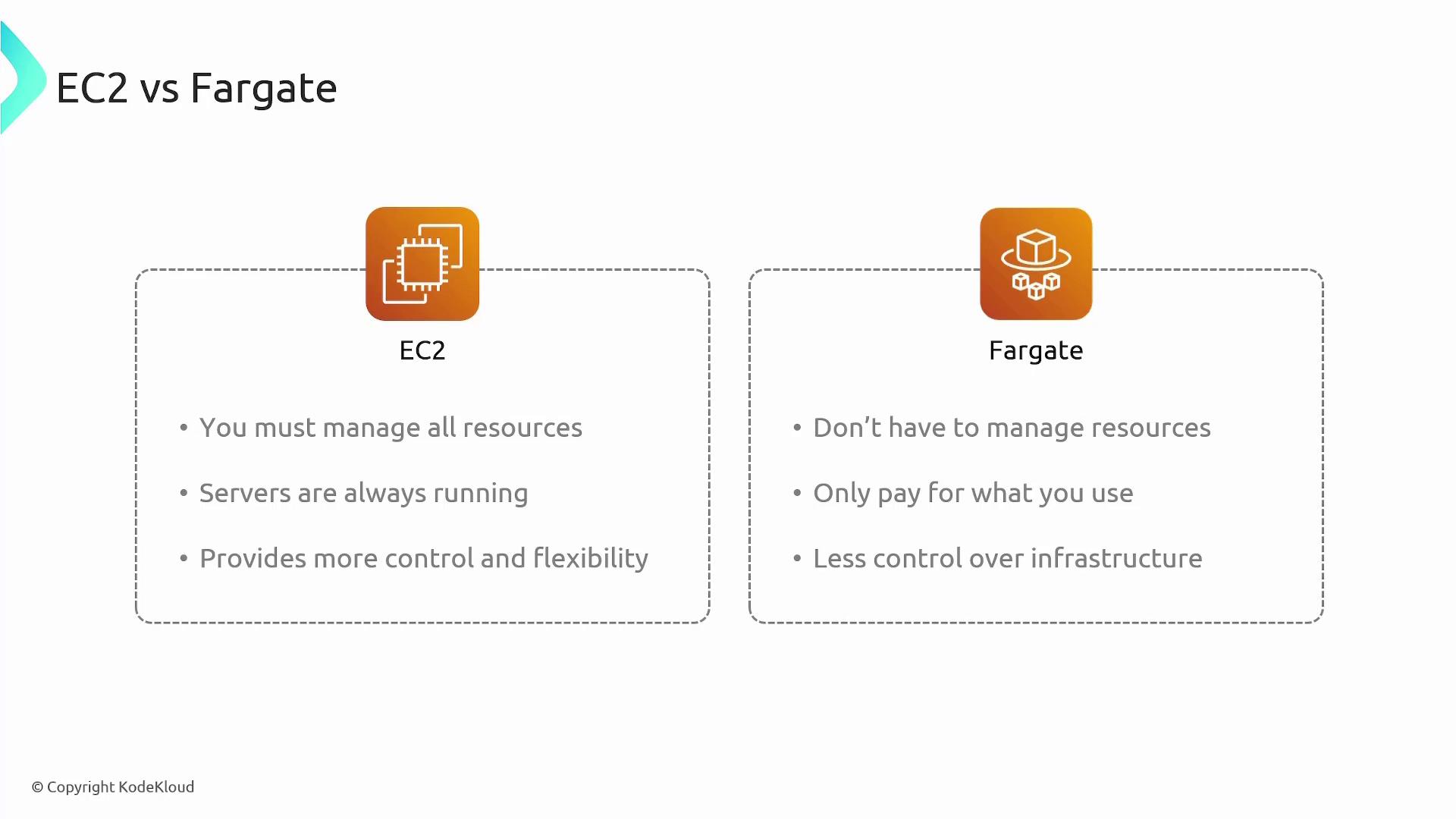

Choosing Between EC2 and Fargate

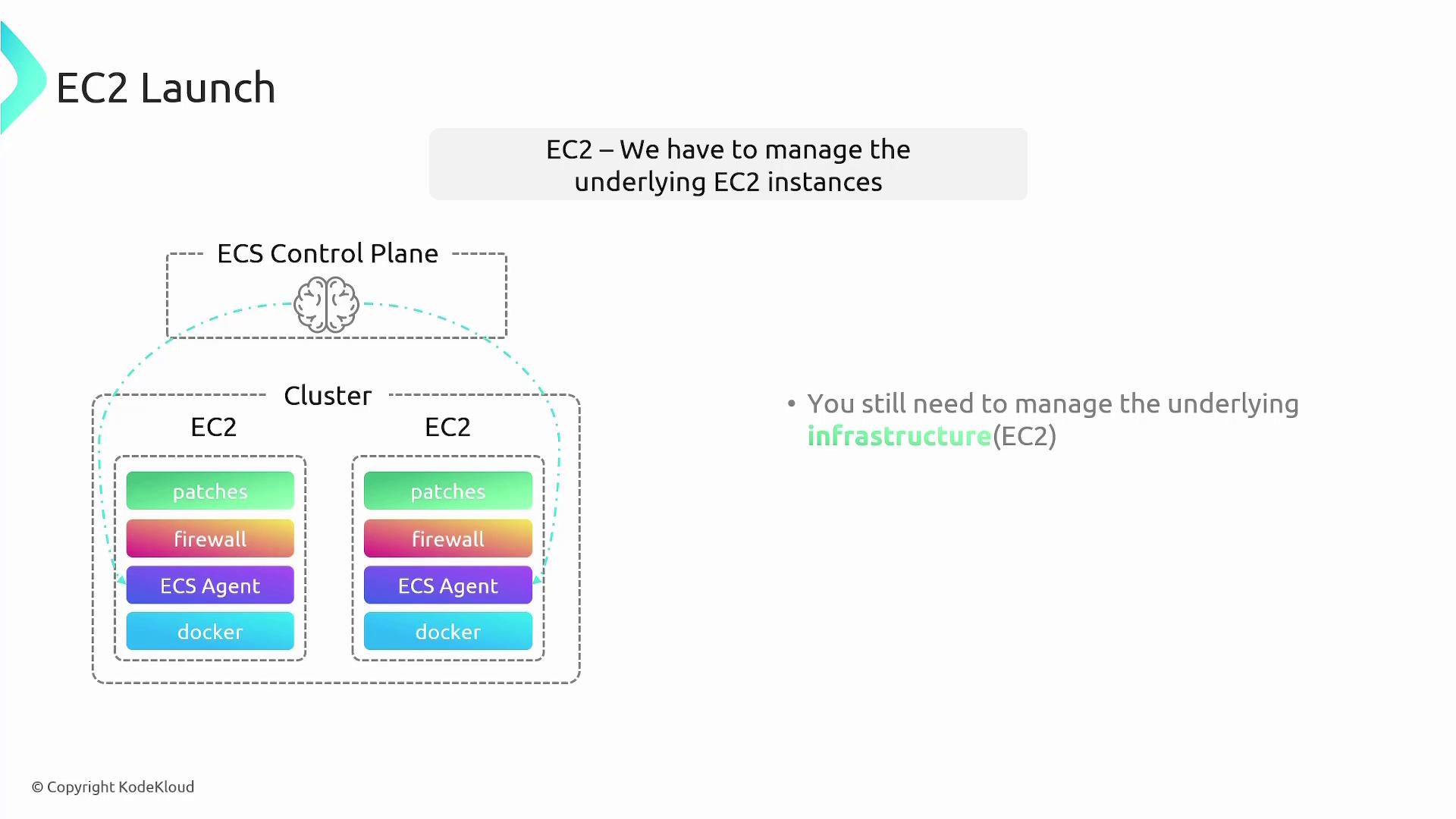

EC2 Launch Type

The EC2 Launch Type requires you to manage the underlying EC2 instances. This includes tasks like:

• Provisioning and configuring EC2 instances
• Installing Docker and the ECS agent for communication with ECS
• Managing firewall and overall security configurations
• Applying patches and updates to maintain secure infrastructure

Once your instances register with the ECS control plane, containers (or tasks) are deployed across them. This method provides granular control over your infrastructure.

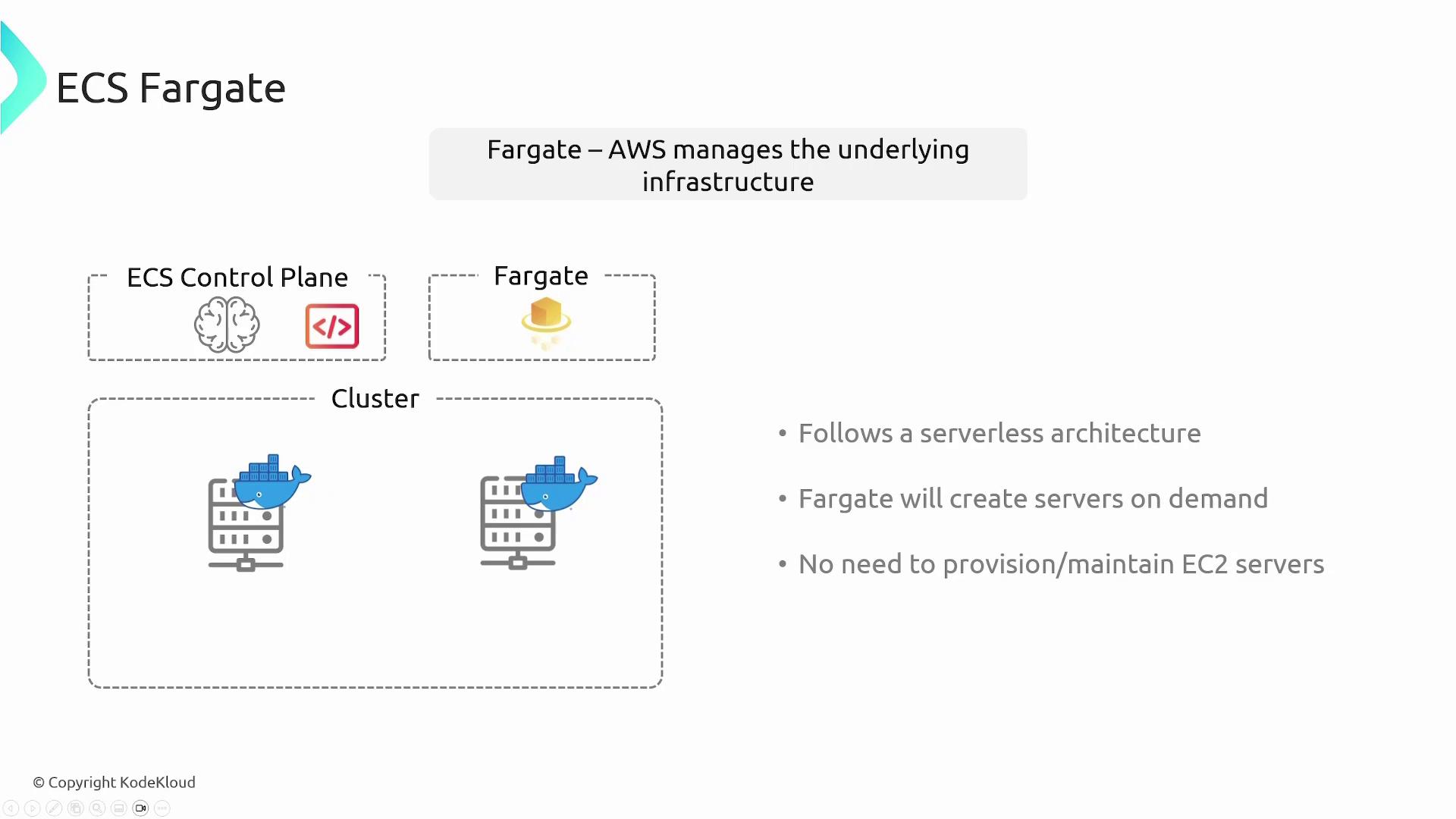

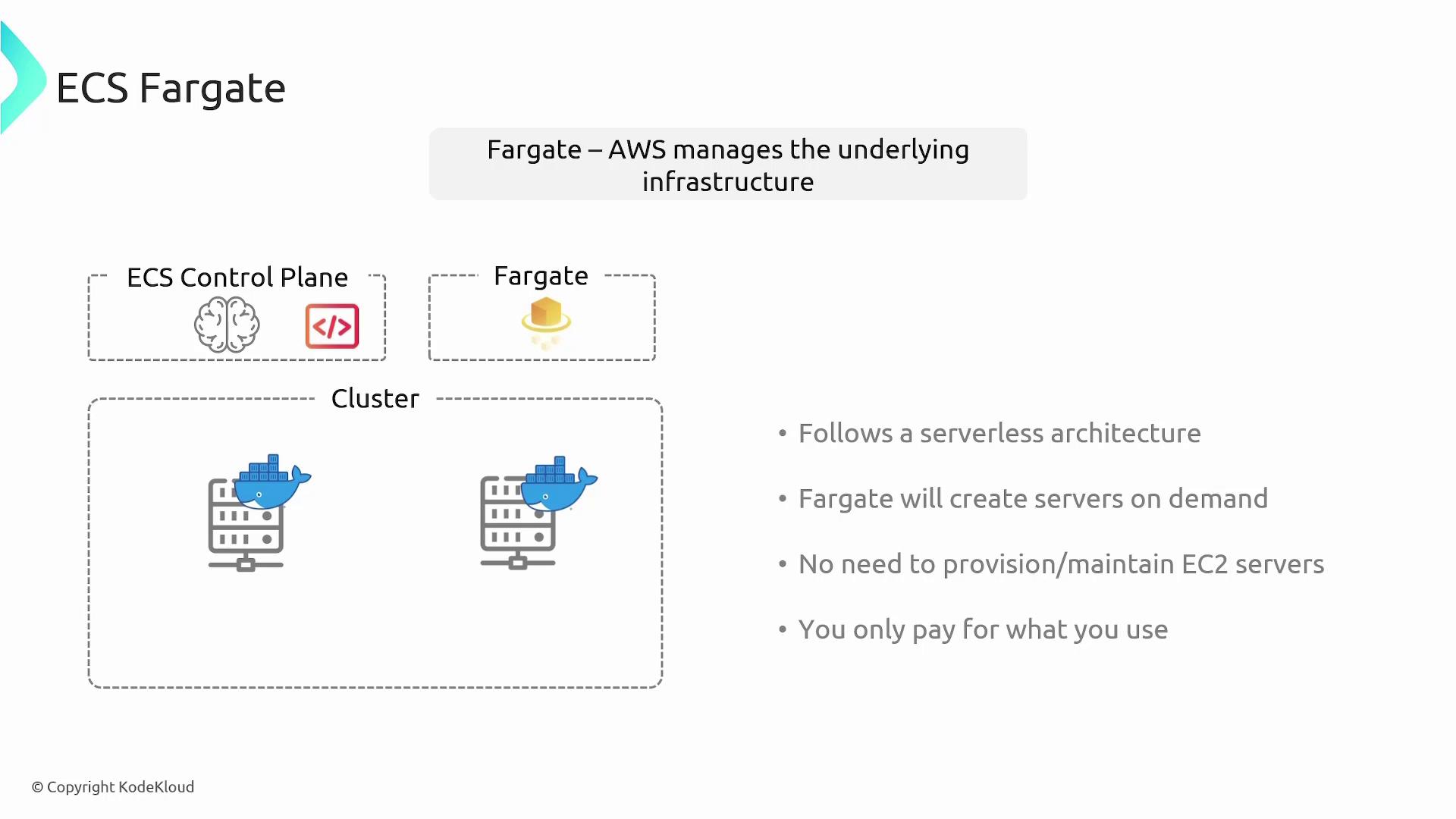

Fargate Launch Type

Fargate, on the other hand, offers a serverless approach where all infrastructure management is handled by AWS. You do not provision or maintain EC2 instances. Simply define your container configuration parameters (such as compute and memory requirements), and Fargate provisions the necessary compute resources on demand. This option follows a pay-as-you-go pricing model, making it cost-efficient.

Once you set your configuration, ECS deploys your container tasks, and you pay only for the compute resources you actively use.

Understanding ECS Tasks and Task Definitions

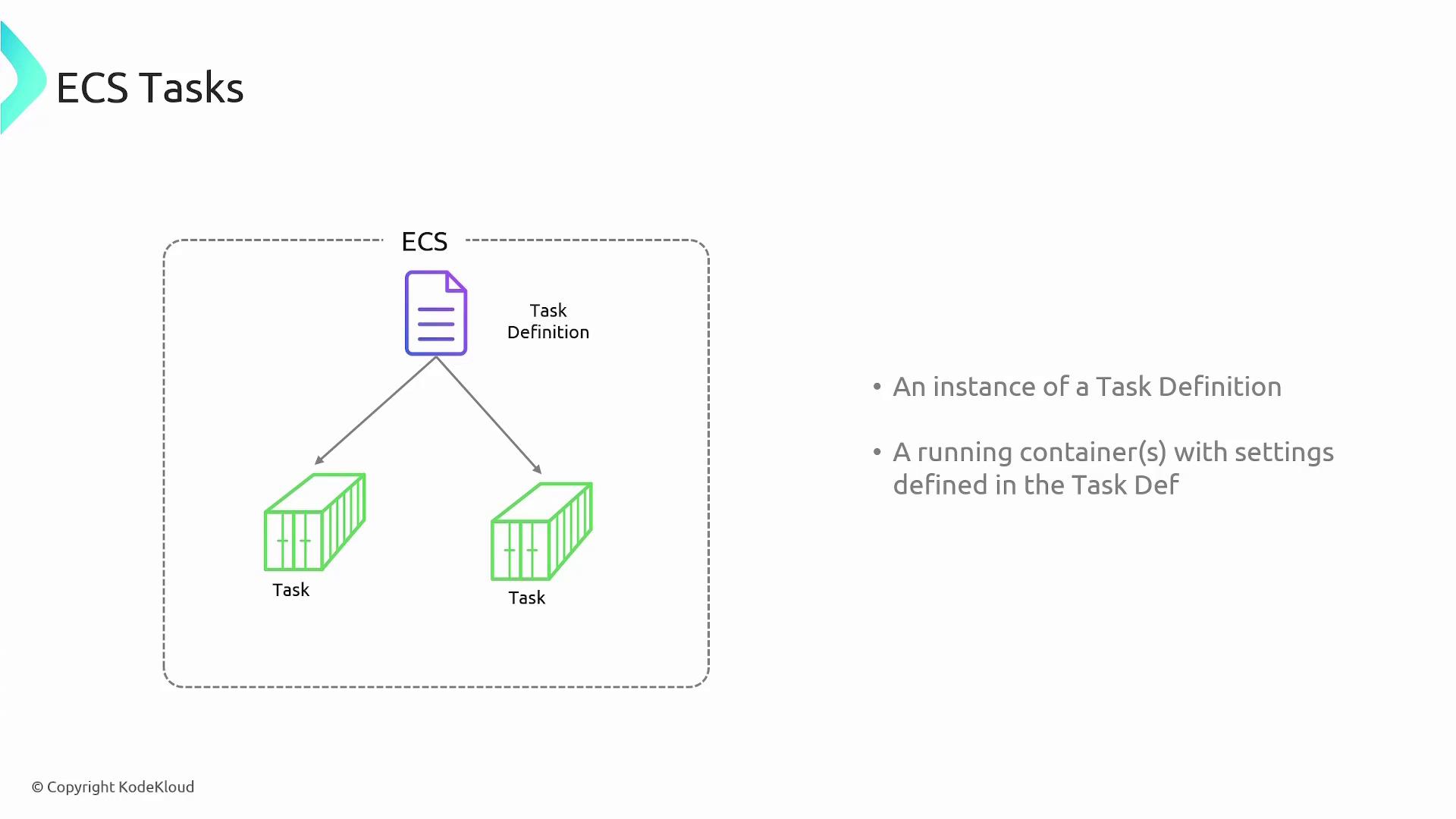

A key concept in ECS is the task, which is an instantiation of a task definition.

Task Definitions

Before running containers on ECS, you first create a Dockerfile for your application, build an image, and upload it to a repository like Docker Hub. To launch this image on ECS, you define a task definition—a blueprint that includes details such as:

• The container image to use
• Memory and CPU allocations
• Port mappings
• Volume configurations
• Dependencies and other container settings

Below is an example YAML snippet that resembles a Docker Compose configuration, outlining what you might include in a task definition:

web:
  image: kodekloud-web
  ports:
    - "8000:5000"
  volumes:
    - .:/code
  depends_on:
    - redis
  deploy:
    resources:
      limits:
        cpus: '0.50'
        memory: 50M

In this example, the task definition serves as a blueprint for launching one or more container tasks.

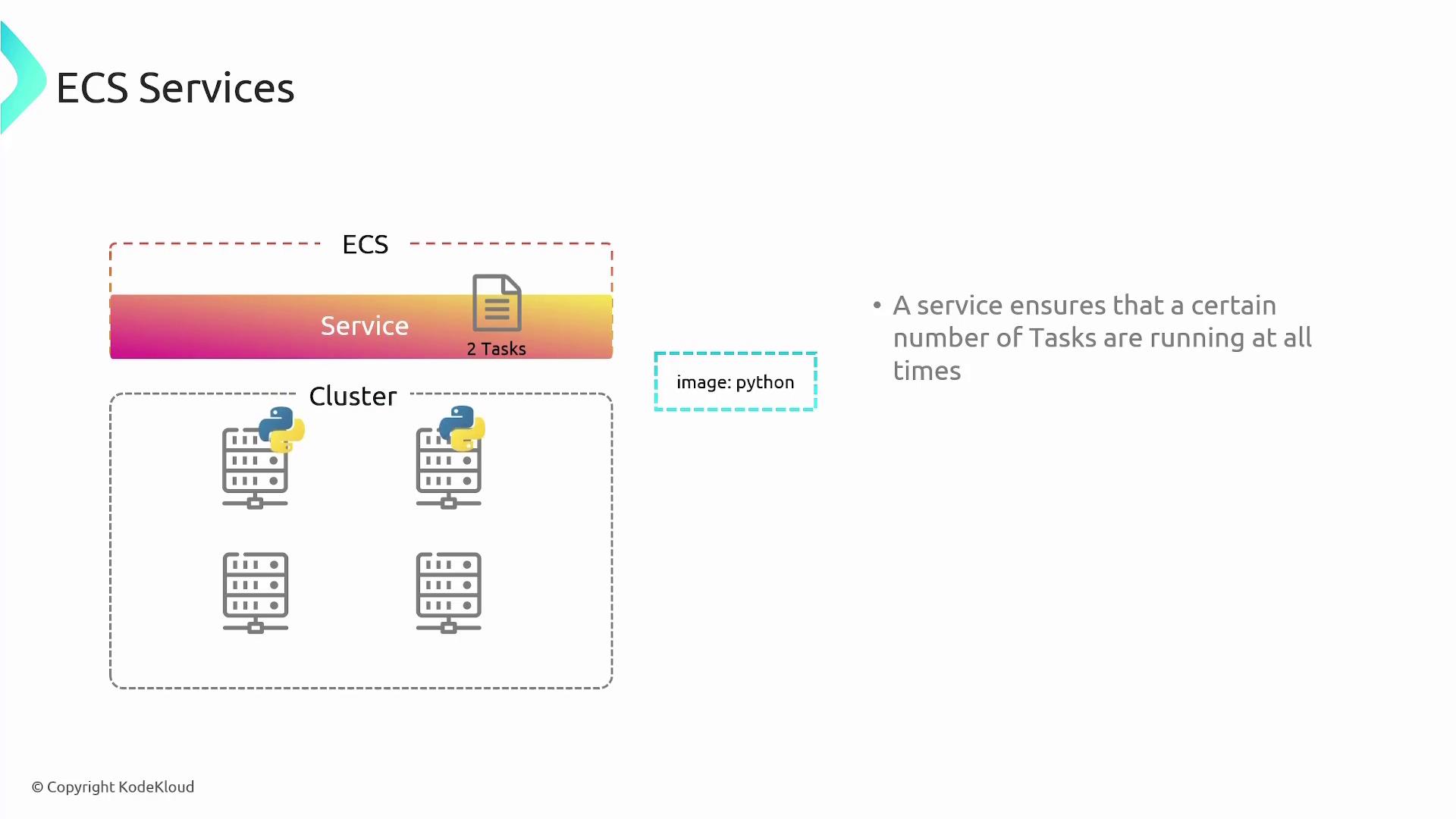

ECS Services

An ECS service ensures that a specified number of tasks (containers) are always running. When you create an ECS service, you associate a task definition with the desired number of instances.

For instance, if you're deploying a Python application, you might define its task and then create a service to maintain two or more instances. If a task fails or if an instance goes down, the service will automatically redeploy it.

Typically, each component of your application (such as the front end, back end, and database) would have its own service to ensure the required number of containers are consistently available.

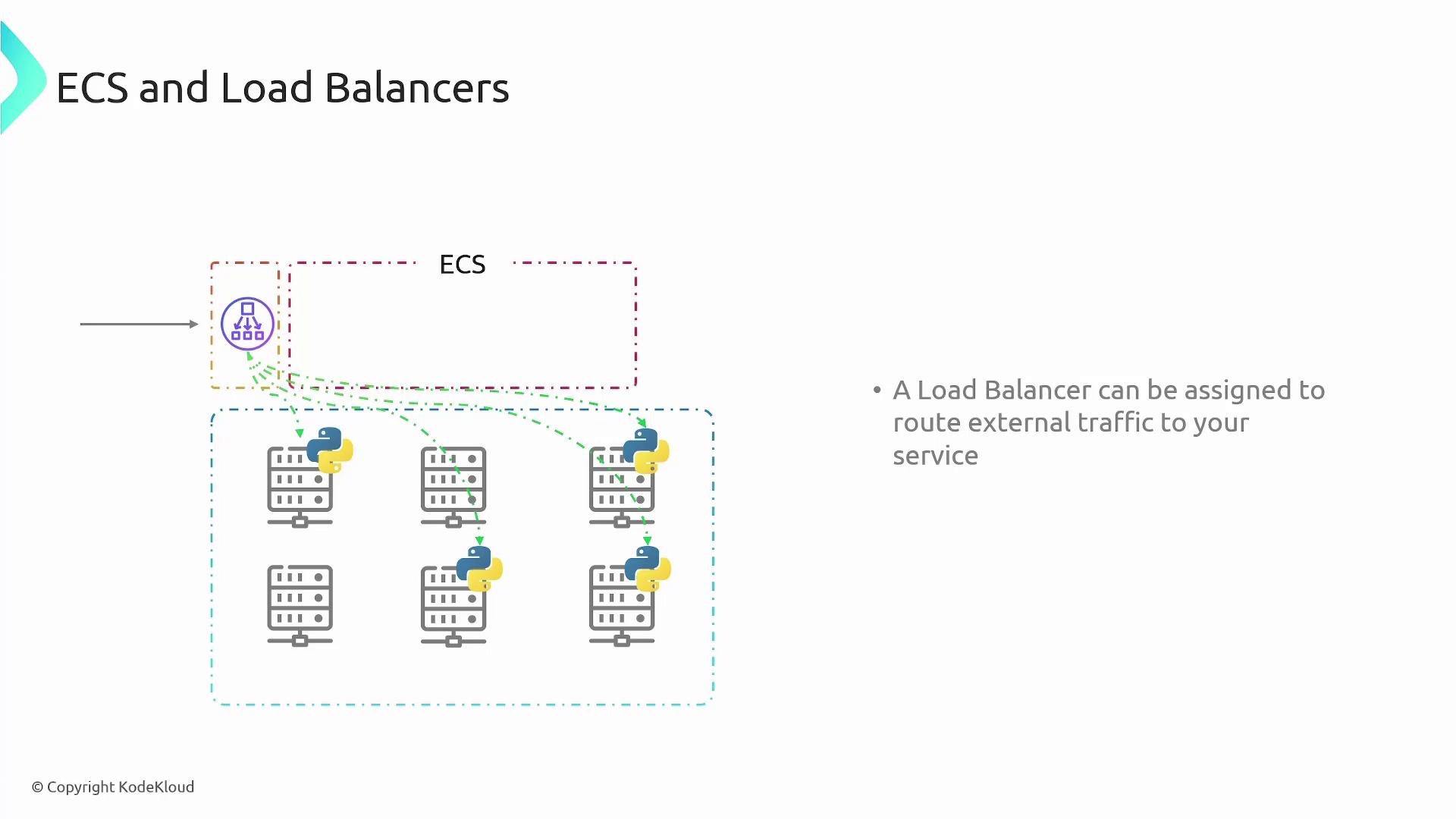

Load Balancers in ECS

Implementing load balancing is essential when deploying multiple container tasks across several hosts. AWS Elastic Load Balancers (ELB) are commonly used to distribute incoming traffic evenly across all available container instances.

The load balancer performs the following functions:

• Receives incoming requests
• Forwards the requests to the appropriate container tasks
• Dynamically adjusts as new containers are added or removed

Although adding a load balancer is optional, it is highly recommended for production environments to ensure high availability and reliability.

This lesson has provided a comprehensive overview of container basics, the challenges associated with containers, and how AWS ECS simplifies container orchestration using both EC2 and Fargate launch types. Additionally, you learned about ECS tasks, task definitions, services, and the critical role of load balancers in managing your containerized applications.
