Demo Deployment Options

Welcome to the first demonstration in our deployment series. In this guide, we provide a comprehensive overview of working with ONNX and the ONNX Runtime. This demonstration will walk you through installing the necessary modules, modifying a pretrained model, exporting it to ONNX format, preparing input for inference, running the inference, and finally mapping the output to a human-readable label.

Installing ONNX and ONNX Runtime

Begin by installing both ONNX and the ONNX Runtime. For this demo, we assume that the required modules are already installed. If you encounter any issues, install the modules using pip and restart your notebook.

# Install the required modules
!pip install onnx onnxruntime

Console output:

Requirement already satisfied: onnx in /root/venv/lib/python3.11/site-packages (1.17.0)
Requirement already satisfied: onnxruntime in /root/venv/lib/python3.11/site-packages (1.20.1)
Requirement already satisfied: numpy>=1.20 in /root/venv/lib/python3.11/site-packages (from onnx) (2.1.1)
Requirement already satisfied: protobuf>=3.20.2 in /root/venv/lib/python3.11/site-packages (from onnx) (5.29.3)
Requirement already satisfied: coloredlogs in /root/venv/lib/python3.11/site-packages (from onnxruntime) (15.0.1)
Requirement already satisfied: flatbuffers in /root/venv/lib/python3.11/site-packages (from onnxruntime) (24.12.23)
Requirement already satisfied: packaging in /root/venv/lib/python3.11/site-packages (from onnxruntime) (24.2)
Requirement already satisfied: sympy in /root/venv/lib/python3.11/site-packages (from onnxruntime) (1.13.3)
Requirement already satisfied: humanfriendly>=9.1 in /root/venv/lib/python3.11/site-packages (from coloredlogs->onnxruntime) (10.0)
Requirement already satisfied: mpmath<1.4,>=1.1.0 in /root/venv/lib/python3.11/site-packages (from sympy->onnxruntime) (1.3.0)

Since all packages are present, we can proceed with the demonstration.

Loading and Modifying the Model

In this section, we import the necessary modules from PyTorch and TorchVision to load and modify a MobileNet V3 Large model. After loading the model with pretrained weights, we adjust the classifier's final layer to output two classes. We then load a checkpoint to restore the model's state.

# Import modules
import torch
import torch.nn as nn
from torchvision import models


# Load the mobilenet_v3_large model with default weights
model = models.mobilenet_v3_large(weights=models.MobileNet_V3_Large_Weights.DEFAULT)


# Modify the last layer for 2 output classes
model.classifier[-1] = nn.Linear(1280, 2)


# Load the model from checkpoint
checkpoint = torch.load('mobilenet_checkpoint.tar', weights_only=True)

Next, we load the state from the checkpoint into the model:

# Load the parameters from the checkpoint
model.load_state_dict(checkpoint['model_state_dict'])

These steps ensure that MobileNet V3 is updated for our classification task with two classes and that the weights are successfully restored.

Exporting the Model to ONNX

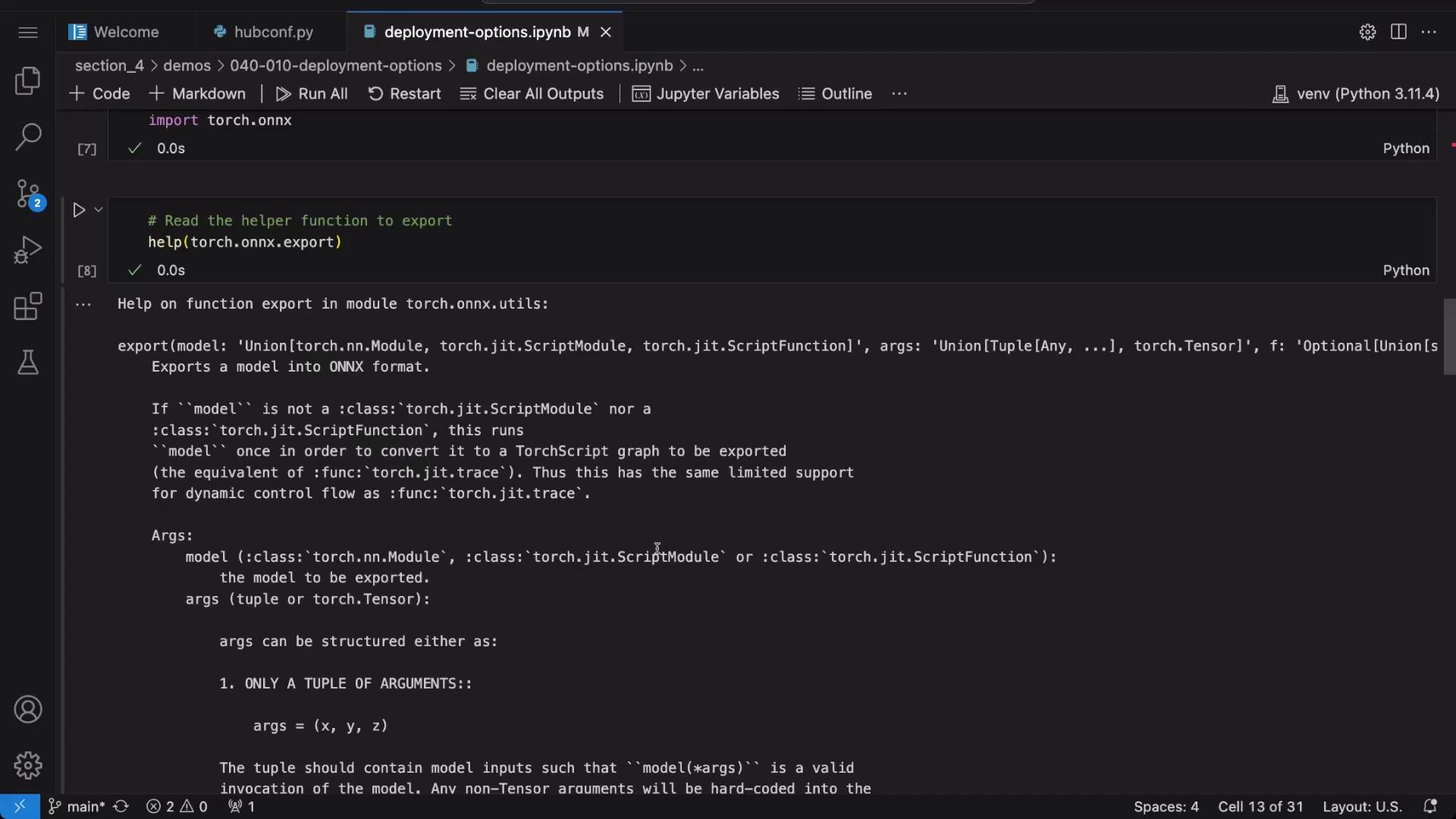

PyTorch offers built-in support to export models to the ONNX format. By using the export function, we define the model's input signature and create an ONNX file. Start by displaying the documentation for torch.onnx.export for available options:

# Import the ONNX export module from PyTorch
import torch.onnx


# Display documentation for torch.onnx.export to see available options
help(torch.onnx.export)


# Create an example input tensor
example_input = torch.randn(1, 3, 224, 224)


# Export the model to an ONNX file
torch.onnx.export(model, example_input, "image_classifier.onnx")

After exporting, verify the correctness of the model by loading and checking the ONNX file:

import onnx


# Load the exported ONNX model
onnx_model = onnx.load("image_classifier.onnx")


# Check the model consistency
print(onnx.checker.check_model(onnx_model))

The export process leverages a dummy input to define the model's signature and generates the "image_classifier.onnx" file for further use.

Examining the Export Process

For clarity, the following example reiterates the export process: preparing an example input, exporting the model, and verifying the exported ONNX model.

# Create an example input
example_input = torch.randn(1, 3, 224, 224)


# Export the model
torch.onnx.export(model, example_input, "image_classifier.onnx")


# Load the model with ONNX and check for consistency
import onnx
onnx_model = onnx.load("image_classifier.onnx")
print(onnx.checker.check_model(onnx_model))

This check confirms that the model is export-consistent and ready for deployment.

Preparing an Image for Inference

Before running inference on the ONNX model, the input image must be preprocessed. This involves resizing, normalizing, and converting the image to a tensor using Pillow and TorchVision transformations. The transformed image is then reshaped to include a batch dimension.

# Import necessary modules for image processing
from PIL import Image
from torchvision.transforms import v2
import torch


transform = v2.Compose([
    v2.Resize((224, 224)),
    v2.ToImage(),
    v2.ToDtype(torch.float32, scale=True),
    v2.Normalize(mean=[0.485, 0.456, 0.406],
                 std=[0.229, 0.224, 0.225])
])


# Open the image using Pillow
image_path = 'sample-input.jpg'
image = Image.open(image_path)


# Apply the transformation to the image
transformed_image = transform(image)
print(transformed_image.shape)


# Add batch dimension: [batch_size, channels, height, width]
transformed_image = transformed_image.unsqueeze(0)
print(transformed_image.shape)

After transforming the image, convert it into a NumPy array to match the input requirements of ONNX Runtime:

import numpy as np


# Convert the transformed image to a NumPy array with type float32
image_np = np.array(transformed_image, dtype=np.float32)

Running Inference with ONNX Runtime

With the ONNX model prepared and the input image transformed, we can perform inference using ONNX Runtime. The process involves loading the model, creating an inference session, and using an input dictionary for the session run.

# Import ONNX Runtime and load the model
import onnxruntime as ort
import onnx


onnx_model = onnx.load("image_classifier.onnx")


# Start an ONNX inference session
session = ort.InferenceSession("image_classifier.onnx")


# Convert the transformed image to a numpy array (if not already done)
import numpy as np
image_np = np.array(transformed_image, dtype=np.float32)

Prepare the input dictionary using the session's first input name and run the inference:

# Prepare the input dictionary for the model
inputs = {session.get_inputs()[0].name: image_np}


# Run the inference on the ONNX model
outputs = session.run(None, inputs)
print(outputs)  # Raw outputs (logits) from the final model layer


# Determine the predicted class by identifying the index with the highest logit
predicted = outputs[0][0].argmax(0)
print(predicted)

The raw outputs represent logits, and applying argmax on these logits provides the index of the predicted class.

Mapping the Prediction to a Label

To present the inference result in a human-friendly format, we associate the numerical prediction with a corresponding class label. Here, the two classes are defined as "malignant" (0) and "benign" (1).

# Get the predicted class index
predicted = outputs[0][0].argmax(0)
print(predicted)


# Define label encoding for the dataset
label_encoding = {"malignant": 0, "benign": 1}


# Create a reverse mapping from indices to labels
index_to_class_map = {v: k for k, v in label_encoding.items()}
print(f"Predicted Class: {index_to_class_map[predicted.item()]}")

Console output:

Predicted Class: benign

This mapping step translates the model’s output into a readable class label.

Conclusion

In this demo, we explored the end-to-end process of working with ONNX and ONNX Runtime. We covered the following steps:

Thank you for reading this demonstration on exporting and using ONNX models for inference in real-world applications.
