Let’s revisit the motherboard to understand how memory and storage cooperate to keep a computer responsive. Think of the CPU as a busy kitchen: without organized workspaces, cooks would spend too much time fetching ingredients from a distant pantry. In computers, memory and storage provide those workspaces so the CPU can process data efficiently. Memory gives the CPU a fast, easily reachable workspace that minimizes the time data spends traveling between the processor and long-term storage. Different memory and storage layers balance speed, capacity, volatility, and cost to meet the system’s needs.

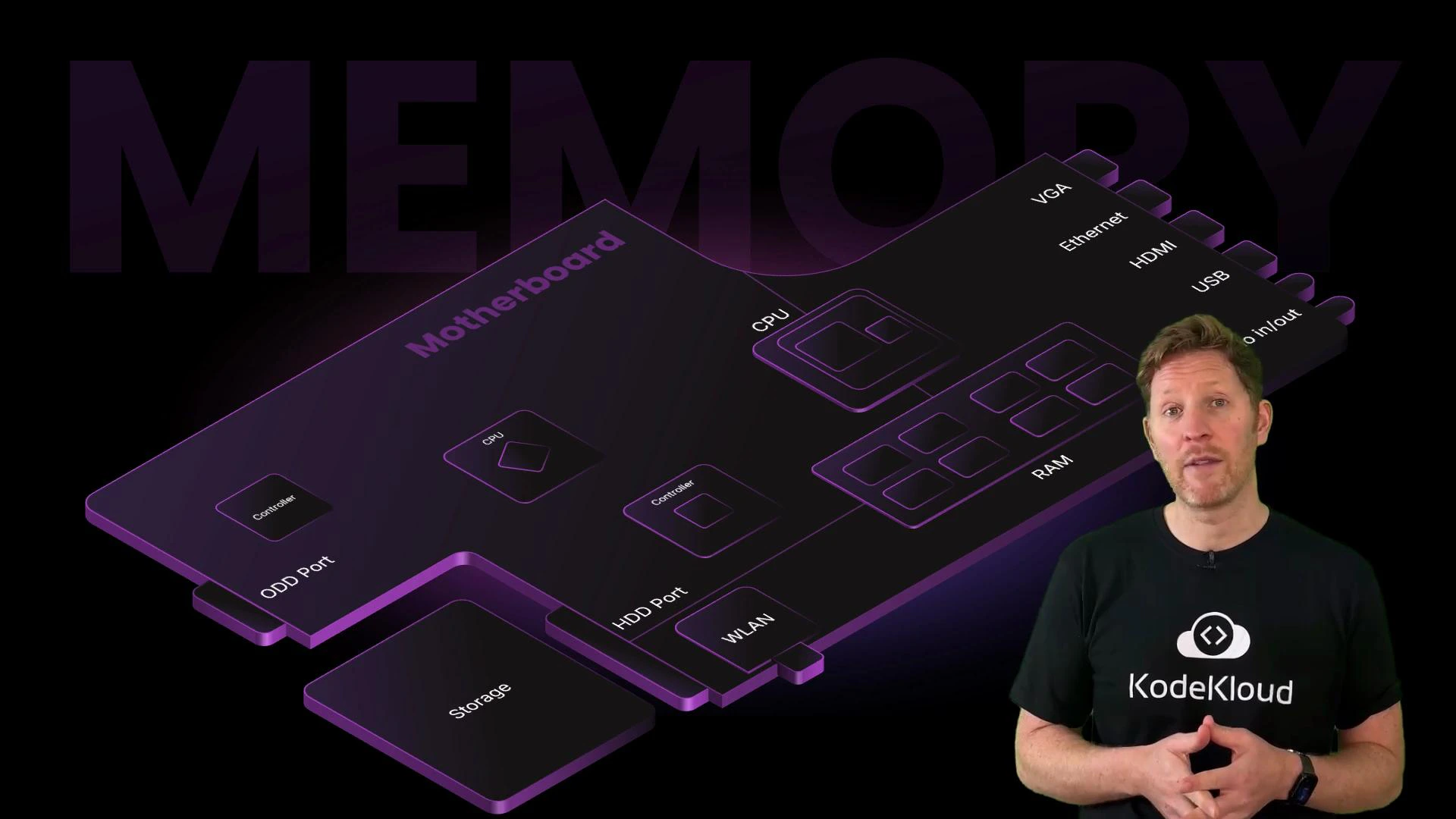

A stylized 3D illustration of a motherboard with labeled components (CPU, RAM, VGA, Ethernet, HDMI, USB, storage, WLAN) on a dark purple background. A man wearing a black KodeKloud t-shirt stands in the foreground speaking.
How data moves: CPU ↔ RAM ↔ Storage
  • The CPU repeatedly fetches data and instructions from storage into RAM, executes or transforms them, and writes results back to storage when needed.
  • Larger RAM lets a system keep more tasks or datasets in the fast workspace at once, improving multitasking and responsiveness.
  • RAM is volatile: its contents are cleared when power is removed—like a worktop that’s wiped clean when the kitchen closes.
Registers and cache: closer to the CPU Registers are the CPU’s smallest, fastest storage elements — like sticky notes on a chef’s hand for the exact value being used right now. Cache memory is slightly larger and slower than registers but much faster than RAM; it stores frequently used data so the CPU spends less time waiting.
  • Cache levels (L1, L2, L3) are arranged by proximity and speed: L1 is fastest and smallest, L3 is larger but slower.
  • More and better cache reduces CPU stalls and improves performance.

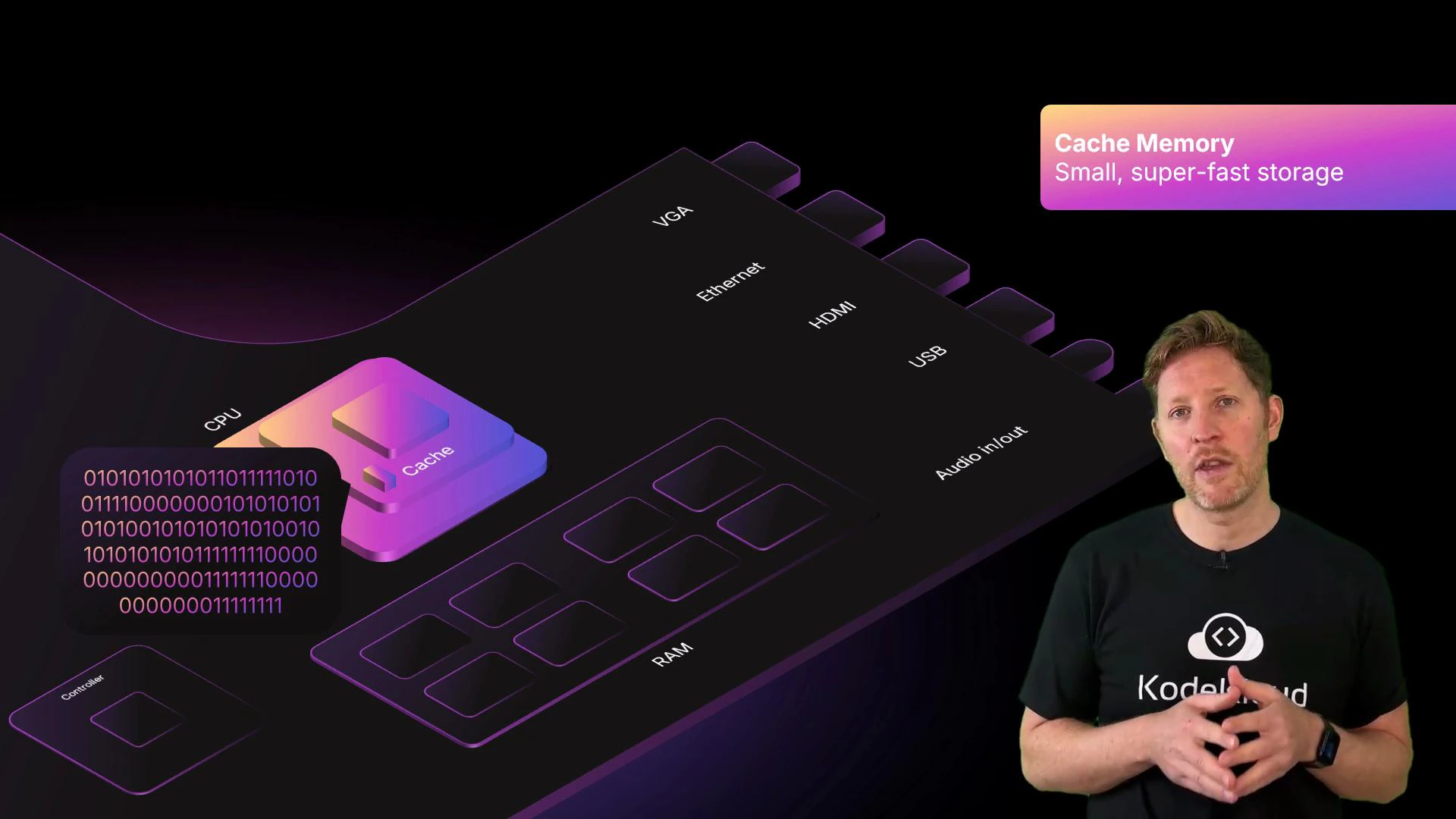

A stylized diagram of computer hardware showing a CPU with cache, RAM blocks, labeled ports and a binary code overlay with a "Cache Memory" caption. A man in a black t‑shirt stands on the right as if presenting the diagram.
Virtual memory: extending RAM with storage When RAM runs out of space, the operating system uses virtual memory (a swap file or pagefile) to extend the working area by moving pages between RAM and storage. This lets more programs run simultaneously but comes at the cost of greatly increased latency.
Virtual memory (swap or pagefile) helps prevent crashes when RAM is exhausted, but performance drops because storage devices are much slower than DRAM.

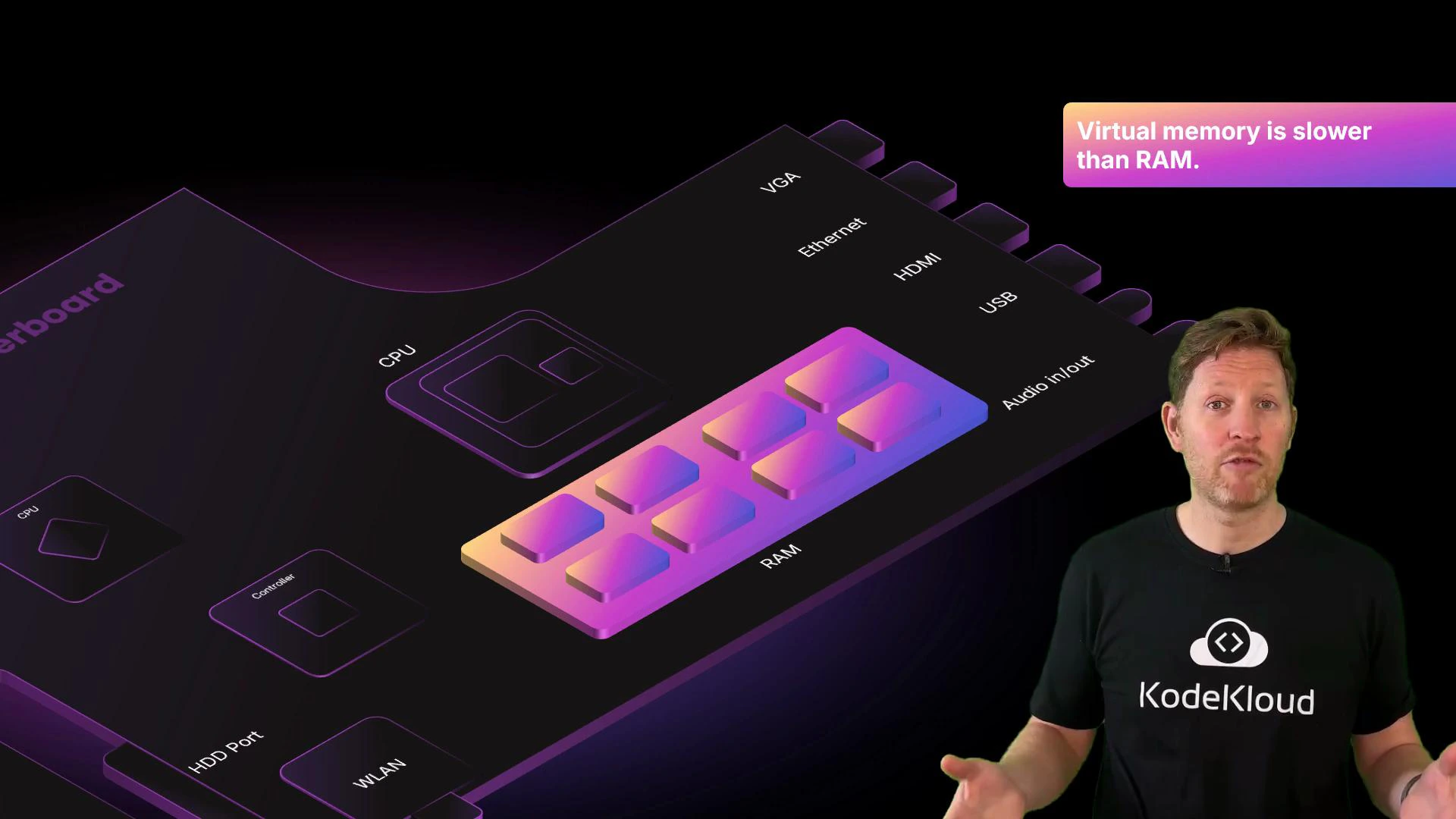

A presenter in a KodeKloud t-shirt stands beside a stylized motherboard diagram labeling parts like CPU, RAM, VGA, Ethernet, HDMI, USB and audio ports. A caption in the corner reads, "Virtual memory is slower than RAM."
ROM: persistent firmware ROM (Read-Only Memory) stores essential startup firmware such as BIOS or UEFI. Unlike RAM, ROM is non-volatile and retains the code needed to initialize hardware every time the system boots—similar to a restaurant’s permanent recipe book.
A presenter wearing a KodeKloud t-shirt stands next to a large laptop graphic whose screen reads "System is." A label in the corner says "ROM (Read‑Only Memory)."
Storage: long-term persistence If RAM is the kitchen worktop, storage is the fridge or pantry—where items are kept until needed. Storage is non-volatile (data survives power loss) but slower than RAM. Typical storage options include SSDs, HDDs, optical media, and remote cloud storage, each offering different combinations of speed, capacity, durability, and cost.

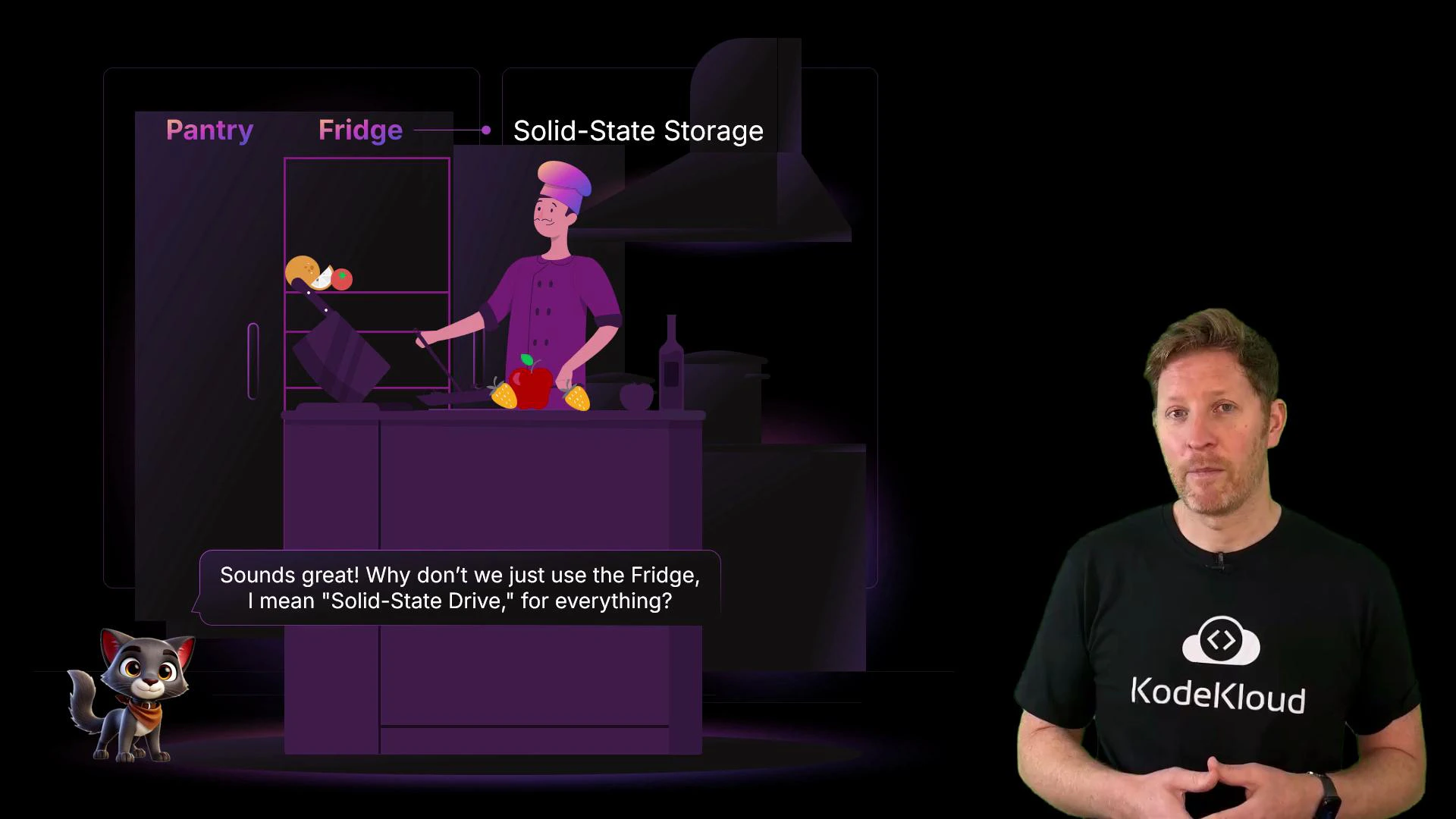

A man wearing a black t-shirt with a KodeKloud logo stands on the right. On the left is a purple cartoon kitchen scene with a chef, a fridge labeled "Solid‑State Storage," a speech bubble about using the fridge/SSD, and a small cartoon cat.
Cloud storage: offsite persistence Cloud storage keeps data remotely and serves it over the Internet. It’s convenient for backup, sharing, and scaling storage needs, but access latency and bandwidth depend on network connectivity.

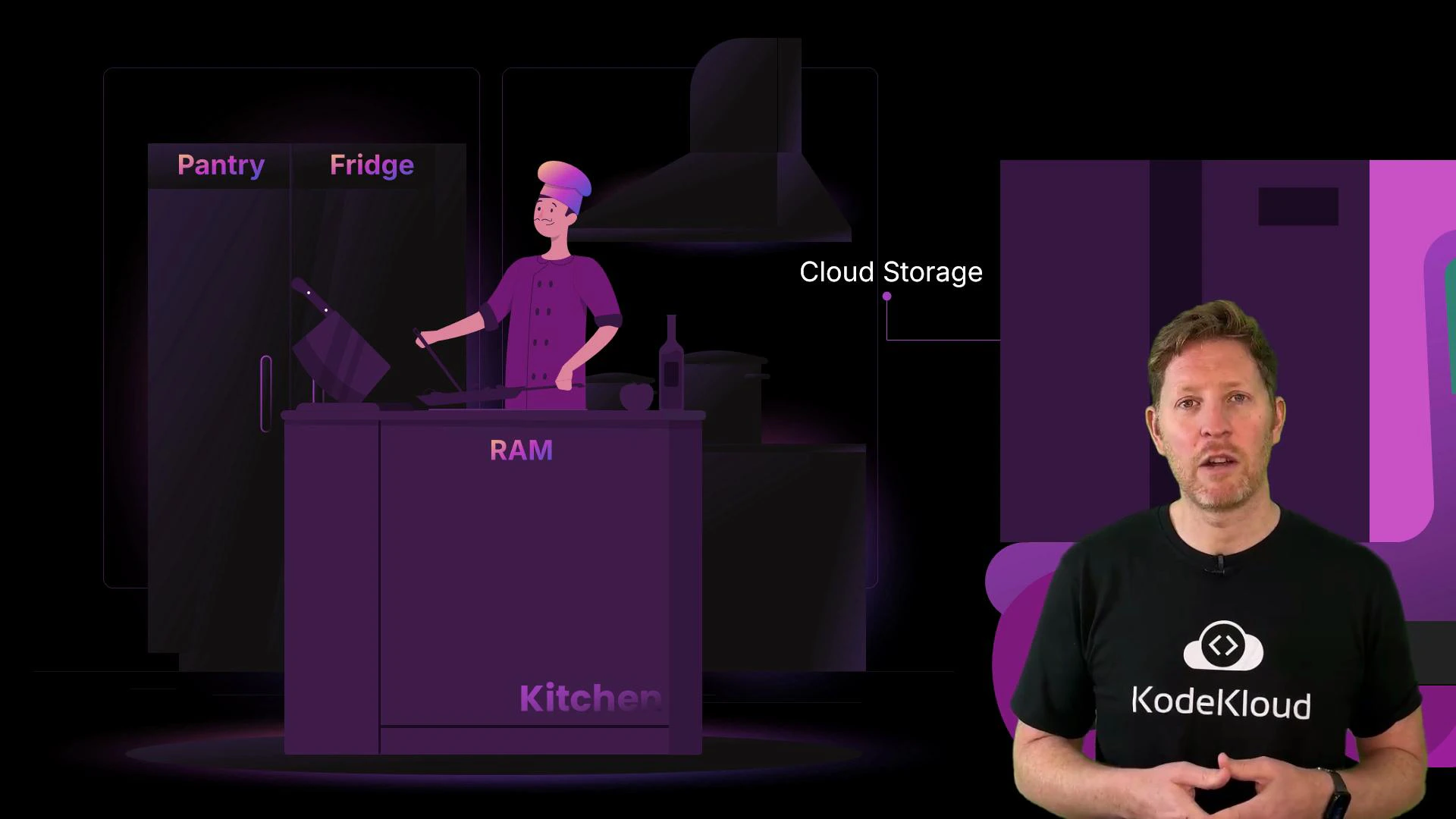

A stylized purple illustration of a kitchen with a chef cooking at a counter labeled "RAM" and cabinets labeled "Pantry" and "Fridge," with a callout reading "Cloud Storage." On the right, a presenter wearing a black KodeKloud t-shirt stands facing the camera.
Demo: the difference between RAM and storage (quick exercise) Before the demo, note this important behavior about unsaved changes:
Unsaved edits exist only in RAM. If you close the editor without saving, those edits are lost even though the file itself persists on storage.
Here’s a brand-new file that doesn’t yet exist on disk. Save it to write its contents to persistent storage (SSD/HDD):
Hello Kody
After saving, the file’s text is written to non-volatile storage. If you add new text but do not save, those changes remain only in RAM. Closing the editor without saving discards the unsaved content; reopening the file will show only the last saved contents from storage.

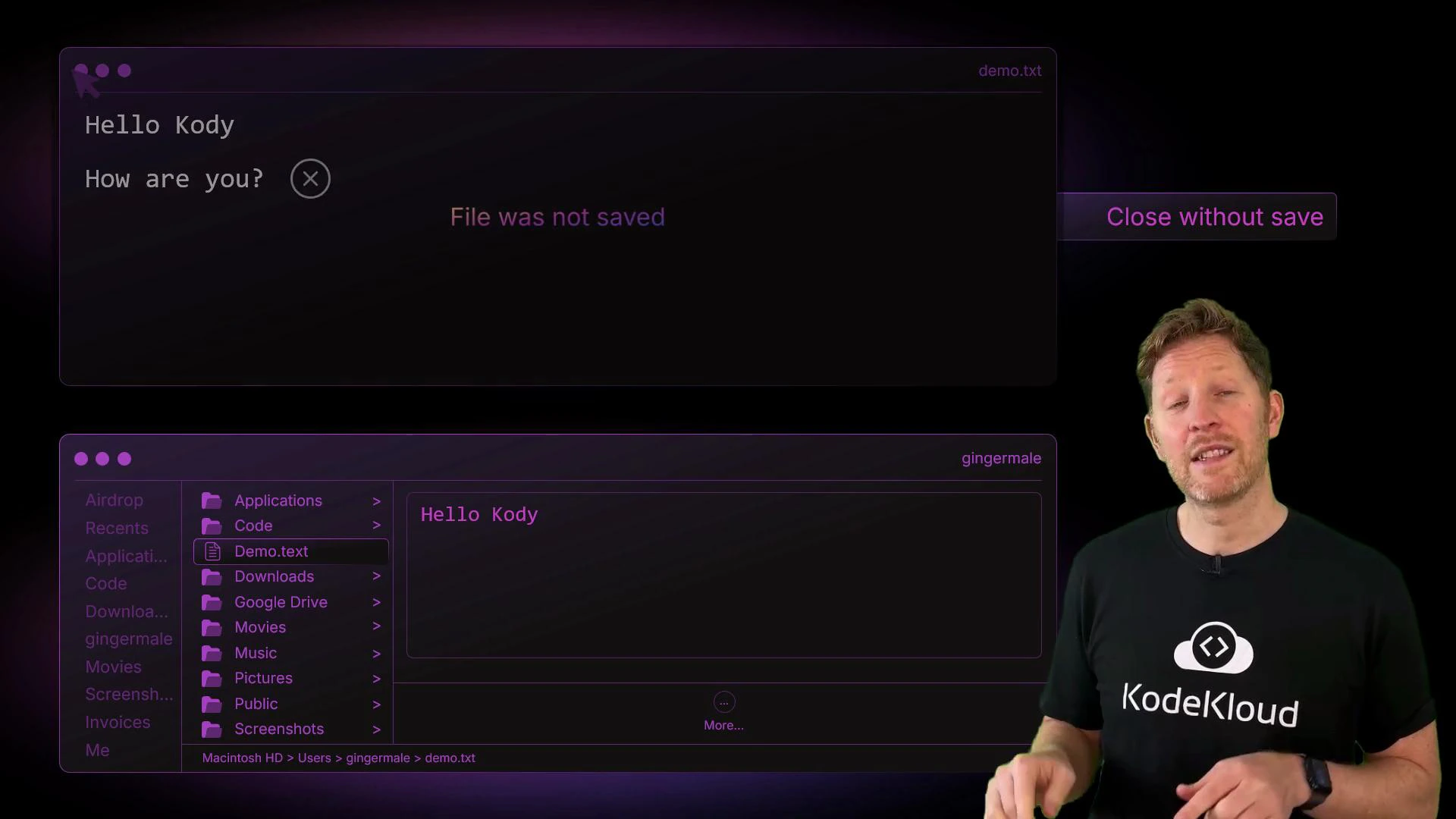

A presenter wearing a KodeKloud t‑shirt stands to the right of two dark-themed computer windows. The screens show a text file with "Hello Kody," a "File was not saved" message, and a "Close without save" button.

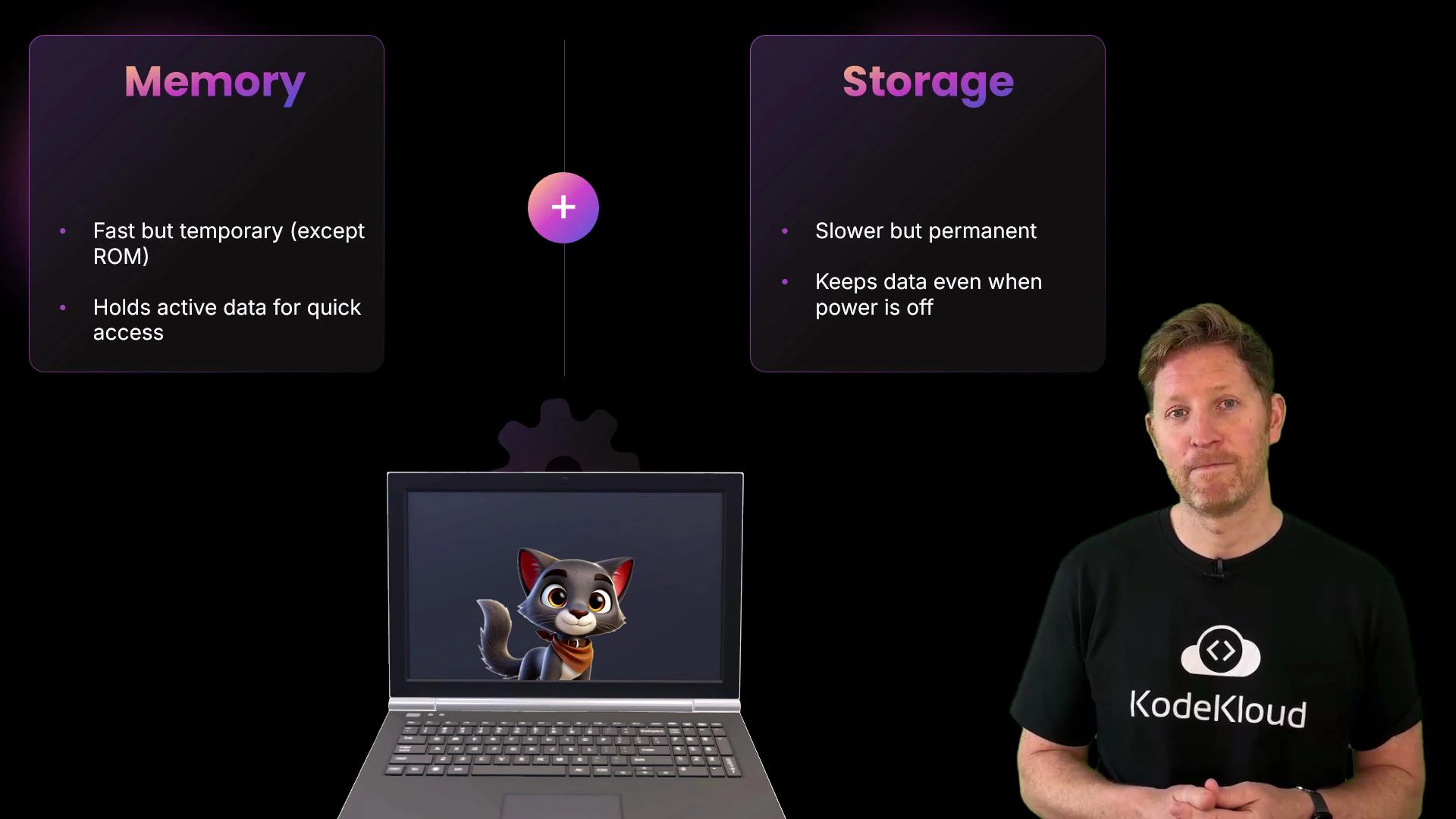

This simple exercise highlights the core distinction: memory (fast, typically volatile) vs. storage (slower, persistent). Recap: key takeaways
A presentation slide comparing "Memory" and "Storage" with bullet points, and a laptop showing a cartoon cat on its screen. A person wearing a KodeKloud T‑shirt stands on the right side of the image.
  • Volatility: RAM and cache are volatile; ROM and storage are non-volatile and retain data when power is off.

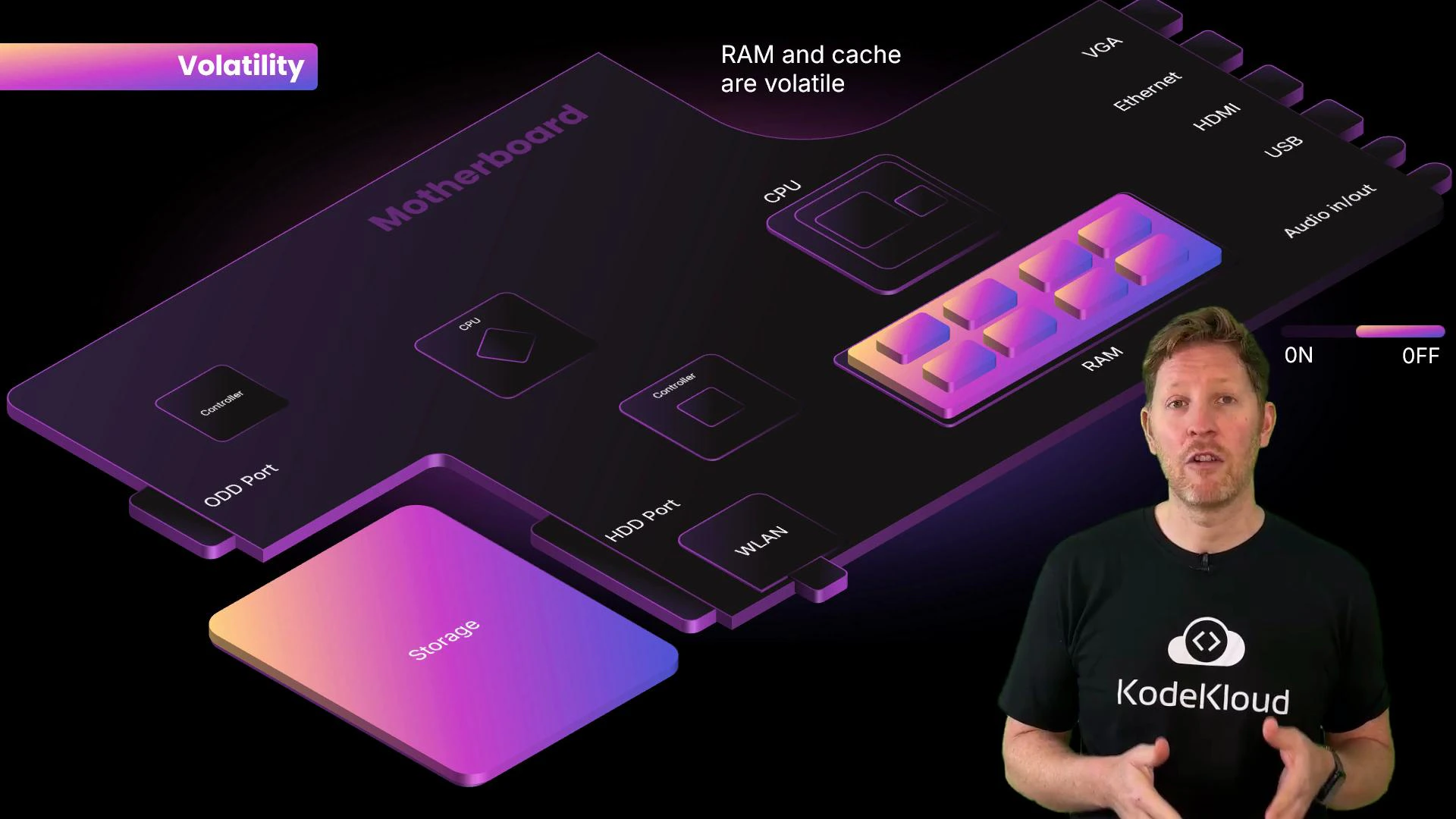

A stylized motherboard illustration labeled "Volatility" showing components like CPU, RAM, storage and various ports, with a note that "RAM and cache are volatile." On the right, a person in a black T-shirt stands in front of the graphic, appearing to explain the diagram.
  • Memory types: registers (fastest and smallest), cache (L1/L2/L3), RAM (main working memory), and ROM (firmware).
  • Storage types: SSDs, HDDs, optical media, and cloud storage — each offers different speed, capacity, durability, and cost trade-offs.
  • Trade-offs: faster memory has lower latency but is more expensive per gigabyte and usually volatile; slower storage is cheaper per gigabyte and persistent, but higher latency means the CPU must wait longer to load data into RAM.
Summary table: memory vs storage
CategoryPurposeExamplesCharacteristics
Memory (volatile)Fast, temporary workspace for CPURegisters, L1/L2/L3 cache, DRAM (RAM)Very low latency, limited capacity, cleared on power loss
Firmware (non-volatile)Startup code & hardware initializationROM, EEPROM, UEFI/BIOS chipsPersistent, small capacity, stores boot instructions
Storage (non-volatile)Long-term data persistenceSSD, HDD, optical media, cloud storageHigher capacity, persistent, higher latency than RAM, cheaper per GB
Links and References Memory provides the speed your CPU needs to stay responsive; storage provides the persistence that keeps your work safe between power cycles. Understanding their roles and trade-offs helps you choose the right hardware and configure systems for better performance and reliability.
