We’re designing a notification system that other services (for example, an order service or refund service) call via a notify endpoint. This notification system is a normal application running on servers — not a black box — and its primary goals are reliability, scalability, and clear visibility into notification state.

​
High-level behavior

  • When the notification API receives a request, it persists the complete notification record in PostgreSQL and marks its status as pending.
  • At that point we must decide who performs the actual sending work: the API process itself (synchronous) or separate worker processes (asynchronous with a queue).

​
Simplest approach — synchronous sending

  • After saving the notification to the database, the server calls external providers directly:
    • Apple Push Notification Service (APNs) for push
    • An SMS gateway for text messages
    • An email provider for email
  • The API waits for each provider’s acceptance/acknowledgement. When providers respond, the server updates the notification status from pending to sent.
This approach is straightforward and works at small scale, but it blocks the API process while waiting for external responses (often hundreds of milliseconds to seconds). Under heavy load (for example, a burst of 1 million notifications) this design will cause the system to fall behind and can exhaust resources.
Synchronous sending ties API capacity to external provider latency. A single slow provider or a crash while sending can produce ambiguous notification states and message loss.

​
Failure scenarios with synchronous design

  • If the notification server crashes mid-send (say, processing notification #2000), some providers may have accepted the payload while others have not. The server cannot reliably know the final outcome for that notification.
  • Blocking on provider responses makes the system fragile to spikes and slow downstreams, and reduces overall throughput and resiliency.

​
Why a queue is the right component

A message queue decouples acceptance (persisting a notification) from delivery (sending to external providers). Benefits:
  • Durable storage of the full notification remains in the database (PostgreSQL).
  • The queue stores a small, transient ticket per notification (typically just the notification ID).
  • Workers pull tickets and perform sending, allowing horizontal scaling and retries.

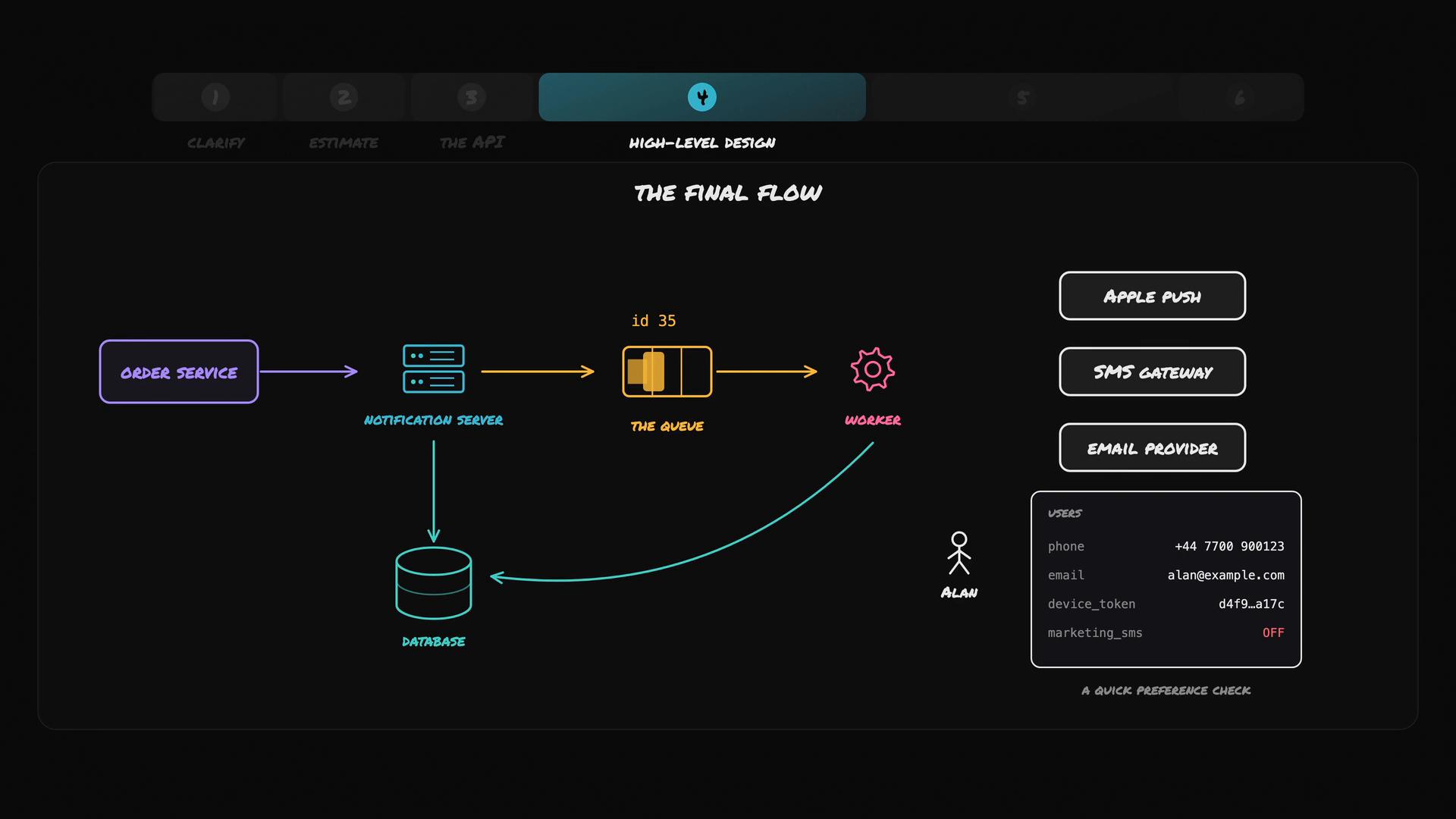

A dark-themed high-level flow diagram showing an Order Service -> Notification Server -> Queue -> Worker path, with a database and external providers (Apple Push, SMS gateway, Email) to the right. A user preference panel labeled "Alan" with phone, email and device token details is also shown.

​
What the queue provides (detailed)

  • Database: the source of truth. Stores full notification body, channels, status, timestamps, retry history.
  • Queue: stores lightweight tickets (e.g., { "notification_id": 35 }) that represent pending work.
  • Workers: read tickets, retrieve the notification from the DB, check contacts and preferences, and then send to external providers.
  • Visibility timeout and retries: if a worker crashes before acknowledging a ticket, the queue detects the lack of acknowledgement and re-queues the ticket (or assigns it to another worker), preventing message loss.
Example ticket payload (what the queue holds):

​
Final flow (with workers)

  1. API receives notification request and persists the full record in PostgreSQL with status pending.
  2. API enqueues a small ticket into the message queue (usually only the notification ID and metadata).
  3. Worker processes consume tickets in parallel:
    • Read the notification_id from the ticket.
    • Fetch the full notification record from the database.
    • Load the recipient’s contact details (device token, phone, email) and notification preferences.
    • Decide which channels to use based on preferences (drop or skip channels if the user opted out).
    • Send to chosen providers (APNs, SMS gateway, email provider).
    • When provider acknowledgements arrive, update the notification status in the database and acknowledge the ticket in the queue so it’s removed.
  4. If a worker crashes before acknowledging, the queue’s visibility timeout ensures the ticket becomes available again so another worker can retry.

​
Concrete example

  • A worker pulls a ticket referencing notification ID 35.
  • It loads notification 35 from PostgreSQL and finds it is addressed to Alan.
  • The worker fetches Alan’s contact details and preferences from the users table (device token, phone number, email).
  • If Alan opted out of marketing SMS and this notification is marketing-related, the worker discards the SMS channel and acknowledges the ticket (no unwanted delivery).
  • Otherwise the worker sends through the appropriate providers and updates the notification status to sent (or failed with retry metadata on transient errors).

​
Comparison: synchronous vs queued (at-a-glance)

​
Implementation notes & best practices

  • Keep the DB as the source of truth; queue tickets should be minimal to reduce queue size and processing overhead.
  • Use idempotent worker behavior so retries do not cause duplicate notifications (store unique provider IDs or use deduplication keys).
  • Persist retry metadata and error reasons in the database for observability and debugging.
  • Respect user preferences and legal requirements (e.g., opt-outs, regional restrictions) in workers before sending.
  • Choose a queue system that supports visibility timeouts and dead-letter queues (DLQs) for non-recoverable failures.
Using a message queue decouples acceptance from delivery: the API accepts requests quickly, workers reliably deliver notifications later, and the system gains retries, visibility timeouts, and horizontal scaling without losing messages when workers fail.
