EC2 User data

In this lesson we cover EC2 user data: what it is, when and how it runs, and practical examples for bootstrapping instances automatically. When you launch an Amazon EC2 instance you can supply “user data”: a script or set of instructions that the instance executes during its initial boot. This is useful for one-time setup tasks such as installing packages, pulling configuration, bootstrapping services, or writing files so the instance is immediately ready to serve traffic.

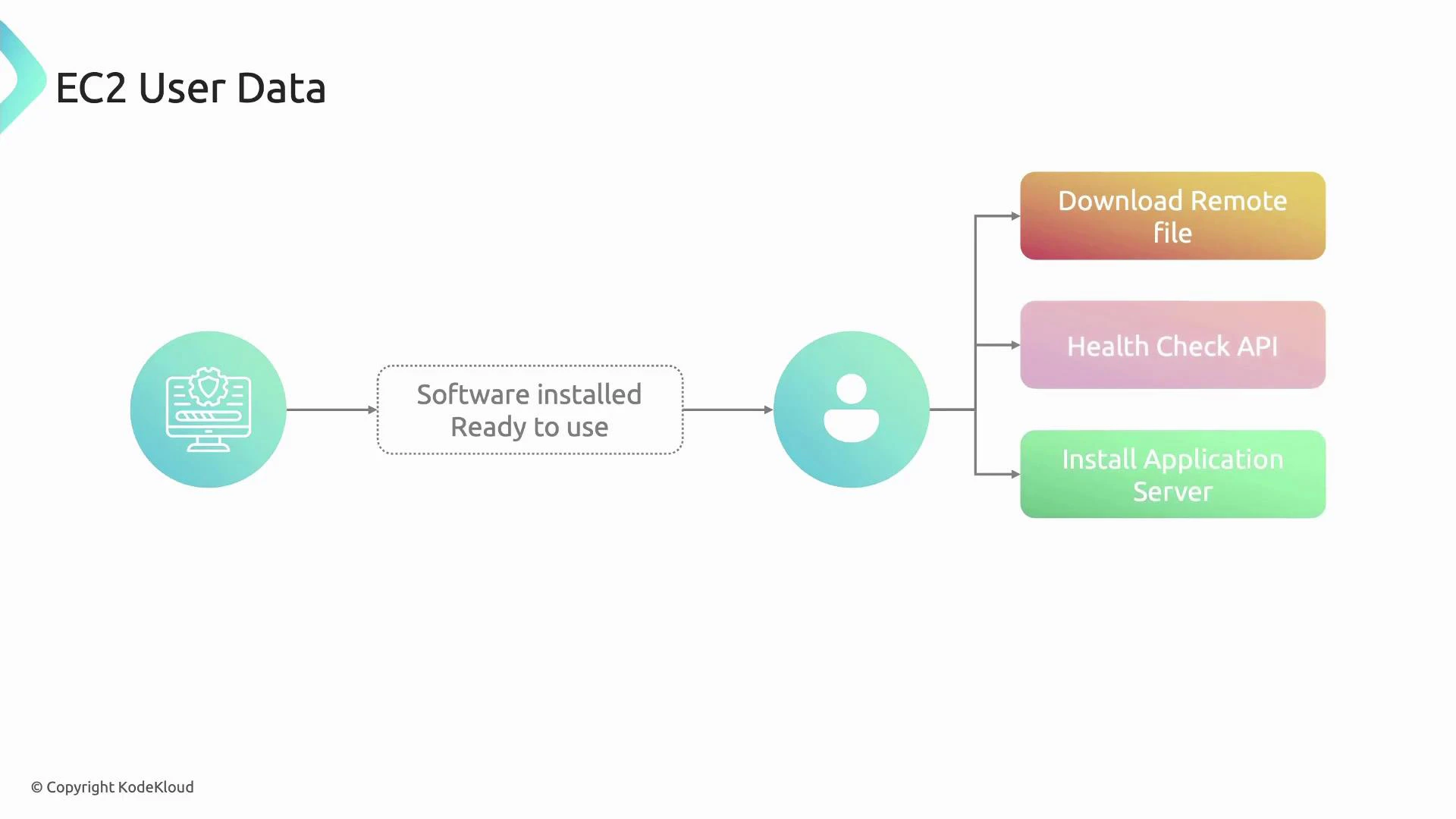

A slide titled "EC2 User Data" showing a flow from a computer icon to a "Software installed — Ready to use" box and then to a user icon that branches into three tasks: "Download Remote file", "Health Check API", and "Install Application Server."

What user data does and important constraints

User data is delivered to the instance at launch and interpreted by the instance (for example cloud-init on Linux or EC2Launch/EC2Config on Windows). EC2 treats the payload as opaque — it does not examine or validate the contents.
The raw (pre-Base64) user data size limit is 16 KB.
When launching via the AWS Console you can paste plain text; the console Base64-encodes it for you. When calling EC2 APIs or using SDKs, callers typically must provide Base64-encoded user data.
When retrieved from the instance metadata service it is returned in decoded (human-readable) form. Some EC2 API responses (e.g., DescribeInstanceAttribute/UserData) return Base64-encoded user data that you must decode.

Summary table: common behaviors and their impact

Behavior / Constraint	What it means	Notes / Action
Runs only on initial launch	User data executes during the instance’s first boot	For recurring boots, put scripts in per-boot hooks (cloud-init per-boot, systemd services, or OS-specific startup scripts)
Changing user data after creation	Modifying user data on a stopped instance does not cause it to run on next start	To apply new configuration, run scripts manually or bake new AMIs
Encoding requirements	Console handles Base64; API/SDK may require Base64 input	Check your SDK/CLI docs — AWS CLI or SDKs often accept plain text and encode for you, but the raw EC2 API expects Base64
Size limit	16 KB raw	Keep bootstrapping lightweight or use remote artifact downloads
Retrieval formats	Metadata service returns decoded text; some API responses return Base64	Decode API responses before use

User data is best for one-time bootstrapping: installing packages, placing configuration files, registering with a service, or making the instance ready for traffic. For recurring or per-boot tasks, use cloud-init per-boot hooks, OS startup scripts, or configuration management tools like Ansible, Chef, or Puppet.

Example: a minimal Linux user data script

The following example updates packages, installs and starts Apache (httpd), ensures it is enabled at boot, and writes a simple index page. This is suitable for Amazon Linux/CentOS-based images that use yum and systemd:

#!/bin/bash
# Update packages, install and start Apache (Amazon Linux/CentOS style)
yum update -y
yum install -y httpd
systemctl enable httpd
systemctl start httpd

# Write a simple web page
echo "Hello from $(hostname -f)" > /var/www/html/index.html

How to view user data from inside an instance

IMDSv1 (not recommended for new deployments):

curl http://169.254.169.254/latest/user-data

IMDSv2 (recommended — requires a session token):

TOKEN=$(curl -X PUT "http://169.254.169.254/latest/api/token" \
  -H "X-aws-ec2-metadata-token-ttl-seconds: 21600")
curl -H "X-aws-ec2-metadata-token: $TOKEN" \
  http://169.254.169.254/latest/user-data

Retrieve user data via the AWS CLI

Many EC2 API outputs provide the user data Base64-encoded; decode it after retrieval:

# Describe the instance attribute (userData) and decode the Base64 value
aws ec2 describe-instance-attribute \
  --instance-id i-0123456789abcdef0 \
  --attribute userData \
  --query 'UserData.Value' \
  --output text | base64 --decode

User data execution differs by OS and AMI:

Linux AMIs: usually processed by cloud-init (which supports multiple formats and modules).
Windows AMIs: processed by EC2Config or EC2Launch. If you require a script to run on every boot, configure the appropriate per-boot mechanism (cloud-init per-boot hooks, systemd units, or Windows Scheduled Tasks/Startup scripts) rather than relying on the one-time user data execution.

Links and references

AWS EC2 user data and metadata: https://docs.aws.amazon.com/AWSEC2/latest/UserGuide/ec2-instance-metadata.html
cloud-init documentation: https://cloud-init.io/
IMDSv2 (Instance Metadata Service Version 2): https://docs.aws.amazon.com/AWSEC2/latest/UserGuide/configuring-instance-metadata-service.html
AWS CLI: https://docs.aws.amazon.com/cli/latest/userguide/cli-chap-welcome.html
