Lambda Function Construct

This guide shows how to encapsulate AWS Lambda deployment logic into a reusable CDKTF construct. The construct creates an IAM role, attaches the managed policy required for CloudWatch logging, and provisions the Lambda function. It also demonstrates two packaging approaches for the function code: a simple execSync demo (not recommended) and the recommended TerraformAsset approach, which allows CDKTF/Terraform to detect code changes and redeploy automatically.

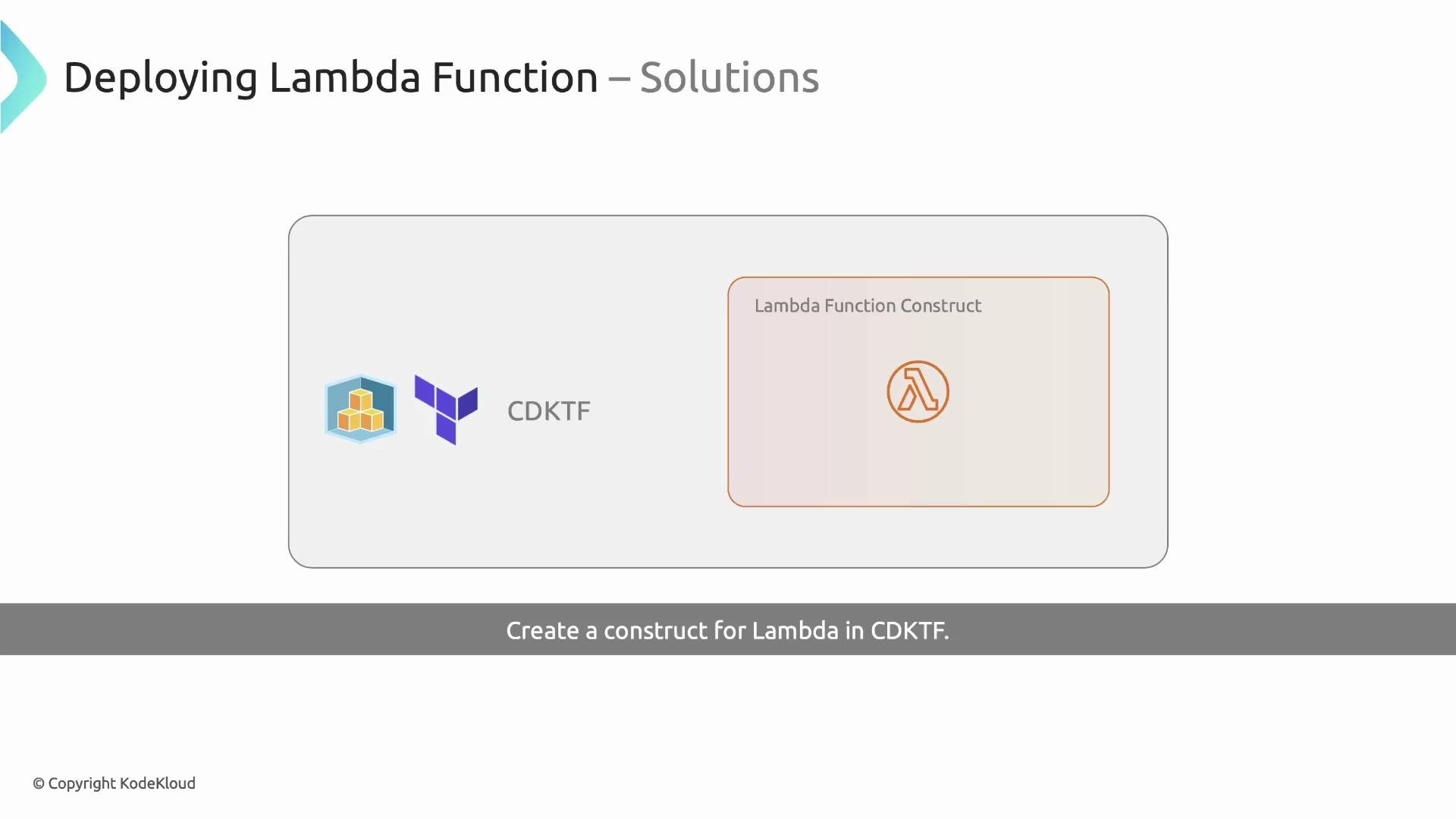

A presentation slide titled "Deploying Lambda Function – Solutions" showing CDKTF and AWS icons alongside a highlighted "Lambda Function Construct" box. A footer reads "Create a construct for Lambda in CDKTF."

Create the Lambda construct file

Name the file according to the class (for example constructs/LambdaFunction.ts). The construct:

Accepts configuration props (e.g. functionName, bundle, and other Lambda-specific options).
Creates an IAM role with an assume-role policy for Lambda.
Attaches the AWS managed policy AWSLambdaBasicExecutionRole so the function can write logs to CloudWatch.
Packages the function code and configures the Lambda resource with the produced archive.

Key design decisions:

Omit role and filename from public props so the construct fully controls the execution role and packaging artifact.
Provide a bundle prop that points to the directory containing the function code (for packaging).

Below is a consolidated TypeScript implementation that follows these rules and demonstrates the recommended TerraformAsset approach (plus an execSync example shown but commented out):

// constructs/LambdaFunction.ts
import { iamRole, iamRolePolicyAttachment, lambdaFunction } from '@cdktf/provider-aws';
import { LambdaFunctionConfig } from '@cdktf/provider-aws/lib/lambda-function';
import { AssetType, TerraformAsset } from 'cdktf';
import { execSync } from 'child_process';
import { Construct } from 'constructs';
import * as path from 'path';

// Prevent callers from specifying `role` and `filename` directly.
// We'll supply `role` and compute `filename` inside the construct.
interface LambdaFunctionProps extends Omit<LambdaFunctionConfig, 'role' | 'filename'> {
  bundle: string;         // path to folder containing function code (for packaging)
  functionName: string;   // logical function name
}

export class LambdaFunction extends Construct {
  public readonly lambdaFunction: lambdaFunction.LambdaFunction;

  constructor(scope: Construct, id: string, { functionName, bundle, ...rest }: LambdaFunctionProps) {
    super(scope, id);

    // Option A: simple execSync packaging (demonstration only)
    // WARNING: this approach runs at synth time and CDKTF/Terraform won't track changes reliably.
    // const filename = path.join(process.env.INIT_CWD!, `./out/${bundle}.zip`);
    // execSync(`rm -rf ./out && mkdir -p ./out && cd ${bundle} && zip -r ${filename} .`, {
    //   cwd: process.env.INIT_CWD!,
    // });

    // Option B: recommended - use TerraformAsset to package and make CDKTF aware of changes
    const asset = new TerraformAsset(this, 'lambda-asset', {
      path: path.join(process.env.INIT_CWD!, bundle),
      type: AssetType.ARCHIVE,
    });

    // Create IAM role for Lambda
    const lambdaRole = new iamRole.IamRole(this, 'lambda-execution-role', {
      name: `${functionName}-execution-role`,
      assumeRolePolicy: JSON.stringify({
        Version: '2012-10-17',
        Statement: [
          {
            Effect: 'Allow',
            Principal: {
              Service: 'lambda.amazonaws.com',
            },
            Action: 'sts:AssumeRole',
          },
        ],
      }),
    });

    // Attach managed policy for basic Lambda execution (CloudWatch logs)
    new iamRolePolicyAttachment.IamRolePolicyAttachment(this, 'LambdaExecutionRolePolicy', {
      role: lambdaRole.name,
      policyArn: 'arn:aws:iam::aws:policy/service-role/AWSLambdaBasicExecutionRole',
    });

    // Create the Lambda function resource using the packaged asset
    // The Lambda resource expects the `filename` to be the path to the archive artifact produced by TerraformAsset.
    this.lambdaFunction = new lambdaFunction.LambdaFunction(this, 'lambda-function', {
      functionName,
      role: lambdaRole.arn,
      runtime: 'nodejs18.x',
      timeout: 30,
      filename: asset.path, // TerraformAsset makes the archive available here
      ...rest, // forward any remaining LambdaFunctionConfig props (handler, environment, etc.)
    });
  }
}

We deliberately omit role and filename from the public props so the construct controls them. Callers can still override other Lambda properties (for example timeout or handler).

Using the construct in your stack

Instantiate the construct in your stack and pass the bundle directory (the folder that contains your function code) along with handler and optional overrides:

// main.ts
import { Construct } from 'constructs';
import { App, TerraformStack, TerraformOutput } from 'cdktf';
import { provider } from '@cdktf/provider-aws';
import { LambdaFunction } from './constructs/LambdaFunction';

class MyStack extends TerraformStack {
  constructor(scope: Construct, id: string) {
    super(scope, id);

    new provider.AwsProvider(this, 'aws-provider', {
      region: 'us-east-1',
    });

    new LambdaFunction(this, 'lambda-function', {
      functionName: 'cdktf-name-picker-api',
      bundle: './function-name-picker', // folder containing index.js
      handler: 'index.handler',
      timeout: 40, // optional override
    });

    new TerraformOutput(this, 'lets-go', { value: 'lets go!' });
  }
}

const app = new App();
new MyStack(app, 'cdktf-name-picker');
app.synth();

Tips:

bundle should be a path relative to your project root (often process.env.INIT_CWD is used inside the construct).
Provide handler in the usual file.exports format (e.g. index.handler).

Verify the Lambda in the AWS Console

After yarn deploy (or your deployment command), you should see the Lambda function with its role and attached policy in the AWS Lambda console.

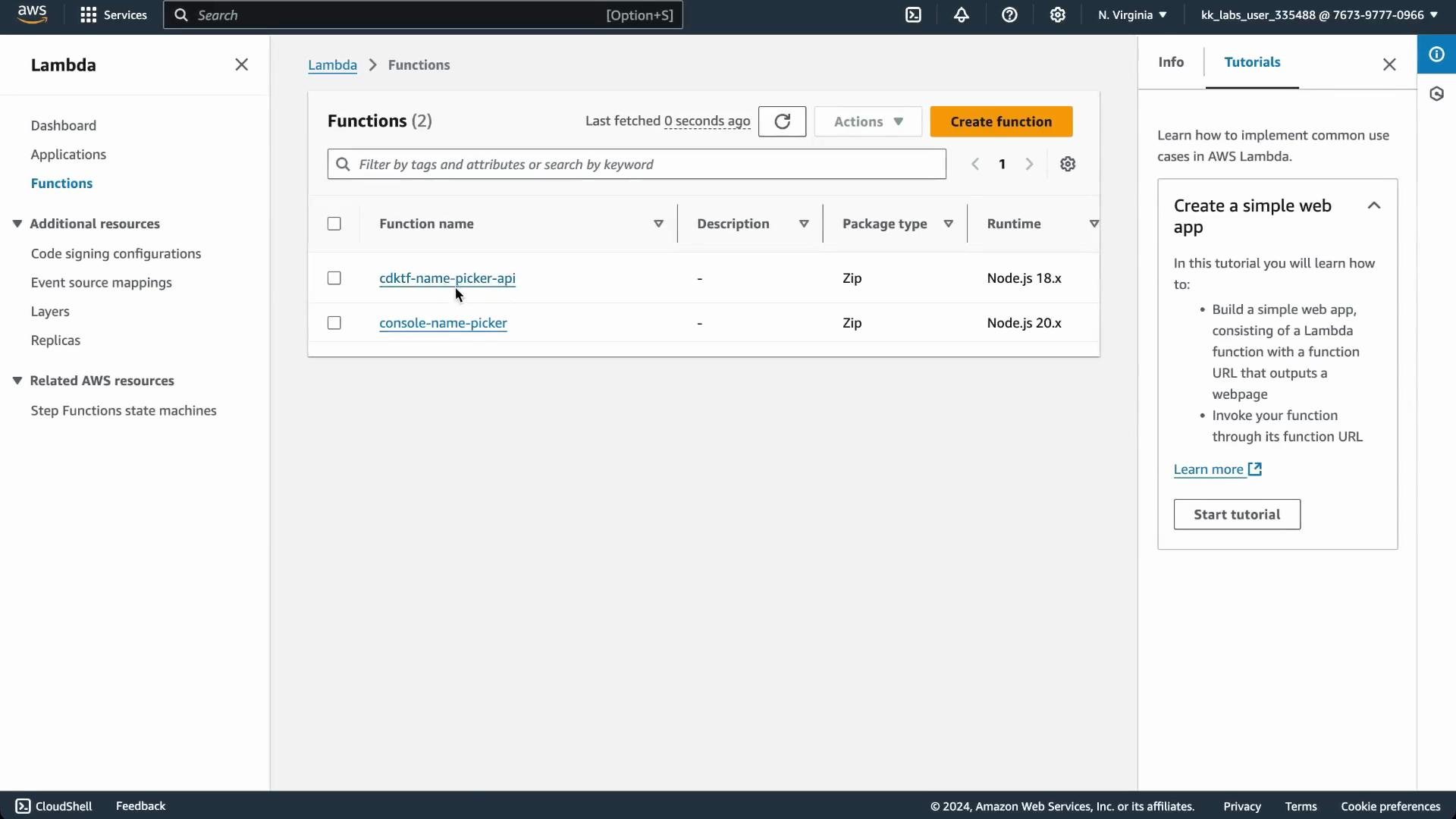

A screenshot of the AWS Lambda console showing a Functions list with two Lambda functions named "cdktf-name-picker-api" and "console-name-picker" and a tutorial panel on the right. Both functions are packaged as Zip and use Node.js runtimes.

Open the function to inspect the code and run tests in the console:

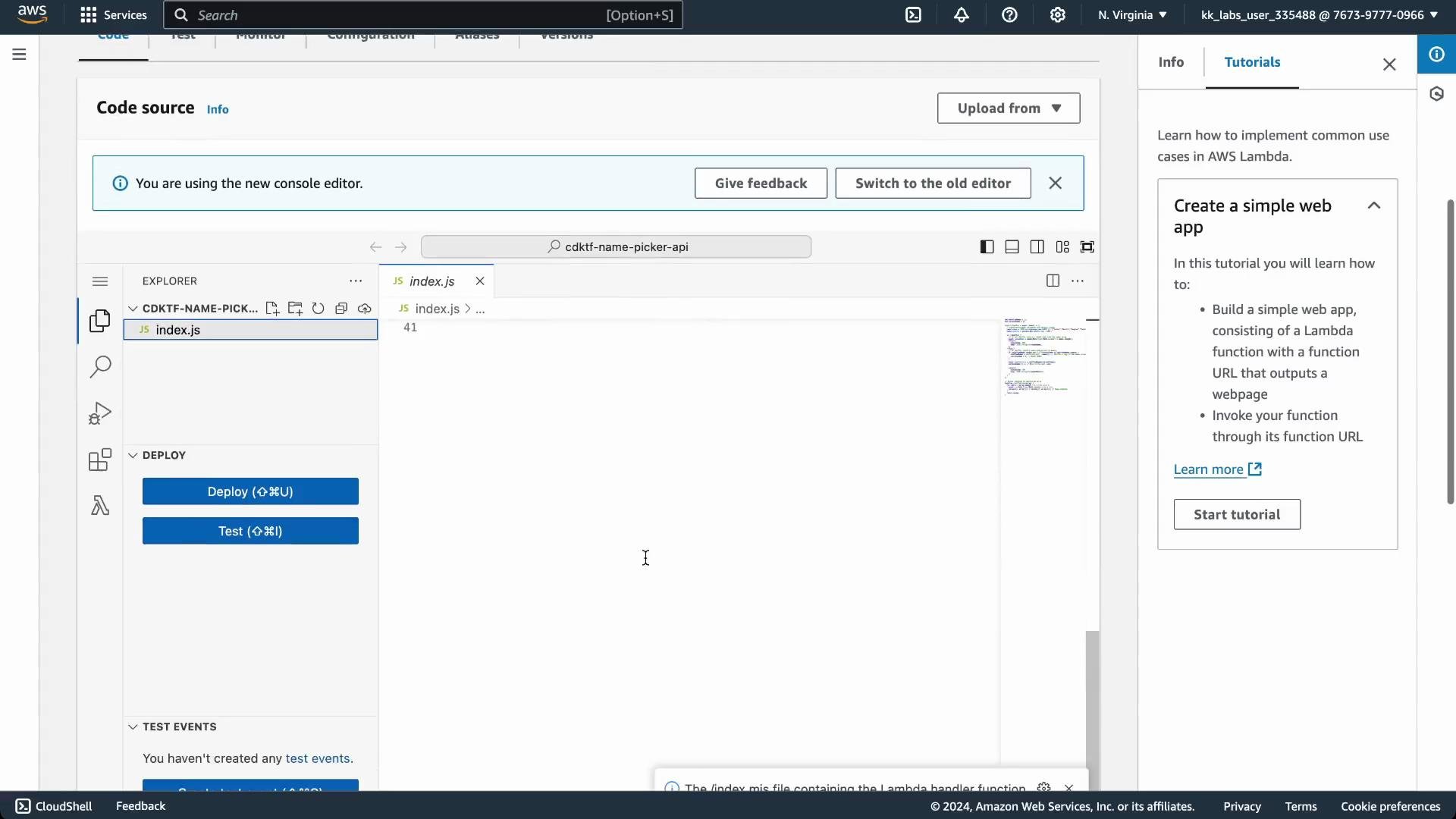

A screenshot of the AWS Lambda console showing the built-in code editor with index.js open in the Explorer pane, Deploy and Test buttons on the left, and a "Create a simple web app" tutorial panel on the right. The top banner notes the new console editor and offers a switch to the old editor.

A successful test invocation returns a JSON response similar to:

{
  "statusCode": 200,
  "body": "\"Carolyn\""
}

Example Lambda handler (index.js)

Save this file as function-name-picker/index.js. It’s a compact Node.js handler that either returns a random name or cycles through a shuffled list (when SHUFFLE=true).

let shuffledNames = [];
let currentIndex = 0;

exports.handler = async (event) => {
  console.log('Received event', event);

  // Parse environment variables with default values
  const names = JSON.parse(process.env.NAMES || '["Arthur","Martin","Douglas","Carolyn"]');
  const shuffle = process.env.SHUFFLE === 'true';

  if (!shuffle) {
    // Return a random name
    const randomName = names[Math.floor(Math.random() * names.length)];
    return {
      statusCode: 200,
      body: JSON.stringify(randomName),
    };
  } else {
    // Return names in shuffled order, preserving state in container memory
    if (shuffledNames.length === 0 || currentIndex >= shuffledNames.length) {
      shuffledNames = shuffleArray([...names]);
      currentIndex = 0;
    }

    const nameToReturn = shuffledNames[currentIndex];
    currentIndex += 1;

    return {
      statusCode: 200,
      body: JSON.stringify(nameToReturn),
    };
  }
};

// Helper function to shuffle an array
function shuffleArray(array) {
  for (let i = array.length - 1; i > 0; i--) {
    const j = Math.floor(Math.random() * (i + 1));
    [array[i], array[j]] = [array[j], array[i]];
  }
  return array;
}

Packaging approaches

This guide demonstrates two packaging strategies: a quick execSync approach (for demonstration only) and the recommended TerraformAsset approach that integrates with Terraform’s change detection.

1) Packaging with execSync (not recommended)

This approach runs shell commands at synth time to create a ZIP archive. It works, but Terraform/CDKTF will not reliably detect code changes produced after the archive was created during synth.

// demo packaging with execSync (not recommended)
import { execSync } from 'child_process';
import * as path from 'path';

const filename = path.join(process.env.INIT_CWD!, `./out/${bundle}.zip`);
execSync(`rm -rf ./out && mkdir -p ./out && cd ${bundle} && zip -r ${filename} .`, {
  cwd: process.env.INIT_CWD!,
});

Running packaging during synth (via execSync) means Terraform/CDKTF does not record the archive as an asset. Subsequent code changes may not trigger deploys — you can end up with “No changes” even when source changed.

Why this is problematic:

Packaging happens outside Terraform’s asset tracking.
Terraform won’t detect subsequent code changes and may skip deployments.
Requires manual steps or extra tooling to ensure the archive is refreshed before each deploy.

2) Packaging with TerraformAsset (recommended)

TerraformAsset produces an archive that Terraform treats as an asset. When the bundle contents change, Terraform will detect differences and prompt to apply updates, ensuring the Lambda is redeployed with the new code.

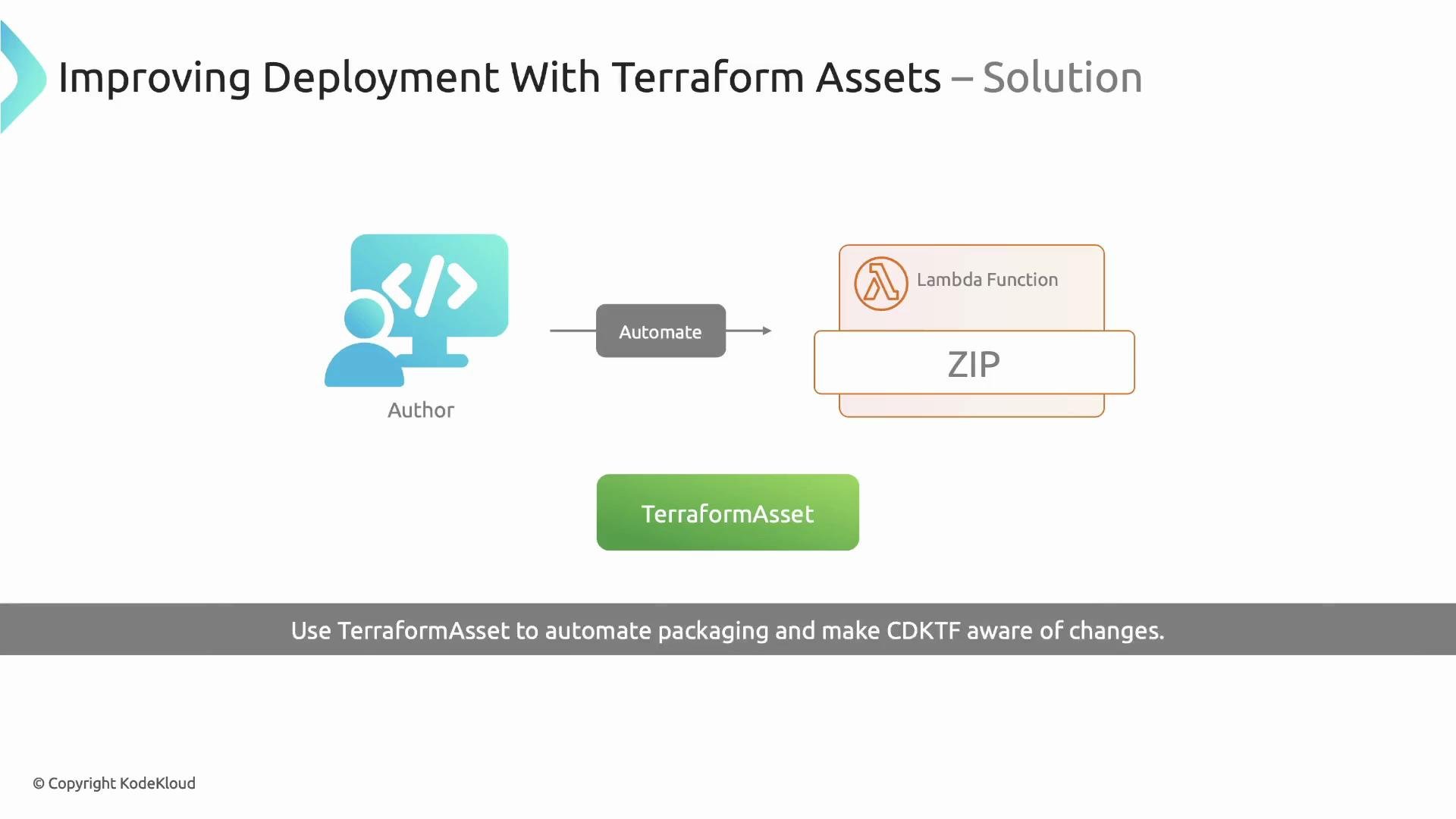

A slide titled "Improving Deployment With Terraform Assets – Solution" showing a developer icon labeled "Author" who automates packaging (arrow labeled "Automate") into a ZIP containing a Lambda function. A green "TerraformAsset" button is shown with a footer note about using TerraformAsset to automate packaging and make CDKTF aware of changes.

Example usage (already shown in the construct):

const asset = new TerraformAsset(this, 'lambda-asset', {
  path: path.join(process.env.INIT_CWD!, bundle),
  type: AssetType.ARCHIVE,
});

// then use asset.path as the Lambda `filename`
this.lambdaFunction = new lambdaFunction.LambdaFunction(this, 'lambda-function', {
  functionName,
  role: lambdaRole.arn,
  runtime: 'nodejs18.x',
  timeout: 30,
  filename: asset.path,
  ...rest,
});

When you change index.js and run yarn deploy (or your CDKTF deploy command):

Terraform detects the updated asset hash.
Terraform prompts and applies the change.
The updated Lambda code is uploaded and becomes active.
CloudWatch logs will reflect the new behavior (e.g. new console.log output).

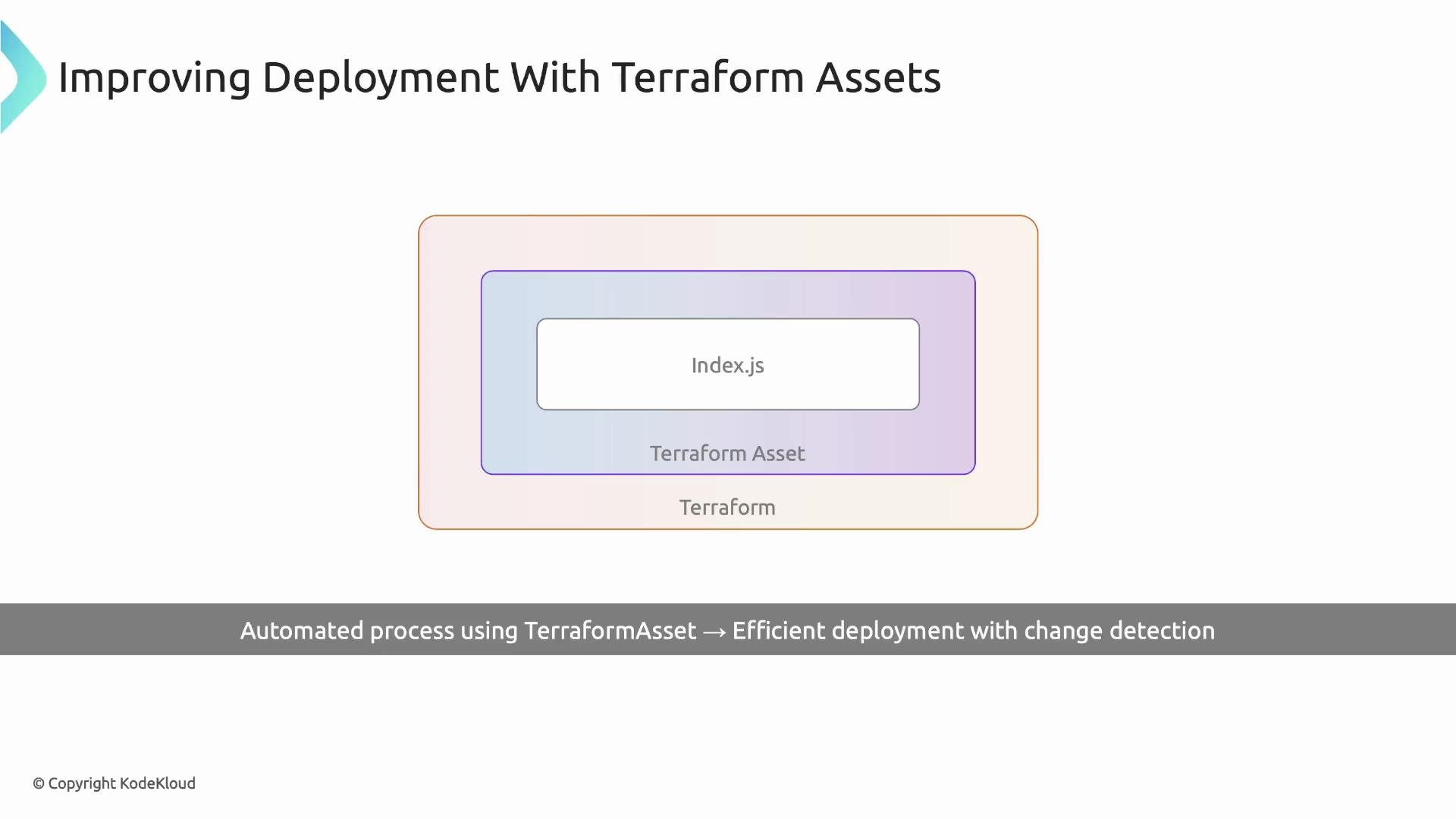

A presentation slide titled "Improving Deployment With Terraform Assets" showing nested rounded rectangles labeled Terraform (outer), Terraform Asset (middle) and Index.js (inner). A footer notes "Automated process using TerraformAsset → Efficient deployment with change detection."

Quick comparison

Approach	Pros	Cons	Best for
`execSync` packaging	Simple to implement; predictable zip output during synth	Not tracked by Terraform; changes may not trigger redeploys	Demos or quick prototypes where change detection isn’t needed
`TerraformAsset` (recommended)	Integrated with Terraform asset tracking; triggers redeploys when code changes	Slightly more setup in the construct	Production or iterative development where reliable deployments are required

Summary

Encapsulate Lambda creation (role, policy attachment, function) into a reusable construct to standardize deployments.
Prevent callers from providing role and filename so the construct manages permissions and packaging.
Avoid ad-hoc execSync packaging unless you fully understand the limitations.
Use TerraformAsset (with AssetType.ARCHIVE) to package function code and enable reliable change detection and deployments with CDKTF.

Links and references

CDK for Terraform (CDKTF) documentation
Terraform Asset documentation (see provider docs for asset handling)
AWS Lambda docs
AWS IAM policies for Lambda execution
