In this lesson we cover Amazon Aurora: a fully managed, high-performance relational database compatible with MySQL and PostgreSQL. Aurora is designed as a drop-in replacement for those engines while providing much higher throughput — AWS advertises up to 5× the throughput of standard MySQL and up to 3× the throughput of standard PostgreSQL.
A presentation slide titled "Aurora vs RDS" that compares the two AWS database services side-by-side with icons and bullet points. The Aurora panel (orange) highlights high-performance MySQL/PostgreSQL and greater throughput, while the RDS panel (purple) notes managed multi-engine support and simplified setup/scaling.
Aurora delivers higher performance primarily through a distributed, fault-tolerant, self-healing storage layer. Key storage and availability characteristics:
  • Data is replicated across three Availability Zones (AZs) by default.
  • Aurora keeps six copies of your data (two copies per AZ).
  • Storage is decoupled from compute, automatically managed, and scales up to 128 TB per cluster.
  • The storage layer is SSD-backed and continuously scans/repairs blocks and disks (self-healing).
Because Aurora is compatible with MySQL and PostgreSQL, you rarely need to change database drivers, client libraries, or tooling. Applications written for MySQL or PostgreSQL typically require little or no modification to work with Aurora.
Aurora is fully managed and optimized for high performance, but that often comes at a higher cost than a comparable standard managed relational instance. Evaluate performance needs and budget before migrating.
Typical application flow: a user request reaches the application server (for example on Amazon EC2), the application queries Aurora for data, and the response is returned to the user. Because Aurora separates storage and compute, reader instances can be promoted quickly if the primary fails, reducing downtime. For a high-level view of clustering and instance roles:
  • Primary (writer) instance: a single primary handles writes and can also serve reads. It performs data modification operations against the shared cluster volume.
  • Reader (replica) instances: up to 15 read-only replicas can serve read traffic and help scale read-heavy workloads.
A simple diagram titled "Aurora DB Cluster" showing a dashed cluster box containing two database icons labeled "Aurora Primary DB Instance" and "Aurora Replica," alongside an Aurora service icon.
Aurora clusters and their cluster volume span multiple AZs. Because storage is shared and independent of instance compute, failover is fast: if the primary becomes unresponsive, Aurora can promote a replica to primary in seconds (commonly under 30 seconds), leveraging the durable, replicated storage layer to minimize application downtime.
A presentation slide titled "HA With Aurora" showing five colored feature panels — Multi-AZ Deployment, Data Replication, Primary and Replica Instances, Automatic Failover, and Fault-Tolerant Storage — each paired with a simple icon.
Cluster volume details — what makes Aurora durable and fast:
  • Single, distributed storage layer for the entire cluster.
  • Automatically managed and provisioned by Aurora; you do not directly manage SSDs or volume allocation.
  • Auto-scaling storage up to 128 TB per cluster.
  • Data copies across three AZs (two copies per AZ), providing durability and protection if an AZ fails.
Because any instance (primary or replica) can serve reads, you can scale read capacity without scaling storage separately.

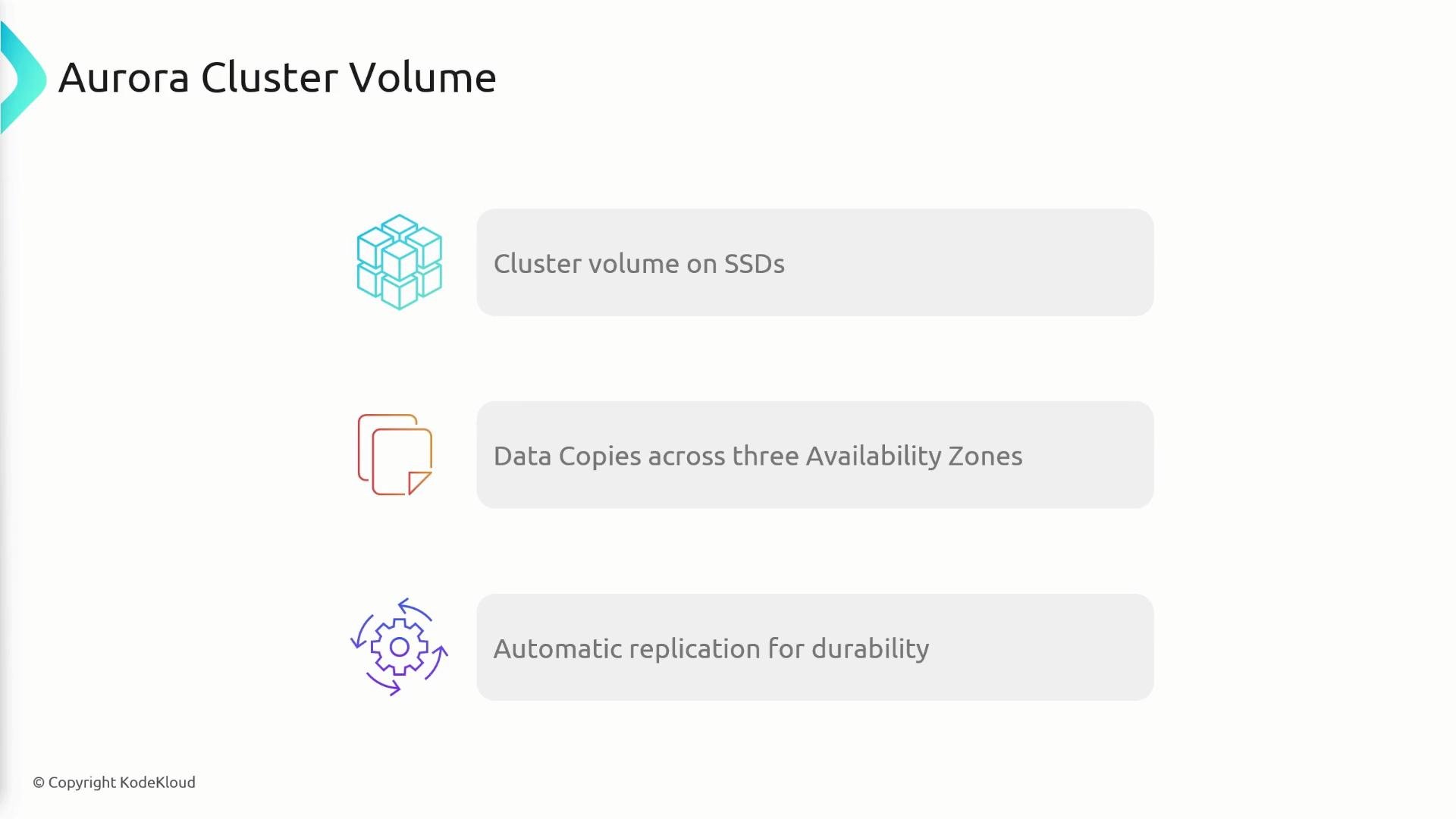

A presentation slide titled "Aurora Cluster Volume" showing three iconed items: "Cluster volume on SSDs," "Data Copies across three Availability Zones," and "Automatic replication for durability." The slide includes a KodeKloud copyright at the bottom.
Aurora provides several DNS-based endpoints to simplify connectivity and split read/write traffic:
  • Cluster (writer) endpoint: routes write traffic to the current primary instance.
  • Reader endpoint: load-balances read-only connections across available replicas.
  • Instance endpoints: direct connections to a specific instance (primary or replica).
  • Custom endpoints: route specific workloads (for example, read-only workloads with higher-memory replicas) to a defined subset of instances.
Using endpoints removes the need to reconfigure applications when instances are promoted or replaced; instead, clients connect via logical endpoints that Aurora keeps up to date.

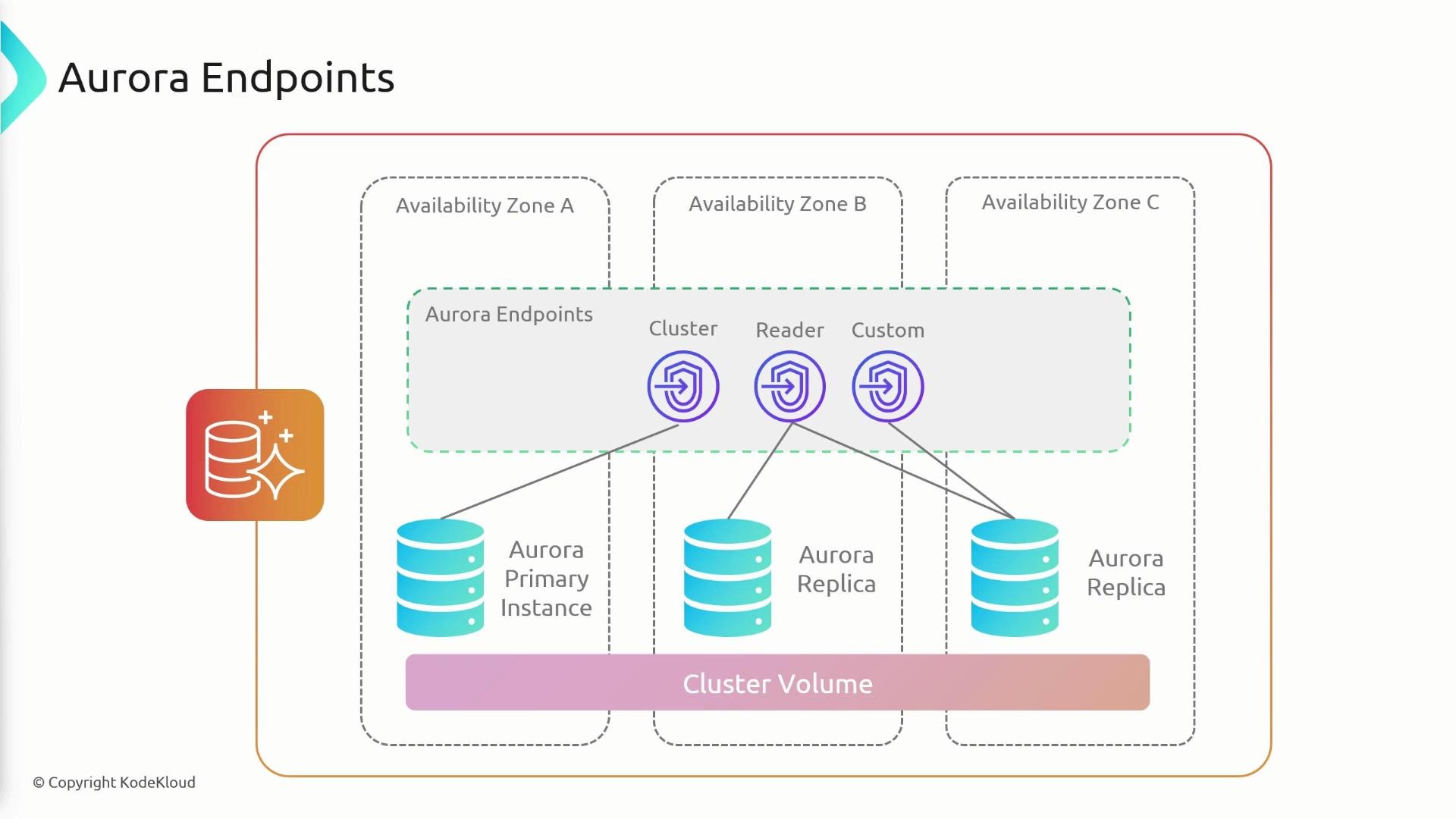

A labeled diagram titled "Aurora Endpoints" showing an AWS Aurora database architecture across three availability zones. It illustrates an Aurora primary instance and two replicas connected to Cluster, Reader, and Custom endpoints with a shared Cluster Volume.
Endpoint reference (quick lookup)
Use the writer (cluster) endpoint for all write operations and the reader endpoint to distribute read traffic. Custom endpoints are ideal for directing specific workloads to instances with different instance classes or resource profiles.
Summary
  • Amazon Aurora is a fully managed, high-performance relational database compatible with PostgreSQL and MySQL.
  • AWS claims up to 5× MySQL and 3× PostgreSQL throughput for Aurora.
  • Data is replicated across three Availability Zones with six copies (two per AZ) for durability.
  • Clusters have one primary (writer) instance and up to 15 read-only replicas.
  • The cluster volume spans multiple AZs, is SSD-backed, auto-scales (up to 128 TB), and self-heals.
  • Use the writer (cluster) endpoint for writes and the reader endpoint to distribute read traffic across replicas.
A presentation summary slide with a turquoise left panel and four colored bullet points describing a fully managed high-performance database compatible with Postgres and MySQL. The bullets note 5x MySQL / 3x PostgreSQL throughput, replication across 3 availability zones storing 6 copies, and primary instances handle reads/writes while replicas handle reads only.
