DocumentDB

In this lesson, we’ll cover Amazon DocumentDB — AWS’s managed, MongoDB-compatible document database. Learn what DocumentDB provides, how clusters and instances are organized, replication and read-scaling models, common use cases, and key operational considerations for migrating or running MongoDB workloads on AWS. MongoDB is a widely used document (NoSQL) database known for flexible schemas and horizontal scalability. On AWS exams and in architecture discussions, remember that MongoDB is a NoSQL document database in the same broad category as Amazon DynamoDB, but running a production MongoDB cluster requires skills for scaling, backups, failover, and operations. Amazon DocumentDB provides a managed MongoDB-compatible experience: AWS operates the underlying storage, replication, patching, and availability, similar to how Amazon RDS manages relational databases.

​

DocumentDB clusters: storage and instances

When you create a DocumentDB deployment you provision a cluster. A cluster separates storage from compute and consists of:

• A single cluster volume that manages the stored data for all instances in the cluster.
  • Uses cloud-native storage and replicates data six ways across three Availability Zones for high durability and availability.
  • Supports up to 64 TB of data.
• One or more instances (compute) that provide processing capacity for reads and writes to the shared cluster volume.
  • Instances read from and write to the cluster volume.
  • A cluster supports between 1 and 16 instances.

Instances can be provisioned or terminated independently and are not required to be the same instance class. This decoupling lets you scale compute without changing storage. Table: Cluster components and behavior

​

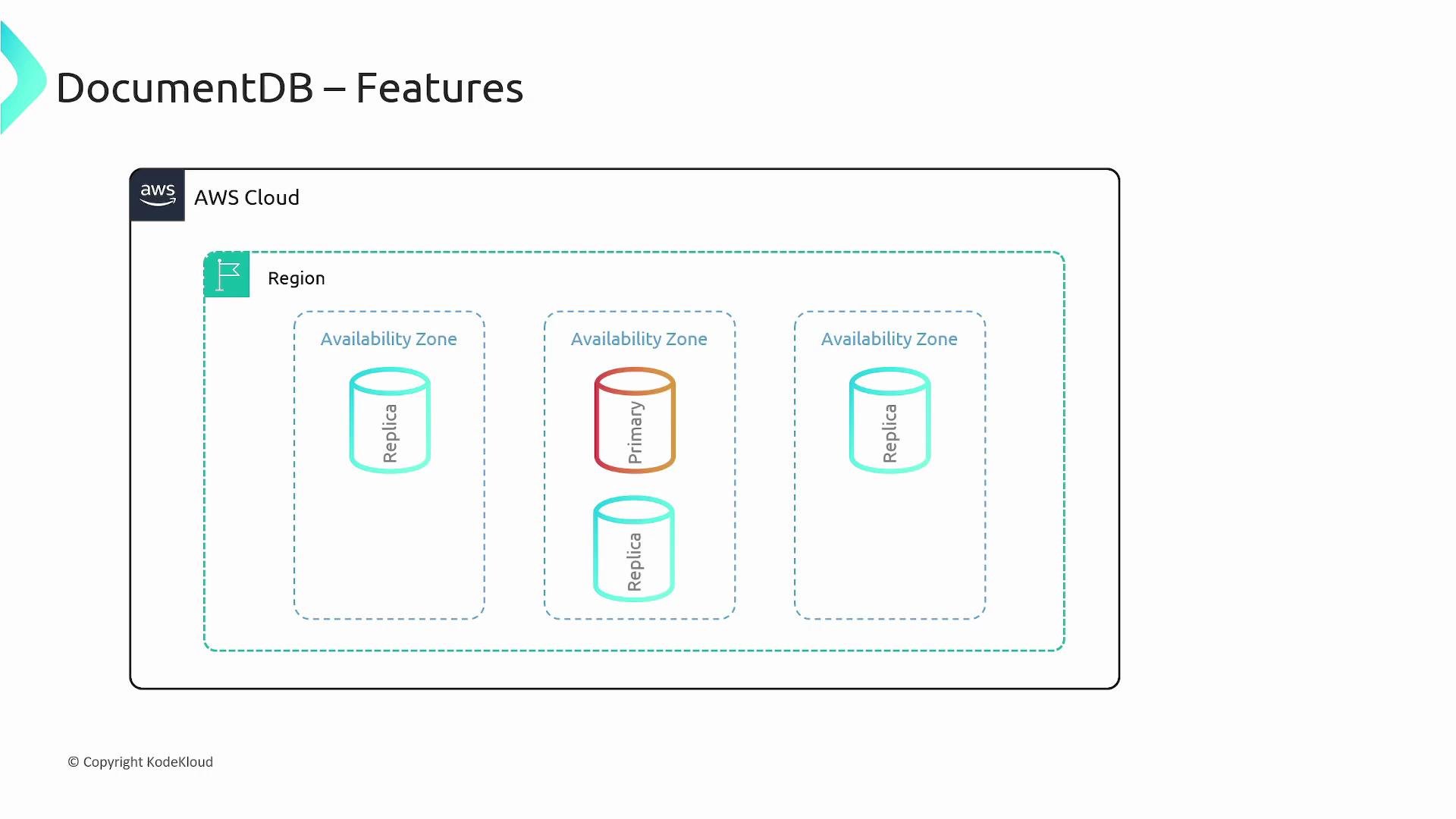

Instance roles

• Primary instance
  • Exactly one primary per cluster.
  • Supports reads and writes; performs data modifications to the cluster volume.
• Replica instances
  • Up to 15 replicas in addition to the primary.
  • Read-only: dedicated to serving read traffic against the cluster volume.

Because replication occurs at the storage (cluster volume) layer, compute instances don’t perform instance-to-instance replication work. That frees CPU and memory to serve application requests.

​

Global clusters

DocumentDB global clusters allow low-latency, highly available global workloads:

• Replicate data automatically from the primary cluster to up to five secondary clusters in other AWS Regions.
• Use fast storage-based physical replication from the primary to secondaries.
• Let you scale secondary clusters independently (different instance counts or sizes) from the primary, enabling cost/performance trade-offs across regions.

Replication is handled by the storage layer, so compute instances in each region serve local application workloads and don’t participate in replication.

​

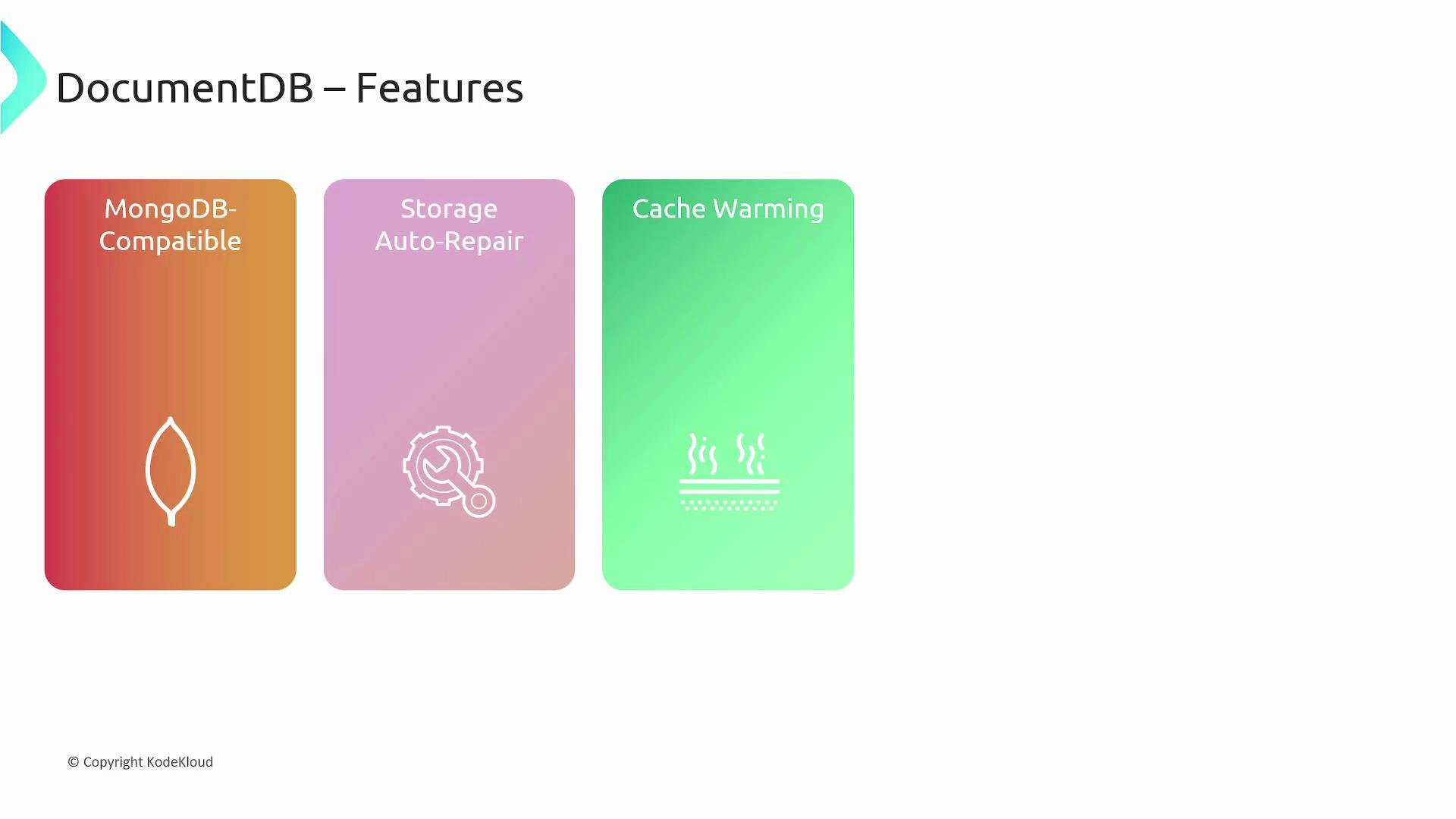

Key features

• MongoDB compatibility: Many MongoDB drivers and tools work with DocumentDB, but confirm feature parity for your application.
• Storage auto-repair: Automatically detects failed segments of the cluster volume and reconstructs repaired segments using other replicas.
• Page cache (buffer pool) managed outside the main database process: The cache can survive a DB process restart, keeping the buffer pool warm and reducing recovery time.
• Fast crash recovery: Crash recovery runs asynchronously on a parallel thread so the database can be available quickly after a crash.
• Write durability: Writes are durably recorded on a majority of storage nodes before being acknowledged to clients.

​

Replicas and read scaling

Replica instances are optimized for read scaling. Because replication is done at the cluster volume level, replica instances’ CPU and memory are dedicated to serving read operations. This architecture makes it easy to add or remove replicas to match read capacity and cost requirements. Use replicas to:

• Offload read-heavy workloads from the primary.
• Serve analytic or reporting queries that can tolerate slightly stale data (depending on read preference).
• Distribute read traffic across Availability Zones for higher availability.

​

Read preferences

DocumentDB supports MongoDB client-side read preferences so applications can tune consistency, latency, and throughput. Common read preferences:

• primary
  • Routes reads to the primary. If the primary is unavailable, reads fail.
• primaryPreferred
  • Prefer the primary but fall back to a secondary if the primary is unavailable.
  db.example.find().readPref('primaryPreferred')

• secondary
  • Routes reads to secondary replicas only. If no replicas are available, reads fail.
• secondaryPreferred
  • Prefer a secondary, but fall back to the primary if no secondary is available.
  db.example.find().readPref('secondaryPreferred')

• nearest
  • Routes reads to the instance with the lowest measured client latency.

Choose a read preference that aligns with your application’s requirements for consistency, latency, and durability.

​

Common use cases

• Content management systems that benefit from flexible document schemas.
• User profiles, preferences, and session stores mapped naturally to documents.
• Read-scalable applications, including global low-latency reads using global clusters.
• Analytics or reporting workloads run against replica instances to avoid primary impact.

​

Summary

Amazon DocumentDB is a fully managed, MongoDB-compatible document database that reduces the operational burden of running MongoDB workloads on AWS. Key advantages include:

• Storage replicated six ways across three Availability Zones for durability.
• Decoupled compute and storage so instances can be scaled independently.
• Global clusters for cross-region replication and low-latency reads.
• Client-side MongoDB read preferences to balance latency and consistency.

​
