This guide shows how to deploy an Azure Kubernetes Service (AKS) cluster using the Azure portal. Follow along in the portal if you have an Azure subscription, or use a hands-on lab environment to practice. Overview
  • Create a resource group.
  • Create an AKS cluster via the Azure portal.
  • Configure node pools, networking, integrations (ACR, monitoring), and advanced settings.
  • Review and create the cluster; Azure validates and deploys the resources.
Prerequisites
  • An active Azure subscription.
  • Appropriate permissions to create resource groups, AKS clusters, and associated networking and compute resources.
  1. Start the AKS creation workflow
  • Open the Azure portal: https://portal.azure.com
  • Click Create a resource → Containers → Azure Kubernetes Service → Create.
  • The wizard walks you through Project + cluster, Node pools, Authentication, Networking, Integrations, Advanced, and Review + create.
Configure Project + cluster
  • Resource group: Create a new resource group (for example, rg1-kodekloud-aks) or select an existing one.
  • Cluster name: Choose a unique name within the resource group (for example, aks1-KodeKloud-app).
  • Region: Select the region closest to your users (e.g., Southeast Asia — Singapore).
  • Kubernetes version: It’s safe to use the portal default. AKS supports generally available Kubernetes versions and provides upgrade paths.
Availability zones provide improved resiliency by distributing nodes across physically separate zones. Not all Azure regions support Availability Zones — check your chosen region’s capabilities before enabling them.

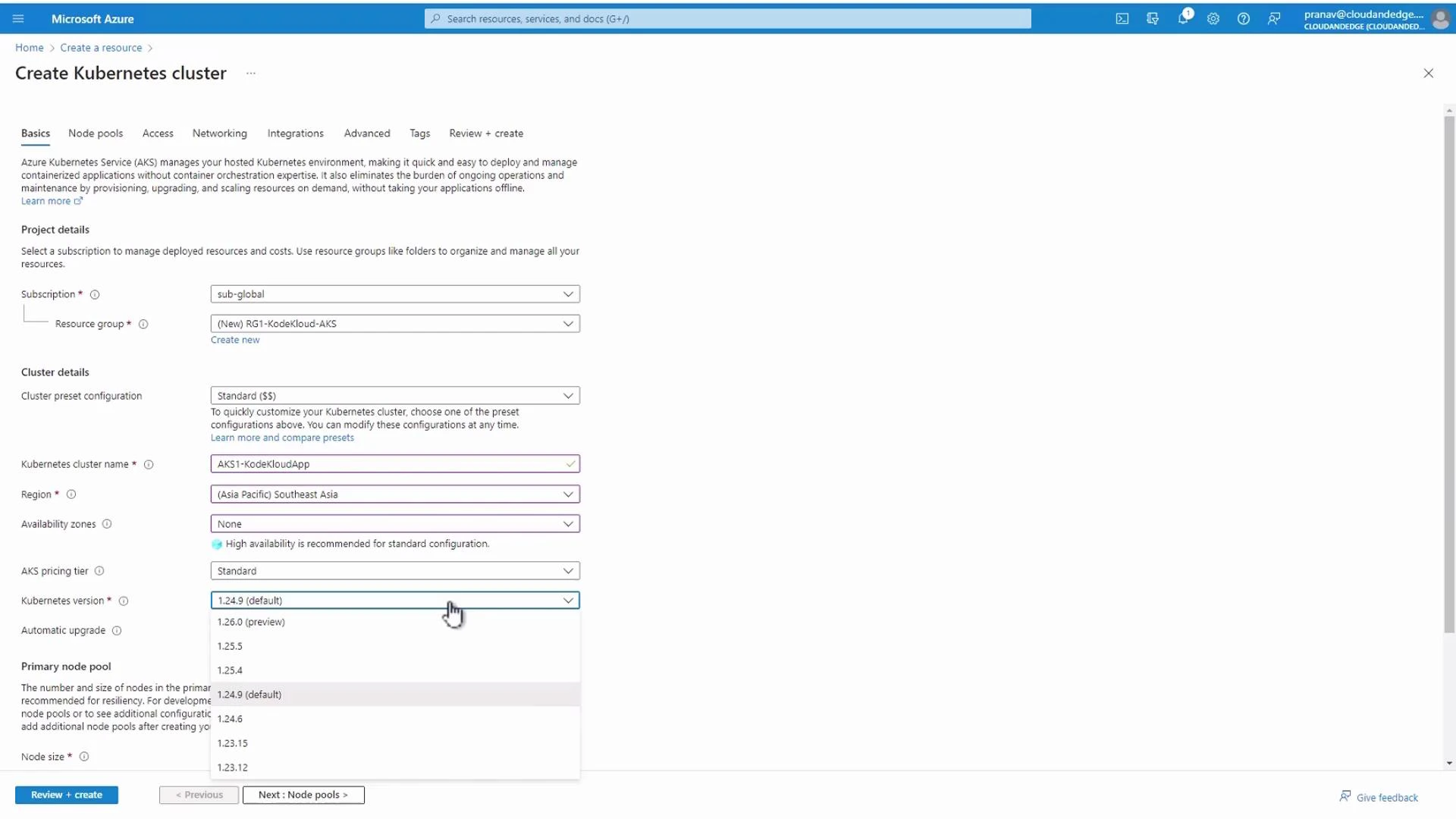

A screenshot of the Microsoft Azure "Create Kubernetes cluster" wizard showing project and cluster details (subscription, resource group, region, cluster name, etc.). The Kubernetes version dropdown is open, listing available versions.
  1. Configure the Node pool
  • VM size: Use the default or select a size that matches your workload. The DS2_v2 example (2 vCPU, 7 GB) is common for demos.
  • Initial node count: Set to 1 for demos; increase for production workloads.
  • Scaling: You can enable autoscale or configure manual min/max node counts.
  • Max pods per node: Default commonly appears as 110; you can change this per agent pool depending on your network/profile.
If you need to edit an existing agent pool’s VM size, scale method, node count range, or metadata (labels/taints), use the Update node pool workflow.

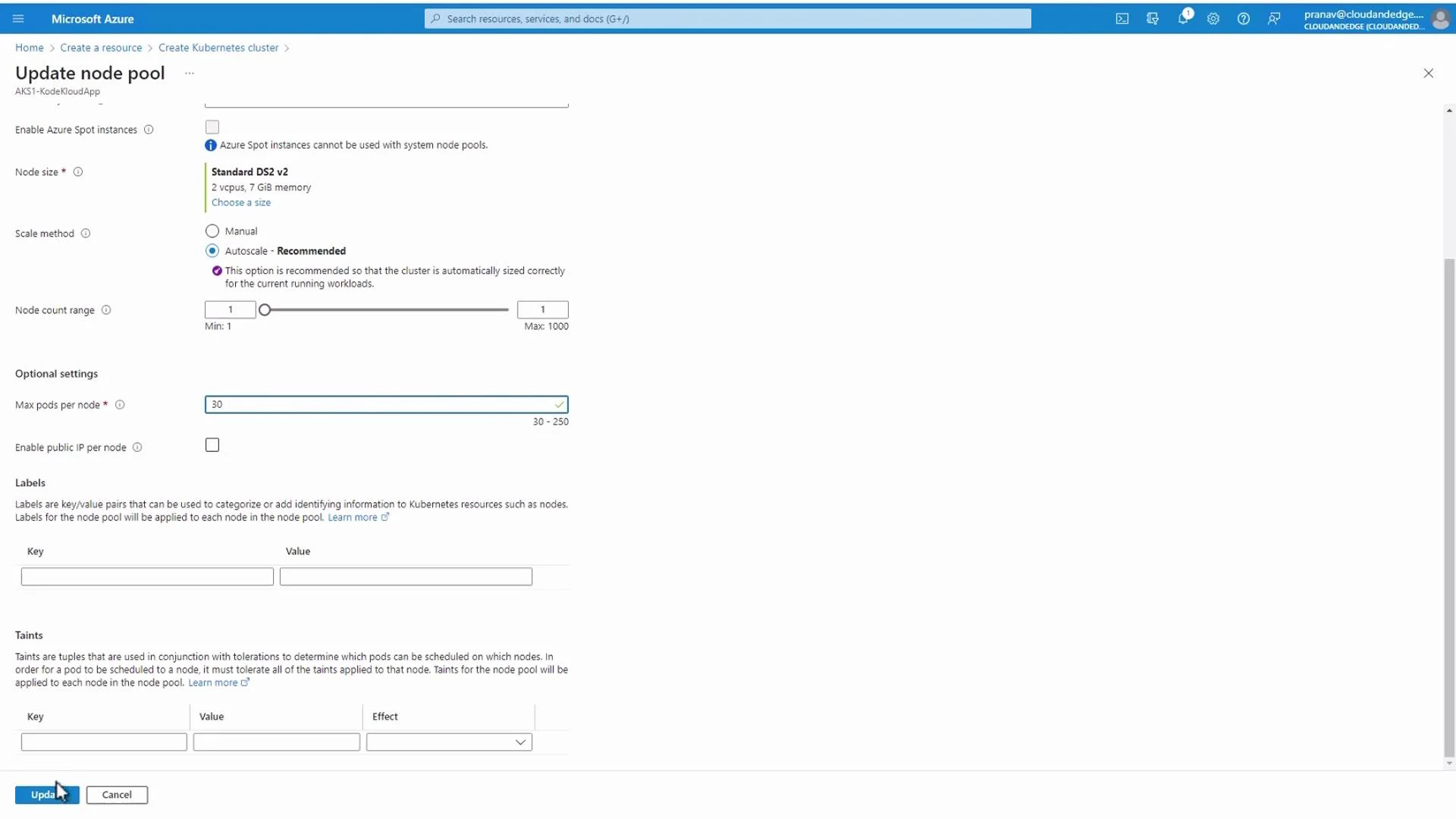

A screenshot of the Microsoft Azure portal showing the "Update node pool" settings for an AKS Kubernetes cluster, including node size, scale method (manual/autoscale), node count range, and optional settings like max pods per node. The page also shows fields for labels and taints and Update/Cancel buttons at the bottom.
  1. Authentication + authorization
  • The portal shows options for enabling Kubernetes RBAC and Azure AD integration.
  • For production clusters, plan your identity and authorization model carefully.
Leaving authentication and authorization at default settings can be fine for demos, but for production you should enable RBAC and integrate with Azure AD or other identity providers to control access securely.
  1. Networking
  • Choose a network plugin:
    • Azure CNI (recommended when you need each pod to get an IP address from the VNet).
    • Kubenet (simpler IP management; uses NAT for outbound traffic).
  • You can let Azure create a new virtual network or attach AKS to an existing VNet/subnet.
  • Network policies and service IP ranges affect pod addressing and routing.

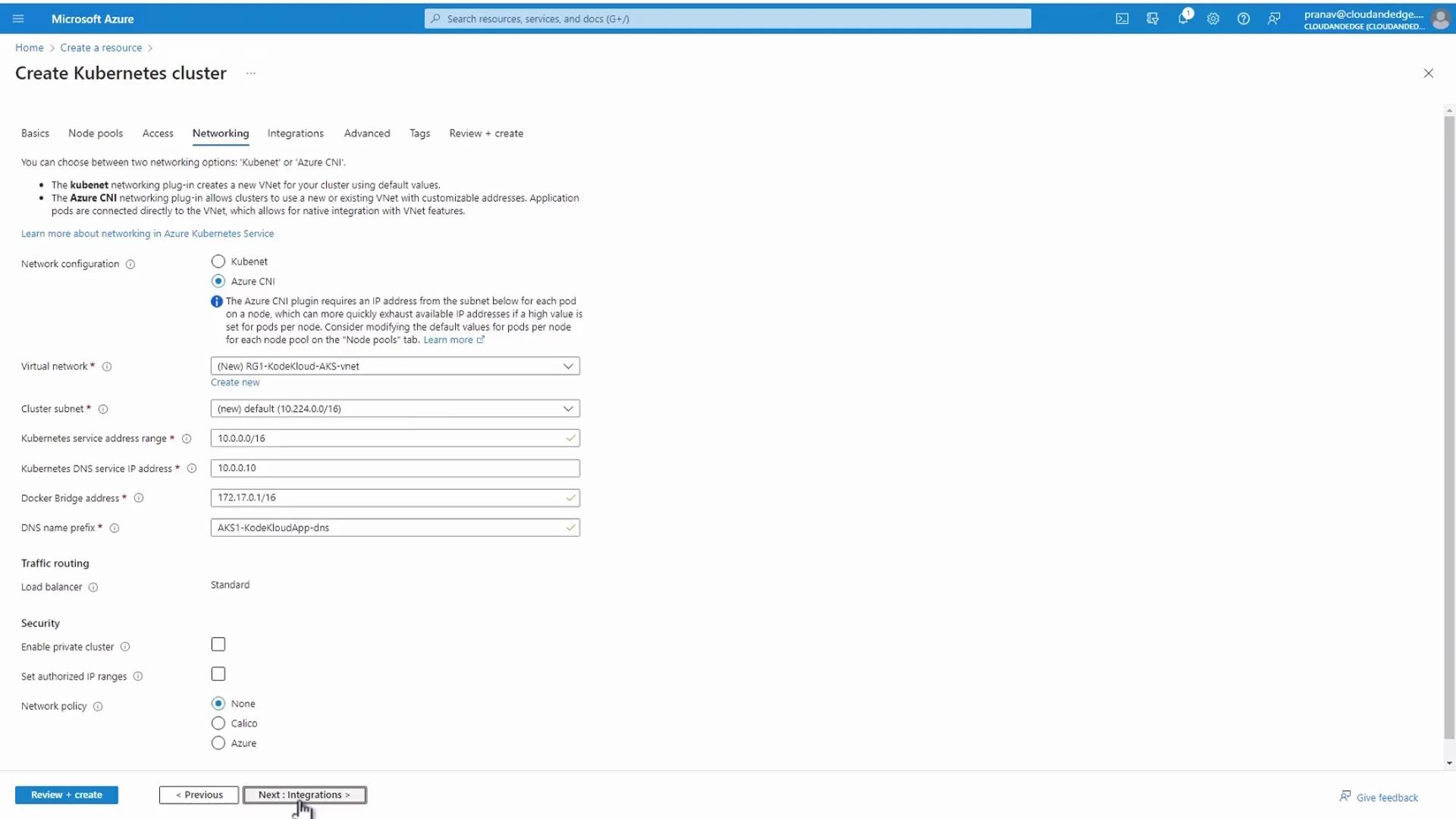

A screenshot of the Microsoft Azure portal showing the "Create Kubernetes cluster" wizard on the Networking tab, with fields for network configuration, virtual network, cluster subnet, service/DNS addresses, Docker bridge, and network policy. Navigation buttons like "Review + create" and "Next: Integrations" are visible at the bottom.
  1. Integrations (optional)
  • Azure Container Registry (ACR): Create an ACR to store container images. Place it in the same resource group/region for convenience and network proximity.
  • Monitoring: Enable Container insights and send logs to a Log Analytics workspace for integrated monitoring.
  1. Advanced settings
  • Infrastructure resource group: AKS creates infrastructure resources (VMs, load balancers, NICs) in a separate resource group. Use the default name or customize it to match organizational naming conventions.
  • Tags: Add tags for billing and management if required.
Review + Create
  • The portal runs validation to ensure compatibility and required settings are present.
  • If validation passes, click Create to start deployment. Azure provisions the cluster and associated resources.

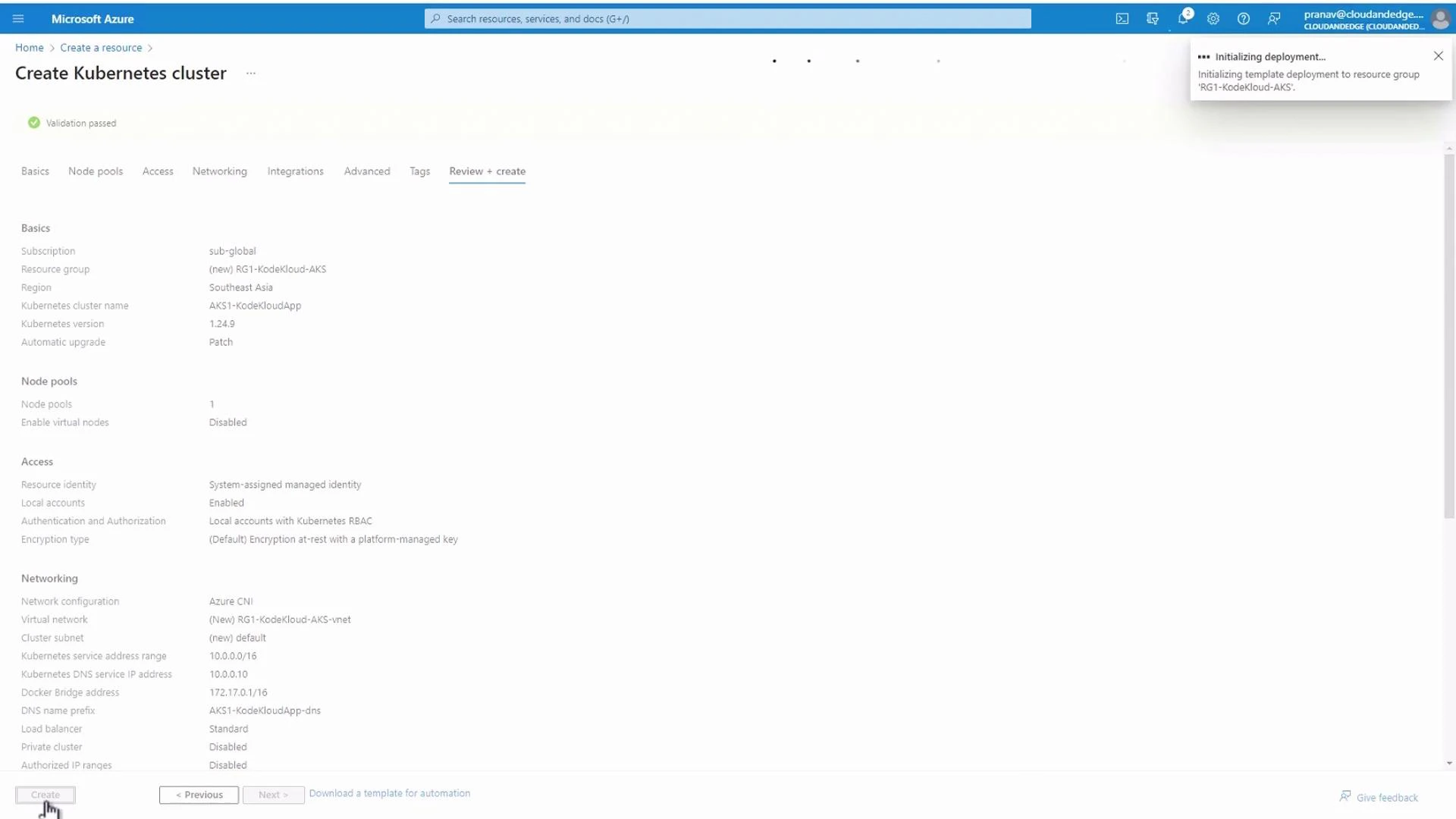

A screenshot of the Microsoft Azure portal showing the "Create Kubernetes cluster" Review + create page with validation passed and cluster settings (region, resource group, networking, node pools) displayed. A notification in the top-right shows "Initializing deployment..." for the resource group.
Quick configuration summary
SettingRecommendationNotes
Resource GroupNew or existingKeep consistent naming policy
Cluster NameUnique within RGExample: aks1-KodeKloud-app
RegionNearest regionVerify Availability Zone support if needed
Node VM sizeDS2_v2 (demo) or higherChoose based on CPU/memory needs
Initial Node Count1 (demo)Increase for production
Network PluginAzure CNI or KubenetChoose based on IP addressing needs
ACRCreate in same RG/regionAttach to AKS for private registry
MonitoringEnable Log AnalyticsUseful for Container insights
CLI examples
  • Create a resource group:
az group create --name rg1-kodekloud-aks --location southeastasia
  • Create an AKS cluster (Azure CNI, one node, DS2_v2):
az aks create \
  --resource-group rg1-kodekloud-aks \
  --name aks1-KodeKloud-app \
  --node-count 1 \
  --node-vm-size Standard_DS2_v2 \
  --network-plugin azure \
  --enable-managed-identity \
  --generate-ssh-keys
  • Scale a node pool (example, nodepool name “nodepool1”):
az aks nodepool scale \
  --resource-group rg1-kodekloud-aks \
  --cluster-name aks1-KodeKloud-app \
  --name nodepool1 \
  --node-count 3
  • Update max pods on an existing nodepool:
az aks nodepool update \
  --resource-group rg1-kodekloud-aks \
  --cluster-name aks1-KodeKloud-app \
  --name nodepool1 \
  --max-pods 110
References and further reading This completes the basic AKS deployment workflow. After the cluster is created, you can connect using kubectl (az aks get-credentials) and begin deploying workloads, configuring ingress, and enabling monitoring and security controls.
