Demo KAgent Exploration

This guide walks through a progressive installation and configuration of KAgent on Kubernetes. You’ll learn how to:

Install KAgent CRDs and the KAgent Helm chart.
Store LLM provider secrets and create a ModelConfig CRD.
Install KAgent with a minimal configuration, then enable the built-in tools and the k8s-agent.
Interact with the Kubernetes agent via the KAgent UI and the kagent CLI.
Inspect controller logs and observe agent-driven actions (e.g., creating manifests).

Prerequisites, example commands, and troubleshooting tips are included. Ensure you have a Kubernetes cluster, kubectl, helm, and the kagent CLI (if invoking agents from the terminal). Also set any referenced environment variables (for example, OPENAI_API_KEY) in your shell.

Prerequisites

Requirement	Purpose	Example / Notes
Kubernetes cluster	Run KAgent components	Minikube, Kind, or managed cluster
kubectl	Inspect cluster resources	`kubectl version --client`
helm	Install KAgent charts	`helm version`
kagent CLI (optional)	Invoke agents from CLI	See `kagent invoke` examples below
API keys / secrets	LLM provider authentication	`OPENAI_API_KEY` stored as Kubernetes secret

1) Install the KAgent CRDs

The KAgent Helm charts are published to an OCI registry on GitHub: oci://ghcr.io/kagent. Install the CRDs into the kagent namespace (the namespace will be created if missing):

# Adjust the chart path and flags as needed for your environment
helm install kagent-crds oci://ghcr.io/kagent --namespace kagent --create-namespace

Verify CRDs were created before continuing:

kubectl get crds | grep kagent
kubectl -n kagent get namespaces

2) Create the OpenAI secret

Store your OpenAI API key in a Kubernetes generic secret in the kagent namespace. The examples and ModelConfig below reference the secret name kagent-openai and the key OPENAI_API_KEY.

export OPENAI_API_KEY="sk-..."   # set to your actual key
kubectl create secret generic kagent-openai \
  --from-literal=OPENAI_API_KEY="$OPENAI_API_KEY" \
  -n kagent

Verify the secret exists:

kubectl get secret kagent-openai -n kagent

3) ModelConfig: store LLM provider details

KAgent uses a ModelConfig CRD to reference LLM provider credentials and model preferences. Create a ModelConfig YAML that points to the secret you created. Example:

apiVersion: kagent.dev/v1alpha2
kind: ModelConfig
metadata:
  name: default-model-config
  namespace: kagent
  labels:
    app.kubernetes.io/managed-by: Helm
  annotations:
    meta.helm.sh/release-name: kagent
    meta.helm.sh/release-namespace: kagent
spec:
  apiKeySecret: "kagent-openai"
  apiKeySecretKey: "OPENAI_API_KEY"
  model: "openai/gpt-4.1-mini"
  provider: OpenAI
  openAI:
    baseUrl: "https://kodekey.ai.kodekloud.com"

Key notes:

apiKeySecret must match the Kubernetes secret name.
apiKeySecretKey must match the key inside that secret (e.g., OPENAI_API_KEY).
openAI.baseUrl is optional. Omit it to use the public OpenAI endpoint or set it when using a proxy/private host.

Apply the ModelConfig and confirm it was created:

kubectl apply -f default-model-config.yaml
kubectl -n kagent get modelconfigs

If you are using OpenAI’s public API, you can omit openAI.baseUrl. Use baseUrl only when routing through a proxy or private endpoint.

4) Install KAgent with a minimal values file

Start with a minimal Helm values file that disables optional agents, tools, and MCP servers so you can enable them progressively. Save this as 01-values.min.yaml:

# 01-values.min.yaml
agents:
  argo-rollouts-agent:
    enabled: false
  cilium-debug-agent:
    enabled: false
  cilium-manager-agent:
    enabled: false
  cilium-policy-agent:
    enabled: false
  helm-agent:
    enabled: false
  istio-agent:
    enabled: false
  k8s-agent:
    enabled: false
  kgateway-agent:
    enabled: false
  observability-agent:
    enabled: false
  promql-agent:
    enabled: false
kmcp:
  enabled: false

kagent-tools:
  enabled: false

tools:
  grafana-mcp:
    enabled: false
  querydoc:
    enabled: false

Install or upgrade KAgent using that minimal configuration:

helm upgrade --install kagent oci://ghcr.io/kagent \
  -n kagent --create-namespace -f 01-values.min.yaml

Check services in the kagent namespace:

kubectl -n kagent get svc

You should see at least the controller and UI services (typically ClusterIP by default).

5) Expose the KAgent UI (NodePort)

To access the KAgent UI from your workstation in this lab, change the kagent-ui Service type to NodePort and bind a node port (e.g., 3080). Edit the service:

kubectl -n kagent edit svc kagent-ui

Modify the spec to include a nodePort and set type: NodePort. Example fragment:

spec:
  ports:
  - name: ui
    port: 8080
    protocol: TCP
    targetPort: 8080
    nodePort: 3080
  type: NodePort

After saving the edit, open the UI at http://localhost:3080 or http://<node-ip>:3080 depending on your cluster networking.

6) Inspect available provider ModelConfig examples

KAgent supports multiple providers (Anthropic, OpenAI, Groq, and more). Example snippets: Anthropic minimal example:

apiVersion: kagent.dev/v1alpha2
kind: ModelConfig
metadata:
  name: anthropic-minimal
  namespace: kagent
spec:
  provider: Anthropic
  model: claude-3-5-sonnet-20241022
  apiKeySecret: kagent-anthropic
  apiKeySecretKey: ANTHROPIC_API_KEY
  anthropic:
    maxTokens: 4096

OpenAI full configuration example:

apiVersion: kagent.dev/v1alpha2
kind: ModelConfig
metadata:
  name: openai-full-config
  namespace: kagent
spec:
  provider: OpenAI
  model: gpt-4o
  apiKeySecret: kagent-openai
  apiKeySecretKey: OPENAI_API_KEY
  openAI:
    baseUrl: "https://api.openai.com/v1"
    organization: "org_YOUR_ORG_ID"
    temperature: "0.7"
    topP: "0.9"
    maxTokens: 2000

Note: Some CRD schemas expect temperature and topP as strings — keep them quoted if required.

7) Enable KAgent built-in tools

Enable the Tools Library by setting kagent-tools.enabled: true in a values file (for example, 02-values-tools.yaml) and upgrading the release:

# 02-values-tools.yaml
kagent-tools:
  enabled: true

Upgrade the release:

helm upgrade kagent oci://ghcr.io/kagent -n kagent -f 02-values-tools.yaml

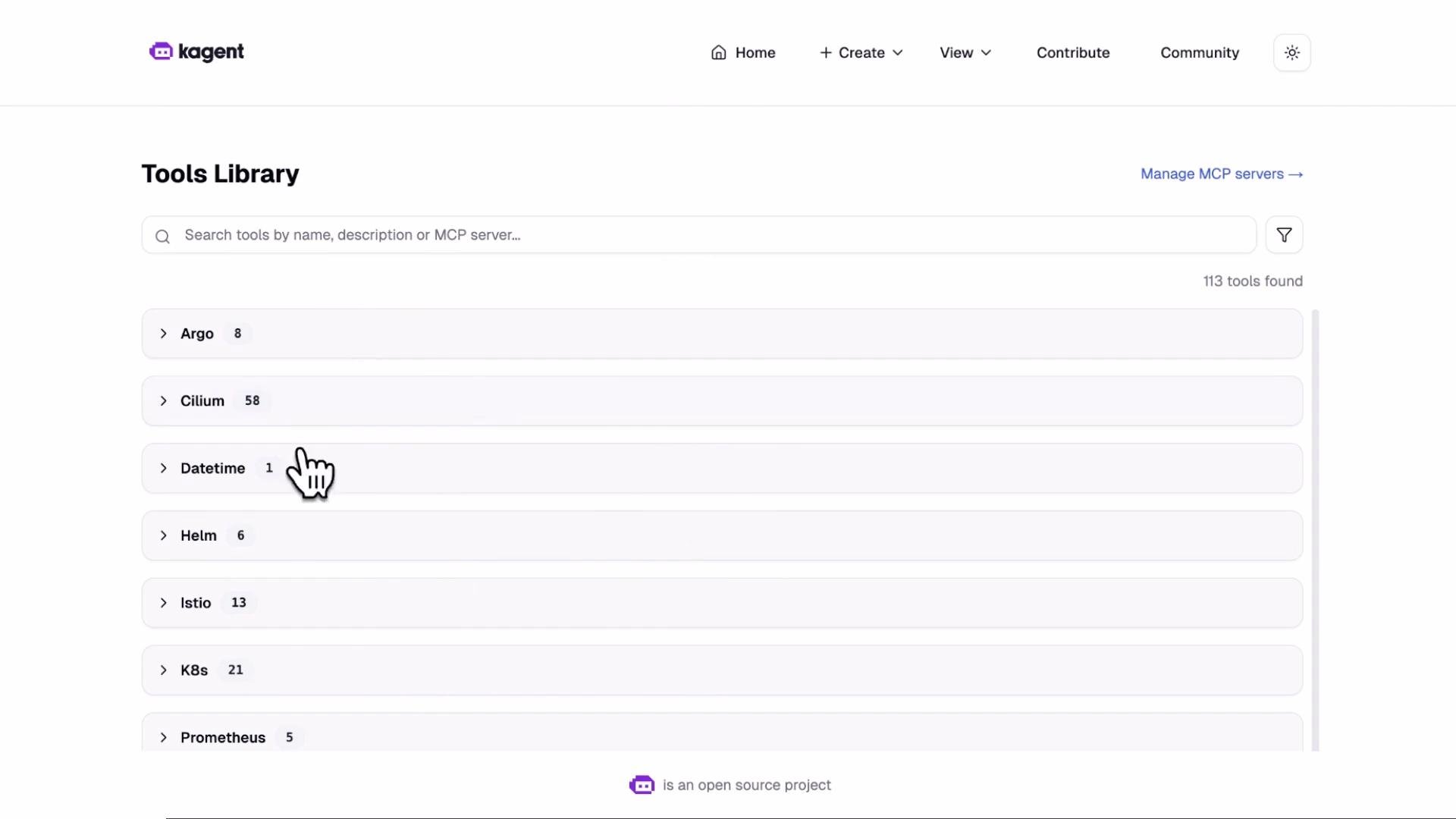

After the upgrade, the Tools Library in the UI should list many tools. Wait a few seconds and refresh the UI while pods start.

Screenshot of a web page for "kagent" showing a Tools Library with a search bar and a list of tool categories (Argo, Cilium, Datetime, Helm, Istio, K8s, Prometheus, etc.). A hand-cursor is hovering over the "Datetime" entry and the page shows "113 tools found."

8) Enable the k8s-agent

Enable the k8s-agent to add Kubernetes troubleshooting capabilities. Example values file 04-values-enable-agents.yaml:

agents:
  argo-rollouts-agent:
    enabled: false
  cilium-debug-agent:
    enabled: false
  cilium-manager-agent:
    enabled: false
  cilium-policy-agent:
    enabled: false
  helm-agent:
    enabled: false
  istio-agent:
    enabled: false
  k8s-agent:
    enabled: true
  kgateway-agent:
    enabled: false
  observability-agent:
    enabled: false
  promql-agent:
    enabled: false

kmcp:
  enabled: false

kagent-tools:
  enabled: true

tools:
  grafana-mcp:
    enabled: false
  querydoc:
    enabled: false

Apply the change:

helm upgrade kagent oci://ghcr.io/kagent -n kagent -f 04-values-enable-agents.yaml

Watch pods start in the kagent namespace:

kubectl -n kagent get pods

Sample output while the k8s-agent initializes:

NAME                                 READY   STATUS              RESTARTS   AGE
k8s-agent-78897dccc9-s82sg           0/1     ContainerCreating   0          14s
kagent-controller-...                1/1     Running             0          10m
kagent-tools-...                     1/1     Running             0          4m
kagent-ui-...                        1/1     Running             0          10m

After initialization the agent pod becomes Running:

NAME                                 READY   STATUS    RESTARTS   AGE
k8s-agent-78897dccc9-s82sg           1/1     Running   0          36s
kagent-controller-...                1/1     Running   0         10m
kagent-tools-...                     1/1     Running   0          5m
kagent-ui-...                        1/1     Running   0         10m

Verify configured agents:

kubectl -n kagent get agents

Example output:

NAME        TYPE         READY   ACCEPTED
k8s-agent   Declarative  True    True

9) Interact with the K8s agent via UI

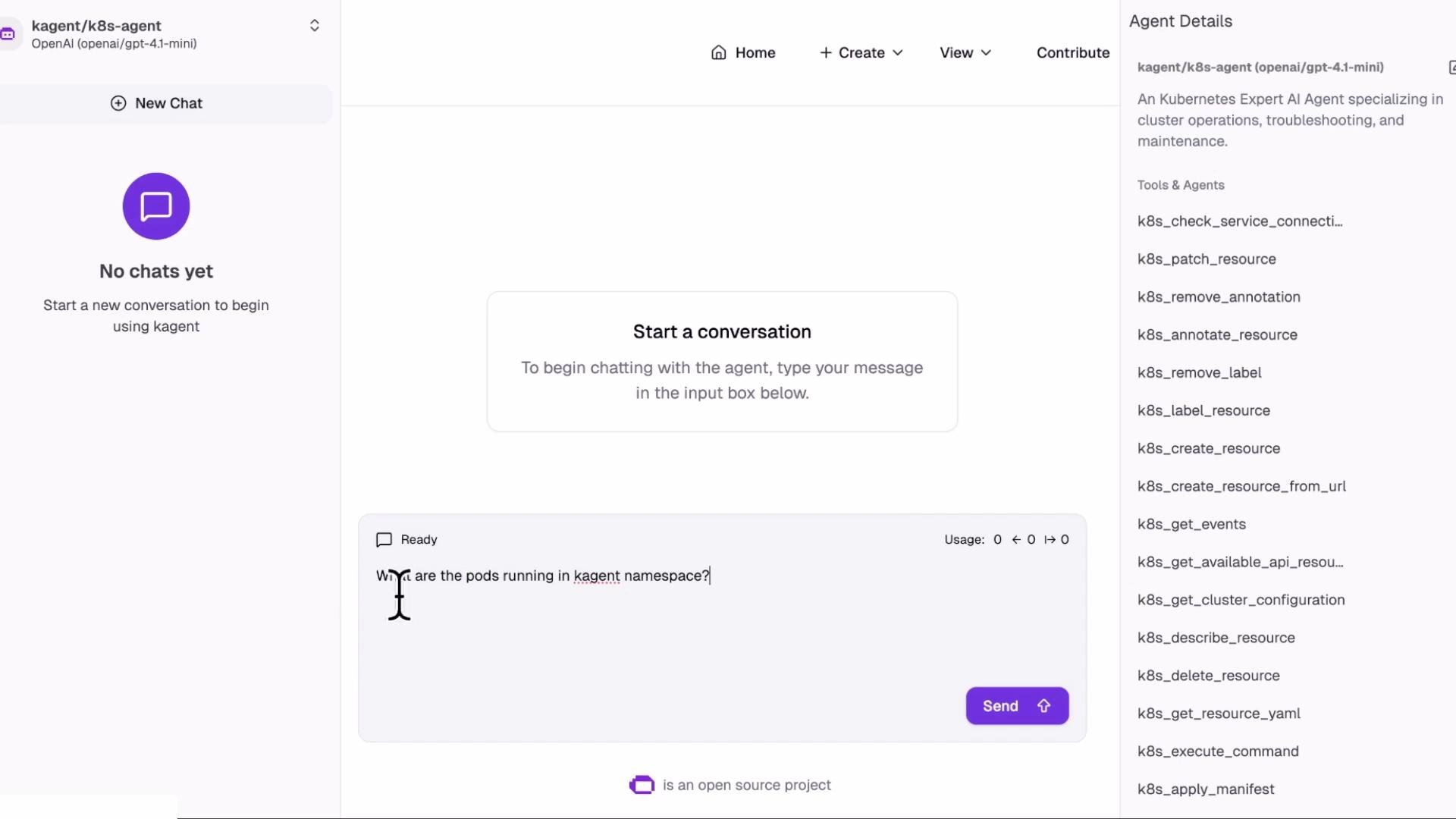

Use the KAgent UI to start a conversation with the k8s-agent. The right-side tool pane displays tools the agent may call (for example, GetResources which performs kubectl-like queries). From the UI ask: “What are the pods running in kagent namespace?” The agent will call the GetResources tool and return a pod list consistent with kubectl -n kagent get pods.

A screenshot of a web-based chat/agent interface for a Kubernetes AI agent (kagent/k8s-agent), showing a "Start a conversation" prompt and a message input asking "What are the pods running in kagent namespace?". The right sidebar lists various k8s tools and commands.

10) Invoke the agent via the kagent CLI

You can invoke the agent from the CLI for scripted or reproducible workflows. Example:

kagent invoke -n kagent \
  -a k8s-agent \
  -t "list all pods in the kagent namespace" \
  -S

-S requests a streaming response (controller streams JSON status updates and final results).
Modify the text prompt to target different namespaces or resources:

kagent invoke -n kagent -a k8s-agent -t "list the pods in default namespace" -S

Controller logs will reflect task creation and execution. Example log excerpt:

{"level":"info","ts":"2025-12-15T10:28:21Z","logger":"http.tasks-handler","msg":"Successfully created task","operation":"create-task","task_id":"45d63c46-a37a-4c16-9a2a-18693efa8cae"}
{"level":"info","ts":"2025-12-15T10:28:21Z","logger":"http","msg":"Request completed","method":"POST","path":"/api/tasks","status":201}
{"level":"info","ts":"2025-12-15T10:28:21Z","logger":"http","msg":"Request completed","method":"POST","path":"/api/a2a/kagent/k8s-agent/","status":200}

11) Example: Ask agent to create a Service manifest (agent-driven action)

Agents can generate and apply manifests. For example, ask the k8s-agent to create a ClusterIP Service (without a selector) in the default namespace:

kagent invoke -n kagent -a k8s-agent \
  -t "create a service ssdfsdflkjdipin in default namespace of type ClusterIP without any selector" \
  -S -o json \
  | jq -r 'select(.status? and .status.message? and .status.message.parts?)
      | .status.message.parts[]?
      | select(.kind=="data" and .data.name!=null)
      | .data.name'

The above jq pipeline extracts tool names used in the response (for example, k8s_apply_manifest). After the agent finishes, verify the Service exists:

kubectl get svc -n default

Sample output:

NAME                      TYPE        CLUSTER-IP    EXTERNAL-IP   PORT(S)       AGE
kubernetes                ClusterIP   172.20.0.1    <none>        443/TCP       62m
ssdfsdflkjdipin           ClusterIP   None          <none>        <none>        28s

Useful commands & troubleshooting

Use these commands to inspect KAgent resources, logs, and cluster events while debugging or verifying behavior.

# View kagent resources
kubectl -n kagent get agents,modelconfigs,toolservers,memories

# Get agents
kubectl -n kagent get agents

# View pods
kubectl -n kagent get pods

# View controller logs
kubectl -n kagent logs -l app.kubernetes.io/component=controller -f

# View logs for all kagent components
kubectl -n kagent logs -l app.kubernetes.io/name=kagent -f

# View events (helpful for debugging)
kubectl -n kagent get events --sort-by='.lastTimestamp'

Documentation and further examples:

If the UI or agent responses are not immediately available, allow a few seconds for pods to become ready and refresh the UI. Agents and tools often take a short time to initialize after a Helm upgrade.

This completes the lab for progressively installing KAgent, adding a ModelConfig, enabling built-in tools and the k8s-agent, and interacting via the UI and CLI. Additional topics you can explore next include MCP servers and deploying custom MCP configurations using KAgent.
