Request and Response Filters

In this lesson we cover request-side filters: how they modify requests before they reach the backend (and, where relevant, affect responses). Filters let you add, change, or remove request metadata, redirect clients, rewrite request paths for internal routing, or duplicate traffic for testing and analytics.

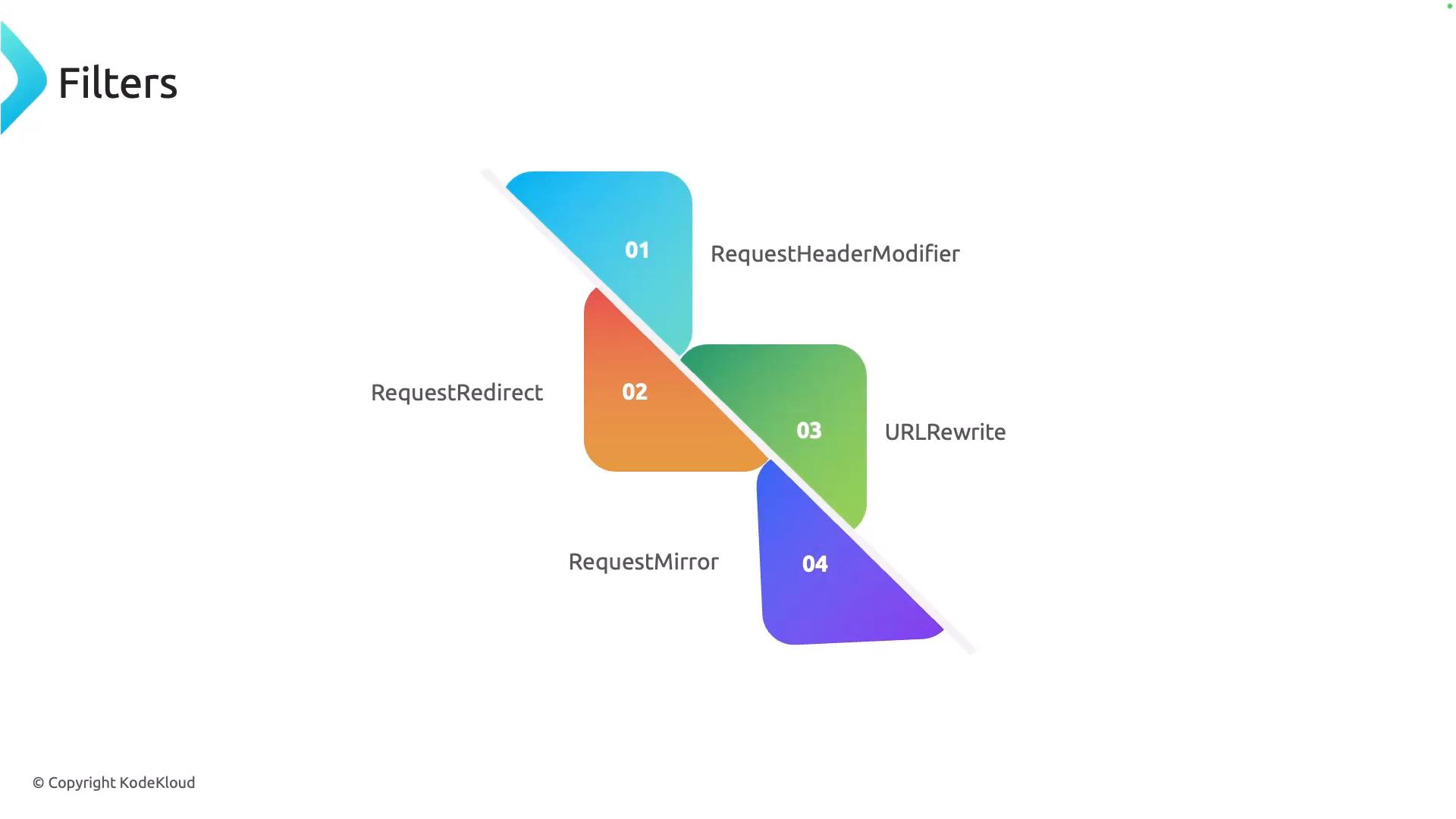

A slide titled "Filters" showing four colorful, rounded blocks arranged along a diagonal and numbered 01–04, labeled RequestHeaderModifier, RequestRedirect, URLRewrite, and RequestMirror. The slide includes a small "© Copyright KodeKloud" note at the bottom.

Summary table

Filter	Purpose	Typical usage / quick example
Request Header Modifier	Add, set, append, or remove HTTP headers on the request	Inject `X-Env: production`, remove `X-Forwarded-For`
Request Redirect	Return an HTTP 3xx to the client to point them to another URL	Redirect HTTP → HTTPS or change host/path
URL Rewrite	Rewrite the request path (or parts of the URL) before forwarding	Expose `/coffee` publicly while routing to internal `/tea`
Request Mirror	Duplicate incoming requests to one or more backends for testing/observability	Shadow production traffic to a staging service

Request Header Modifier

Request Header Modifier filters let you modify headers that flow through the gateway. Typical operations:

Add new headers.
Set (overwrite) a header to a specific value.
Append values to an existing header.
Remove headers entirely.

Common use cases include injecting tracing or routing metadata, stripping sensitive client headers before forwarding to internal services, and standardizing header formats. Example (conceptual YAML) — set, add, and remove headers:

filters:
- type: RequestHeaderModifier
  requestHeaderModifier:
    set:
    - name: X-Env
      value: production
    add:
    - name: X-Request-Id
      value: "{{request.id}}"
    remove:
    - X-Secret-Token

Use header modifiers to centralize cross-cutting concerns like tracing, authentication hints, or policy flags so backends remain simple and consistent.

Request Redirect

A Request Redirect filter instructs the client to request a different URL by returning an HTTP 3xx response (for example, 301 or 302) and a Location header that points to the new endpoint. Common uses:

Canonicalization (for example, redirect http:// to https://).
Moving clients to new hostnames or paths.
Enforcing trailing slash behavior or legacy URL compatibility.

Conceptual example — redirect to a secure site or new path:

filters:
- type: RequestRedirect
  requestRedirect:
    responseCode: 301
    httpsRedirect: true
    pathRedirect: /new-path

URL Rewrite

URL Rewrite modifies the request URL (path and optionally other URL parts) before sending the request to the backend. This is useful when you want a friendly external path but route to a different internal path or microservice endpoint. Key points:

Rewrites affect what the backend sees as the request path; the client’s browser still shows the original requested URL.
You can preserve or modify query strings and headers depending on the gateway/filter configuration.

Example — externally /coffee forwarded internally to /tea:

filters:
- type: URLRewrite
  urlRewrite:
    path: /tea

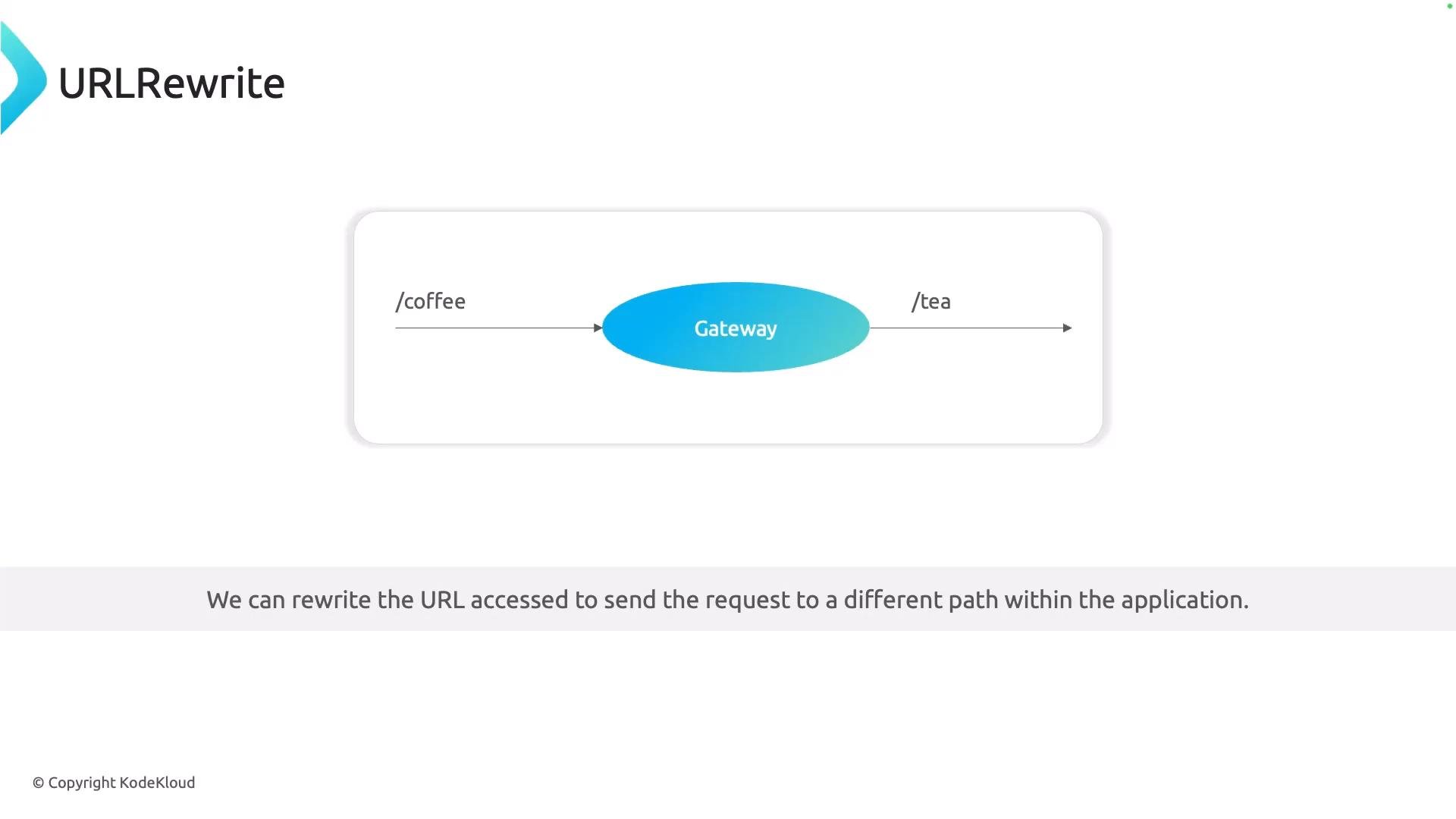

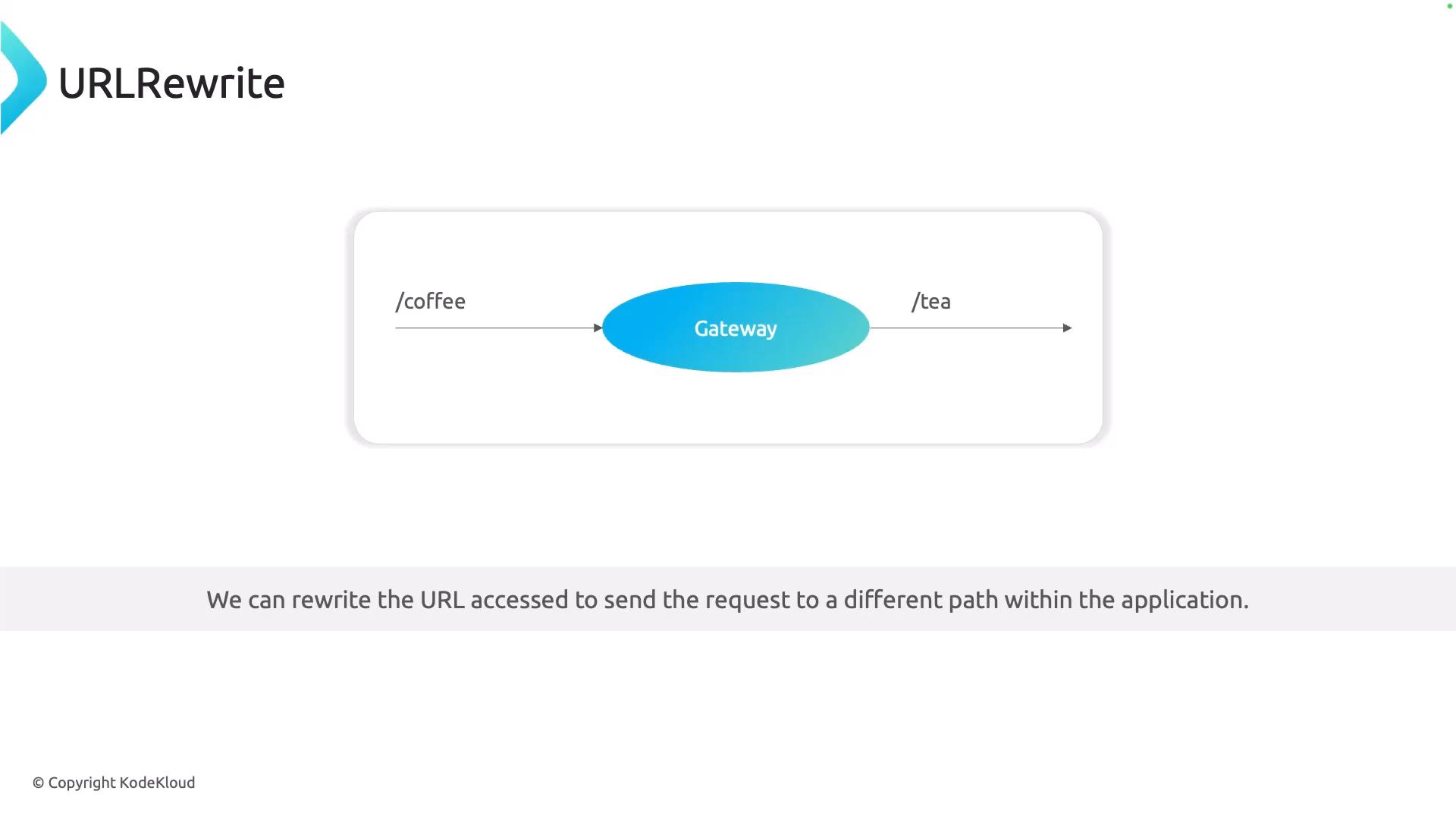

A slide titled "URLRewrite" showing a gateway diagram that receives a request from "/coffee" and forwards it to "/tea". The caption explains rewriting the accessed URL to send the request to a different path.

Request Mirror (Shadowing)

Request Mirror duplicates an incoming request and forwards a copy to one or more additional backends while allowing the primary backend to handle the real response returned to the client. The mirrored request is usually fire-and-forget — the gateway ignores the mirrored backend’s response. Use cases:

Validate a new service version with production traffic without impacting users.
Feed production traffic into analytics or observability pipelines.
Performance/load testing with real request shapes.

Example — mirror traffic to a canary backend:

filters:
- type: RequestMirror
  requestMirror:
    backendRef:
      name: tea-canary
      port: 80

Mirrored requests are often sent asynchronously and their responses ignored. Be mindful of privacy and downstream side effects (e.g., duplicated writes). Ensure mirrored endpoints are safe to receive production traffic.

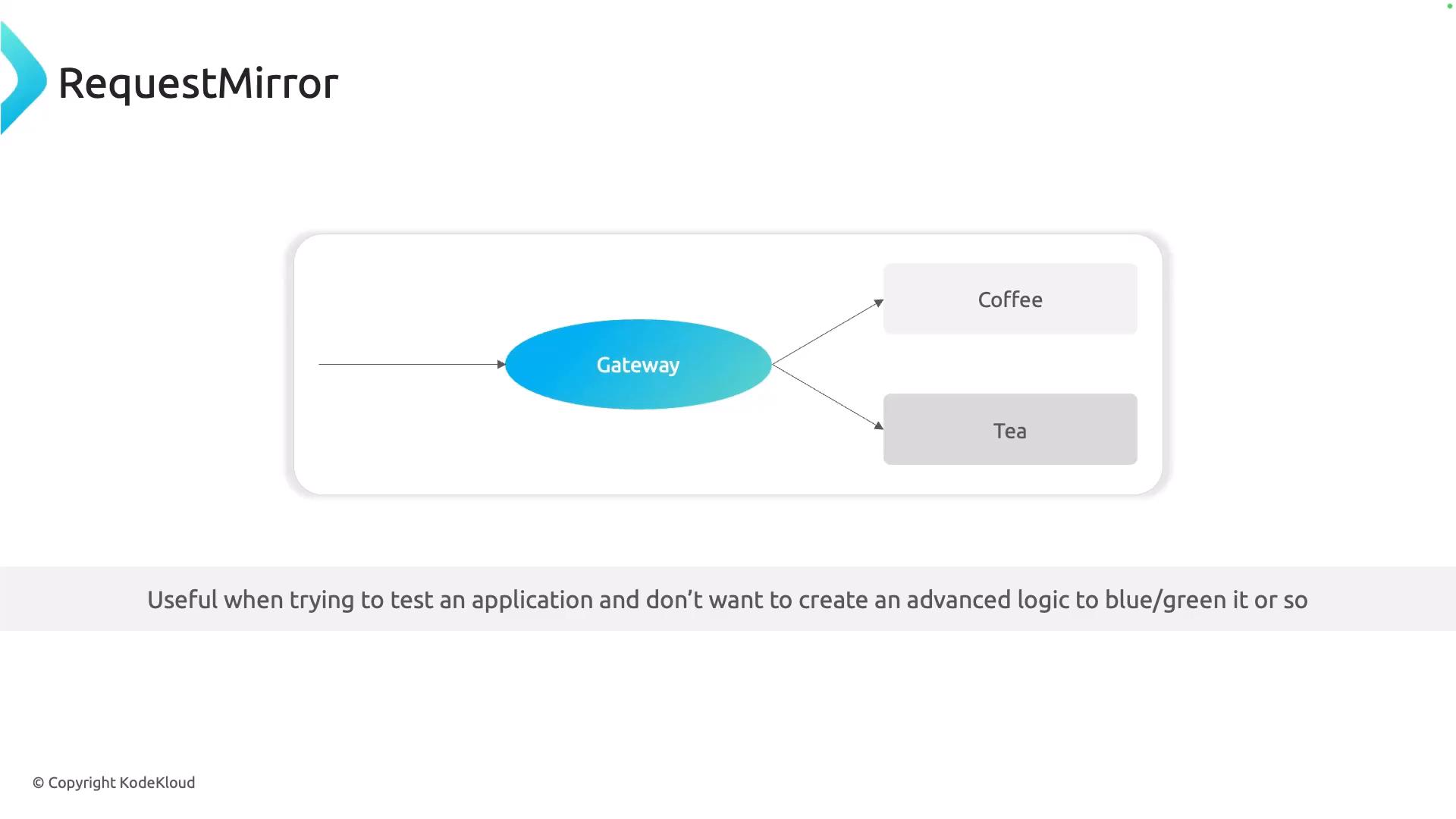

A slide titled "RequestMirror" showing a simple architecture diagram: an incoming arrow to a central "Gateway" oval that splits into two arrows toward boxes labeled "Coffee" and "Tea." The slide also has a brief footer note about testing an application.

Best practices

Centralize header manipulation at the gateway to avoid duplication in services.
Use redirects for canonicalization to improve SEO and avoid duplicate-content issues.
Prefer URL rewrites for internal routing when you want to keep stable public URLs.
Mirror only safe, idempotent requests or routes that you know will not cause side effects when duplicated.
Monitor mirrored traffic volume and latency to avoid unexpected load on shadow services.
