After reviewing the limitations of the legacy NGINX Ingress Controller, this lesson introduces the Gateway API — a modern, extensible Kubernetes API designed to express L4–L7 traffic handling, with clearer separation of concerns between platform operators and application developers. We’ll cover how the Gateway API works, what components it introduces, how a Gateway implementation (controller) is installed and provisioned, and how responsibilities map to personas (infrastructure provider, SRE/platform, and developers).

​
Installing an NGINX Gateway implementation

To adopt the Gateway API you first install a Gateway implementation (controller). In these examples we use the NGINX Gateway Fabric Helm chart, which installs the control plane and the CRDs required to create Gateway API objects (GatewayClass, Gateway, HTTPRoute, GRPCRoute, ReferenceGrant, etc.).
Install the CRDs before creating Gateway API objects. Many Helm charts include a CRD installation step; confirm whether your chart installs CRDs or requires a separate apply. Creating Gateways or Routes without CRDs will fail.
When you run helm install for the NGINX Gateway Fabric chart, the chart typically creates these resources by default: These resources form the control plane. As you create Gateways and Routes the controller will begin provisioning data-plane components automatically.

​
Data plane provisioning and path of traffic

After the controller is installed and a Gateway is created, the controller provisions data-plane pods to implement the actual traffic handling. Typical behavior:
  • Creating a Gateway triggers the controller to create a data-plane Deployment in the same namespace.
  • The Deployment name often encodes the Gateway name, the word nginx, and a unique suffix, for example:
  • When Routes are attached to the Gateway, the controller translates route rules into NGINX configuration files and writes them to the data-plane pods (for example, /etc/nginx/conf.d).

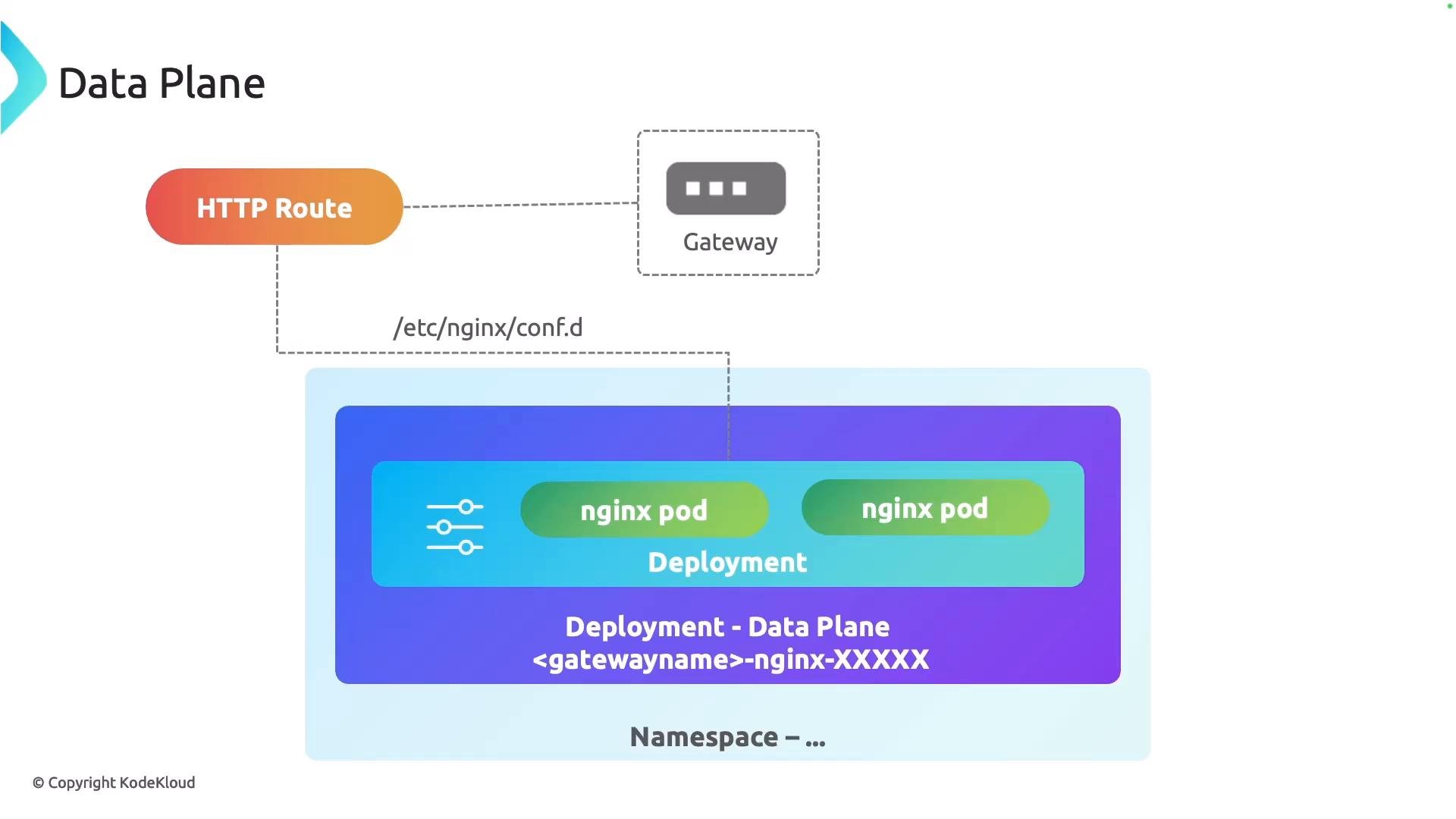

A schematic labeled "Data Plane" showing an HTTP Route connected to a Gateway and pointing into an nginx Deployment (two nginx pods) with a referenced config path (/etc/nginx/conf.d) inside a namespace. The diagram illustrates how traffic flows from the route/gateway to the nginx pods.
Key implementation details to keep in mind:
  • The control plane translates Gateway and Route resources into the concrete configuration for the data plane.
  • Data-plane pods serve traffic and mount the generated configuration at the expected path (e.g., /etc/nginx/conf.d).
  • Multiple Gateways can be reconciled by the same controller and may result in separate data-plane deployments per Gateway, depending on the controller’s design and the Gateway configuration.

​
Gateway API: logical components

Conceptually the Gateway API introduces a small set of logical components that map to responsibilities and allow better role separation.
  • GatewayClass — Declares which controller implementation will reconcile Gateways that reference it (examples: NGINX, Istio, HAProxy, Envoy).
  • Gateway — Represents the network boundary that exposes your application traffic. Configure listeners, TLS, allowed routes, and the set of namespaces or origins that can attach Routes.
  • Routes (HTTPRoute, GRPCRoute, etc.) — Define how requests are matched and forwarded to backend Service objects. Routes express routing rules, header manipulation, retries, timeouts, and other request-level behavior.
The Gateway API encourages clear ownership:
  • GatewayClass is typically provisioned and maintained by infrastructure providers or platform maintainers.
  • Gateways (and the controller lifecycle) are typically managed by SREs or platform engineers.
  • Routes are authored by application developers to express application-specific routing and policies.

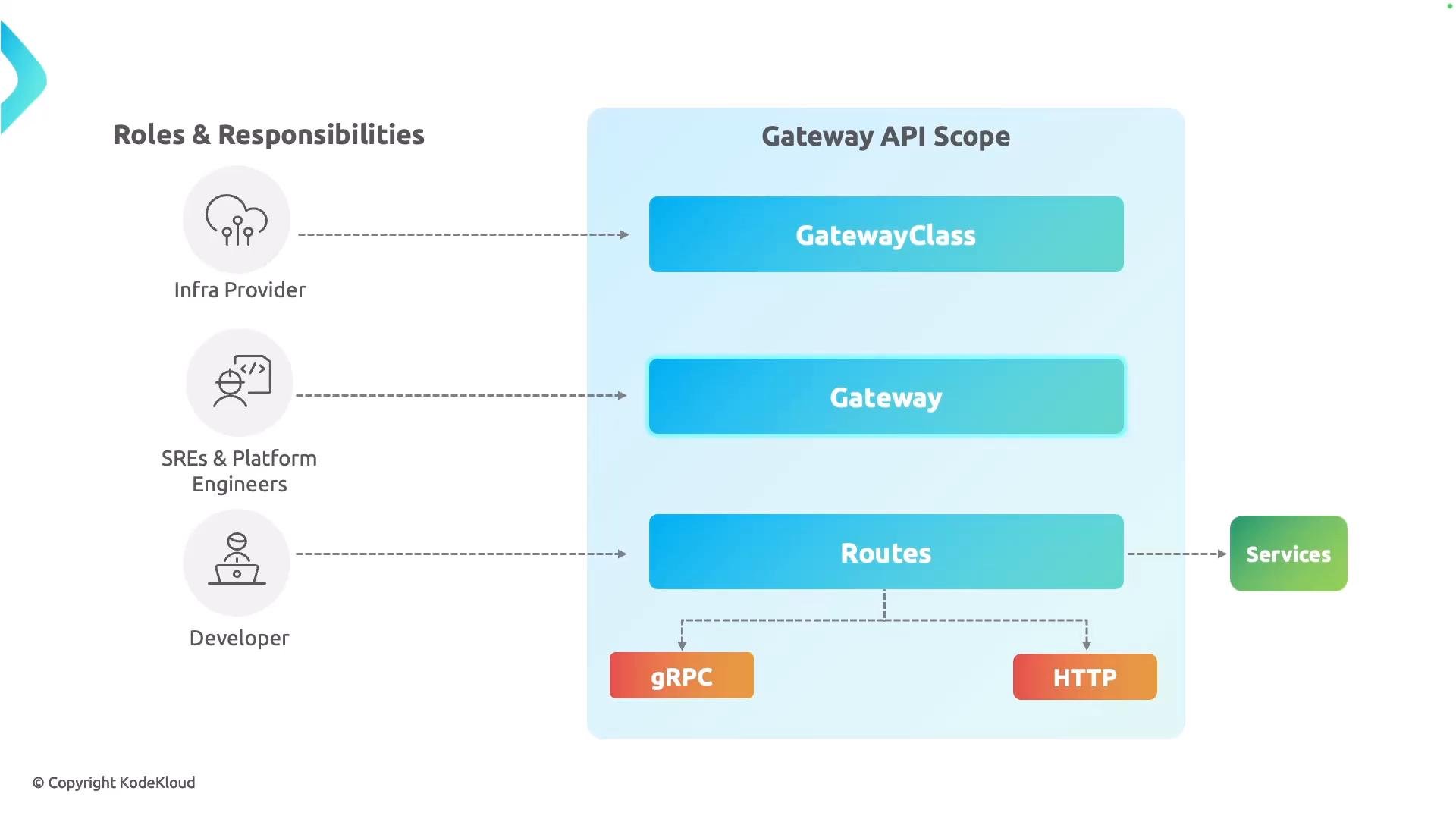

A diagram mapping roles (Infra Provider, SREs & Platform Engineers, Developer) on the left to Gateway API scope components on the right. The right side shows GatewayClass, Gateway, and Routes connecting down to gRPC/HTTP endpoints and out to Services.
Recommended responsibilities:
  • Infrastructure Provider: publish and maintain a GatewayClass and the controller distribution.
  • SRE / Platform Engineers: operate the control plane, manage namespaces, RBAC, and the lifecycle of Gateways.
  • Developers: create HTTPRoute/GRPCRoute manifests to expose application services safely and with application-level policies.

​
Next steps

In subsequent lessons you’ll create and delete Gateway API objects, customize listener and route behavior, and test traffic flows through the NGINX data plane. Practice creating a GatewayClass, provisioning a Gateway, and attaching an HTTPRoute to see the controller generate data-plane configuration.
