Gateway Configuration Deep Dive

This document explains the Gateway resource in the Kubernetes Gateway API, how it fits into your edge architecture, and configuration patterns for listeners, routing, and TLS termination. Use this as a practical reference after installing a Gateway controller (for example, via a Helm chart). The Gateway is the core component of your edge architecture. Its primary responsibilities include:

referencing a GatewayClass (the implementation/controller),
hosting listeners (attachment points for Routes),
accepting and routing Route objects,
hosting TLS certificates when terminating TLS,
and exposing a routable IP address.

Typically the Gateway is the first Kubernetes resource you create after installing the controller.

Gateways are implementation-specific. The GatewayClass you reference determines controller behavior, supported features, and how TLS or protocols are implemented. See the Gateway API docs for controller-specific details.

Example Gateway manifest

Here is a minimal Gateway manifest that references a GatewayClass named nginx and creates an HTTP listener for *.example.com on port 80:

apiVersion: gateway.networking.k8s.io/v1
kind: Gateway
metadata:
  name: gateway
spec:
  gatewayClassName: nginx
  listeners:
  - name: http
    port: 80
    protocol: HTTP
    hostname: "*.example.com"

Key fields in this example:

gatewayClassName — references the GatewayClass object providing the implementation (the controller).
listeners — describe how the Gateway accepts traffic and where Route kinds can attach. The http listener above listens on port 80 for HTTP requests and accepts hostnames that match *.example.com.

Listener protocols

Listener protocols supported by the Gateway API include:

Protocol	Typical use cases
HTTP	Standard unencrypted HTTP routing
HTTPS	HTTP over TLS (Gateway terminates TLS)
TLS	Layer 4 TLS routing/termination
TCP	Raw TCP proxying
UDP	Raw UDP proxying
GRPC	gRPC traffic (application-aware routing)

Note: Controller implementations vary in feature support. Check your controller’s documentation for exact behavior and extensions.

Advanced listener settings

Listeners include several advanced options to control which Routes may attach and how they are matched.

allowedRoutes controls which Route kinds and which namespaces are permitted to reference a listener.
Namespace selection options:
- from: All — allow Routes from any namespace.
- from: Same — allow Routes only from the Gateway’s namespace.
- from: Selector — allow Routes only from namespaces matching a label selector.

Example: restrict allowed Routes to namespaces selected by labels:

spec:
  listeners:
  - name: http
    port: 80
    protocol: HTTP
    hostname: "*.example.com"
    allowedRoutes:
      namespaces:
        from: Selector
        selector:
          matchLabels:
            allow-gateway: "true"

Table: allowedRoutes namespace options

`from` value	Meaning	Example
`All`	Allow Routes from any namespace	`from: All`
`Same`	Only allow Routes in the Gateway’s namespace	`from: Same`
`Selector`	Allow Routes in namespaces matching a label selector	`from: Selector` + `selector`

TLS modes: Terminate vs Passthrough

The Gateway API supports two primary TLS handling modes. Choose the one that fits your security and routing requirements.

Mode	What happens	When to use
Terminate	Gateway decrypts (terminates) TLS using certificates configured on the Gateway. Traffic to backends can be unencrypted (HTTP) or re-encrypted depending on controller features.	Use when you need HTTP-level routing, SNI inspection, header inspection, or TLS offload.
Passthrough	Gateway forwards the encrypted connection to the backend Pod without decrypting it. Backend is responsible for TLS termination and client certificate validation.	Use when end-to-end encryption and backend certificate validation are required.

Choose terminate when the Gateway needs to inspect HTTP for routing or perform TLS offload. Choose passthrough when your application must handle TLS termination or client certificate validation end-to-end.

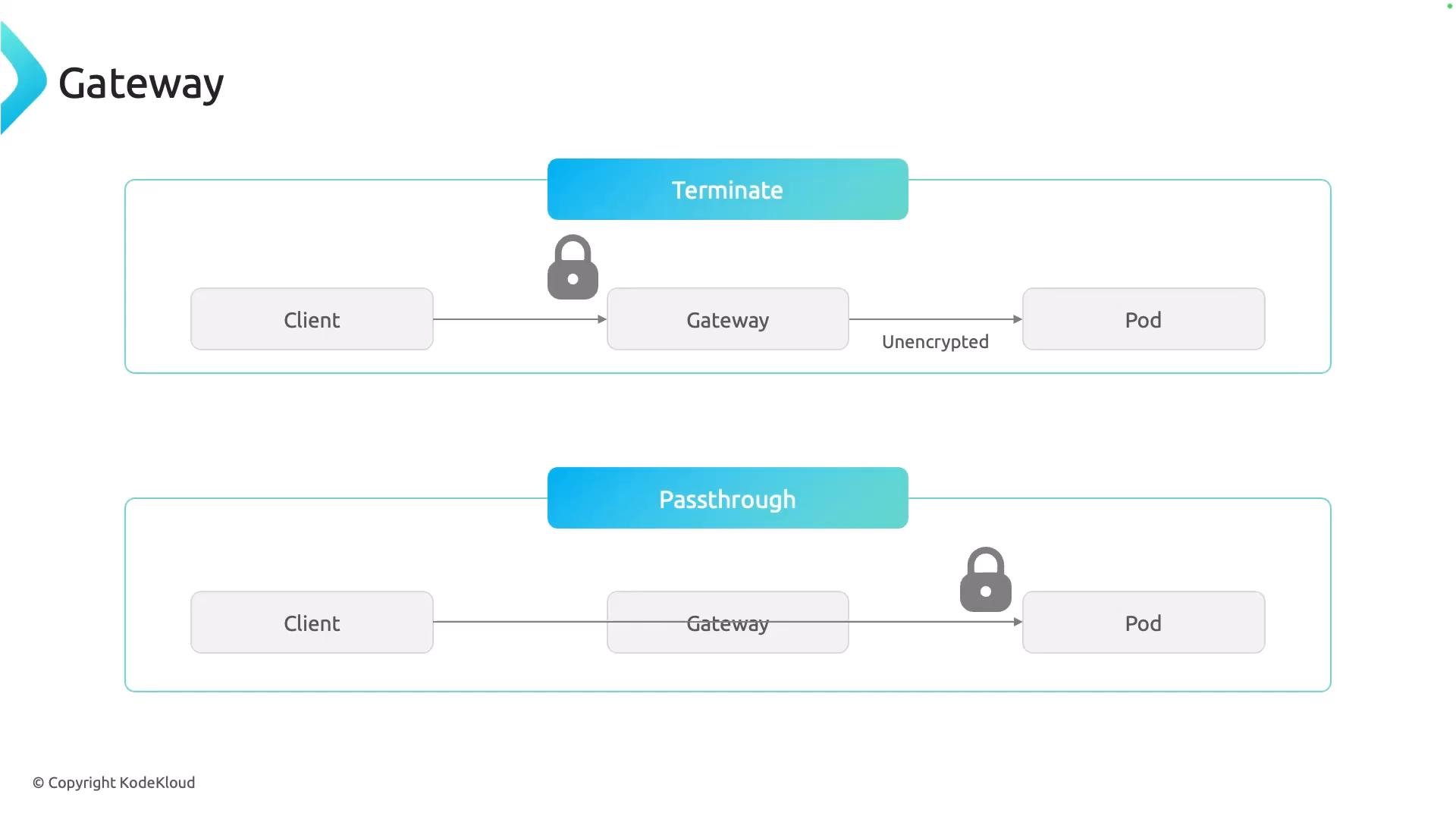

A diagram titled "Gateway" showing two flows—"Terminate" and "Passthrough"—with boxes for Client, Gateway, and Pod. In "Terminate" the lock is before the gateway and the gateway→pod link is labeled "Unencrypted"; in "Passthrough" the lock appears near the pod indicating encryption passes through.

Quick reference and next steps

Create a GatewayClass (controller) first, then create one or more Gateway resources.
Define listeners for protocol, port, and hostname matching.
Use allowedRoutes to scope which namespaces and Route kinds can attach.
Decide whether the Gateway should terminate TLS or passthrough encrypted connections.
Consult your controller’s documentation for implementation-specific features (certificate management, re-encryption to backends, etc.).
