Tool and Environment Preparation

Before diving into LangGraph, confirm your local environment is ready. This guide keeps things lightweight and beginner-friendly while ensuring reproducible setups for development and experimentation. Minimum requirements

Python 3.10 or later
A code editor or Jupyter notebook (Jupyter is excellent for inline experimentation)
A virtual environment (venv or Conda) to isolate dependencies
A few Python packages (listed below)

We recommend Jupyter Notebook for interactive experimentation and Visual Studio Code for larger projects. Always use a virtual environment to avoid dependency conflicts.

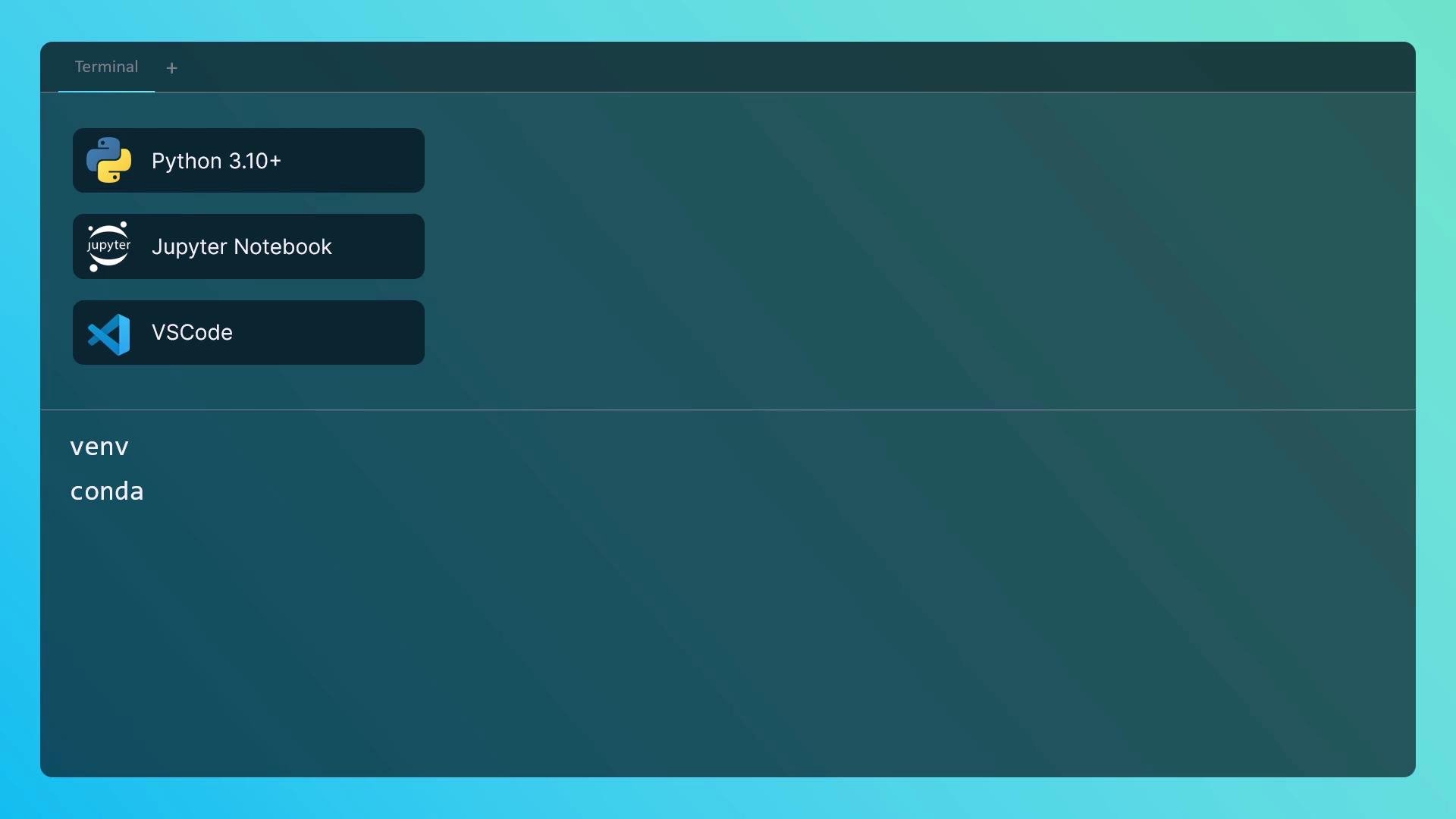

The image shows a terminal interface with options to launch Python 3.10+, Jupyter Notebook, and VSCode, along with "venv" and "conda" highlighted below.

Install system prerequisites and pip

First, check whether pip is available:

pip --version

If pip is missing, install it using your distribution’s package manager. Use the appropriate command for your platform:

Platform	Install pip
Ubuntu / Debian	`sudo apt update` `sudo apt install -y python3-pip`
RHEL / CentOS / Rocky / Alma	`sudo dnf install -y python3-pip`
Arch Linux	`sudo pacman -S python-pip`

Once pip is available, proceed to install the Python packages.

Install core Python packages

Install the minimal required packages and a few recommended utilities. The table below summarizes purpose and installation.

Package(s)	Purpose
`langgraph`, `langchain`, `openai`	Core libraries for building LLM workflows and calling OpenAI models
`tqdm`	Progress bars for long-running loops
`rich`	Pretty console output for better CLI readability
`langsmith`	Observability and tracing for LangChain/LangGraph workflows
`python-dotenv`	Load local `.env` files during development

Install the packages:

# Core dependencies
pip install --upgrade langgraph langchain openai

# Optional utilities (recommended)
pip install --upgrade tqdm rich langsmith python-dotenv

Virtual environments

Use a virtual environment to isolate dependencies. Two common approaches: Using venv (standard library):

python -m venv .venv

# Activate:
# macOS / Linux
source .venv/bin/activate

# Windows (PowerShell)
.venv\Scripts\Activate.ps1

Using Conda:

conda create -n langgraph-env python=3.10 -y
conda activate langgraph-env

API keys and secure storage

To call OpenAI models (e.g., GPT-4, GPT-3.5), you need an API key from the OpenAI dashboard: https://platform.openai.com/account/api-keys Important best practices:

Never hard-code API keys in source files.
Use environment variables or a secrets manager for production.
For local development, use a .env file with python-dotenv and add .env to .gitignore.

Example .env file:

OPENAI_API_KEY=sk-xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx

Load it in Python:

from dotenv import load_dotenv
load_dotenv()

Store secrets in environment variables or a secure secrets manager. Use python-dotenv only for local development; never commit .env to version control.

Recommended project layout

Keep an organized layout from the start. Example structure:

my-project/
├─ notebooks/         # Jupyter notebooks for experiments
├─ src/               # Reusable code and utilities
├─ data/              # Any data files
├─ .env               # Local environment variables (gitignored)
└─ README.md

The image is a slide featuring the title "API Keys and Setup" alongside the logos for OpenAI ChatGPT 4.0 and LangSmith.

Quick system test

Create a lightweight script to validate imports, verify the OpenAI API key is present, and make a minimal Chat API call. Save this as system_test.py and run it after activating your virtual environment and setting OPENAI_API_KEY or creating a .env.

# system_test.py
import os
import sys

# Optional: load .env for local development
try:
    from dotenv import load_dotenv
    load_dotenv()
except Exception:
    pass

# Check Python version
print("Python:", sys.version.splitlines()[0])

# Import and check core packages
try:
    import langgraph
    print("langgraph: imported", getattr(langgraph, "__version__", "version unknown"))
except Exception as e:
    print("langgraph: import failed:", e)

try:
    import langchain
    print("langchain: imported", getattr(langchain, "__version__", "version unknown"))
except Exception as e:
    print("langchain: import failed:", e)

try:
    import openai
    print("openai: imported", getattr(openai, "__version__", "version unknown"))
except Exception as e:
    print("openai: import failed:", e)

# Verify OpenAI API key is set
api_key = os.environ.get("OPENAI_API_KEY")
if not api_key:
    print("OPENAI_API_KEY is not set. Set it as an environment variable or in a .env file.")
    sys.exit(1)

openai.api_key = api_key

# Make a minimal test call to the Chat API (use gpt-3.5-turbo to reduce likelihood of missing access)
try:
    response = openai.ChatCompletion.create(
        model="gpt-3.5-turbo",
        messages=[{"role": "system", "content": "You are a helpful assistant."},
                  {"role": "user", "content": "Say hello in one sentence."}],
        max_tokens=50,
        temperature=0.0,
    )
    reply = response.choices[0].message.content.strip()
    print("OpenAI call successful. Model reply:", reply)
except Exception as e:
    print("OpenAI call failed:", e)
    sys.exit(1)

Expected minimal output (example):

Python: 3.10.12 (or similar)
langgraph: imported version unknown
langchain: imported 0.x.x
openai: imported x.y.z
OpenAI call successful. Model reply: Hello! I'm here to help.

Using the OpenAI API may incur charges. Monitor usage and billing in your OpenAI dashboard, and prefer small test calls when validating integration.

If the script runs and the OpenAI call succeeds, your development environment is ready for the rest of the LangGraph material. If you see import errors, confirm your virtual environment is activated and the packages installed without errors. Additional references

OpenAI API keys: https://platform.openai.com/account/api-keys
Python virtual environments: https://docs.python.org/3/library/venv.html
Conda docs: https://docs.conda.io/
LangChain docs: https://docs.langchain.com/
