The Decision Maker Implementing the Conditional Router

Not all conversations or processes follow a straight line. Users can switch from asking a question to making a command mid-conversation. A linear sequence of nodes can’t handle that reliably — conditional routing is the solution.

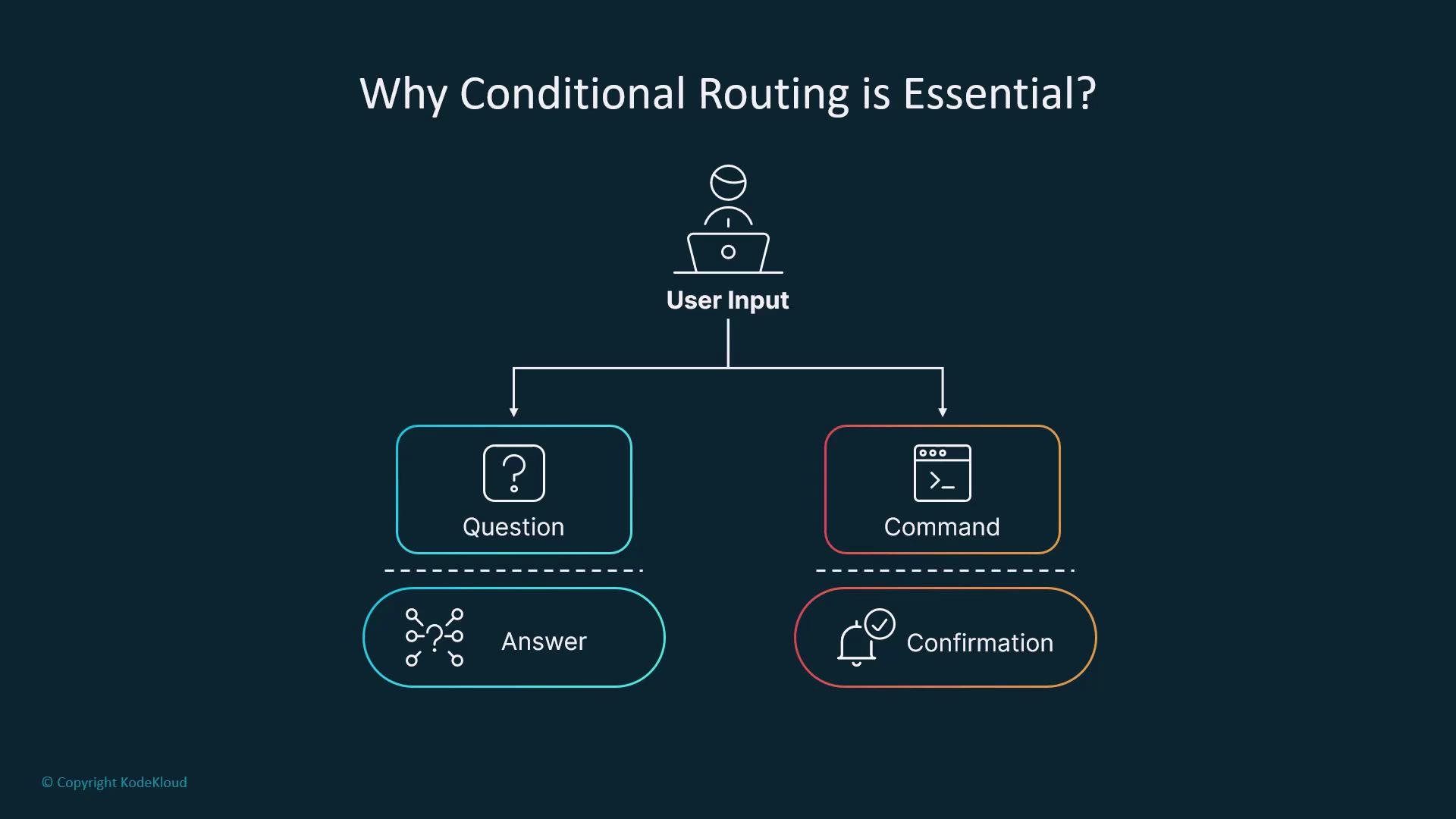

The image is a flowchart illustrating the concept of conditional routing based on user input, which is split into categories of "Question" leading to "Answer" and "Command" leading to "Confirmation."

Conditional routing lets your graph branch at runtime. Decisions can be based on user intent, LLM outputs, tool results, or internal state values. With a conditional router, a LangGraph becomes context-aware and adaptable — transforming a linear workflow into a decision engine. A conditional router is implemented as a specialized edge in LangGraph: instead of blindly going from node A to node B, it inspects the graph state and chooses which node to run next.

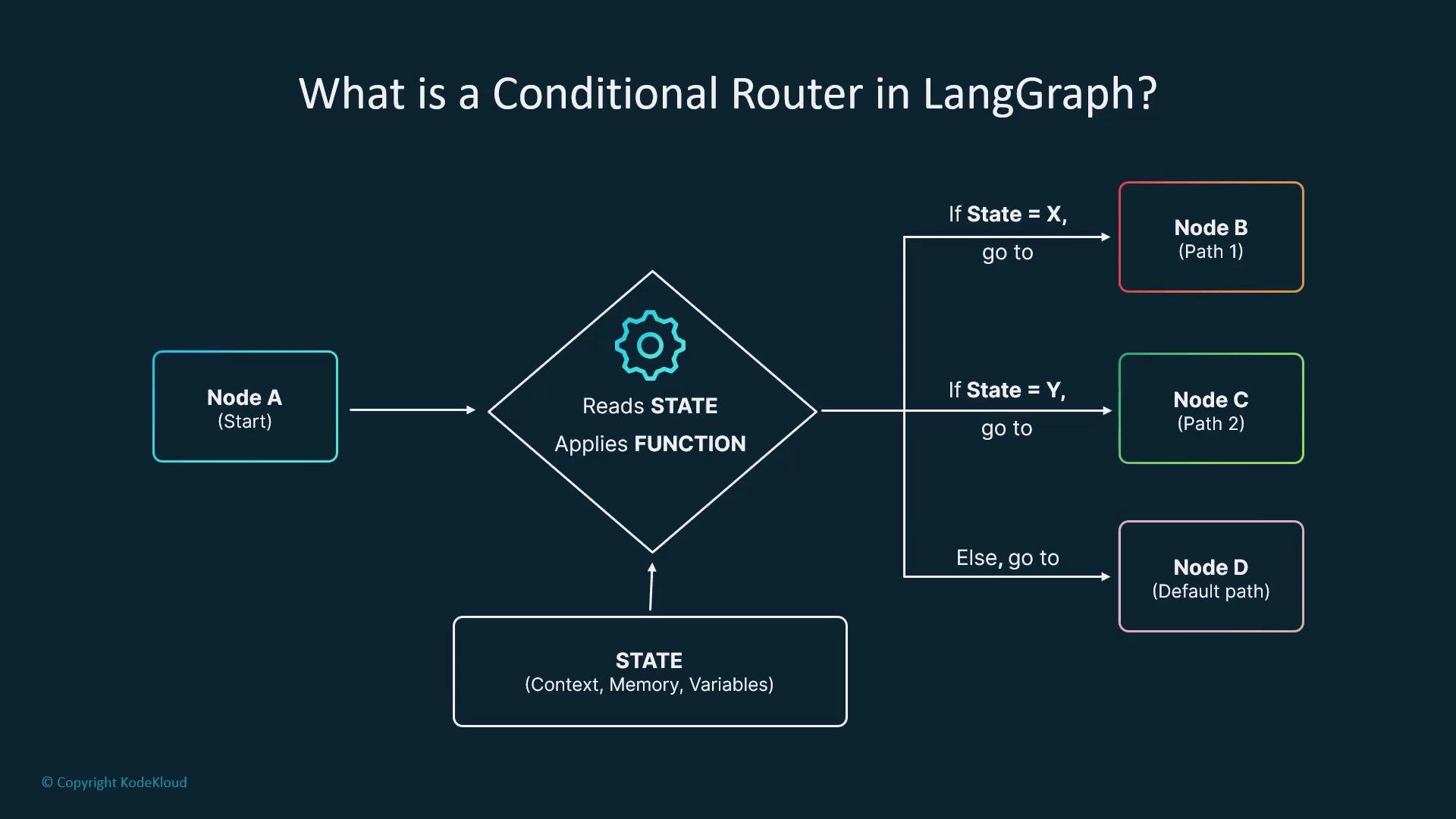

The image illustrates a flowchart explaining a conditional router in LangGraph, starting from Node A, evaluating states, and directing to Nodes B, C, or D based on conditions.

How it works

A node (or nodes) computes values and writes them into the graph state.
Define a pure routing function that reads that state and returns a routing key (for example, "search", "answer", or "clarify").
Register conditional edges with a path_map that maps routing keys to target node IDs.
The router only chooses the path; nodes perform work and update state.

This clear separation—decision logic in one place, behavior in separate nodes—keeps graphs modular, easier to test, and simpler to extend.

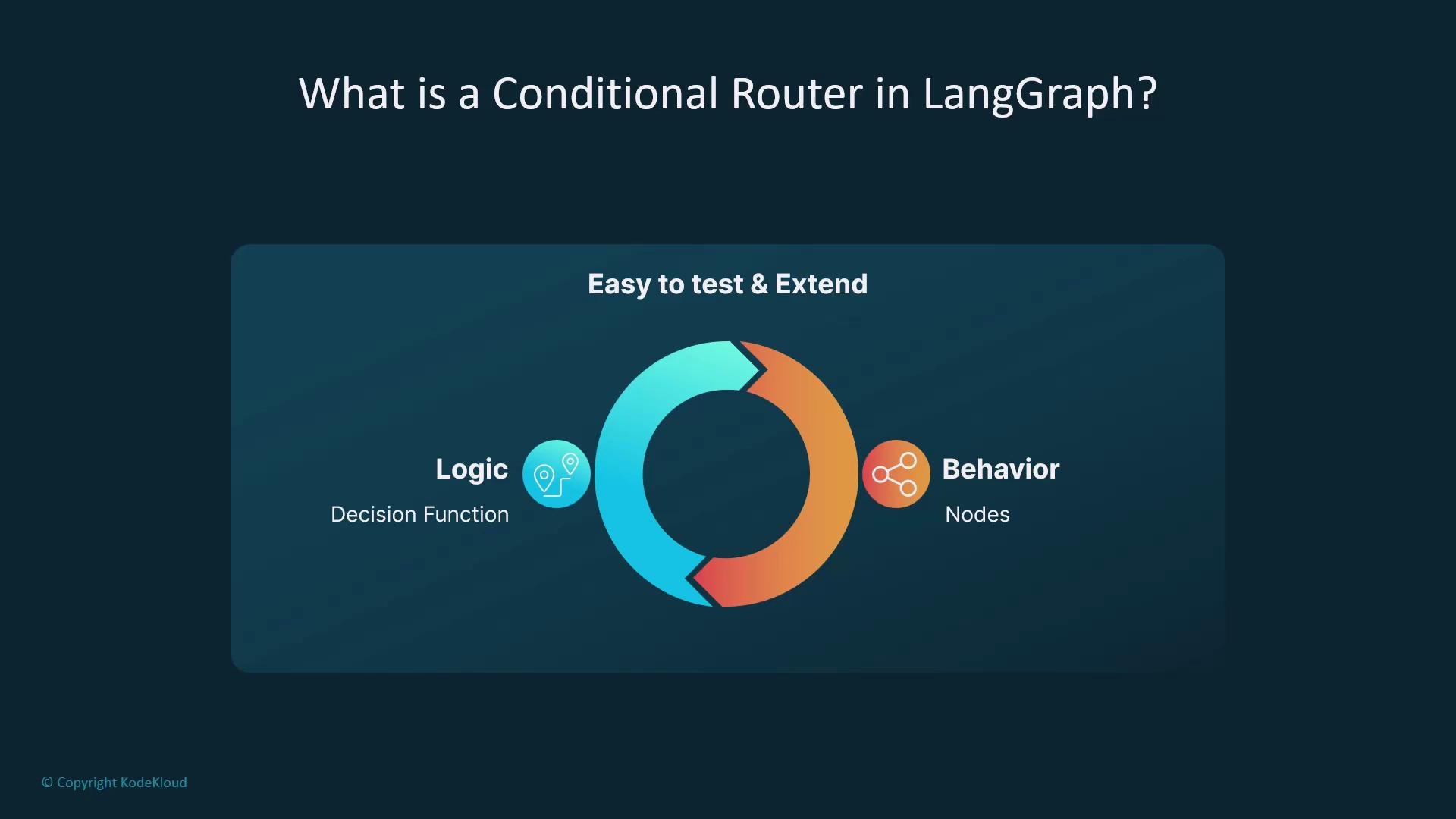

The image explains a "Conditional Router in LangGraph," depicting a circular diagram with two sections labeled "Logic" (Decision Function) and "Behavior" (Nodes), emphasizing it's easy to test and extend.

Anatomy of conditional routing

You need:

A graph state with explicit keys (for example, intent).
One or more nodes that compute or set values in state.
A pure routing function that reads state and returns a route key.
A conditional edge that maps keys to target node IDs.

Example pattern:

A “choose action” node runs an LLM or classifier and sets state["intent"].
A router function reads state["intent"] and returns that value.
The builder registers conditional edges mapping intent values to node IDs.

Example implementation

# Example: a classifier node sets the intent in state
def classify_intent_node(state, context):
    user_message = state.get("user_message", "")
    # (Implementation detail) Use an LLM or classifier here.
    # For demonstration, a simple rule:
    if user_message.lower().startswith("find"):
        state["intent"] = "search"
    elif user_message.endswith("?"):
        state["intent"] = "clarify"
    else:
        state["intent"] = "answer"
    return state

# Router function and conditional edge registration
def route_by_intent(state):
    # Read the explicit state key and return the routing key
    return state.get("intent", "answer")  # default to "answer" if missing

# Register a conditional edge on the builder
builder.add_conditional_edges(
    "choose_action",            # router node id / edge id
    condition=route_by_intent,  # function that returns a path key
    path_map={                  # map returned keys to node ids
        "search": "search_node",
        "answer": "generate_node",
        "clarify": "clarify_node",
    },
)

Important design note: the decision itself should not be made inside the router by calling an LLM or performing side effects. The preceding node(s) should set state (for example, state["intent"] = "search"). The router must remain pure and only read state and return a routing key.

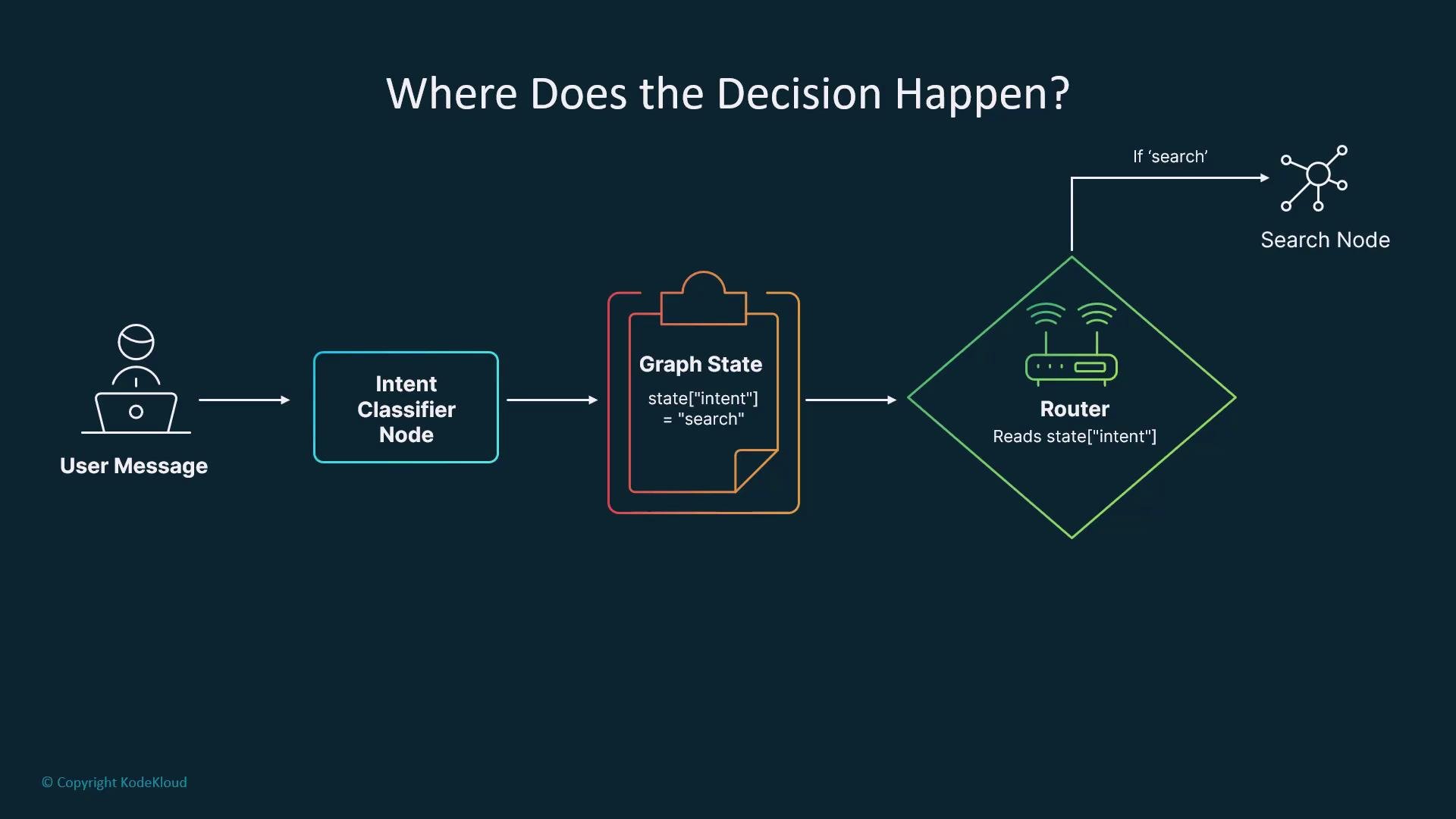

The image is a flowchart depicting a decision-making process, starting with a user message, going through an intent classifier node, graph state, and a router that reads the intent before reaching a search node.

Keeping classifier logic and routing logic separate makes routers reusable: you can plug different classifiers into the same router or reuse routers across different graphs. In practice, classifier nodes are often implemented with tools like LangChain LLMChains or other classification services. The classifier node writes results into state; the router routes on those values.

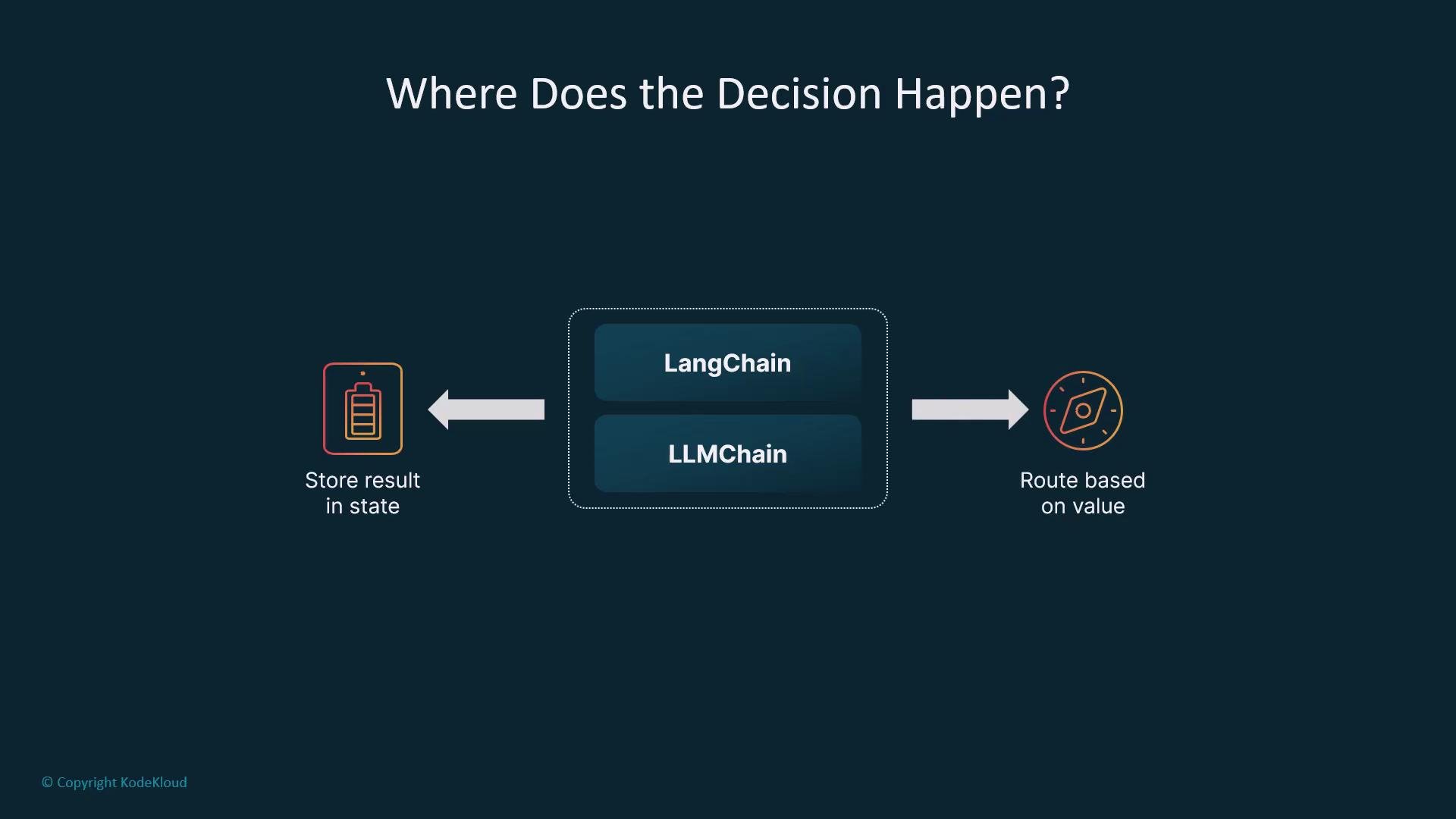

The image illustrates a flowchart labeled "Where Does the Decision Happen?" featuring LangChain and LLMChain, where results are stored in state and routed based on value.

What can you route on?

Use conditional routing for a wide range of signals:

Resource	Example routing conditions	Example action
Intent	`search`, `answer`, `clarify`	Route to search or follow-up question node
Tool output	Document found or not	Route to `generate_node` or `fallback_search_node`
LLM quality	Confidence or score thresholds	Route to `re-ask` or `use_alternative_strategy`
User type	`premium` vs `free`	Route to advanced features or limited flow

You can also implement more advanced behaviors: fallback logic, confidence thresholds, multi-step evaluations — as long as the routing function returns a known key, LangGraph will map it to the correct node.

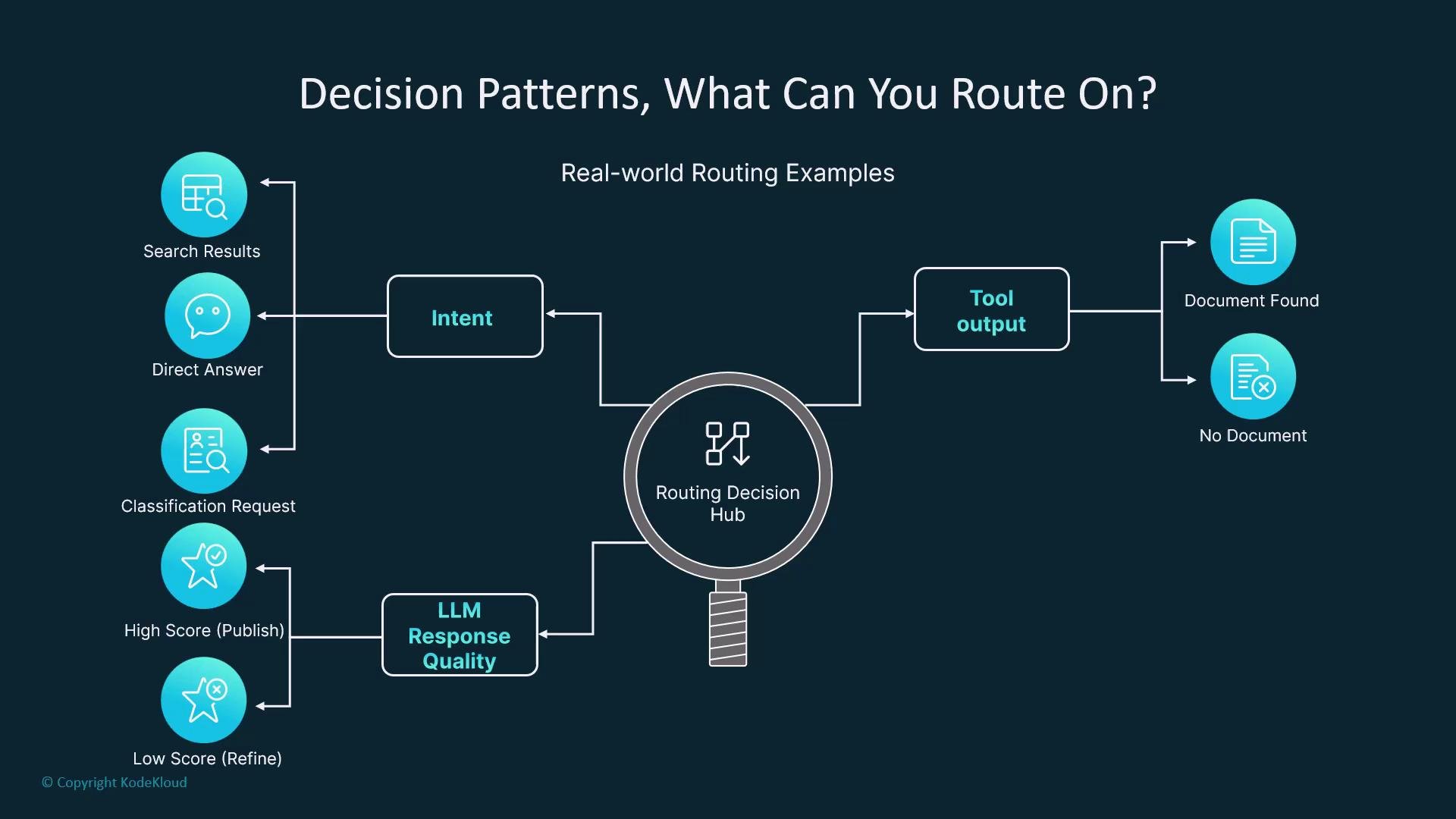

The image is a flowchart titled "Decision Patterns, What Can You Route On?" showing a "Routing Decision Hub" with connections to various decision outcomes like "Intent," "Tool output," and "LLM Response Quality," each leading to further actions.

Minimal example flow

A “Choose Action” node sets state["intent"] via an LLM or classifier.
A router reads state["intent"] and returns the routing key.
Execution continues at the node mapped to that key.

You can test the routing locally by setting state manually to different intent values and verifying the graph follows different paths.

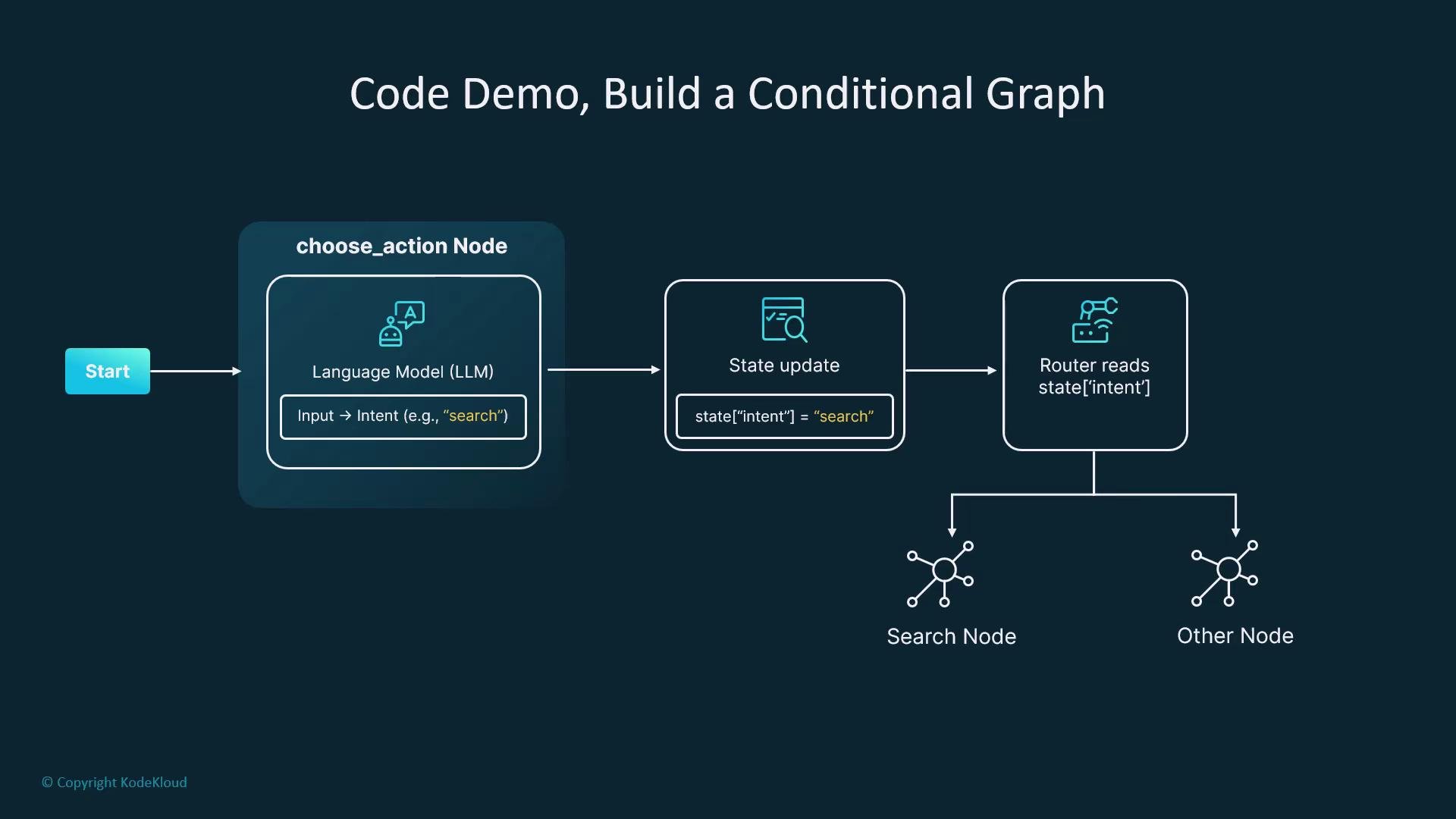

The image is a flowchart demonstrating a conditional graph for code, starting with a language model determining intent, updating the state, and routing based on state intent to different nodes.

Chatbot example

Example runtime flow:

User: “Can you look up the LangGraph docs?”
Node 1: Classify intent → sets state["intent"] = "search"
Router: Sends execution to search_node
search_node: Calls a search tool and stores results in state
generate_node: Summarizes found documents into a response

For clarify, the router can direct to a node that prompts the user for more details. This pattern scales: add more intent types and nodes as needed.

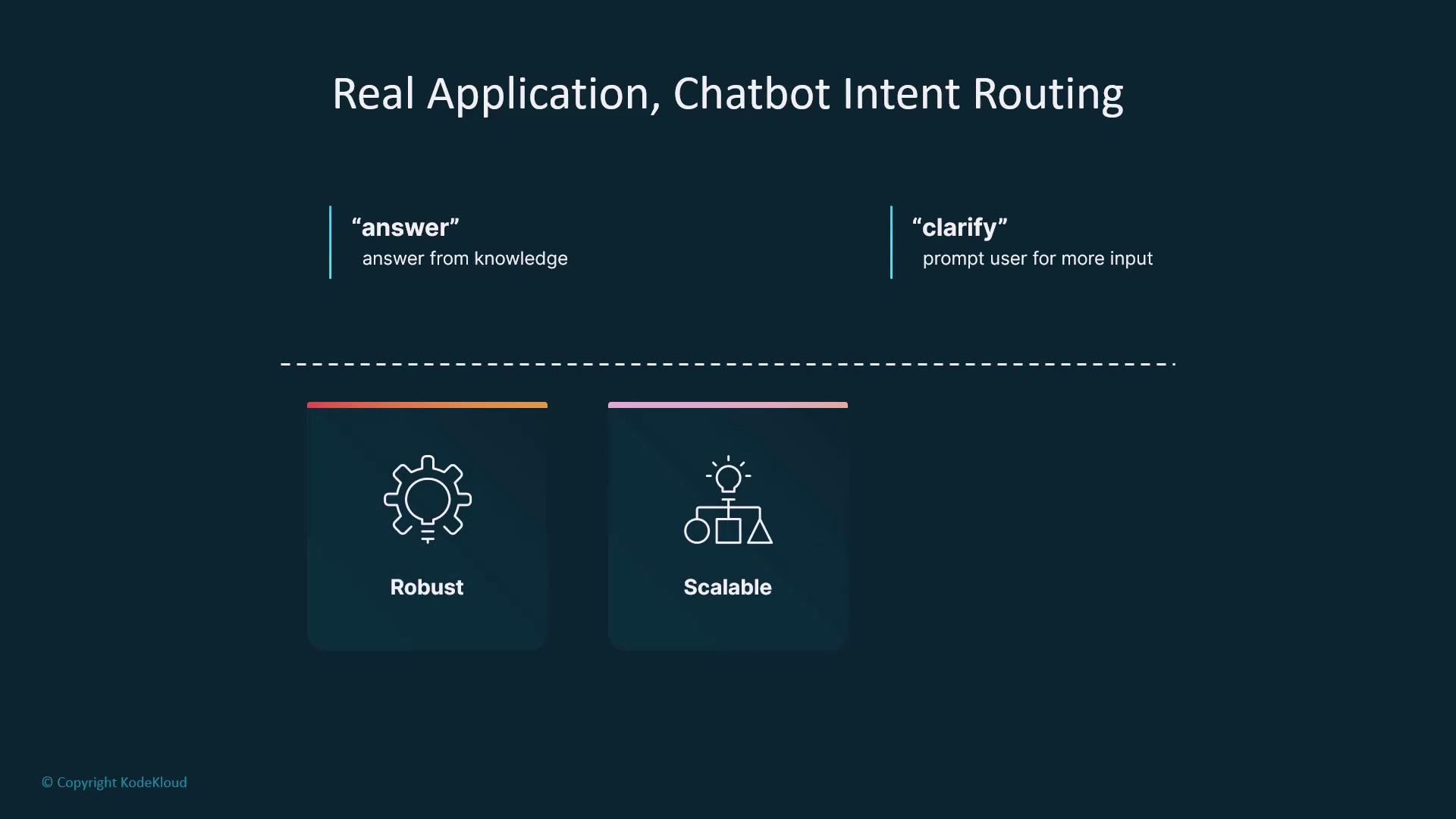

The image describes a chatbot intent routing process, highlighting "answer" for knowledge-based responses and "clarify" to prompt users for more input. It emphasizes the robustness and scalability of the application.

Best practices

Use explicit state keys such as intent, decision, or route_choice.
Keep routing functions pure: avoid side effects and do not call LLMs inside them.
Log routing decisions to make flows observable and debuggable.
Avoid embedding routing logic inside nodes; use add_conditional_edges to keep routing separate.
Design routers as small, pluggable functions so they can be reused across graphs and contexts (role-based routing, language switching, escalation).

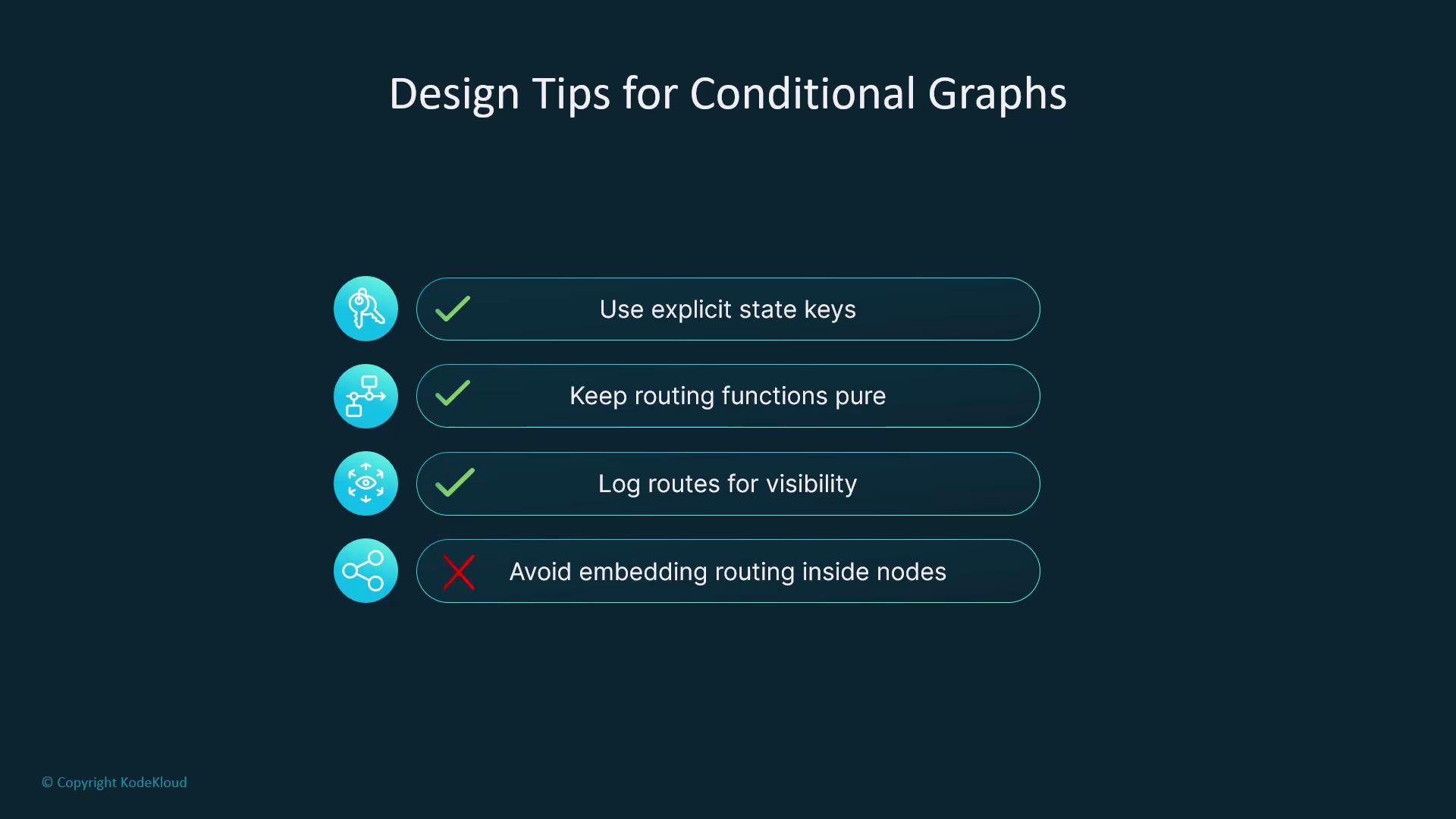

The image provides design tips for conditional graphs, including using explicit state keys, keeping routing functions pure, logging routes for visibility, and avoiding embedding routing inside nodes.

Do not perform side effects or call external services (including LLMs) inside your router function. Put that work in preceding nodes and let the router only read state and return a key.

When routing is mixed into node logic it becomes harder to debug and test. Separating routing with add_conditional_edges keeps graphs maintainable and easier to reason about — a must for production systems.

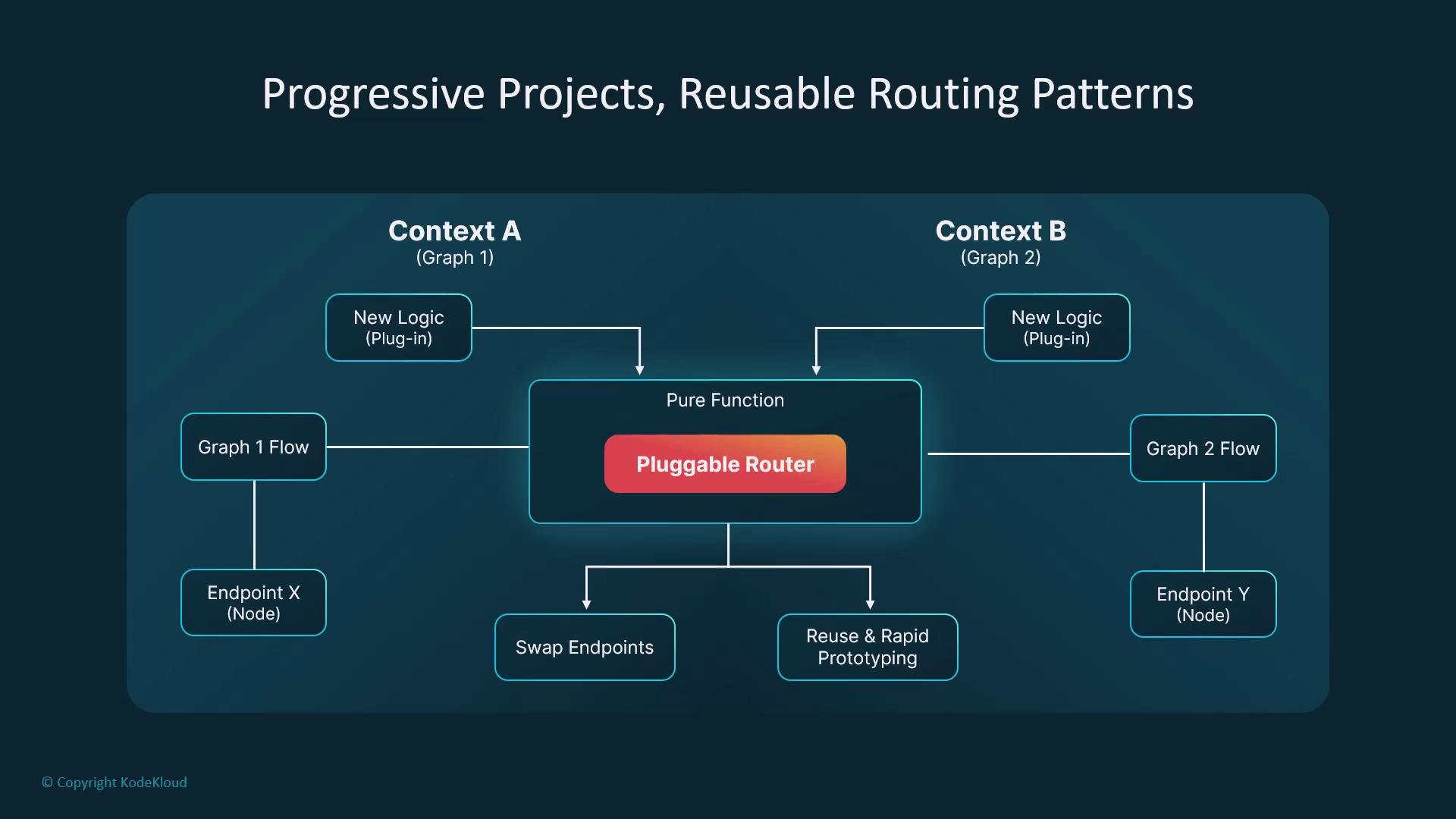

The image is a flowchart depicting a reusable routing pattern using a "Pluggable Router" connected to Context A (Graph 1) and Context B (Graph 2), emphasizing logic plug-ins and endpoint swapping or prototyping.

Design routers as pure, pluggable functions so they can be reused across graphs and contexts — for example, role-based routing, language switching, or escalation flows.

Summary

The router is the brain of a LangGraph: it decides which work to run next but does not perform the work itself. By learning how to set and read state and return routing keys from small, pure functions, you can build smart branching flows that respond to user needs, tool outputs, and more. Conditional routing adds intelligence without unnecessary complexity and scales to advanced use cases like loops and persistent state.

Links and references

LangChain LLMChain documentation
LangGraph conditional routing concepts and best practices (internal docs and examples)
