The Path Building Simple Non Cyclical Sequences

When learning how LangGraph works, start with a simple, linear sequence of steps — a non-cyclical workflow where each node runs exactly once in a defined order. These linear graphs are easy to reason about, test, and debug because data moves in a single direction through a shared state object. Think of it as an assembly line: one task hands off to the next, no loops, no branches.

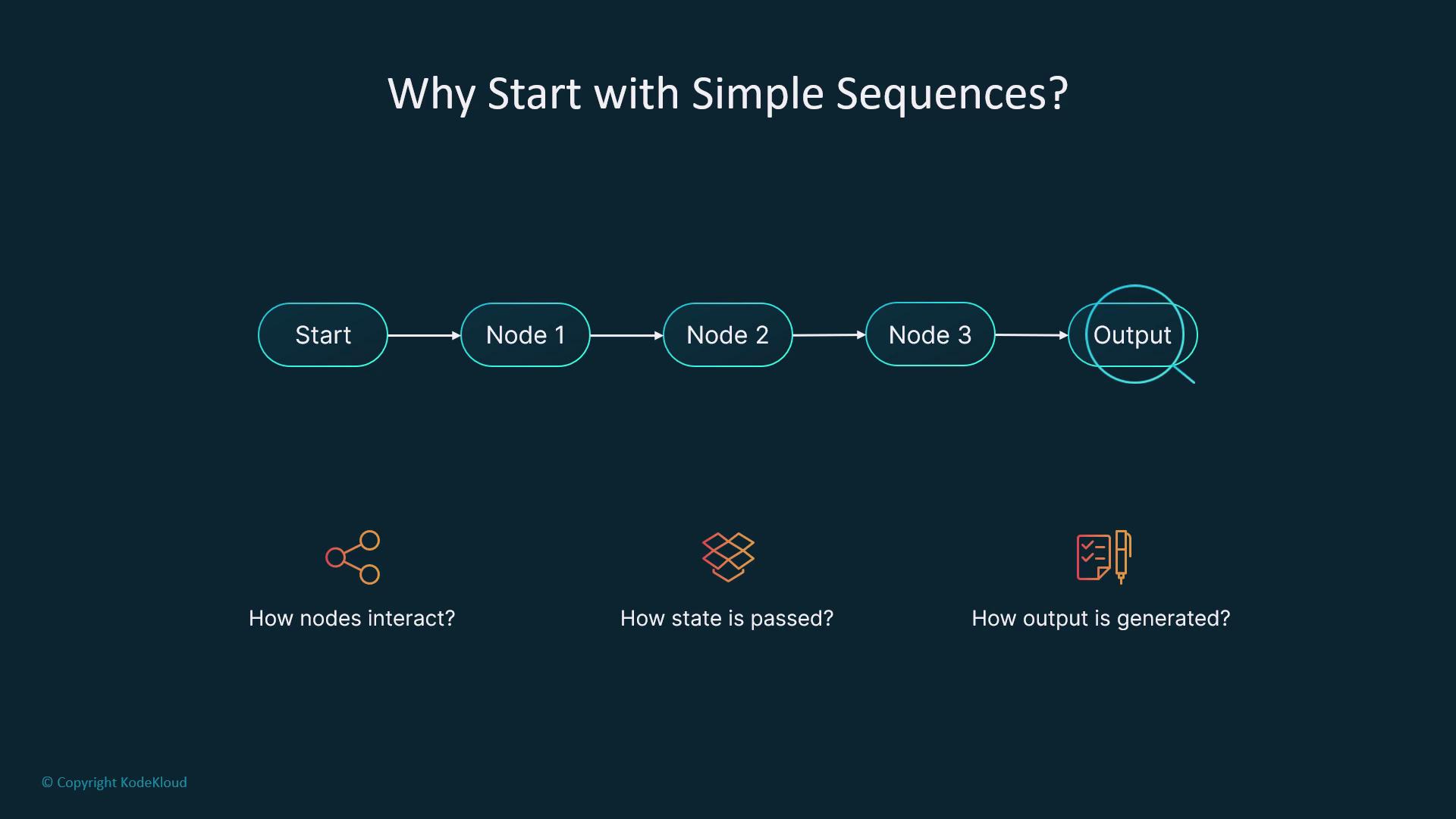

The image is a flowchart showing a simple sequence from "Start" to "Output" through "Node 1," "Node 2," and "Node 3." Below are questions about node interaction, state passing, and output generation.

Why start with simple sequences? This pattern is ideal for deterministic pipelines such as staged summarization, a fixed chat-response flow, or multi-step data processing. Mastering linear graphs first gives you a clear mental model for how nodes interact, how state is passed, and how outputs are produced — which makes it easier to add branching or loops later.

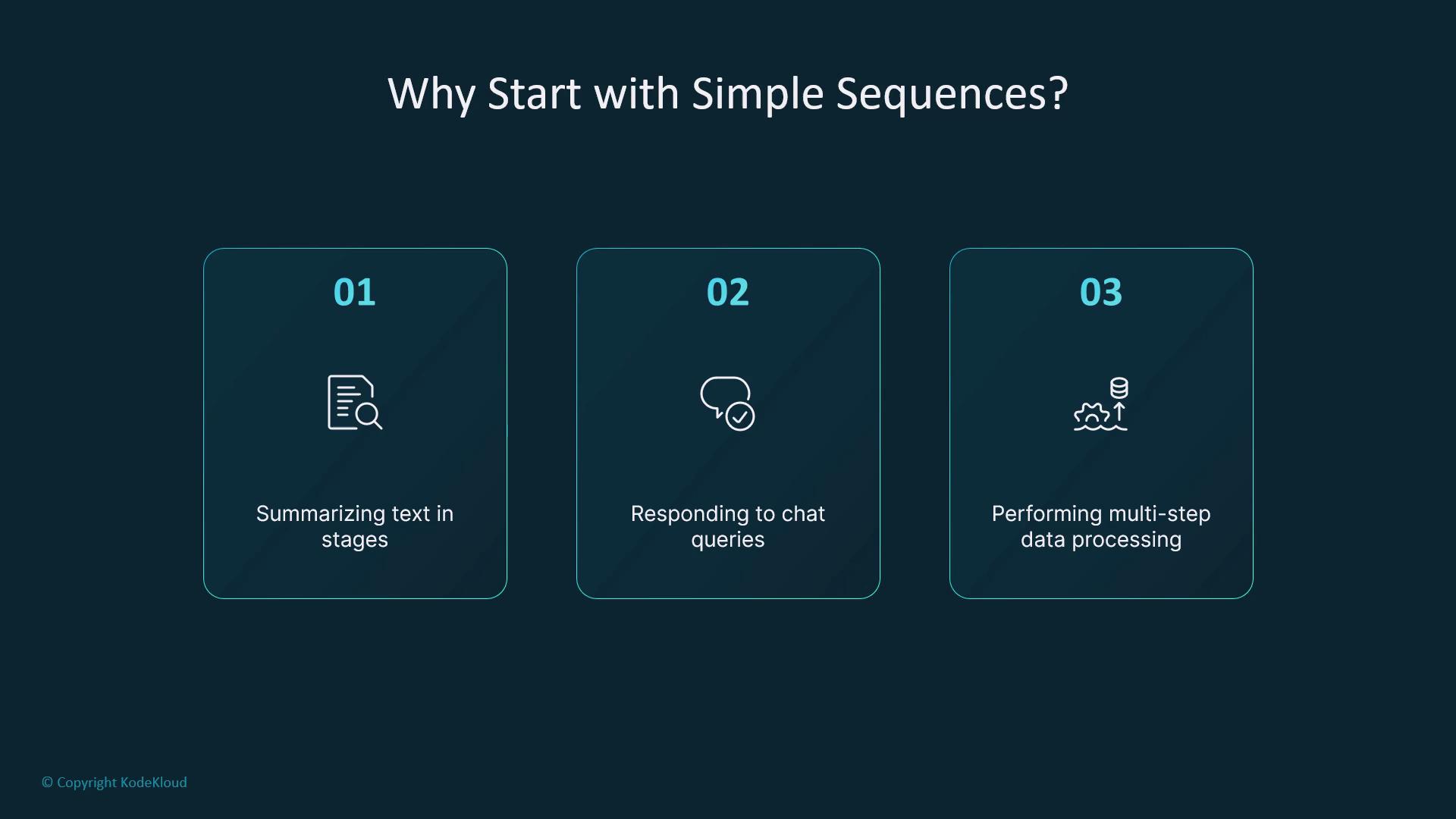

The image lists three reasons for starting with simple sequences: summarizing text in stages, responding to chat queries, and performing multi-step data processing.

Core definition: non-cyclical sequence in LangGraph In LangGraph, a non-cyclical sequence means:

Each node receives the full, current shared state.
Each node returns only the partial state it produces.
The framework merges those partial updates into the global state.
No node routes back to a previous node (no cycles).

This model is excellent for static pipelines, deterministic agents, and educational demos because the execution order is predictable and easy to trace.

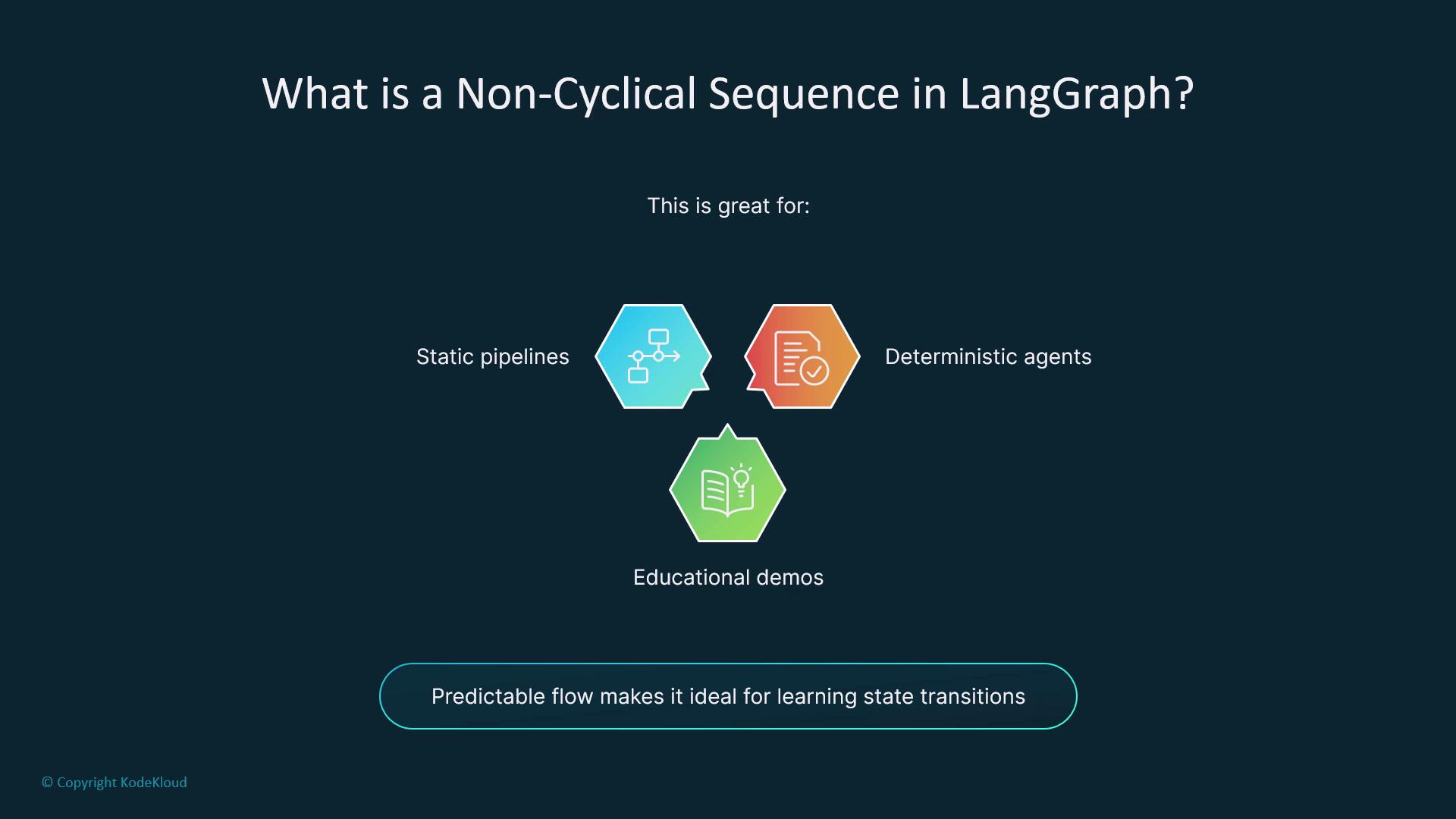

The image explains the benefits of a non-cyclical sequence in LangGraph, highlighting its suitability for static pipelines, deterministic agents, and educational demos. It mentions that this predictable flow is ideal for learning state transitions.

Building a sequential LangGraph — high-level steps

Create a graph builder.
Add nodes (each node is a function, chain, or tool wrapper that transforms part of the state).
Connect nodes in sequence (add edges).
Define entry and exit nodes.

Quick pseudocode example

# Example (pseudocode) showing builder usage
builder = StateGraph(TextState)

builder.add_node("load_data", load_data_node)
builder.add_node("summarize", summarize_node)
builder.add_node("format", format_node)

builder.add_edge("load_data", "summarize")
builder.add_edge("summarize", "format")

builder.set_entry("load_data")
builder.set_exit("format")

This yields a clean, testable flow — an excellent starting point for learning how nodes receive and update state. A concrete real-world example: AI text preprocessing pipeline

Clean input — remove irrelevant tokens and normalize formatting.
Summarize — use an LLM chain to condense the cleaned text.
Rewrite — adjust tone, grammar, or structure.
Output — save or return the final text.

Each step is an independent transformation and can be tested or replaced without changing the rest of the graph.

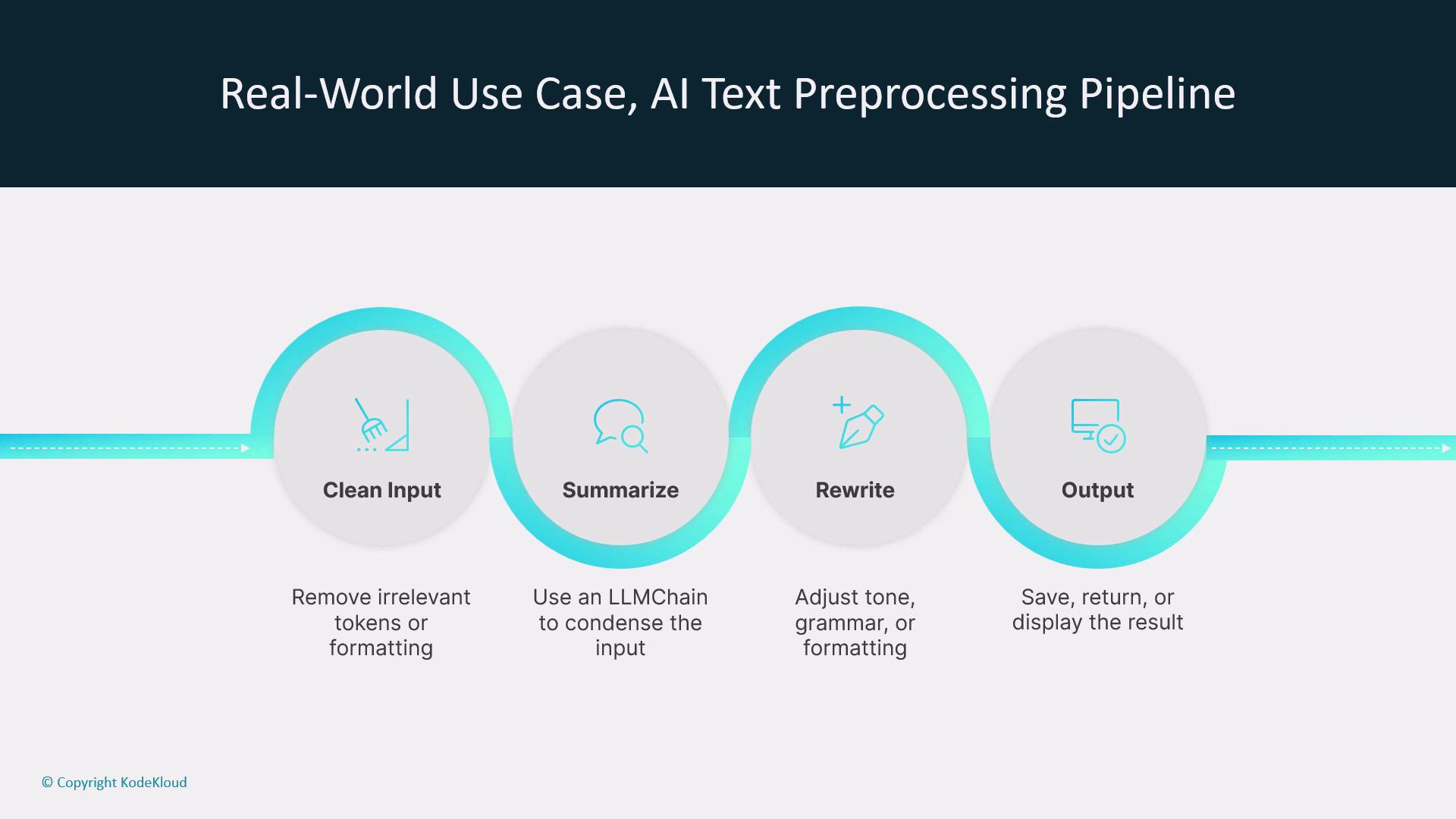

The image illustrates an AI text preprocessing pipeline with steps: Clean Input, Summarize, Rewrite, and Output. Each step is explained with concise descriptions.

Node functions and typed shared state At the top level, define a typed state model that represents the shared data object flowing through the graph. Each node receives the entire current state and returns a dictionary with the fields it produces. LangGraph merges those results back into the global state. Example typed state and node functions

from typing import TypedDict, NotRequired

class TextState(TypedDict):
    raw_text: str
    cleaned_text: NotRequired[str]
    summary: NotRequired[str]
    final_text: NotRequired[str]

def clean_text(state: TextState) -> dict:
    cleaned = normalize_and_strip(state["raw_text"])
    return {"cleaned_text": cleaned}

def summarize_text(state: TextState) -> dict:
    summary = summarizer.invoke(state["cleaned_text"])
    return {"summary": summary}

def rewrite_text(state: TextState) -> dict:
    final = rewriter.invoke({"text": state["summary"], "tone": "professional"})
    return {"final_text": final}

Key points:

Optional fields start as absent and are produced by downstream nodes.
Node functions return only the new or updated fields.
The framework merges partial updates into the global state so subsequent nodes always receive the complete current state.

If you’re using Python versions prior to 3.11, import NotRequired from typing_extensions instead of typing.

This full-state-in, partial-state-out pattern keeps nodes decoupled. Nodes never pass values directly to one another; they communicate exclusively through the shared state object. That separation simplifies extensions like validation, external tool calls, and alternative routing without changing node signatures. Visualizing execution Running a linear graph yields a straightforward execution trace: input → cleaning → summarization → rewriting → output. Because there are no cycles, intermediate states and logs are easy to inspect. Use LangGraph Studio or standard logging/print statements to trace the state at each node.

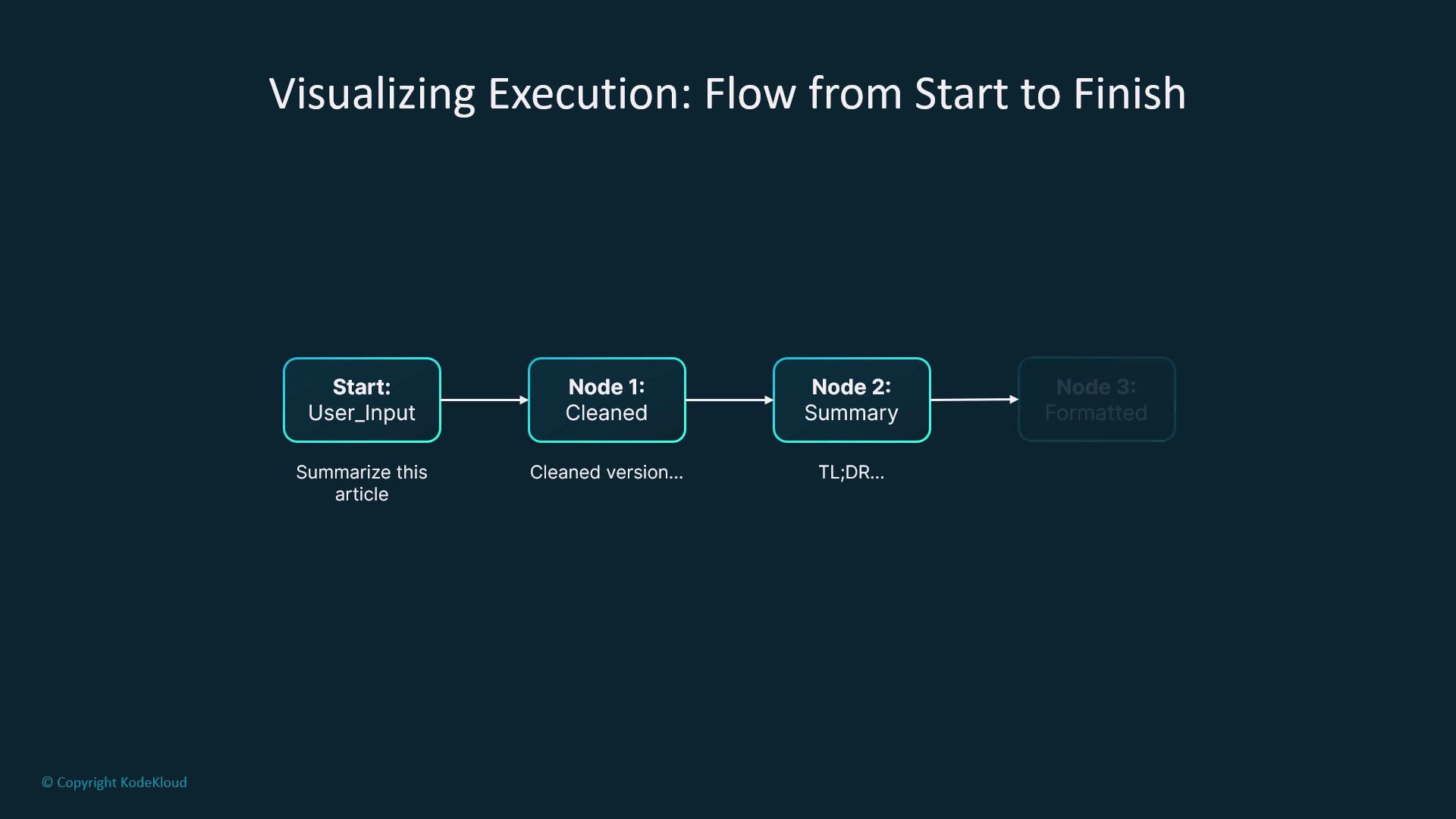

The image is a flowchart titled "Visualizing Execution: Flow from Start to Finish," showing a process from user input to a summary, with stages including cleaning and summarizing.

Benefits for debugging and cost control Because each step updates state in one direction:

Debugging is simpler — you can inspect the state after any node.
Token usage for LLM calls is easier to measure per node.
Replacing or stubbing nodes for tests is straightforward.

When to use non-cyclical graphs Non-cyclical graphs are not just for demos — they are production-ready for many deterministic workloads. Use linear graphs when the overall task structure is fixed and predictable. Examples of good fits:

Use Case	Why it fits
PDF data extraction + summarization	Fixed extraction and transform steps
Static reporting pipelines	Deterministic processing stages with clear outputs
Chatbots with a fixed flow	Predictable conversational stages (e.g., intent → slot-fill → response)
Lightweight ETL tasks	Sequential extract → transform → load steps

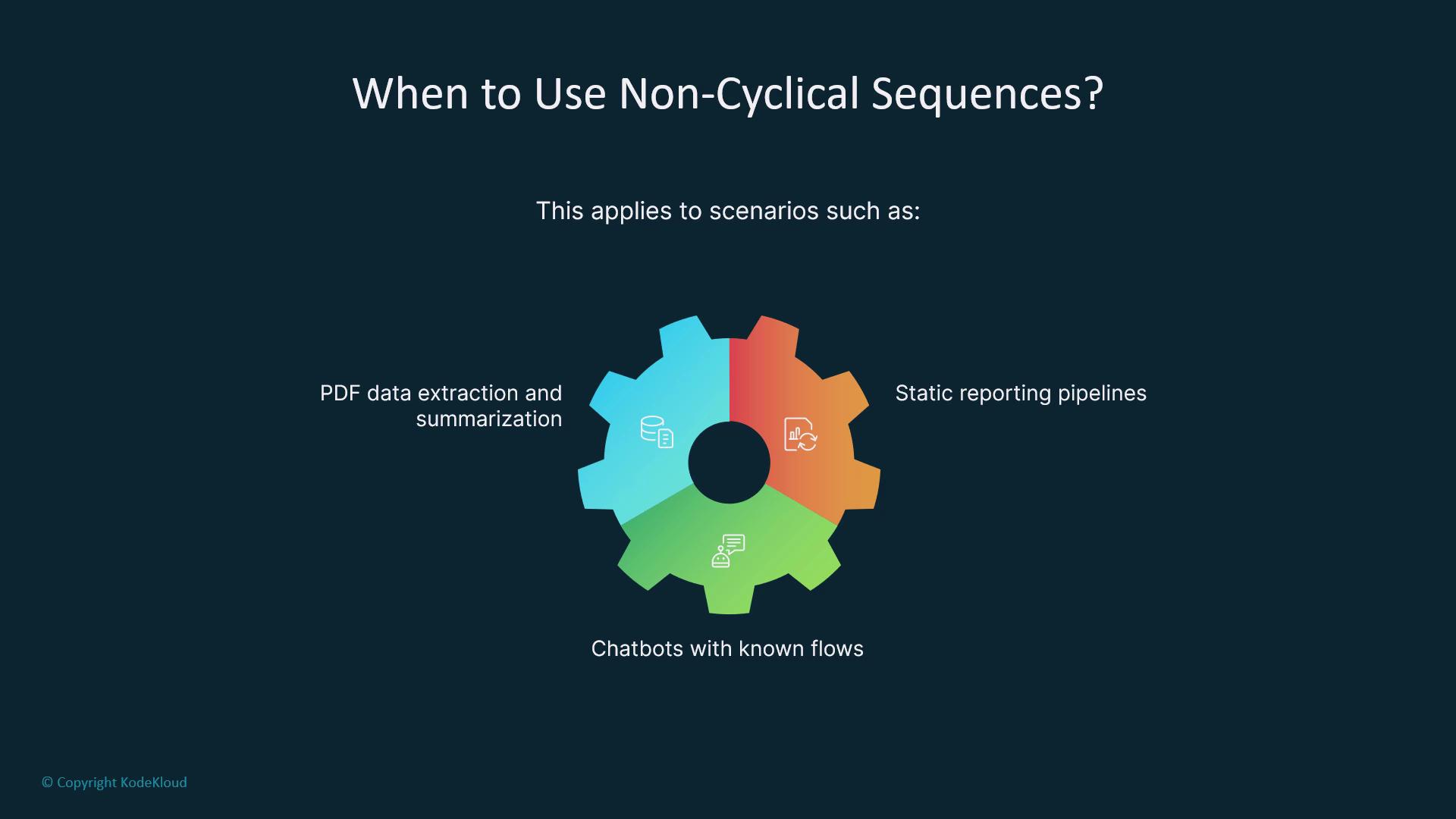

The image explains when to use non-cyclical sequences, highlighting scenarios like PDF data extraction and summarization, static reporting pipelines, and chatbots with known flows. A colorful gear represents these applications.

Next steps — hands-on lab Try this exercise to internalize the pattern:

Build a small linear graph with 3–4 nodes.
Define a typed state model for your pipeline.
Implement node functions that return only partial updates.
Wire nodes with explicit edges, set entry and exit nodes.
Run with a mock state and inspect intermediate state snapshots.

This practical work will cement your understanding of state flow and node chaining.

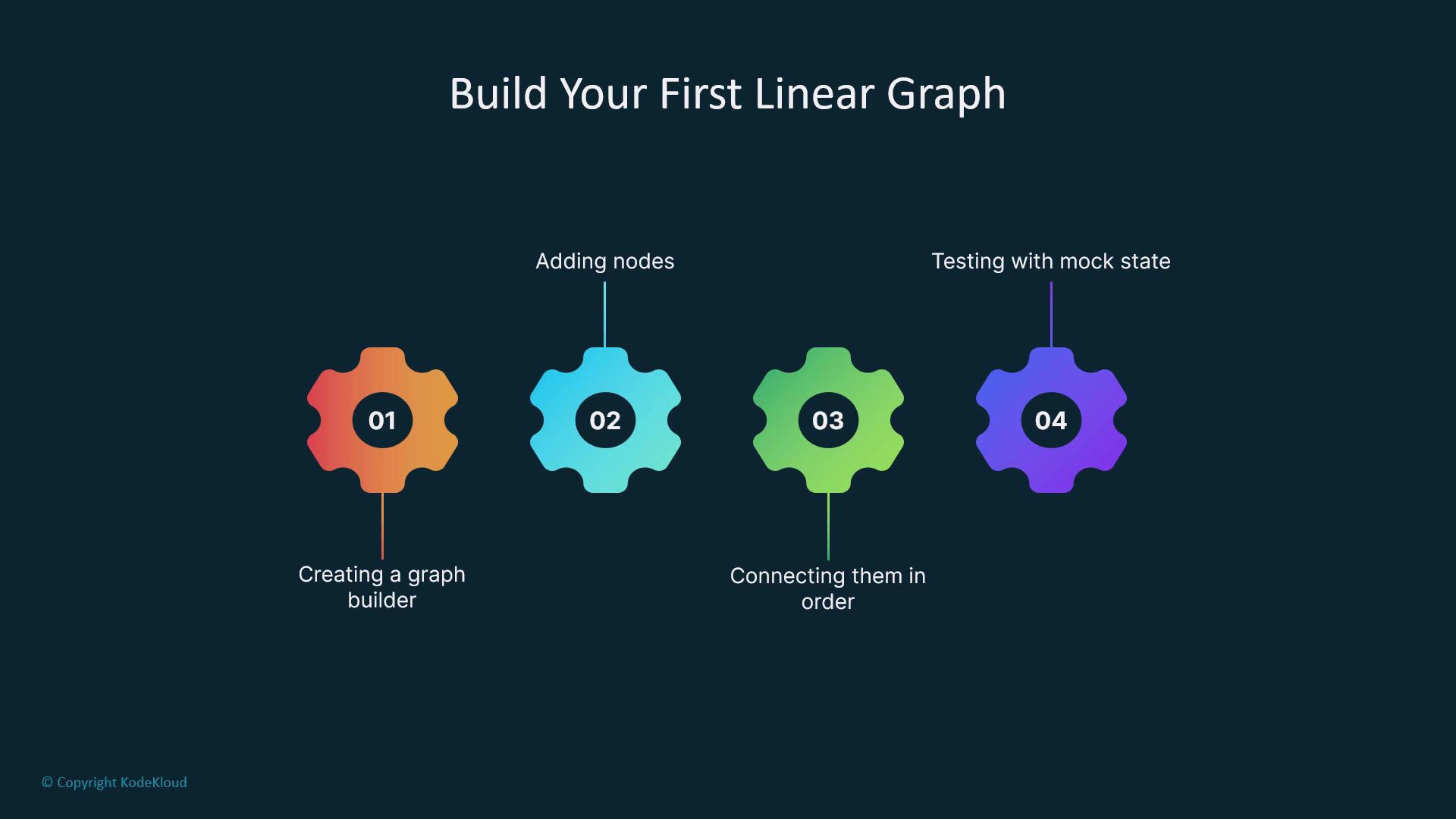

The image is an infographic titled "Build Your First Linear Graph," showing a four-step process with each step represented by a gear: creating a graph builder, adding nodes, connecting them in order, and testing with mock state.

Practical tips and best practices

Reuse existing LLM/chain components (for example, LangChain) instead of reimplementing common logic.
Keep node functions focused; place LLM chains inside nodes and tools outside when possible.
Move routing and conditional logic out of core node implementations to retain node simplicity.
For testing, stub LLM/tool calls and validate partial state outputs at each node.

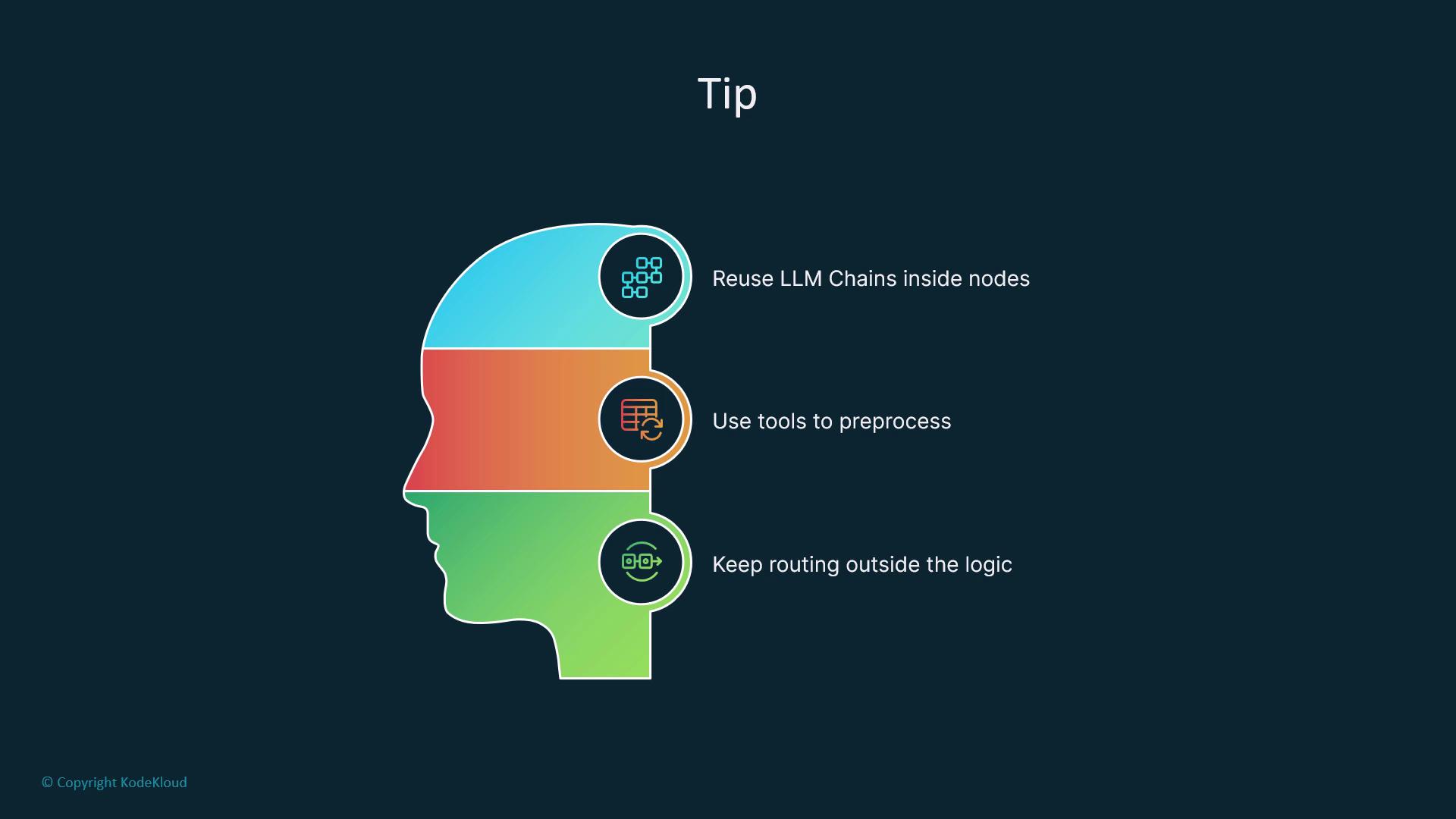

The image features a silhouette of a head divided into three colored segments, each containing a tech tip: "Reuse LLM Chains inside nodes," "Use tools to preprocess," and "Keep routing outside the logic."

Wrap-up Sequential LangGraphs are an essential foundation: they teach node creation, state design, and wiring. They work well for prototypes, pipelines, and stable production workloads. As systems grow, these linear patterns often remain as subflows inside larger branched or cyclical graphs — so investing time to practice them pays dividends later. Complete the hands-on exercise to practice building and testing a simple linear graph — it will solidify these fundamental concepts and make later extensions much easier. Links and references

LangChain — official site
LangGraph concepts: builder, nodes, edges, typed state (search for “LangGraph builder nodes edges” for more examples)
For typing help: typing_extensions documentation (if on Python <3.11)

When evolving a linear graph into a branching or looping graph, keep node interfaces unchanged where possible — break changes across many nodes make maintenance harder.
