Welcome! In this guide, we cover the Cluster Proportional Autoscaler (CPA)—a Kubernetes component that automatically scales auxiliary services (DNS, network controllers, metrics servers) in proportion to your cluster’s worker nodes or CPU cores. CPA is different from the Cluster Autoscaler; it adjusts supporting deployments instead of core node counts.
CPA ensures that as your cluster grows or shrinks, your auxiliary services maintain the right capacity—no more manual replica tuning.
The image illustrates a Kubernetes cluster architecture with a master node connected to components like DNS, Network Controller, and Metrics Server, alongside worker nodes.

​
How CPA Works

CPA continuously watches the size of your cluster—either the number of schedulable worker nodes or the total CPU cores—and computes desired replicas for each target deployment using a simple scaling formula.

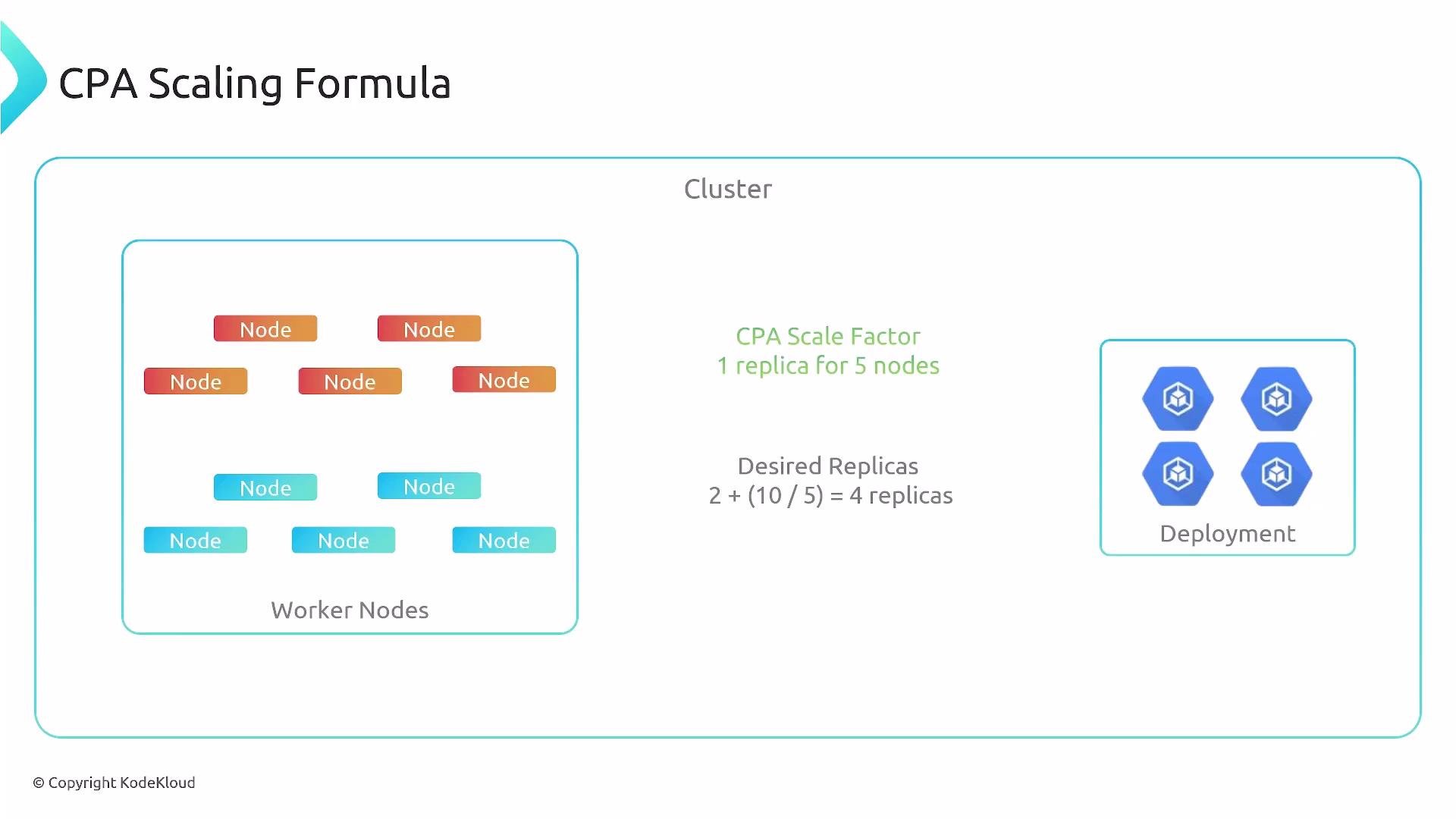

The image shows a CPA scaling formula: "desired replicas = base replicas + (nodes or CPU cores) * scale factor."
After calculating the target replica count, CPA calls the Kubernetes API to patch the deployment spec and keep your supporting services in sync.
The image is a diagram explaining how CPA (Cluster Proportional Autoscaler) works, showing interactions between Kube API components (Nodes, CPU, Deployment) and CPA components (Node:10, CPU:50).

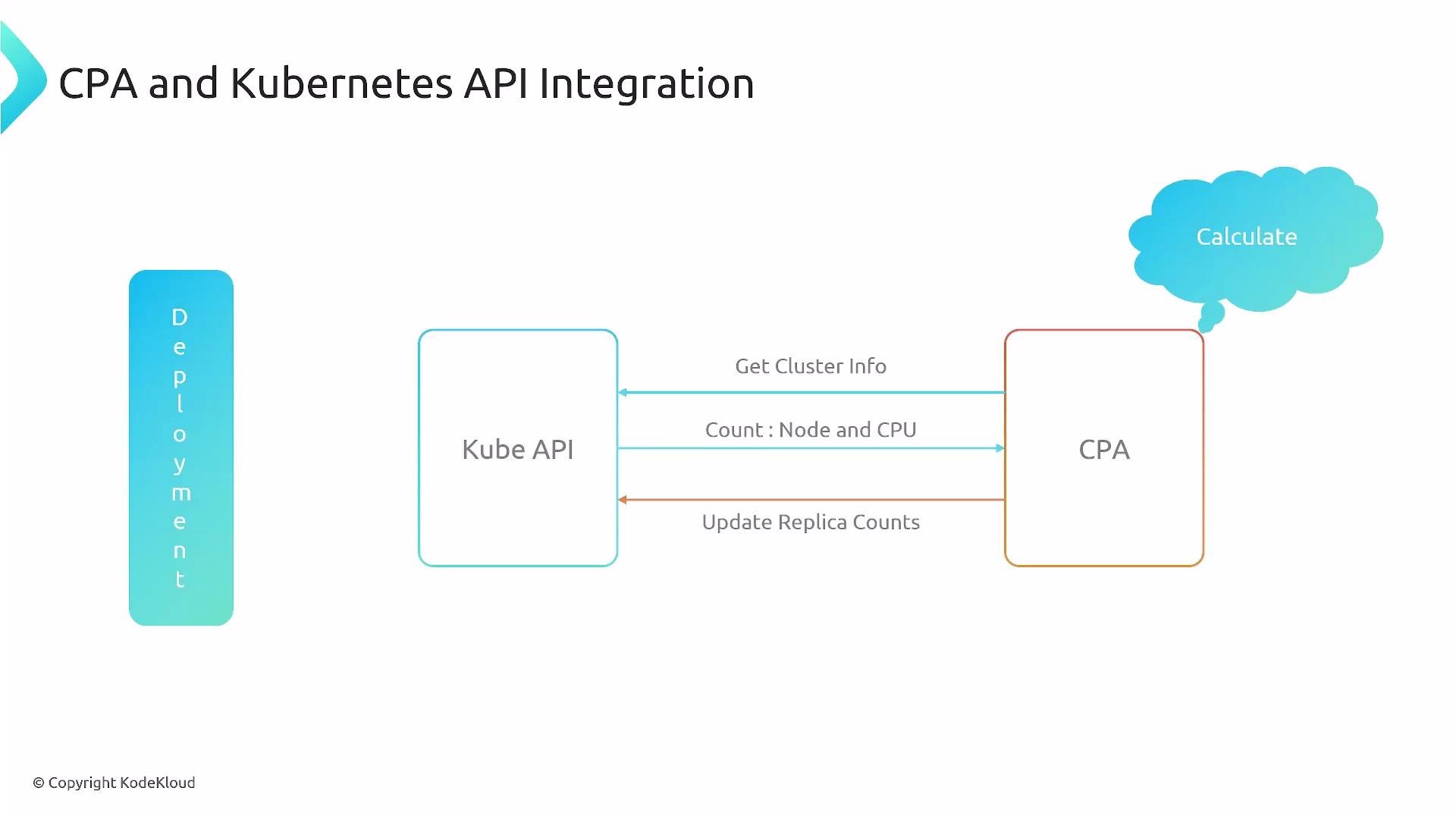

The image is a diagram showing the integration between CPA and Kubernetes API, illustrating the flow of information such as cluster info, node and CPU count, and replica updates. It includes a "Calculate" cloud indicating processing or computation.

​
Scaling Modes

CPA supports two scaling modes—ladder and linear—each suited to different workload patterns:
The image is a table comparing two CPA scaling modes: Ladder and Linear. It describes their behavior, scaling steps, and use cases.
  • Ladder Mode: Uses discrete thresholds for stepwise scaling—great for predictable, SLA-driven workloads.
  • Linear Mode: Applies a continuous ratio between replicas and cluster size—ideal for elastic, usage-based scaling.

​
Ladder Mode Configuration

Define one or more thresholds to map CPU cores or nodes to replica counts:
data:
  ladder: |-
    {
      "coresToReplicas": [[64,3]],
      "nodesToReplicas": [],
      "includeUnschedulableNodes": false
    }
Add node-based scaling:
data:
  ladder: |-
    {
      "coresToReplicas": [[64,3]],
      "nodesToReplicas": [[2,2]],
      "includeUnschedulableNodes": false
    }
Full ladder example with multiple steps:
data:
  ladder: |-
    {
      "coresToReplicas": [
        [1,      1],
        [64,     3],
        [512,    5]
      ],
      "nodesToReplicas": [
        [1,      1],
        [2,      2]
      ],
      "includeUnschedulableNodes": false
    }
In this configuration:
  • 1–63 cores → 1 replica
  • 64–511 cores → 3 replicas
  • ≥512 cores → 5 replicas
  • 1 node → 1 replica; ≥2 nodes → 2 replicas

​
Linear Mode Configuration

Linear scaling defines an exact ratio of cluster resources to replicas, along with bounds:
FieldDescription
coresPerReplicaCPU cores required per replica
nodesPerReplicaWorker nodes required per replica
minMinimum number of replicas
maxMaximum number of replicas
preventSinglePointFailureEnsures at least two replicas when enabled
includeUnschedulableNodesInclude cordoned or tainted nodes in the resource calculation
data:
  linear: |-
    {
      "coresPerReplica": 2,
      "nodesPerReplica": 1,
      "min": 1,
      "max": 100,
      "preventSinglePointFailure": true,
      "includeUnschedulableNodes": true
    }
Enabling includeUnschedulableNodes may cause CPA to count nodes that are cordoned or tainted, affecting your replica calculations.

​
Replica Calculation

CPA computes replicas in three steps:
replicas = max(
  ceil(cores / coresPerReplica),
  ceil(nodes / nodesPerReplica)
)
replicas = min(replicas, max)
replicas = max(replicas, min)
For a cluster with 4 nodes and 13 cores:
ceil(13 / 2) = 7   # coresPerReplica = 2
ceil(4  / 1) = 4   # nodesPerReplica = 1

replicas = max(7, 4) = 7
replicas = min(7, 100) = 7
replicas = max(7, 1)   = 7
CPA will deploy 7 replicas to meet the defined ratios and bounds.

​
Summary

  • Ladder Mode: Stepwise thresholds for controlled scaling.
  • Linear Mode: Continuous scaling with direct resource-to-replica ratios.
  • CPA integrates with the Kubernetes API to automatically adjust replicas of auxiliary services based on cluster size.

​
