Welcome. This lesson describes the KEDA installation flow you’ll run through and what the Helm chart will create in your Kubernetes cluster. KEDA (Kubernetes Event-driven Autoscaling) is commonly installed with Helm — a package manager for Kubernetes that packages resources as charts to make complex installations repeatable. KEDA maintains its official Helm charts on GitHub, so you can pull a supported configuration and install reliably.

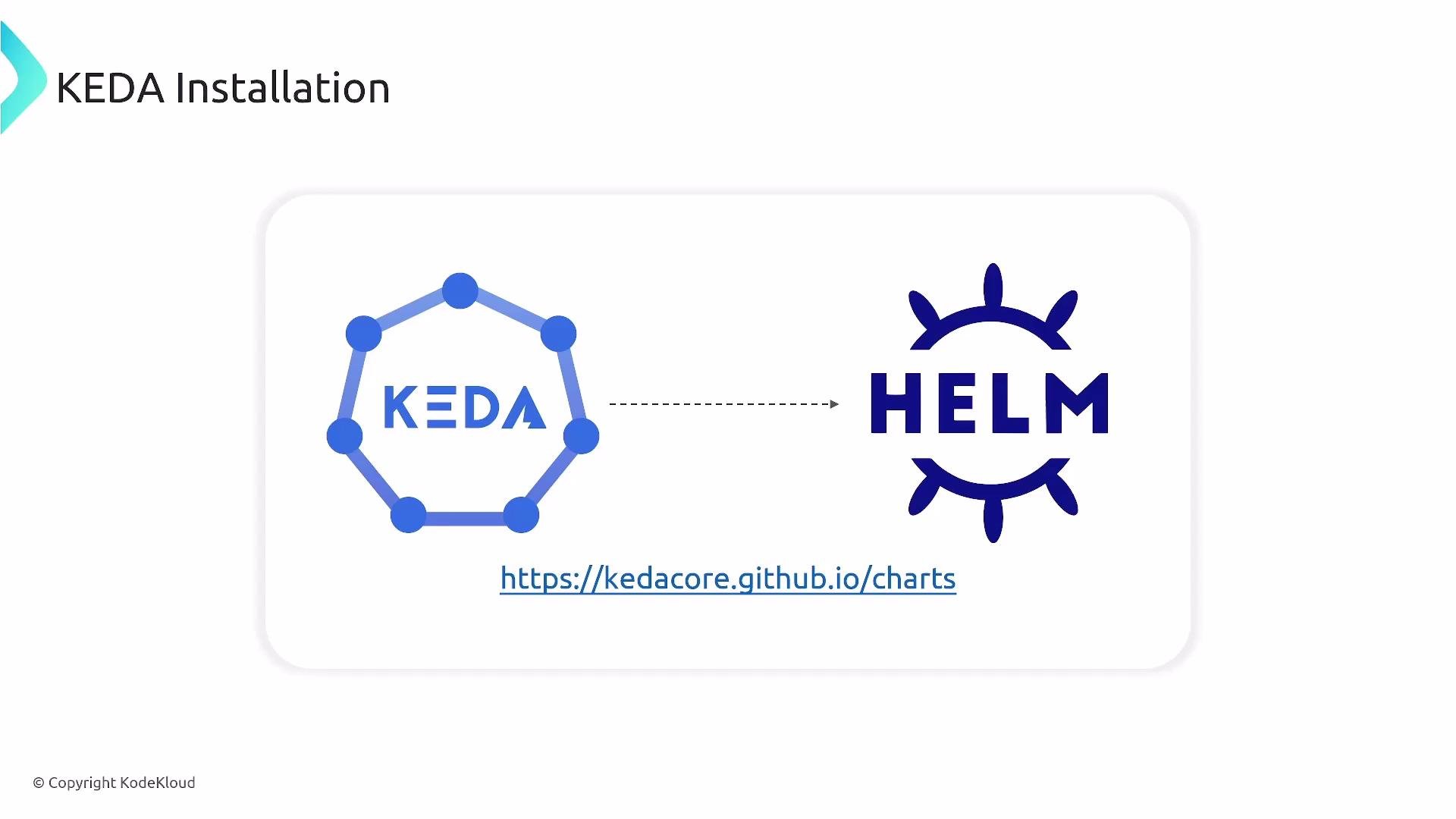

A slide titled "KEDA Installation" showing the KEDA logo on the left and the Helm logo on the right connected by a dashed arrow. Below them is the URL https://kedacore.github.io/charts.
Why use Helm for KEDA
  • Helm packages KEDA’s CRDs, Deployments, ServiceAccounts, Roles/ClusterRoles, and more in a single chart.
  • The chart automates resource ordering (CRDs first), RBAC binding, and lifecycle hooks so KEDA components are installed and configured correctly.
Core components the Helm chart installs and why they matter
  • CustomResourceDefinitions (CRDs)
    CRDs extend the Kubernetes API so KEDA can introduce custom objects such as ScaledObjects, ScaledJobs, TriggerAuthentication, and ClusterTriggerAuthentication. These let you declare KEDA scaling behavior alongside standard Kubernetes manifests.
  • APIService / Metrics API Server
    The Metrics API Server exposes external metrics under external.metrics.k8s.io, enabling HPAs and other consumers to read KEDA-provided metrics.
  • Deployments
    KEDA’s operator, the Metrics API Server, and the Admission Webhook are deployed as standard Kubernetes Deployments. These controllers implement the logic to observe event sources and act on scaling decisions.
  • ServiceAccounts
    ServiceAccounts define the identity KEDA components use when interacting with the Kubernetes API.
  • ClusterRoles and ClusterRoleBindings
    Cluster-wide permissions are declared via ClusterRoles and bound to ServiceAccounts with ClusterRoleBindings.
  • Roles and RoleBindings
    Roles and RoleBindings grant namespace-scoped permissions and can reference ClusterRoles to restrict cluster-level capabilities to a particular namespace.

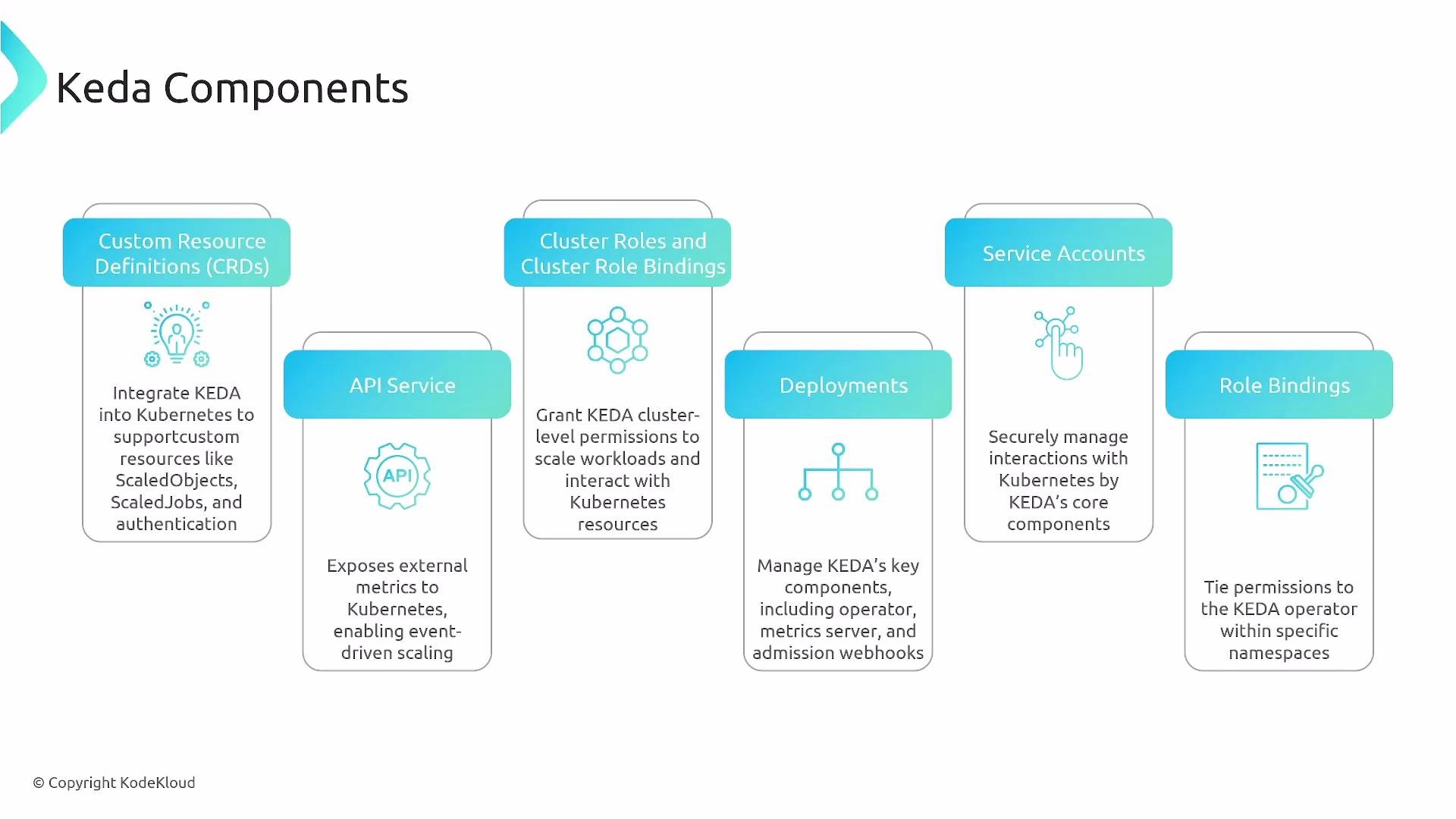

A slide titled "Keda Components" showing six labeled vertical panels (Custom Resource Definitions, API Service, Cluster Roles & Role Bindings, Deployments, Service Accounts, Role Bindings) with brief descriptions of each. It outlines the core Kubernetes resources and permissions used to integrate and run KEDA.
Quick reference table — resources installed and how to check them Important notes on RBAC and RoleBindings
RoleBindings can reference ClusterRoles. This is useful when you want to grant cluster-level permissions but restrict the effect to a specific namespace by creating a RoleBinding in that namespace that references a ClusterRole.
Installing KEDA’s CRDs and cluster-level resources requires cluster-wide permissions (for example, cluster-admin or equivalent). Ensure you run Helm with an account that has the necessary RBAC privileges.
Typical Helm installation flow (high level)
  • Add the KEDA Helm repository and update:
  • Install the KEDA chart. Example (creates namespace if needed):
  • The chart will:
    • Create KEDA CRDs (ScaledObjects, ScaledJobs, TriggerAuthentication, ClusterTriggerAuthentication, etc.).
    • Deploy the KEDA operator, Metrics API Server, and Admission Webhook.
    • Create ServiceAccounts and bind Roles/ClusterRoles and RoleBindings/ClusterRoleBindings.
    • Register an APIService to surface metrics under external.metrics.k8s.io.
Verification checklist — commands to confirm installation
  • Verify CRDs exist:
  • Check KEDA deployments in the namespace (example uses keda):
  • Confirm ServiceAccounts, Roles, and RoleBindings:
  • Verify the external metrics API service is present:
  • Inspect the operator logs if a pod is not ready:
Best practices and troubleshooting tips
  • Install CRDs before resources that depend on them. The official Helm chart handles this, but manual installs should respect ordering.
  • Use a dedicated namespace (for example, keda) to scope visibility and RoleBindings.
  • If HPAs cannot see external metrics, ensure the APIService for external.metrics.k8s.io is Available and that RBAC rules allow the Metrics API Server to list/ get the resources it needs.
  • For upgrades, follow Helm upgrade best practices and watch for CRD changes — some CRD updates require manual steps.
Summary Installing KEDA with Helm creates a small set of cluster and namespace resources (CRDs, deployments, ServiceAccounts, Roles, RoleBindings, and an APIService) that allow KEDA to observe external event sources, expose metrics via the external metrics API, and drive scaling through HPAs and the KEDA operator. Use the verification commands above to confirm a successful installation and to troubleshoot common issues.
