Caching

When the same item is requested repeatedly, reading it from the database each time is wasteful. Consider a public figure on your app—like Lionel Messi or Cristiano Ronaldo—whose post is viewed millions of times. The database can be hammered with identical queries for the same photo. A cache placed in front of the database solves this by serving popular items from a small, extremely fast store.

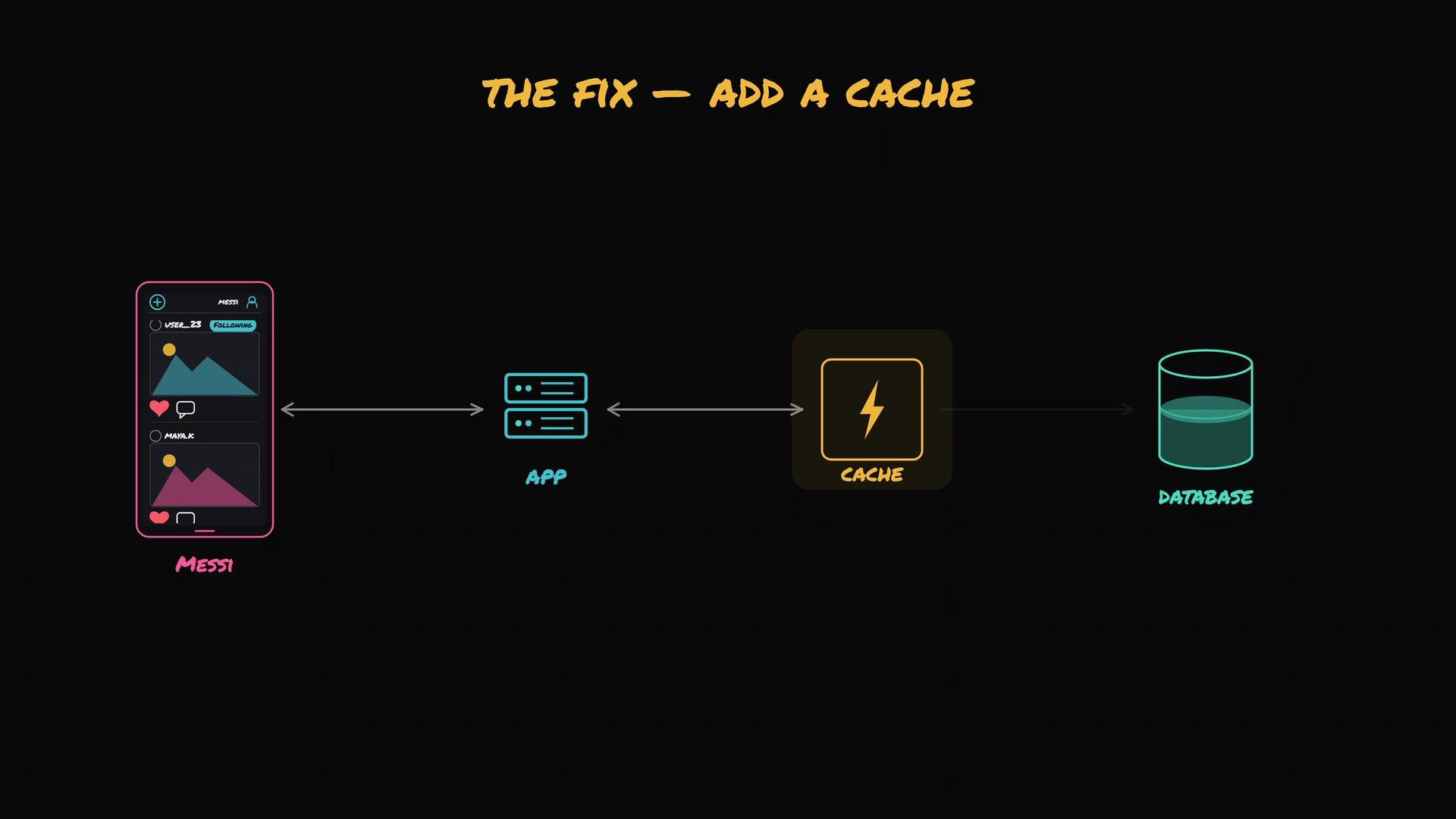

The image illustrates a system architecture flow, depicting an app accessing data with an added cache layer between the app and the database to improve performance.

Why use a cache?

Reads from an in-memory cache often complete in under 1 ms; the same read from a typical database may take 20–30 ms or more.
Under heavy load, those milliseconds multiply into significantly higher throughput and lower cost.

Typical request flow with a cache (using Redis as an example):

A request arrives for a trending photo.
The application checks Redis first:
- If Redis contains the item → cache hit: return value from Redis; skip the database.
- If Redis does not contain the item → cache miss: query the database, write the result back into Redis (often with a TTL), then return the response. Future requests will hit the cache.

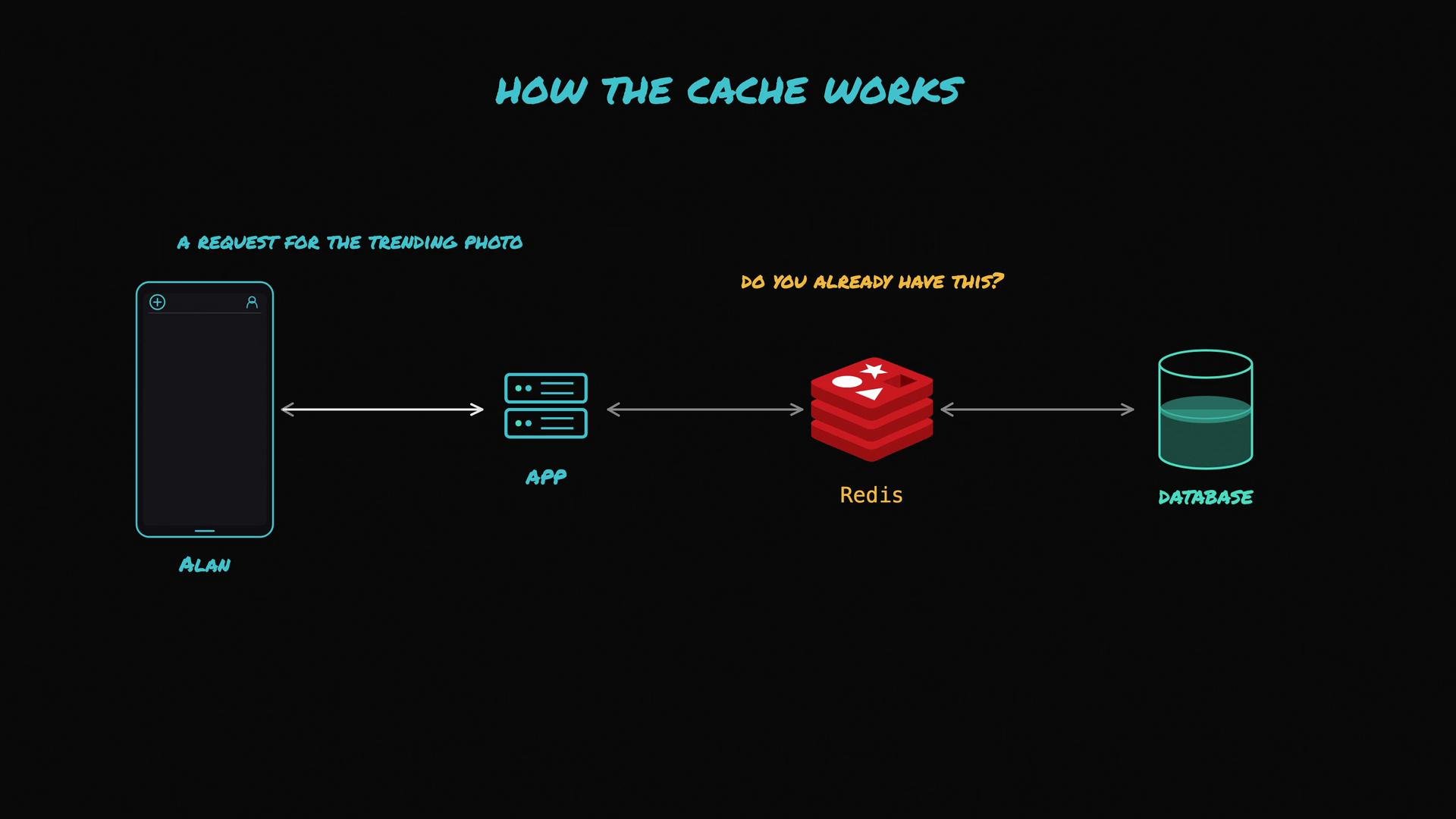

The image illustrates how a cache system using Redis works between a mobile application and a database. It shows the process of requesting photos, with Redis checking if the data exists before querying the database.

Example: cache-aside (lazy population) in Python

# python
def get_trending_photo(photo_id):
    # 1) Try cache first
    photo = redis.get(photo_id)
    if photo is not None:
        return photo  # cache hit

    # 2) Cache miss -> load from DB
    photo = db.load_photo(photo_id)

    # 3) Populate cache for next time (with TTL)
    redis.set(photo_id, photo, ex=300)  # expire after 5 minutes
    return photo

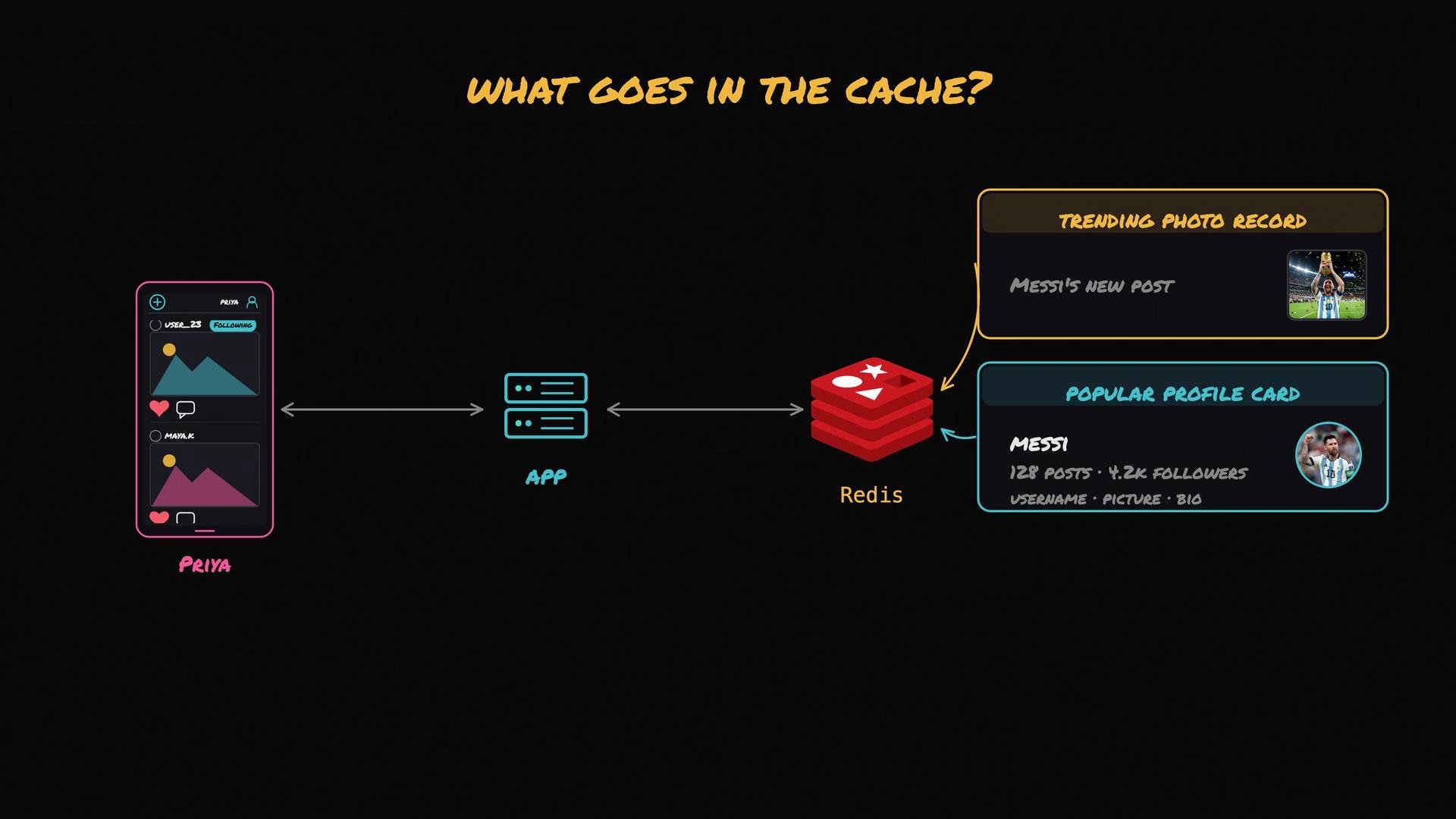

What to cache

Cache items that are:
- Small in size (so the cache stays memory-efficient)
- Read frequently (high read-to-write ratio)
- Updated rarely (reduces invalidation complexity)

Item type	Why cache it	Example
Trending content	High read volume, low updates	`photo:{id}` – trending photo record
Metadata	Small, frequently read	`post_meta:{id}` – likes, caption summary
Profile cards	Reused across many pages	`profile:{id}` – `username`, `avatar_url`, `bio`

Sessions and caches

Login sessions must be stored in a shared store accessible to all app servers. Redis is often used for both sessions and caching because session data is small, read on nearly every request, and requires low latency.
Keep session keys and cached keys properly namespaced to avoid collisions (for example: session:{user_id} vs profile:{user_id}).

Redis is commonly used for both caching hot application data and as a session store. Use clear namespaces for session keys and cache keys to avoid accidental collisions.

Cache coherence: the trade-offs Caching introduces a second copy of data (database + cache). Inconsistency can arise when one copy changes and the other does not. Example problem: a photo deleted from the database still exists in Redis and continues to be served to users until it expires or is invalidated.

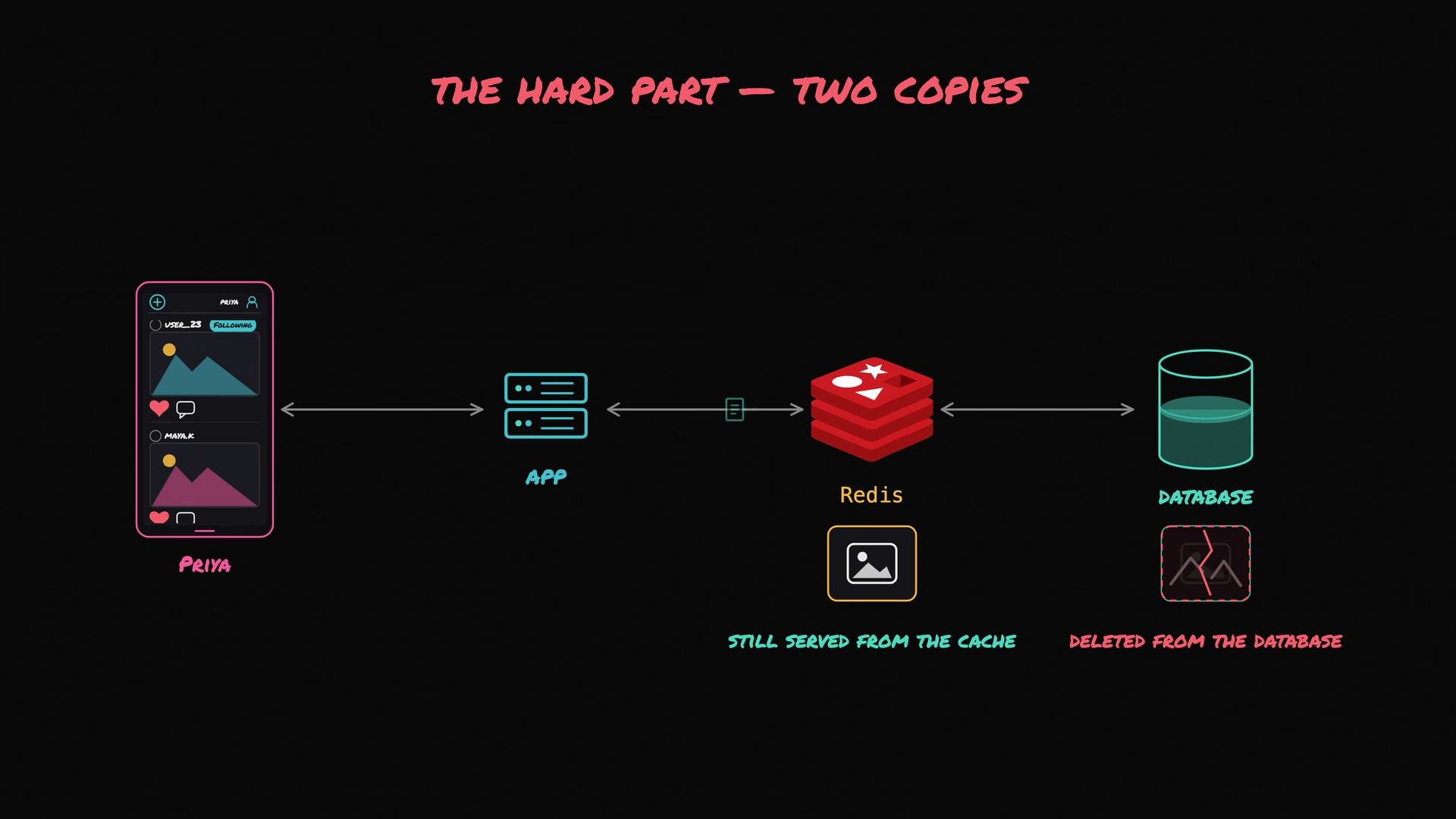

The image illustrates the flow of data between a mobile app, Redis cache, and a database, highlighting an issue where data is still served from the cache after being deleted from the database.

Common caching strategies and trade-offs

Strategy	How it works	Pros	Cons
Cache-aside (lazy)	App checks cache → DB on miss → populate cache	Simple, common, low read latency	Requires explicit invalidation on writes/deletes
Read-through / Write-through	Cache handles reads/writes automatically	Simplifies client code	Can increase write latency
Write-behind (write-back)	Cache acknowledges writes; flushes to DB asynchronously	Low write latency	Risk of data loss if cache fails before flush
Explicit invalidation	App deletes/updates cache keys on changes	Stronger control over staleness	Requires careful, consistent invalidation logic
TTL (time-to-live)	Entries auto-expire after set duration	Simple fallback to limit staleness	Not sufficient for strict consistency needs
Eviction policies	LRU/LFU/TTL to free memory	Keeps cache size bounded	May evict hot data unexpectedly if misconfigured

Key practices

Use clear key naming: photo:{id}, profile:{id} to make invalidation and debugging easier.
Apply sensible TTLs for items where eventual consistency is acceptable.
Combine explicit invalidation on writes/deletes with TTLs to limit inconsistency windows.
Test failure modes: cache node loss, partial updates, and race conditions (e.g., double writes).
Monitor cache hit/miss rates, memory usage, and eviction count to tune policies.

Cache invalidation is one of the hardest problems in distributed systems. Choose a strategy (cache-aside vs write-through vs write-behind) based on your consistency, latency, and complexity requirements, and test failure scenarios (cache node failure, incomplete invalidation).

Summary

Caching (e.g., Redis) dramatically accelerates reads for small, hot, infrequently changing data.
The cache-aside pattern is simple and widely used: check cache → on miss read DB → populate cache.
Design for cache consistency using TTLs, explicit invalidation, or read/write caching strategies that align with your correctness and latency needs.

Links and references

Redis
Martin Kleppmann, “Designing Data-Intensive Applications” – section on caching and consistency
Patterns: Cache-aside, Read-through, Write-through, Write-behind — search for implementation guides in your language or framework of choice
