We added two replicas of our database and solved our read-scaling problem: reads are now distributed across three copies of the data. If the primary holds 1 TB, each replica also holds the same 1 TB. But what happens when we reach fifty million users and they upload billions of photos, comments, and likes? Eventually the dataset outgrows a single database machine.

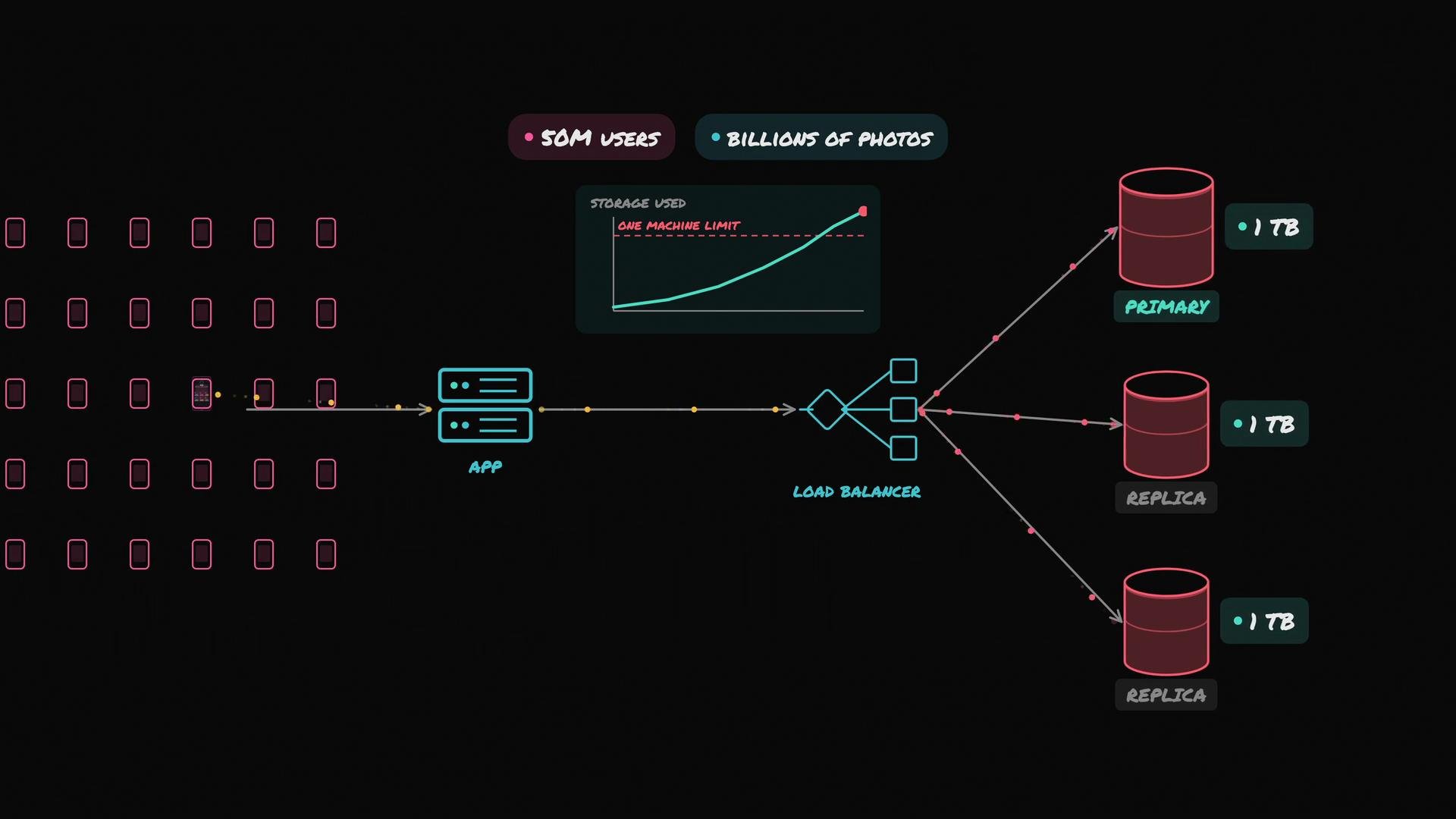

The image is a diagram showing a system architecture for handling photo storage and distribution, involving user devices, an app server, a load balancer, and a database with replication.
Replicas improve read throughput and availability, but they do not increase total storage capacity because each replica holds an identical copy. When data volume exceeds a single machine’s limits, we must partition the data across multiple database machines — this is sharding.

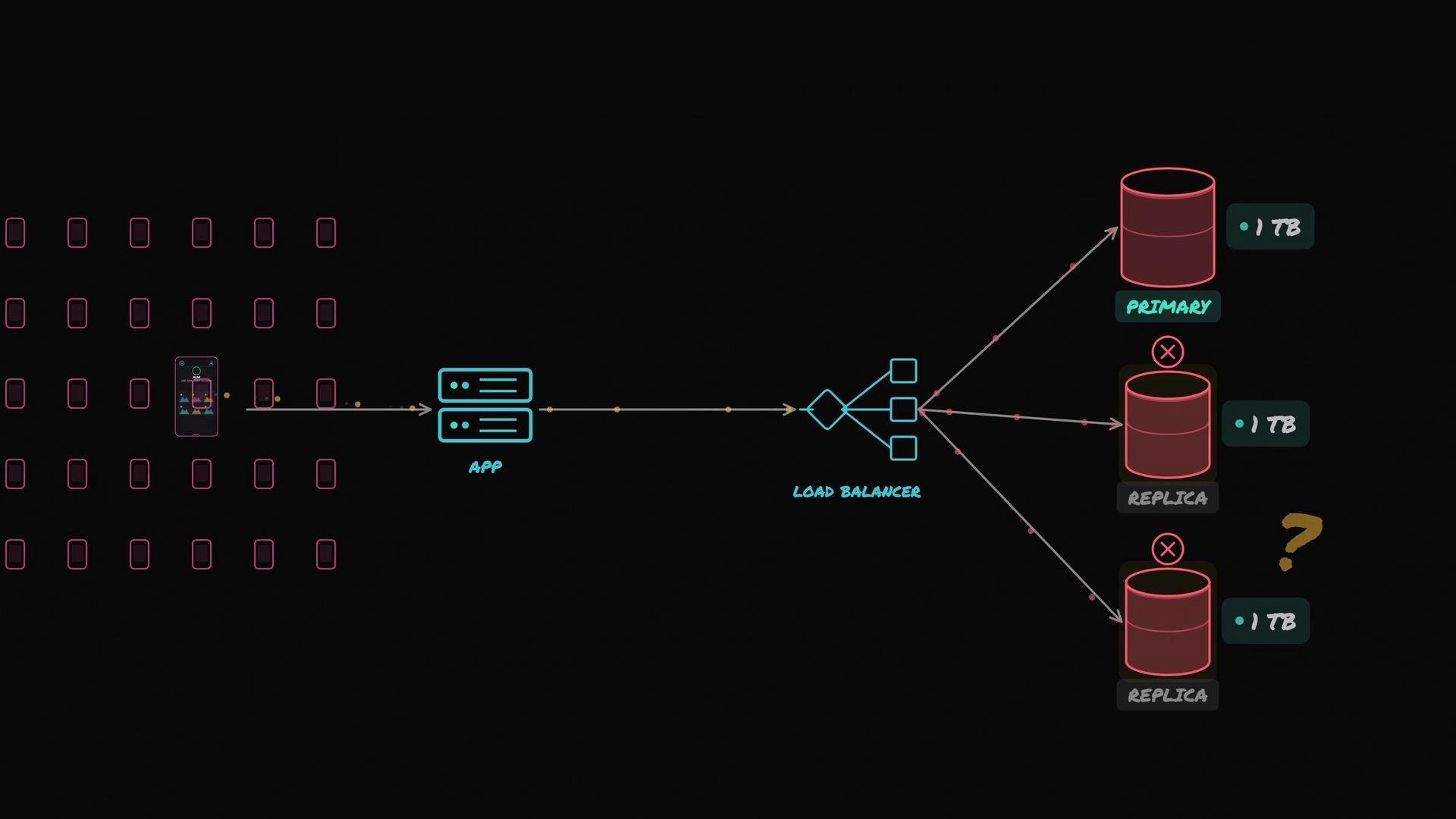

The image is a network diagram illustrating a system architecture with a user interface connected to an app server, followed by a load balancer distributing traffic to a primary database and two replica databases. The primary and one of the replica databases are marked with issues, possibly indicating errors.
Sharding splits the dataset so each database server (a shard) holds a subset of the data. For example, with fifty million users we might use four shards: shard 0, shard 1, shard 2, and shard 3. No single shard holds the entire dataset; together the shards store everything. When capacity is reached, we add another shard. A core question emerges: given a specific record (for example, user “Alan”), how do we deterministically find which shard stores that record? We need a fast mapping rule — the shard key — so we don’t search every shard.

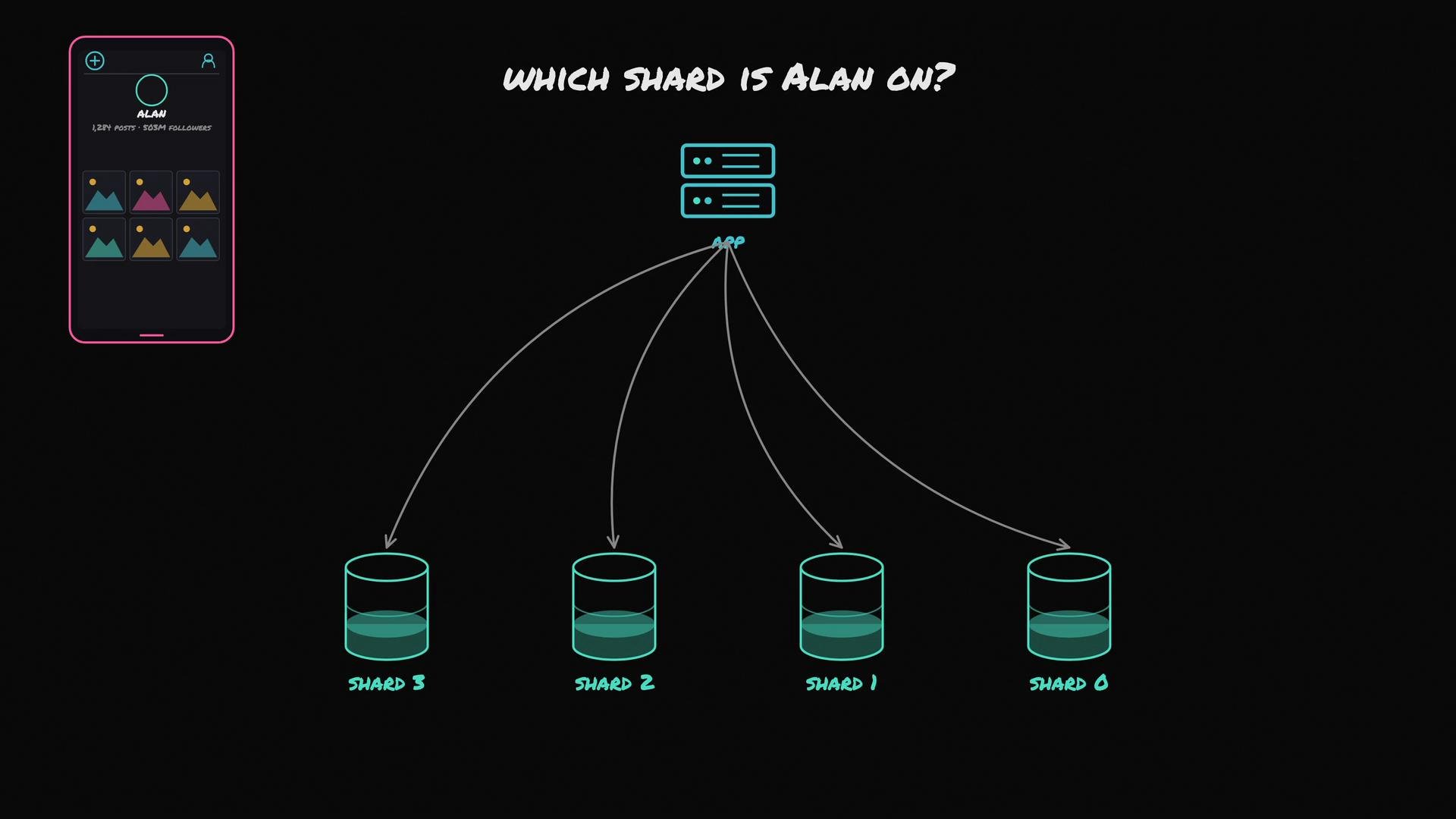

The image depicts a diagram showing a mobile app accessing different database shards, asking "Which shard is Alan on?" There are arrows pointing from the app to four shards labeled Shard 3, Shard 2, Shard 1, and Shard 0.
A common shard key for a photo app is user_id, since every user has a unique ID. A simple and fast sharding rule uses modulus division:
Examples:
  • Alan’s ID = 10 → 10 % 4 = 2 → Alan stored on shard 2
  • Another user ID = 13 → 13 % 4 = 1 → that user stored on shard 1
This calculation is cheap and can be performed by any application server.

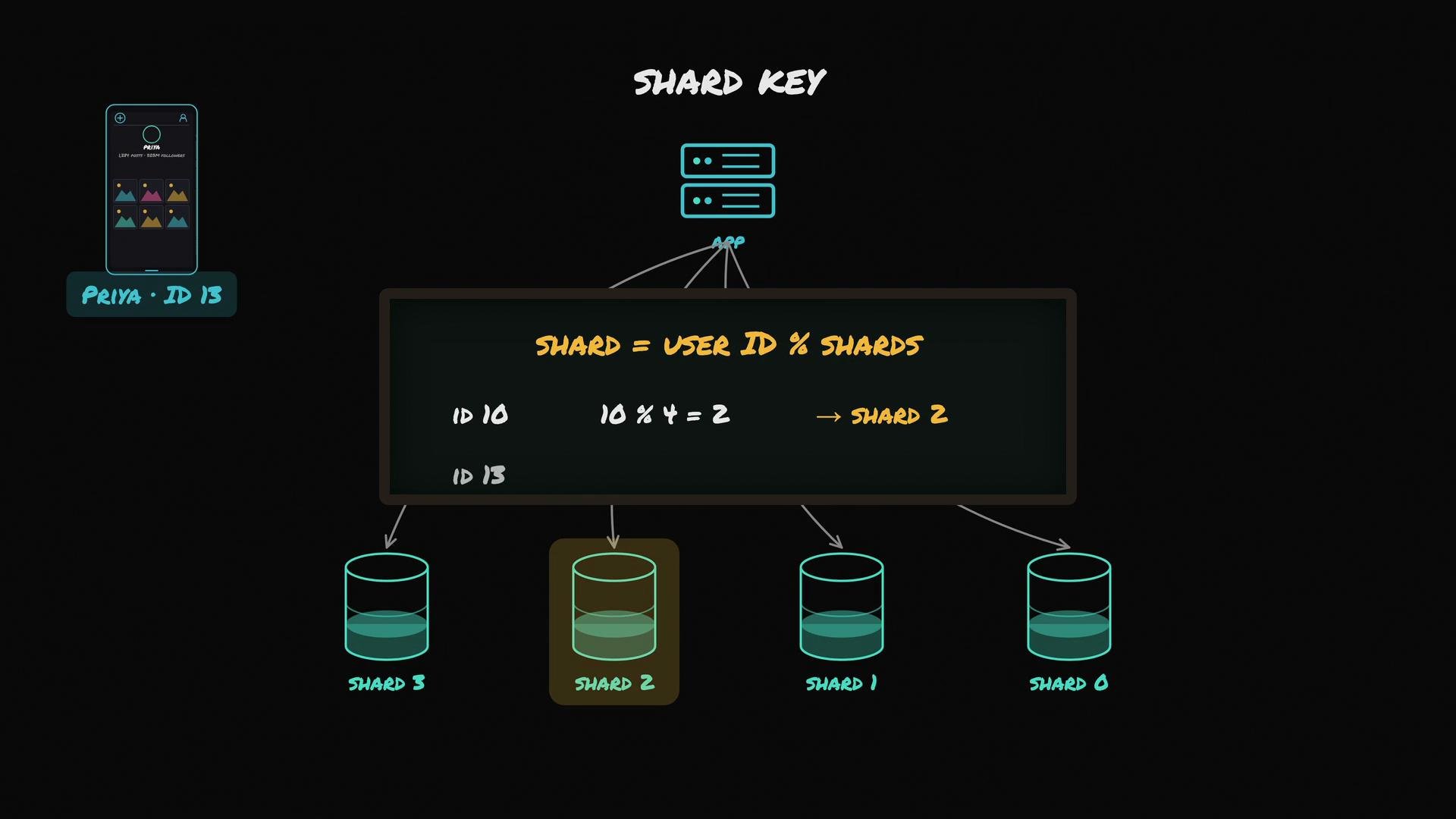

The image shows a diagram explaining the concept of database sharding using user IDs, with calculations directing specific users to different shards.
Two important issues to consider with sharding:
  1. Hot shards
    By unlucky distribution, many high-traffic users (e.g., celebrities) could be mapped to the same shard. If millions of users view those celebrity profiles, that shard becomes overloaded while others remain underutilized. Mitigations include choosing a shard key or hashing strategy that evens out access patterns, adding capacity, or using virtual nodes to spread load across physical machines.

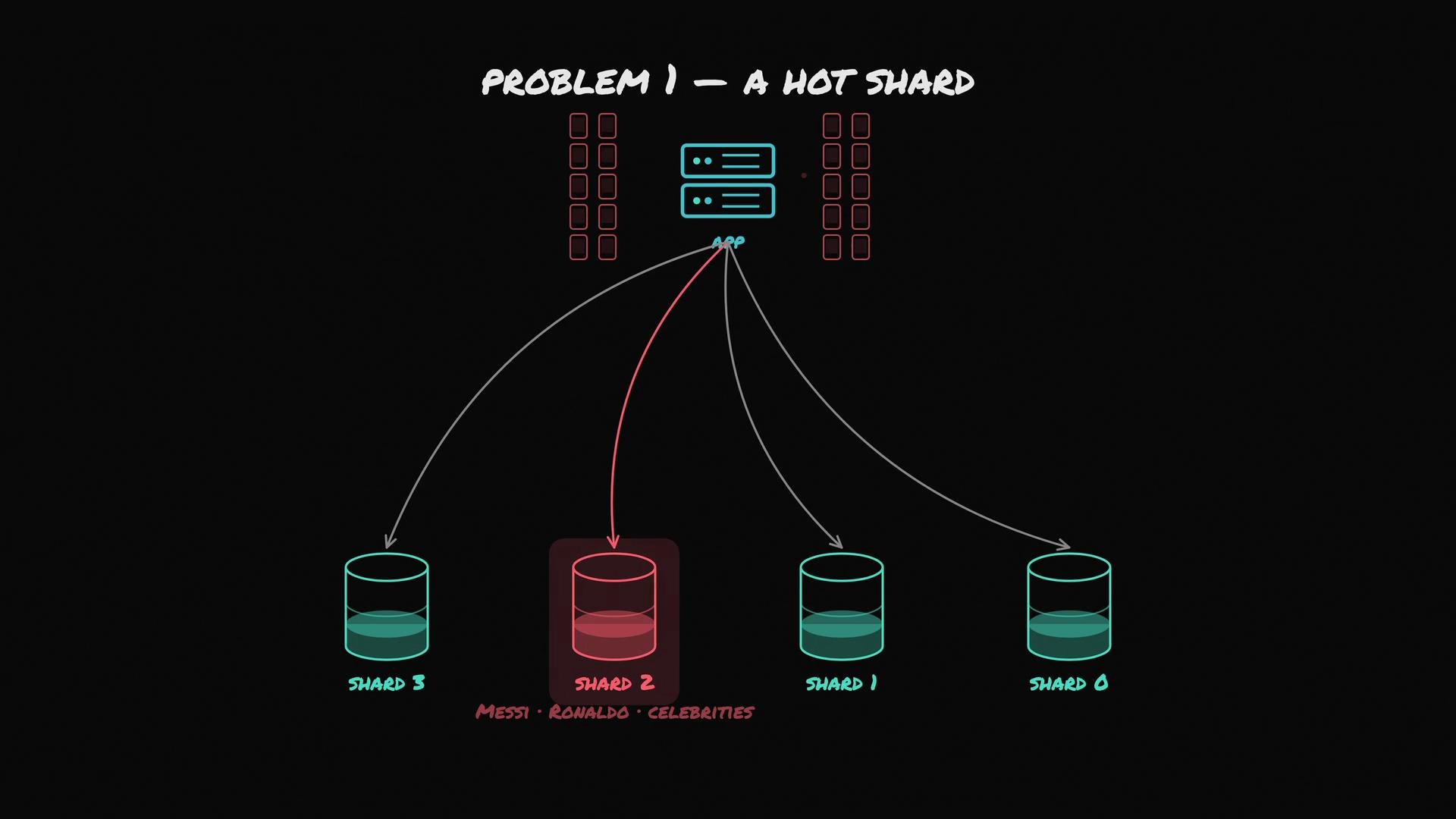

The image illustrates the concept of a "hot shard" problem in database sharding, with an imbalance where one shard (Shard 2) is overloaded due to a concentration of celebrity data, while others remain underutilized.
  1. Resharding (rebalancing) pain with naive modulus sharding
    With modulus-based sharding, the mapping depends on the total number of shards. Changing the shard count (for example from 4 to 5) will change the remainder for almost every user_id. Alan moves from shard 2 to shard 0 (10 % 4 = 2 → 10 % 5 = 0), which implies massive data movement across nodes — costly and disruptive.

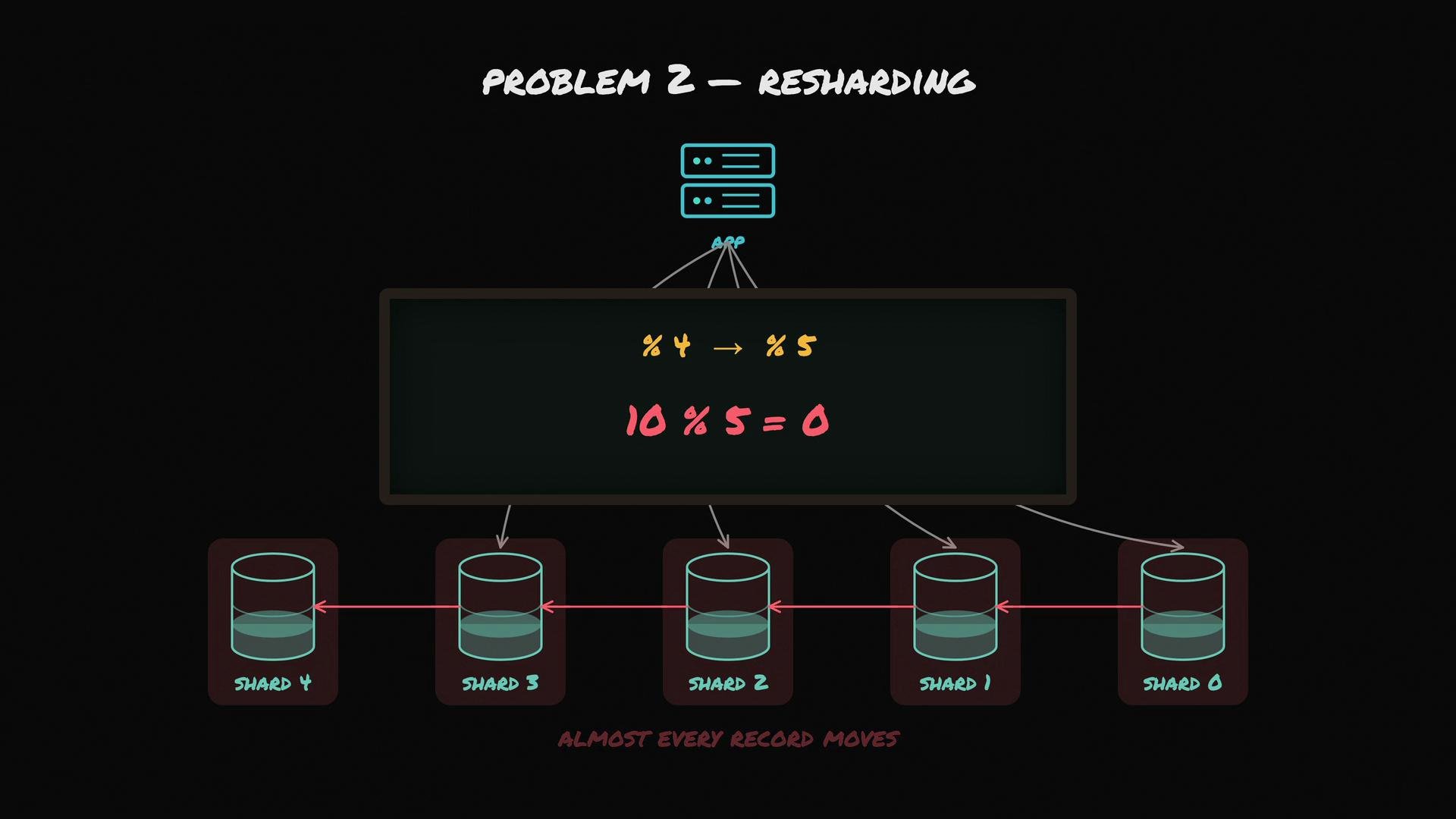

The image illustrates the problem of resharding in database management, showing the shift from using four shards to five, with almost every record moving between shards.
Industry solution: consistent hashing
Consistent hashing maps both data keys and shard nodes onto a circular hash space (a hash ring). Each key is assigned to the first node encountered clockwise from the key’s hash. When a new shard joins, it only takes responsibility for a small range of keys (typically between its predecessor and itself), so most keys remain on their original shard. Using virtual nodes (multiple positions per physical node) smooths distribution and helps avoid hot spots.

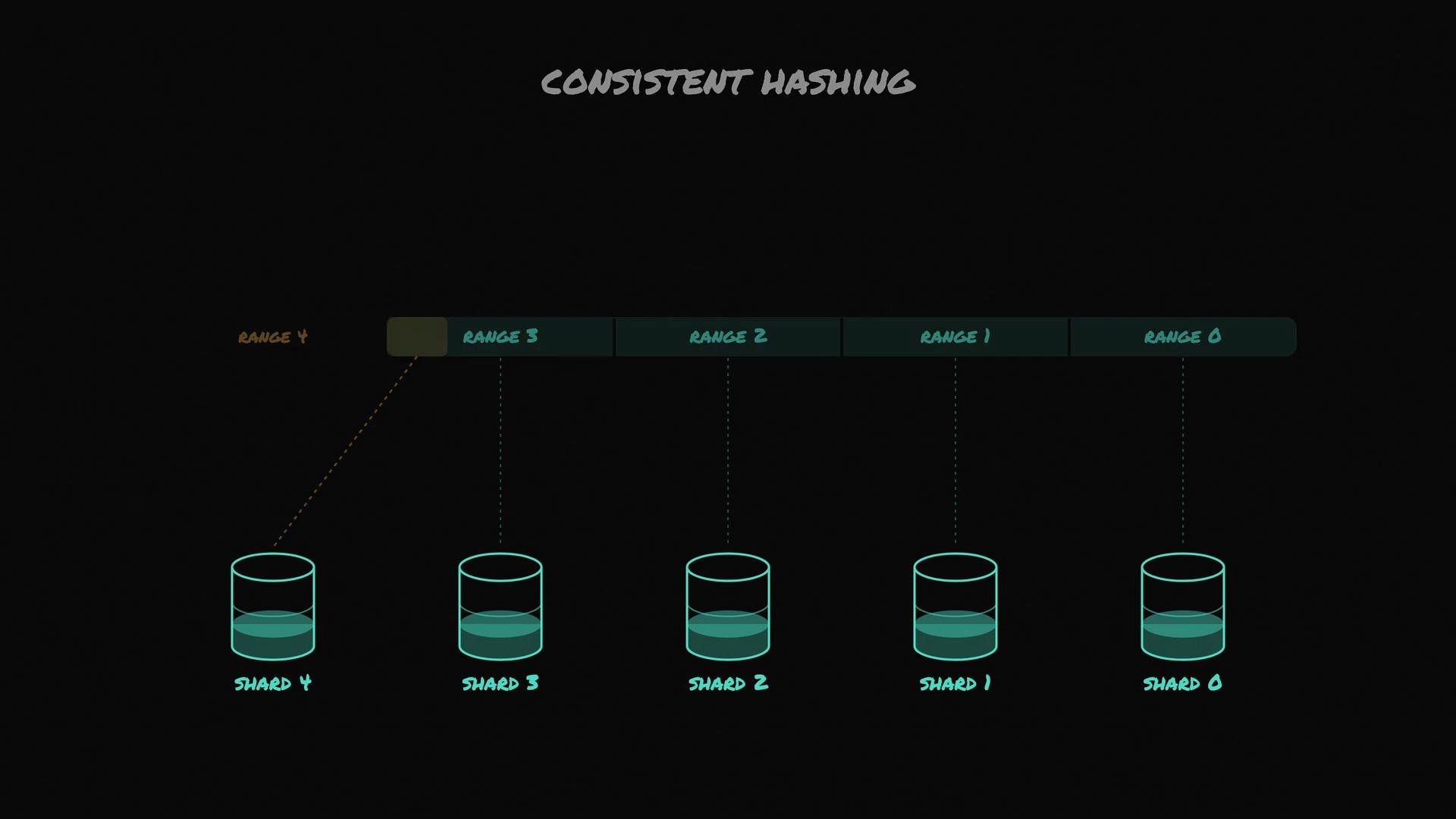

The image illustrates consistent hashing, showing the distribution of ranges across five shards labeled from 0 to 4. Each range is associated with a specific shard for data storage.
Comparison of common sharding strategies Practical reminders
  • Choose the shard key to align with your most frequent access patterns: storage balance, query efficiency, and joinability are all impacted.
  • Sharding complicates cross-shard joins and multi-shard transactions. These require application-level coordination, two-phase commits, or compensating logic.
  • Avoid premature sharding. Introduce sharding when a single machine can no longer handle your storage or throughput needs — sharding is difficult to undo.
Choose a shard key that matches your dominant access patterns. A poor shard key can create hot shards, hurt performance, and make queries or transactions inefficient.
Sharding adds operational complexity: monitor load distribution, plan for rebalancing, and test how your application handles partial failures and cross-shard operations.
Many modern databases provide built-in sharding and rebalancing support (for example, MongoDB, Cassandra, DynamoDB), which simplify deployment and maintenance. Regardless of the tooling you choose, sharding is a tradeoff: it increases scalability and capacity at the cost of added system complexity. Links and references
