So far we’ve built a complete backend for our photo app: servers, databases, caches, object storage, and a CDN. The remaining question is practical: how do all these pieces talk to each other, and how does Alan’s phone talk to our servers? When we say “the phone is talking to the server” (or “the server is talking to the database”), it’s the software on those machines exchanging structured messages — not the hardware itself. Alan’s phone in Sydney and our servers in Virginia are different machines, running different software stacks, possibly written in different languages and built by different teams. To interoperate, they need an agreement on how to exchange data. That agreement is called an API — an Application Programming Interface. An API is a formal set of rules and formats that lets different software programs communicate and exchange data. Think of an API like a menu shared between two programs: it lists what actions are possible, what inputs are required, and what outputs will be returned.
An API defines the structure and semantics of messages exchanged between programs. Network protocols like HTTP and TCP are the transport layers that actually carry those messages across machines.
You should be clear about one thing: the API only defines what the messages from one program to another should look like.

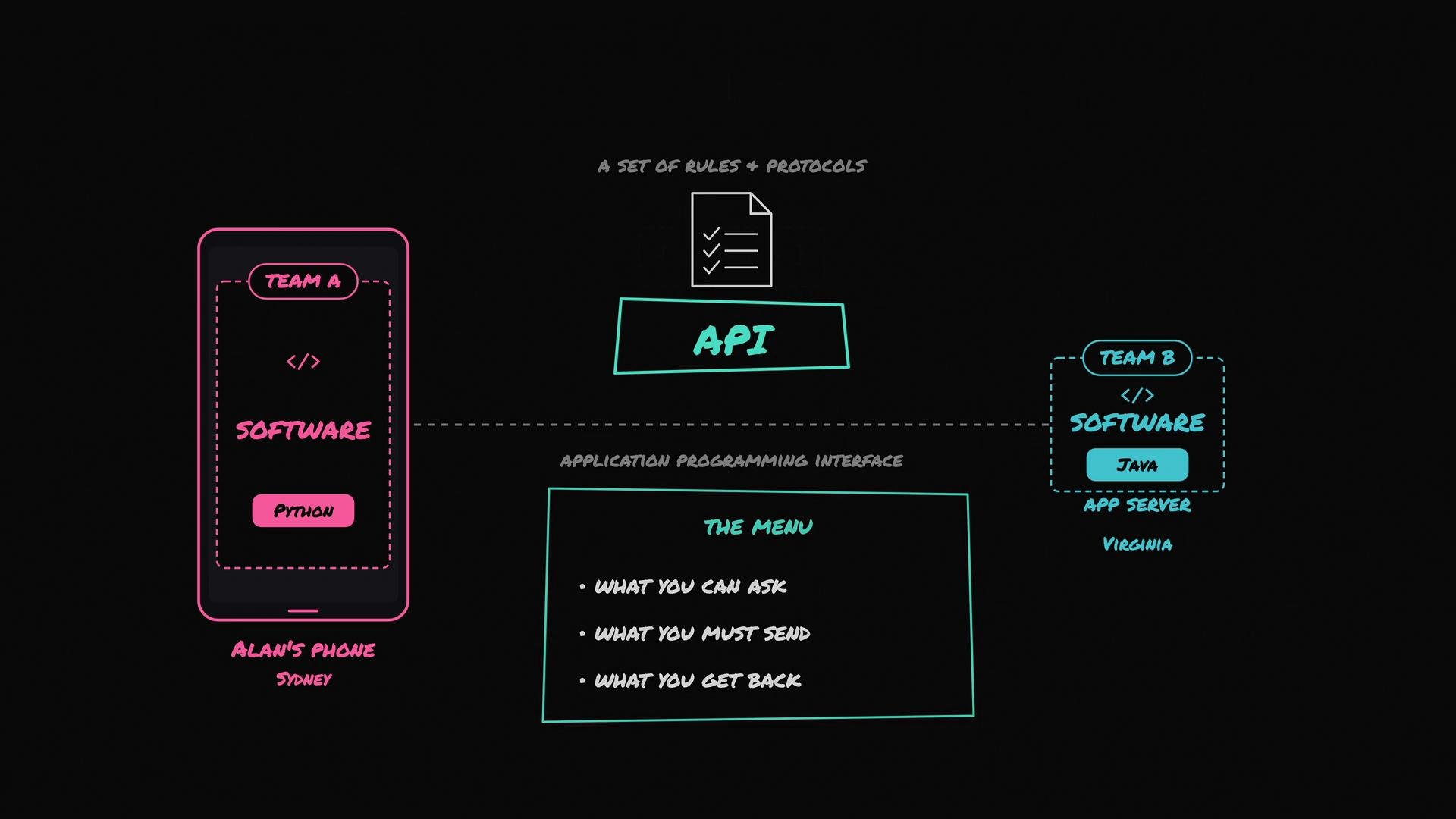

The image illustrates an API as a set of rules and protocols facilitating communication between Team A's Python software on a phone in Sydney and Team B's Java software on an app server in Virginia. It describes the API as a "menu" showing what can be asked, what must be sent, and what is returned.
Network protocols such as HTTP and TCP are the mechanisms that actually move those messages between machines. The phone doesn’t need to know which database, cache, or how many servers we run — it only needs to follow the API contract. Concrete example: Alan opens John’s profile and the phone needs John’s photos. Alan’s phone makes an API call — a request — and the server replies with a response. A simple request can look like this:
This request has two main parts:
  • GET is the HTTP method: it tells the server what action we want (here, read data).
  • /users/43/photos is the endpoint or resource path: 43 is John’s user ID.
Every API publishes a set of endpoints that clients can call to perform predefined actions. Examples:
If the client wants to upload a photo, the method becomes POST /photos. To delete a photo: DELETE /photos/81. At its simplest, an API request is a method plus an endpoint; real requests also include authentication tokens, query parameters, and bodies for create/update actions. Common HTTP methods and when to use them: The example above follows the REST style. There are other API styles — GraphQL, gRPC, etc. — but the central idea remains: an API is a contract describing structured messages one program sends to another. Follow one API call end-to-end (what happens after Alan taps John’s profile):
  1. Alan’s phone builds the request GET /users/43/photos and sends it over the network.
  2. The request hits a load balancer.
  3. The load balancer forwards the request to one of the application servers.
  4. The app server inspects the endpoint and recognizes it as a read request for user 43’s photos.
  5. The server checks the cache, possibly consults a read-replica of the database, and gathers the photo metadata.
  6. The server prepares an API response: a JSON list of photos where each item includes metadata (caption, like count) and a CDN URL for the image file.
  7. The app server sends this response back to Alan’s phone.
  8. The phone receives the list, fetches the actual image files from the CDN using the provided URLs, and renders John’s profile on screen.
Important: the app server typically returns the first N photos (commonly 20), not every photo John has ever posted. Large responses are inefficient for both clients and servers. The response includes a marker (or token) to indicate where the client can continue on the next request. When Alan scrolls, the phone requests the next batch — this is called pagination. APIs that return long lists almost always implement pagination to limit response sizes and reduce server load. Building and documenting APIs is a broad topic — authentication, rate limiting, versioning, monitoring, and error handling are all essential — but the flow above gives a practical, end-to-end picture of what an API is and how it enables distributed systems (and devices like Alan’s phone) to work together.
The image shows a design mockup of a mobile app with a photo gallery and a process flow for loading images in batches of 20.
Further reading and references:
