Imagine your team just built a web application platform and you want to deploy and manage web app instances on Kubernetes. Each web app needs its own replica count, ingress rules, and resource limits. You try to describe a “web app” as a Kubernetes object, but the API server rejects it. Kubernetes has never heard of a “web app” — it only knows built-in kinds it ships with: Pod, Service, Deployment, Job, etc. How do you teach Kubernetes a new kind or a new API resource? A CustomResourceDefinition (CRD) is the answer: it registers a new API type and schema with the API server so kubectl and other clients can create, validate, and store those objects.

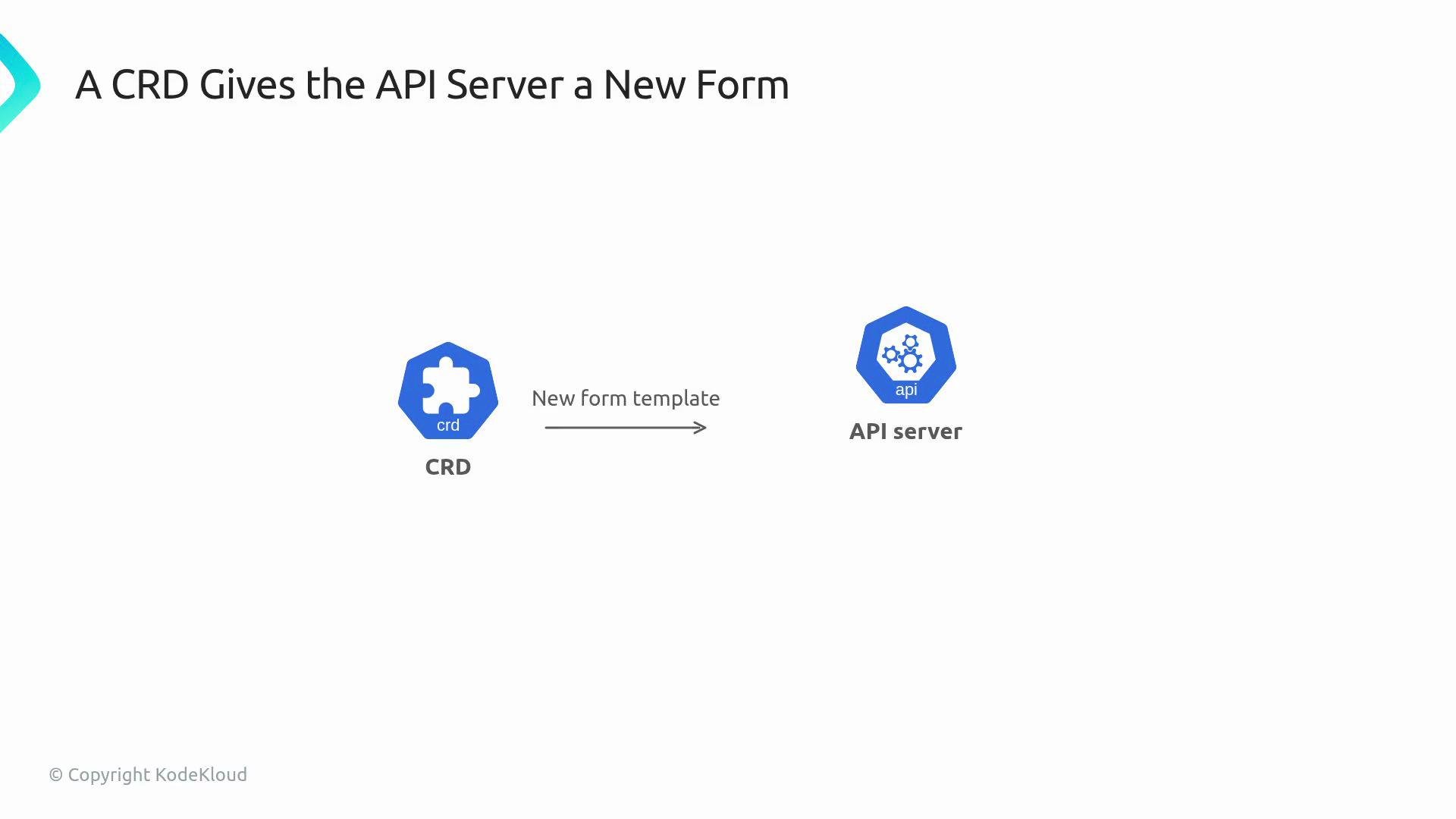

The image illustrates the process of a Custom Resource Definition (CRD) providing a new form template to an API server.
Conceptually, think of a CRD as a blank form template. A custom resource (CR) is a filled-out instance of that form — for example, a WebApp named my-front-end with a specified image and replica count.

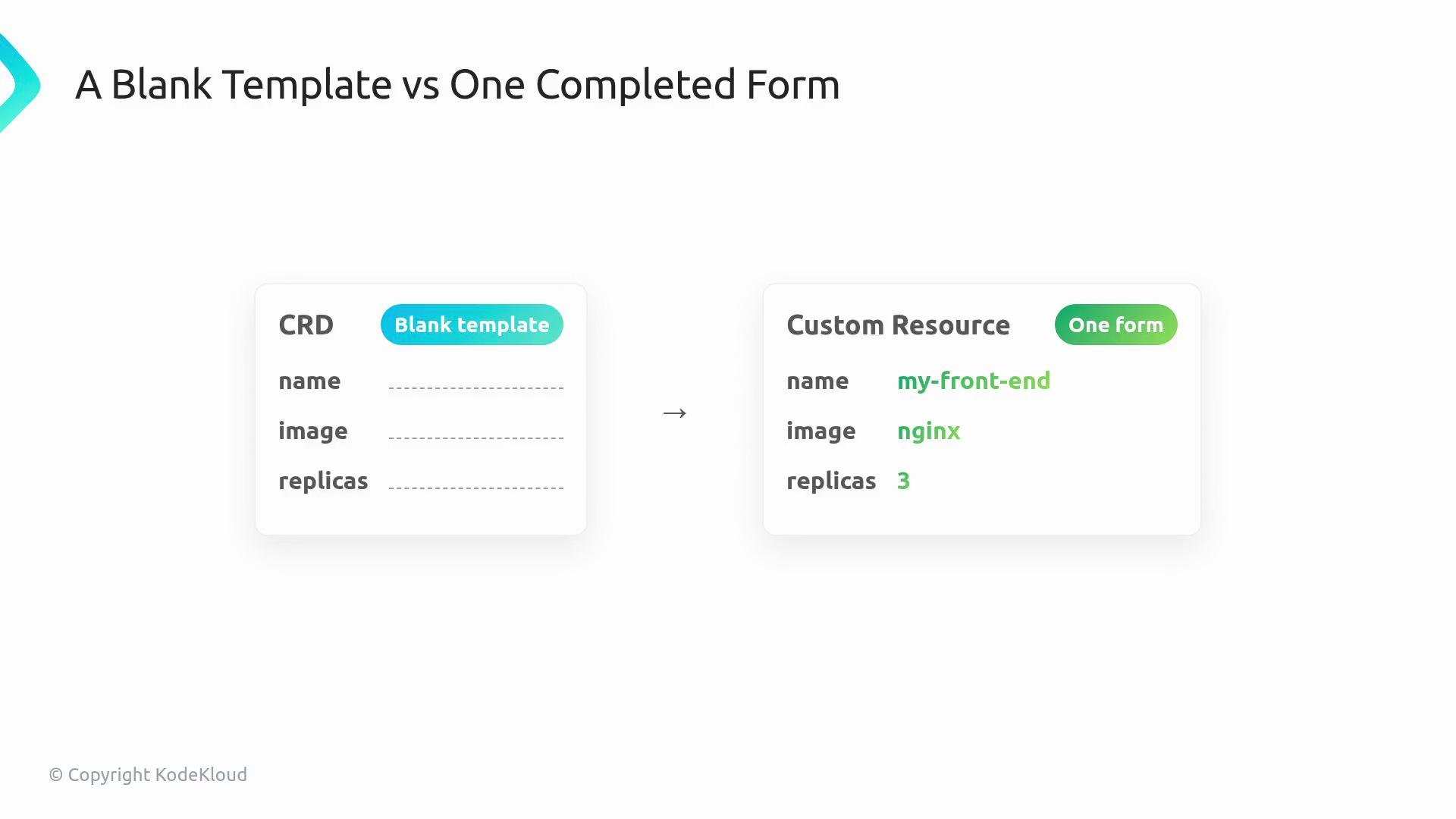

The image compares a blank template with a completed form, showing a CRD template transformed into a custom resource with specified values for name, image, and replicas.
When you apply a CRD, you hand the blank template to the API server. The API server registers the new resource name (for example, webapps.webapp.kodekloud.com), exposes endpoints, and validates objects against the schema declared in the CRD. After that:
  • kubectl can create, read, and list these new objects.
  • kubectl explain can show the CRD schema.
  • RBAC rules can target the new resource (for example webapps.webapp.kodekloud.com).
Example — register the CRD and query the new resource type:
The API server provides storage and validation; the object behavior (creating Deployments, Services, or Pods) comes from a controller (reconciler) that watches those CRs and takes actions. No controller means the CR object will exist in the cluster but nothing will act on it. A single custom resource (an instance of the CRD) looks like this:
The API server stores this object in etcd and treats it like built-in Kubernetes objects from an API perspective: you can kubectl get, kubectl describe, add RBAC rules, annotate it, etc. But Kubernetes does not include a built-in controller for your custom Kind — you must provide one to implement the desired behavior. The CRD itself is a Kubernetes object in the apiextensions.k8s.io/v1 API group. Applying it creates the endpoint, validates created objects against the declared OpenAPI schema, and persists accepted objects under your API group and version.

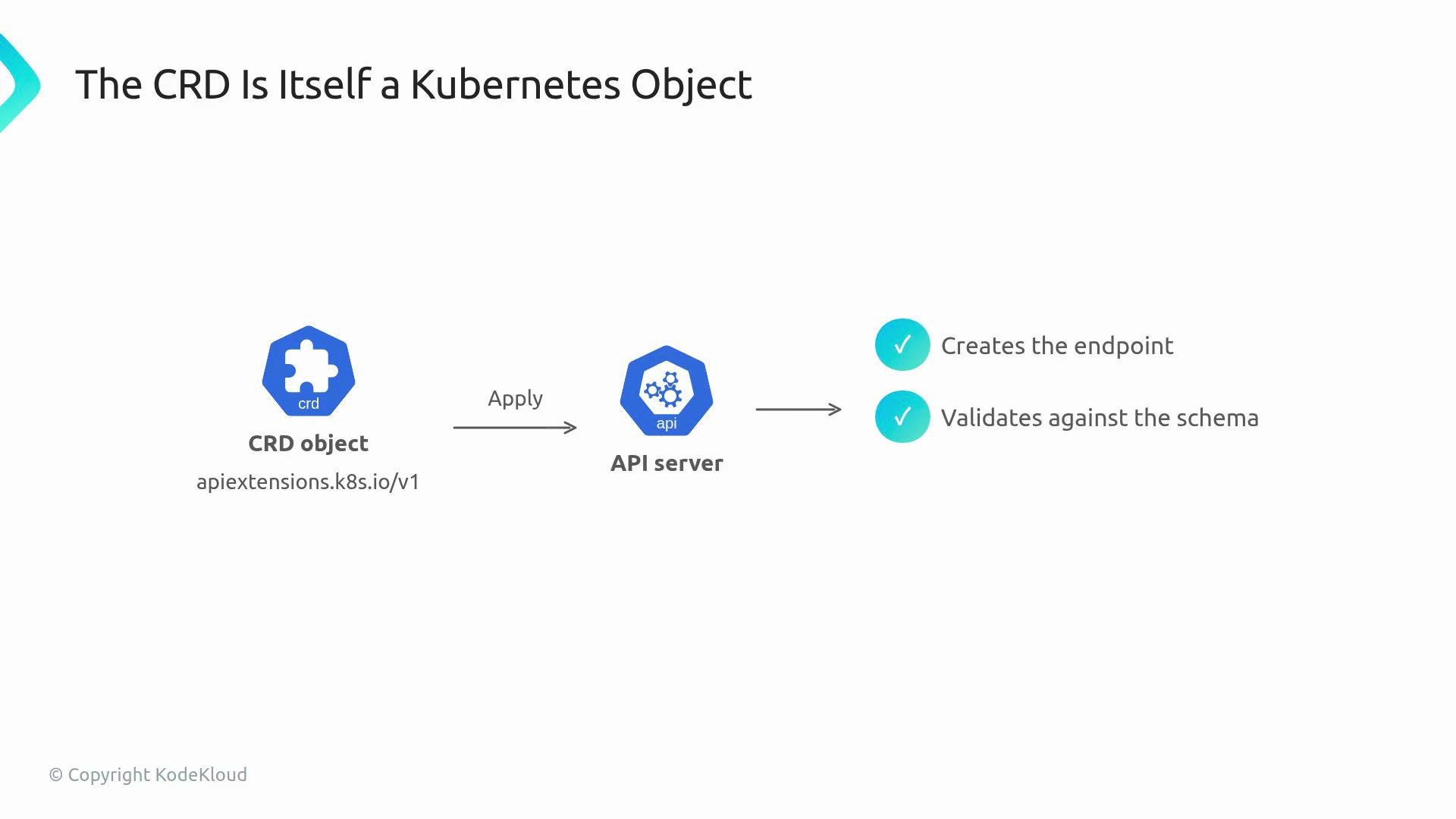

The image explains that a Custom Resource Definition (CRD) is a Kubernetes object, showing its application through an API server which creates an endpoint and validates against a schema.
Key behaviors once a CRD is registered:
  • kubectl get webapps works and lists CRs.
  • kubectl explain webapp.spec uses the CRD schema.
  • Cluster RBAC can grant access to webapps.webapp.kodekloud.com.
  • No API server recompile or extension binaries needed — CRDs are dynamic.
CRD structure at a glance Minimal CRD example (registers a WebApp kind in webapp.kodekloud.com):
A CRD defines the API shape and validation only. To make CRs produce Deployments, Services, or Pods, you must run a controller (operator) that watches the CRs and reconciles the desired state.
Why schema validation matters
  • Prevents invalid input (e.g., replicas: "three" vs replicas: 3).
  • Reduces runtime reconciler bugs by catching mistakes early.
  • Enables kubectl explain and improved developer ergonomics.
Warning — CRDs without controllers
If you apply only the CRD and create CRs without a controller, the cluster will store those objects but no resources (Deployments, Pods, Services) will be created automatically. Always deploy or run a controller if you expect behavior to be realized.
Further reading and references This overview covers the essentials: CRDs let you teach Kubernetes new resource types and validate them. Pair a CRD with a controller to implement behavior, and you have a powerful extension mechanism for building platform APIs on top of Kubernetes.
