Guide to packaging and distributing a Kubernetes operator by building and pushing the controller image, deploying install manifests, verifying the in-cluster manager, and introducing Operator Lifecycle Manager
Up to this point you’ve been developing and testing the web app Operator primarily from a developer workflow: running the manager locally, watching reconciliation logs, adding status and finalizers, implementing CEL validation, and validating behavior inside a Kubernetes cluster.This lesson shifts the focus from “does the operator work?” to “how do other people install and run it?” In other words: how do you package the controller into a container image, publish it, and deliver repeatable install manifests so others (and CI/CD systems) can deploy and run the operator in their clusters?Packaging begins with the controller image. The operator manager is a Go binary, but Kubernetes runs containers. Kubebuilder scaffolds a Dockerfile that builds the manager and copies the compiled binary into a lightweight runtime image. Your tasks in this section are:
Inspect the Dockerfile build path and verify the binary ends up in the runtime image.
Connect the image tag you produce to the Deployment used by the operator manager.
Use the provided Makefile targets (scaffolded by Kubebuilder) to build, push, and deploy the operator.
Key Makefile targets you will use:
Target
Purpose
Example
make docker-build
Build the OCI image using the IMG value you provide.
make docker-build IMG=myregistry.example.com/webapp-operator:v1
make docker-push
Push the tagged image to the configured registry so clusters can pull it.
make docker-push IMG=myregistry.example.com/webapp-operator:v1
make deploy
Run the configured Kustomize build and apply CRDs, RBAC, the manager Deployment, Service, and other install resources.
make deploy IMG=myregistry.example.com/webapp-operator:v1

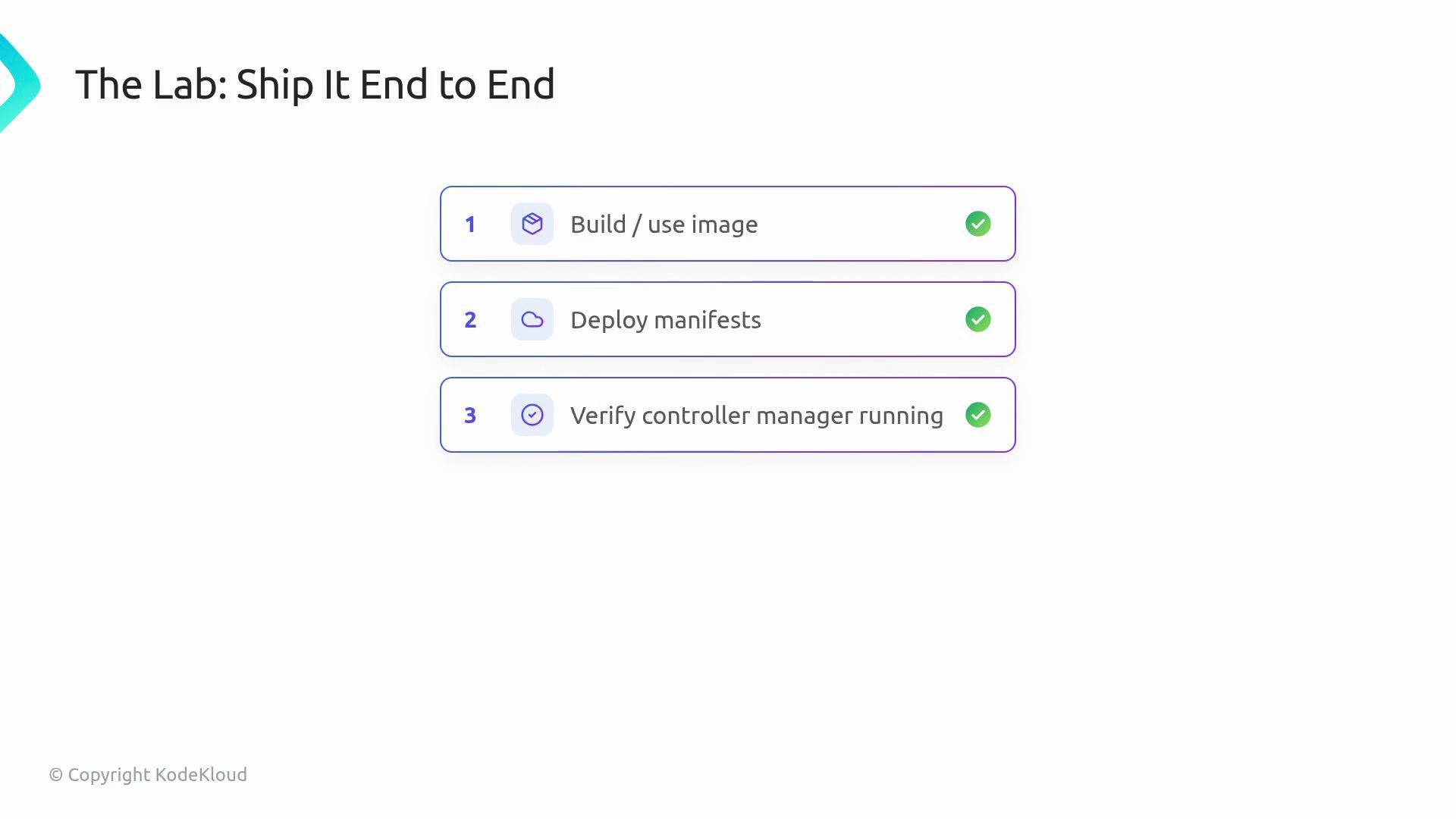

Example workflow (end-to-end):
# 1) Build the image with an explicit image reference (include registry and tag)make docker-build IMG=myregistry.example.com/webapp-operator:v1# 2) Push the image so the cluster can pull itmake docker-push IMG=myregistry.example.com/webapp-operator:v1# 3) Apply the install manifests (Kustomize build + kubectl apply)make deploy IMG=myregistry.example.com/webapp-operator:v1
IMG is not cosmetic — the exact image reference you set becomes part of the generated install manifests (the container image field in the manager Deployment). If you set an incorrect IMG the cluster may pull the wrong image or the controller may fail to start.After deploying, verify the controller manager is running and is using the image you pushed:
# Confirm the Deployment exists and shows the expected imagekubectl -n <namespace> get deployment webapp-operator-controller-manager -o yaml | grep image# Check pods and logskubectl -n <namespace> get podskubectl -n <namespace> logs deploy/webapp-operator-controller-manager -c manager
Finally, create a WebApp custom resource and confirm the installed operator reconciles it from inside the cluster — the same behavior you validated locally should now occur with the controller running as a Kubernetes workload.
This section closes with a brief look at Operator Lifecycle Manager (OLM). OLM is not required for every operator deployment, but it’s important to understand its model: bundles, ClusterServiceVersions (CSVs), catalogs, and subscriptions. Raw manifests or a kustomize-based install are sufficient for many environments; OLM becomes valuable when you need install metadata, upgrade channels, and marketplace-style distribution.By the end of this section you will have a repeatable packaging and deployment path for the web app Operator: a container image, published install manifests, a verified manager running in-cluster, and an upgrade story you can use going forward.
When using the Makefile targets, always set IMG to the exact image reference you intend to deploy (including registry and tag). The deployed manifests will reference that value, so an incorrect IMG will cause the cluster to pull a different image or fail to start the controller.
Ensure you have credentials and write access to the target registry before running make docker-push. Also confirm the cluster can pull from that registry (private registries may require imagePullSecrets).
