Demo Kubebuilder Create API For WebApp

You need a WebApp custom resource type in your operator. Starting from an empty Go project, Kubebuilder scaffolds the Go types, controller, and CRD manifest for you in the expected project layout so you can quickly run kubectl apply.

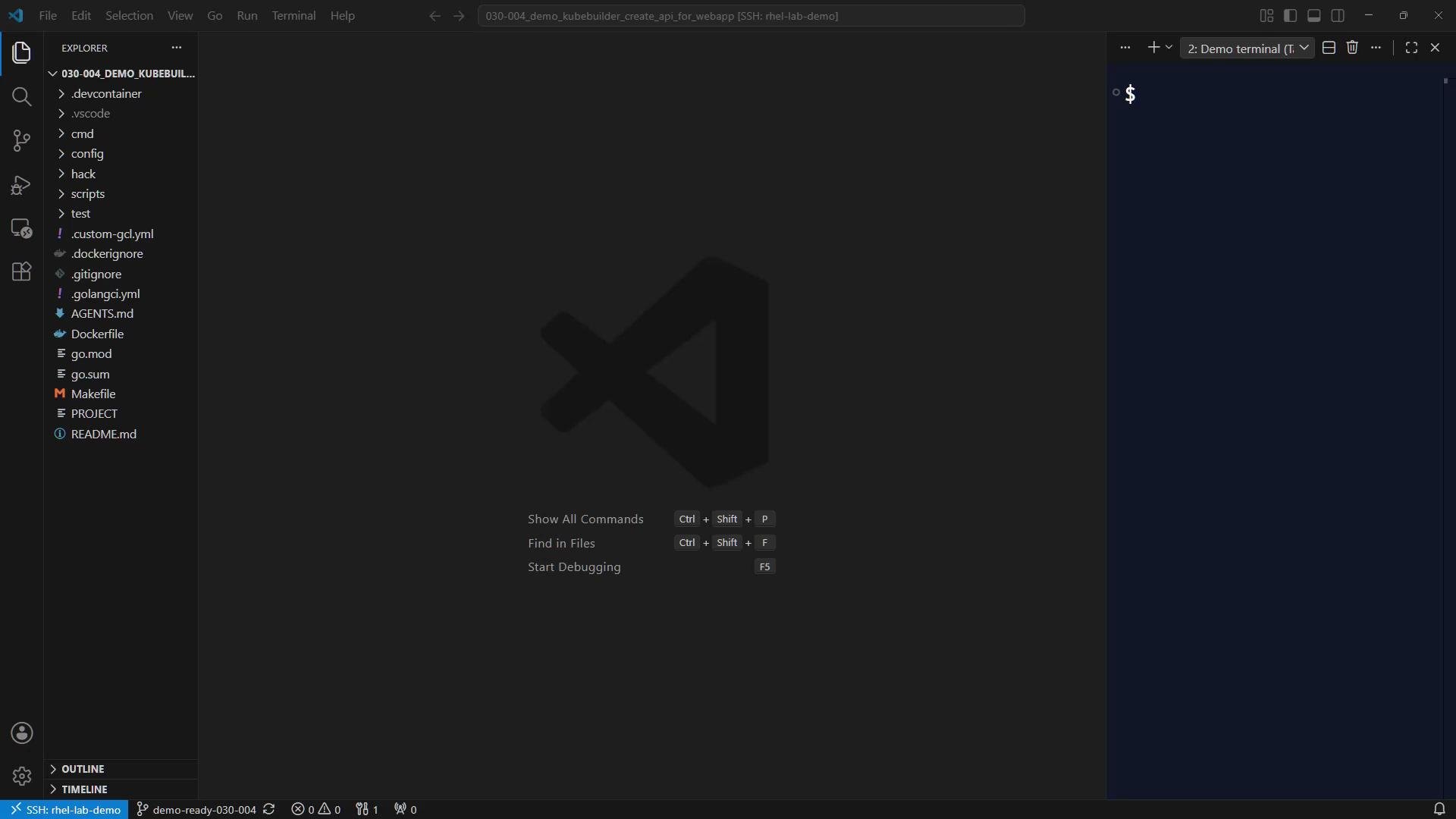

The image shows the Visual Studio Code interface with a file explorer on the left displaying project files, and an open terminal on the right.

This lesson walks through scaffolding a WebApp API (group webapp, version v1, kind WebApp) and shows how Kubebuilder wires everything together.

Project overview before scaffolding

When you open the project you should already see:

PROJECT file describing the repository and domain.
cmd directory (entry point).
config tree for manifests and kustomize overlays.

Run the Kubebuilder command to scaffold the API (this also creates a controller and resource):

kubebuilder create api --group webapp --version v1 --kind WebApp --resource --controller

With the project domain set to kodekloud.com in PROJECT, the full API group becomes: webapp.kodekloud.com/v1.

What Kubebuilder generates

After running the scaffold command, Kubebuilder creates the new API types and controller skeleton. The two primary locations are:

Path	Purpose
`api/v1`	Go types for the CRD schema (Spec & Status)
`internal/controller`	Reconciler implementation (controller code)

Kubebuilder also updates the PROJECT metadata used for future scaffolding. Example PROJECT-style metadata:

# This file is used to track the info used to scaffold
# and allow the plugins to properly work.
cliVersion: 4.13.1
domain: kodekloud.com
layout:
  - go.kubebuilder.io/v4
projectName: webapp-operator
repo: github.com/kodekloud/webapp-operator
resources:
  api:

When scaffolding runs, you’ll see informative logs about files created and dependency updates, for example:

INFO  internal/controller/webapp_controller.go
INFO  internal/controller/webapp_controller_test.go
INFO  Update dependencies
INFO  Running make
Downloading sigs.k8s.io/controller-tools/cmd/controller-gen@v0.20.1

Generated Go types (example)

Kubebuilder scaffolds api/v1/webapp_types.go with placeholder fields. The WebAppSpec currently contains a Foo example field and WebAppStatus includes a Conditions slice prepared for status conditions. Keep these placeholders while following this lesson; a later lab replaces Foo with real fields such as image and replicas. Example generated types:

package v1

import (
    metav1 "k8s.io/apimachinery/pkg/apis/meta/v1"
)

// EDIT THIS FILE!  THIS IS SCAFFOLDING FOR YOU TO OWN!
// NOTE: json tags are required. Any new fields you add must have json tags
// so the fields can be serialized.

// WebAppSpec defines the desired state of WebApp
type WebAppSpec struct {
    // INSERT ADDITIONAL SPEC FIELDS - desired state of cluster
    // Important: Run "make" to regenerate code after modifying this file
    // The following markers will use OpenAPI v3 schema to validate the value
    // More info: https://book.kubebuilder.io/reference/markers/crd-validation.html

    // Foo is an example field of WebApp. Edit webapp_types.go to remove/update
    // +optional
    Foo *string `json:"foo,omitempty"`
}

// WebAppStatus defines the observed state of WebApp.
type WebAppStatus struct {
    // For Kubernetes API conventions, see:
    // https://github.com/kubernetes/community/blob/master/contributors/devel/
    // sig-architecture/api-conventions.md#typical-status-properties
    //
    // conditions represent the current state of the WebApp resource.
    // Each condition has a unique type and reflects the status of a specific
    // aspect of the resource.
    //
    // Standard condition types include:
    // - "Available": the resource is fully functional
    // - "Progressing": the resource is being created or updated
    // - "Degraded": the resource failed to reach or maintain its desired state
    //
    // The status of each condition is one of True, False, or Unknown.
    // +listType=map
    // +listMapKey=type
    // +optional
    Conditions []metav1.Condition `json:"conditions,omitempty"`
}

// +kubebuilder:object:root=true
// +kubebuilder:subresource:status

// WebApp is the Schema for the webapps API
type WebApp struct {
    metav1.TypeMeta   `json:",inline"`
    // metadata is standard object metadata
    // +optional
    metav1.ObjectMeta `json:"metadata,omitempty"`

    // spec defines the desired state of WebApp
    Spec WebAppSpec `json:"spec,omitempty"`
    // status defines the observed state of WebApp
    // +optional
    Status WebAppStatus `json:"status,omitempty"`
}

Kubebuilder marker comments such as +kubebuilder:object:root=true and +kubebuilder:subresource:status are directives for the code generator (controller-gen). They control what gets generated in the CRD YAML and client code.

Generate CRD YAML from types

To convert the Go types (the single source of truth) into a Kubernetes CustomResourceDefinition (CRD) YAML, run:

make manifests

Under the hood, make manifests runs controller-gen which parses the Kubebuilder markers and writes the CRD base file into config/crd/bases. Kubebuilder names the CRD file using the group and plural form, for example: config/crd/bases/webapp.kodekloud.com_webapps.yaml A small excerpt of the generated CRD (shows identity and inferred schema):

apiVersion: apiextensions.k8s.io/v1
kind: CustomResourceDefinition
metadata:
  annotations:
    controller-gen.kubebuilder.io/version: v0.20.1
  name: webapps.webapp.kodekloud.com
spec:
  group: webapp.kodekloud.com
  names:
    kind: WebApp
    listKind: WebAppList
    plural: webapps
    singular: webapp
  scope: Namespaced
  versions:
    - name: v1
      schema:
        openAPIV3Schema:
          description: WebApp is the Schema for the webapps API
          properties:
            apiVersion:
              description: |-
                APIVersion defines the versioned schema of this representation
                of an object.
              type: string
            kind:
              description: |-
                Kind is a string value representing the REST resource this
                object represents.

From this CRD YAML you can immediately read:

metadata name: webapps.webapp.kodekloud.com
group: webapp.kodekloud.com
kind: WebApp, listKind: WebAppList
plural: webapps, singular: webapp
version v1 and status subresource enabled

Verify compilation & development loop

Before editing types and controller logic, ensure the scaffold builds cleanly. A typical development loop is:

Scaffold the API:

kubebuilder create api --group webapp --version v1 --kind WebApp --resource --controller

Regenerate CRD manifests:
make manifests

Build and test the controller:

make build
# or build a container image:
make docker-build
# or run locally
make run

Next steps

Re-run kubebuilder create api if you need to add more APIs for the same project.
Replace placeholder fields in api/v1/webapp_types.go with real spec fields (for example image and replicas).
Implement controller logic in internal/controller to create and manage child resources such as Service, Deployment, and ConfigMap for each WebApp.

Recommended references:

Kubebuilder docs: https://book.kubebuilder.io/
controller-tools (controller-gen): https://github.com/kubernetes-sigs/controller-tools
Kubernetes API conventions: https://github.com/kubernetes/community/blob/master/contributors/devel/sig-architecture/api-conventions.md
