This guide walks through designing a scalable, production-ready image upload pipeline (think Instagram). We start with a simple prototype and iterate through common failure modes to arrive at a robust architecture that handles scale, performance, and safety.

​
Version 1 — The naive approach

Users upload an image → your server receives it → you save it to the server’s local disk → record the file path in the DB → return a URL. This works for prototypes and hackathons, but quickly breaks at scale.

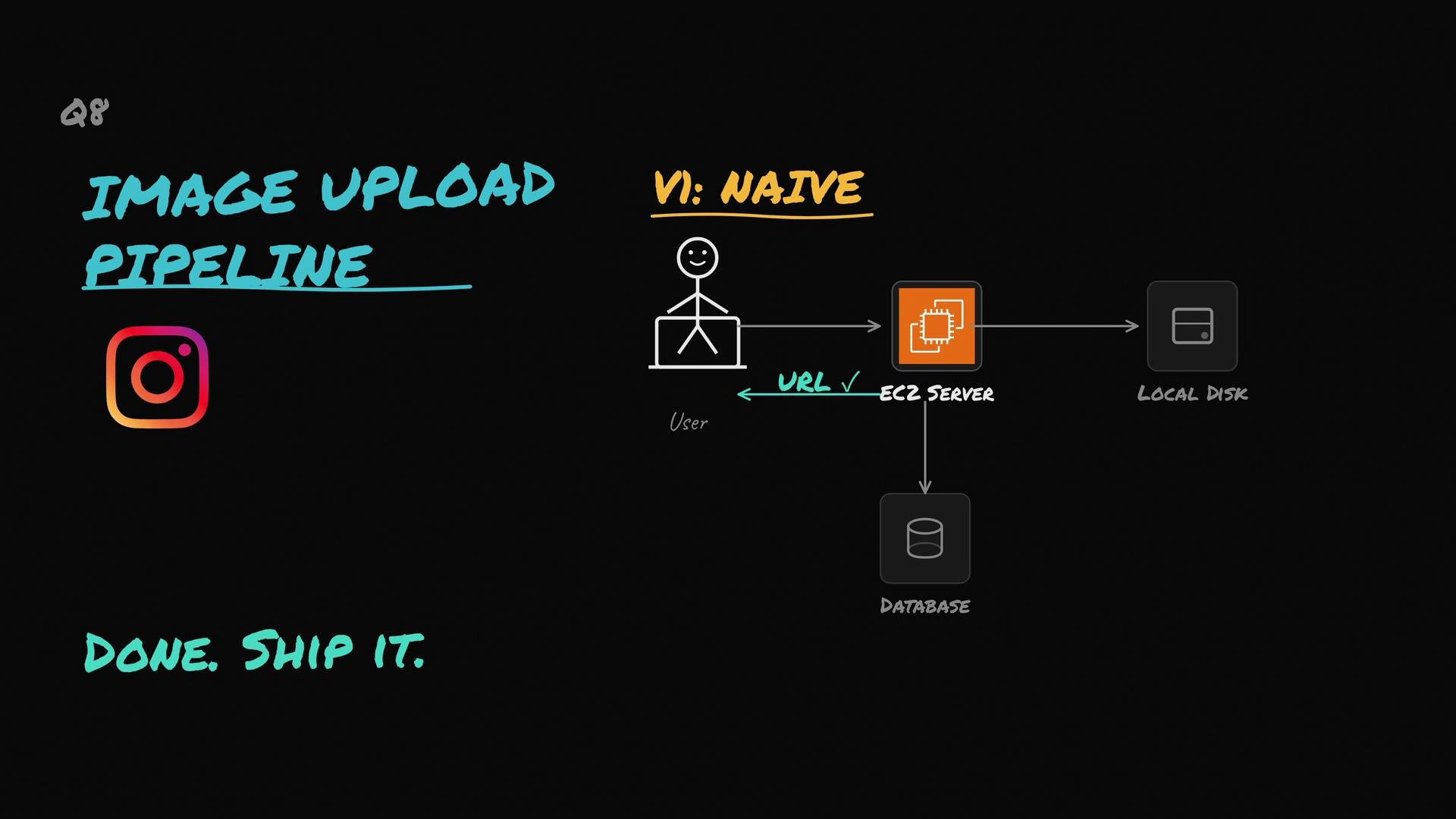

The image shows a diagram of an "Image Upload Pipeline" labeled "V1: Naive," with a user uploading to an EC2 server, which interacts with a database and saves to a local disk. The Instagram logo and the phrase "Done. Ship it." are also present.
Why this fails
  • Disk limits: a server with limited disk (e.g., 50 GB) will fill quickly if users upload tens of GBs per day.
  • Single point of failure: if the server dies, images may be lost unless you implement replication/backups.
  • Operational overhead: scaling, backups, and restorations become painful.

​
Version 2 — Move to object storage

Replace server disk with object storage (S3, Google Cloud Storage, Azure Blob Storage). The app server stores objects into S3 and stores object keys/URLs in the DB. This provides practically unlimited storage, built-in redundancy, and resilience.

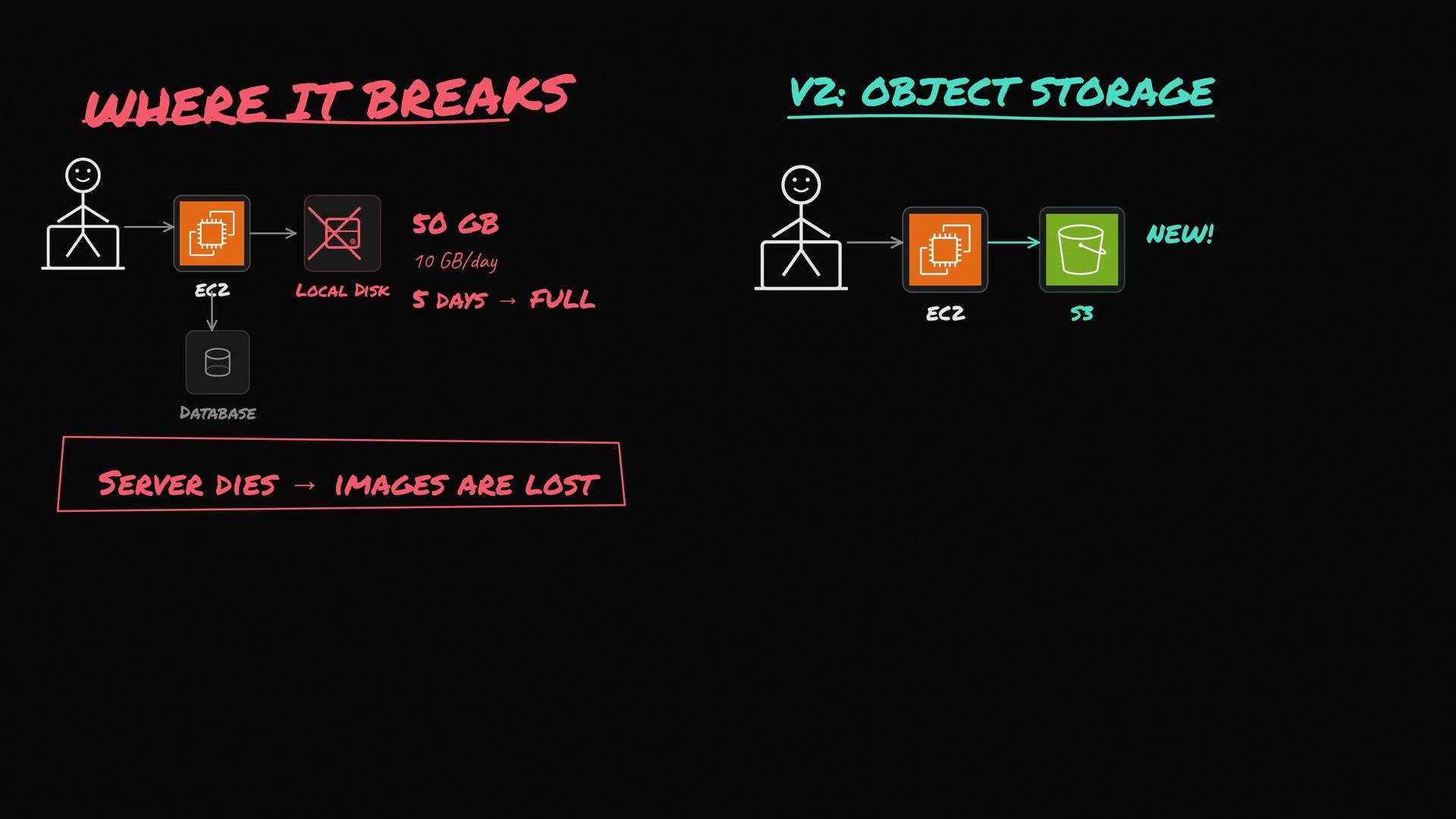

The image compares two data storage strategies: local disk storage which leads to data loss when the server fails, and object storage using S3, which offers a more reliable solution.
Best practices for object storage
  • Use presigned upload URLs to allow clients to upload directly to object storage, reducing server bandwidth and cost.
  • For very large files, use multipart uploads (S3 Multipart Upload, GCS resumable uploads).
  • Record metadata in your DB: object key, content-type, owner ID, upload timestamp, checksum.
Use presigned (signed) upload URLs so clients upload directly to object storage. This reduces server bandwidth and simplifies horizontal scaling.
Table — Object storage checklist

​
New problem: raw camera files are large

Mobile camera images can be 10–20+ MB. Serving raw camera files to mobile clients causes slow page loads and poor UX. You need to optimize images for different devices and network conditions.

​
Version 3 — Asynchronous processing pipeline

Do not block the upload HTTP request on heavy processing. Instead, make optimization asynchronous:
  1. Client uploads the raw image to object storage (ideally via a presigned URL).
  2. Your API server performs lightweight validation, records metadata in the DB, and enqueues a “process this object key” message to a durable queue (SQS, Pub/Sub, RabbitMQ, Kafka).
  3. Workers/consumers pick up jobs, then:
    • Generate multiple sizes (thumbnail, small, medium, large).
    • Convert/optimize formats (WebP, AVIF) for bandwidth savings.
    • Strip sensitive EXIF metadata.
    • Calculate and persist checksums and content hashes.
    • Write processed derivatives back to object storage and update the DB.
  4. Mark processing status in the DB (e.g., processing, ready, failed) so clients can show conditional UI immediately after upload.
This gives users an immediate upload response while background workers handle heavy tasks.

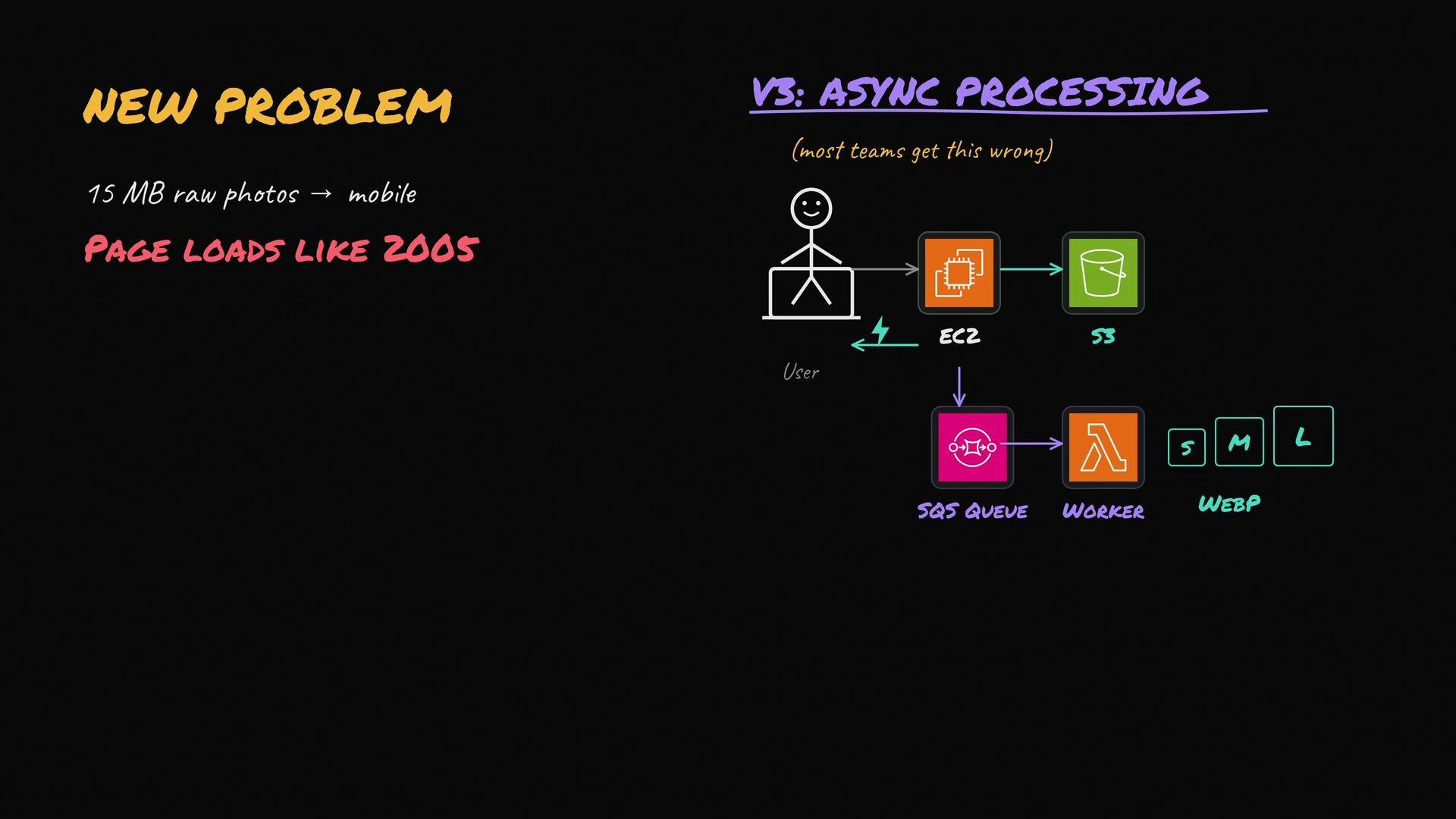

The image describes an async processing flow for handling large photo uploads, illustrating a system architecture involving EC2, S3, SQS Queue, and a Worker, with an emphasis on optimizing page load times.
Operational guidance for async processing
  • Idempotency: design workers so retries do not create duplicate derivatives or corrupt state. Use deterministic object keys or a deduplication step.
  • Durable queues + retries: use exponential backoff and dead-letter queues for poison messages.
  • Status tracking: persist job states and errors so the API can report progress to clients.
  • Deduplication: compare checksums/hashes to avoid reprocessing identical uploads.
Make processing idempotent and persist job status. That simplifies retries, debugging, and recovery from partial failures.

​
Version 4 — Add a CDN for global performance

Even optimized images benefit from being cached geographically close to users. Put a CDN (CloudFront, Fastly, Cloudflare, etc.) in front of your object storage.
  • First request (cache miss): edge fetches the object from origin (S3).
  • Subsequent requests: served from the nearest edge node with low latency.
  • CDNs handle the majority of read traffic, enabling virtually unlimited, low-latency reads.
Cache control, invalidation, and URL strategies
  • Use Cache-Control headers to set TTLs and leverage CDN caching effectively.
  • Use versioned/fingerprinted URLs (e.g., image-<hash>.webp) so updates don’t require manual invalidation — clients request a new URL when content changes.
  • For private assets, use signed URLs or signed cookies at the CDN layer to enforce access controls.

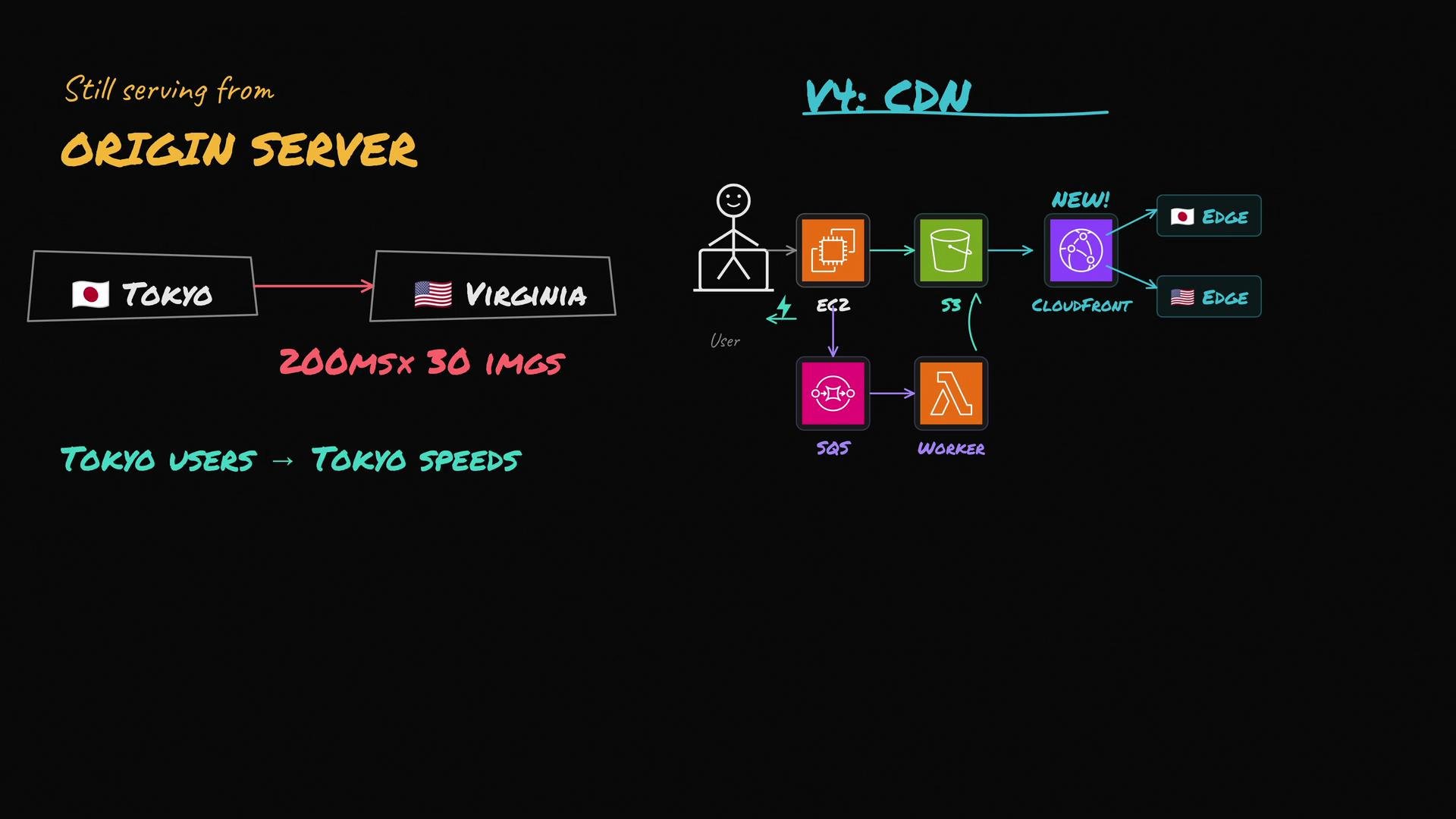

The image illustrates a server and CDN setup, comparing origin server latency between Tokyo and Virginia with a cloud distribution network that includes AWS tools like EC2, S3, SQS, Cloudfront, and Lambda for improved speeds.
Quick CDN tips
  • Use immutable URLs with content hashes: image-<hash>.webp.
  • Keep short cache TTLs for frequently changing content, or use versioning to avoid TTL complications.
  • For signed/private images, prefer CDN-level signed URLs over exposing direct S3 presigned URLs to end users.

​
Version 5 — Validation, safety, and moderation

Before images enter processing or become public, validate and protect:
  • Verify file headers (magic bytes) and MIME types — don’t rely on file extensions alone.
  • Enforce maximum file size (e.g., reject files > 20 MB).
  • Scan for malware and viruses on the raw upload.
  • Run automated content moderation (nudity, violence) and implement a human review workflow for flagged content.
  • Quarantine suspicious files until cleared and ensure no public access before approval.
Common attack vectors to defend against
  • A file named image.jpg that is actually a malicious archive or a zip bomb.
  • EXIF or metadata with payloads that could exploit downstream parsers.
All security and moderation gates should occur before the image becomes publicly accessible.

​
Final architecture — end-to-end summary

  • Client uploads raw image (prefer presigned URL to object storage).
  • API server performs lightweight validation, stores metadata in DB, and enqueues a processing job.
  • Background workers optimize images (resize, reformat, strip metadata), persist derivatives to object storage, and update DB state.
  • CDN sits in front of object storage for global caching and low-latency delivery.
  • Security pipeline (malware scans, moderation, size/type validation) ensures safety prior to publishing.
Table — Component responsibilities

​
References and further reading

  • AWS S3: https://aws.amazon.com/s3/
  • AWS CloudFront: https://aws.amazon.com/cloudfront/
  • Multipart uploads & presigned URLs: consult your cloud provider SDK docs (S3 multipart, GCS resumable)
  • Image processing libraries: libvips, ImageMagick, Sharp (Node)
  • Content moderation services: Perspective API, AWS Rekognition, Google Cloud Vision
By following this progression — local disk → object storage → async processing → CDN → validation — you build a scalable, performant, and secure image pipeline that is ready for production.
