Chains

The name LangChain highlights that the framework is centered on chains — composable pipelines that connect modular components to perform multi-stage tasks. Chains let you assemble prompts, models, functions, retrievers, output parsers, memory, and even other chains into a single workflow that produces a final result for your application. Chains can be composed in different topologies:

Sequential: components run in a defined order, with each step receiving the previous step’s output (for example: prompt → LLM → output parser).
Parallel / concurrent: multiple components run at the same time (for example: multiple retrievers or API calls), and their outputs are aggregated and passed downstream.
Conditional / routing: logic chooses which sub-chain to run based on input or intermediate results.
Stateful / memory-enabled: chains incorporate memory components to maintain context across invocations (useful for chat or multi-turn workflows).

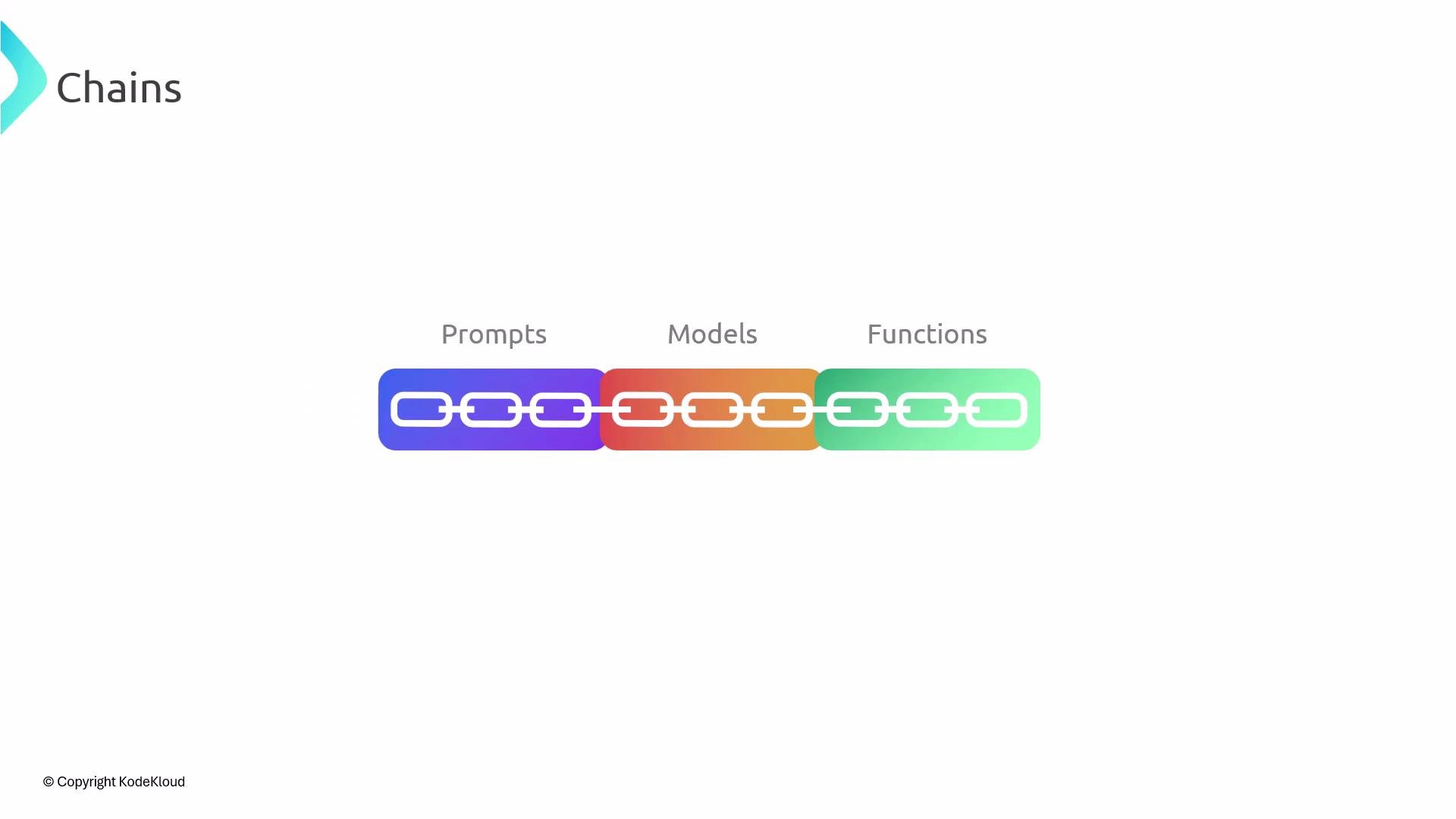

The image shows a stylized chain divided into three colored sections labeled "Prompts," "Models," and "Functions." The sections are connected, visually representing a process or workflow.

Practical patterns and when to use them:

One-off responses: Use a minimal sequential chain (prompt → LLM) when you only need a single formatted response.
Retrieval-augmented generation (RAG): Add a retriever step before the LLM to fetch relevant documents from a knowledge base, then synthesize the retrieved context with the model output.
Enforced output format: Insert an output parser after the model to validate, normalize, or transform responses into structured formats (JSON, CSV, etc.).
Stateful conversations: Add memory to persist prior conversation turns or results and feed them back into the prompt/context.
Parallel enrichment: Run multiple retrievers, APIs, or models in parallel and then aggregate outputs (rank, dedupe, or fuse) before the final step.
Composability: Build sub-chains and reuse them as single components inside larger pipelines.

Table: Common chain types, use cases, and conceptual examples

Chain Type	Use Case	Conceptual Example
Sequential	Single linear flow (prompt → model → parser)	`prompt -> LLM -> OutputParser`
Retrieval + LLM (RAG)	Augment model with external documents	`retriever -> combine -> LLM -> parser`
Parallel / Concurrent	Enrich results or call multiple APIs concurrently	`parallel([retrieverA, retrieverB]) -> aggregate -> LLM`
Router / Conditional	Route input to different sub-chains	`router(input) -> subchainA	subchainB`
Stateful (Memory)	Maintain context across turns	`memory + prompt -> LLM -> memory.update()`

Example snippets (conceptual pseudo-code)

Simple sequential chain (prompt → LLM → parser)

# Pseudo-code (conceptual)
prompt = PromptTemplate("Summarize the text: {text}")
llm_output = LLM.call(prompt.format(text=article))
structured = OutputParser.parse(llm_output)
return structured

Retrieval-augmented generation (RAG) with a retriever and combiner

# Pseudo-code (conceptual)
query = "What does the user ask about X?"
docs = Retriever.search(query, top_k=5)        # fetch relevant documents
context = Combiner.combine(docs)               # combine/truncate for context window
response = LLM.call(prompt_with_context(query, context))
return OutputParser.parse(response)

Parallel retrieval and aggregation

# Pseudo-code (conceptual)
results = parallel_run([RetrieverA.search(q), RetrieverB.search(q)])
merged = deduplicate_and_rank(results)
answer = LLM.call(prompt_with_context(q, merged[:10]))

Best practices

Keep chains modular: encapsulate repeatable logic in sub-chains and reuse them as building blocks.
Validate outputs: use output parsers or schema validators early when the downstream system expects structured data.
Control context size: when combining many documents or tool outputs, apply truncation or scoring to fit the model’s context window.
Monitor latency and cost: parallel steps can increase responsiveness but may also raise cost; balance concurrency with budget and SLAs.
Version and test sub-chains: since chains are composable, maintaining tests for each sub-chain prevents regression when reusing them.

Chains provide a modular way to build complex pipelines by combining prompts, models, retrieval, parsing, and functions into reusable units.

Chains are a foundational capability in LangChain. For implementation details and API-specific examples, see the official LangChain documentation: LangChain — Chains and related guides for retrieval, memory, and output parsers.
