RAG with PDFs

This guide demonstrates an end-to-end Retrieval-Augmented Generation (RAG) pipeline using a single notebook. You will load a PDF, split it into chunks, embed those chunks, index them in a vector database, create a retriever, stitch retrieved passages into context, and run a LangChain Expression Language (LCEL) chain that answers user questions strictly from the document content. This lesson connects document loaders, chunking strategy, embedding models, and vector stores to build a document-grounded Q&A assistant.

Key libraries and imports

Use the following imports in your notebook:

from langchain_community.document_loaders import PyPDFLoader
from langchain.text_splitter import RecursiveCharacterTextSplitter
from langchain_openai import OpenAIEmbeddings
from langchain_chroma import Chroma
from langchain_openai import ChatOpenAI
from langchain.prompts import PromptTemplate
from langchain_core.runnables import RunnablePassthrough
from langchain_core.output_parsers import StrOutputParser

High-level workflow

Load the PDF and split it into pages.
Chunk pages into smaller passages to control context length.
Embed chunks with an embeddings model.
Index embeddings into a vector store (Chroma).
Create a retriever from the vector store to fetch relevant passages at query time.
Format retrieved passages into a single context string.
Compose an LCEL chain: retriever -> formatter -> prompt -> LLM -> output parser.
Ask questions; the chain returns answers grounded in the document.

Step-by-step implementation

1) Load the PDF and split into page documents

loader = PyPDFLoader("data/handbook.pdf")
pages = loader.load_and_split()

This produces a list of page-level Document objects that preserve page content and metadata.

2) Create chunks from the pages

text_splitter = RecursiveCharacterTextSplitter(chunk_size=200, chunk_overlap=50)
chunks = text_splitter.split_documents(pages)

Use chunking to ensure passages are short enough for the embeddings model and downstream LLM context. Adjust chunk_size and chunk_overlap based on your LLM’s context window and the granularity you need.

3) Initialize embeddings and index chunks into Chroma

embeddings = OpenAIEmbeddings(model="text-embedding-3-large")
vectorstore = Chroma.from_documents(documents=chunks, embedding=embeddings)

Chroma stores vector representations for each chunk so you can retrieve the most relevant passages at query time.

4) Create a retriever from the vector store

retriever = vectorstore.as_retriever()

The retriever provides a simple API to fetch top-k relevant documents for a user query.

5) Helper to format retrieved docs into a single context string

def format_docs(docs):
    return "\n\n".join(doc.page_content for doc in docs)

This helper concatenates retrieved passages into a single context block that will be passed to the prompt. You can extend this to include source citations or metadata.

6) Set up the LLM and prompt template

llm = ChatOpenAI()

template = """SYSTEM: You are a question answer bot.
Be factual in your response.
Respond to the following question: {question} only from the below context: {context}.
If you don't know the answer, just say that you don't know.
"""

prompt = PromptTemplate.from_template(template)

This prompt explicitly instructs the model to answer only from the provided context, reducing hallucinations.

Tip: You can expand the prompt to include explicit formatting requirements, a maximum answer length, or citation formatting (e.g., “Answer with the source page number in brackets after each sentence”).

7) Build the LCEL chain that connects retriever -> formatter -> prompt -> LLM -> output parser

The LCEL pipeline retrieves relevant chunks at runtime, formats them, fills the prompt template, calls the LLM, and parses the output into a string.

chain = (
    {"context": retriever | format_docs, "question": RunnablePassthrough()}
    | prompt
    | llm
    | StrOutputParser()
)

This runnable pipeline takes a question as input, runs retrieval, and returns a parsed string answer.

Warning: Retrieval quality depends on chunking strategy, embedding model, and vector store configuration. Also monitor API usage and costs when calling embedding and LLM endpoints.

8) Invoke the chain with user questions

Example 1 — ask about sick leaves:

response = chain.invoke("How many sick leaves are allowed in a year?")
# Expected output: 'You are eligible for 10 days of paid sick leave per year.'

Example 2 — ask about unpaid personal leave:

response = chain.invoke("How many unpaid leaves are allowed in a year?")
# response -> (answer extracted from the document, e.g., 'You are eligible for up to 10 days of unpaid personal leave per year.')

Example 3 — ask for the sick leave policy:

response = chain.invoke("What's the sick leave policy?")
# response -> 'You are eligible for 10 days of paid sick leave per year, which can be used for any illness or injury that prevents you from working.'

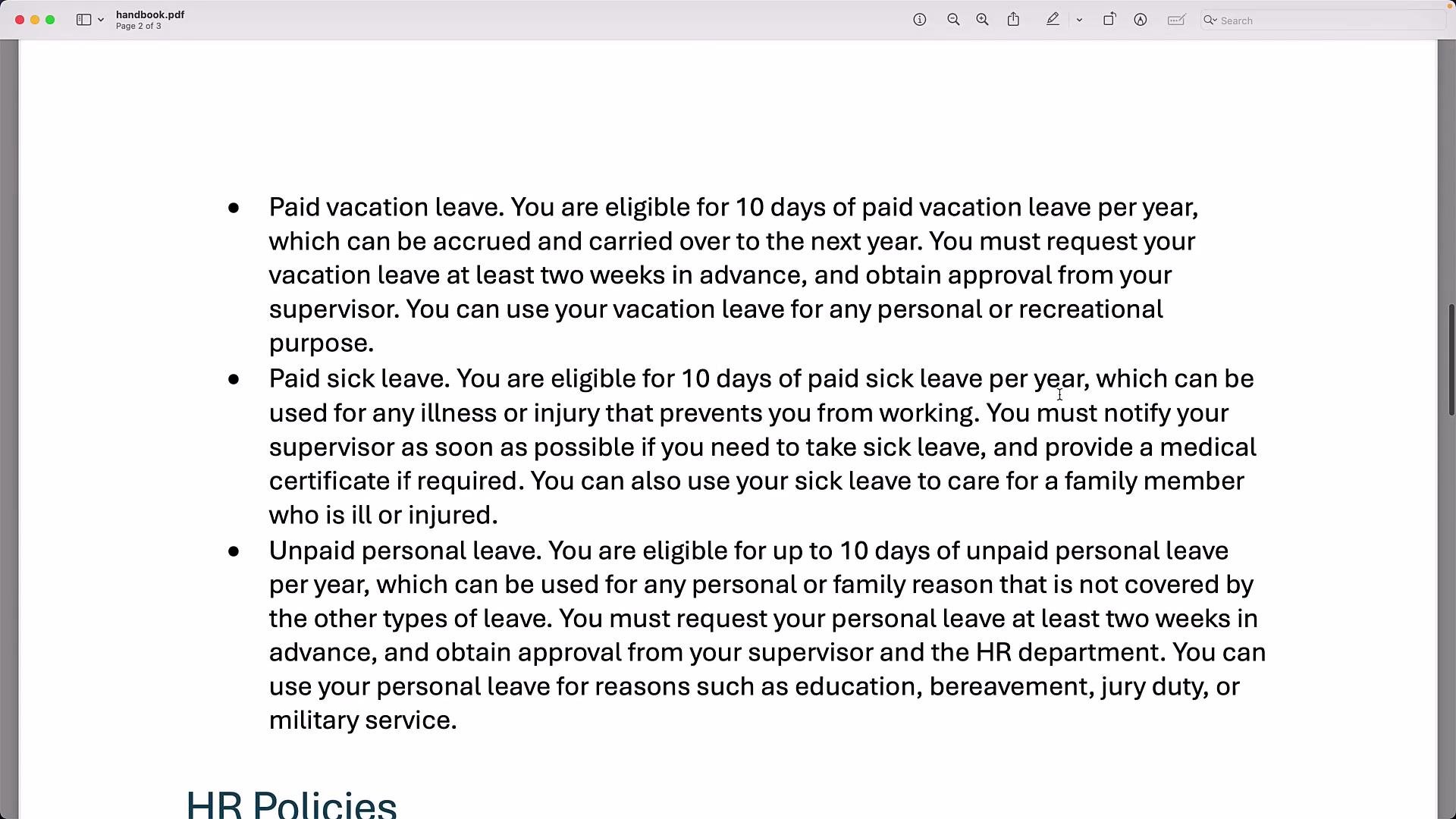

The image displays a section of a document outlining policies for paid vacation leave, paid sick leave, and unpaid personal leave, each with eligibility details and requirements for request and approval.

When run against the employee handbook, the chain retrieves relevant passages and returns factual answers extracted from the document text:

# Example run
response = chain.invoke("How many sick leaves are allowed in a year?")
# response -> 'You are eligible for 10 days of paid sick leave per year.'

Quick reference: Steps & commands

Step	Purpose	Example command/snippet
Load PDF	Create page-level documents	`PyPDFLoader("data/handbook.pdf").load_and_split()`
Chunking	Split pages into manageable passages	`RecursiveCharacterTextSplitter(chunk_size=200, chunk_overlap=50)`
Embeddings	Vectorize chunks	`OpenAIEmbeddings(model="text-embedding-3-large")`
Indexing	Store vectors for retrieval	`Chroma.from_documents(documents=chunks, embedding=embeddings)`
Retriever	Fetch relevant passages	`vectorstore.as_retriever()`
Formatting	Build context string for prompt	`format_docs(docs)`
LCEL chain	Connect retriever -> prompt -> LLM	`chain = ({...} \| prompt \| llm \| StrOutputParser())`

Summary

Load PDFs with a document loader (PyPDFLoader) and split them into pages.
Chunk pages with a TextSplitter (RecursiveCharacterTextSplitter) for reliable retrieval.
Embed chunks using OpenAIEmbeddings and index them in Chroma.
Use the vector store’s retriever to fetch relevant passages at query time.
Format retrieved passages into a context string and pass it to the LLM via an LCEL chain so the LLM answers strictly from the document.
This RAG pattern reduces hallucinations and enables document-grounded chatbots. Extend it by adding a UI, supporting arbitrary PDF uploads, or integrating advanced retrieval (reranking, hybrid search) and QA techniques.
