In this lesson, you’ll learn how to configure a Kafka producer with Python, create a multi-partition topic, and verify message distribution using Kafdrop. We’ll cover:
  • Lab environment setup
  • Creating a Kafka topic with 3 partitions
  • Writing a Python producer to send sample events
  • Validating messages across partitions

​
Lab Setup

Assuming Apache Kafka is already running, switch to the Kafka installation directory and inspect its contents:
root@kafka-host:~$ cd /root/kafka/
root@kafka-host:~/kafka$ ls -lrt
total 96
-rw-r--r-- 1 root root  28184 Sep 13 2022 NOTICE
-rw-r--r-- 1 root root  14640 Sep 13 2022 LICENSE
drwxr-xr-x 3 root root   4096 Sep 13 2022 config
drwxr-xr-x 3 root root   4096 Sep 13 2022 bin
drwxr-xr-x 2 root root   4096 Sep 13 2022 site-docs
drwxr-xr-x 2 root root   4096 Feb  8 2023 libs
drwxr-xr-x 2 root root   4096 Apr 13 02:26 logs
-rw-r--r-- 1 root root 26117 Apr 13 02:26 kafka.log
The bin/ directory contains Kafka’s command-line tools:
CLI ToolDescriptionExample Usage
kafka-topics.shManage topics./kafka-topics.sh --list ...
kafka-console-producer.shProduce messages interactively./kafka-console-producer.sh ...
kafka-console-consumer.shConsume messages interactively./kafka-console-consumer.sh ...
root@kafka-host:~/kafka$ cd bin/
root@kafka-host:~/kafka/bin$ ls
kafka-topics.sh  kafka-console-producer.sh  kafka-console-consumer.sh  ...

​
Creating a Multi-Partition Topic

Use kafka-topics.sh to create multi-partition-topic with 3 partitions and a replication factor of 1:
root@kafka-host:~/kafka/bin$ \
  ./kafka-topics.sh \
    --create \
    --topic multi-partition-topic \
    --bootstrap-server localhost:9092 \
    --partitions 3 \
    --replication-factor 1
In production, use an appropriate replication factor (≥2) for fault tolerance.
After creation, verify the topic in Kafdrop’s cluster overview:

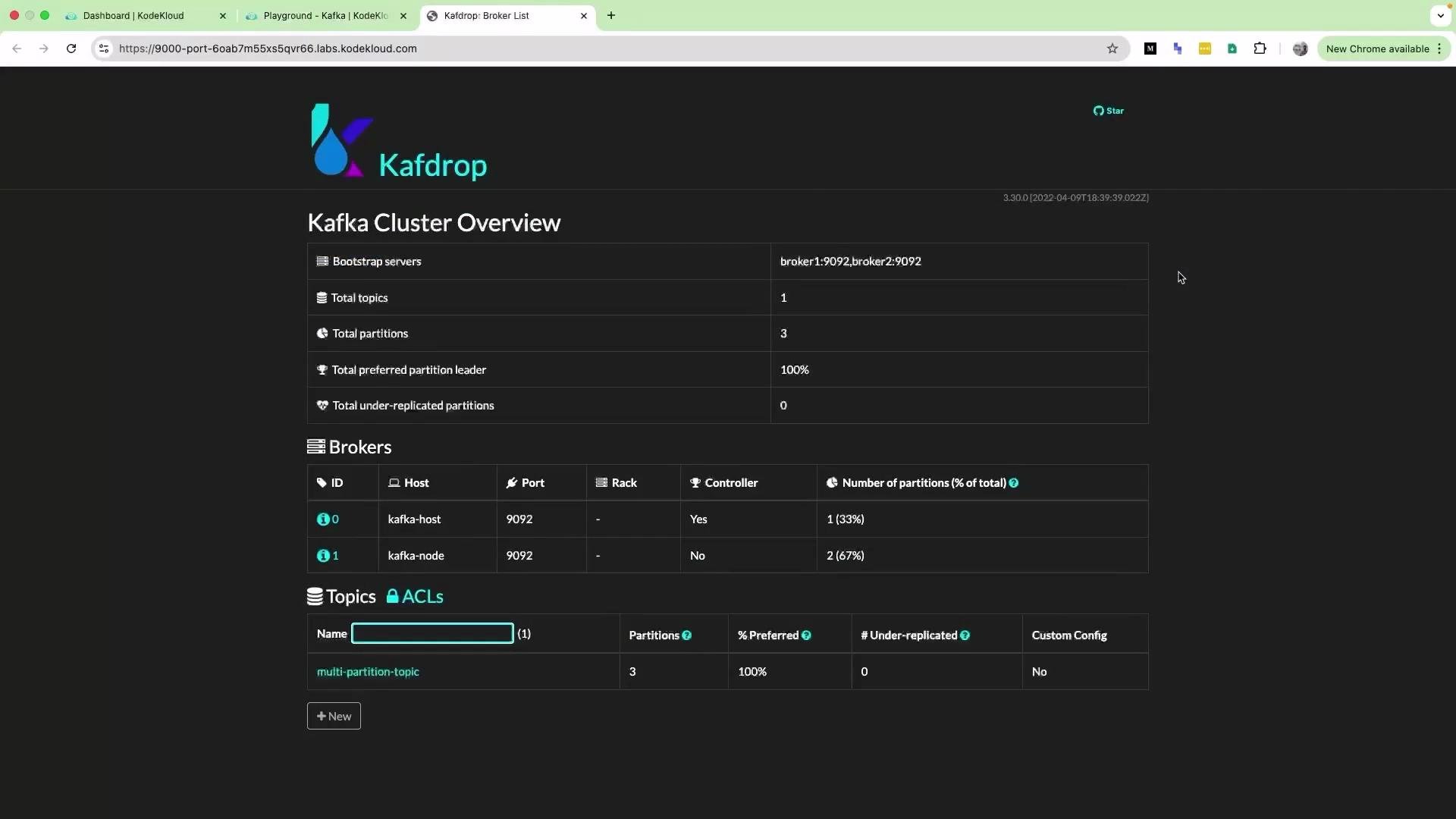

The image shows a Kafdrop interface displaying a Kafka Cluster Overview, including details about bootstrap servers, topics, partitions, brokers, and ACLs.
Inspect partition distribution and consumer group info:

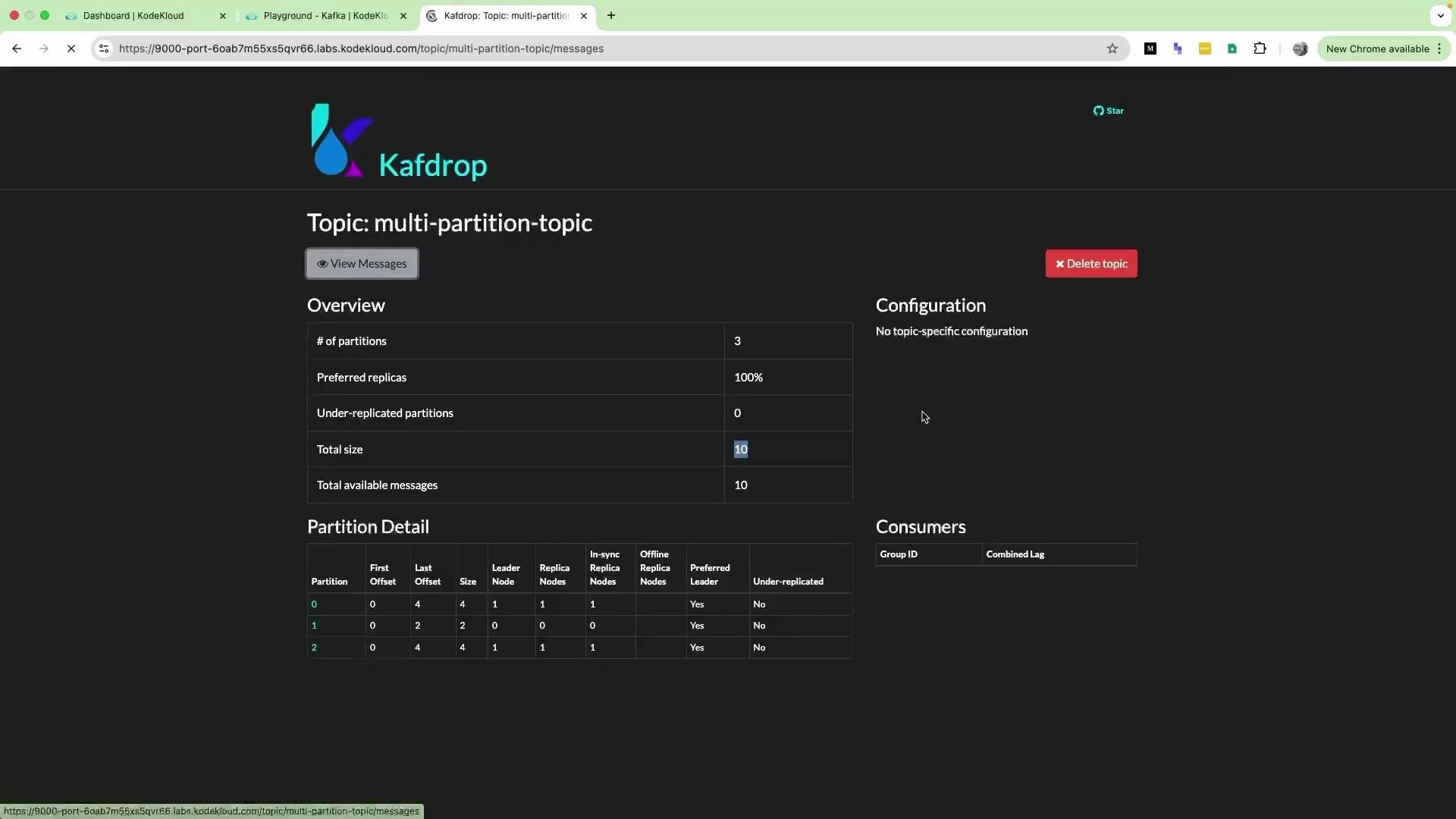

The image shows a Kafdrop interface displaying details of a Kafka topic named "multi-partition-topic," including an overview of partitions, configuration, and consumer information.
No messages appear yet—let’s produce some events.

​
Producing Messages with Python

First, install Python dependencies in a virtual environment:
root@kafka-host:~/kafka/bin$ sudo apt update
root@kafka-host:~/kafka/bin$ python3 -m venv kafka-env
root@kafka-host:~/kafka/bin$ source kafka-env/bin/activate
(kafka-env) root@kafka-host:~/kafka/bin$ pip install kafka-python
Using a virtual environment isolates dependencies and avoids system-wide changes.
Create kafka_producer_example.py with the following content:
import random
import logging
from kafka import KafkaProducer

# Configure logging
logging.basicConfig(
    level=logging.INFO,
    format="%(asctime)s - %(levelname)s - %(message)s"
)

# Initialize Kafka producer
producer = KafkaProducer(bootstrap_servers='localhost:9092')

# Sample coffee shop data
coffee_shops = [
    {"name": "Espresso Bliss", "location": "Downtown", "rating": 4.5},
    {"name": "Cappuccino Corner", "location": "Uptown", "rating": 4.2},
    {"name": "Latte Lounge", "location": "Suburbs", "rating": 4.8},
    {"name": "Mocha Magic", "location": "City Center", "rating": 4.6},
    {"name": "Coffee Haven", "location": "East Side", "rating": 4.3},
]

# Send 10 messages to the topic
for i in range(10):
    shop = random.choice(coffee_shops)
    message = (
        f"Coffee Shop: {shop['name']}, "
        f"Location: {shop['location']}, "
        f"Rating: {shop['rating']}"
    )
    try:
        future = producer.send(
            'multi-partition-topic',
            key=str(i).encode('utf-8'),
            value=message.encode('utf-8')
        )
        metadata = future.get(timeout=10)
        logging.info(
            f"Message {i} delivered to "
            f"{metadata.topic}[{metadata.partition}]"
        )
    except Exception as e:
        logging.error(f"Failed to deliver message {i}: {e}")

producer.flush()
logging.info("Finished sending messages")
Run the producer:
(kafka-env) root@kafka-host:~/kafka/bin$ python3 kafka_producer_example.py
You should see logs like:
2025-04-13 02:44:46,443 - INFO - <BrokerConnection client_id=bootstrap-0 host=localhost:9092 connecting>...
2025-04-13 02:44:46,551 - INFO - Message 0 delivered to multi-partition-topic[2]
...
2025-04-13 02:44:47,012 - INFO - Finished sending messages

​
Verifying Messages in Kafdrop

Use Kafdrop or the Kafka CLI consumer to confirm that 10 messages are spread across partitions 0, 1, and 2:

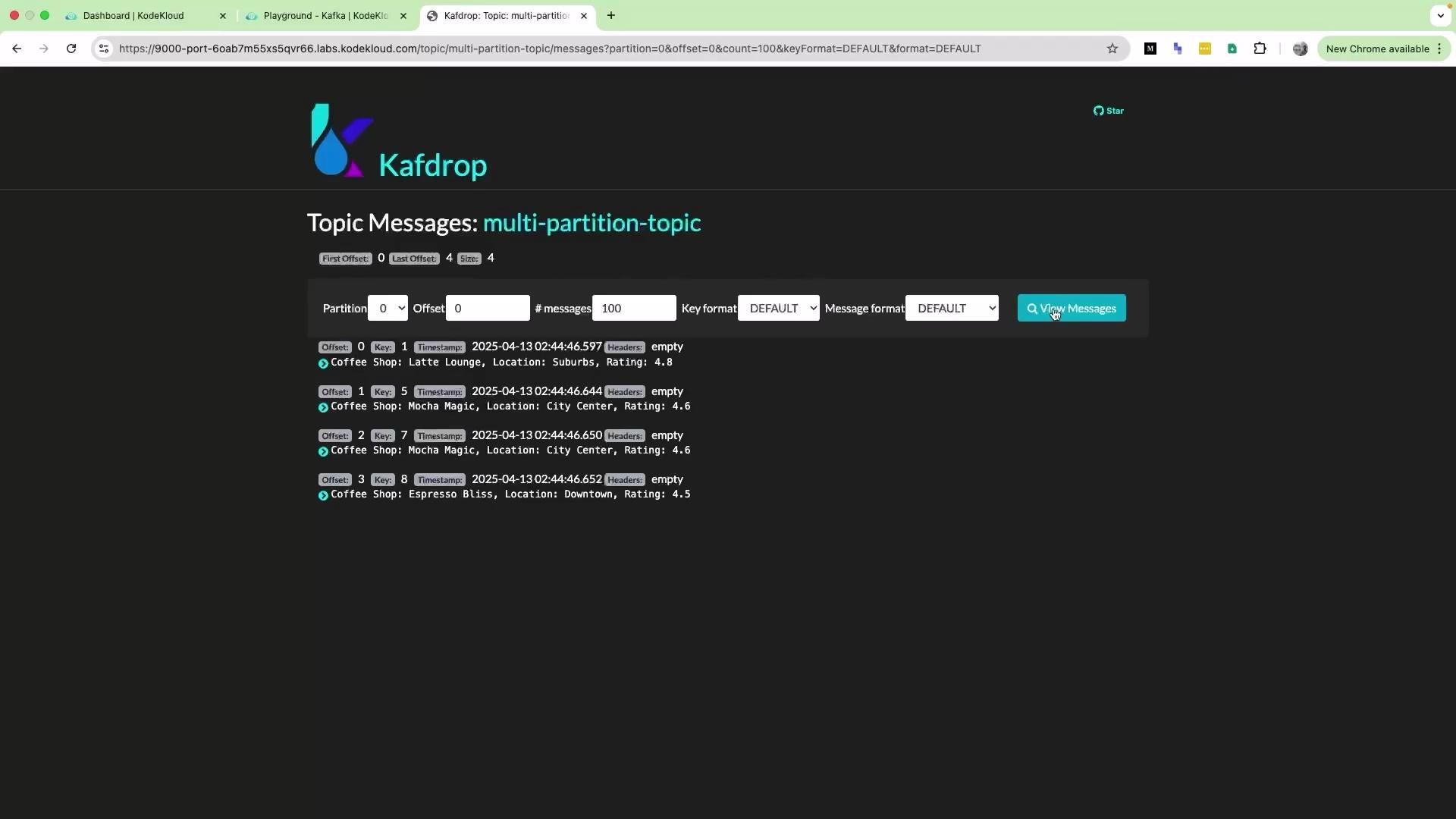

The image shows a Kafdrop interface displaying Kafka topic messages related to coffee shops, including details like location and ratings. The interface allows filtering by partition, offset, and message format.
Switch between partition filters (0, 1, 2) to see parallel event distribution.

​
Conclusion

You’ve successfully:
  • Created a Kafka topic with multiple partitions
  • Built a Python producer to send sample events
  • Validated message distribution across partitions
Next steps include exploring Kafka consumers, offset management, and advanced producer configurations.

​
