Section Recap

Welcome back. This recap walks through the full event-driven flow we implemented, highlighting each component and the sequence of actions from order creation to dashboard update. What we built

A shopping front-end that emits an “Order Placed” event. Each event carries the order payload (order ID, items and quantities, totals, customer info, timestamps).
A producer that serializes and publishes those events to an Apache Kafka topic.
A Kafka deployment (provisioned on an EC2 instance in this project) that hosts the topic(s) and persists the event stream.
A warehouse dashboard that acts as a Kafka consumer: it subscribes to the topic, deserializes messages, manages offsets and consumer groups, and updates the UI based on consumed events.

How the data flows

User places an order in the front-end UI.
The front-end producer packages and serializes the order payload and publishes it to a Kafka topic.
Kafka stores the event in the topic partitions (running on an EC2-hosted broker for this project).
The warehouse dashboard consumer (or multiple consumers in a consumer group) reads, deserializes, and processes events, then updates the UI and any downstream systems.

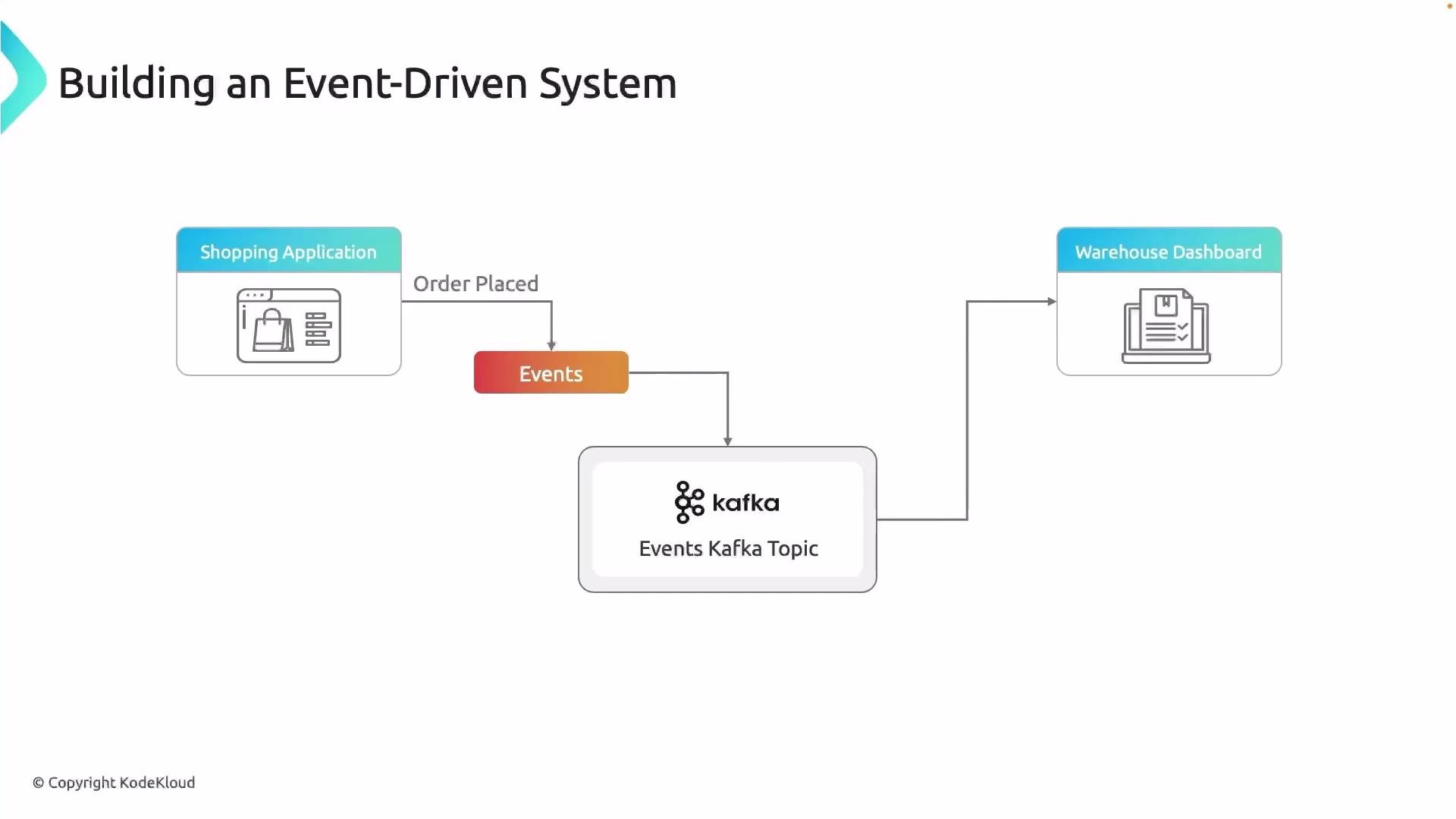

The image illustrates an event-driven system flow involving a shopping application, where an "Order Placed" event is sent to a Kafka topic and then directed to a warehouse dashboard.

Key phases at a glance

Phase	Purpose	Example / Key settings
Kafka provisioning	Host brokers and topics	Provision Kafka on an EC2 instance and create topic(s)
Producer (front-end)	Emit and serialize events	Ensure correct serializer (e.g., JSON/Avro), include metadata (timestamps, orderId)
Topic configuration	Partitioning & retention	Choose partitions for parallelism and retention for replayability
Consumer (dashboard)	Consume, deserialize, and update UI	Configure consumer group, offset strategy (earliest/latest), and deserializer
Validation & monitoring	Confirm end-to-end delivery	Use producer/consumer CLI tools or integration tests; monitor lag and broker health

Testing tip: Validate each stage independently. Produce test events directly to the Kafka topic, consume them with a simple CLI consumer, then verify the dashboard logic. This helps isolate producer, broker, and consumer issues.

Links and references

Putting it together, the main steps were:

Set up Kafka (cluster/topic provisioning)
Build the front-end UI and producers to emit events
Build the back-end/API and consumers to process those events and update the dashboard

I hope this recap gives you a clear, end-to-end view of building an event-driven system using Apache Kafka. See you in the next lesson.
