In Apache Kafka, message keys play a critical role in determining which partition a record lands in. By hashing the key, Kafka ensures balanced load distribution and ordered processing for messages with the same key.

​
How Kafka Assigns Partitions

When a producer sends a record, it provides both a key and a value. The Kafka client then:
  1. Fetches Cluster Metadata
    The producer connects to a bootstrap server to retrieve metadata (brokers, topics, partitions).
  2. Applies the Partitioner
    Using the metadata, the client-side partitioner computes a hash of the key and selects a partition.
  3. Sends to the Leader
    The record is routed directly to the leader broker for the chosen partition, avoiding inter-broker forwarding.

​
Partition Assignment Workflow

If the record key is null, the default partitioner falls back to round-robin distribution across available partitions.

​
The Murmur2 Hash Algorithm

Kafka’s default partitioner uses the non-cryptographic MurmurHash2 (Murmur2) function to hash message keys. This choice provides:
  • Even Distribution: Prevents hotspots by spreading keys across partitions.
  • Ordering Guarantees: Ensures messages with the same key always go to the same partition.
  • Low Overhead: Fast hashing suitable for high-throughput streaming.
Below is a simplified example of how Murmur2 drives partition selection:
For instance, given three partitions (0, 1, 2) and a key "StationA":
  1. hash = murmur2("StationA") // e.g., 10
  2. partition = 10 % 3 = 1
  3. The record always goes to partition 1.

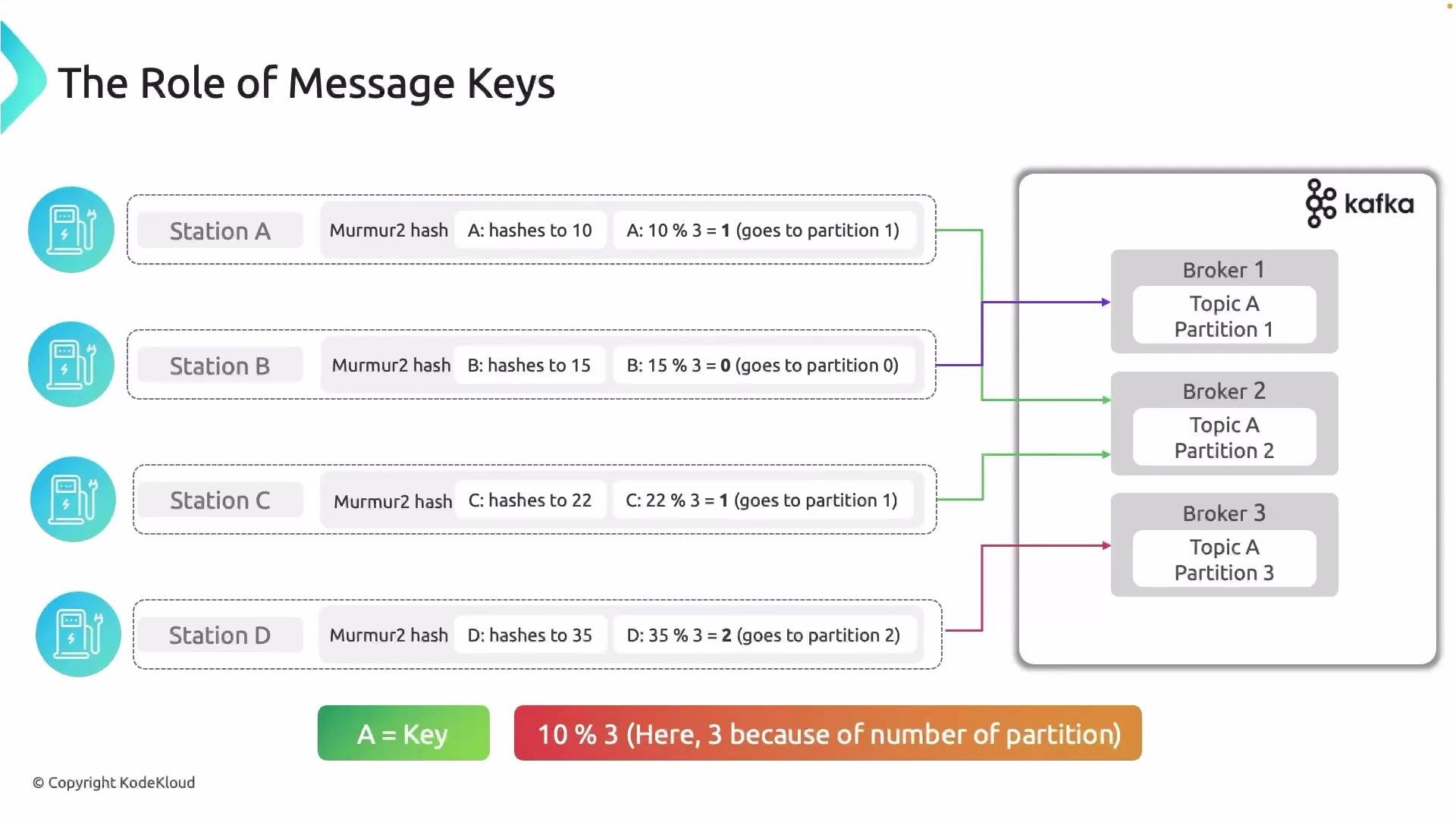

The image illustrates how message keys are used in Kafka to determine partition assignment using the Murmur2 hash function. It shows different stations with their hashed keys and how they map to specific partitions across brokers.

​
Key Benefits

  • Load Balancing: Evenly distributes data to prevent overloaded partitions.
  • Parallel Processing: Different partitions can be consumed concurrently.
  • Ordering: Guarantees per-key ordering within a partition.
  • Client-Side Routing: Reduces broker overhead by computing routes on the producer.

​
