Builds

Welcome — in this lesson we’ll examine OpenShift builds in detail. You’ll learn the available build strategies, how to inspect existing BuildConfigs, and how to create new BuildConfigs using YAML. The examples use YAML and common container build artifacts; a basic familiarity with YAML and container images (Docker) will help. Key topics covered:

Example application to build
Docker build strategy
Source-to-Image (S2I) strategy
Custom/artifact builds overview
ImageStreams and why they matter
Inspecting and creating BuildConfigs (S2I and Docker examples)
Importing YAML via the web console
Best practices and summary

If you need a quick refresher on YAML or Kubernetes concepts, see the Links and References at the end.

Example application

Here is a minimal Flask web application that we will use as the example source to build into a container image:

# app.py
import os
from flask import Flask

app = Flask(__name__)

@app.route("/")
def main():
    return "Welcome!"

@app.route("/how-are-you")
def hello():
    return "I am good, how about you?"

if __name__ == "__main__":
    app.run(host="0.0.0.0", port=8080)

Kubernetes and OpenShift expect applications to be packaged as container images, so the next step is creating a build process that converts source code into a runnable image.

Build strategies overview

OpenShift supports several build strategies. Choose the one that best fits your workflow and control needs.

Build Strategy	When to use	Key points
Source (S2I)	Rapid app iteration, no Dockerfile needed	Uses a builder image (e.g., `openshift/python:3.6`) to assemble the app. Good for language-centric workflows.
Docker	Full control over image construction	Requires a `Dockerfile` in the repo. Gives precise control over every image layer.
Custom / Artifact	Produce artifacts (JAR, wheel) or run custom tooling	Useful for advanced pipelines or when you need non-image outputs.

Docker build strategy

A Docker build uses a Dockerfile placed alongside your application sources. OpenShift’s Docker build strategy runs the Docker build and pushes the resulting image to the internal registry. A minimal Dockerfile for the Flask app (using Python 3) might look like this:

# Dockerfile
FROM ubuntu:16.04

RUN apt-get update && apt-get install -y python3 python3-pip \
  && rm -rf /var/lib/apt/lists/*

RUN pip3 install flask

COPY app.py /opt/app.py

ENV FLASK_APP=/opt/app.py
EXPOSE 8080
CMD ["flask", "run", "--host=0.0.0.0", "--port=8080"]

When OpenShift runs this Docker build, the image is produced and pushed to the cluster’s internal registry (often referenced via an ImageStream).

Source-to-Image (S2I) build strategy

Source-to-Image (S2I) is a higher-level build strategy. Instead of a Dockerfile, S2I injects your source into a pre-built builder image (for example, an official Python builder). The builder image contains scripts (assemble/run) that create the final image. If you use the OpenShift web console and select the Python application from the catalog, OpenShift commonly creates an S2I BuildConfig automatically.

Custom builds and artifact builds

When you need to produce build artifacts (for example, JARs, Python wheels, or other packaged outputs) rather than a finished container image, consider a custom build. Custom builds allow arbitrary build tooling and are suitable for CI workflows that output artifacts consumed by other parts of your pipeline.

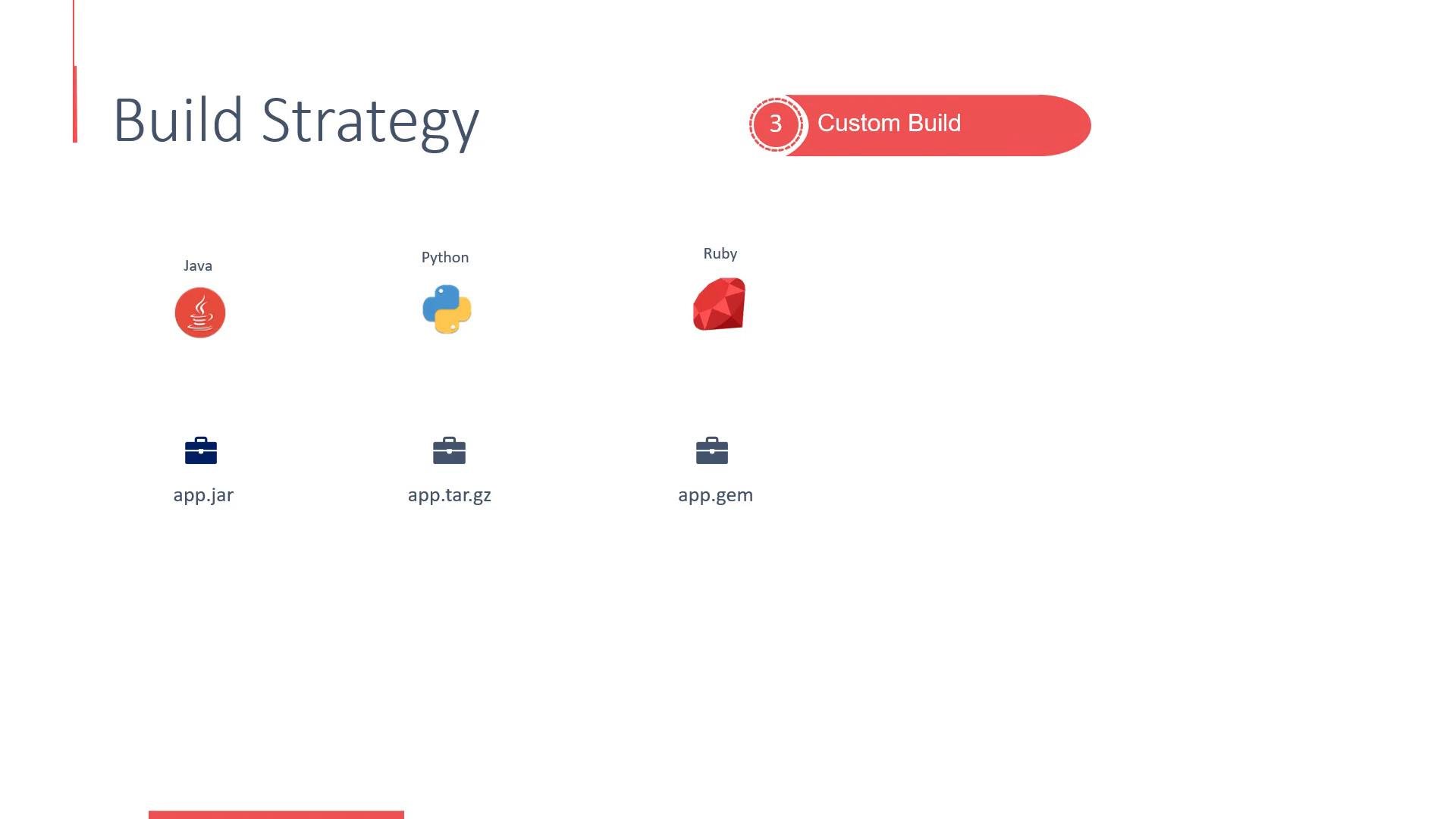

A presentation slide titled "Build Strategy" showing a "Custom Build" badge and icons for Java, Python, and Ruby. Below each language are briefcase icons labeled app.jar, app.tar.gz, and app.gem to represent build artifacts.

ImageStreams

Builds (S2I, Docker, custom) depend on builder images. These images can originate from Docker Hub, a private registry, or the OpenShift internal registry. Relying directly on external image names and tags can be brittle because tags can change upstream. ImageStreams provide an abstraction: they map an internal image name (for example, python:3.6) to a particular image reference (or digest). This lets BuildConfigs and DeploymentConfigs refer to a stable, internal name while you control exactly which external image that name maps to.

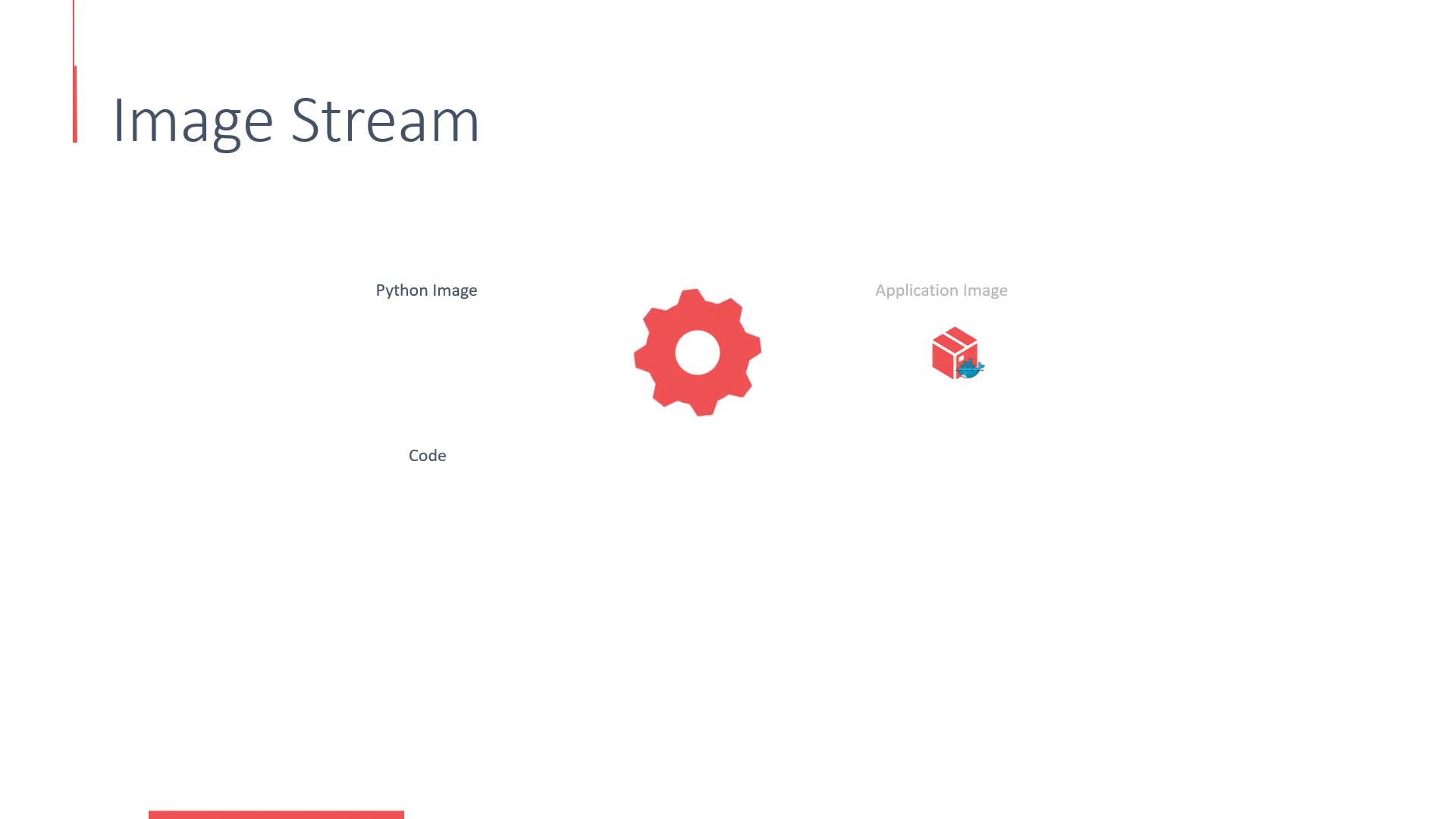

A presentation slide titled "Image Stream" with a large red gear icon centered. To the left and right are labels "Python Image" and "Application Image" (the right shows a small red package/Docker icon), and the word "Code" appears below.

Example external image references that an ImageStream might abstract:

172.30.1.1:5000/myproject/java:latest
docker.io/centos/python-27:latest
other-registry.example.com/ruby/ruby:2.0

ImageStreams can be updated to point to a specific image ID (sha256 digest), for example:

sha256:08b750083d53e8fdcf09ab99bc30549141ea44c90763d3e972be264fbe8d706

Because ImageStreams track by image ID, your builds and deployments can remain repeatable even if an external tag changes.

Viewing a BuildConfig

OpenShift’s web console provides a BuildConfig view with important details:

Build strategy (Source, Docker, Custom)
Source repository and ref (branch/tag)
Builder image or ImageStream used
Output ImageStream
Run Policy (e.g., Serial, Parallel)
Build triggers (GitHub, Generic, ImageChange)

You can edit or inspect a BuildConfig’s YAML via Actions → Edit YAML in the console. It’s a convenient way to copy or modify the BuildConfig definition.

Example S2I BuildConfig (yaml)

Here is a complete S2I BuildConfig for the Flask app. Save this as s2i-build-config.yaml to create or inspect the BuildConfig in your project.

# s2i-build-config.yaml
kind: BuildConfig
apiVersion: build.openshift.io/v1
metadata:
  name: simple-webapp
spec:
  runPolicy: Serial
  triggers:
    - type: GitHub
      github:
        secret: "b5e471d57f79f52e"
    - type: Generic
      generic:
        secret: "4be5b473f9985dcf"
    - type: ImageChange
  source:
    git:
      uri: "https://github.com/mmumshad/simple-webapp-flask.git"
      ref: master
  strategy:
    type: Source
    sourceStrategy:
      from:
        kind: ImageStreamTag
        name: "python:3.6"
  output:
    to:
      kind: ImageStreamTag
      name: "simple-webapp:latest"

Creating a Docker build BuildConfig

To switch from an S2I build to a Docker build, create a BuildConfig that sets strategy.type to Docker and points source.git.uri to a repository with a Dockerfile. Save the following example as docker-build-config.yaml or paste it into the console Import YAML dialog:

# docker-build-config.yaml
kind: BuildConfig
apiVersion: build.openshift.io/v1
metadata:
  name: simple-webapp-docker
spec:
  runPolicy: Serial
  triggers:
    - type: GitHub
      github:
        secret: "b5e471d57f79f52e"
    - type: Generic
      generic:
        secret: "4be5b473f9985dcf"
    - type: ImageChange
  source:
    git:
      uri: "https://github.com/mmumshad/simple-webapp-docker.git"
      ref: master
  strategy:
    type: Docker
    dockerStrategy:
      from:
        kind: DockerImage
        name: "ubuntu:16.04"
  output:
    to:
      kind: ImageStreamTag
      name: "simple-webapp:latest"

Importing the YAML in the web console

Follow these steps to create a BuildConfig from YAML using the OpenShift web console:

In your project view, click Add to Project → Import YAML.
Paste the contents of the desired BuildConfig YAML (for example, docker-build-config.yaml) into the editor.
Click Create.

After creation, open the BuildConfig to confirm the build strategy, source repo, and output ImageStream. To start a build manually, click Start Build. Depending on the Run Policy, new builds may be queued while another build is running. You can also trigger builds from the CLI. For example:

oc start-build simple-webapp      # starts a build for the BuildConfig named simple-webapp
oc logs -f bc/simple-webapp       # stream build logs

Note about image references and updates

Use ImageStreams to decouple your BuildConfigs and DeploymentConfigs from external registry tag churn. ImageStreams let you control when to update to a newer image by updating the ImageStream mapping rather than changing multiple BuildConfigs or DeploymentConfigs.

Summary

Docker builds require a Dockerfile and give you fine-grained control of image layering and contents.
Source-to-Image (S2I) uses a builder image to assemble your application without requiring a Dockerfile.
Custom builds are useful for producing artifacts or integrating bespoke build tooling.
ImageStreams provide a stable, internal reference to images and ensure builds and deployments are repeatable by tracking image IDs.
BuildConfig YAMLs can be authored manually and imported via the web console or created and managed via the oc CLI.

Links and References

OpenShift Builds and BuildConfigs — https://docs.openshift.com/
Source-to-Image (S2I) — https://github.com/openshift/source-to-image
Kubernetes Basics — https://kubernetes.io/docs/concepts/overview/what-is-kubernetes/
