Welcome to this lesson on OpenShift networking. We’ll first recap the Kubernetes networking model so you can better understand how OpenShift implements networking with its Software-Defined Network (SDN).

​
Kubernetes networking model — quick recap

A Kubernetes cluster consists of master and worker nodes. Each node is a physical or virtual machine with its own IP address (for example: 192.168.1.10, 192.168.1.11, 192.168.1.12, 192.168.1.13). When applications run in containers inside pods, each pod also receives a unique IP address. Pods commonly host different components of an application (for example, a web server pod and a database pod). For these components to communicate reliably, each pod must have a unique, routable IP and the cluster must provide routing between nodes. OpenShift implements this with a software-defined network (SDN) that creates a virtual overlay spanning all nodes.

​
OpenShift SDN basics

  • OpenShift 3.x: default SDN implementations are based on Open vSwitch (OVS).
  • OpenShift 4.x: uses OVN-Kubernetes by default.
  • Default overlay CIDR (OpenShift 3.x example): 10.128.0.0/14.
  • Typically, each node gets a dedicated subnet from that range (commonly a /24), and pods on that node receive IPs from the node’s subnet.
Example node subnet allocation: Example pod IP assignment: To list pods and see their IPs:
Example output:
Avoid relying on pod IPs directly in production. Pod IPs are ephemeral and can change when pods are restarted, rescheduled, or replaced.

​
Stable networking: Services and DNS

To provide stable connectivity, OpenShift offers Services and an internal DNS service (historically SkyDNS; newer clusters typically run CoreDNS). The cluster datastore (etcd) backs DNS records so services and endpoints are discoverable by name.
Always prefer connecting to a Service or DNS name instead of a pod IP. For example, instead of mysql.connect('10.128.1.2'), use a service DNS name like mysql.default.svc.cluster.local or the service environment variables provided to pods.

​
OpenShift network plugins (3.x examples)

OpenShift 3.x supported multiple SDN plugins:
  • ovs-subnet — the default OVS-based plugin that provides connectivity across all pods.
  • ovs-multitenant — enforces network isolation between projects (namespaces) by providing project-scoped virtual network segments (VLAN-like behavior) so that pods in different projects are isolated by policy.

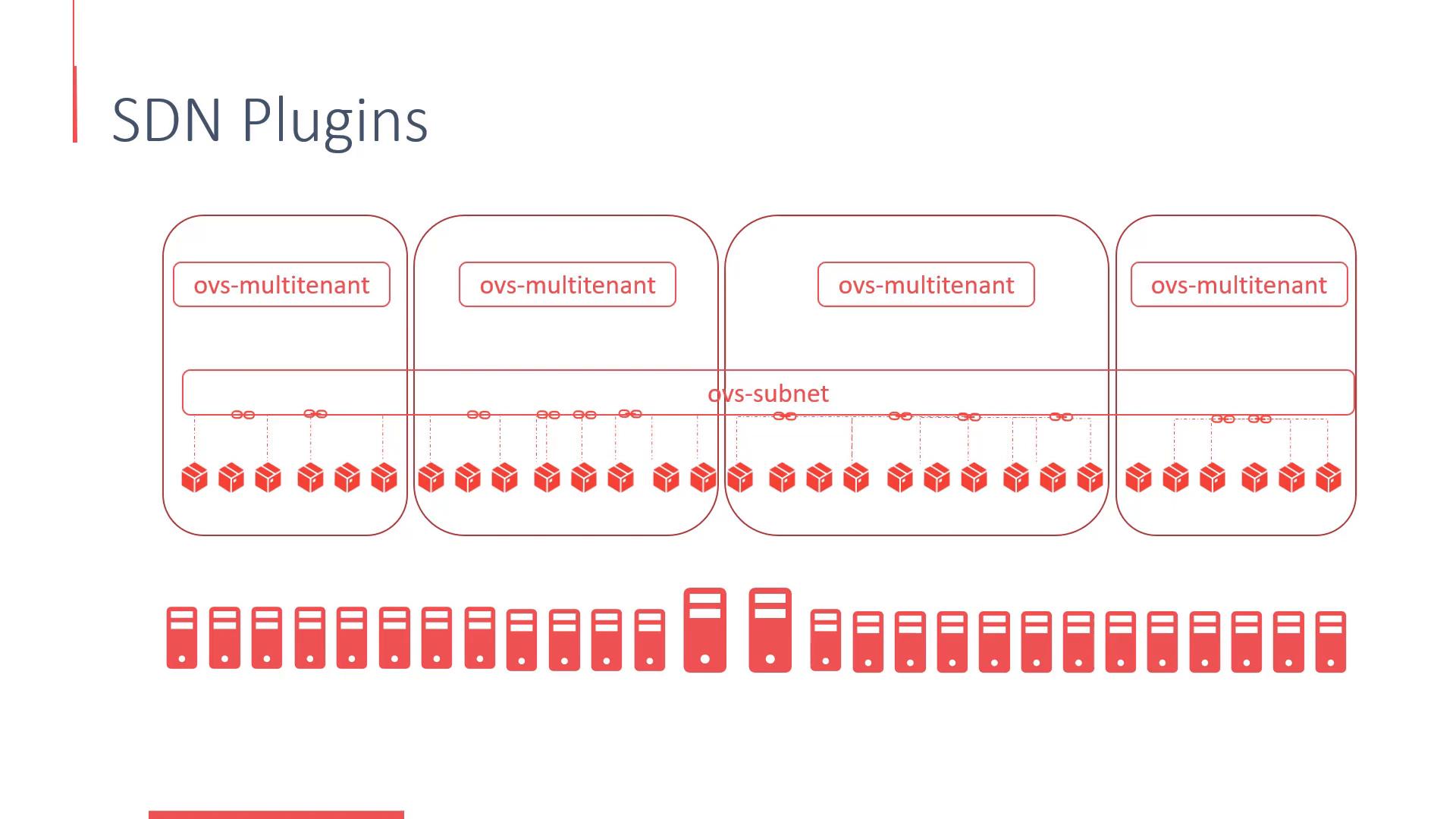

A slide titled "SDN Plugins" showing a stylized network diagram with several ovs-multitenant boxes connected by an ovs-subnet, each containing rows of container icons. It visually represents a multi-tenant SDN architecture with servers illustrated along the bottom.
Other network providers supported by OpenShift include:
  • Flannel — simple VXLAN-based overlay.
  • Contiv — more advanced policy and CNI features.
  • Nuage — vendor-specific SDN with advanced features for carrier and enterprise networks.
Each provider implements networking differently and presents trade-offs (performance, policy model, operational complexity). Choose the provider that best fits your environment and requirements.

​
External access — Services vs Routes

OpenShift exposes in-cluster applications to external clients using Services and Routes: Routes are an OpenShift abstraction that map hostnames to in-cluster Services and provide HTTP(S) routing, TLS termination, and host-based routing features.

​
Quick references

That’s it for this lesson.
