In this lesson we implement a pull-based deployment pattern using Argo CD and a Git repository as the single source of truth. You will learn how to register a repository, create an Argo CD Application that points to YAML manifests, and understand how Argo CD reports desired vs live state before a sync.

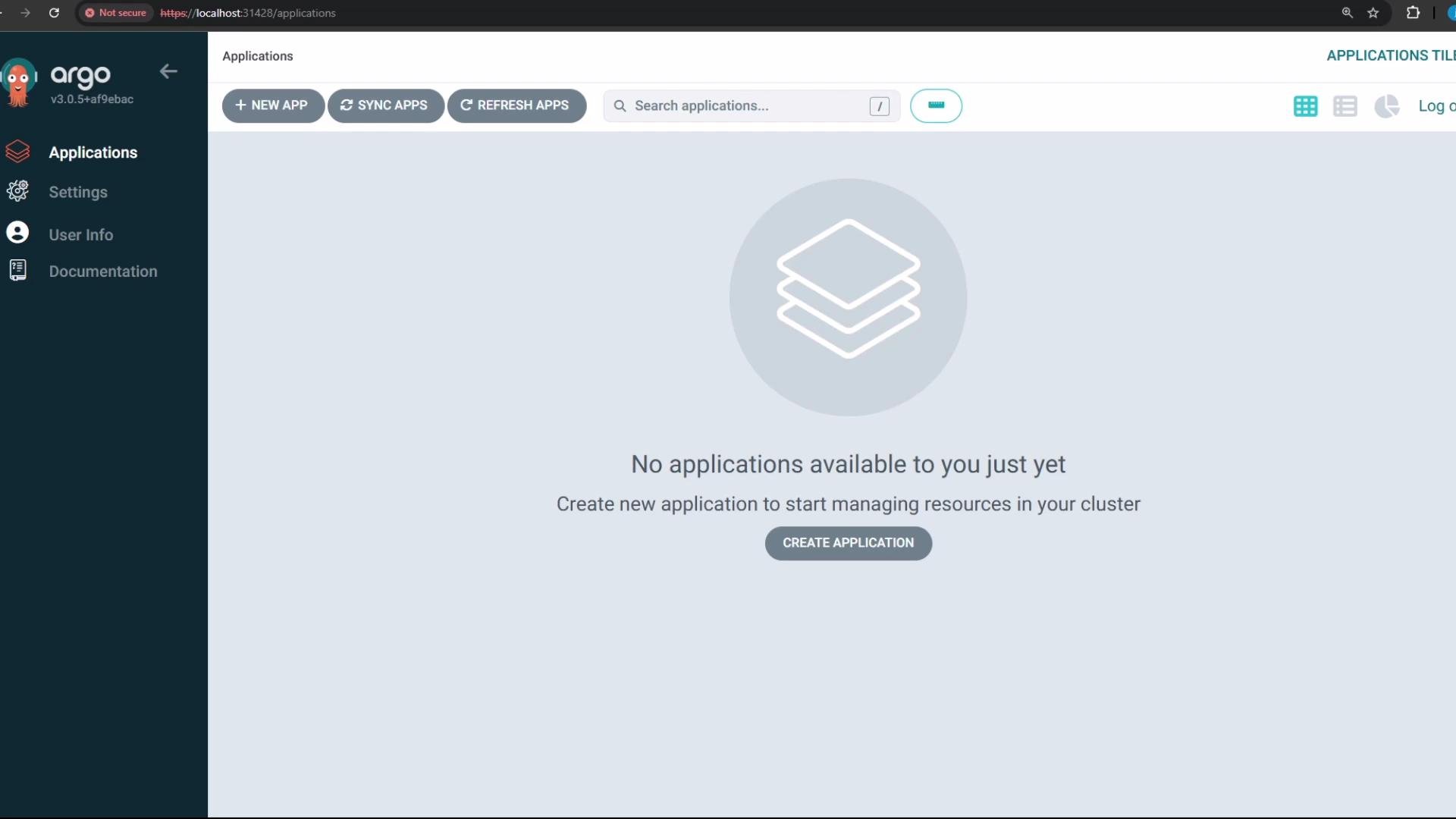

The image shows a dashboard interface of the Argo application with no current applications available. It prompts the user to create a new application and includes options for syncing apps and refreshing the page.
Where are the manifests? The Kubernetes manifest files used in this demo live in a Gitea repository (our GitOps source-of-truth). For this walkthrough we reference the YAML files inside the vanilla directory — it contains a Deployment and a Service that Argo CD will manage. Creating the Argo CD Application (UI) Use the Argo CD web UI to create the application that points to the Git repo and the vanilla path:
  1. Click “New App”.
  2. Set a name for the application (we use highway-animation).
  3. Choose the Argo CD project — default is fine for demo purposes. Projects provide scoping and policy controls for applications.
  4. For synchronization, choose Manual (you can switch to Automatic later).
  5. Enable “Create namespace” during sync so Argo CD will create the highway-animation namespace when you sync.
  6. Source: provide the Git repository URL and set the path to vanilla so Argo CD reads the Deployment and Service manifests from that subdirectory.
  7. Destination: select the Kubernetes cluster where Argo CD should deploy. For this demo select the local cluster (Argo CD runs in-cluster) and set the target namespace to highway-animation.
  8. Save / Create the application.
Note on connecting to local Git services from within containers When Argo CD runs inside Kubernetes (or Docker Desktop), localhost refers to the container or pod network, not your laptop/host. If your Gitea instance is running on the Docker host, Argo CD cannot use http://localhost:... to reach it. Use host.docker.internal or an address reachable from the cluster. If the repository cannot be reached you’ll see a repository access error while creating the app:

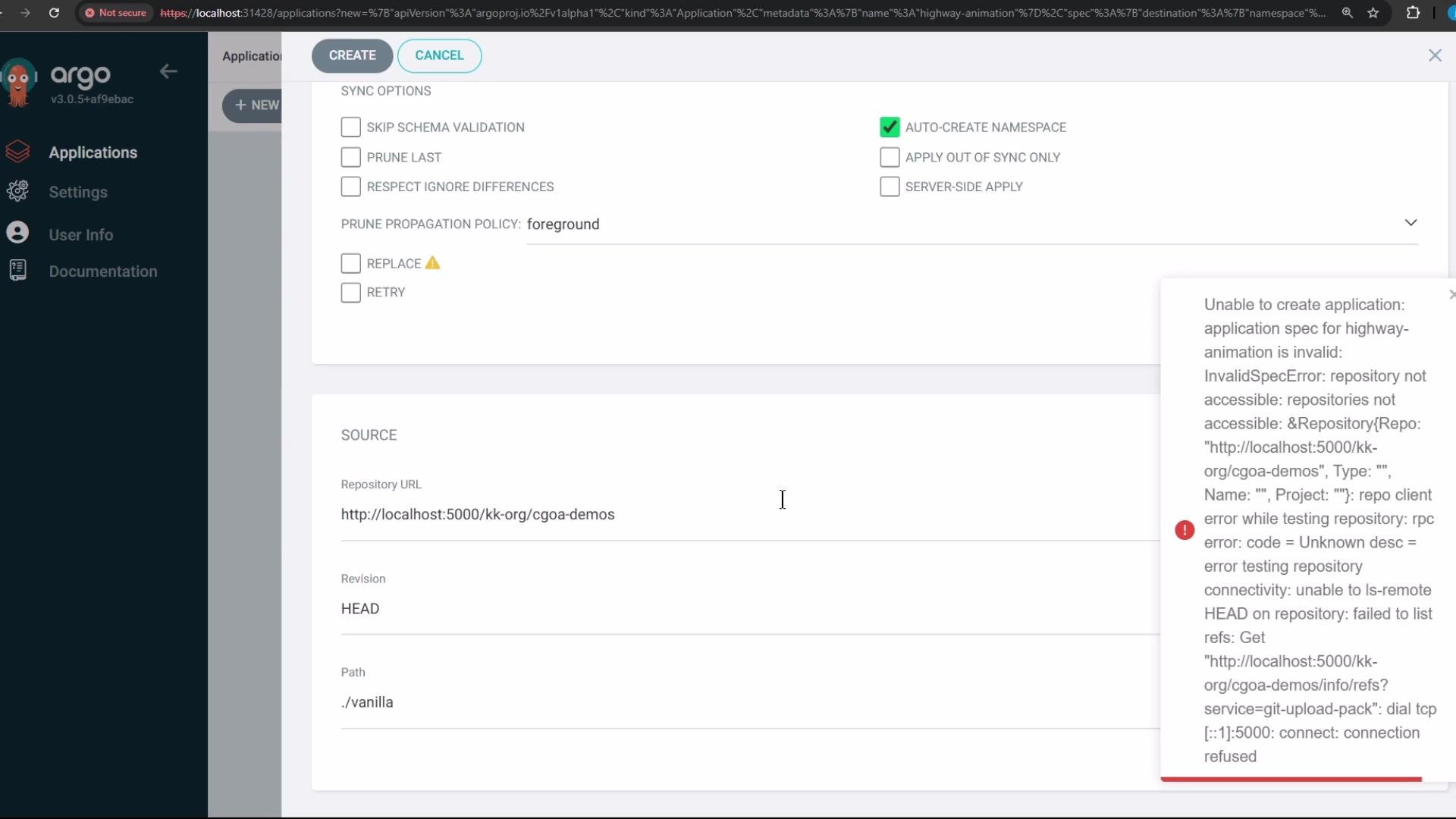

The image shows the user interface of an Argo application setup. There's an error message indicating the inability to create an application due to repository access issues, with options for syncing and source information visible.
Fixing the repository URL (for example using host.docker.internal) and recreating the application allows Argo CD to read the manifests. Because synchronization is set to Manual, the application will initially appear as Missing and OutOfSync until you explicitly sync it:

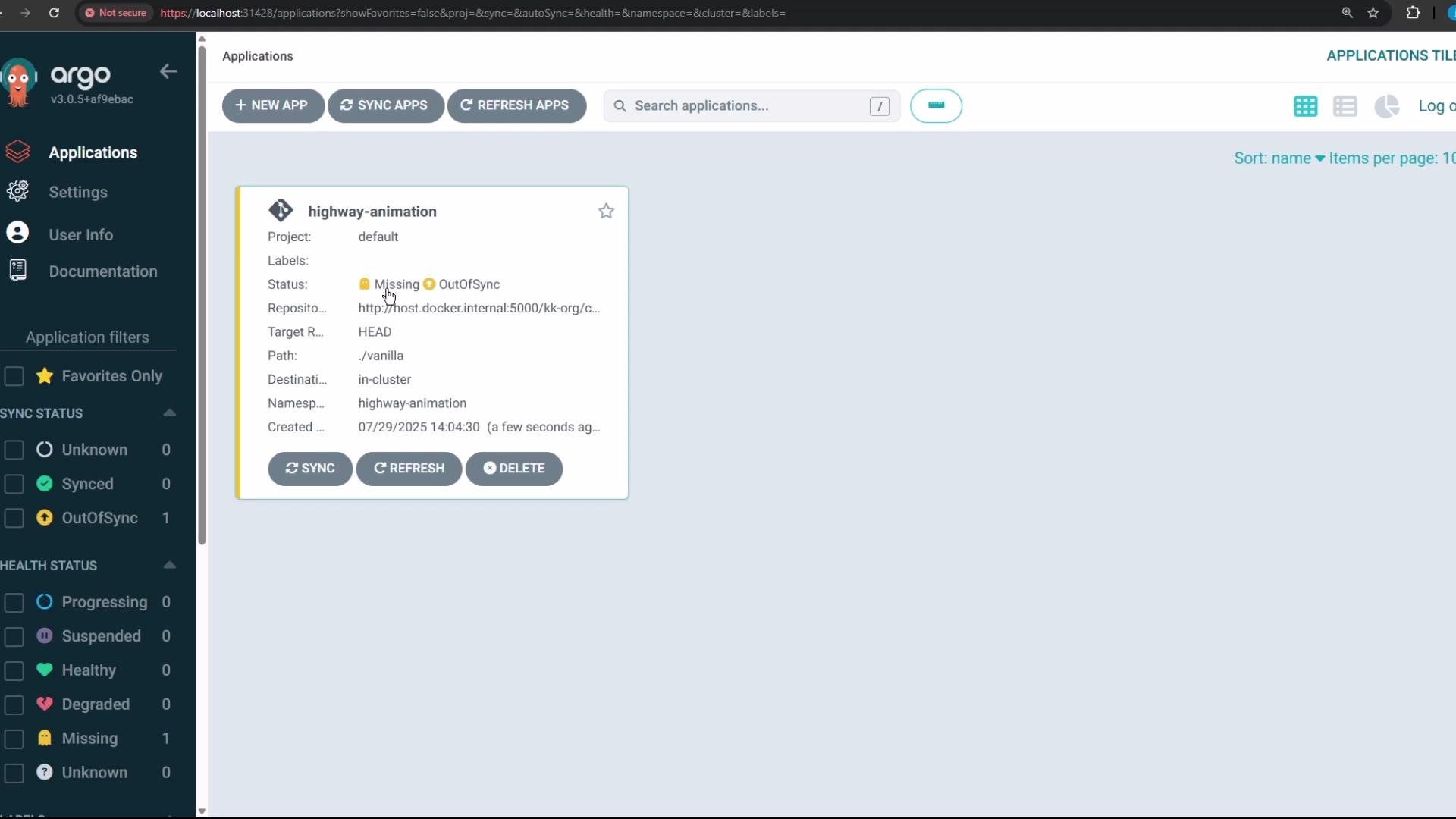

The image shows the Argo CD interface displaying an application called "highway-animation" with a status of "Missing" and "OutOfSync." The application details include repository information and options to sync, refresh, or delete.
Inspecting the discovered resources Click into the application to view the resources Argo CD discovered under the vanilla path. You should see two desired resources: a Deployment and a Service. Argo CD reads the YAML manifests from Git (desired state), but the live resources in the cluster are reported as “Resource not found” until you sync. Here is the Deployment manifest Argo CD fetched (the desired state pulled from Gitea):
apiVersion: apps/v1
kind: Deployment
metadata:
  annotations:
    argocd.argoproj.io/tracking-id: highway-animation:apps/Deployment:highway-animation/highway-animation
  name: highway-animation
  namespace: highway-animation
spec:
  replicas: 1
  selector:
    matchLabels:
      app: highway-animation
  template:
    metadata:
      labels:
        app: highway-animation
    spec:
      containers:
        - name: highway-animation
          image: sjddhart67/highway-animation:blue
          ports:
            - containerPort: 3000
          env:
            - name: POD_COUNT
              value: "1"
This confirms Argo CD successfully connected to Gitea and read the manifest. Because sync is manual, Argo CD will not apply the manifests to the cluster until you click Sync (or change the app to Automatic sync).
Because this repository is referenced across multiple demos, add it to Argo CD’s repository settings so it appears as a pre-populated choice when creating new applications.
Registering the Git repository in Argo CD To avoid retyping or troubleshooting the repo for each application, register the repository in Argo CD Settings:
  • Go to Argo CD → Settings → Repositories.
  • Click “Connect Repo” and enter the repository URL (choose Git and HTTP/S as appropriate).
  • If the repo is public, credentials can be omitted. For private repos provide credentials or an SSH key.
  • Click “Connect” to register the repository.
After connecting, the repository appears in the new application form for quick selection.

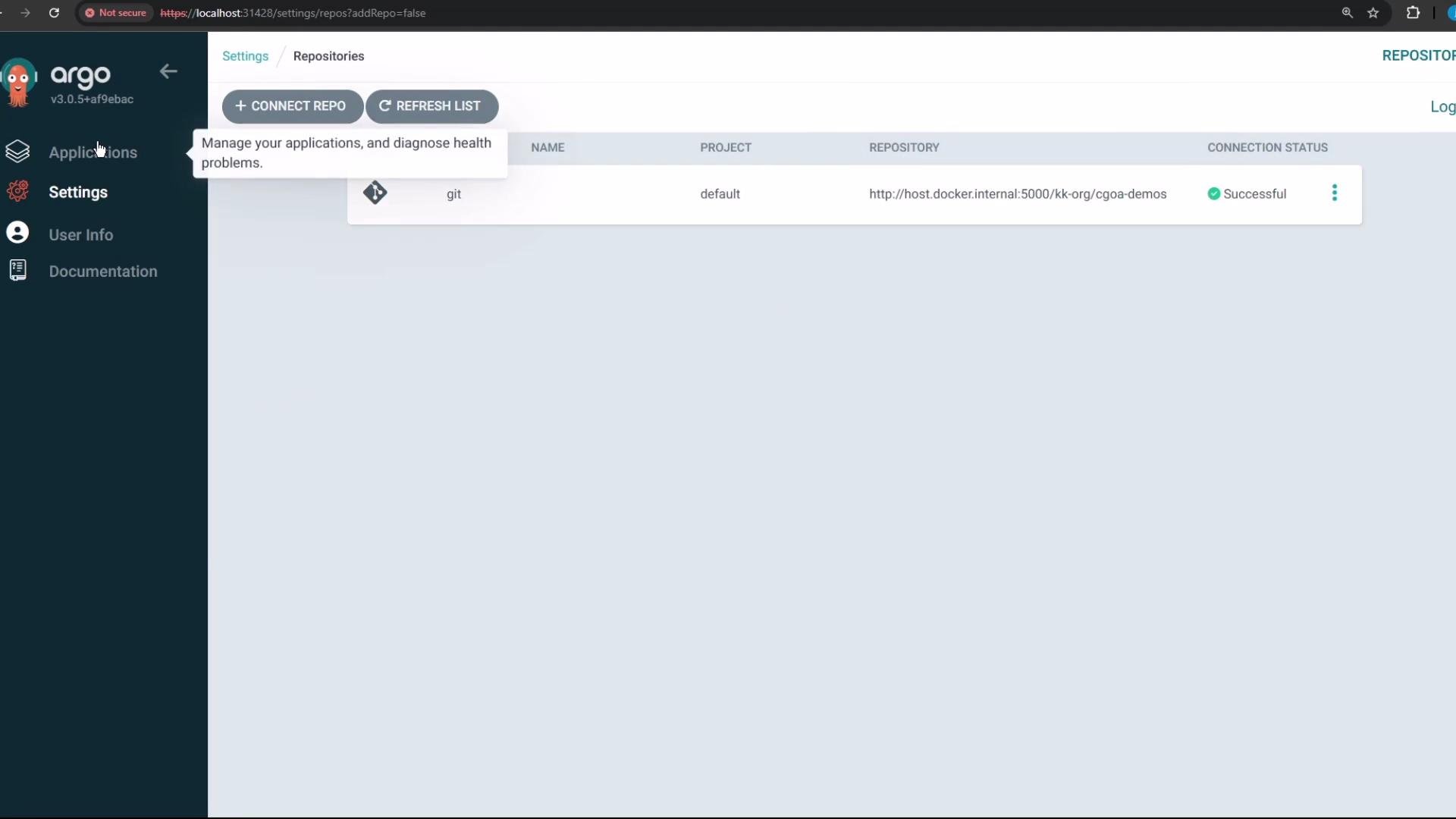

The image shows the Argo CD interface with the "Repositories" settings page open, displaying a connected Git repository with a successful connection status.
Summary and key points
TopicExplanationAction / Example
Source-of-truthUse a Git repo (Gitea in this demo) for manifestsPlace YAML in vanilla directory
Argo CD sync modeManual vs Automatic controls when resources are appliedWe used Manual to observe desired vs live states
Common networking pitfallContainers cannot reach host localhostUse host.docker.internal or cluster-accessible address
Registering reposPre-register Git repos in Argo CD settingsSettings → Repositories → Connect Repo
Next steps
  • Perform a manual sync to apply the Deployment and Service to the cluster and observe Argo CD transitioning resources from Missing → Synced.
  • Experiment with Automatic sync mode to see continuous reconciliation.
  • Inspect the created namespace and resources with kubectl (e.g., kubectl get all -n highway-animation).
