Demo CICD vs GitOps Part 1

This lesson demonstrates a GitOps-style CI/CD flow: a Jenkins pipeline builds and publishes a container image, updates Kubernetes manifests stored in Git, and Argo CD applies those changes to the cluster. The example uses a simple Node.js app (highway-animation), a manifest repository tracked by Argo CD, and a self-hosted Gitea instance for repository hosting and PR automation.

Manifest: Deployment example

Below is the Deployment manifest used in this demo. It deploys 10 replicas of the highway-animation app and exposes the app container on port 3000. Argo CD will track this manifest in the manifest repository.

apiVersion: apps/v1
kind: Deployment
metadata:
  name: highway-animation
  namespace: jenkins-demo
spec:
  replicas: 10
  selector:
    matchLabels:
      app: highway-animation
  template:
    metadata:
      labels:
        app: highway-animation
    spec:
      containers:
        - name: highway-animation
          image: siddharth67/highway-animation:blue
          ports:
            - containerPort: 3000
          env:
            - name: POD_COUNT
              value: "10"

Create an Argo CD Application

Create an Argo CD Application that points to the manifest repository for the Jenkins demo. In the UI choose a name such as jenkins-demo, set the sync policy to manual initially (so you can control when changes are applied), and enable auto-creation of the target namespace.

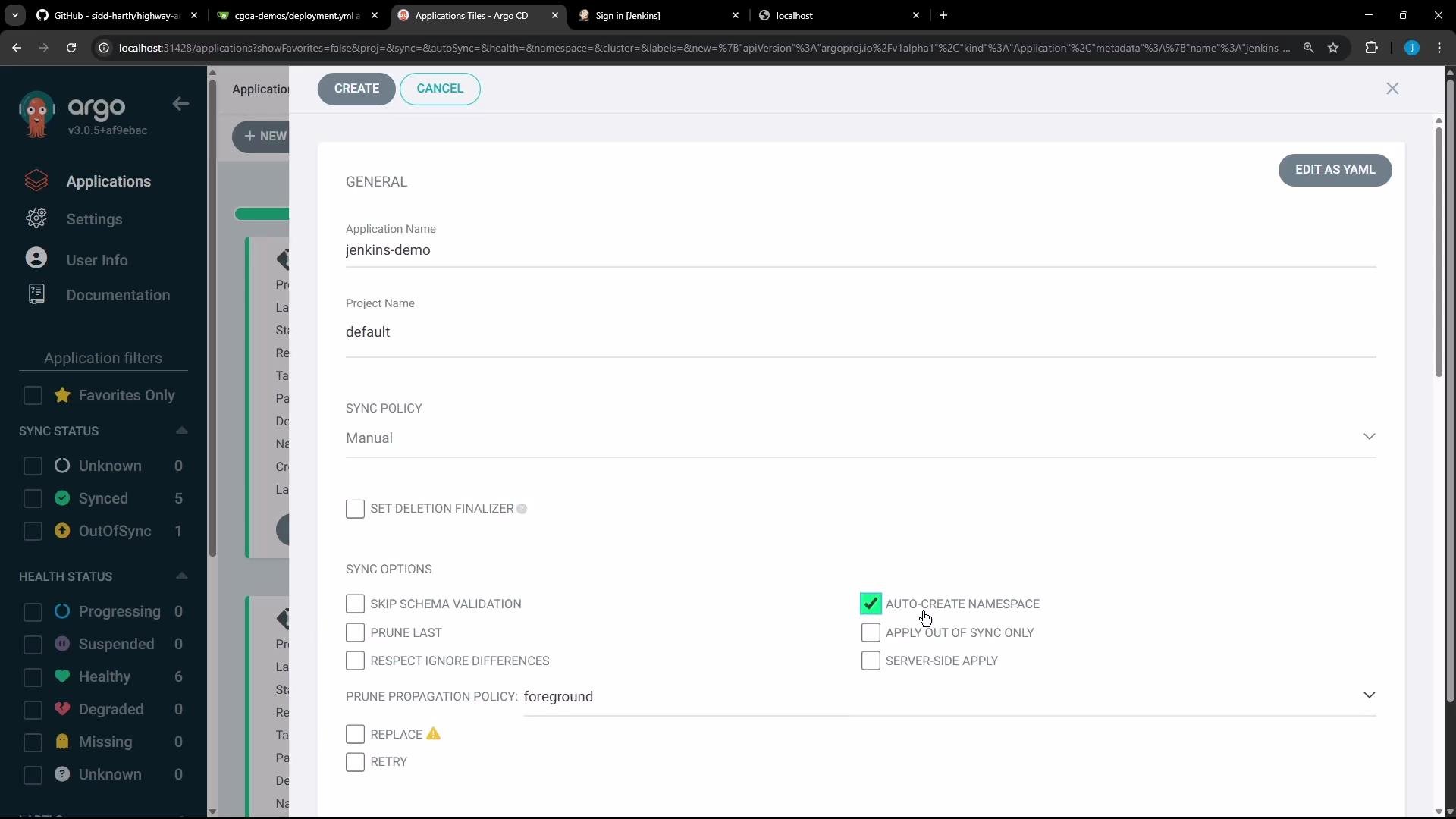

The image shows an Argo CD application creation interface with settings for a "jenkins-demo" application. Options for sync policy, sync options, and project details are visible.

After creating the application the status will show as OutOfSync until you manually sync. Once you sync, Argo CD creates the jenkins-demo namespace and deploys the resources. In this demo the Deployment creates 10 Pods.

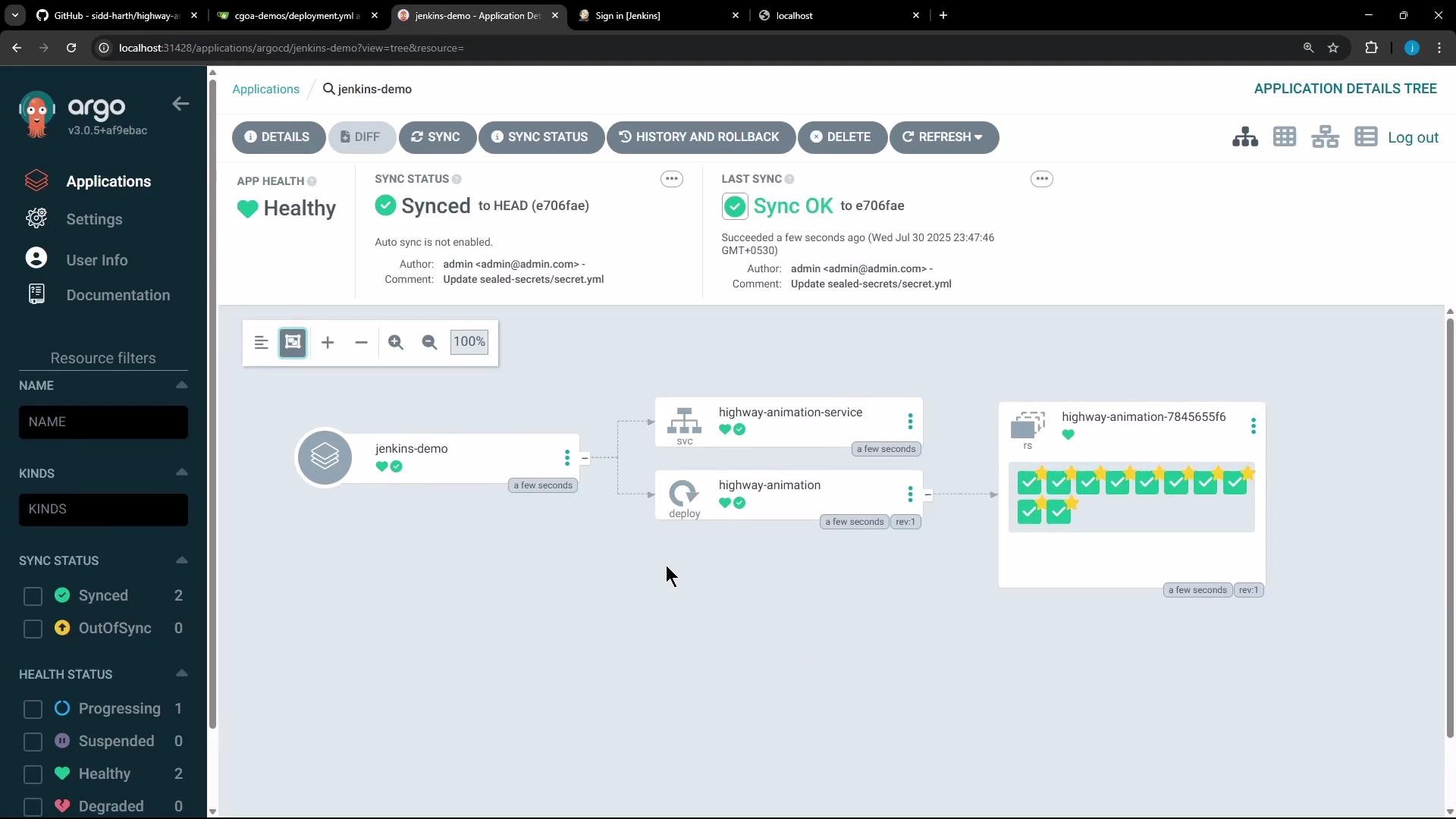

The image displays the Argo CD dashboard showing the status of a "jenkins-demo" application, with all components marked as healthy and synced. The graphical interface includes a flowchart of services and deployments with green health indicators.

Once deployed you can access the app (in the demo it was exposed on a NodePort) and confirm the UI shows 10 blue vehicles.

Developer workflow with GitOps

With GitOps the developer makes changes to application source, builds a new image, pushes it to a registry, and updates the image tag in the manifest repository. Argo CD monitors the manifest repo and applies changes once they land on the tracked branch (e.g., main). For this demo we migrated the app source from GitHub to a self-hosted Gitea instance and made small UI/server fixes. The migration UI looks like this:

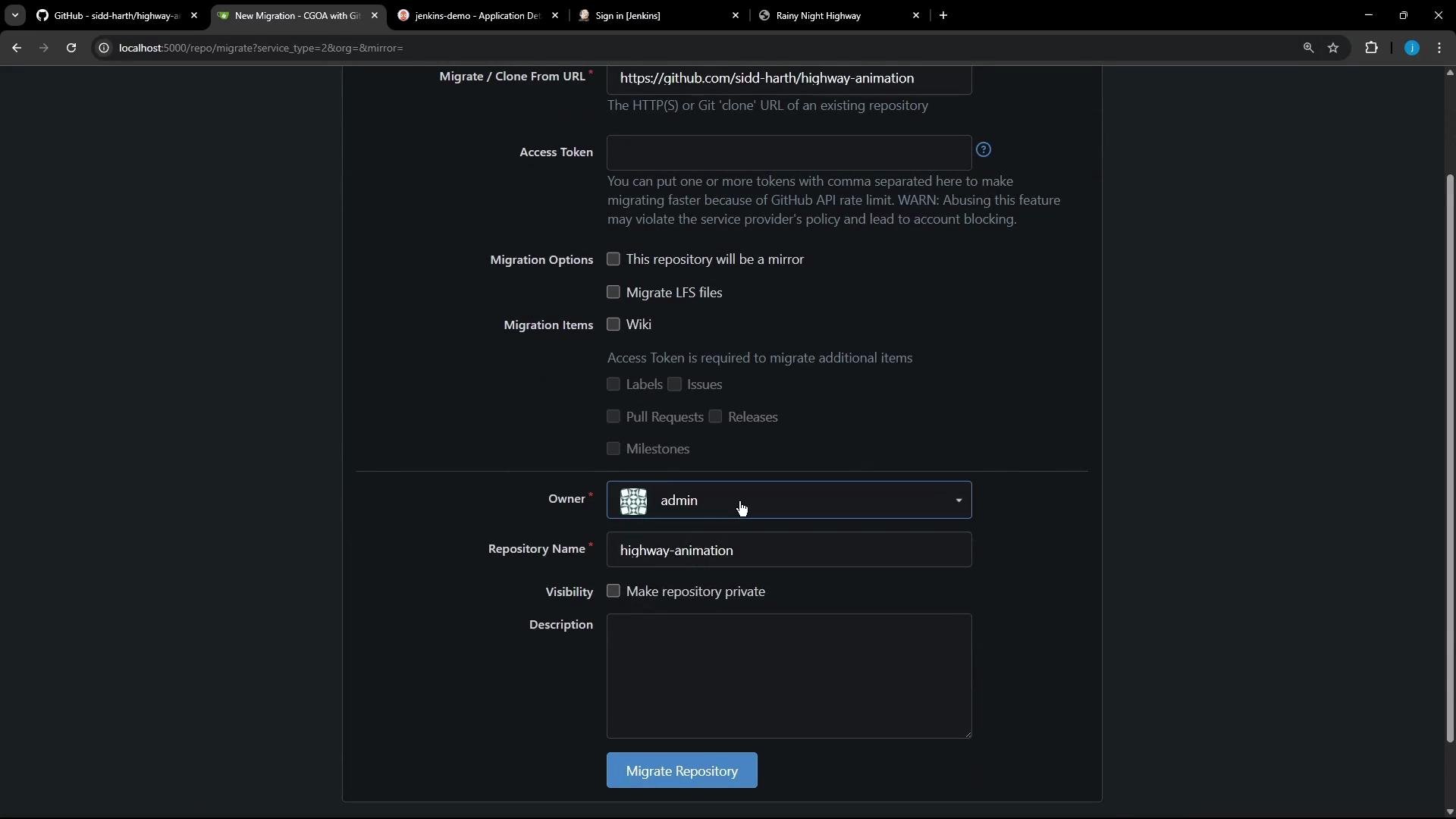

The image shows a web interface for migrating a GitHub repository, with fields for URL input, access token, migration options, and repository details such as owner and visibility settings.

The highway-animation repository contains:

public/index.html (UI)
frontend JS files (ui.js, app.js)
package.json
Dockerfile
Jenkinsfile (CI/CD)

When browsing the manifest repository to update deployment.yaml you will see a structure similar to the image below:

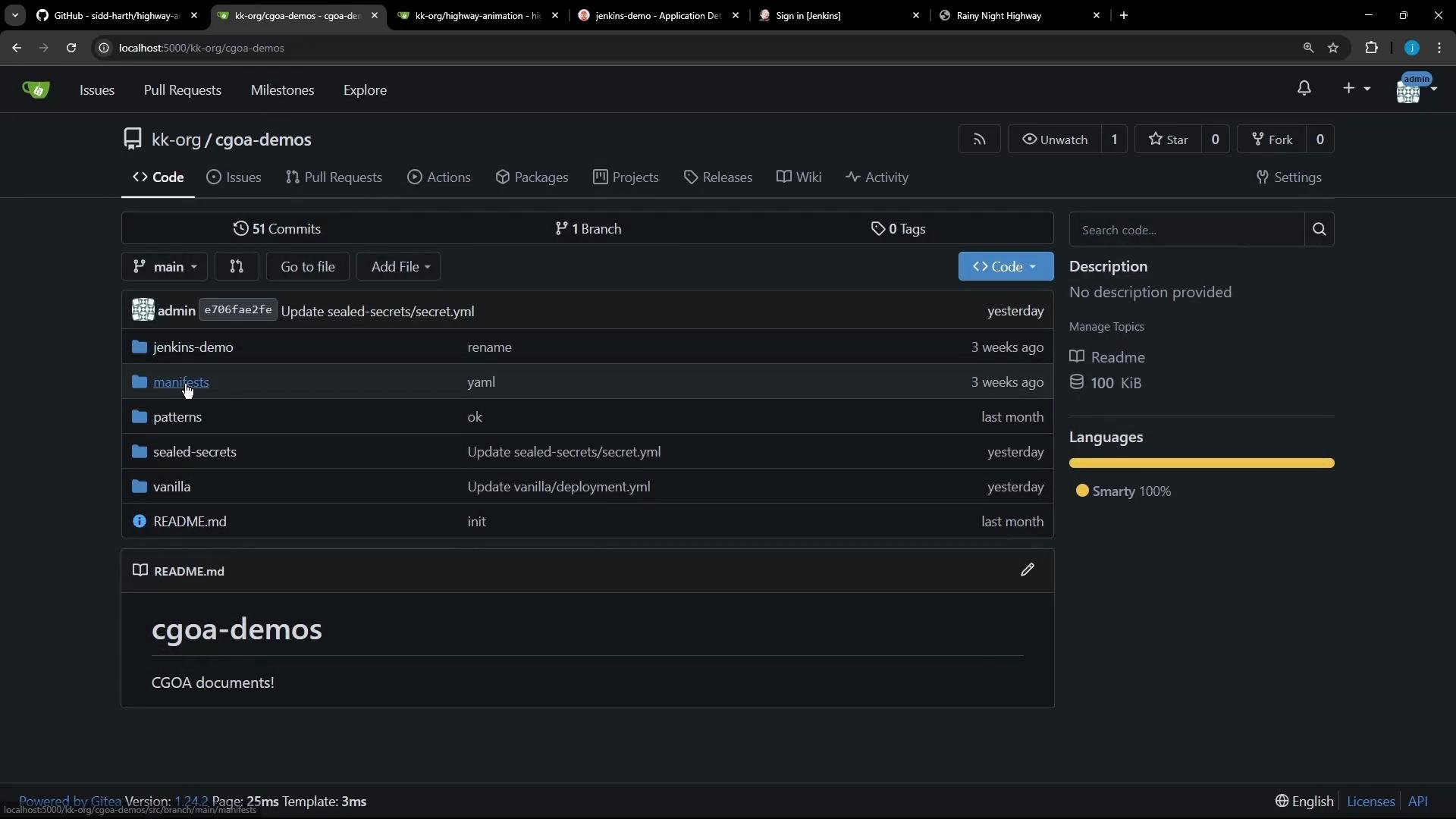

The image shows a GitHub repository interface with various directories and files listed, such as "jenkins-demo" and "README.md," all presented under the branch "main" with commit details on updates made.

Application fixes and snippets

Representative fixes made while preparing the demo:

Ensure server listens on port 3000 (was 3001).
Serve static assets from public/.
Add a /health endpoint and a /api/pod-info endpoint that reads POD_COUNT from environment variables.

server.js (corrected):

const express = require('express');
const path = require('path');
const app = express();
const PORT = process.env.PORT || 3000;

// Serve static files from public directory
app.use(express.static('public'));

// Main route
app.get('/', (req, res) => {
  res.sendFile(path.join(__dirname, 'public', 'index.html'));
});

// Health check route
app.get('/health', (req, res) => {
  res.json({ status: 'OK', message: 'Highway Animation Server is running' });
});

app.get('/api/pod-info', (req, res) => {
  const podCount = parseInt(process.env.POD_COUNT, 10) || 1;
  res.json({ podCount });
});

app.listen(PORT, () => {
  console.log(`Server listening on port ${PORT}`);
});

index.html (style snippet):

<!DOCTYPE html>
<html lang="en">
<head>
  <meta charset="UTF-8" />
  <meta name="viewport" content="width=device-width, initial-scale=1.0"/>
  <title>Rainy Night Highway</title>
  <style>
    body { margin: 0; padding: 0; box-sizing: border-box; background: #0a0a0a; overflow: hidden; font-family: Arial, sans-serif; }
    #gameCanvas { display: block; background: linear-gradient(to bottom, #008010 0%, #101010 50%, #0c0c14 100%); }
  </style>
</head>
<body>
  <canvas id="gameCanvas"></canvas>
  <script src="ui.js"></script>
</body>
</html>

ui.js — example snippets

Adjust vehicle color selection to use a red palette:

const redVariations = [
  '#DC143C', '#B22222', '#8B0000', '#FF6347',
  '#CD5C5C', '#FF0000', '#FA8072'
];

const vehicleTypes = ['sedan','bus','truck','suv','hatchback','sports','doubleDecker'];

for (let i = 0; i < vehicleTypes.length; i++) {
  const type = vehicleTypes[i];
  const color = redVariations[i % redVariations.length];
  const accent = this.darkenColor ? this.darkenColor(color, 20) : '#000';
  // Create a sprite canvas for each vehicle type...
  // (rest of sprite creation code)
}

Example daytime sun drawing in the background:

class HighwayAnimation {
  drawBackground() {
    // Daytime sun
    const sunX = this.canvas.width * 0.8;
    const sunY = this.canvas.height * 0.2;

    const sunGlow = this.ctx.createRadialGradient(sunX, sunY, 20, sunX, sunY, 80);
    sunGlow.addColorStop(0, 'rgba(255, 255, 100, 0.6)');
    sunGlow.addColorStop(0.5, 'rgba(255, 200, 50, 0.3)');
    sunGlow.addColorStop(1, 'transparent');
    this.ctx.fillStyle = sunGlow;
    this.ctx.fillRect(sunX - 80, sunY - 160, 160, 160);

    // Sun rays
    this.ctx.strokeStyle = 'rgba(255, 255, 100, 0.4)';
    this.ctx.lineWidth = 2;
    for (let i = 0; i < 8; i++) {
      const angle = (i * Math.PI * 2) / 8;
      const x1 = sunX - Math.sin(angle) * 35;
      const y1 = sunY - Math.cos(angle) * 35;
      const x2 = sunX + Math.sin(angle) * 55;
      const y2 = sunY + Math.cos(angle) * 55;
      this.ctx.beginPath();
      this.ctx.moveTo(x1, y1);
      this.ctx.lineTo(x2, y2);
      this.ctx.stroke();
    }

    // Sun center
    this.ctx.fillStyle = 'rgba(255, 240, 120, 0.9)';
    this.ctx.beginPath();
    this.ctx.arc(sunX, sunY, 20, 0, Math.PI * 2);
    this.ctx.fill();
  }
}

Jenkins pipeline (full CI/CD automation)

After making source changes you build a new Docker image and push it to a registry. The Jenkins pipeline automates:

Build and tag the image (using BUILD_ID and Git commit).
Push the image to the registry using stored credentials.
Clone or pull the manifest repository.
Update the deployment.yaml with the new image tag (using sed).
Commit and push a feature branch and open a PR via the Gitea API.

Below is a cleaned-up, corrected Jenkins declarative pipeline that demonstrates the full flow.

pipeline {
  agent any

  environment {
    NAME = "highway-animation"
    // VERSION includes BUILD_ID and the commit hash
    VERSION = "${env.BUILD_ID}-${env.GIT_COMMIT}"
    IMAGE_REPO = "siddharth67"
    // GITEA_TOKEN should be added to Jenkins Credentials (type: Secret text)
    GITEA_TOKEN = credentials('gitea-token')
    // DockerHub credentials ID stored in Jenkins credentials
    DOCKER_CREDENTIALS_ID = 'docker-hub-credentials'
    MANIFEST_REPO_URL = "http://localhost:5000/kk-org/cgoa-demos.git"
    MANIFEST_DIR = "cgoa-demos"
    FEATURE_BRANCH = "feature-gitea"
  }

  stages {
    stage('Unit Tests') {
      steps {
        echo 'Run unit tests here (placeholder)'
      }
    }

    stage('Build Image') {
      steps {
        sh "docker build -t ${NAME}:${VERSION} ."
        sh "docker tag ${NAME}:${VERSION} ${IMAGE_REPO}/${NAME}:${VERSION}"
      }
    }

    stage('Push Image') {
      steps {
        withDockerRegistry([credentialsId: DOCKER_CREDENTIALS_ID, url: ""]) {
          sh "docker push ${IMAGE_REPO}/${NAME}:${VERSION}"
        }
      }
    }

    stage('Clone or Pull Manifest Repo') {
      steps {
        script {
          if (fileExists("${MANIFEST_DIR}")) {
            echo 'Manifest repo exists. Pulling latest changes...'
            dir("${MANIFEST_DIR}") {
              sh 'git checkout main || true'
              sh 'git pull origin main'
            }
          } else {
            echo 'Cloning manifest repo...'
            sh "git clone -b main ${MANIFEST_REPO_URL} ${MANIFEST_DIR}"
          }
        }
      }
    }

    stage('Update Manifest') {
      steps {
        dir("${MANIFEST_DIR}/jenkins-demo") {
          // Replace the image line with the new image and tag.
          // This sed targets a line starting with "image:" and replaces the value.
          sh "sed -i 's|^\\s*image:\\s.*|image: ${IMAGE_REPO}/${NAME}:${VERSION}|' deployment.yaml"
          sh 'cat deployment.yaml'
        }
      }
    }

    stage('Commit & Push Manifest Branch') {
      steps {
        dir("${MANIFEST_DIR}") {
          sh "git config user.email 'jenkins@ci.local'"
          sh "git config user.name 'jenkins'"
          // Create or checkout the feature branch
          sh "git checkout -B ${FEATURE_BRANCH}"
          sh 'git add -A'
          sh "git commit -m 'Updated image to ${IMAGE_REPO}/${NAME}:${VERSION}' || echo 'No changes to commit'"
          // Use the Gitea token in the remote URL for authentication
          sh "git remote set-url origin https://${GITEA_TOKEN}@${env.MANIFEST_REPO_URL.replace('http://', '').replace('.git','')}.git || true"
          sh "git push -u origin ${FEATURE_BRANCH} --force"
        }
      }
    }

    stage('Create Pull Request in Gitea') {
      steps {
        dir("${MANIFEST_DIR}") {
          // The gitea token is available in environment variable GITEA_TOKEN
          sh """
            cat <<JSON > /tmp/pr-body.json
            {
              "assignee": "admin",
              "assignees": ["admin"],
              "base": "main",
              "head": "${FEATURE_BRANCH}",
              "title": "Update image: ${NAME}:${VERSION}",
              "body": "Automated update of Deployment to image ${IMAGE_REPO}/${NAME}:${VERSION}"
            }
            JSON
          """
          sh "curl -s -X POST 'http://localhost:5000/api/v1/repos/kk-org/cgoa-demos/pulls' -H 'Content-Type: application/json' -H \"Authorization: token ${GITEA_TOKEN}\" -d @/tmp/pr-body.json || true"
        }
      }
    }
  }
}

Never hard-code tokens or registry credentials in pipelines or repository files. Use Jenkins Credentials (or a secret manager) and reference them via credentials() in the pipeline.

Store tokens and registry credentials in Jenkins Credentials (or another secret manager) and reference them via credentials() in the pipeline. Avoid hard-coding secrets in scripts or repository files.

Gitea: creating tokens and using the API

If you need to create a personal access token in Gitea (so Jenkins can push/raise PRs), go to your Gitea user settings → Applications and generate a token with repository write permissions. The token is shown only once — copy it to a secure secret store.

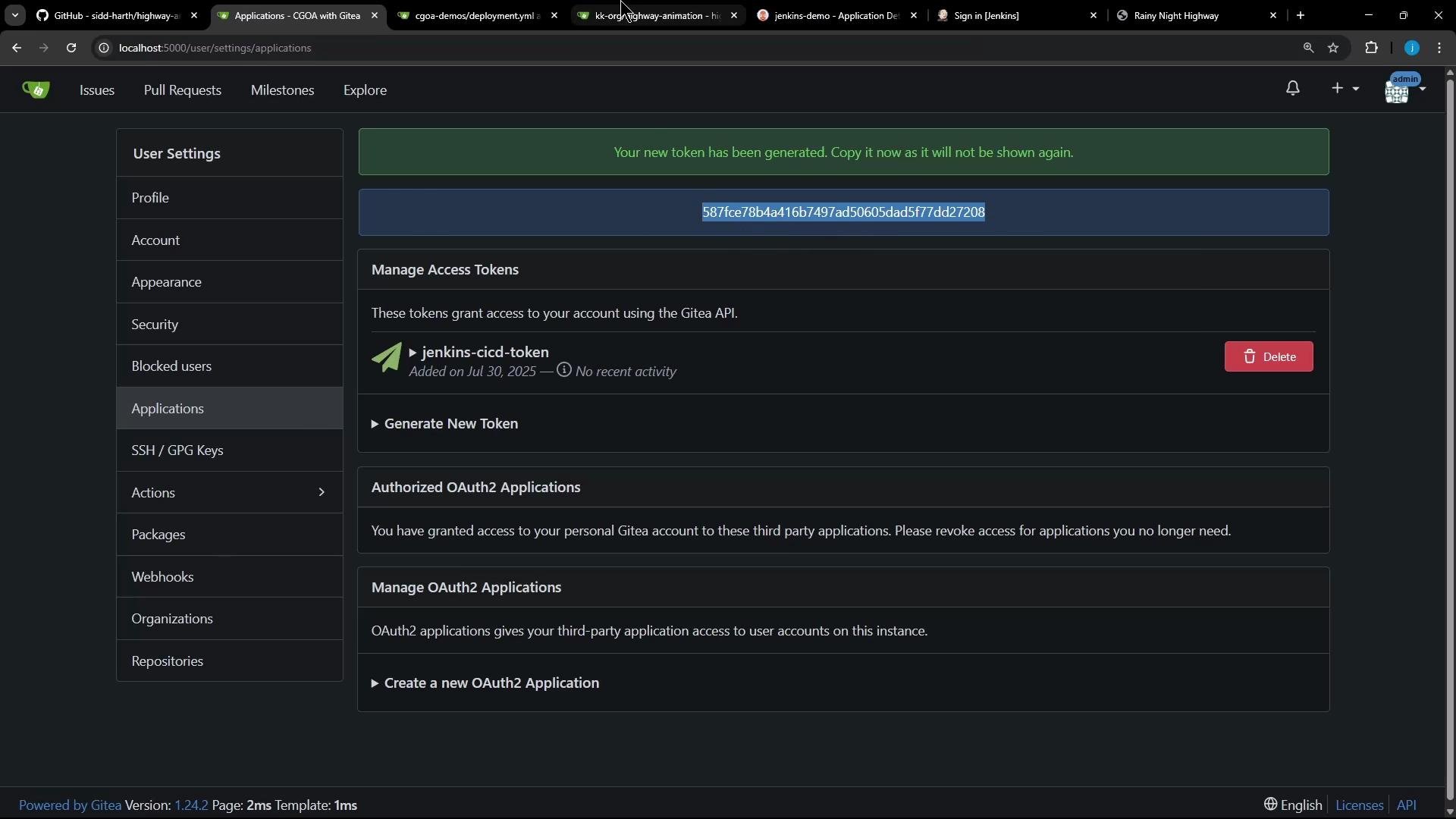

The image shows the Gitea user settings interface, specifically the applications section where access tokens and OAuth2 applications can be managed. A new token has been generated and is displayed with a note to copy it as it won't be shown again.

Gitea exposes a REST API (Swagger) that documents payloads for operations such as creating pull requests. You can review the API and try sample requests: https://docs.gitea.io/en-us/swagger/

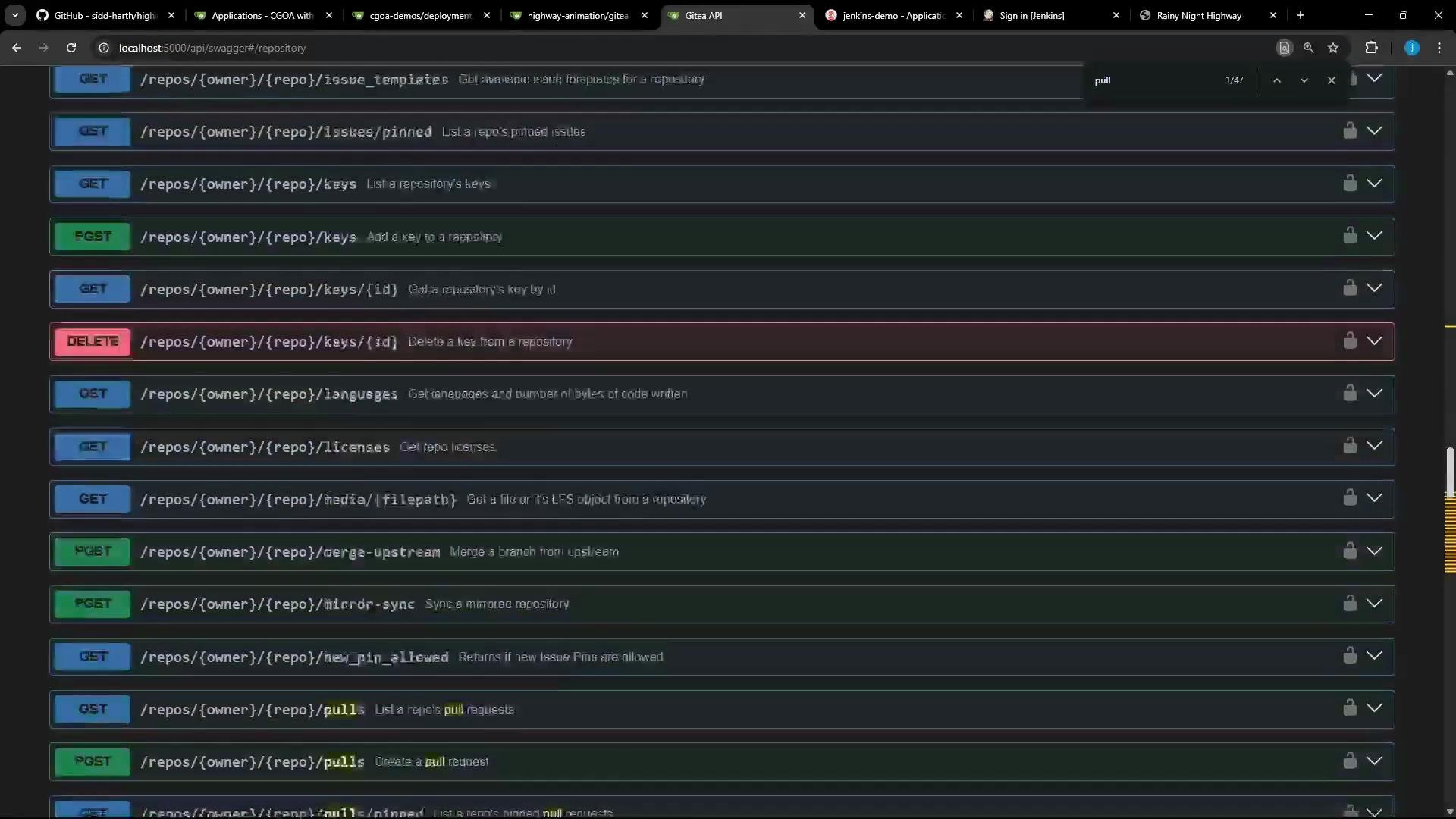

The image shows a webpage displaying a list of API endpoints related to a repository, with various HTTP methods like GET, POST, and DELETE highlighted in different colors.

Example shell script to create a PR (invoked by the Jenkins pipeline). This script relies on the GITEA_TOKEN environment variable and assumes the repo owner/name and branch names are set appropriately: gitea-pr.sh (example):

#!/usr/bin/env bash
set -euo pipefail

API_URL="http://localhost:5000/api/v1"
REPO_OWNER="kk-org"
REPO_NAME="cgoa-demos"
HEAD_BRANCH="feature-gitea"
BASE_BRANCH="main"

echo "Opening a Pull Request for ${REPO_OWNER}/${REPO_NAME}: ${HEAD_BRANCH} -> ${BASE_BRANCH}"

curl -s -X POST "${API_URL}/repos/${REPO_OWNER}/${REPO_NAME}/pulls" \
  -H 'Accept: application/json' \
  -H "Authorization: token ${GITEA_TOKEN}" \
  -H 'Content-Type: application/json' \
  -d "{
    \"assignee\": \"admin\",
    \"assignees\": [\"admin\"],
    \"base\": \"${BASE_BRANCH}\",
    \"head\": \"${HEAD_BRANCH}\",
    \"title\": \"Updated deployment image\",
    \"body\": \"Automated update of deployment image by CI pipeline.\"
  }"

echo "Pull request API call complete."

Pipeline stages at a glance

Stage	Purpose	Example action
Unit Tests	Verify application logic	Run `npm test` or equivalent
Build Image	Build and tag container	`docker build -t highway-animation:...`
Push Image	Push image to registry	`docker push <repo>/highway-animation:...`
Update Manifest	Update deployment image in Git	`sed` replace in `deployment.yaml`
Commit & PR	Push branch and open PR for review	Use Gitea API to create PR
Argo CD sync	Apply manifest changes to cluster	Argo CD observes `main` and applies

End-to-end flow (summary)

Developer updates application source (UI or server).
Jenkins builds, tags, and pushes a new image to the registry.
Jenkins clones/pulls the manifest repo, updates deployment.yaml with the new image tag, commits, and pushes a feature branch.
Jenkins opens a PR in Gitea for the manifest change.
A reviewer inspects and merges the PR; once merged, Argo CD detects the change on main and applies it to the cluster (or Argo CD can be configured for automated sync).

For more background reading:

Argo CD docs: https://argo-cd.readthedocs.io/
Jenkins pipeline docs: https://www.jenkins.io/doc/
Gitea API docs (Swagger): https://docs.gitea.io/en-us/swagger/

Later we will create the Jenkins job, run the pipeline, and observe the full flow end-to-end — from source change to Argo CD applying the updated manifest.
